Dadam micro Puripot User manual

User Manual (REV 2.0)
2021.03
Copyrightⓒ 2021 by Dadam Micro Inc. All Rights Reserved.
No part of this document may be quoted, or reproduced for distribution
without prior written approval from Dadam Micro Inc.
F1 / F1+ / F1N
User Manual

32
· Use this item only for its designed purpose.
· Do not disassemble the product. It is very dangerous to open or disassemble
the product when power is being applied.
If the unit is disassembled even once, the warranty will not apply.
· The sensing accuracy will be reduced if the sensor area is covered with other
foreign objects. Therefore, it is always necessary to maintain the area as clean
as possible for the best detection performance.
· Do not block the air intake or other openings.
· Do not touch the product with wet hands.
· Do not place the product near heat, soot or steam.
· Be sure to unplug the product before cleaning.
· When the dust gets accumulated around the air inlets, the PCO mesh unit or
the sensing area, clean it with a vacuum cleaner or hand dust remover.
· Do not drop or give a strong shock.
· Keep the children from playing with the product.
Before using the product, read all instructions and
cautionary markings in this manual.
Warning

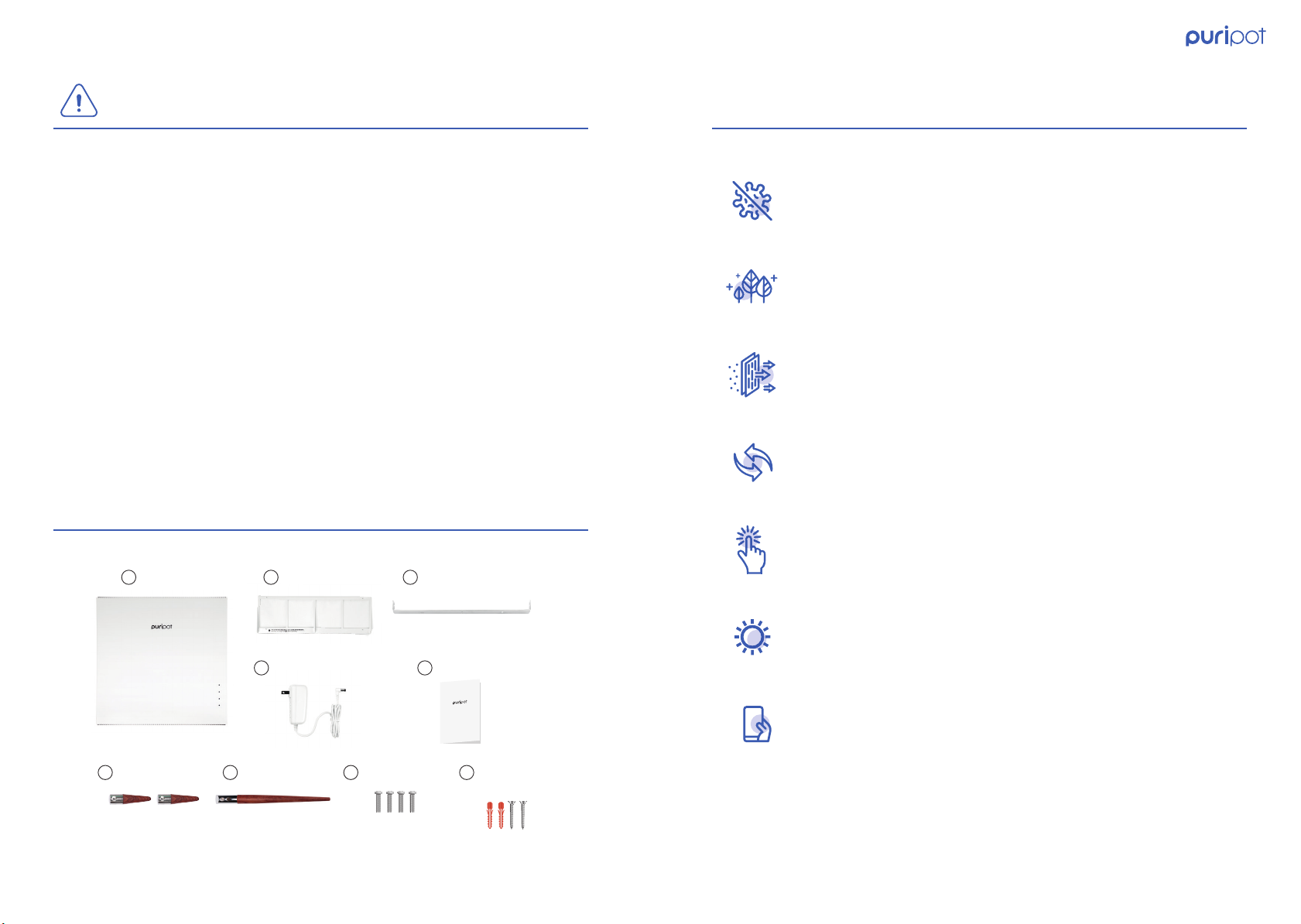

1Main Body
6Stand Short-Leg 7Stand Long-Leg 8Screws for Leg 9Screws for
Mounting Bracket
3Mounting Bracket
F1+ / F1N
User Manual
4AC Power Adapter 5User Manual
2PCO Mesh Unit
Product Package
Main Function
Sterilization
Strong sterilization by photocatalyst honeycomb unit
with hydroxyl radical to remove VOCs, bacteria and viruses
Deodorization
Strong deodorization by photocatalytic oxidation (PCO)
of nano-porous structured titanium dioxide
Dual Filtration
Powerful air purification with replacement-free PCO
mesh unit and blue light PCO honeycomb module
Compatible Dual Design
Compatible design for dual-form use :
wall-mountable type and stand type
Mood Lighting
Indirect mood lighting capability with rear LED
Air Quality Monitor
Air quality monitoring with VOC gas sensor and
color indication of measured air quality
IoT Function
Mobile App based IoT service (F1N)

4
Bracket
Hanging Hole
54
Mood Light Button
Power / Operation Mode Button
Mood Light LED
Stand Short-Leg
Stand Long-Leg
AC Power Adapter
Connector
Main Body Components (Side View)
Main Body Components (Rear View)
Bottom grill
Main Body Components (Front View)
Stand Type
Frame Type
Status LED
· F1 / F1+ : VOC sensor
· F1N : VOC sensor
Temp. / RH sensor
Air quality monitor LED

76
Polluted Air
Purified Air
Inside Main Body & Function
· Removal of VOCs
· Fine dust removal
PCO Mesh Unit
· Sterilization
· Deodorization
· Removal of VOCs
PCO Honeycomb Module

123
45
123
45
6
123
45
98

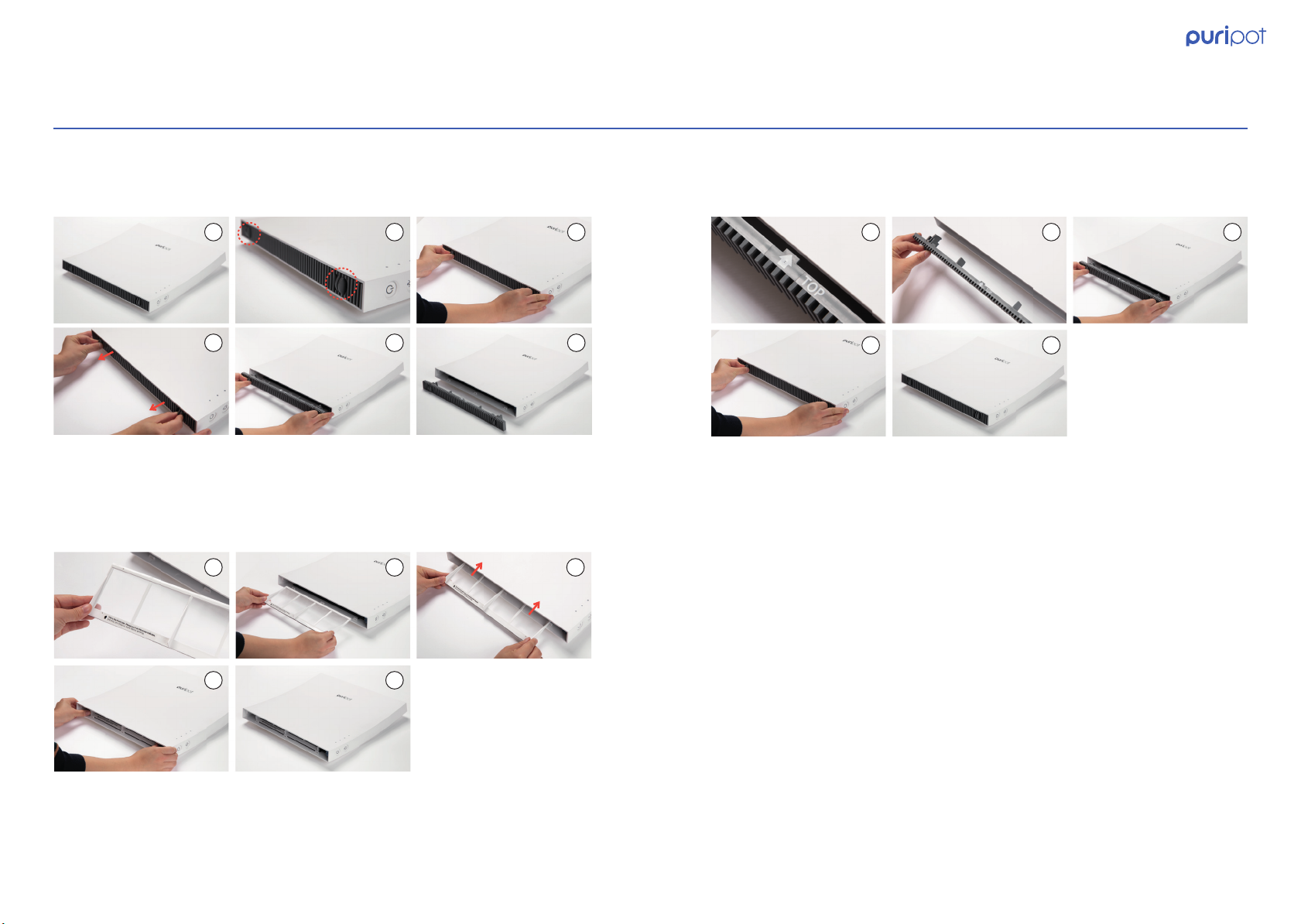

How to install PCO Mesh Unit
3. Insert the bottom grill
2. Insert the PCO mesh unit
1. Detach the grill from the main body
Make sure that the PCO mesh unit label is front.
Insert the PCO mesh unit in the direction of arrow
until it clicks into the latch.
Check the TOP marked on the grill and push it back in the direction of the arrow.Hold the left/right grill handles placed at the bottom and pull it down to detach
the grill from the main body.

10 11
How to connect AC power adapter
Plug the AC power adapter into the power connector
located in the back of the main body.

12 13
2. Stand Long-Leg

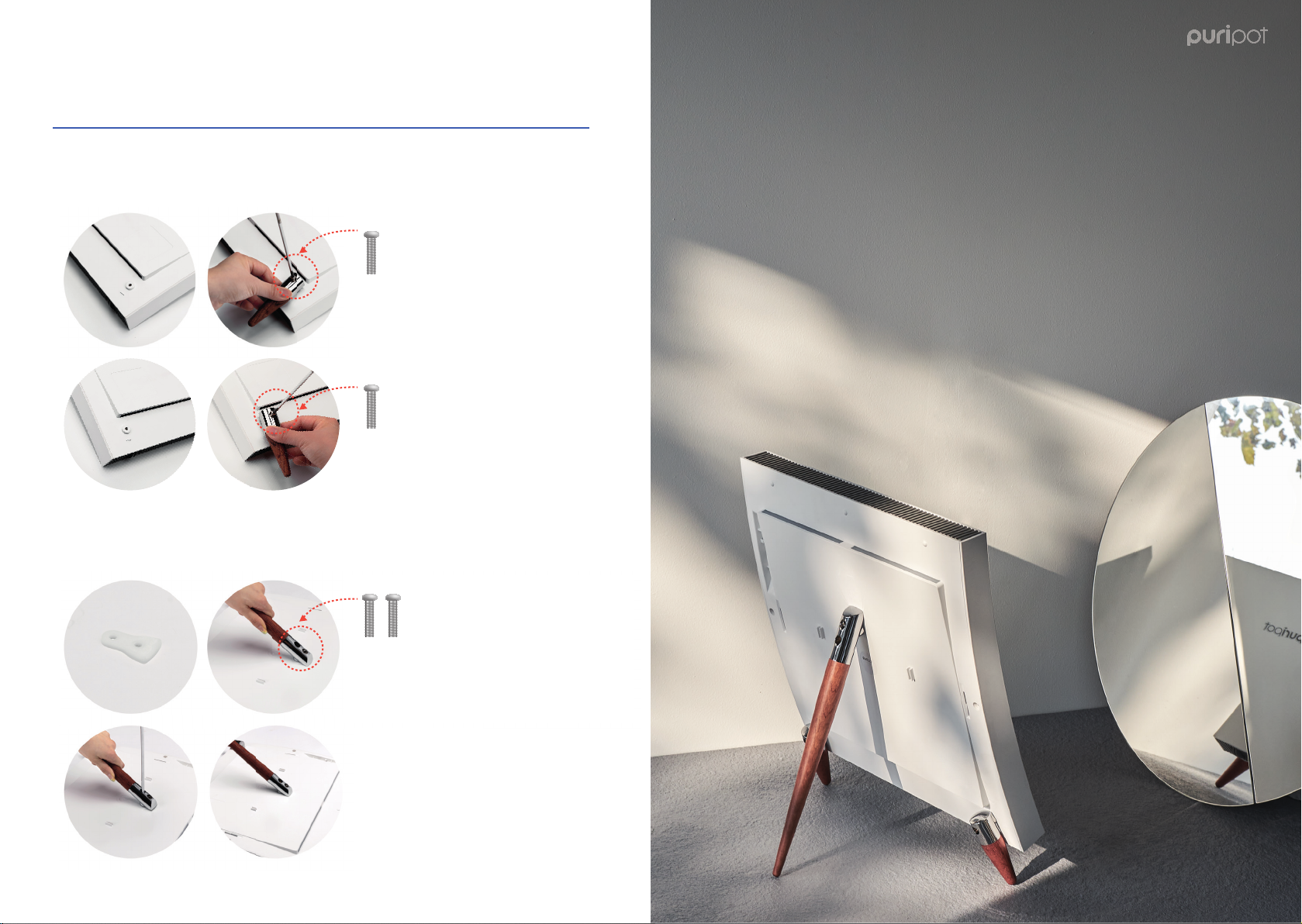

How to install (Stand Type)
After fitting the stand long-leg
at the hole on the rear of
the product, fix it with enclosed
two screws.
1. Stand Short-Leg
Fasten the stand short-leg to
the right lower part of the product
with the enclosed screw.
Fasten the stand short-leg to
the other side with the enclosed screw.

TIP
Using puripot more effectively
15
For concrete walls /
tile walls
※
How to install (Frame Type)
Groove : angle between the wall
and the top of the body becomes 7˚
1
Groove : angle between the wall
and the top of the body becomes 12˚
2
14
Screw the mounting bracket to
the wall using the screws provided.
Mount the main body to
one of the grooves on the bracket.
The two grooves of the bracket are designed to provide two different mounting
angles. Select the groove of your preferred angle and install the main body.
1 2
7˚12˚
To increase the air cleaning efficiency,
install puripot in the position facing
the window, air conditioner or fan.
If the room has a strong odor, please
open the window and use puripot
at the same time.

Level 1
mode
Level 2
Level 3
AUTO
Power OFF
1st
2nd
3rd
4th
5th
number of clicks
Lighting 25%
brightness
Lighting 50%
Lighting 75%
Lighting 100%
Power OFF
1st
2nd
3rd
4th
5th
number of clicks
How to use operation mode How to control Mood Light
Level 1 → Level 2 → Level 3 → AUTO → OFF
Lighting 25% → Lighting 50% → Lighting 75% → Lightin g 100 % → OFF
16 17
operation
mode
air quality
There are 5 operation modes.
※ The previous saved settings are used even after the power of the puripot is
turned off and on.
When the puripot enters to AUTO mode, upper 3 LED blinks every 1 second in
order. Puripot sensor monitors the air quality and it controls the fan speed level
automatically.
There are 5 mood light brightness levels.
1. Operation mode 1. Mood Light Brightness
2. AUTO mode ※ The previous saved settings are valid even after the power of the puripot is
turned off and on.

18 19

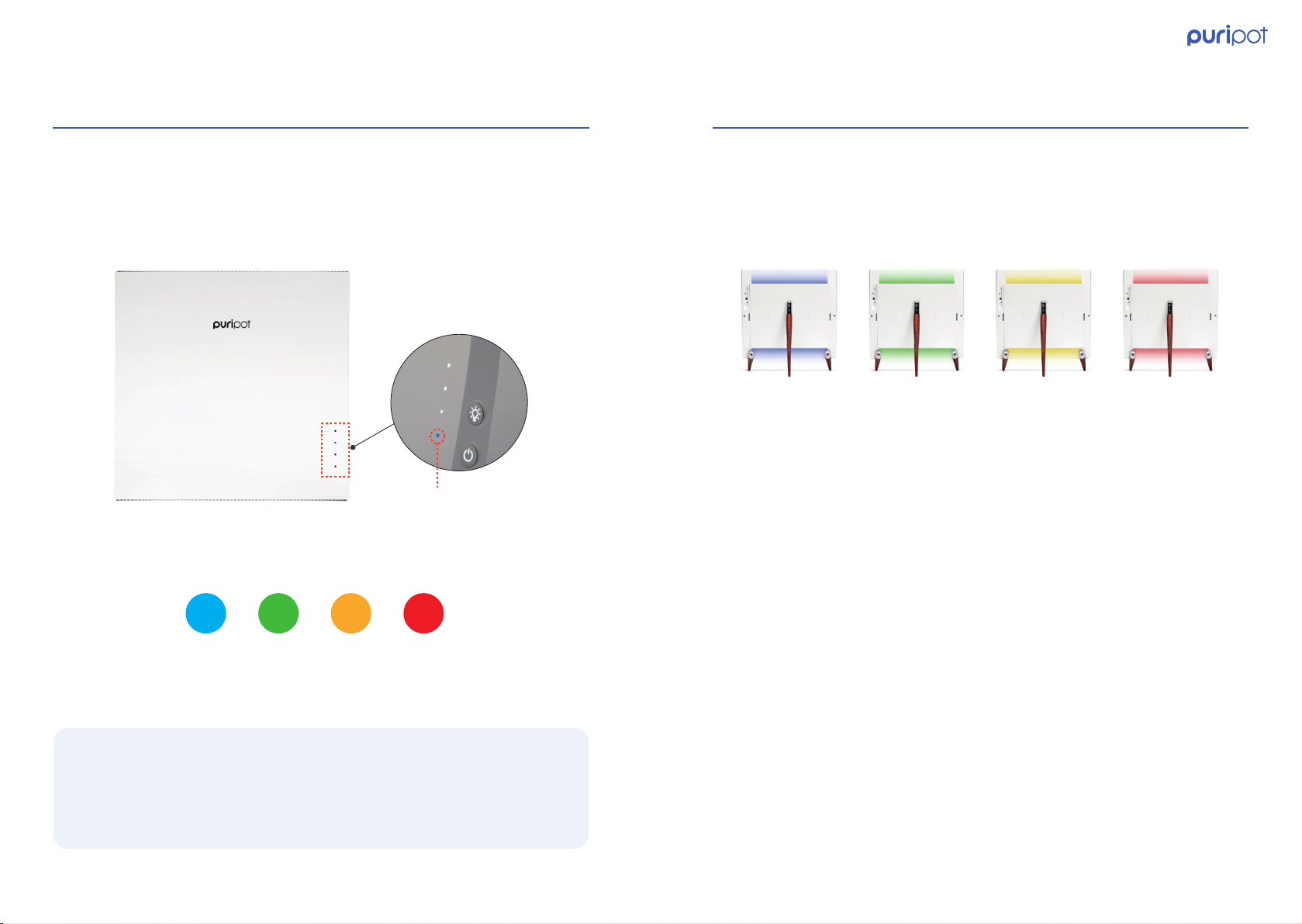

The color of the LED indicates the level
of the air quality as shown below:
Air Quality Monitor
The F1 series models have a VOC(Volatile Organic Compounds) sensor.
It measures the density of the harmful VOC gases in the air.
The F1 series models have a color LED that changes to one of the 4 colors
based on the surrounding air quality.
Blue
Good
Green
Fair
Yellow
Bad
Red
Very Bad
Air quality monitor LED
Adaptation of VOC sensor to the surrounding environment
When the product is connected to the power, the VOC sensor is initialized
and automatically adjusted to the surrounding environment after about
6 to 12 hours depending on the installation conditions.
Blue
Good
Green
Fair
Yellow
Bad
Red
Very Bad
Color of Mood Light LED
The color of the mood light is also changed to one of the 4 colors based on
the air quality. (F1+ / F1N)
※ F1 displays blue light only.

The power doesn’t turn on.
Check if the plug or adapter is properly connected.
20 21
1. Remove the PCO mesh unit.
2. Please clean by one of the following methods.
3. Make sure that the PCO mesh unit is completely dried,
and then put it back inside.
Soft cloth Running water
(Dry completely before using. )
Vacuum cleaner

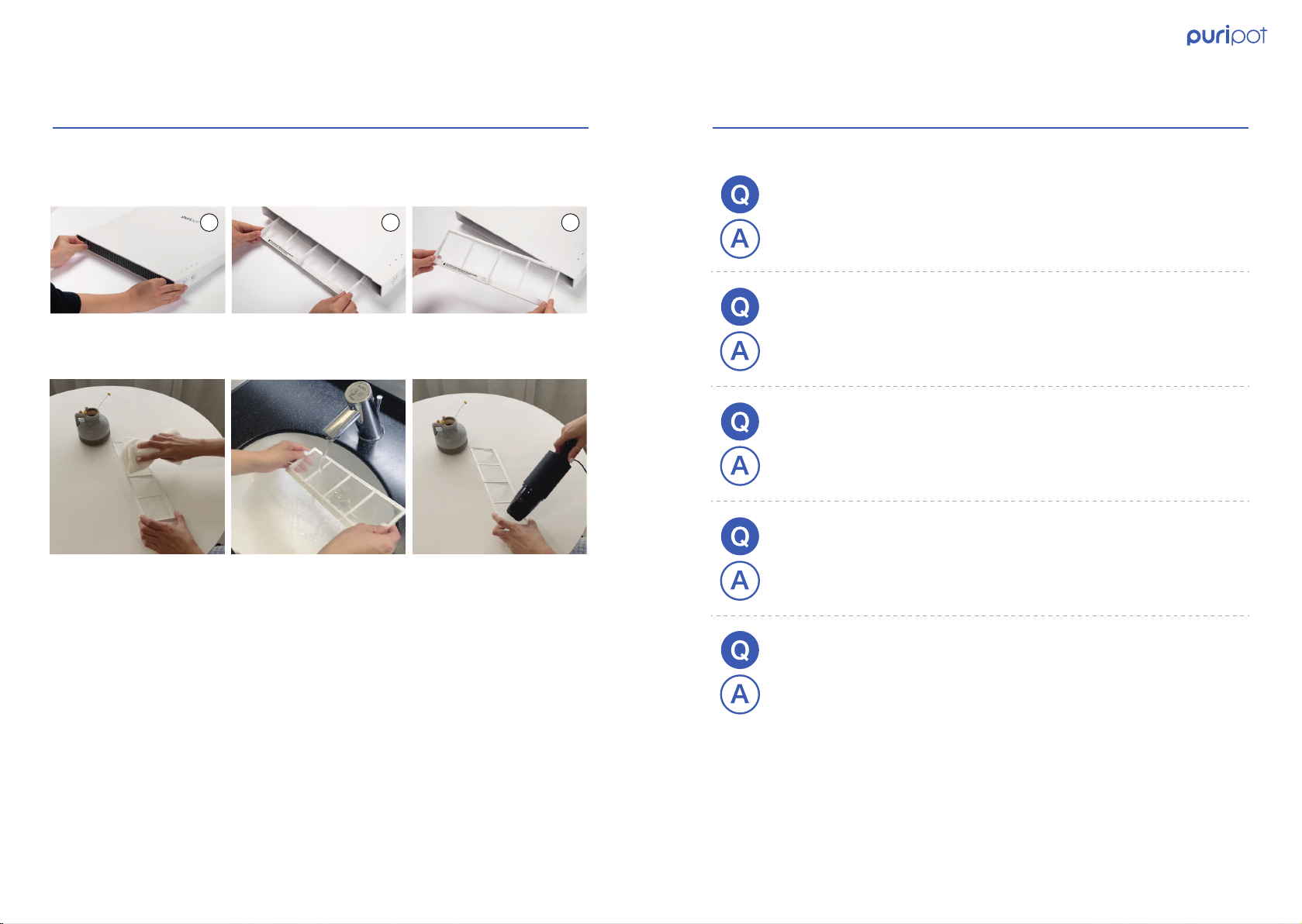

How to clean PCO Mesh Unit
123
FAQs
The fan speed level changes automatically.
The mood light does not turn on even when the power is
turned on.
Check the mood light level. It might be set as ‘turn off’.
Air quality monitor LED doesn’t change to blue.
The smell won’t go away.
When the operation mode is set to AUTO mode,
the fan speed level changes automatically by the sensor.
There is a difference between the odor level detected by the sensor and
felt by a person.
※ There is no need to replace the PCO mesh unit.
Just pull it off from the main body, clean it and put it back in.
※ The cleaning cycle may vary depending on the usage environment.
In case of a heavy odor, set the fan speed level ‘3’, or open the window to
circulate the air at the same time.

400mm(H) X 400mm(W) X 36mm(D)
※ Recommended from evaluation of odor removal efficiency and effectiveness.
※
Rear lights
(Blue)
Lighting : 1~4 level
Fan : 1~3 level / AUTO
Lighting : 1~4 level
Fan : 1~3 level / AUTO
Lighting : 1~4 level
Fan : 1~3 level / AUTO
Rear lights
(4 colors)
Rear lights
(4 colors)
Model
Deodorization
Sterilization
Lighting
Air quality monitor
loT function
Operation Level
Sensor
Power Consumption
Power supply
Dimension
Weight
Area Coverage
Operating
Condition
Double purification
device
VOC, TEMP/RH
Specifications
22 23
Customer Support
Warranty
· Warranty and coverage: 1-year limited warranty
· Dadam Micro Inc. provides the limited warranty for individuals or
organizations purchasing the device from Dadam Micro Inc. or an
authorized distributor.
· Dadam Micro Inc. warrants material and manufacturing defects
during normal use for one year from the date of original purchase.
(“Warranty Period”) If the device is returned to Dadam Micro Inc.
during the warranty period, Dadam Micro Inc. may repair the device,
replace it with a fully refurbished one, or refund the purchase price.
(Excluding discount or promotional code purchases) If the warranty
period has expired or does not apply to the scope of warranty and
restrictions, Dadam Micro Inc. may return the device back to the user.
50㎡
Temperature : -10~60℃
Humidity : ≤ 90 % RH
THANK YOU FOR CHOOSING A puripot APPLIANCE.
Visit puripot website for special promotion, online help, general tips
and useful information about puripot.
E-mail
Home Page
Address
[email protected]
www.puripot.com
B-502 Pangyo InnoValley, 253 Pangyo-ro,
Bundang-gu, Seongnam, 13486, Korea
