Daemyung Webgate Hybrid DVR Series User manual

0
HD-CCTV DVR
Full HD Digital Video Recorder
Hybrid DVR Series
User’s Manual
(EN Rev 3.0)

1
HD-CCTV DVR
Install & User Guide
HD-CCTV DVR Manual.
Thank you for purchasing a Digital Video Recorder.
Before installation or operation please become familiar with the user manual and other referenced
manuals mentioned in the booklet.
User manual, software and hardware described here are protected by copyright by law. With the
exception of copying for general use within fair use, copying and reprinting of the user manual, either
partially or in entirety, or translating it into any another language without the consent of our Corporate
office is strictly prohibited.
Product Warranty and Limited Responsibility
The manufacturer does not assume any responsibility concerning the sale of this product and does not
delegate any right to any third party to take any responsibility on its behalf. The product warranty does
not cover cases of accidents, negligence, alteration, misuse or abuse. No warranty is offered for any
attachments or parts not supplied by the manufacturer.
The manufacturer does not assume any responsibility for followings
Malfunctions due to negligence by user
Deliberate disassembly and replacement by user
Connection of power source other than a properly rated power source
Malfunctions caused by natural disasters (fire, flood, tidal wave, etc)
The warranty period for HDD is one year
Any data damage due to HDD damage
The product is not for exclusive use of crime prevention but for assistance in cases as fire or
theft. We take no responsibility for damage from any incident.
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC
Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a
commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area
is likely to cause
harmful interference in which case the user will be required to correct the interference at his own expense.
Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger,
headset, USB
cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the
environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and
recycle them responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product or their local government office, for
details of where and how they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its
electronic accessories should not be mixed with other commercial wastes for disposal.
Correct disposal of batteries in this product
(Applicable in the European Union and other European countries with separate battery return systems.)
This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with
other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the
battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly
disposed of, these substances can cause harm to human health or the environment.
To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle
them through your local, free battery return system.

2
Contents
Introduction 4
Warning 4
Specification by Models 5
Key Features 6

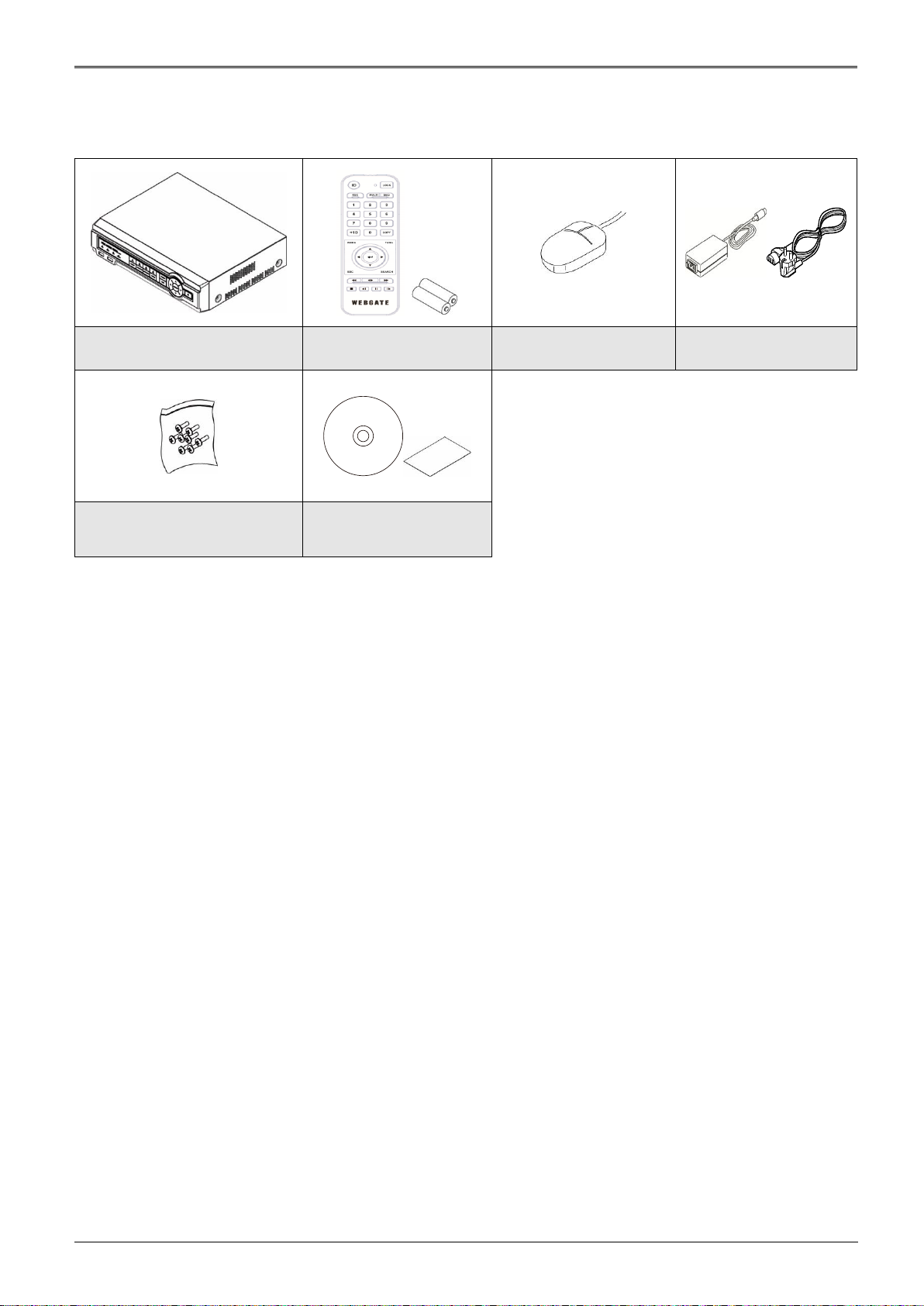

Components 9

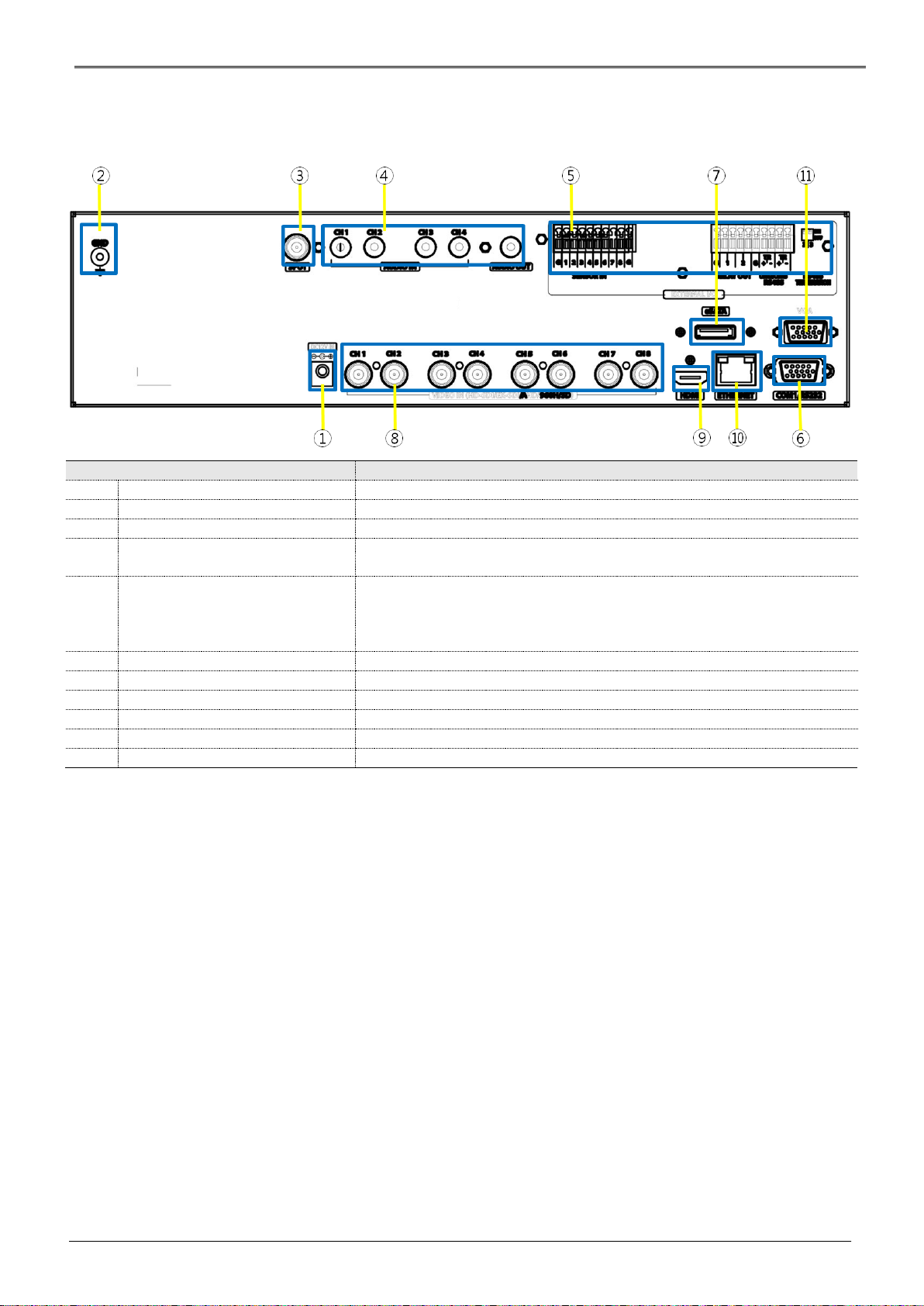

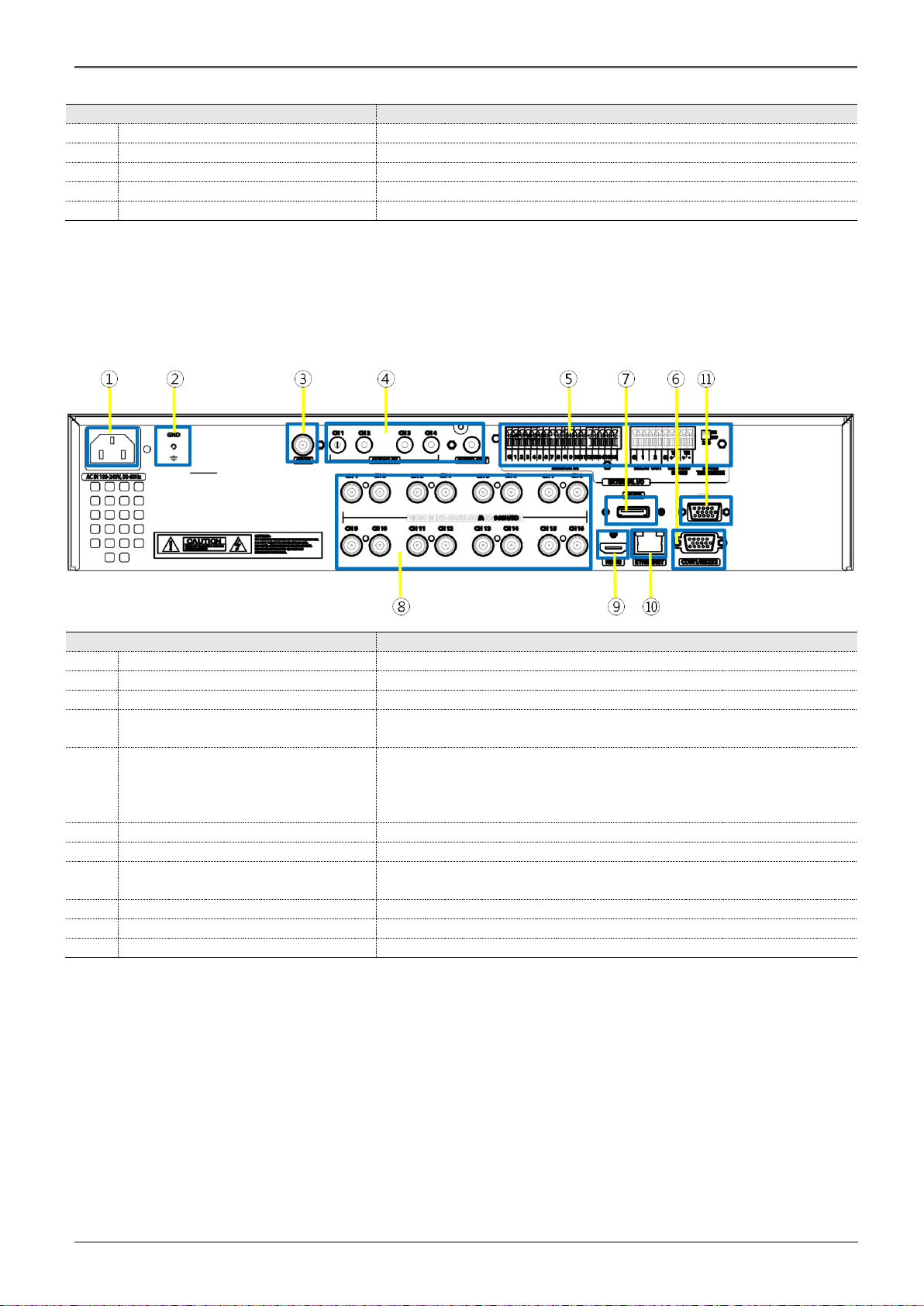

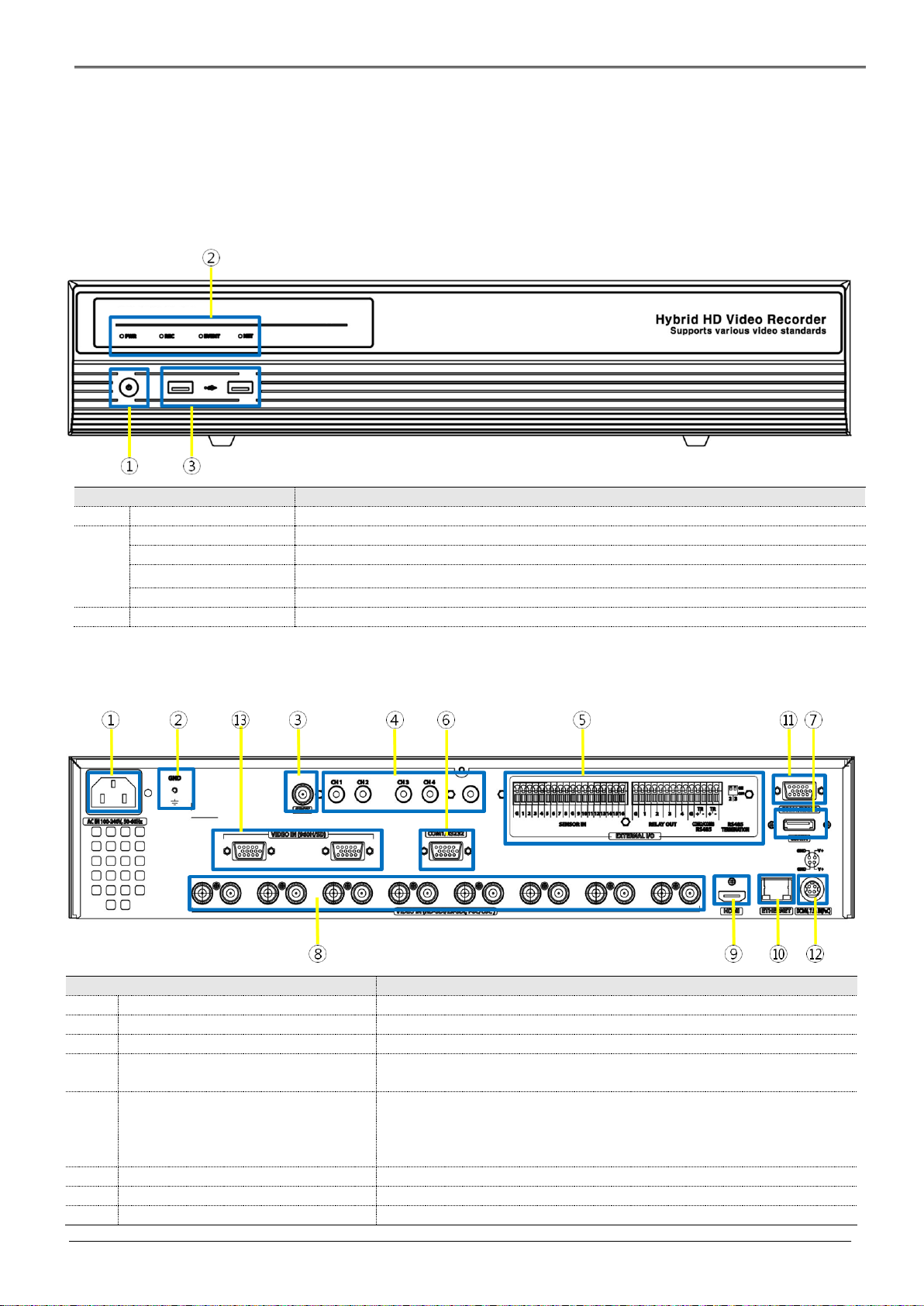

Product Description 11
Installation 19
Connecting other devices 23
Setup Wizard 30
Usage 32
FUNC Menu 32
Menu structure 32
Monitoring 34
Remote monitoring & control 39
Playback, Search and Copy 41
Playback 41
Screen composition/names of the functions 42
Copy 44
Configuration 45
System configuration 45
Disk 46
Network 55
Devie Settings 60
Event Configuration 67
Recording Set Up 72
WebViewer 75
System requirement 75
Installation 75
login 75
User set up 76
Monitor 76
Playback 79
HTML5 Webviewer 82

3
System Requirements 82
Login 82
Monitor 82
Playback 84
JAVA Viewer 86
System requirement 86
Installation 86
Login 86
Monitor 87
Playback 88
Mobile Application 89
registration method for iOS app 89
register method for Android app 90
Mobileviewer 90
Appendix 91
Problem solving [FAQ] 91
Compatible HDD 92
Factory default set-up values * 92
Product specification 95
Product Dimension 103

4
Introduction
Warning
Warning
Please do not bend or press power cord by force which could lead to fire.
Be careful not to pull or plug with wet hands to avoid fire or electric shock.
In case of changing built-in lithium battery, it should be replaced with same brand or similar one to
prevent a danger of explosion. Since old batteries could be a factor of environment contamination, please
disposed of them properly.
Do not throw the batteries in fire or heating units. Neither short circuit nor disassembly is prohibited.
Do not recharge battery used for remote controller.
Do not open the top cover otherwise it could lead to electric shock and product damage.
The previous recorded data is deleted if record continues when HDD is full so please check disk setup
status.
Manufacturer takes no responsibility for any damaged data due to customer’s carelessness or negligence.
A-rated device(Broadcasting Communication Equipment for business use only)
Users/Sellers should under this is A-rated device for business use only and it must not be used outside of
family.
Caution
Do not place heavy objects on top of the product.
Product is for indoor use only and it is not water or damp proof. Use product to its environmental
specifications (Temperature & Humidity). To clean the product, gently wipe the outside with a clean dry
cloth.
Product uses AC power of 110V ~ 240V. Be cautious not to cause electric damages to the product.
Be careful not to drop the product. Physical shocks may harm the product including internal HDD. In
addition, please do not throw or drop it.
Product is made of metal you can hurt another human if you throw or used as a weapon. Keep away
from the reach of children and install in a safe place.
If Product does not operate properly, please contact the manufacturer for service. Tampering or
disassembling the product will void the warranty.
The product can transmit real time video over network or internet and can be used for monitoring
purpose depending on installation sites. So please check and review related regulations before
installation.
Experience and technical skills are needed for the installation of this product. Improper installation may
cause fire, electric shocks, or defects. Contact the nearest dealer for installations.
Contents of the manual can differ according to firmware or Software upgrade, and the appearance of
products may be changed for the improvement of quality without an advance notice
◈System power off
In case user turn off device by force while device is working, it could give damage on HDD and device so
please turn off device safely using power button located in the front panel. You should install a UPS system
for safe operation in order to prevent damage caused by an unexpected power failure.
◈Working Temperature
The working temperature of the product is 5°C~45°C or 41°F~113°F. DVR may not work properly if left in
low temperature for a long period of time. If such is the case, then store at room temperature for some
time before using it again.

5
Specification by Models
Product Name of
Hybrid DVR
Model Name
HDD
EX-SDI
1.0
EX-SDI
2.0
Flame
Detection
AHD
SD
PoC/
CoC
VGA
SPOT
16 Channel Full Case
PoC DVR
HS1620F-PD
SATA*5 +
eSATA
O
X
O
X
O
O
O
8 Channel Middle Case
PoC DVR
HSC821F-PD
SATA*2 +
eSATA
O
X
O
X
O
O
O
4 Channel Small Case
PoC DVR
HDC420F-PD
SATA*2
O
O
O
X
X
O
X
16 Channel Full Case
DVR
HS1620F-D
SATA*5 +
eSATA
O
O
O
O
O
X
O
16 Channel Middle
Case DVR
HSC1621F-D
SATA*2 +
eSATA
O
O
O
O
O
X
O
8 Channel Middle Case
DVR
HSC821F-D
SATA*2 +
eSATA
O
O
O
O
O
X
O
4 Channel Small Case
DVR
HSC420F-D
SATA*2
O
O
O
O
O
X
X
16 Channel Full Case
RAID DVR
HS1620F-DR
SATA*5
+ eSATA
O
O
O
O
O
X
O
(O : Supported / X : not-Supported)
<Note>
1. 16 CHANNEL FULL CASE DVR, 16 CHANNEL MIDDLE CASE DVR, 8 CHANNEL MIDDLE CASE DVR, 16 CHANNEL FULL
CASE RAID DVR models with HW version 1.0 and 1.1 do not support EX-SDI 2.0.
2. 4 CHANNEL SMALL CASE POC DVR, 4 CHANNEL SMALL CASE DVR models with HW version 1.0 do not support EX-
SDI 2.0.
3. The name of mobile application is “WEBEYE”.

6
Key Features
Hybrid
Various video format of HDSDI (1080P/720P), AHD(1080P/720P)*,
960H*, NTSC/PAL*, EX-SDI (DoubleReach), IP Camera(Onvif
Profile-s) cameras can be displayed simultaneously.
It supports real-time live monitoring and record/playback on
various format and it records from 5 seconds before event and
record up to 30fps per channel.
Various video record
- HDSDI (1080P/720P) camera
- AHD (1080P/720P) camera
- EX-SDI (Double Reach) camera
- SD 960H camera
- SD (NTSC/PAL) camera
- IP Camera (Onvif Profile-S)
Supports Normal/Event Record, Schedule/Event Record, Emergency Record
Supports archiving event list(sensor, video loss, motion detection, Text, Fire detection)
Max 5 seconds pre-alarm recording per each channel
FULL HD
FULL HD high quality video shows far superior resolution than SD video product. Over 1200 TV lines at 1080p
resolution can be visible.
SD
Full HD
D1 Resolution
1080P Resolution
720P Resolution
HD-SDI
It is product using HD-SDI technology transmitting HD quality digital images through coaxial cable.
Supporting resolution is as follows
Transmission method –SMPTE 292M : HD-SDI
Resolution –1920x1080p 25/30Hz, 1280x720p 50/60Hz
EX-SDI (Enhances transmission distance by Max. 700m)
EX-SDI is the enhanced technology than HD-SDI to extend the transmission distance up to max 700m without
any other devices. (Please refer the Transmission Distance Table by Cable types at p23.)
These products support EX-SDI 1.0 and EX-SDI 2.0.
* Adopted differently based on product specification
Full HD : 1080p
HD : 720p
SD : D1

7
AHD *
Products having AHD transmission technology where HD quality image can be transmitted over coaxial cable
in analog signal format can be connected.
NVR(Network Video Recorder)*
Products support NVR function, so they support live monitoring, recording, playback, backup, remote control,
push alarm and audio of connected IP camera (Onvif profile-S). Also, DVR’s video channel can be treated as
an IP camera and DVR supports all NVR functions to other DVR’s video channel.
Flame Detection
WEBGATE’s flame detection camera(C1080BL-AF-F2/C1080PBL-AF-F2) which is equipped with feature to detect
flame can be connected to DVR and it will notify manager of flame alarm quickly thoughout DVR, CMS and
mobile phone.
SD 960H, NTSC/PAL *
960H, NTSC/PAL cameras can be working with DVR.
PoC (Power over Coax) *
Power to PoC type camera can be supplied over coaxial cable.
Connect PoC type camera to DVR. No additional power for PoC type camera is required because power is
supplied to PoC type camera over coaxial cable.
CoC (Control over Coax) *
PoC type camera can be controlled over coaxial cable using CoC function.
PoC type camera can be controlled and upgraded over coaxial cable without additional RS-485 cabling from
DVR using CoC function.
Surveillance Screens
Every channel will display HD streams without interruptions and will offer many different types of screens.
Various Surveillance Screen Mode - Single, Multi Screens (1,4,9,10,13,16,CustomA,B,C) *
Auto Screen Sequence, Event Pop-up
SPOT –Single, Multi screen division(1,4,9,16), Auto screen sequence *
Voice Recording *
Supports real time voice input and recordinig function.
Real time 4ch voice input and recording function
Input : 4ch RCA, Output : 1ch RCAI(Rear), 1ch HDMI(Rear)
Audio recording and playback can be played Simultaneously
Search and Playback
Various useful functions for search & playback
Simultaneous playback for every channel
Playback by time, date, channel
Time / Calendar / Event / Thumbnail / Bookmark search
* Adopted differently based on product specification

8
Save and Backup
You can record video data into the internal HDD, and image can be copied to USB memory.
Backup device : USB stick
External storage device : e-SATA HDD or NS04R (exclusive storage device)
Supports file system with up to max 128TB in case DVR and 8 x NS04R is connected in cascade
Network
Supports LAN, xDSL, and etc., and key functions can easily be controlled by web browser or customized CMS
program.
HD Live monitoring/playback/backup from the remote site
Multi-streaming feature for slow network environment (supports nHD monitoring)
Sending event info(image) using E-Mail/ FTP
Recorded video playback, save, search function, and DVR control function on PC via CMS
Supports 10/100/1000 Mbps Ethernet/xDSL
Managing up to 1024 DVRs with CMS
Supports HTML5 Webviewer
Others
User friendly GUI and mouse
Easy and simple firmware upgrade, and recorded video back up function using USB stick
Using Ac the PC Playback function, replay the DVR’s HDD on a PC
(HDD set as RAID could not be played on the PC, even if HDD is connected to PC)
Supports PTZ Control, PRESET and PATROL function
Easy control of up to 255 DVR with a single remote control
Support Onvif Profile-S
Booting logo and empty channel logo can be changed (Please refer p28)
Changing multiple channel names using USB memory (Please refer p29)

9
Components
Please check the below to make sure you have every part.
16 CHANNEL FULL CASE POC DVR / 16 CHANNEL FULL CASE DVR /
16 CHANNEL FULL CASE RAID DVR
DVR
Remote Control & Batteries
Mouse
power cord
PoC adaptor(optional) *
Rack bracket
screw
SD video input extension
cable (*)
SW & Manual CD
Quick guide
8 CHANNEL MIDDLE CASE POC DVR / 16 CHANNEL MIDDLE CASE DVR /
8 CHANNEL MIDDLE CASE DVR
DVR
Remote Control & Batteries
Mouse
power cord
PoC adaptor(optional) *
Rack bracket(optional) *
screw
SD video input extension
cable (*)
SW & Manual CD
Quick guide
* Adopted differently based on product specification

10
4 CHANNEL SMALL CASE POC DVR / 4 CHANNEL SMALL CASE DVR
DVR
Remote Control & Batteries
Mouse
adaptor & power cord
screw
SW & Manual CD
Quick guide

11
Product Description
16 CHANNEL FULL CASE POC DVR / 16 CHANNEL FULL CASE DVR /
16 CHANNEL FULL CASE RAID DVR
Front view
part name
function description
1
Power
turns ON/OFF the power
2
PWR
It turns on when power is ON
REC
Shows record status while recording
EVENT
Turns on if event is triggered
NET
Shows network connection status and it flickers if network is connected
3
USB port
USB port for flash memory or mouse.
16 CHANNEL FULL CASE POC DVR
Rear view
part name
function description
1
Power Input
AC100V~AC240V power cord socket
2
Ground Connection
Connection terminals that connects DVR to an outside device
3
SPOT
Connection port for SPOT monitor
4
Audio Input/Output
Audio Input : Audio input connection terminal
Audio Output : Speaker output terminal
5
Sensor, Relay, Com2/3, RS-485 terminating
resisters
Sensor : External sensor input terminal..
Relay : Relay connect terminal.
Com2/3 : For connection with RS-485 device.
Set terminating resisters when using RS-485 method.
6
COM1
RS-232C D-SUB
7
eSATA port
For connection with external eSATA HDD.
8
HD Channel Input
HD-SDI(1080P/720P), 960H, NTSC/PAL, EX-SDI (1080P/720P) cameras

12
part name
function description
9
HDMI Output
HDMI monitor connection output port
10
Ethernet, Storage
Ethernet : network connecting terminal (RJ-45)
11
VGA Output
VGA monitor connection output port.
12
PoC power input
Socket for PoC adaptor connection.
13
SD channels input
BNC input port for 960H, NTSC/PAL cameras.
16 CHANNEL FULL CASE DVR / 16 CHANNEL FULL CASE RAID DVR
Rear view
part name
function description
1
Power Input
AC100V~AC240V power cord socket
2
Ground Connection
Connection terminals that connects DVR to an outside device
3
SPOT
Connection port for SPOT monitor
4
Audio Input/Output
Audio Input : Audio input connection terminal
Audio Output : Speaker output terminal
5
Sensor, Relay, Com2/3, RS-485 terminating
resisters
Sensor : External sensor input terminal..
Relay : Relay connect terminal.
Com2/3 : For connection with RS-485 device.
Set terminating resisters when using RS-485 method.
6
COM1
RS-232C D-SUB
7
eSATA port
For connection with external eSATA HDD.
8
HD Channel Input
HD-SDI(1080P/720P), 960H, NTSC/PAL, AHD(1080P/720P), EX-SDI (1080P/720P)
cameras
9
HDMI Output
HDMI monitor connection output port
10
Ethernet, Storage
Ethernet : network connecting terminal (RJ-45)
11
VGA Output
VGA monitor connection output port.

13
8 CHANNEL MIDDLE CASE POC DVR / 16 CHANNEL MIDDLE CASE DVR /
8 CHANNEL MIDDLE CASE DVR
Front view
part name
function description
1
Power
turns ON/OFF the power
2
PWR
It turns on when power is ON
REC
Shows record status while recording.
EVENT
Turns on if event is triggered
NET
Shows network connection status and it flickers if network is connected
3
USB port
USB port for flash memory or mouse.
8 CHANNEL MIDDLE CASE POC DVR
Rear view
part name
function description
1
Power Input
Socket for AC100V ~ AC240V power code
2
Ground Connection
Connection terminals that connects DVR to an outside device
3
SPOT
Connection port for SPOT monitor
4
Audio Input/Output
Audio Input : Audio input connection terminal
Audio Output : Speaker output terminal
5
Sensor, Relay, Com2/3, RS-485
terminating resisters
Sensor : External sensor input terminal..
Relay : Relay connect terminal.
Com2/3 : For connection with RS-485 device.
Set terminating resisters when using RS-485 method.
6
COM1
RS-232C D-SUB

14
part name
function description
7
eSATA port
For connection with external eSATA HDD.
8
Channel Input
HD-SDI(1080P/720P), 960H, NTSC/PAL, EX-SDI (1080P/720P) cameras
9
HDMI Output
HDMI monitor connection output port
10
Ethernet
Ethernet : network connecting terminal (RJ-45)
11
VGA Output
VGA monitor connection output port.
12
PoC power input
Socket for PoC adaptor connection.
13
SD channels input
BNC input port for 960H, NTSC/PAL cameras.
16 CHANNEL MIDDLE CASE DVR
Rear view
part name
function description
1
Power Input
Connection socket for DC 12V power code
2
Ground Connection
Connection terminals that connects DVR to an outside device
3
SPOT
Connection port for SPOT monitor
4
Audio Input/Output
Audio Input : Audio input connection terminal
Audio Output : Speaker output terminal
5
Sensor, Relay, Com2/3, RS-485
terminating resisters
Sensor : External sensor input terminal..
Relay : Relay connect terminal.
Com2/3 : For connection with RS-485 device.
Set terminating resisters when using RS-485 method.
6
COM1
RS-232C D-SUB
7
eSATA port
For connection with external eSATA HDD.
8
Channel Input
HD-SDI(1080P/720P), 960H, NTSC/PAL, AHD(1080P/720P), EX-SDI (1080P/720P) cameras
9
HDMI Output
HDMI monitor connection output port
10
Ethernet
Ethernet : network connecting terminal (RJ-45)
11
VGA Output
VGA monitor connection output port.

15
8 CHANNEL MIDDLE CASE DVR
Rear view
part name
function description
1
Power Input
Connection socket for DC 12V power code
2
Ground Connection
Connection terminals that connects DVR to an outside device
3
SPOT
Connection port for SPOT monitor
4
Audio Input/Output
Audio Input : Audio input connection terminal
Audio Output : Speaker output terminal
5
Sensor, Relay, Com2/3, RS-485
terminating resisters
Sensor : External sensor input terminal..
Relay : Relay connect terminal.
Com2/3 : For connection with RS-485 device.
Set terminating resisters when using RS-485 method.
6
COM1
RS-232C D-SUB
7
eSATA port
For connection with external eSATA HDD.
8
Channel Input
HD-SDI(1080P/720P), 960H, NTSC/PAL, AHD(1080P/720P), EX-SDI (1080P/720P) cameras
9
HDMI Output
HDMI monitor connection output port
10
Ethernet
Ethernet : network connecting terminal (RJ-45)
11
VGA Output
VGA monitor connection output port.

16
4 CHANNEL SMALL CASE POC DVR / 4 CHANNEL SMALL CASE DVR
Front view
part name
function description
1
PWR
It turns on when power is ON
REC
Shows record status while recording.
NET
Shows network connection status and it flickers if network is connected
2
USB Port
USB port for flash memory or mouse.
4 CHANNEL SMALL CASE POC DVR
Rear view
No
part name
function description
1
Power Input
Connection socket for DC 12V power code
2
Ground Connection
Connection terminals that connects DVR to an outside device
3
SPOT
Connection port for SPOT monitor
4
Audio Input/Output
Audio Input : Audio input connection terminal
Audio Output : Speaker output terminal
5
Sensor, Relay, Com2/3, RS-485
terminating resisters
Sensor : External sensor input terminal..
Relay : Relay connect terminal.
Com2/3 : For connection with RS-485 device.
Set terminating resisters when using RS-485 method.
6
COM1
RS-232C D-SUB
7
Channel Input
HD-SDI(1080P/720P), EX-SDI (1080P/720P) Camera
8
HDMI Output
HDMI monitor connection output port
9
Ethernet
Ethernet : network connecting terminal (RJ-45)
10
VGA Output
VGA monitor connection output port.

17
4 CHANNEL SMALL CASE DVR
Rear view
No
part name
function description
1
Power Input
Connection socket for DC 12V power code
2
Ground Connection
Connection terminals that connects DVR to an outside device
3
SPOT
Connection port for SPOT monitor
4
Audio Input/Output
Audio Input : Audio input connection terminal
Audio Output : Speaker output terminal
5
Sensor, Relay, Com2/3, RS-485
terminating resisters
Sensor : External sensor input terminal..
Relay : Relay connect terminal.
Com2/3 : For connection with RS-485 device.
Set terminating resisters when using RS-485 method.
6
COM1
RS-232C D-SUB
7
Channel Input
HD-SDI(1080P/720P), 960H, NTSC/PAL, AHD(1080P/720P), EX-SDI (1080P/720P) Camera
8
HDMI Output
HDMI monitor connection output port
9
Ethernet
Ethernet : network connecting terminal (RJ-45)
10
VGA Output
VGA monitor connection output port.

18
Remote control
Can use every function of the DVR and control
several DVRs with only one remote control. To
be able to use the remote control, please create
a user ID on the remote control ID section of
system settings. (See the right picture for
working angle of a remote control)
Remote controller

19
Installation
Check settings
This DVR is high quality security device with a high capacity built-in HDD and important curcuits. Before
installation, please read carefully below recommendations as high internal temperature of the product can lead
to damages and shorten product life cycle.
Recommendations on installing a DVR in a rack.
1. Don’t seal the inside of rack where DVR is installed.
2. Keep airflow through inlet and outlet.
3. If there is another device installed in the rack, secure additional space or install air ventilation.
4. Installation of an air circulation fan around each inlet and outlet is strongly recommended.
(Install filter around inlet or outlet for harmful substances)
5. Keep ambient temperature between 5°C~45°C around DVR.
Warnings if HDD is installed
1. Please be extra careful not to damage HDD as it easily breaks.
2. During installation, make sure insulated coat doesn’t come off or isn’t placed in the worng place.
3. Don’t lose screws and parts.
(If screws an parts are not screwed or assembled correctly, product may not operate)
4. Check HDD compatibility list HDD
(Please check with CS team)
5. Partition table must be removed for HDDs used in PC or other DVR models before installation.
Adding HDD
Remove the power cord before installation to protect DVR against possible damage and an electric shock
Please call the store you purchased the product from if it isn’t operating correctly due to installation or
configuration mistakes.
Warnings regarding Data loss
Please handle with care so HDD data isn’t damaged.
Check HDD compatibility before installing additional HDD.
Be careful not to give any shock on HDD during operation which could lead to possible damage or malfunction
.
Cases when HDD and its data can be damaged.
To minimize the data loss, please copy data as often as you can.
Physical shock during disassembly or installation may lead to Data damage.
Sudden power outage or turn off of DVR can damage HDD.
Please don’t try to move or shock DVR while HDD is working.
