SERVICE MANUAL CONTENTS
NOTICE
This form lists the contents of the complete Service Manual for this product.
The items listed with form numbers are available and included in the manual.
If form numbers listed with mark (*) are, they are not available for the initial
release of the manual. When items are updated, or supplements added, they
will be announced in preview and should be ordered as they become available.
TITLE FORM NUMBER
Service Manual Contents SB2200E00
Safety SB2003E00
Torque Specifications SB2004E00
ENGINE
DB58 Diesel Engine SB2201E00
Alternator SB2134E00
Starting Motors SB2135E00
GM Vortec V6(4.3 Liter) Gasoline Engine SB2110E00
GM Vortec V6(4.3 Liter) Gasoline Engine D & A SB2111E00
POWER TRAIN
Power Train SB2202E00
VEHICLE SYSTEMS
Vehicle Systems SB2203E00
Vehicle Systems D & A SB2204E00
Hydraulic System Schematic SB2205E00
Electric System Schematic SB2206E00
Mast Systems SB2207E00
OPERATION & MAINTENANCE
Operation & Maintenance Menual SB2301E02
Models ; D35S-2, D40S-2, D45S-2, D40SC-2, D45SC-2, D50SC-2
G35S-2, G40S-2, G45S-2, G40SC-2, G45SC-2, G50SC-2

The serviceman or mechanic may be unfamiliar with many
of the systems on this machine. This makes it important
to use caution when performing service work. A
knowledge of the system and/or components is
important before the removal or disassembly of any
component.
Because of the size of some of the machine
components, the serviceman or mechanic should check
the weights noted in this Manual, Use proper lifting
procedures when removing any components.
Following is a list of basic precautions that should always
be observed.
1. Read and understand all Warning plates and decals on
the machine before operating, lubricating or repairing
the product.
2. Always wear protective glasses and protective shoes
when working around machines. In particular, wear
protective glasses when pounding on any part of the
machine or its attachments with a hammer or sledge.
Use welders gloves, hood/goggles, apron and other
protective clothing appropriate to the welding job
being performed. Do not wear loose-fitting or torn
clothing. Remove all rings from fingers when working
on machinery.
3. Do not work on any machine that is supported only by
lift jacks or a hoist. Always use blocks or jack stands
to support the machine before performing any
disassembly.
4. Lower the forks or other implements to the ground
before performing any work on the machine. If this
cannot be done, make sure the forks or other
implements are blocked correctly to prevent them
from dropping unexpectedly.
5. Use steps and grab handles (if applicable) when
mounting or dismounting a machine. Clean any mud or
debris from steps, walkways or work platforms before
using. Always face machine when using steps, ladders
and walkways. When it is not possible to use the
designed access system, provide ladders, scaffolds, or
work platforms to perform safe repair operations.
6. To avoid back injury, use a hoist when lifting
components which weigh 23 kg (50 lb.) or more. Make
sure all chains, hooks, slings, etc., are in good
condition and are of the correct capacity. Be sure
hooks are positioned correctly. Lifting eyes are not to
be side loaded during a lifting operation.
7. To avoid burns, be alert for hot parts on machines
which have just been stopped and hot fluids in lines,
tubes and compartments.
8. Be careful when removing cover plates. Gradually
back off the last two bolts or nuts located at opposite
ends of the cover or device and pry cover loose to
relieve any spring or other pressure, before removing
the last two bolts or nuts completely.
9. Be careful when removing filler caps, breathers and
plugs on the machine. Hold a rag over the cap or plug
to prevent being sprayed or splashed by liquids under
pressure. The danger is even greater if the machine
has just been stopped because fluids can be hot.
10. Always use tools that are in good condition and be
sure you understand how to use them before
performing any service work.
11. Reinstall all fasteners with same part number. Do not
use a lesser quality fastener if replacements are
necessary. Do not mix metric fasteners with
standard nuts and bolts.
12. If possible, make all repairs with the machine parked
on a level, hard surface. Block machine so it does
not roll while working on or under machine.
1 of 2
WARNING
SAFETY
WARNING
The proper and safe lubrication and maintenance
for this machine, recommended by DAEWOO, are
outlined in the OPERATION & MAINTENANCE
GUIDE for this machine.
Improper performance of lubrication or
maintenance procedures is dangerous and could
result in injury or death. Read and understand the
OPERATION & MAINTENANCE GUIDE before
performing any lubrication or maintenance.
WARNING
Do not operate this machine unless you have
read and understand the instructions in the
OPERATOR'S GUIDE. Improper machine
operation is dangerous and could result in
injury or death.
SB2003E00
Dec. 1998

13. Disconnect battery and discharge any capacitors
(electric trucks) before starting to work on machine.
Hang "Do Not Operate" tag in the Operator's
Compartment.
14. Repairs, which require welding, should be
performed only with the benefit of the appropriate
reference information and by personnel adequately
trained and knowledgeable in welding procedures.
Determine type of metal being welded and select
correct welding procedure and electrodes, rods or
wire to provide a weld metal strength equivalent at
least to that of parent metal.
15. Do not damage wiring during removal operations.
Reinstall the wiring so it is not damaged nor will it
be damaged in operation by contacting sharp
corners, or by rubbing against some object or hot
surface. Do not connect wiring to a line containing
fluid.
16. Be sure all protective devices including guards and
shields are properly installed and functioning
correctly before starting a repair. If a guard or shield
must be removed to perform the repair work, use
extra caution.
17. Always support the mast and carriage to keep
carriage or attachments raised when maintenance
or repair work is performed, which requires the
mast in the raised position.
18. Loose or damaged fuel, lubricant and hydraulic
lines, tubes and hoses can cause fires. Do not
bend or strike high pressure lines or install ones
which have been bent or damaged. Inspect lines,
tubes and hoses carefully. Do not check for leaks
with your hands. Pin hole (very small) leaks can
result in a high velocity oil stream that will be
invisible close to the hose. This oil can penetrate
the skin and cause personal injury. Use cardboard
or paper to locate pin hole leaks.
19. Tighten connections to the correct torque. Make
sure that all heat shields, clamps and guards are
installed correctly to avoid excessive heat, vibration
or rubbing against other parts during operation.
Shields that protect against oil spray onto hot
exhaust components in event of a line, tube or seal
failure must be installed correctly.
20. Relieve all pressure in air, oil or water systems
before any lines, fittings or related items are
disconnected or removed. Always make sure all
raised components are blocked correctly and be
alert for possible pressure when disconnecting any
device from a system that utilizes pressure.
21. Do not operate a machine if any rotating part is
damaged or contacts any other part during
operation. Any high speed rotating component that
has been damaged or altered should be checked
for balance before reusing.
22. On LP equipped lift trucks, be sure to close the
valve on the LP tank before service work is
performed. Always close the valve on the LP tank
when the lift truck is being stored. Do not check for
LP leaks with an open flame.
23. Caution should be used to avoid breathing dust that
may be generated when handling components
containing asbestos fibers. If this dust is inhaled, it
can be hazardous to your health. Components in
DAEWOO products that may contain asbestos
fibers are brake pads, brake band and lining
assemblies, clutch plates and some gaskets. The
asbestos used in these components is usually
bound in a resin or sealed in some way. Normal
handling is not hazardous as long as airborne dust
which contains asbestos is not generated.
If dust which may contain asbestos is present, there are
several common sense guidelines that should be
followed.
a. Never use compressed air for cleaning.
b. Avoid brushing or grinding of asbestos containing
materials.
c. For clean up, use wet methods or a vacuum
equipped with a high efficiency particulate air
(HEPA) filter.
d. Use exhaust ventilation on permanent machining
jobs.
e. Wear an approved respirator if there is no other way
to control the dust.
f. Comply with applicable rules and regulations for the
work place (for example in the U.S.A., OSHA
requirements as set forth in 29 CFR 1910. 1001).
g. Follow environmental rules and regulations for
disposal of asbestos.
h. Avoid areas where asbestos particles may be in the
air.
2 of 2
WARNING

Specifications
TORQUE
SPECIFICATIONS
SB2004E00
Dec.1998

1 of 7
STANDARD TORQUE FOR METRIC FASTENERS
NOTE : Take care to avoid mixing metric and inch dimensioned fasteners.
Mismatched or incorrect fasteners can result in vehicle damage or malfunction, or
possible injury. Exceptions to these torques are given in the Service Manual where
needed.
NOTE : Prior to installation of any hardware, be sure components are in near new
condition. Bolt and nut threads must not be worn or damaged. Hardware must be
free of rust and corrosion. Clean hardware with a non-corrosive cleaner and apply
engine oil to threads and bearing face. If thread lock or other compounds are to be
applied, do not apply engine oil.
METRIC NUTS AND BOLTS
THREAD
SIZE
(mm)
M6
M8
M10
M12
M14
M16
M20
M24
M30
M36
(N im)
12 ±3
28 ±7
55 ±10
100 ±20
160 ±30
240 ±40
460 ±60
800 ±100
1600 ±200
2700 ±300
(lb ift)
9±2
20 ±5
40 ±7
75 ±15
120 ±22
175 ±30
340 ±44
600 ±75
1200 ±150
2000 ±225
STANDARD TORQUE
METRIC TAPERLOCK STUDS
THREAD
SIZE
(mm)
M6
M8
M10
M12
M16
M20
M24
M30
M36
(N im)
8±3
17 ±5
35 ±5
65 ±10
110 ±20
170 ±30
400 ±60
650 ±80
870 ±100
(lb ift)
6±2
13 ±4
26 ±4
48 ±7
80 ±15
125 ±22
300 ±45
480 ±60
640 ±75
STANDARD TORQUE

2 of 7
Exceptions to these torques are given in the Service
Manual where needed.
STANDARD TORQUE FOR INCH FASTENERS
INCH NUTS AND BOLTS
THREAD
SIZE
inch
1/4
5/16
3/8
7/16
1/2
9/16
5/8
3/4
7/8
1
1-1/8
1-1/4
1-3/8
1-1/2
(N im)
12 ±3
25 ±6
47 ±9
70 ±15
105 ±20
160 ±30
215 ±40
370 ±50
620 ±80
900 ±100
1300 ±150
1800 ±200
2400 ±300
3100 ±350
(lb ift)
9±2
18.0 ±4.5
35 ±7
50 ±11
75 ±15
120 ±20
160 ±30
275 ±35
460 ±60
660 ±75
950 ±100
1325 ±150
1800 ±225
2300 ±250
STANDARD TORQUE
INCH TAPERLOCK STUDS
THREAD
SIZE
inch
1/4
5/16
3/8
7/16
1/2
5/8
3/4
7/8
1
1-1/8
1-1/4
1-3/8
1-1/2
(N im)
8±3
17 ±5
35 ±5
45 ±10
65 ±10
110 ±20
170 ±30
260 ±40
400 ±60
500 ±70
650 ±80
750 ±90
870 ±100
(lb ift)
6±2
13 ±4
26 ±4
33 ±7
48 ±7
80 ±15
125 ±22
190 ±30
300 ±45
370 ±50
480 ±60
550 ±65
640 ±75
STANDARD TORQUE

3 of 7
O-RING FACE SEAL FITTINGS
O-RING FACE SEAL FITTING
O-RING FACE SEAL NUT
IDAS001B
O-RING
O-RING GROOVE
STRAIGHT THREAD O-RING
PORT FITTING END
STRAIGHT THREAD O-RING
FITTING (FOR O-RING FACE
SEAL FITTING ONLY)
THREAD
SIZE
inch
5/16-24
3/8-24
7/16-20
1/2-20
9/16-18
3/4-16
7/8-14
1 1/16-12
1 3/16-12
1 5/16-12
1 5/8-12
1 7/8-12
2 1/2-12
(N im)
5.0 ±1.5
12 ±2
20 ±4
30 ±5
40 ±5
100 ±15
135 ±15
200 ±25
250 ±25
300 ±40
300 ±40
300 ±40
300 ±40
(lb ift)
45±15 lbiin
110±20 lbiin
15 ±3
22 ±4
30 ±4
75 ±10
100 ±10
150 ±20
185 ±20
225 ±30
225 ±30
225 ±30
225 ±30
STANDARD TORQUE
O-RING FACE SEAL FITTING NUT
THREAD
SIZE
inch
9/16-18
11/16-16
13/16-16
1-14
1 3/16-12
1 7/16-12
1 11/16-12
2-12
(N im)
16 ±3
30 ±4
50 ±7
90 ±10
120 ±15
160 ±20
190 ±20
215 ±25
(lb ift)
12 ±2
22 ±3
37 ±5
65 ±7
90 ±10
120 ±15
140 ±15
160 ±20
STANDARD TORQUE

HYDRAULIC LINE INSTALLATION
1. For a metal tube to hose installation, install the tube
and tighten all bolts finger tight.
2. Tighten the bolts at the rigid end.
3. Install the hose and tighten all bolts finger tight.
4. Put the hose in a position so that it does not make
contact with the machine or another hose.
5. Tighten the bolts on both connections.
6. Start the engine.
7. Move the implement control levers to all positions.
8. Look at the hose during movement of the
implement. Make sure hose is not in contact with
the machine or other hoses.
9. Shut off the engine.
10. If necessary, put the hose in a new position where it
will not make contact when the implement is moved.
ASSEMBLY OF FITTINGS WITH STRAIGHT
THREADS AND O-RING SEALS
This type of fitting is used in many applications. The tube
end of the fitting will be different in design so that it can
be used in many different applications. However, the
installation procedure of the fitting is the same. If the tube
end of the fitting body is the same as in the illustration
(either an elbow or a straight body) it will be necessary to
assemble the sleeve on the tube before connecting the
tube to the end.
1. Put locknut (3), backup washer (4) and O-ring seal
(5) as far back on fitting body (2) as possible. Hold
these components in this position. Turn the fitting
into the part it is used on until backup washer (4) just
makes contact with the face of the part it is used on.
2. To put the fitting assembly in its correct position, turn
the fitting body (2) out (counterclockwise) a
maximum of 359û. Tighten locknut (3) to the torque
shown in the correct chart for the fitting used.
NOTE: If the fitting is a connector (straight fitting), the
hex on the body takes the place of the locknut. To
install this type fitting, tighten the hex against the face
of the part it goes into.
TORQUES FOR FLARED AND O-RING FITTINGS
The torques shown in the charts that follow are to be
used on the nut part of 37ûFlared, 45ûFlared and
Inverted Flared fittings (when used with steel tubing),
O-ring plugs, O-ring fittings and swivel nuts when
used in applications to 3000 psi (20 700 kPa).
HOSE CLAMP-BAND TYPE
4 of 7
FITTING INSTALLATION
5
3
1
2
4
6

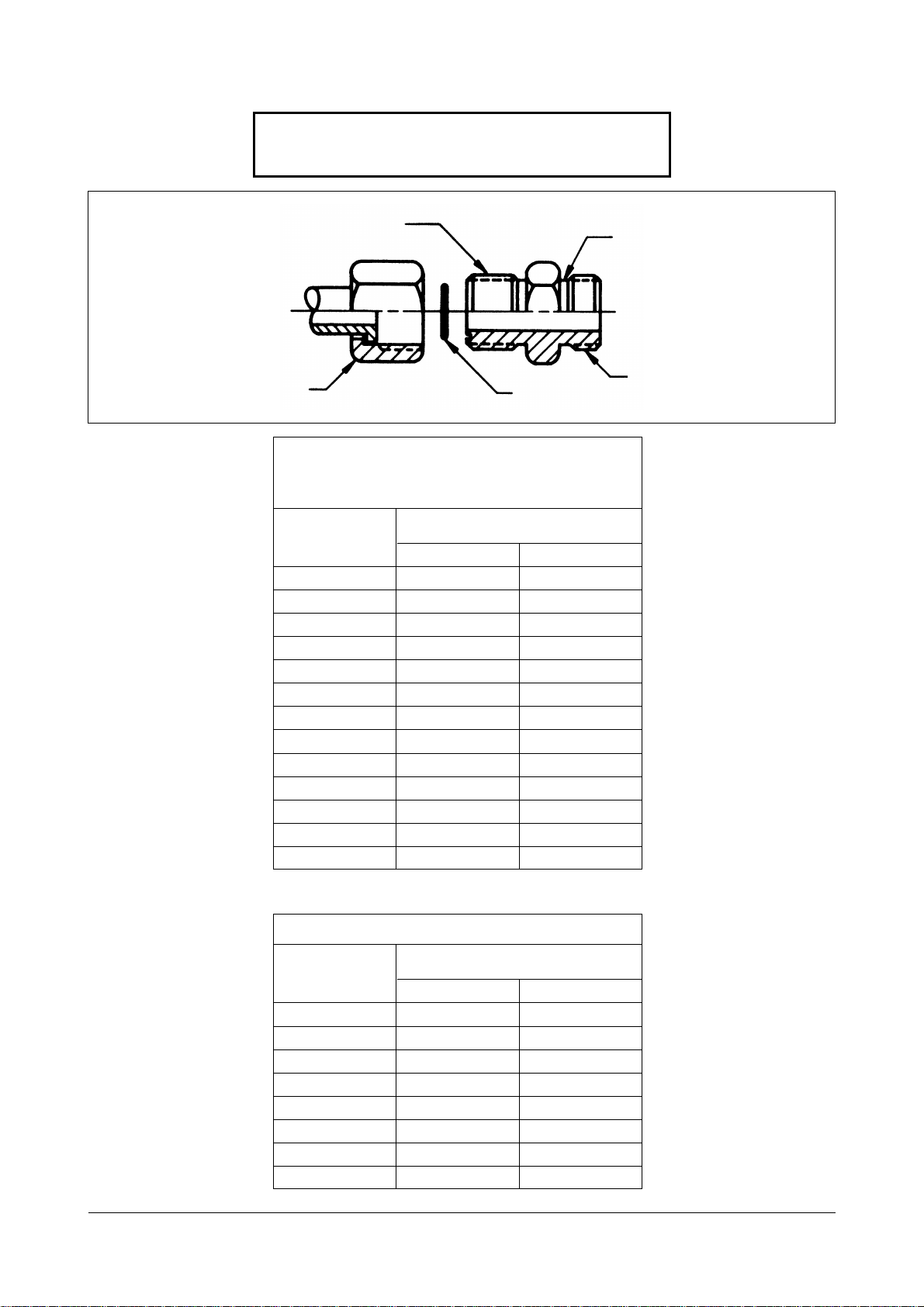

(1) End of fitting body (connects to tube). (2) Fitting body.
(3) Lock-nut. (4) Backup washer. (5) O-ring seal. (6) End of fitting
that goes into other part.
ELBOW BODY ASSEMBLY
IDAS002B
IDAS003B
CLAMP
WIDTH
7.9 mm
(.312 in)
13.5 mm
(.531 in)
15.9 mm
(.625 in)
TORQUE ON
NEW HOSE
0.9 ±0.2 N im
8±2 lbiin
4.5 ±0.5 N im
40 ±5 lbiin
7.5 ±0.5 N im
65 ±5 lbiin
RETIGHTENING
TORQUE
0.7 ±0.2 N im
6±2 lb iin
3.0 ±0.5 N im
25 ±5 lb iin
4.5 ±0.5 N im
40 ±5 lb iin

TIGHTENING OTHER FITTINGS
Hi Duty (Shear sleeve) Tube Fittings
After tube has been put through the nut and makes
contact against the tube shoulder in the fitting body,
turn the nut with a wrench until a small decrease in
torque is felt. This is an indication that the sleeve has
been broken off the nut. Hold the tube to prevent
turning and tighten the nut 1-1/2 turns.
Hi Seal Fittings
Put nut and sleeve over the tubing with the short
heavy end of the sleeve facing the end of tubing. Put
the tube end against the counterbore in the body of
the fitting and tighten until nut is over the last thread
on the body. The remainder of space is used
whenever the fitting is removed and installed again.
5 of 7

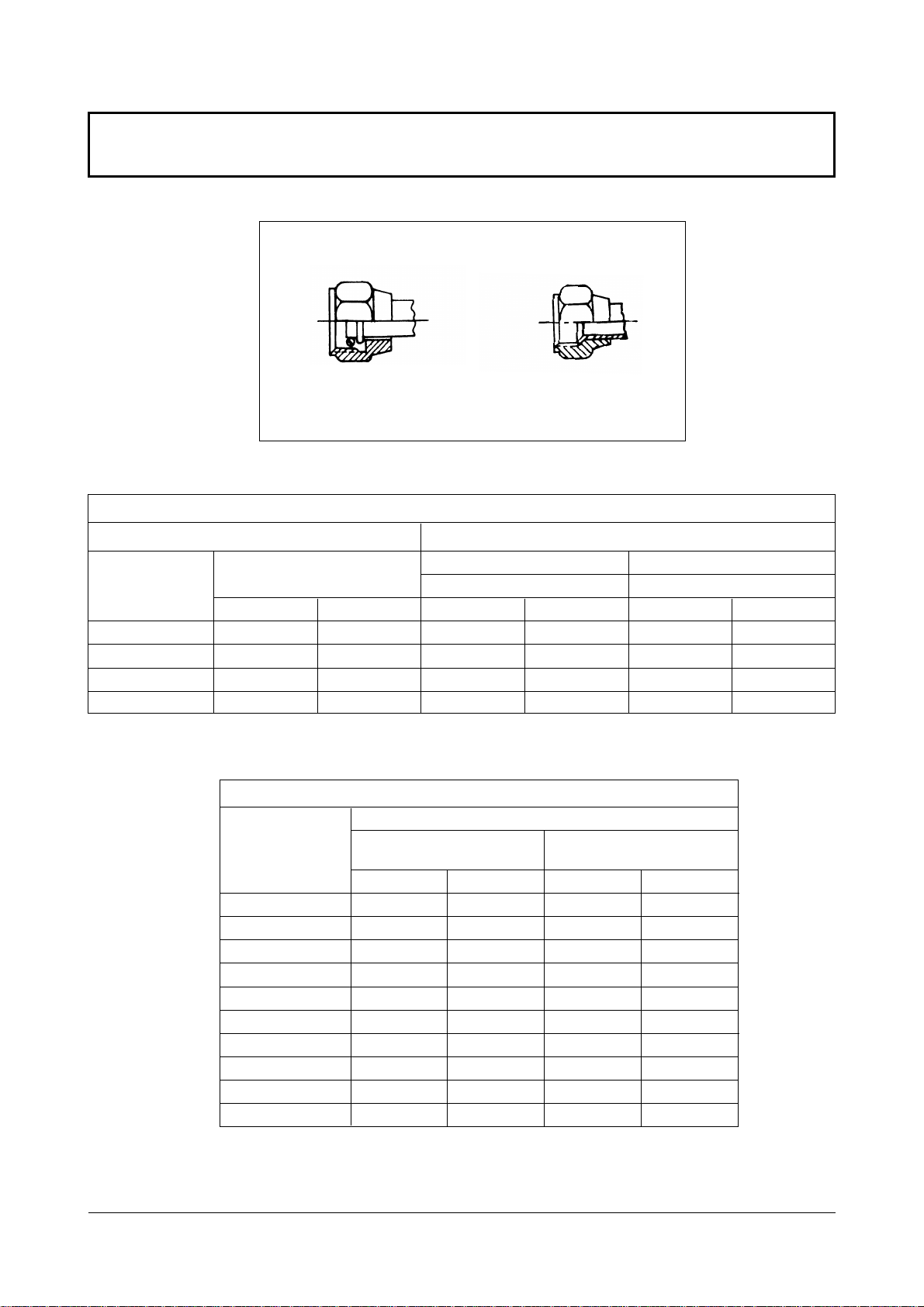

37ûFLARED AND STRAIGHT THREAD O-RING FITTINGS
37ûFLARED O-RING
FITTING-PLUG
SWIVEL NUTS
37ûFLARED AND STRAIGHT THREAD O-RING FITTINGS
(EXCEPT O-RING FACE SEAL FITTINGS)
NOMINAL TUBE O.D. STANDARD TORQUE
METRIC
3.18
4.76
6.35
7.94
9.52
9.52
12.70
15.88
19.05
22.22
25.40
31.75
38.10
50.80
INCH
.125
.188
.250
.312
.375
.375
.500
.625
.750
.875
1.000
1.250
1.500
2.000
(N im)
5.0 ±1.5
11.0 ±1.5
16 ±2
20 ±5
25 ±5
35 ±5
50 ±7
65 ±7
100 ±10
120 ±10
135 ±15
180 ±15
225 ±15
320 ±30
(lb ift)
4±1
8±1
12 ±1
15 ±4
18 ±4
26 ±4
37 ±5
48 ±5
75 ±7
90 ±7
100 ±11
135 ±11
165 ±11
240 ±22
THREAD
SIZE
inch
5/16
3/8
7/16
1/2
9/16
5/8
3/4
7/8
1-1/16
1-3/16
1-5/16
1-5/8
1-7/8
2-1/2
IDAS004B
IDAS005B
IDAS006B

TIGHTENING OTHER FITTINGS
Ermeto Tube Fittings
Put nut and sleeve over the tube with head or
shoulder end of sleeve next to nut. Push tube into
counterbore of fitting body as far as possible. Turn
nut clockwise until sleeve holds tube and prevents
movement. Tighten the nut 1-1/4 turns more to seat
sleeve and give a locking action. When necessary to
assemble again, put sleeve over tube and tighten nut
until a sudden increase in torque is felt. Then tighten
1/6 to 1/3 turn more to seat the sleeve.
Flex Fittings
Put nut and sleeve over the tubing and push tube in
to counterbore of fitting body as far as possible.
Tighten the nut until it is against the hex part of the
fitting body.
6 of 7
45ûFLARED AND 45ûINVERTED FLARE FITTINGS
INVERTED
45ûFLARED 45ûFLARED
45ûFLARED AND 45ûINVERTED FLARE FITTINGS
NOMINAL TUBE O.D. STANDARD TORQUE
METRIC
3.18
4.76
6.35
7.94
9.52
11.11
12.70
15.88
19.05
22.22
INCH
.125
.188
.250
.312
.375
.438
.500
.625
.750
.875
(N im)
5.0 ±1.5
8.0 ±1.5
11 ±2
17 ±3
30 ±3
30 ±3
38 ±4
50 ±5
90 ±8
100 ±10
(lb ift)
4±1
6±1
8±1
13 ±2
22 ±2
22 ±2
28 ±3
37 ±4
65 ±6
75 ±7
THREAD
SIZE
inch
5/16
3/8
7/16
1/2
5/8
11/16
3/4
7/8
1-1/16
1-1/4
IDAS007B
IDAS008B
IDAS009B

7 of 7
AIR CONDITIONING AND TAPERED PIPE THREAD FITTINGS
O-RING 45ûFLARE
AIR CONDITIONING FITTINGS
TAPERED PIPE THREAD FITTINGS
O-RING FITTING END
STANDARD TORQUE
STANDARD TORQUE
5/8-18
3/4-16
7/8-14
1 1/16-14
N im
18 ±4
37 ±4
40 ±4
45 ±5
(lb ift)
13 ±3
27 ±3
30 ±3
33 ±4
N im
30 ±3
52 ±5
60 ±7
75 ±8
(lb ift)
22 ±2
38 ±4
44 ±5
55 ±6
N im
23 ±3
33 ±4
38 ±4
50 ±5
(lb ift)
17 ±2
24 ±3
28 ±3
37 ±4
THREAD
SIZE
inch
45ûFLARE FITTING END
STEEL TUBES
STANDARD TORQUE
ALUMINUM TUBES
STANDARD TORQUE
PIPE
THREAD
SIZE
inch
1/16-27
1/8-27
1/4-18
3/8-18
1/2-14
3/4-14
1-11 1/2
1 1/4-11 1/2
1 1/2-11 1/2
2-11 1/2
THREADS WITH
1E2200E SEALANT
THREADS WITHOUT
SEALANT
Nim
15
20
25
35
45
60
75
95
110
130
Nim
20
25
35
45
60
75
90
110
130
160
(lb ift)
11
15
18
26
33
45
55
70
80
95
(lb ift)
15
18
26
33
45
55
65
80
95
120
IDAS010B

Service Manual
Diesel Engine
5.8 Liter (DB58)
D35S-2, D40S-2, D45S-2
D40SC-2, D45SC-2, D50SC-2
SB2201E00
Jun. 1999

Important Safety Information
Most accidents involving product operation, maintenance and repair are caused by failure to observe basic safety
rules or precautions. An accident can often be avoided by recognizing potentially hazardous situations before an
accident occurs. A person must be alert to potential hazards. This person should also have the necessary training,
skills and tools to perform these functions properly.
Read and understand all safety precautions and warnings before operating or performing lubrication,
maintenance and repair on this product.
Basic safety precautions are listed in the ÒSafetyÓ section of the Service or Technical Manual. Additional safety
precautions are listed in the ÒSafetyÓ section of the owner/operation/maintenance publication.
Specific safety warnings for all these publications are provided in the description of operations where hazards
exist. WARNING labels have also been put on the product to provide instructions and to identify specific hazards.
If these hazard warnings are not heeded, bodily injury or death could occur to you or other persons. Warnings in
this publication and on the product labels are identified by the following symbol.
IImproper operation, lubrication, maintenance or repair of this product can be dangerous and could result
in injury or death.
Do not operate or perform any lubrication, maintenance or repair on this product, until you have read and
understood the operation, lubrication, maintenance and repair information.
Operations that may cause product damage are identified by NOTICE labels on the product and in this
publication.
DAEWOO cannot anticipate every possible circumstance that might involve a potential hazard. The warnings in
this publication and on the product are therefore not all inclusive. If a tool, procedure, work method or operating
technique not specifically recommended by DAEWOO is used, you must satisfy yourself that it is safe for you and
others. You should also ensure that the product will not be damaged or made unsafe by the operation, lubrication,
maintenance or repair procedures you choose.
The information, specifications, and illustrations in this publication are on the basis of information available at the
time it was written. The specifications, torques, pressures, measurements, adjustments, illustrations, and other
items can change at any time. These changes can affect the service given to the product. Obtain the complete
and most current information before starting any job. DAEWOO dealers have the most current information
available.
WARNING

TO THE CUSTOMERS
This operation and maintenance manual is designed to serve as a reference for DHI's customers and distributors
who wish to gain basic product knowledge on DHI's DB58 Diesel engine.
To maintain the engine in optimum condition and retain maximum performance for a long time, CORRECT
OPERATION and PROPER MAINTENANCE are essential.
In this manual, the following symbols are used to indicate the type of service operations to be performed.
Removal Adjustment
Installation Liquid gasket application
Disassembly Cleaning
Reassembly Pay close attention-Important
Alignment(Marks) Tighten to specified torque
Directional Indication Use special tools of manufacturer's
Inspection Lubricate with oil
Measurement Lubricate with grease
If you have any question or recommendation in connection with this manual, please do not hesitate to contact our
head office, dealers or authorized service shops.

CONTENTS
1. GENERAL INFORMATION¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥1
1.1. General Repair Instructions 1.4. Major Part Fixing Bolts
1.2. Engine Specifications 1.5. Maintenance
1.3. Torque Specifications 1.6. Engine Repair Parts
2. ENGINE DISASSEMBLY AND ASSEMBLY ¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥24
2.1. Engine External Parts 2.3. Inspection and Repair
2.2. Disassembly 2.4. Reassembly
3. SYSTEM OF LUBRICATION¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥73
3.1. General Description 3.3. Oil Cooler
3.2. Oil Pump
4. COOLING SYSTEM ¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥78
4.1. General Description 4.2. Coolant pump
5. FUEL SYSTEM ¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥83
5.1. General Description 5.3. Injection Nozzle
5.2. Fuel filter 5.4. Injection Pump
6. CAUSE OF TROUBLE, DIAGNOSIS AND TROUBLESHOOTING¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥92

1. General Information
1.1. General Repair Instructions
1. For safety, park the truck on even ground or work station and fix the wheels using wedges and hand brake
during operation.
2. Before performing service operations, disconnect the grounding cable from the battery to reduce the chance
of cable damage and burning due to short-circuiting.
3. Before performing service operations release the air pressure in the machine air line system for safety. To not
do so is extremely dangerous.
4. Use covers to prevent the components from damage or pollution.
5. Brake oil and anti-freeze solution must be handled with reasonable care as they cause paint damage.
6. The use of proper tools and special tools where specified is important for efficient and reliable service
operation.
7. Use genuine DAEWOO parts exclusively.
8. Used cotter pins, gaskets, O-rings, oil seals, lock washers and self-lock nuts should be discarded and new
ones should be prepared for installation as normal function of the parts can not be maintained if these parts
are reused.
9. To facilitate proper and smooth reassembly operation, keep disassembled parts neatly in groups. Keeping
bolts and nuts separate is very important as they vary in hardness and design depending on the position of
installation.
10. Clean the parts before inspection or reassembly. Also clean oil ports, etc. using compressed air to make
certain they are free from restrictions.
11. Lubricate rotating and sliding faces of parts with oil or grease before installation.
12. When necessary, use a sealant on gaskets to prevent leakage.
13. Carefully observe all specifications for bolts and nuts torques.
14. When a service operation is completed, make a final check to ensure that the service has been done
properly.
- 1 -

1.2. Engine Specifications
- 2 -
Engine Model
Items
Engine type Water cooled, 4 cycle, vertical in-line, overhead valve
Combustion chamber type Direct injection
Cylinder liner type Dry type
Timing gear system Gear drive type
Number of piston ring Compression ring 2, oil ring 1
No. of cylinder-bore b stroke (mm) 6-102 b 118
Total piston displacement (cc) 5,785
Compression ratio 17.5 : 1
Engine dimension(length b width b height) (mm) 1122 b 648 b 775
Engine weight(dry) (kg) 455
Fuel injection order 1-5-3-6-2-4
Fuel injection timing(B.T.D.C static) 18 û
Type of fuel used High speed diesel fuel (SAE No.2)
Fuel filter type Cartridge type
Injection pump type Bosch in-line A type
Governor type Mechanical governing (RSV type)
Injection nozzle type Multi-hole type
Fuel injection pressure (Kg/cm2) 220
Compression pressure (kg/cm2) 31 (at 200 RPM)
Low idle speed(R.P.M) 750 L 30
High idle speed(R.P.M) 2370 L 50
Intake and exhaust valve clearance(mm) 0.4 (at cold)
Rated Power 92 ps / 2,200rpm
Max torque 31.5 kg ¥ m / 1,600rpm
Lubrication method Pressurized circulation
Oil pump type Gear type
Oil filter type Full-flow, cartridge
Lubricating oil capacity (
M
) 14.5
Oil cooler type Water cooled
Cooling method Pressurized forced circulation
Cooling water capacity(engine only) (
M
)12
Water pump Belt driven impeller type
Thermostat type Wax pallet type
Battery (V) 24
Alternator (V-A) 24-4.5
Starter (V-KW) 24-4.5
DB 58

- 3 -

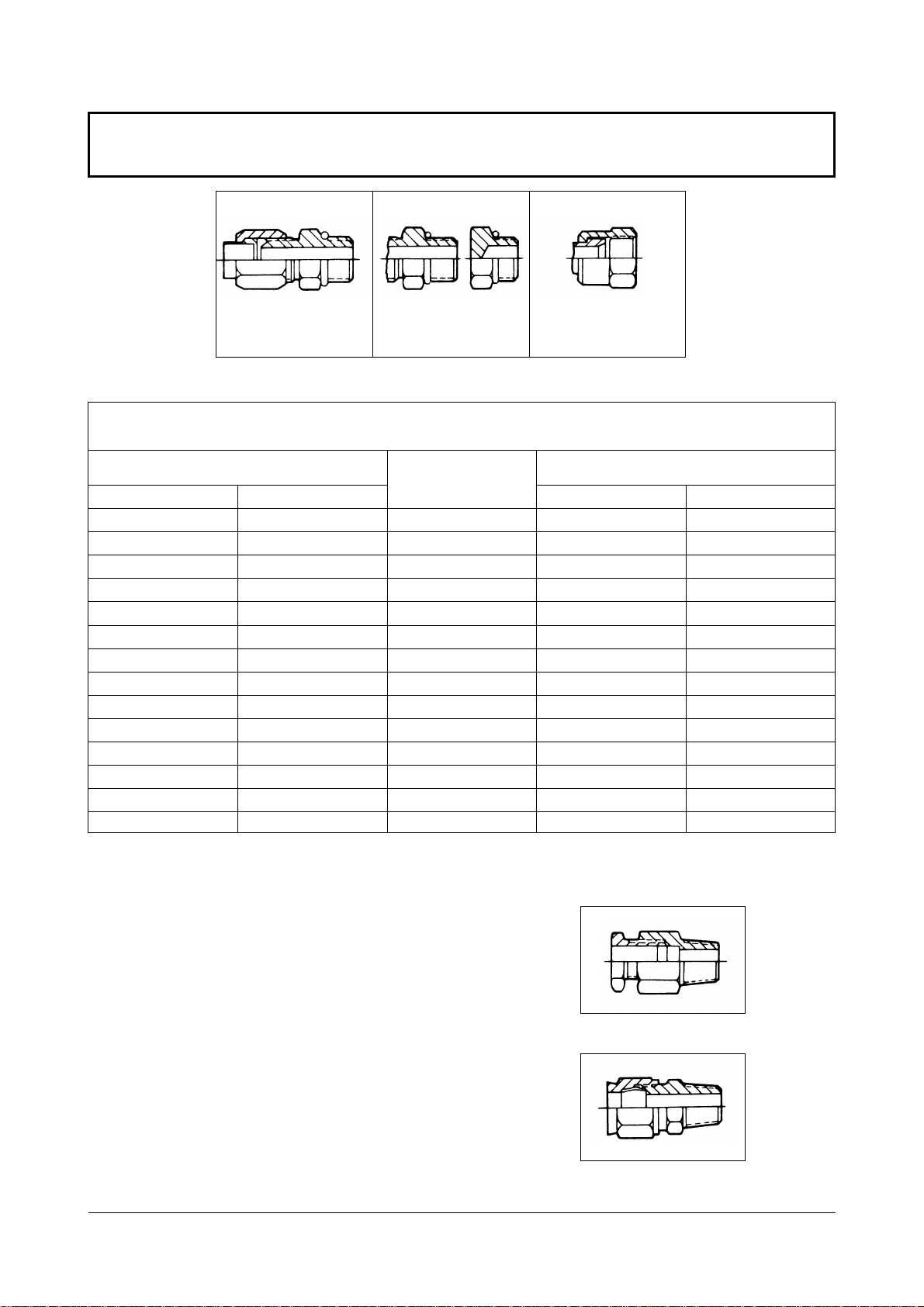

1.3. Torque Specifications
¥Standards bolts
The torque values given in the following table should be applied where a particular torque is not specified.
(Unit : kg¥m)
Bolt
identification
Bolt
diameter
b pitch 4T
Low carbon steel
7T
High carbon steel
9T
Alloy steel
6
b 1.0
8
b 1.25
10
b 1.25
8 10 b 1.5
12
b 1.25
8 12 b 1.75
14
b 1.5
8 14 b 2.0
16
b 1.5
8 16 b 2.0
18
b 1.5
20
b 1.5
22
b 1.5
24
b 2.0
0.4-0.8
0.8-1.8
2.1-3.5
2.0-3.4
5.0-7.5
4.6-7.0
7.8-11.7
7.3-10.9
10.6-16.0
10.2-15.2
15.4-23.0
21.0-31.6
25.6-42.2
36.6-55.0
0.5-1.0
1.2-2.3
2.8-4.7
2.8-4.6
6.2-9.3
5.8-8.6
9.5-14.2
9.0-13.4
13.8-20.8
13.2-19.8
19.9-29.9
27.5-41.3
37.0-55.5
43.9-72.5
-
1.7-3.1
3.8-6.4
3.7-6.1
7.7-11.6
7.3-10.9
11.6-17.4
10.9-16.3
16.3-24.5
15.6-23.4
23.4-35.2
32.3-48.5
43.3-64.9
56.5-84.7
The
8 indicates that the bolts are used for female-threaded parts that are made of soft materials such as casting,
etc.

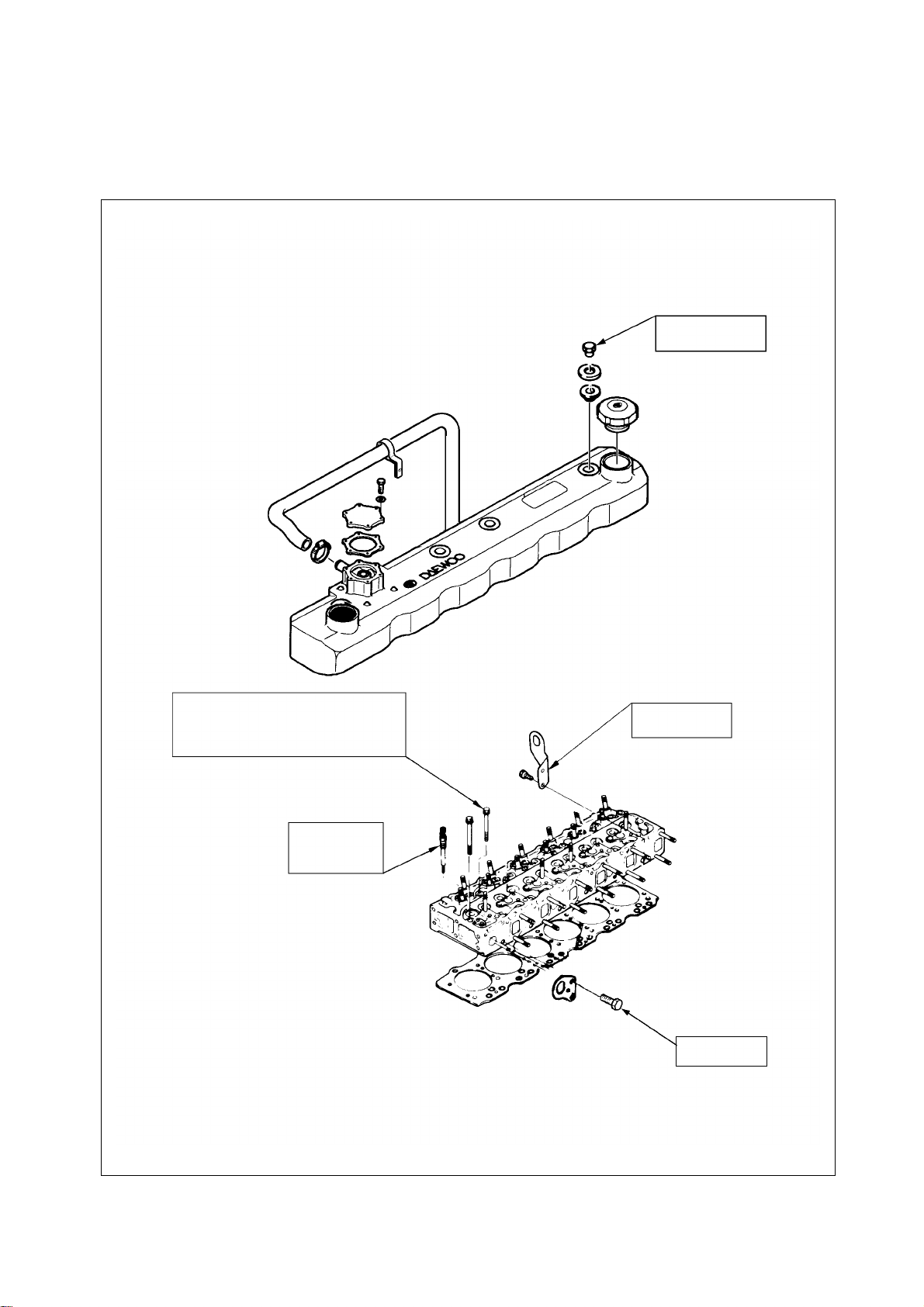

1.4. Major Parts Fixing Bolts
¥Cylinder Head and Block
(Unit : kg¥m)
- 4 -
2.7 L 0.25
(19.5
L 1.8)
5.3
L 1
2.1
L 0.5
11.5 L 05. (hexagon bolt) : (Torque Control Method)
4 Kg m + 90û+60û(0~30û)
(docoecagon bolt) : (Angle Control Method)
EJM1001S
preheating plug
5.3
L 1

¥ Intake and Exhaust Manifold(DB58)
(Unit : kg¥m)
- 5 -
2.9
L 0.3
2.6
L 0.5
EJM1007S
