Daewoo AXW-217 User manual

Service Manual
S/N No. :
Sep. 2002
DAEWOO ELECTRONICS CO., LTD.
http : //svc.dwe.co.kr
Mini Component S stem
Model:

AXW-217
AXW-117
AMI-926LW/RW
9CD8300900
AXW-117
AMI-926LW/RW
AXW-217
All manuals and user guides at all-guides.com
all-guides.com

SAFETY PRECAUTIONS...............................................................................................2
ADJUSTMENTS..............................................................................................................4
EXPLODED VIEW AND PARTS LIST .........................................................................6
AXW-217..............................................................................................................................................6
AXW-117..............................................................................................................................................8

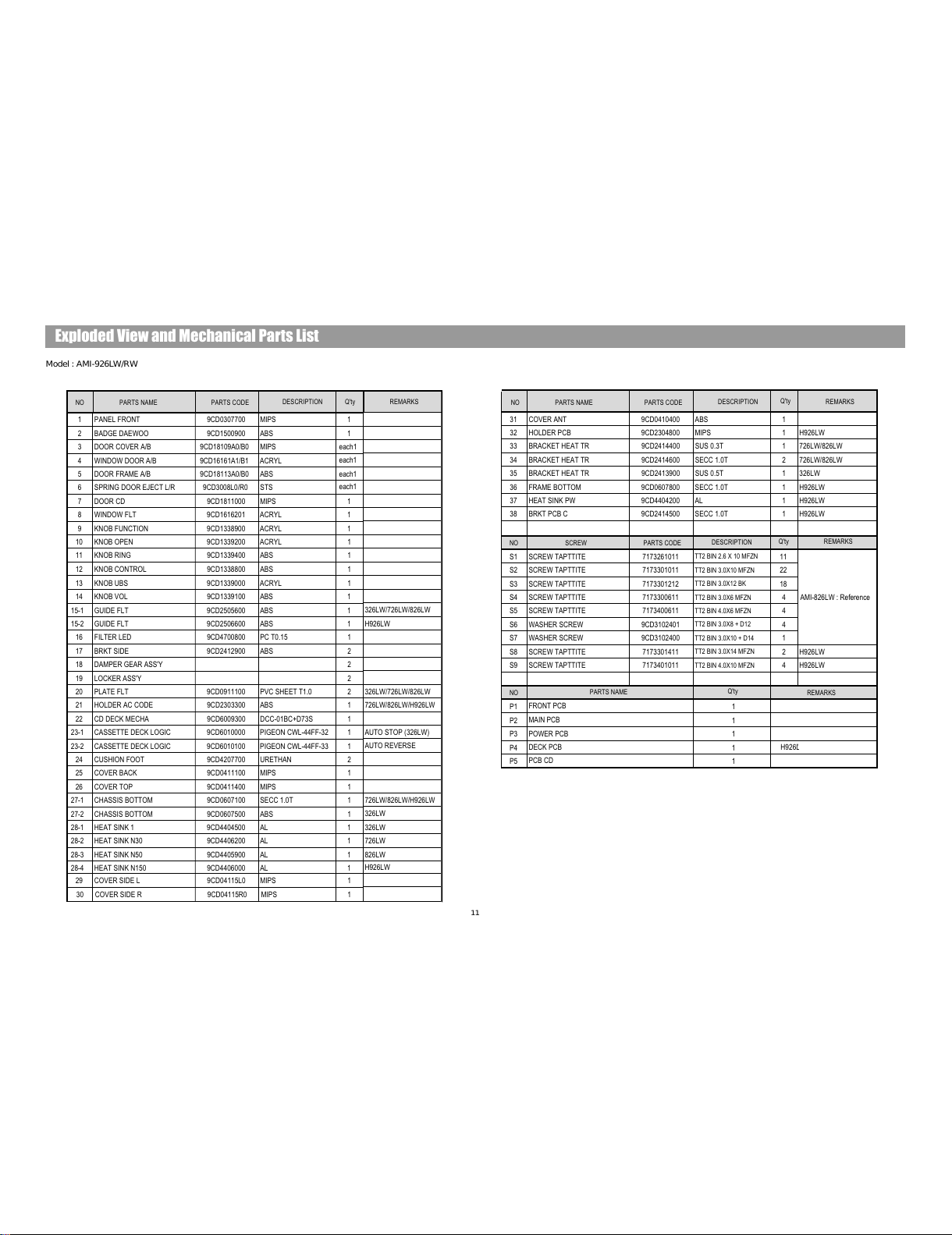

AMI-926LW/RW..................................................................................................................................1

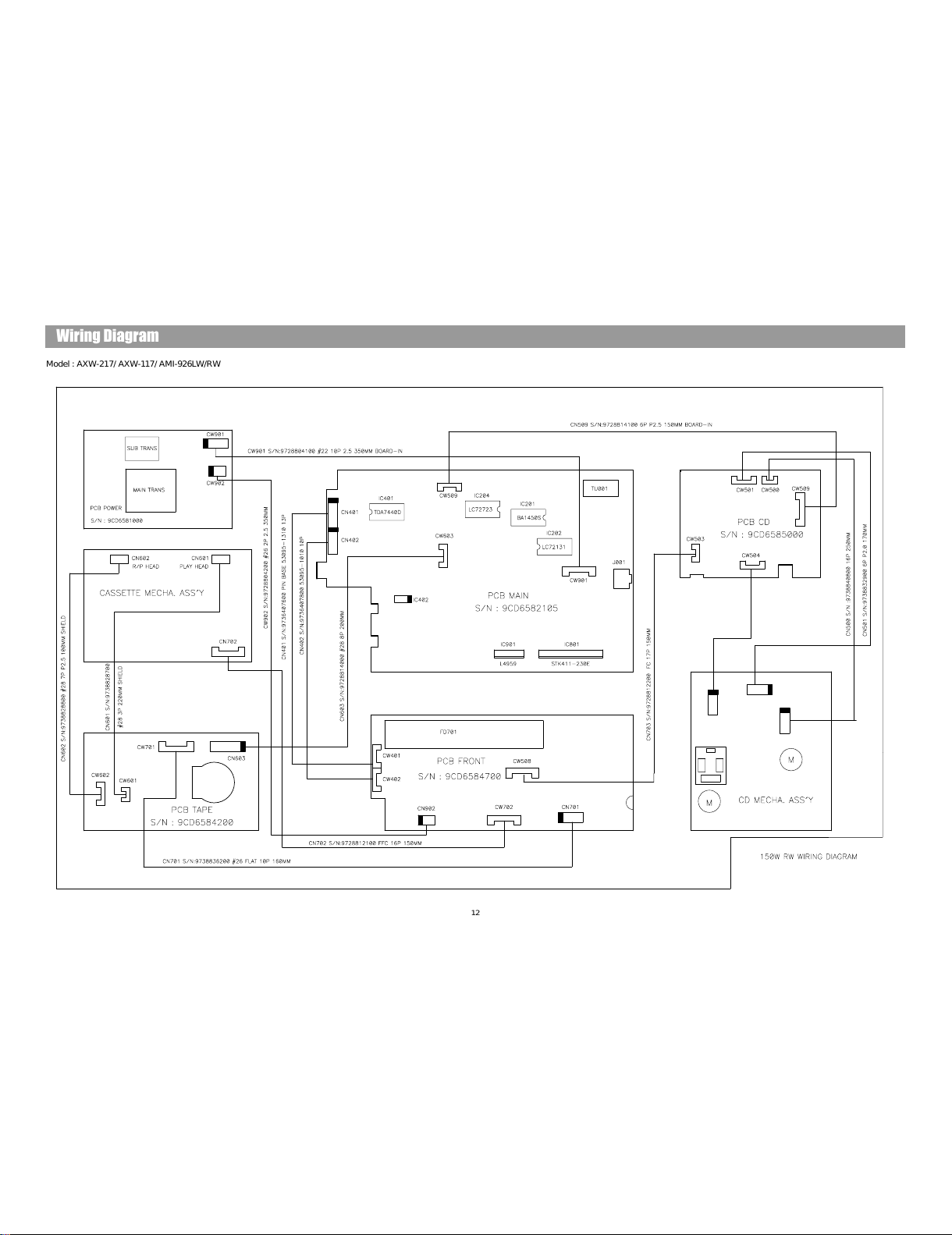

WIRING DIAGRAM ...................................................................................................... 12
BLOCK DIAGRAM ........................................................................................................13
SCHEMATIC DIAGRAM ...............................................................................................14
MAIN....................................................................................................................................................14

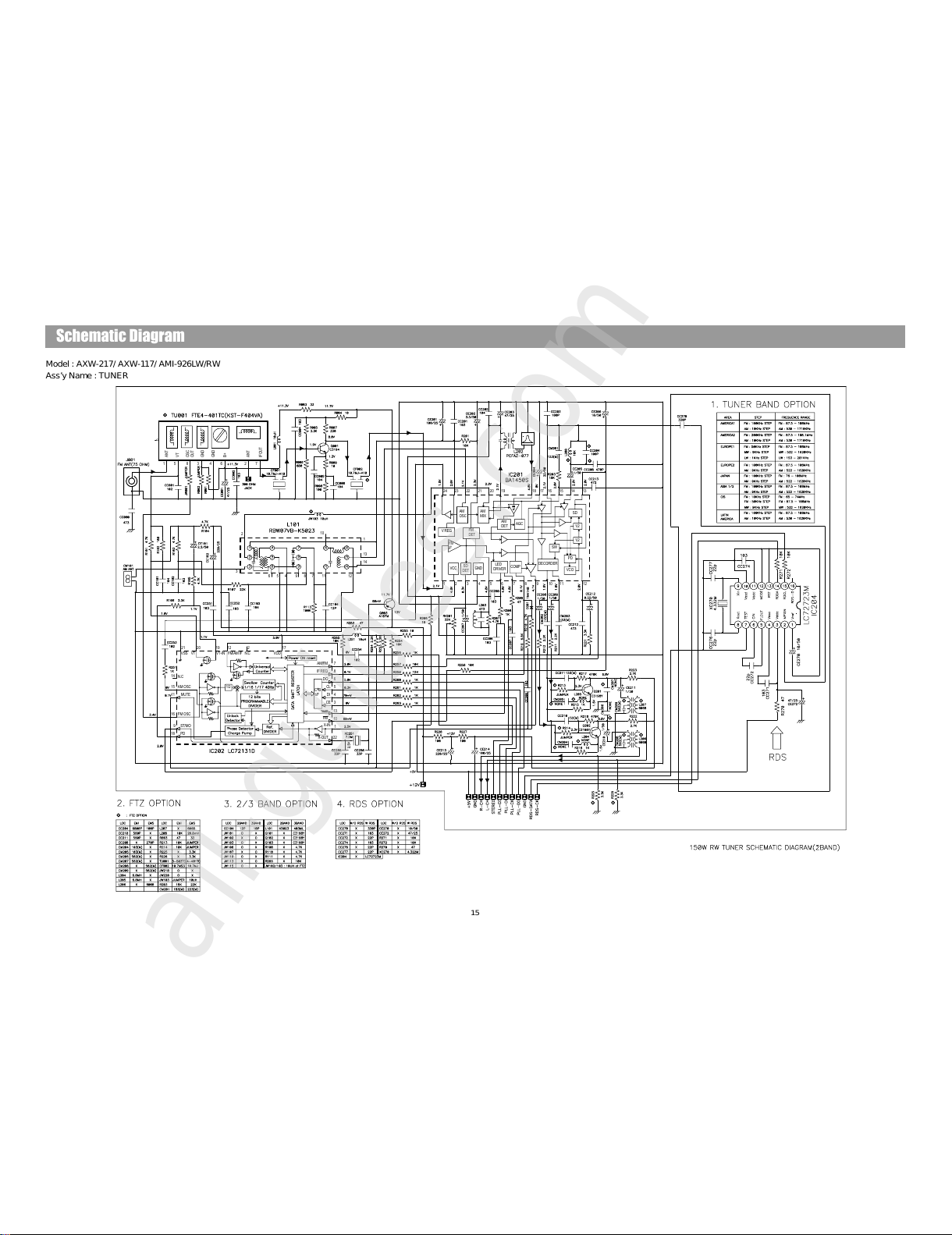

TUNER.................................................................................................................................................15
TAPE.....................................................................................................................................................16
CD ........................................................................................................................................................17

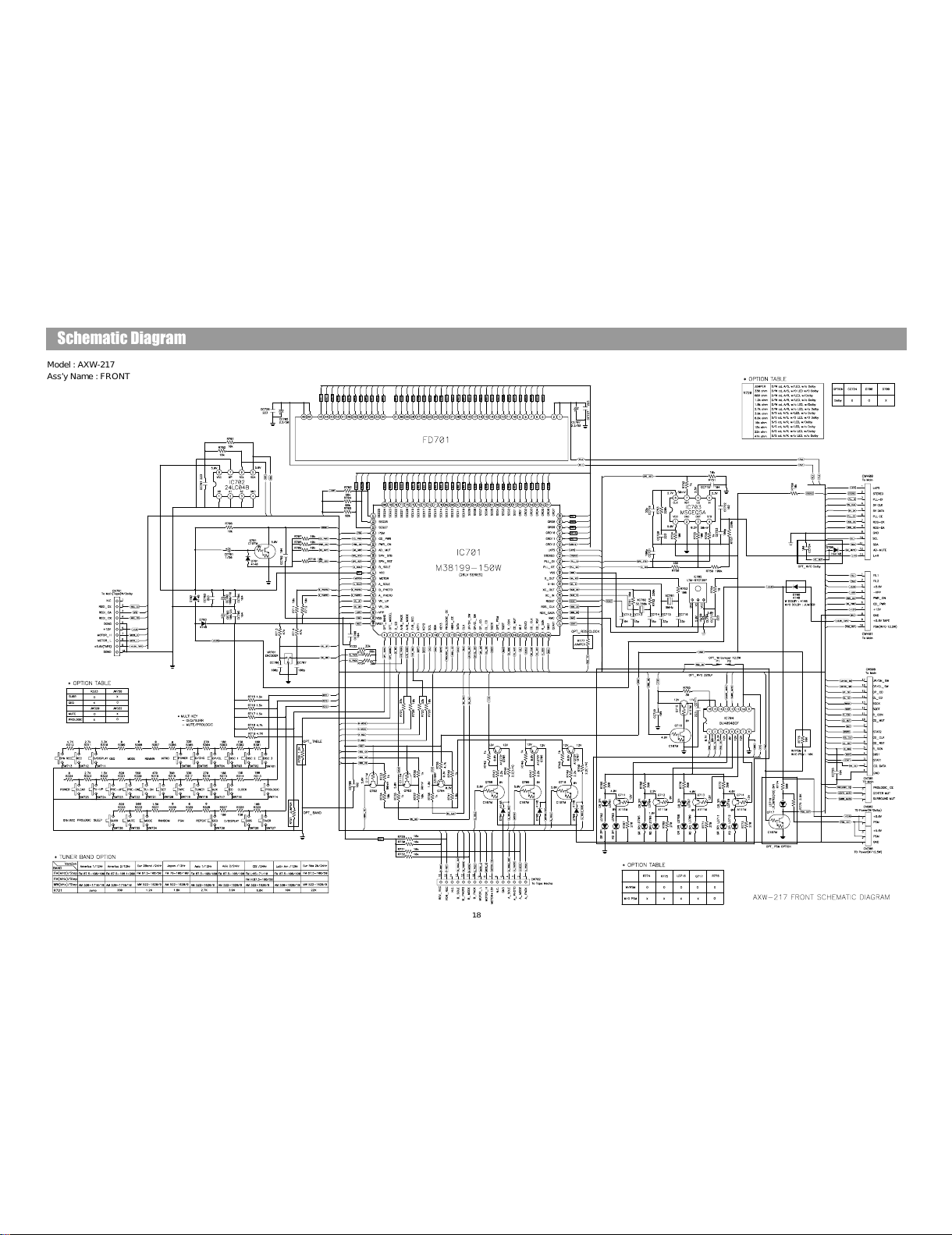

FRONT(AXW-217)..............................................................................................................................18
FRONT(AXW-117)..............................................................................................................................19
FRONT(AMI-926LW/RW)...................................................................................................................2
POWER.................................................................................................................................................21
PCB PATTERN LAYOUT ..............................................................................................22
ELECTRICAL PART LIST .............................................................................................28
Table of Contents
1
MINI COMPONENT S STEM
AXW-217
AXW-117
AMI-926LW/RW
All manuals and user guides at all-guides.com

Safety Precautions
2
WARNING : TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION : TO REDUCE THE RISK IF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS
INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
THIS SYMBOL IS INTENDED TO ALERT THE USER TO THE
PRESENCE OF UNINSULTED "DANGEROUS VOLTAGE"
WITHIN THE PRODUCT S ENCLOSURE THAT MAY BE
SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF
ELECTRIC SHOCK TO PERSONS.
THIS SYMBOL IS INTENDED TO ALERT THE USER TO THE
PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE
(SERVICING) INSTRUCTIONS IN THE LITERATURE
ACCOMPANYING THE APPLIANCE.
CAUTION
TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS POLARIZED AC
PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET
UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE
EXPOSURE.
LASER SAFETY
THIS UNIT EMPLOYS A LASER. ONLY QUALIFIED SERVICE PERSONNEL
SHOULD REMOVE THE COVER OR ATTEMPT TO SERVICE THIS DEVICE
DUE TO POSSIBLE EYE INJURY.
CAUTION : USE OF ANY CONTROLS, ADJUSTMENTS, OR PROCEDURES
OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE.
CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF
PLUG TO WIDE SLOT, FULLY INSERT.
ATTENTION : POUR EVITER LES CHOCS ELECTRIQUES, INTRODUIRE
LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPON-
DANTE DE LA PRISE ET POUSSER JUSQU AU FOND.
Important Safety Instructions
- All the safety and operating instructions should be read before
the appliance is operated.
- The safety and operating instructions should be retained for
future reference.
- All warnings on the appliance and in the operating instructions
should be adhered to.
- All operating and use instructions should be followed.
1. Water and Moisture - The appliance should not be used near
water - for example, near a bathtub, washbowl, kitchen sink,
laundry tub, in a wet basement, or near a swimming pool,
and the like.
2. Carts and Stands - The appliance
should be used only with a cart or
stand that is recommended by th
manufacturer.
3. An appliance and cart combination
should be moved with care. Quick
stops, excessive force, and uneven
surfaces may cause the appliance
and cart combination to overturn.
4. Wall or Ceiling Mounting - The appli-
ance should be mounted to a wall or
ceiling only as recommended by the manufacturer.
5. Ventilation - The appliance should be situated so that its
location or position does not interfere with its proper
ventilation. For example, the appliance should not be situated
on a bed, sofa, rug, or similar surface that may block the
ventilation openings; or, placed in a built-in installation, such
as a bookcase or cabinet that may impede the flow of air
through the ventilation openings.
6. Heat - The appliance should be situated away from heat
sources such as radiators, heat registers, stoves, or other
appliances (including amplifiers) that produce heat.
7. Power Sources - The appliance should be connected to a
power supply only of the type described in the operating
instructions or as marked on the appliance.
8. Grounding or Polarization - The precautions that should be
taken so that the grounding or polarization means of an
appliance is not defeated.
9. Power - Cord Protection - Power-supply cords should be
routed so that they are not likely to be walked on or pinched
by items placed upon or against them, paying particular
attention to cords at plugs, convenience receptacles, and the
point where they exit from the appliance.
10.Protective Attachment Plug - If the appliance is equipped with
an attachment plug having overload protection. This is a
safety feature. See Instruction Manual for replacement or
resetting of protective device. If replacement of the plug is
required, be sure the service technician has used a
replacement plug specified by the manufacturer that has the
same overload protection as the original plug.
11.Cleaning - The appliance should be cleaned only as
recommended by the manufacturer.
12.Power Lines - An outdoor antenna should be located away
from power lines.
CAUTION
RISK OF ELECTRIC SHOCKS
DO NOT OPEN
PORTABLE CART
Figure 2
All manuals and user guides at all-guides.com

Safety Precautions
13.Outdoor Antenna Grounding - If an outside antenna is
connected to the receiver be sure the antenna system is
grounded so as to provide some protection against voltage
surges and built-up static charges. Article 810 of the National
Electrical Code, ANSI/NFPA 70, provides information with
regard to proper grounding of the mast and supporting
structure, grounding of the lead-in wire to an antenna-dis
charge unit, size of grounding conductors,location of antenna-
discharge unit, connection to grounding electrodes and
requirements for the grounding electrode. See Figure 1.
14.Non-use Periods - The power cord of the appliance should be
unplugged from the outlet when left unused for a long period
of time.
15.Object and Liquid Entry - Care should be taken so that objects
do not fall and liquids are not spilled into the enclosure through
openings.
16.Damage Requiring Service - The appliance should be
serviced by qualified service personnel when:
a) The power-supply cord or the plug has been damaged; or
b) Objects have fallen, or liquid has been spilled into the
appliance; or
c) The appliance has been exposed to rain; or
d) The appliance does not appear to operate normally or
exhibits a marked change in performance; or
e) The appliance has been dropped, or the enclosure
damaged.
17.Servicing - The user should not attempt to service the
appliance beyond that described in the operating instructions.
All other servicing should be referred to qualified service
personnel.
ANTENNA DISCHARGE UNIT
(NEC SECTION 810-20)
ANTENNA LEAD
IN WIRE
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250 PART H)
GROUND CLAMP
ELECTRIC
SERVICE
EQUIPMENT
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
EXAMPLE OF ANTENNA
GROUNDING
NEC - NATIONAL ELECTRICAL CODE
All manuals and user guides at all-guides.com

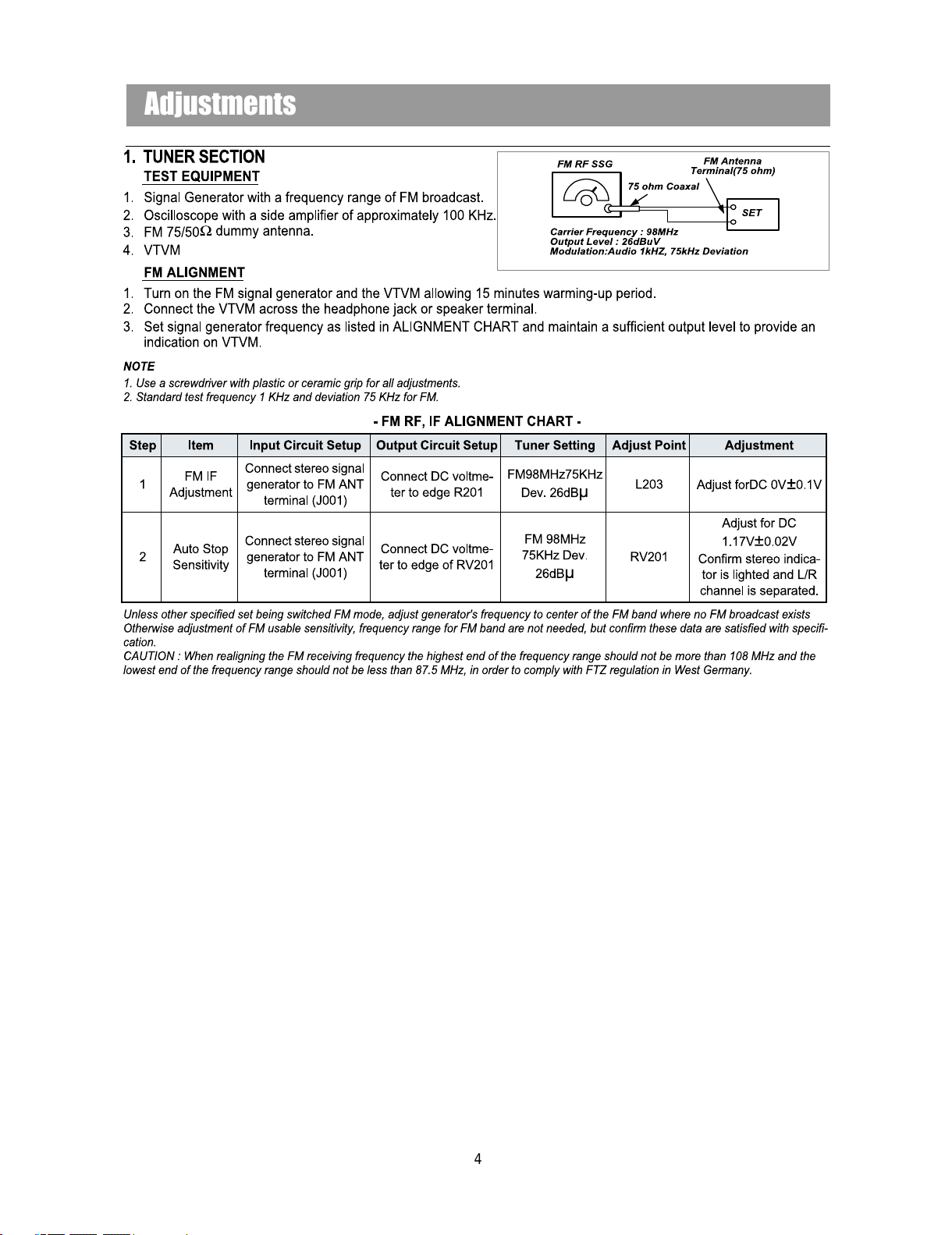

Adjustments
4
All manuals and user guides at all-guides.com

Adjustments
5
. TAPE SECTION
Test Tape be used
HEAD ADJUSTMENT (AZIMUTH)
1. 10KHz test tape(example: MTT-114N) must be used for this adjustment.
2. Connect to VTVM or oscilloscope to the headphone jack or speaker terminal.
3. Press the play button.
4. Adjust the azimuth by using a screw driver to maintain the max. L&R output voltage.
5. Adjust tape A(1), tape B(2) respectively, Please secure the azimuth position by using locking paint.
RECORDING BIAS OSCILLATOR FREQUENCY ADJUSTMENT
1. Connect the frequency counter to TP603, GND.
2. Press the REC button.
3. Adjust L603 to obtain 80 KHz
± 500Hz
Tape Contents Use
MTT-111N 3 KHz Tape Speed Adjustment
MTT-114N 10 KHz Head Azimuth Adjustment
MTT-5511 Blank Record Frequency Property
VTVM
Scope
R-CH
L-CH
47 kohm
47 kohm
Input Level
Measurement
Point
Input Point
Output Level
Measurement
Point
TAPE ALIGNMENT CHART
Step Item Reference Value Test Tape Adjust Point Test Point Note FIG.
1Tape Speed
Adjustment
Normal
3,015~3,025Hz MTT-111N RV601 Line Out L/R
Channel
Line Out L/R
Channel
Confirm Wow & Flut-
ter is within 0.35% FIG.1
3,000~3,010Hz MTT-111N RV601 Line Out L/R
Channel
Confirm Tape Speed
of end position after
adjustment at tape
start position
FIG.1
High 5,820~6,180Hz MTT-111N - - - - - -
Confirm High speed
after normal speed
adjustment FIG.1
2Azimuth Adjustment Maximum Level
Phase:Within90∞ MTT-114N Head Screw Line Out L/R
Channel FIG.2,3,4
3
Recording Bias Oscilla-
tor Frequency Adjust-
ment 80 KHz±0.5 MTT-5511 L603 TP603,GND Adjust with frequency
counter connected. FIG.1
FIG. 1 : Tape Speed & Record Bias Oscillator
Frequency Adjust Circuit
Test Tape MTT-111N(3kHz)
MTT-5511(Blank) Frequency Counter
Output Level
Measurement Point
Set
FIG. 2 : Tape Azimuth Adjust Location
(Record/Playback Head)
FIG. 3 : Tape Azimuth Adjust Head Screw & Waveform FIG. 4 : Tape Azimuth Adjust Circuit & Waveform
Forward
Side
Reverse
Side
Adjust with Frequency
Counter Connected
L-CH
Peak
R-CH
Peak
Screw
Angle
Output Level
within
1 dB
within
1 dB
L-CH
Peak
R-CH
Peak Screw Angle
VH
Oscilloscope
L-CH
Output Level
Measurement Point
Set
Test Tape
MTT-114N
(10kHz)
Screen Pattern
In Phase 45 90 135 180
Good Wrong
All manuals and user guides at all-guides.com
all-guides.com

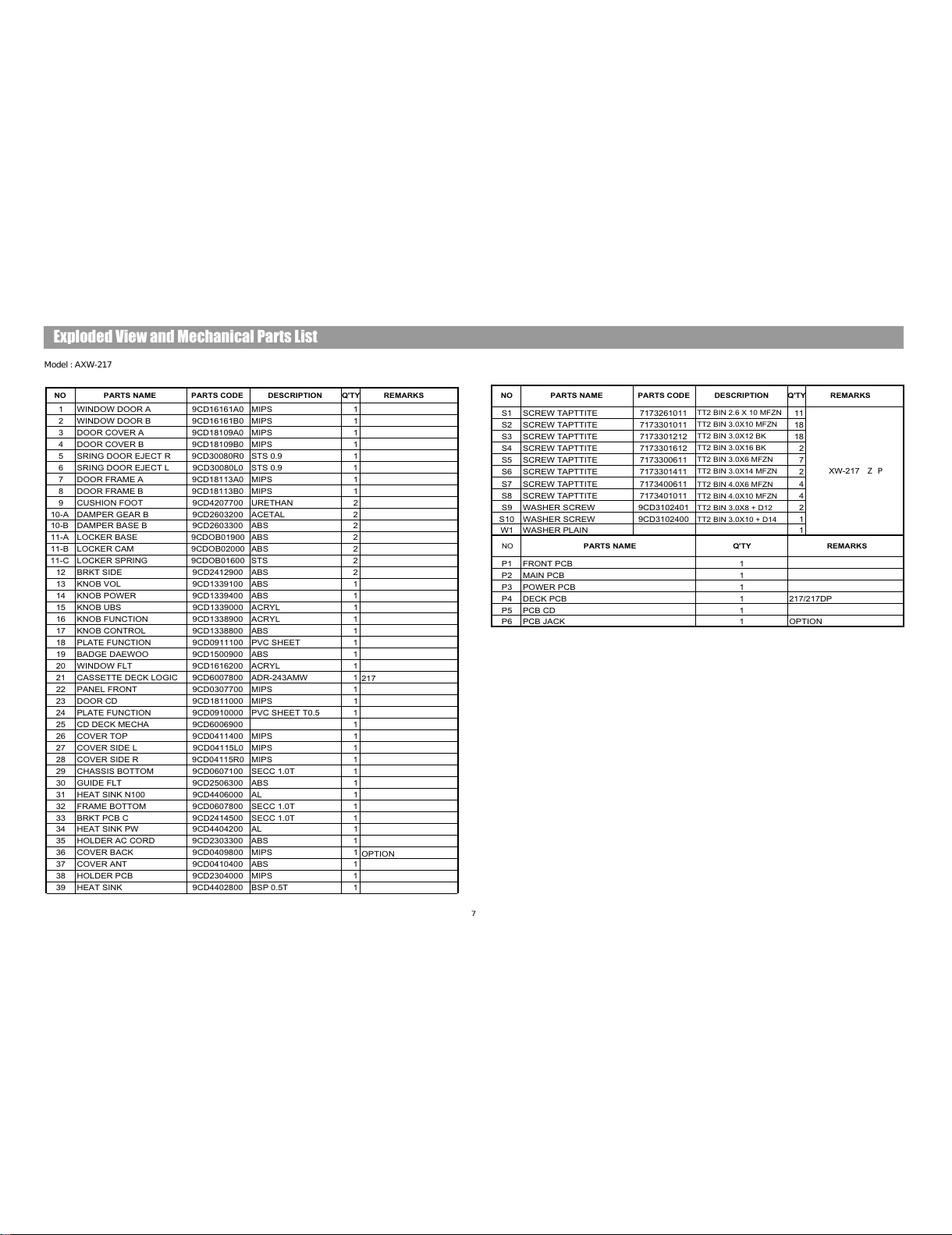

Exploded View and Mechanical Parts List
Model : AXW-217
6
All manuals and user guides at all-guides.com

1 WINDOW DOOR A 9CD16161A0 MIPS 1
2 WINDOW DOOR B 9CD16161B0 MIPS 1
3 DOOR COVER A 9CD18109A0 MIPS 1
4 DOOR COVER B 9CD18109B0 MIPS 1
5 SRING DOOR EJECT R 9CD30080R0 STS 0.9 1
6 SRING DOOR EJECT L 9CD30080L0 STS 0.9 1
7 DOOR FRAME A 9CD18113A0 MIPS 1
8 DOOR FRAME B 9CD18113B0 MIPS 1
9 C SHION FOOT 9CD4207700 RETHAN 2
10-A DAMPER GEAR B 9CD2603200 ACETAL 2
10-B DAMPER BASE B 9CD2603300 ABS 2
11-A LOCKER BASE 9CDOB01900 ABS 2
11-B LOCKER CAM 9CDOB02000 ABS 2
11-C LOCKER SPRING 9CDOB01600 STS 2
12 BRKT SIDE 9CD2412900 ABS 2
13 KNOB VOL 9CD1339100 ABS 1
14 KNOB POWER 9CD1339400 ABS 1
15 KNOB BS 9CD1339000 ACRYL 1
16 KNOB F NCTION 9CD1338900 ACRYL 1
17 KNOB CONTROL 9CD1338800 ABS 1
18 PLATE F NCTION 9CD0911100 PVC SHEET 1
19 BADGE DAEWOO 9CD1500900 ABS 1
20 WINDOW FLT 9CD1616200 ACRYL 1
21 CASSETTE DECK LOGIC 9CD6007800 ADR-243AMW 1 217
22 PANEL FRONT 9CD0307700 MIPS 1
23 DOOR CD 9CD1811000 MIPS 1
24 PLATE F NCTION 9CD0910000 PVC SHEET T0.5 1
25 CD DECK MECHA 9CD6006900 1
26 COVER TOP 9CD0411400 MIPS 1
27 COVER SIDE L 9CD04115L0 MIPS 1
28 COVER SIDE R 9CD04115R0 MIPS 1
29 CHASSIS BOTTOM 9CD0607100 SECC 1.0T 1
30 G IDE FLT 9CD2506300 ABS 1
31 HEAT SINK N100 9CD4406000 AL 1
32 FRAME BOTTOM 9CD0607800 SECC 1.0T 1
33 BRKT PCB C 9CD2414500 SECC 1.0T 1
34 HEAT SINK PW 9CD4404200 AL 1
35 HOLDER AC CORD 9CD2303300 ABS 1
36 COVER BACK 9CD0409800 MIPS 1 OPTION
37 COVER ANT 9CD0410400 ABS 1
38 HOLDER PCB 9CD2304000 MIPS 1
39 HEAT SINK 9CD4402800 BSP 0.5T 1
NO PARTS NAME PARTS CODE DESCRIPTION Q'TY REMARKS
Exploded View and Mechanical Parts List
Model : AXW-217
7
S1 SCREW TAPTTITE 7173261011 TT2 BIN 2.6 X 10 MFZN 11
S2 SCREW TAPTTITE 7173301011 TT2 BIN 3.0X10 MFZN 18
S3 SCREW TAPTTITE 7173301212 TT2 BIN 3.0X12 BK 18
S4 SCREW TAPTTITE 7173301612 TT2 BIN 3.0X16 BK 2
S5 SCREW TAPTTITE 7173300611 TT2 BIN 3.0X6 MFZN 7
S6 SCREW TAPTTITE 7173301411 TT2 BIN 3.0X14 MFZN 2
S7 SCREW TAPTTITE 7173400611 TT2 BIN 4.0X6 MFZN 4
S8 SCREW TAPTTITE 7173401011 TT2 BIN 4.0X10 MFZN 4
S9 WASHER SCREW 9CD3102401 TT2 BIN 3.0X8 + D12 2
S10 WASHER SCREW 9CD3102400 TT2 BIN 3.0X10 + D14 1
W1 WASHER PLAIN 1
NO
P1 1
P2 1
P3 1
P4 1
P5 1
P6 1
217/217DP
OPTION
FRONT PCB
MAIN PCB
POWER PCB
DECK PCB
PCB JACK
PCB CD
XW-217 ZP
NO PARTS NAME PARTS CODE DESCRIPTION Q'TY REMARKS
PARTS NAME Q'TY REMARKS
All manuals and user guides at all-guides.com

S3
S3
S3
S3
23
13
1
2
4
12
11
S2
22
16
17
25
27
35
P3
S2
S2
S2
S2
S2
S3
S3
S3
S3
S3
3
24
S3
S3
26
40
28
S6
S4
S4
S4
S2
P4
10
14
18
P5
37
P1
S1
S1
S1
S1
XL-115R
8
19
S2
P2
S7 36
36
S5
S5
S2
S2
39
38
5
S2
S2
S2
S2
S3
S3
S3
S3
S3
S5
15
S3
S3
S1
S1
S1
S1
S1
S1
S1
6
S2
S2
7
S2
S2
20
S3
S2
S2
S1
9
9
10
14
11
21
29
31
32
30
33
34
S2
S2
11
Exploded View and Mechanical Parts List
Model : AXW-117
8
All manuals and user guides at all-guides.com

NO PARTS NAME PARTS CODE DESCRIPTION Q'TY REMARKS NO PARTS NAME PARTS CODE DESCRIPTION Q'TY REMARKS
1 WINDOW DOOR "A" 9CD18173A0 ACRYL 1 33 COVER SIDE "R" 9CD0410000 MIPS 1
2 WINDOW DOOR "B" 9CD18173B0 ACRYL 1 34 CHASSIS BOTTOM 9CD0607100 SECC 1
3 DOOR COVER "A" 9CD18122A0 MIPS 1 35 COVER BACK 9CD0411100 MIPS 1
4 DOOR COVER "B" 9CD18122B0 MIPS 1 36 BRKT HEAT SINK 9CD2414600 SECC 1.0T 2
5 SPRING DOOR EJECT "L" 9CD30078A0 STS 1 37 HEAT SINK N50 9CD4405800 AL 7.0T 1
6 SPRING DOOR EJECT "R" 9CD30078B0 STS 1 38 PLATE MICA "A" 9CD0910600 MICA 2
7 DOOR FRAME "A" 9CD18113A0 ABS 1 39 BRKT HEAT SINK 9CD2414400 STS 0.3T 1
8 DOOR FRAME "B" 9CD18113B0 ABS 1 40 HOLDER AC CORD 9CD2303300 ABS 1
9 LOCKER ASS'Y 2
10 DAMPER ASS'Y 2
11 C SHION FOOT 9CD4207700 RETHAN R BBER 3 S1 SCREW TAPTTITE 7173261011 TT2 BIN 2.6 X 10 MFZN 15
12 BADGE DAEWOO 9CD1500900 ABS 1 S2 SCREW TAPTTITE 7173301011 TT2 BIN 3.0 X 10 MFZN 22
13 PLATE LED 9CD0911700 PVC 0.5T 1 S3 SCREW TAPTTITE 7173301212 TT2 BIN 3.0 X 12 BK 19
14 BRKT SIDE 9CD2412900 MIPS 2 S4 SCREW TAPTTITE 7173301612 TT2 BIN 4.0 X 6 MFZN 4
15 PANEL FRONT 9CD0308200 MIPS 1 S5 SCREW TAPTTITE 7173400611 TT2 BIN 3.0 X 6 MFZN 5
16 WINDOW FLT 9CD1617400 ACRYL 1 S6 SCREW WASHER 9CD3102400 TT2 BIN 3.0 X 10 + D14 1
9CD6010000 PIGEON CWL-44FF-32 A TO STOP S7 SCREW WASHER 9CD3102401 TT2 BIN 3.0 X 8 + D10 4
9CD6010100 PIGEON CWL-44FF-33 A TO REVERSE
18 LENS F NCTION 9CD1617500 ACRYL 1
19 KNOB POWER 9CD1341800 MIPS 1 P1 PCB CD 9CD6574300
9CD6574800 197X123X1.6T 1 FR-3 DCC-01B
20 KNOB DEMO 9CD1341700 MIPS 1 P2 PCB FRONT 9CD6583000 247X139X1.6T 1
21 KNOB BS "L" 9CD13419L0 MIPS 1 P3 PCB MAIN 9CD6580500 319X197X1.6T 1
22 KNOB BS "R" 9CD13419R0 MIPS 1 P4 PCB POWER 9CD6580600 106.5X88X1.6T 1
23 KNOB CONTROL 9CD1341600 MIPS 1 P5 PCB OPTICAL JACK 9CD6577800 29X21.5X1.6T 1
24 HOLDER VOL ME 9CD2304200 MIPS 1
25 KNOB VOL ME 9CD1342000 MIPS 1
26 GEAR VOL ME 9CD2701700 POM 1
27 SHAFT STOPPER 9CD3601800 POM 1
28 G IDE FLT 9CD2506700 ABS 1
29 DOOR CD 9CD1812100 MIPS 1
30 CD DECK MECHA 9CD6009300 DCC-01BC+D73S 1
31 COVER TOP 9CD0409600 MIPS 1
32 COVER SIDE "L" 9CD0409900 MIPS 1
17 CASSETTE DECK LOGIC 1
Exploded View and Mechanical Parts List
Model : AXW-117
9
All manuals and user guides at all-guides.com

Exploded View and Mechanical Parts List
Model : AMI-926LW/RW
10
All manuals and user guides at all-guides.com
all-guides.com

1 PANEL FRONT 9CD0307700 MIPS 1
2 BADGE DAEWOO 9CD1500900 ABS 1
3 DOOR COVER A/B 9CD18109A0/B0 MIPS eac 1
eac 1
eac 1
eac 1
4 WINDOW DOOR A/B 9CD16161A1/B1 ACRYL
5 DOOR FRAME A/B 9CD18113A0/B0 ABS
6 SPRING DOOR EJECT L/R 9CD3008L0/R0 STS
7 DOOR CD 9CD1811000 MIPS 1
8 WINDOW FLT 9CD1616201 ACRYL 1
9 KNOB FUNCTION 9CD1338900 ACRYL 1
10 KNOB OPEN 9CD1339200 ACRYL 1
11 KNOB RING 9CD1339400 ABS 1
12 KNOB CONTROL 9CD1338800 ABS 1
13 KNOB UBS 9CD1339000 ACRYL 1
14 KNOB VOL 9CD1339100 ABS 1
15-1 GUIDE FLT 9CD2505600 ABS 1
15-2 GUIDE FLT 9CD2506600 ABS 1
16 FILTER LED 9CD4700800 PC T0.15 1
17 BRKT SIDE 9CD2412900 ABS 2
18 DAMPER GEAR ASS'Y 2
19 LOCKER ASS'Y 2
20 PLATE FLT 9CD0911100 PVC SHEET T1.0 2
21 HOLDER AC CODE 9CD2303300 ABS 1
22 CD DECK MECHA 9CD6009300 DCC-01BC+D73S 1
23-1 CASSETTE DECK LOGIC 9CD6010000 PIGEON CWL-44FF-32 1
23-2 CASSETTE DECK LOGIC 9CD6010100 PIGEON CWL-44FF-33 1
24 CUSHION FOOT 9CD4207700 URETHAN 2
25 COVER BACK 9CD0411100 MIPS 1
26 COVER TOP 9CD0411400 MIPS 1
27-1 CHASSIS BOTTOM 9CD0607100 SECC 1.0T 1
27-2 CHASSIS BOTTOM 9CD0607500 ABS 1
28-1 HEAT SINK 1 9CD4404500 AL 1
28-2 HEAT SINK N30 9CD4406200 AL 1
28-3 HEAT SINK N50 9CD4405900 AL 1
28-4 HEAT SINK N150 9CD4406000 AL 1
29 COVER SIDE L 9CD04115L0 MIPS 1
30 COVER SIDE R 9CD04115R0 MIPS 1
REMARKS
326LW/726LW/826LW
H926LW
326LW/726LW/826LW
726LW/826LW/H926LW
AUTO STOP (326LW)
AUTO REVERSE
726LW/826LW/H926LW
326LW
326LW
726LW
826LW
H926LW
NO PARTS NAME PARTS CODE
Q'ty
DESCRIPTION
Exploded View and Mechanical Parts List
Model : AMI-926LW/RW
11
31 COVER ANT 9CD0410400 ABS 1
32 HOLDER PCB 9CD2304800 MIPS 1
33 BRACKET HEAT TR 9CD2414400 SUS 0.3T 1
34 BRACKET HEAT TR 9CD2414600 SECC 1.0T 2
35 BRACKET HEAT TR 9CD2413900 SUS 0.5T 1
36 FRAME BOTTOM 9CD0607800 SECC 1.0T 1
37 HEAT SINK PW 9CD4404200 AL 1
38 BRKT PCB C 9CD2414500 SECC 1.0T 1
NO SCREW
S1 SCREW TAPTTITE 7173261011 TT2 BIN 2.6 X 10 MFZN 11
S2 SCREW TAPTTITE 7173301011 TT2 BIN 3.0X10 MFZN 22
S3 SCREW TAPTTITE 7173301212 TT2 BIN 3.0X12 BK 18
S4 SCREW TAPTTITE 7173300611 TT2 BIN 3.0X6 MFZN 4
S5 SCREW TAPTTITE 7173400611 TT2 BIN 4.0X6 MFZN 4
S6 WASHER SCREW 9CD3102401 TT2 BIN 3.0X8 + D12 4
S7 WASHER SCREW 9CD3102400 TT2 BIN 3.0X10 + D14 1
S8 SCREW TAPTTITE 7173301411 TT2 BIN 3.0X14 MFZN 2
S9 SCREW TAPTTITE 7173401011 TT2 BIN 4.0X10 MFZN 4
NO
P1 1
P2 1
P3 1
P4 1
P5 1
POWER PCB
DECK PCB
PCB CD
H926
L
FRONT PCB
MAIN PCB
H926LW
726LW/826LW
726LW/826LW
326LW
H926LW
H926LW
H926LW
H926LW
H926LW
W
AMI-826LW : Reference
PARTS CODE
Q'ty REMARKS
DESCRIPTION
PARTS NAME
Q'ty REMARKS
NO
PARTS NAME PARTS CODE
Q'ty
DESCRIPTION
REMARKS
All manuals and user guides at all-guides.com

Wiring Diagram
12
Model : AXW-217/ AXW-117/ AMI-926LW/RW
All manuals and user guides at all-guides.com

Block Diagram
13
Model : AXW-217/ AXW-117/ AMI-926LW/RW
All manuals and user guides at all-guides.com

Schematic Diagram
14
Model : AXW-217/ AXW-117/ AMI-926LW/RW
Ass’y Name : MAIN
All manuals and user guides at all-guides.com

21 20 19
11
15
14
2
12 17
4
5
7
8
6
18
9
16 13
3
10
22
1
VSS VT
N.C
MUTE
AM OSC 1/2
VT-IN FM/AM IF N.C VDD
IF REQ
DO
DI
CL
C B
I/F
AM/FM
PD
FM OSC
ST/MO
X-OUT
X-IN
FM
CE
1
ANT
5
VT
8
OSC
3
GND
4
GND
6
B+
2
ANT
7
IFOUT OUT
3
14
13
1
210
6 5 4 9 8 7 11 12
2
3
1 4 7
5 8
69
13
11 14
1210
1 2 3 4 5
24 22 21 2023 1718 1619 15 14 13
10
9876 1211
VCC SD
DET GND LED
DRIVER
V REG
FM
IF
AM
OSC
AM
MIX
FM
DET
AGC
AM
DET
SW
1/2
1/2
SD
DECORDER
COMP
PD
VCO
Schematic Diagram
Model : AXW-217/ AXW-117/ AMI-926LW/RW
Ass’y Name : UNER
15
All manuals and user guides at all-guides.com
all-guides.com

Schematic Diagram
Model : AXW-217/ AXW-117/ AMI-926LW/RW
Ass’y Name : APE
16
All manuals and user guides at all-guides.com

Schematic Diagram
Model : AXW-217/ AXW-117/ AMI-926LW/RW
Ass’y Name : CD
17
All manuals and user guides at all-guides.com

Schematic Diagram
Model : AXW-217
Ass’y Name : FRON
18
All manuals and user guides at all-guides.com

Schematic Diagram
Model : AXW-117
Ass’y Name : FRON
19
All manuals and user guides at all-guides.com
