Daewoo AXG-327 User manual

Service Manual
S/N No. :
Jun. 2003
DAEWOO ELECTRONICS CO., LTD.
http ://svc.dwe.co.kr
Mini Component System
Model:
Model : AXG-327(K)/328(K)
AXW-327(K)/328(K)
AXG-337(K)/338(K)
AXW-337(K)/338(K)
9CD8301900
AXG-327[K]/328(K) AXW-327[K]/328(K)
AXG-337[K]/338(K) AXW-337[K]/338(K)
DEC. 2003

SAFETY PRECAUTIONS ................................................................................... 2
ADJUSTMENTS .................................................................................................. 4
EXPLODED VIEW AND PARTS LIST .............................................................. 6/9

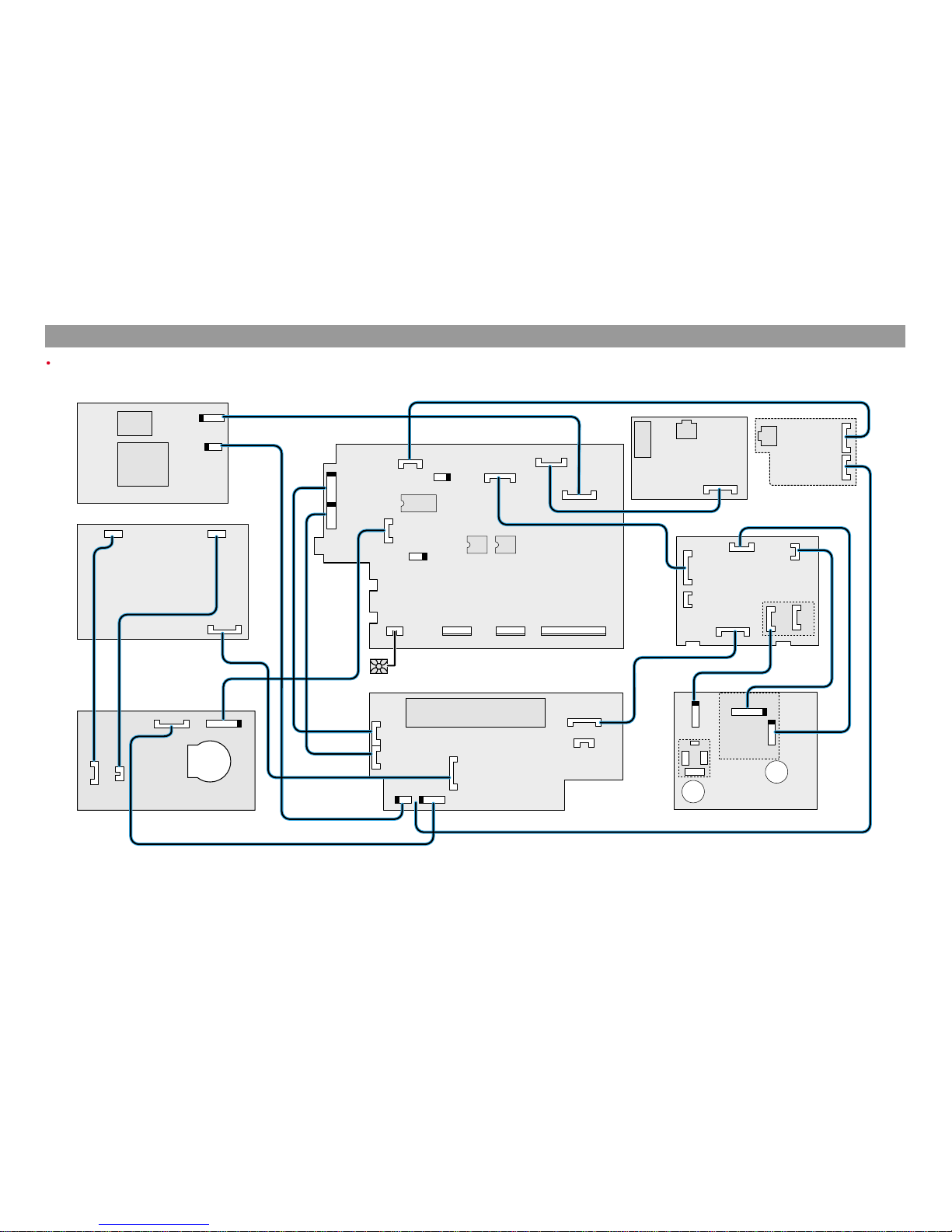

WIRING DIAGRAM ...................................................................................... 10/17
BLOCK DIAGRAM ....................................................................................... 18/19
SCHEMATIC DIAGRAM ............................................................................... 20/30
MAIN ................................................................................................................... 20/21
TUNER ............................................................................................................... 22/23
TAPE ........................................................................................................................ 24
FRONT ................................................................................................................ 25/26
CD ............................................................................................................................ 27
MP3 CD ................................................................................................................... 28
KARAOKE ................................................................................................................ 29
POWER ................................................................................................................... 30
PCB PATTERN LAYOUT ............................................................................. 31/42
MAIN ................................................................................................................... 31/32
FRONT ................................................................................................................ 33/36
POWER ................................................................................................................... 37
TUNER ..................................................................................................................... 38
MP3 CD ................................................................................................................... 39
CD ............................................................................................................................ 40
TAPE ........................................................................................................................ 41
KARAOKE ................................................................................................................ 42
ELECTRICAL PART LIST ...................................................................... A-1/A-XX
TableofContents
1
MINICOMPONENTSYSTEM
AXG-327(K)/328(K)/337[K]/338(K)
AXW-327(K)/328(K)/337[K]/338(K)

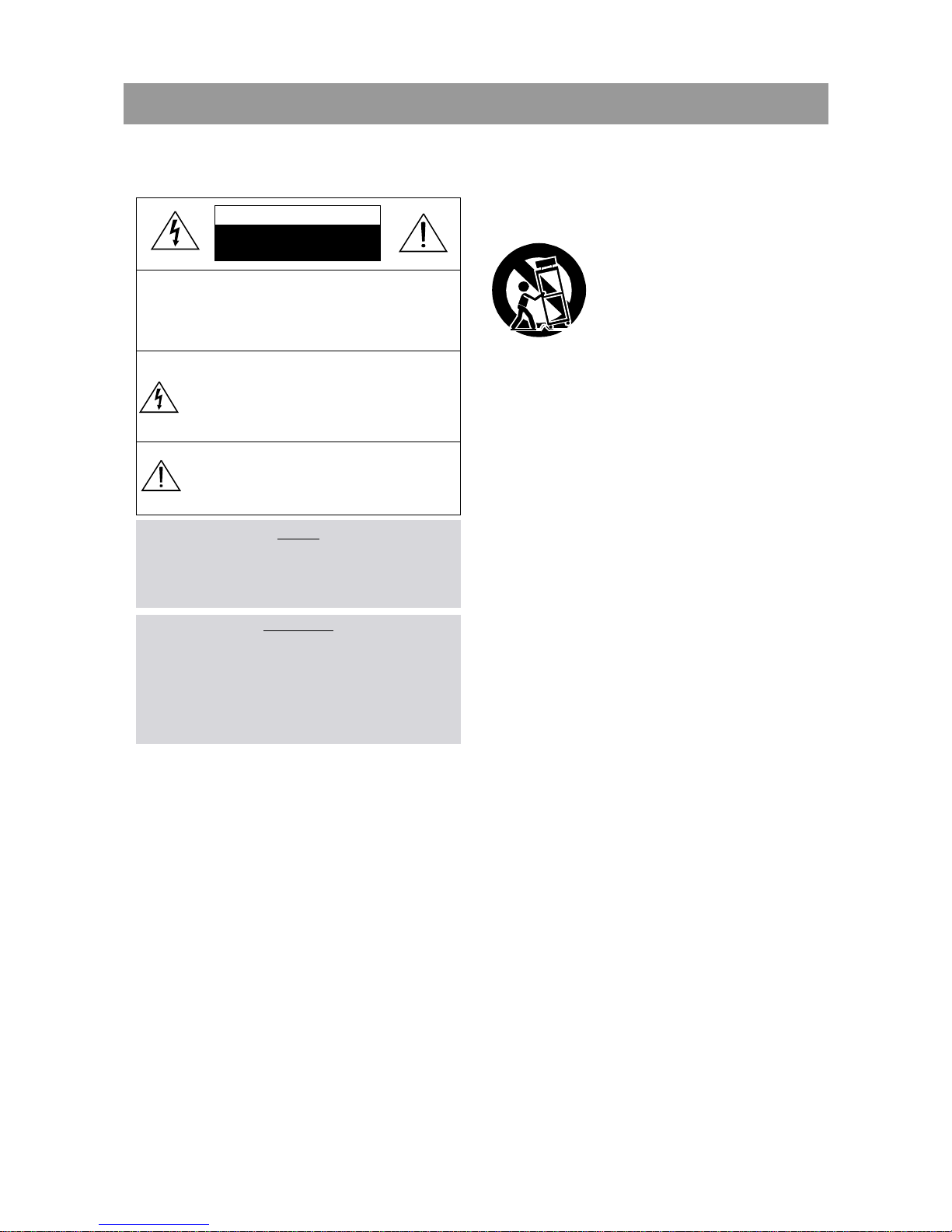

SafetyPrecautions
2
WARNING : TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION : TO REDUCE THE RISK IF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS
INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
THIS SYMBOL IS INTENDED TO ALERT THE USER TO THE
PRESENCE OF UNINSULTED "DANGEROUS VOLTAGE"
WITHIN THE PRODUCT'S ENCLOSURE THAT MAY BE
SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF
ELECTRIC SHOCK TO PERSONS.
THIS SYMBOL IS INTENDED TO ALERT THE USER TO THE
PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE
(SERVICING) INSTRUCTIONS IN THE LITERATURE
ACCOMPANYINGTHEAPPLIANCE.
CAUTION
TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS POLARIZED AC
PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET
UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE
EXPOSURE.
LASER SAFETY
THISUNITEMPLOYSA LASER.ONLY QUALIFIEDSERVICE PERSONNEL
SHOULD REMOVE THE COVER OR ATTEMPT TO SERVICE THIS DEVICE
DUE TO POSSIBLE EYE INJURY.
CAUTION: USEOFANYCONTROLS,ADJUSTMENTS, ORPROCEDURES
OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE.
CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF
PLUG TO WIDE SLOT, FULLY INSERT.
ATTENTION : POUR EVITER LES CHOCS ELECTRIQUES, INTRODUIRE
LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPON-
DANTE DE LA PRISE ET POUSSER JUSQU'AU FOND.
Important Safety Instructions
- All the safety and operating instructions should be read before
the appliance is operated.
- The safety and operating instructions should be retained for
futurereference.
- All warnings on the appliance and in the operating instructions
shouldbe adhered to.
- All operating and use instructions should be followed.
1. Water and Moisture - The appliance should not be used near
water - for example, near a bathtub, washbowl, kitchen sink,
laundry tub, in a wet basement, or near a swimming pool,
and the like. 2. Carts and Stands - The appliance
should be used only with a cart or
stand that is recommended by th
manufacturer.
3. An appliance and cart combination
shouldbe moved with care. Quick
stops, excessive force, and uneven
surfaces may cause the appliance
andcart combination to overturn.
4. Wall or Ceiling Mounting - The appli-
ance should be mounted to a wall or
ceilingonly as recommended by the manufacturer.
5. Ventilation - The appliance should be situated so that its
location or position does not interfere with its proper
ventilation. Forexample, theapplianceshould notbesituated
on a bed, sofa, rug, or similar surface thatmay block the
ventilation openings; or, placed in a built-in installation, such
as a bookcase or cabinet that may impede the flow of air
through the ventilation openings.
6. Heat -The applianceshould be situatedaway from heat
sources such as radiators, heat registers, stoves, or other
appliances (includingamplifiers) that produce heat.
7. Power Sources - The appliance should be connected to a
power supply only of the type described in the operating
instructions or as marked on the appliance.
8. Grounding or Polarization - The precautions that should be
taken so that the grounding or polarization means of an
appliance is not defeated.
9. Power - Cord Protection - Power-supply cords should be
routed so that they are not likely to be walked on or pinched
by items placed upon or against them, paying particular
attention to cords at plugs, convenience receptacles, and the
point where they exit from the appliance.
10.Protective Attachment Plug - If the appliance is equipped with
an attachment plug having overload protection. This is a
safety feature. See Instruction Manual for replacement or
resetting of protective device. If replacement ofthe plug is
required, be sure the service technician has used a
replacement plug specified by the manufacturer that has the
same overload protection as the original plug.
11.Cleaning - The appliance should be cleaned only as
recommended by the manufacturer.
12.Power Lines - An outdoor antenna should be located away
from power lines.
CAUTION
RISK OF ELECTRIC SHOCKS
DO NOT OPEN
PORTABLE CART
Figure2

SafetyPrecautions
3

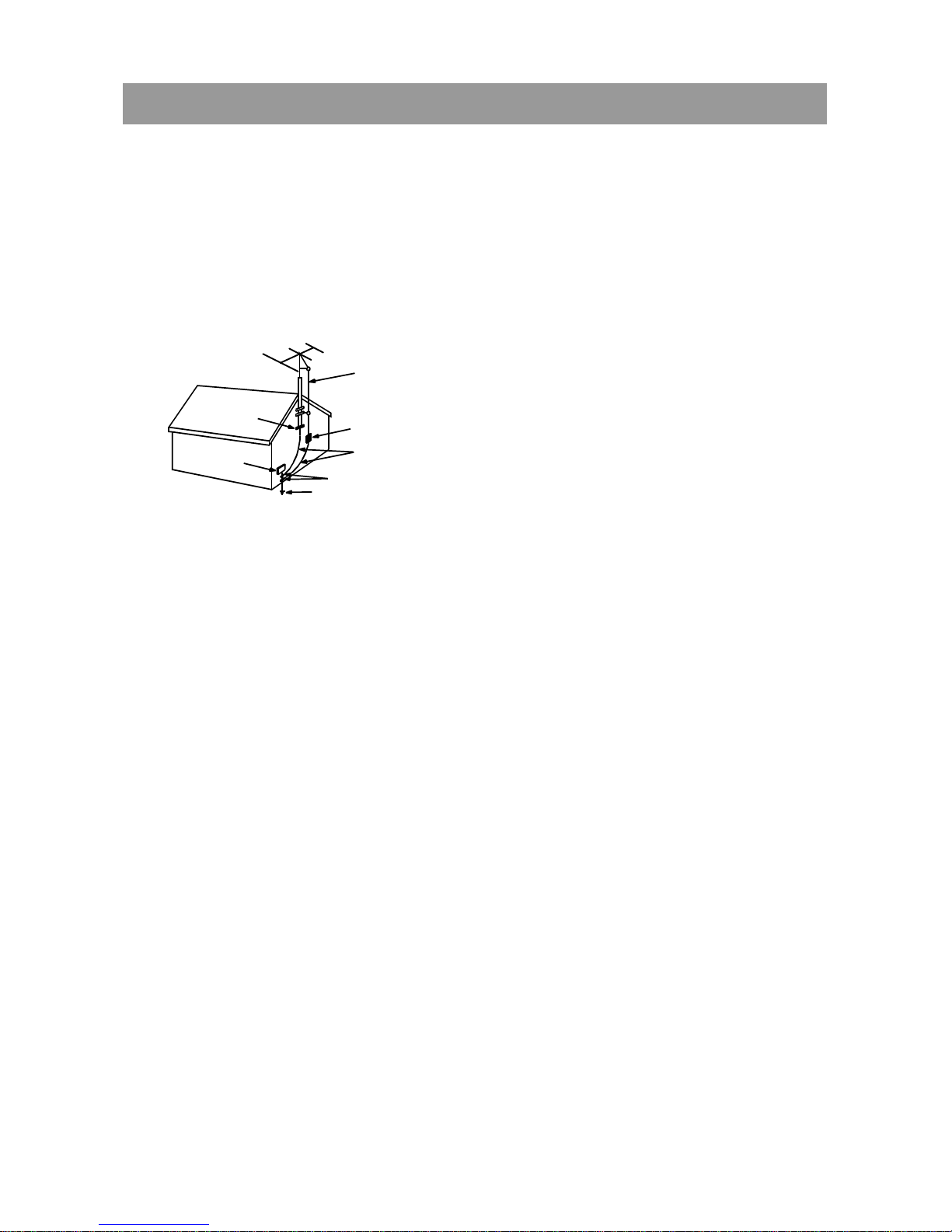

13.Outdoor AntennaGrounding - Ifan outside antenna is
connected to the receiver be sure the antenna system is
grounded so as to provide some protection against voltage
surges and built-up static charges. Article 810 of the National
ElectricalCode, ANSI/NFPA 70, provides information with
regard to proper grounding of the mast and supporting
structure, grounding of the lead-in wire to an antenna-dis
charge unit, size of grounding conductors,location of antenna-
discharge unit, connection to grounding electrodes and
requirements for the grounding electrode. See Figure 1.
14.Non-use Periods - The power cord of the appliance should be
unplugged from the outletwhen left unused for a long period
of time.
15.Objectand Liquid Entry-Care should betakenso thatobjects
donotfallandliquidsarenot spilledintotheenclosurethrough
openings.
16.Damage Requiring Service - The appliance should be
serviced by qualified service personnel when:
a) The power-supply cord or the plug has been damaged; or
b) Objects have fallen, or liquid has been spilled into the
appliance; or
c) The appliance has been exposed to rain; or
d) The appliance does not appear to operate normally or
exhibits a marked change in performance; or
e) The appliance has been dropped, or the enclosure
damaged.
17.Servicing - The user should not attempt to service the
appliance beyond that described in the operating instructions.
All other servicing should be referred to qualified service
personnel.
ANTENNADISCHARGEUNIT
(NECSECTION810-20)
ANTENNALEAD
INWIRE
POWERSERVICEGROUNDING
ELECTRODESYSTEM
(NECART250PARTH)
GROUNDCLAMP
ELECTRIC
SERVICE
EQUIPMENT
GROUNDINGCONDUCTORS
(NECSECTION 810-21)
GROUNDCLAMPS
EXAMPLEOF ANTENNA
GROUNDING
NEC- NATIONAL ELECTRICAL CODE

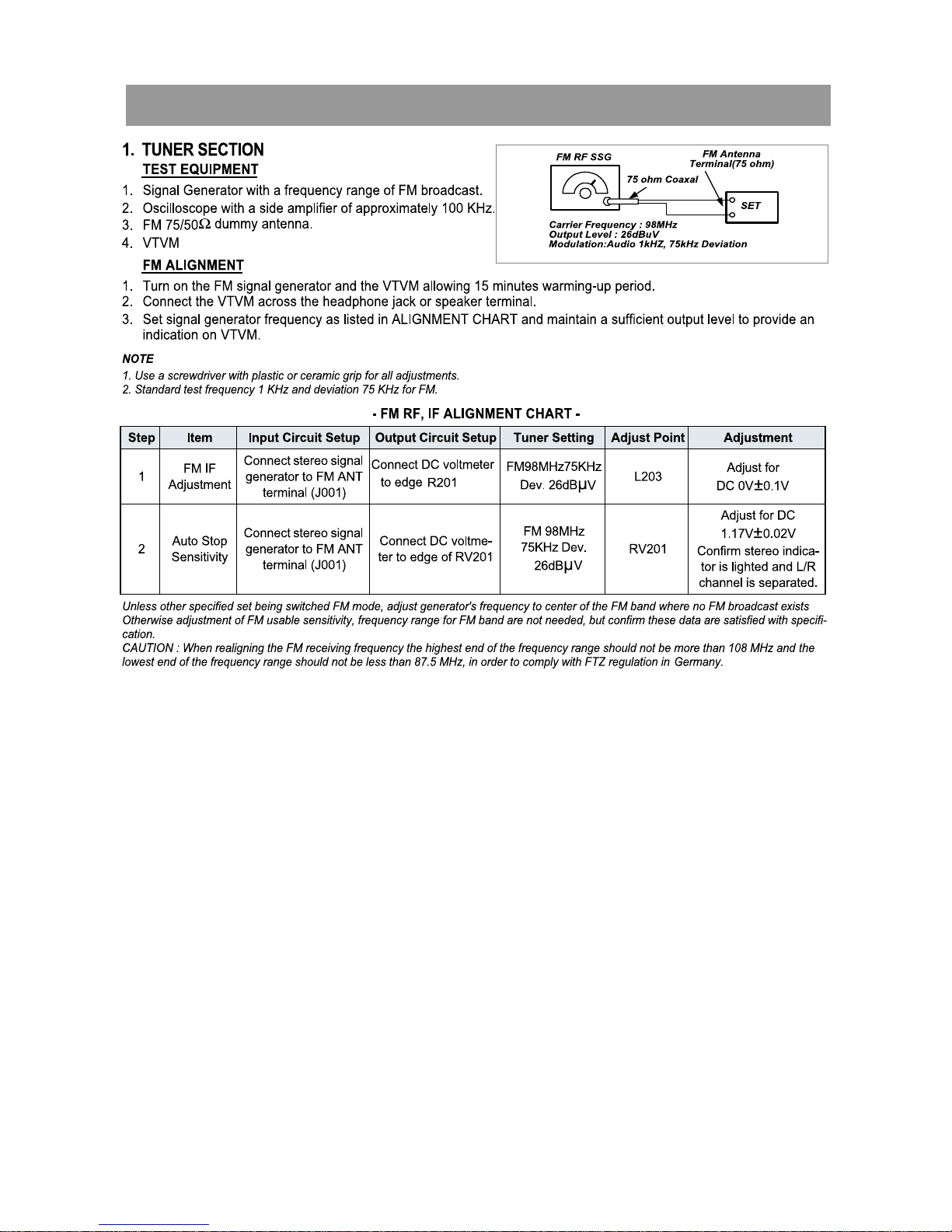

Adjustments
4

Adjustments
5

ExplodedViewandMechanicalPartsList
6
AXG-327(K)/328(K), AXW-327(K)/328(K) Only]

ExplodedViewandMechanicalPartsList
7
No. Part Name Part Code Description Q’ty
46 HEAT SINK PW 9CD4404200 AL 1
47 BRACKET TUNER PCB L 9CD24159L0 SECC 1.0T 1
48 BRACKET TUNER PCB R 9CD24159R0 SECC 1.0T 1
49 FOOT RUBBER 9CD0801000 RUBBER 2
50 STOPPER AC CORD 9CD5700500 66NYLON 1
S1 SCREW TAPTTITE 7173261011 TT2 BIN 2.6 10 MFZN
S2 SCREW TAPTTITE 7173301011 TT2 BIN 3.0 10 MFZN
S3 SCREW TAPTTITE 7173301212 TT2 BIN 3.0 12 BK
S4 SCREW TAPTTITE 7173301612 TT2 BIN 3.0 16 BK
S5 SCREW TAPTTITE 7173300411 TT2 BIN 3.0 6 MFZN
S6 SCREW TAPTTITE 7173301411 TT2 BIN 3.0 14 MFZN
S7 SCREW TAPTTITE 7173400611 TT2 BIN 4.0 6 MFZN
S8 SCREW TAPTTITE 7173401011 TT2 BIN 4.0 10 MFZN
S9 WASHER SCREW 9CD3102401 TT2 BIN 3.0 8 + D12
S10 WASHER SCREW 9CD3102400 TT2 BIN 3.0 10 + D14
W1 WASHER PLAIN
No. Q’ty
P2 1
P3 1
P4 1
P5 1
P6 1
P7 1
P8 1
P9 1
Remark
327/328
328
option
Remark
327/328
327/328
327/328
327/328
327/328
Q’ty
327
14
15
21
2
12
Part CodeScrew TypeNo.
Part Name
Description 328
14
15
23
2
4
4
4
13
8
4
*
*
*
*
*
*
*
PCB MAIN
PCB POWER
PCB TAPE
PCB JACK
PCB CD
PCB MIC
PCB TUNER
PCB MP3 option
No. Part Name Part Code Description Q’ty
1 WINDOW DOOR A 9CD16197A0 ACRYL 1
2 WINDOW DOOR B 9CD16197B0 ACRYL 1
3 DOOR COVER A 9CD18136A0 MIPS 1
4 DOOR COVER B 9CD18136B0 MIPS 1
5 SRING DOOR EJECT L 9CD30080L0 STS 0.9 1
6 SRING DOOR EJECT R 9CD30080R0 STS 0.9 1
7 DOOR FRAME A 9CD18113A0 MIPS 1
8 DOOR FRAME B 9CD18113B0 MIPS 1
9 CUSHION FOOT 9CD4207700 URETHAN 2
10-A DAMPER GEAR B 9CD2603200 ACETAL 2
10-B DAMPER BASE B 9CD2603300 ABS 2
11-A LOCKER BASE 9CDOB01900 ABS 2
11-B LOCKER CAM 9CDOB02000 ABS 2
11-C LOCKER SPRING 9CDOB01600 STS 2
12 BRKT SIDE 9CD2412900 ABS 2
13 KNOB POWER 9CD1348700 MIPS 1
14 LENS LED 9CD1619900 ACRYL 1
15 KNOB CD 9CD1348710 MIPS 1
16 KNOB CONTROL 9CD1348400 MIPS 1
17 KNOB FUNCTION 9CD1348600 ACRYL 1
18 PLATE FILTER 9CD0912800 T0.15 1
19 KNOB SET 9CD1348500 MIPS 1
20 PANEL FRONT 9CD0311100 MIPS 1
21 CASSETTE DECK LOGIC 9CD6010100 1
22 BADGE DAEWOO 9CD1500900 ABS 1
23 DECO VOLUME 9CD3104200 ABS 1
24 KNOB CAP 9CD1349300 MIPS 1
25 KNOB VOLUME 9CD1348200 MIPS 1
26 RING REFLECTOR 9CD3104210 ACRYL 1
27 KNOB JOG 9CD1348210 MIPS 1
28 WINDOW FLT 9CD1619500 ACRYL 1
29 CD DECK MECHA 9CD6006900 1
30 DOOR CD 9CD1813700 MIPS 1
31 WINDOW CD DOOR 9CD1619600 ACRYL 1
32 KNOB MIC 9CD1332000 MIPS 1
33 BRACKET MIC PCB 9CD2415500 SECC 1.0T 1
34 GUIDE FLT 9CD2506300 ABS 1
35 COVER TOP 9CD0411400 MIPS 1
36 COVER SIDE L 9CD04115L0 MIPS 1
37 COVER SIDE R 9CD04115R0 MIPS 1
38 CHASSIS BOTTOM 9CD0607100 SECC 1.0T 1
39-1 COVER BACK 9CD0409800 MIPS 1
39-2 COVER BACK 9CD0414800 SECC 1.0T 1
40 HOLDER AC CORD 9CD2303300 ABS 1
41 COVER ANT 9CD0410400 ABS 1
42 HOLDER PCB 9CD2304800 MIPS 1
43-1 HEAT SINK N100 9CD4406100 AL 1
43-2 HEAT SINK N150A 9CD4407900 AL 1
44 FRAME BOTTOM 9CD0607800 SECC 1.0T 1
45 BRKT PCB C 9CD2414500 SECC 1.0T 1
328
327/328
327/328
327/328
option
327/328
327
327/328
327
328
327/328
option
327/328
327/328
327/328
option
Remark
CR Coating

ExplodedViewandMechanicalPartsList
8
AXG-337(K)/338(K), AXW-337(K)/338(K) Only]

ExplodedViewandMechanicalPartsList
9
No. Part Name Part Code Description Q’ty
41 HOLDER AC CORD 9CD2303300 ABS 1
42 COVER ANT 9CD0410400 ABS 1
43 HOLDER PCB 9CD2304800 MIPS 1
44-1 HEAT SINK N100 9CD4406100 AL 1
44-2 HEAT SINK N150A 9CD4407900 AL 1
45 FRAME BOTTOM 9CD0607800 SECC 1.0T 1
46 BRKT PCB C 9CD2414500 SECC 1.0T 1
47 HEAT SINK PW 9CD4404200 AL 1
48 BRACKET TUNER PCB L 9CD24159L0 SECC 1.0T 1
49 BRACKET TUNER PCB R 9CD24159R0 SECC 1.0T 1
50 FOOT RUBBER 9CD0801000 RUBBER 2
51 STOPPER AC CORD 9CD5700500 66NYLON 1
52 KNOB MIC 9CD1332000 MIPS 1
53 BRACKET MIC PCB 9CD2415500 SECC 1.0T 1
54 GUIDE FLT 9CD2506300 ABS 1
S1 SCREW TAPTTITE 7173261011 TT2 BIN 2.6 10 MFZN
S2 SCREW TAPTTITE 7173301011 TT2 BIN 3.0 10 MFZN
S3 SCREW TAPTTITE 7173301212 TT2 BIN 3.0 12 BK
S4 SCREW TAPTTITE 7173301612 TT2 BIN 3.0 16 BK
S5 SCREW TAPTTITE 7173300411 TT2 BIN 3.0 6 MFZN
S6 SCREW TAPTTITE 7173301411 TT2 BIN 3.0 14 MFZN
S7 SCREW TAPTTITE 7173400611 TT2 BIN 4.0 6 MFZN
S8 SCREW TAPTTITE 7173401011 TT2 BIN 4.0 10 MFZN
S9 WASHER SCREW 9CD3102401 TT2 BIN 3.0 8 + D12
S10 WASHER SCREW 9CD3102400 TT2 BIN 3.0 10 + D14
W1 WASHER PLAIN
No. Q’ty
P1 1
P2 1
P3 1
P4 1
P5 1
P6 1
P7 1
P8 1
P9 1
337/338
option
PCB FRONT
Remark
337/338
337/338
338
337
337/338
337/338
337/338
337/338
337/338
option
option
337/338
337/338
option
**
**
**
44
4*
12 13
48
21 23
22
16 16
15 15
No. Screw Type Part Code Description Q’ty
337 328
PCB MP3
Part Name Remark
337/338
option
338
PCB MAIN
PCB POWER
PCB TAPE
PCB JACK
PCB CD
PCB MIC
PCB TUNER
No. Part Name Part Code Description Q’ty
1 WINDOW DOOR A 9CD16206A0 ACRYL 1
2 WINDOW DOOR B 9CD16206B0 ACRYL 1
3 DOOR CASS A 9CD18141A0 HIPS 1
4 DOOR CASS B 9CD18141B0 HIPS 1
5 SRING DOOR EJECT L 9CD30080L0 STS 0.9 1
6 SRING DOOR EJECT R 9CD30080R0 STS 0.9 1
7 DOOR FRAME A 9CD18113A0 MIPS 1
8 DOOR FRAME B 9CD18113B0 MIPS 1
9 CUSHION FOOT 9CD4207700 URETHAN 2
10-A DAMPER GEAR B 9CD2603200 ACETAL 2
10-B DAMPER BASE B 9CD2603300 ABS 2
11-A LOCKER BASE 9CDOB01900 ABS 2
11-B LOCKER CAM 9CDOB02000 ABS 2
11-C LOCKER SPRING 9CDOB01600 STS 2
12 BRKT SIDE 9CD2412900 ABS 2
13 KNOB POWER 9CD1350100 HIPS 1
14 LENS POWER 9CD1620900 ACRYL 1
15 KNOB OPEN 9CD1350200 HIPS 1
16 KNOB EQ 9CD1350700 HIPS 1
17 KNOB DISC 9CD1350800 HIPS 1
18 KNOB FUNCTION 9CD1351000 ACRYL 1
19 PLATE FILTER 9CD0913200 MIPS 1
20 GUIDE FUNCTION 9CD2507800 HIPS 1
21 KNOB CAP 9CD1350600 HIPS 1
22 DECO KNOB CAP 9CD1005200 ABS 1
23 KNOB PRESET 9CD1350900 HIPS 1
24 DECO KNOB PRESET 9CD1005300 ABS 2
25 KNOB JOG 9CD1350300 HIPS 1
26 DECO RING VR 9CD1005100 ACRYL 2
27 KNOB VR 9CD1350500 HIPS 1
28 DECO RING PRESET 9CD1005400 ACRYL 1
29 WINDOW FLT 9CD1620700 ACRYL 1
30 CD DECK MECHA 9CD6006900 1
31 DOOR CD 9CD1814200 HIPS 1
32 WINDOW CD DOOR 9CD1620800 ACRYL 1
33 PANEL FRONT 9CD0312200 HIPS 1
34 BADGE DAEWOO 9CD1500900 ABS 1
35 CASSETTE DECK LOGIC 9CD6010100 1
36 COVER TOP 9CD0411400 MIPS 1
37 COVER SIDE L 9CD04115L0 MIPS 1
38 COVER SIDE R 9CD04115R0 MIPS 1
39 CHASSIS BOTTOM 9CD0607100 SECC 1.0T 1
40-1 COVER BACK 9CD0409800 MIPS 1
40-2 COVER BACK 9CD0414800 SECC 1.0T 1
337/338
337
338
337/338
CR COATING
337/338
CR COATING
Remark

WiringDiagram
10
PCB MP3 CD
9CD6588600-00
CW505
CW506
CW503
CW502
CW504
CW501
PCB FRONT
9CD6589100
PCB TAPE
9CD6584200
CASSETTE MECHA. ASS'Y
PCB POWER
9CD6581000
FD710
CW702
CN302
CW508
CW708
CW401
CW402
CN902
CN601
CN602
CN701
CN702
CN601
PLAY HEAD
CN602
R/P HEAD
CW902
CW901
CN602
R/P HEAD
CN602
R/P HEAD
CN603
CN701
J001
TU001 PCB KARAOKE
9CD6589000
AXG-327K Only
J301
CN301
CW302
PCB MAIN
9CD6590100
IC402
CN401
CN402
CW509 IC204
IC201
IC202
CW901
IC401
ICBD3872
CW603
CW303
IC901 IC801
L4959 STK411-210E
CD MECHA. ASS'Y
M
M
LC72723
LC72723
BA1450S
CW901 [9728804100 #22 10P 2.5 350mm Board-In
CN301 [9728818900] #8P 220 P=2.5 Shield
CW502 [2001-WS-06] 6P 2.0mm
CN500 [9718813800] 16P 1.0 X 120mm
CW503 [2001-WS-12] 12P 2.0mm
CN504 [9728816700] FFC 7P 1.25 X 120mm R
CN701 [9738836200] #26 FLAT 10P 160mm CN302 [9728804200] UL1007 #26 1P 100mm
CN702 [9728812100] FFC 16P 1.25 X 150mm R
CW902 [9728804200] #26 2P 2.5 350mm
CN602 [9738828800] #28 7P P2.5 100mm Shield
CN601 [9738828700] #28 3P 220mm Shield
CN401 [9736407600] Pin Base 53095-1310 13P CN402 [9736407800] 53095-1010 10P CN603 [9728814000] #28 8P 200mm
CN505 [9728816800] #24 3P+UL1007 3P 250mm
AXG-327(K) Only]

WiringDiagram
11
PCB MP3 CD
9CD6588600-00
CW505
CW506
CW503
CW502
CW504
CW501
PCB FRONT
9CD6589100
PCB TAPE
9CD6584200
CASSETTE MECHA. ASS'Y
PCB POWER
9CD6581000
FD710
CW702
CN302
CW508
CW708
CW401
CW402
CN902
CN601
CN602
CN701
CN702
CN601
PLAY HEAD
CN602
R/P HEAD
CW902
CW901
CN602
R/P HEAD
CN602
R/P HEAD
CN603
CN701
PCB TUNER
9CD6590200
J001
CW201
TU001
PCB KARAOKE
9CD6589000
AXG-328K Only
J301
CN301
CW302
PCB MAIN
9CD6589400
FAN
IC803
CN401
CN402
CW303 IC402 CW509
CN201
CW901
IC404IC403
4558 4558
CN509
ICBD3872
CW603
CW905 IC901 IC801 IC802
STK402-050
L4959 STK411-210E
CD MECHA. ASS'Y
M
M
CW901 [9728804100 #22 10P 2.5 350mm Board-In
CN505 [9728816800] #24 3P+UL1007 3P 250mm
CN201 [9728819200] #24 12P 250mm
CW502 [2001-WS-06] 6P 2.0 X 170mm
CN500 [9718813800] 16P 1.0 X 120mm
CW503 [2001-WS-12] 12P 2.0mm
CN504 [9728816700] FFC 7P 1.25 X 120mm R
CN701 [9738836200] #26 FLAT 10P 160mm CN302 [9728804200] UL1007 #26 1P 100mm
CN702 [9728812100] FFC 16P 1.25 X 150mm R
CW902 [9728804200] #26 2P 2.5 350mm
CN602 [9738828800] #28 7P P2.5 100mm Shield
CN601 [9738828700] #28 3P 220mm Shield
CN401 [9736407600] Pin Base 53095-1310 13P CN402 [9736407800] 53095-1010 10P CN603 [9728814000] #28 8P 200mm
CN301 [9728818900] #8P 220 P=2.5 Shield
AXG-328(K) Only]

WiringDiagram
12
PCB MP3 CD
9CD6588600-00
CW505
CW506
CW503
CW502
CW504
CW501
PCB FRONT
9CD6591700
PCB TAPE
9CD6584200
CASSETTE MECHA. ASS'Y
PCB POWER
9CD6581000
FD710
CW702
CW708
CW704
CW400
CW401
CN902
CN601
CN602
CN701
CN702
CN601
PLAY HEAD
CN602
R/P HEAD
CW902
CW901
CN602
R/P HEAD
CN602
R/P HEAD
CN603
CN701
J001
TU001 PCB KARAOKE
9CD6589000
AXG-327K Only
J301
CN301
CW302
PCB MAIN
9CD6590100
IC402
CN401
CN402
CW509 IC204
IC201
IC202
CW901
IC401
ICBD3872
CW603
CW303
IC901 IC801
L4959 STK411-210E
CD MECHA. ASS'Y
M
M
LC72723
LC72723
BA1450S
CW901 [9728804100 #22 10P 2.5 350mm Board-In
CN301 [9728818900] #8P 220 P=2.5 Shield
CW502 [2001-WS-06] 6P 2.0mm
CN500 [9718813800] 16P 1.0 X 120mm
CW503 [2001-WS-12] 12P 2.0mm
CN504 [9728816700] FFC 7P 1.25 X 120mm R
CN701 [9738836200] #26 FLAT 10P 160mm
CN302 [9728804200] UL1007 #26 1P 100mm
CN702 [9728812100]
FFC 16P 1.25 X 150mm R
CW902 [9728804200] #26 2P 2.5 350mm
CN602 [9738828800] #28 7P P2.5 100mm Shield
CN601 [9738828700] #28 3P 220mm Shield
CN401 [9736407600] Pin Base 53095-1310 13P CN402 [9736407800] 53095-1010 10P CN603 [9728814000] #28 8P 200mm
CN505 [9728816800] #24 3P+UL1007 3P 250mm
AXG-337(K) Only]

WiringDiagram
13
PCB MP3 CD
9CD6588600-00
CW505
CW506
CW503
CW502
CW504
CW501
PCB TAPE
9CD6584200
CASSETTE MECHA. ASS'Y
PCB POWER
9CD6581000
FD710
CN601
CN602
CN701
CN702
CN601
PLAY HEAD
CN602
R/P HEAD
CW902
CW901
CN602
R/P HEAD
CN602
R/P HEAD
CN603
PCB TUNER
9CD6590200
J001
CW201
TU001
PCB KARAOKE
9CD6589000
AXG-328K Only
J301
CN301
CW302
PCB MAIN
9CD6589400
FAN
IC803
CN401
CN402
CW303 IC402 CW509
CN201
CW901
IC404IC403
4558 4558
CN509
ICBD3872
CW603
CW905 IC901 IC801 IC802
STK402-050
L4959 STK411-210E
CD MECHA. ASS'Y
M
M
PCB FRONT
9CD6591700
CW702
CW708
CW704
CW400
CW401
CN902 CN701
CW901 [9728804100 #22 10P 2.5 350mm Board-In
CN505 [9728816800] #24 3P+UL1007 3P 250mm
CN201 [9728819200] #24 12P 250mm
CW502 [2001-WS-06] 6P 2.0 X 170mm
CN500 [9718813800] 16P 1.0 X 120mm
CW503 [2001-WS-12] 12P 2.0mm
CN504 [9728816700] FFC 7P 1.25 X 120mm R
CN701 [9738836200] #26 FLAT 10P 160mm
CN302 [9728804200] UL1007 #26 1P 100mm
CN702 [9728812100] FFC 16P 1.25 X 150mm R
CW902 [9728804200] #26 2P 2.5 350mm
CN602 [9738828800] #28 7P P2.5 100mm Shield
CN601 [9738828700] #28 3P 220mm Shield
CN401 [9736407600] Pin Base 53095-1310 13P CN402 [9736407800] 53095-1010 10P CN603 [9728814000] #28 8P 200mm
CN301 [9728818900] #8P 220 P=2.5 Shield
AXG-338(K) Only]

PCB FRONT
9CD6589100
PCB TAPE
9CD6584200
CASSETTE MECHA. ASS'Y
PCB POWER
9CD6581000
FD710
CW702
CN302
CW508
CW708
CW401
CW402
CN902
CN601
CN602
CN701
CN702
CN601
PLAY HEAD
CN602
R/P HEAD
CW902
CW901
CN602
R/P HEAD
CN602
R/P HEAD
CN603
CN701
PCB KARAOKE
9CD6589000
AXW-327K Only
J301
CN301
CW302
PCB CD
9CD6585000
CN509
CW510
OPTICAL JACK
CW500 CW501
CW504
SONY
CW508
CW506
S/S
CD MECHA. ASS'Y
M
M
J001
TU001
PCB MAIN
9CD6590100
IC402
CN401
CN402
CW509 IC204
IC201
IC202
CW901
IC401
ICBD3872
CW603
CW303
IC901 IC801
L4959 STK411-210E
LC72723
LC72723
BA1450S
CW901 [9728804100 #22 10P 2.5 350mm Board-In
CN509 [9728817500] UL2547 & 1007 P=2.5X250 8P
CN501 [2001-WS-06] 6P 2.0 X 170mm
CN500 [9718813800] 16P 1.0 X 120mm
CN504 [2001-WS-12] 12P 2.0mm
CN508 [9728818700] FFC 17P 330mm
CN701 [9738836200] #26 FLAT 10P 160mm CN302 [9728804200] UL1007 #26 1P 100mm
CN702 [9728812100] FFC 16P 1.25 X 150mm R
CW902 [9728804200] #26 2P 2.5 350mm
CN602 [9738828800] #28 7P P2.5 100mm Shield
CN601 [9738828700] #28 3P 220mm Shield
CN401 [9736407600] Pin Base 53095-1310 13P CN402 [9736407800] 53095-1010 10P CN603 [9728814000] #28 8P 200mm
CN301 [9728818900] #8P 220 P=2.5 Shield
WiringDiagram
14
AXW-327(K) Only]

PCB FRONT
9CD6589100
PCB TAPE
9CD6584200
CASSETTE MECHA. ASS'Y
PCB POWER
9CD6581000
FD710
CW702
CN302
CW508
CW708
CW401
CW402
CN902
CN601
CN602
CN701
CN702
CN601
PLAY HEAD
CN602
R/P HEAD
CW902
CW901
CN602
R/P HEAD
CN602
R/P HEAD
CN603
CN701
PCB TUNER
9CD6590200
J001
CW201
TU001
PCB KARAOKE
9CD6589000
AXW-328K Only
J301
CN301
CW302
PCB CD
9CD6585000
PCB MAIN
9CD6589400
FAN
CN509
IC803
CN401
CN402
CW303 IC402 CW509
CN201
CW901
IC404IC403
4558 4558
CN509
ICBD3872
CW603
CW905 IC901 IC801 IC802
STK402-050
L4959 STK411-210E
CW510
OPTICAL JACK
CW500 CW501
CW504
SONY
CW508
CW506
S/S
CD MECHA. ASS'Y
M
M
CW901 [9728804100 #22 10P 2.5 350mm Board-In
CN509 [9728817500] UL2547 & 1007 P=2.5X250 8P
CN201 [9728819200] #24 12P 250mm
CN501 [2001-WS-06] 6P 2.0 X 170mm
CN500 [9718813800] 16P 1.0 X 120mm
CN504 [2001-WS-12] 12P 2.0mm
CN701 [9738836200] #26 FLAT 10P 160mm CN302 [9728804200] UL1007 #26 1P 100mm
CN702 [9728812100] FFC 16 1.25 X 150mm R
CW902 [9728804200] #26 2P 2.5 350mm
CN602 [9738828800] #28 7P P2.5 100mm Shield
CN601 [9738828700] #28 3P 220mm Shield
CN401 [9736407600] Pin Base 53095-1310 13P CN402 [9736407800] 53095-1010 10P CN603 [9728814000] #28 8P 200mm
CN301 [9728818900] #8P 220 P=2.5 Shield
CN508 [9728818700] FFC 17P 330mm
15
AXW-328(K) Only]
WiringDiagram

PCB TAPE
9CD6584200
CASSETTE MECHA. ASS'Y
PCB POWER
9CD6581000
FD710
CN601
CN602
CN701
CN702
CN601
PLAY HEAD
CN602
R/P HEAD
CW902
CW901
CN602
R/P HEAD
CN602
R/P HEAD
CN603
PCB KARAOKE
9CD6589000
AXW-327K Only
J301
CN301
CW302
PCB CD
9CD6585000
CN509
CW510
OPTICAL JACK
CW500 CW501
CW504
SONY
CW508
CW506
S/S
CD MECHA. ASS'Y
M
M
J001
TU001
PCB MAIN
9CD6590100
IC402
CN401
CN402
CW509 IC204
IC201
IC202
CW901
IC401
ICBD3872
CW603
CW303
IC901 IC801
L4959 STK411-210E
LC72723
LC72723
BA1450S
PCB FRONT
9CD6591700
CW702
CW708
CW704
CW400
CW401
CN902 CN701
CW901 [9728804100 #22 10P 2.5 350mm Board-In
CN509 [9728817500] UL2547 & 1007 P=2.5X250 8P
CN501 [2001-WS-06] 6P 2.0 X 170mm
CN500 [9718813800] 16P 1.0 X 120mm
CN504 [2001-WS-12] 12P 2.0mm
CN508 [9728818700] FFC 17P 330mm
CN701 [9738836200] #26 FLAT 10P 160mm
CN302 [9728804200] UL1007 #26 1P 100mm
CN702 [9728812100] FFC 16P 1.25 X 150mm R
CW902 [9728804200] #26 2P 2.5 350mm
CN602 [9738828800] #28 7P P2.5 100mm Shield
CN601 [9738828700] #28 3P 220mm Shield
CN401 [9736407600] Pin Base 53095-1310 13P CN402 [9736407800] 53095-1010 10P CN603 [9728814000] #28 8P 200mm
CN301 [9728818900] #8P 220 P=2.5 Shield
WiringDiagram
16
AXW-337(K) Only]

PCB TAPE
9CD6584200
CASSETTE MECHA. ASS'Y
PCB POWER
9CD6581000
FD710
CN601
CN602
CN701
CN702
CN601
PLAY HEAD
CN602
R/P HEAD
CW902
CW901
CN602
R/P HEAD
CN602
R/P HEAD
CN603
PCB TUNER
9CD6590200
J001
CW201
TU001
PCB KARAOKE
9CD6589000
AXW-328K Only
J301
CN301
CW302
PCB CD
9CD6585000
PCB MAIN
9CD6589400
FAN
CN509
IC803
CN401
CN402
CW303 IC402 CW509
CN201
CW901
IC404IC403
4558 4558
CN509
ICBD3872
CW603
CW905 IC901 IC801 IC802
STK402-050
L4959 STK411-210E
CW510
OPTICAL JACK
CW500 CW501
CW504
SONY
CW508
CW506
S/S
CD MECHA. ASS'Y
M
M
PCB FRONT
9CD6591700
CW702
CW708
CW704
CW400
CW401
CN902 CN701
CW901 [9728804100 #22 10P 2.5 350mm Board-In
CN509 [9728817500] UL2547 & 1007 P=2.5X250 8P
CN201 [9728819200] #24 12P 250mm
CN501 [2001-WS-06] 6P 2.0 X 170mm
CN500 [9718813800] 16P 1.0 X 120mm
CN504 [2001-WS-12] 12P 2.0mm
CN701 [9738836200] #26 FLAT 10P 160mm
CN302 [9728804200] UL1007 #26 1P 100mm
CN702 [9728812100] FFC 16 1.25 X 150mm R
CW902 [9728804200] #26 2P 2.5 350mm
CN602 [9738828800] #28 7P P2.5 100mm Shield
CN601 [9738828700] #28 3P 220mm Shield
CN401 [9736407600] Pin Base 53095-1310 13P CN402 [9736407800] 53095-1010 10P CN603 [9728814000] #28 8P 200mm
CN301 [9728818900] #8P 220 P=2.5 Shield
CN508 [9728818700] FFC 17P 330mm
WiringDiagram
17
AXW-338(K) Only]

BlockDiagram
18
VFD FD701
REC. OSC
L601
IC602:UPC1330HA
R/P
SW
TAPE
MECHA
PLAY
REC
IC601 : M51167BFP
PLAY/REC
EQ
TU001 : FTE4-401TC
(KST-F404VA)
FM
RF
IF+MPX
IC201 : BA1450S
PLL
IC202 : LC72131D
AM RF+OSC
L101 : 5LR0000832
(MW2BAND)
SLED
SPINDLE
TRACKING
FOCUSING
ROULETTE
CD MECHA IC501
S1L9226
ASSP
D-RAM
IC506
SDRM16M
IC503
BA5939S
MOTOR
DRIVER IC504
S3C825A
SUB
MICOM
IC502
S5L9290
DSP DECODER
IC505
TMD2104
MP3CD
RECEIVER
IC705 : LTM97CT-38P
EEEP ROM
IC702 : 24LC04B KEY CONTROL
IC701 : M38199
MI-COM
MP3 CD Option : AXG-327(K)/337(K) Only
KARAOKE Option
AXG-327K/337K, AXW-327K/337K Only
REGULATOR
-12V
Q902
POWER
TRANS
PT991
IC901 : L4959
RECULATOR
+12V
UN/SW
+5.6V
UN/SW
+8.6V
SW
+12V
SW
SPEAKER
J802
POWER AMP
IC801 : STK411-210E
PRE AMP
IC402
AUX
IC402
FUNCTION
PRE AMP + PRESET EQ + VR
IC401 : BD3872FS
J801
HEAD
PHONE
KARAOKE
AXG-327(K)/337(K), AXW-327(K)/337(K) Only]

BlockDiagram
19
VFD FD701
REC. OSC
L601
IC602:UPC1330HA
R/P
SW
TAPE
MECHA
PLAY
REC
IC601 : M51167BFP
PLAY/REC
EQ
TU001 : FTE4-401TC
(KST-F404VA)
FM
RF
IF+MPX
IC201 : BA1450S
PLL
IC202 : LC72131D
AM RF+OSC
L101 : 5LR0000832
(MW2BAND)
SLED
SPINDLE
TRACKING
FOCUSING
ROULETTE
CD MECHA IC501
S1L9226
ASSP
D-RAM
IC506
SDRM16M
IC503
BA5939S
MOTOR
DRIVER IC504
S3C825A
SUB
MICOM
IC502
S5L9290
DSP DECODER
IC505
TMD2104
MP3CD
RECEIVER
IC705 : LTM97CT-38P
EEEP ROM
IC702 : 24LC04B KEY CONTROL
IC701 : M38199
MI-COM
MP3 CD Option : AXG-328(K)/338(K) Only
KARAOKE Option
AXG-328K/338K, AXW-328K/338K Only
AUX
IC402
FUNCTION
PRE AMP + PRESET EQ + VR
IC401 : BD3872FS
KARAOKE
REGULATOR
-12V
Q902
POWER
TRANS
PT991
IC901 : L4959
RECULATOR
+12V
UN/SW
+5.6V
UN/SW
+8.6V
SW
+12V
SW
POWER AMP
IC802 : STK411-210E
POWER AMP
IC801 : STK402-050
HPF
IC460
IC461
PRE AMP
IC402
LPF
IC403
IC404
J803
HEAD
PHONE
IC875
HEAD
PHONE AMP
SPEAKER
J801
SPEAKER
J802
AXG-328(K)/338(K), AXW-328(K)/338(K) Only]
