Daewoo AXL-128 User manual

Service Manual
MINI COMPONENT SYSTEM
Model :
DAEWOO ELECTRONICS CO., LTD.
AXL-128

Table of Contents
- 1 -
SAFETY PRECAUTIONS......................................................................................... 2
ADJUSTMENTS....................................................................................................... 4
EXPLODED VIEW AND PARTS LIST...................................................................... 5
WIRING DIAGRAM................................................................................................... 8
BLOCK DIAGRAM.................................................................................................... 9

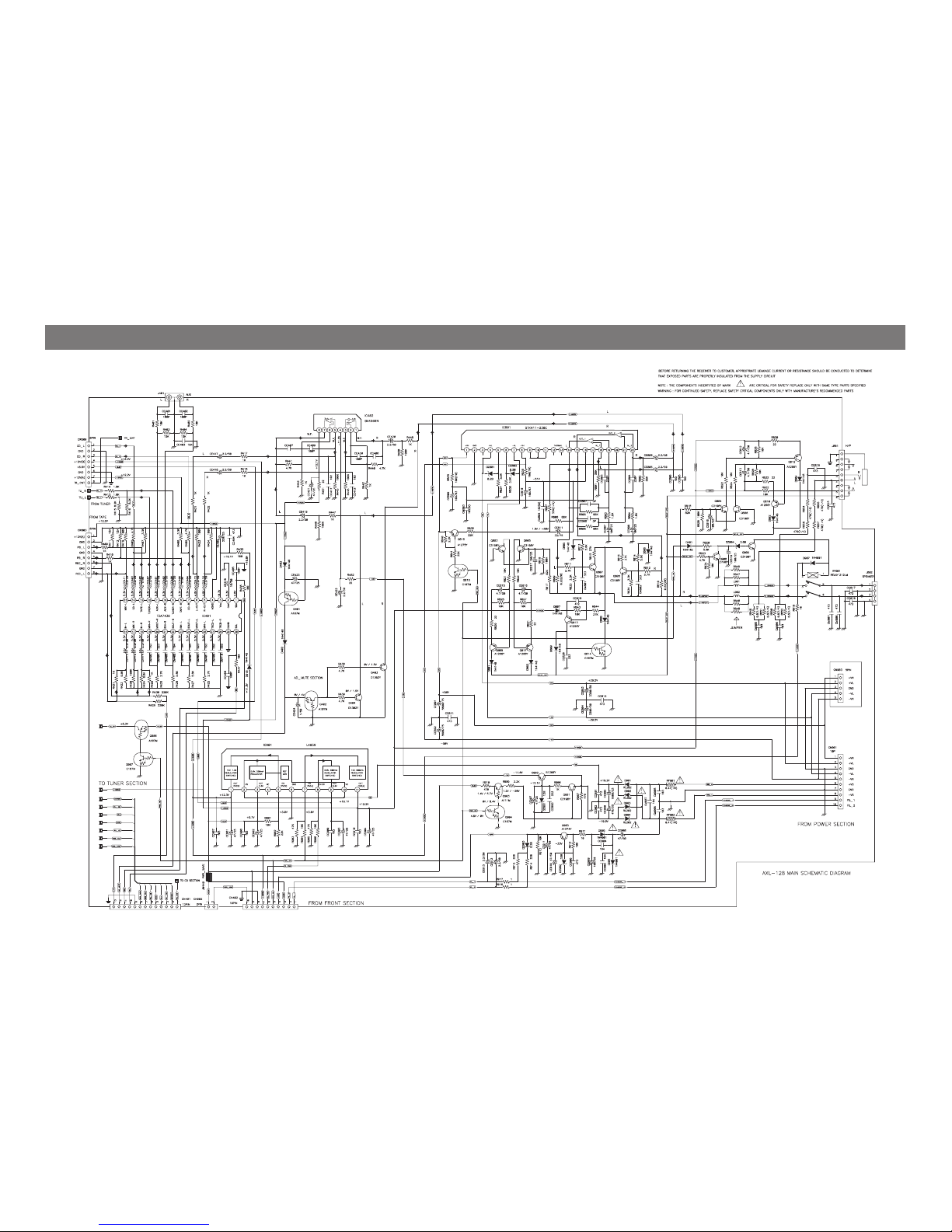

SCHEMATIC DIAGRAM ........................................................................................... 10
POWER / AMP /TUNER / TAPE .................................................................................................... 10

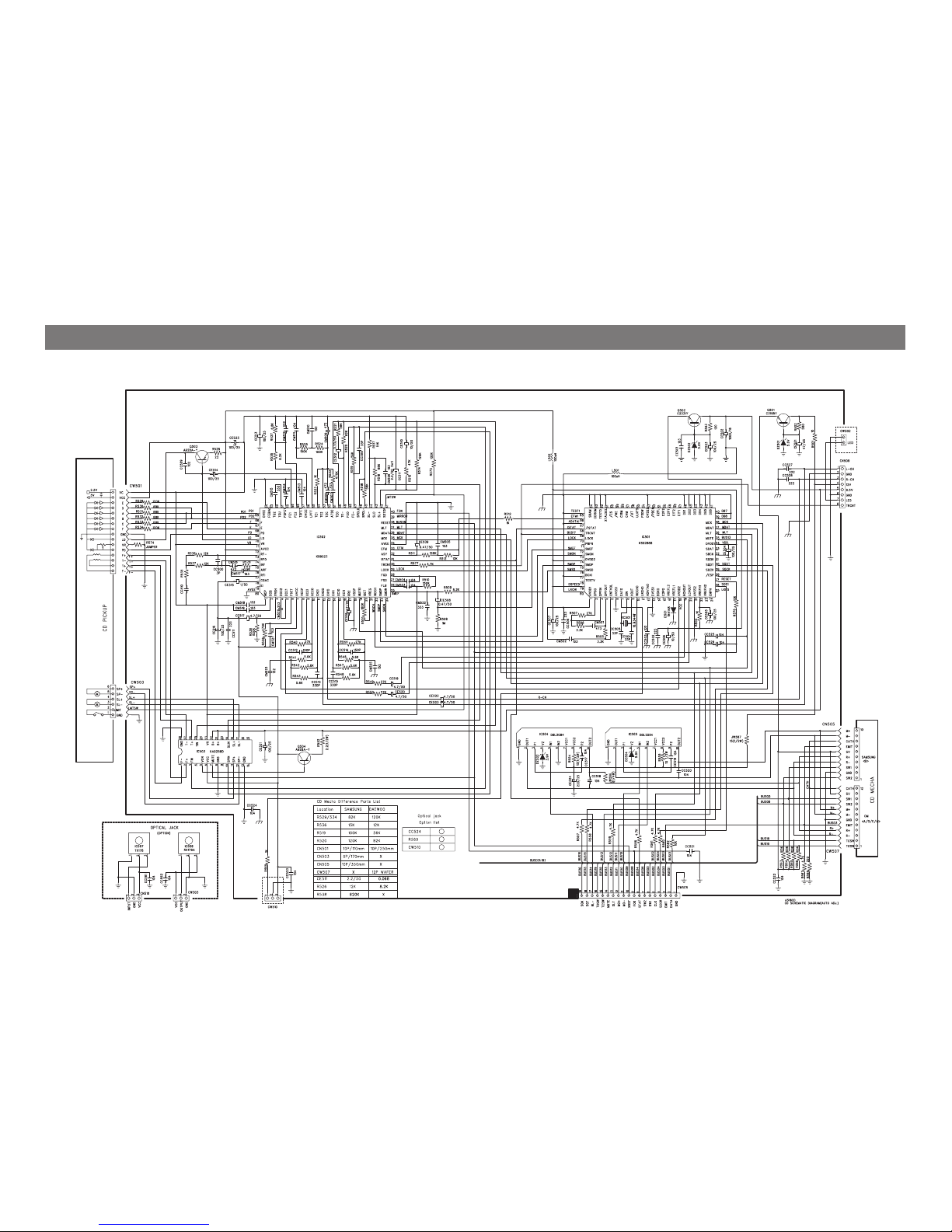

CD ....................................................................................................................................................11
CONTROL ........................................................................................................................................ 12

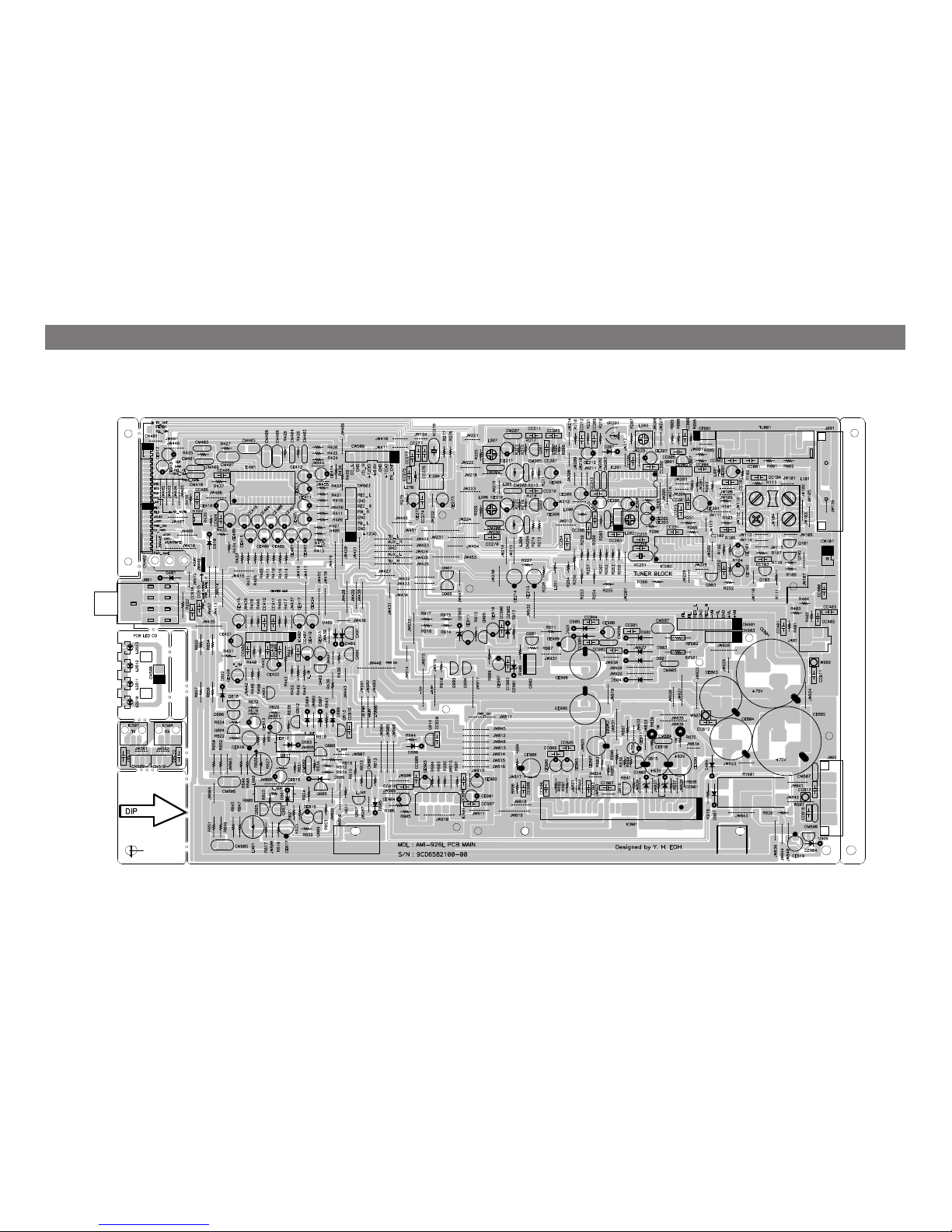

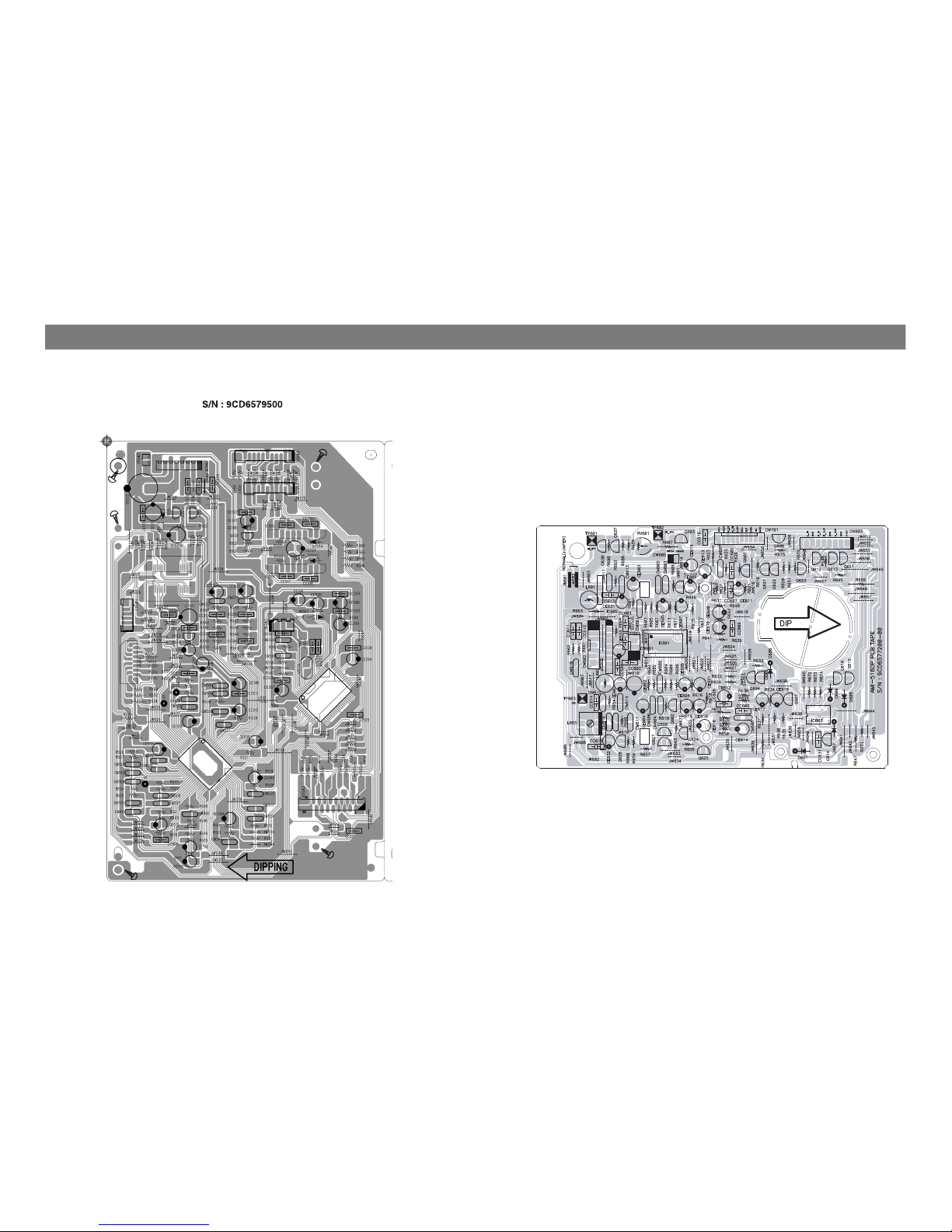

PCB PATTERN LAYOUT ........................................................................................ 15
ELECTRICAL PART LIST ....................................................................................... 19
MINI COMPONENT SYSTEM
XL-128/R
TAPE ................................................................................................................................................13
POWER ............................................................................................................................................ 14

Safety Precautions
- 2 -
WARNING : TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION : TO REDUCE THE RISK IF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS
INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
THIS SYMBOL IS INTENDED TO ALERT THE USER TO THE
PRESENCE OF UNINSULTED "DANGEROUS VOLTAGE"
WITHIN THE PRODUCT'S ENCLOSURE THAT MAY BE
SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF
ELECTRIC SHOCK TO PERSONS.
THIS SYMBOL IS INTENDED TO ALERT THE USER TO THE
PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE
(SERVICING) INSTRUCTIONS IN THE LITERATURE
ACCOMPANYING THE APPLIANCE.
CAUTION
TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS POLARIZED AC
PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET
UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE
EXPOSURE.
LASER SAFETY
THIS UNIT EMPLOYS A LASER. ONLY QUALIFIED SERVICE PERSONNEL
SHOULD REMOVE THE COVER OR ATTEMPT TO SERVICE THIS DEVICE
DUE TO POSSIBLE EYE INJURY.
CAUTION : USE OF ANY CONTROLS, ADJUSTMENTS, OR PROCEDURES
OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE.
CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF
PLUG TO WIDE SLOT, FULLY INSERT.
ATTENTION : POUR EVITER LES CHOCS ELECTRIQUES, INTRODUIRE
LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPON-
DANTE DE LA PRISE ET POUSSER JUSQU'AU FOND.
Important Safety Instructions
- All the safety and operating instructions should be read before
the appliance is operated.
- The safety and operating instructions should be retained for
future reference.
- All warnings on the appliance and in the operating instructions
should be adhered to.
- All operating and use instructions should be followed.
1. Water and Moisture - The appliance should not be
used near
water - for example, near a bathtub, washbowl, kitchen sink,
laundry tub, in a wet basement, or near a swimming pool,
and the like. 2. Carts and Stands - The appliance
should be used only with a cart or
stand that is recommended by th
manufacturer.
3. An appliance and cart combination
should
be moved with care. Quick
stops, excessive force, and uneven
surfaces may cause the appliance
and
cart combination to overturn.
4. Wall or Ceiling Mounting - The appli-
ance
should be mounted to a wall or
ceiling
only as recommended by the manufacturer.
5. Ventilation - The appliance should be situated so
that its
location or position does not interfere with
its proper
ventilation. For example, the appliance
should not be situated
on a bed, sofa, rug, or
similar surface that may block the
ventilation
openings; or, placed in a built-in installation, such
as a bookcase or cabinet that may impede the flow of air
through the ventilation openings.
6. Heat - The appliance should be situated away from heat
sources such as radiators, heat registers,
stoves, or other
appliances (including amplifiers) that
produce heat.
7. Power Sources - The appliance should be
connected to a
power supply only of the type
described in the operating
instructions or as marked
on the appliance.
8. Grounding or Polarization - The precautions that
should be
taken so that the grounding or
polarization means of an
appliance is not defeated.
9. Power - Cord Protection - Power-supply cords
should be
routed so that they are not likely to be
walked on or pinched
by items placed upon or
against them, paying particular
attention to cords at
plugs, convenience receptacles, and the
point where
they exit from the appliance.
10.Protective Attachment Plug - If the appliance is equipped with
an attachment plug having overload
protection. This is a
safety feature.
See Instruction Manual for replacement or
resetting of
protective device. If replacement of the plug is
required, be sure the
service technician has used a
replacement plug
specified by the manufacturer that has the
same overload protection as the original plug.
11.Cleaning - The appliance should be cleaned only as
recommended by the manufacturer.
12.Power Lines - An outdoor antenna should be located
away
from power lines.
CAUTION
RISK OF ELECTRIC SHOCKS
DO NOT OPEN
PORTABLE CART
Figure 2

Safety Precautions
- 3 -
13.Outdoor Antenna Grounding - If an outside antenna is
connected to the receiver be sure the antenna
system is
grounded so as to provide some protection against voltage
surges and built-up static
charges. Article 810 of the National
Electrical Code,
ANSI/NFPA 70, provides information with
regard to
proper grounding of the mast and supporting
structure, grounding of the lead-in wire to an antenna-dis
charge unit, size of grounding conductors,location of antenna-
discharge unit, connection to grounding electrodes and
requirements for the grounding electrode. See Figure 1.
14.Non-use Periods - The power cord of the appliance should be
unplugged from the outlet when left
unused for a long period
of time.
15.Object and Liquid Entry - Care should be taken so
that objects
do not fall and liquids are not spilled into the enclosure through
openings.
16.Damage Requiring Service - The appliance should
be
serviced by qualified service personnel when:
a) The power-supply cord or the plug has been
damaged; or
b) Objects have fallen, or liquid has been spilled
into the
appliance; or
c) The appliance has been exposed to rain; or
d) The appliance does not appear to operate
normally or
exhibits a marked change in
performance; or
e) The appliance has been dropped, or the
enclosure
damaged.
17.Servicing - The user should not attempt to service the
appliance beyond that described in the operating instructions.
All other servicing
should be referred to qualified service
personnel.
ANTENNA DISCHARGE UNIT
(NEC SECTION 810-20)
ANTENNA LEAD
INWIRE
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250 PART H)
GROUND CLAMP
ELECTRIC
SERVICE
EQUIPMENT
GROUNDINGCONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
EXAMPLE OF ANTENNA
GROUNDING
NEC - NATIONAL ELECTRICAL CODE

- 4 -
Adjustments
1. TAPE SECTION
Test Tape be used
HEAD ADJUSTMENT (AZIMUTH)
1. 10KHz test tape(example: MTT-114N) must be used for this adjustment.
2. Connect to VTVM or oscilloscope to the headphone jack or speaker terminal.
3. Press the play button.
4. Adjust the azimuth by using a screw driver to maintain the max. L&R output voltage.
5. Adjust tape A(1), tape B(2) respectively, Please secure the azimuth position by using locking paint.
RECORDING BIAS OSCILLATOR FREQUENCY ADJUSTMENT
1. Connect the frequency counter to TP603, GND.
2. Press the REC button.
3. Adjust L603 to obtain 80 KHz ± 100Hz
Tape Contents Use
MTT-111N 3 KHz Tape Speed Adjustment
MTT-114N 10 KHz Head Azimuth Adjustment
MTT-5511 Blank Record Frequency Property
VTVM
Scope
R-CH
L-CH
47 kohm
47 kohm
Input Level
Measurement
Point
Input Point
Output Level
Measurement
Point
TAPE ALIGNMENT CHART
Step Item Reference Value Test Tape Adjust Point Test Point Note FIG.
1Tape Speed
Adjustment
Normal
3,015~3,025Hz MTT-111N RV601 Line Out L/R
Channel Confirm Wow & Flut- ter is within 0.35% FIG.1
3,000~3,010Hz MTT-111N RV601 Line Out L/R
Channel
Confirm Tape Speed
of end position after
adjustment at tape
start position
FIG.1
High 5,820~6,180Hz MTT-111N - - - - - - Shorted TP601,
TP602
Confirm High speed
after normal speed
adjustment FIG.1
2Azimuth Adjustment Maximum Level
Phase:Within90° MTT-114N Head Screw Line Out L/R
Channel FIG.2,3,4
3Recording Bias Oscilla-
tor Frequency Adjust-
ment 80 KHz±0.5 MTT-5511 L603 TP603,GND Adjust with frequency
counter connected. FIG.1
FIG. 1 : Tape Speed & Record Bias Oscillator
Frequency Adjust Circuit
Test Tape : MTT-111N(3kHz)
MTT-5511(Blank) Frequency Counter
Output Level
Measurement Point
Set
FIG. 2 : Tape Azimuth Adjust Location
(Record/Playback Head)
FIG. 3 : Tape Azimuth Adjust Head Screw & Waveform FIG. 4 : Tape Azimuth Adjust Circuit & Waveform
Forward
Side Reverse
Side
Adjust with Frequency
Counter Connected
L-CH
Peak
R-CH
Peak
Screw
Angle
Output Level
within
1 dB
within
1 dB
L-CH
Peak R-CH Peak Screw Angle
VH
Oscilloscope
L-CH
Output Level
Measurement Point
Set
Test Tape
MTT-114N
(10kHz)
Screen Pattern
In Phase 45 90 135 180
Good Wrong

Exploded View and Mechanical Parts List
Model No:XL-125/R
- 5 -
AXL-122L/124L/125R/123DP/125DP/128L

Model No:XL-128/R
Exploded View and Mechanical Parts List
- 6 -
1WINDOW DOOR A 9CD16177A0 MIPS 1
2WINDOW DOOR B 9CD16177B0 MIPS 1
3DOOR COVER A 9CD18123A0 MIPS 1
4DOOR COVER B 9CD18123B0 MIPS 1
5SRING DOOR EJECT R 9CD30080R0 STS 0.9 1
6SRING DOOR EJECT L 9CD30080L0 STS 0.9 1
7DOOR FRAME A 9CD18113A0 MIPS 1
8DOOR FRAME B 9CD18113B0 MIPS 1
9CUSHION FOOT 9CD4207700 URETHAN 2
10-A DAMPER GEAR B 9CD2603200 ACETAL 2
10-B DAMPER BASE B 9CD2603300 ABS 2
11-A LOCKER BASE 9CDOB01900 ABS 2
11-B LOCKER CAM 9CDOB02000 ABS 2
11-C LOCKER SPRING 9CDOB01600 STS 2
12 BRKT SIDE 9CD2412900 ABS 2
13 KNOB CD A 9CD1342200 ABS 1
14 KNOB CD B 9CD1342300 ABS 1
15 DECO EQ L 9CD10034L0 ACRYL 1
16 DECO EQ R 9CD10034R0 ACRYL 1
17 KNOB FUNCTION 9CD1342400 ACRYL 4
18 PLATE FUNCTION 9CD0911900 PC 4
19 KNOB POWER 9CD1342600 ABS 1
20 KNOB DISC 9CD1342500 ABS 1
21-A CASSETTE DECK LOGIC 9CD6007800 ADR-243AMW 1
124L/125L/128L/123DP
21-B CASSETTE DECK LOGIC 9CD6007700 ADR-243DSW 1122L
22 BADGE DAEWOO 9CD1500900 ABS 1
23 PANEL FRONT 9CD0308600 MIPS 1
24 DECO VOL 9CD1003300 ABS 1
25 KNOB VOL 9CD1342700 ABS 1
26 WINDOW FLT 9CD1617800 ACRYL 1
27 CD DECK MECHA 9CD6006900 1
28 DOOR CD 9CD1812400 MIPS 1
29 WIN DOOR CD 9CD1617600 ACRYL 1
30 PLATE LED 9CD0911700 PVC T=0.5 1OPTION
31-A GUIDE FLT 9CD2506500 ABS 1
122L/124L/125L/123DP
31-B GUIDE FLT 9CD2506300 ABS 1
125S/128L/125DP
31-C GUIDE FLT 9CD2506700 ABS 1128
32 PLATE FLT 9CD0909800 PVC T=1.0 2
33 COVER TOP 9CD0411400 MIPS
NO PARTS NAME CODE NO. DESCRIPTIONS Q'TY REMARKS

Model No:XL-128/R
Exploded View and Mechanical Parts List
- 7 -
34 COVER SIDE L 9CD04115L0 MIPS 1
35 COVER SIDE R 9CD04115R0 MIPS 1
37 COVER BACK 9CD0409800 MIPS 1OPTION
39 COVER ANT 9CD0410400 ABS 1
41-5 HEAT SINK 70 9CD4404300 AL 1
42 BRACKET HEAT TR 9CD2414400 SUS 0.3T 1
43 BRACKET HEAT TR 9CD2414600 SECC 1.0T 1
44 BRACKET HEAT TR 9CD2413900 SUS 0.5T 1
49 HEAT SINK 9CD4402800 BSP 0.5T 1
S1 SCREW TAPTTITE 7173261011 TT2 BIN 2.6 X 10 MFZN 13
S2 SCREW TAPTTITE 7173301011 TT2 BIN 3.0X10 MFZN 18
S3 SCREW TAPTTITE 7173301212 TT2 BIN 3.0X12 BK 18
S4 SCREW TAPTTITE 7173301612 TT2 BIN 3.0X16 BK 2
S5 SCREW TAPTTITE 7173300611 TT2 BIN 3.0X6 MFZN 7
S6 SCREW TAPTTITE 7173301411 TT2 BIN 3.0X14 MFZN 2
S7 SCREW TAPTTITE 7173400611 TT2 BIN 4.0X6 MFZN 4
S8 SCREW TAPTTITE 7173401011 TT2 BIN 4.0X10 MFZN 4
S9 WASHER SCREW 9CD3102401 TT2 BIN 3.0X8 + D12 4
S9 WASHER SCREW 9CD3102400 TT2 BIN 3.0X10 + D14 3
W1 WASHER PLAIN 1
P1 1
P2 1
P3 1
P5 1
P5 1
Ref : AMI-128R
OPTION
FRONT PCB
MAIN PCB
POWER PCB
PCB JACK
PCB CD
NO PARTS NAME CODE NO. DESCRIPTIONS Q'TY REMARKS
NO PARTS NAME Q'TY REMARKS

WIRING DIAGRAM
- 8 -
Model No:XL-128/R

BLOCK DIAGRAM
- 9 -
Model No:XL-128/R
QUAL
R/DATA
R/CLK
ANALOG
VDD1
VSS1
VREF
2 5
63
41
9
7
8
11
10
VT
VCC
16 19
18
15 17 20
22
21
25
23
24
14
13
12
AM OSC
VSS2 VSS3

Schemetic Diagram
- 10 -
Model No:XL-128/R
Ass'y Name: POWER/AMP

Schemetic Diagram
- 11 -
Model No:XL-128/R
Ass'y Name: CD

Schemetic Diagram
- 12 -
Model No:XL-128/R
Ass'y Name: CONTROL

Schemetic Diagram
- 13 -
Model No:XL-128/R
Ass'y Name: TAPE

Schemetic Diagram
- 14 -
Model No:XL-128/R
Ass'y Name: POWER

P.C.B Pattern Layout
- 15 -
Model No:XL-128/R
Ass'y Name: MAIN PCB

Model NoXL-128/R
Ass'y Name : CD P.C.B
P.C.B Pattern Layout
- 16 -
Ass'y Name : TAPE P.C.B

P.C.B Pattern Layout
- 17 -
Model No:XL-128/R
Ass'y Name: CONTROL

P.C.B Pattern Layout
Model No:XL-128/R
Ass'y Name: POWER PCB
- 18 -

NO
LOCATION
PART-NAME PART-CODE PART-DESC COMMENT NO LOCATION PART-NAME PART-CODE PART-DESC COMMENT
1 11000 PCB CD AS (S/S) 9CDC053400 AMI-516DPN 64 CW502 CONN WAFER 9CD6259600 2503-WS-2P
2B501 PCB CD 9CD6579500 197X247X1.6T 65 CW503 CONN AS 9738832900 #30 UL1007 6P 170 P=2.0
3BD501 CORE BEAD 9768602000 H.B-T15X25X13ON 66 CW508 CONN WAFER 9736408400 52045-1945 19P
4CC500 C CERA CXCH1H309C 50V CH 3PF C 67 CW510 CONN AS 9738841800 #26 400MM 3P 2.5P
5CC501 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING) 68 D501 DIODE DZN4148--- 1N4148 AUTO 52MM
6CC502 C CERA CCXF1H223Z 50V F 0.022MF Z (TAPPING) 69 DZ501~502 DIODE ZENER DZTZ5R6A-- MTZ-5.6 52MM TAPPING
7CC503 C CERA CCXB1H102K 50V B 1000PF K (TAPPING) 70 DZ503 DIODE ZENER DZTZ3R9B-- MTZ3.9B
8CC504~505 C CERA CXCH1H330J 50V CH 33PF J (TAPPING) 71 DZ504 DIODE ZENER DZTZ5R6A-- MTZ-5.6 52MM TAPPING
9CC506 C CERA CCXF1H223Z 50V F 0.022MF Z (TAPPING) 72 IC501 IC CHIP DSP 1KS9286B-- KS9286B DSP+DAC
10 CC508 C CERA CXCH1H330J 50V CH 33PF J (TAPPING) 73 IC502 IC CHIP RF 1KB9223--- KB9223 RF+SSP+AF
11 CC509 C CERA CCXB1H102K 50V B 1000PF K (TAPPING) 74 IC503 IC CHIP 1KA9258D-- KA9258D
12 CC511 C CERA CCXF1H223Z 50V F 0.022MF Z (TAPPING) 75 IC504~505 IC 1DBL2084-- DBL2084(D/W)
13 CC512 C CERA CCXB1H151K 50V B 150PF K (TAPPING) 76 JW501~502 WIRE JUMPER W581GY6095 AWG22 1/0.65 SN 6 AUTO
14 CC513 C CERA CCXB1H331K 50V B 330PF K (TAPPING) 77 JW503 WIRE JUMPER W581GY7595 AWG22 1/0.65 SN 7.5 AUTO
15 CC514 C CERA CCXB1H151K 50V B 150PF K (TAPPING) 78 JW504~510 WIRE JUMPER W581GY6095 AWG22 1/0.65 SN 6 AUTO
16 CC515 C CERA CCXB1H331K 50V B 330PF K (TAPPING) 79 JW511 WIRE JUMPER W581GY12J5 AWG22 1/0.65 SN 12.5 AUTO
17 CC517~526 C CERA CCXF1H104Z 50V F 0.1MF Z 80 JW512 WIRE JUMPER W581GY6095 AWG22 1/0.65 SN 6 AUTO
18 CC527~528 C CERA CCXB1H222K 50V B 2200PF K (TAPPING) 81 JW513 WIRE JUMPER W581GY7595 AWG22 1/0.65 SN 7.5 AUTO
19 CE501 C ELECTRO CEXF1E470V 25V RSS 47MF (5X11) TP 82 JW514~516 WIRE JUMPER W581GY6095 AWG22 1/0.65 SN 6 AUTO
20 CE502 C ELECTRO CEYF1C102V 16V RSS 1000MF (10X20) 83 JW517~519 WIRE JUMPER W581GY1005 AWG22 1/0.65 SN 10 AUTO
21 CE503~505 C ELECTRO CEXF1E101V 25V RSS 100MF (6.3X11) TP 84 JW520 WIRE JUMPER W581GY12J5 AWG22 1/0.65 SN 12.5 AUTO
22 CE506 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP 85 JW521~523 WIRE JUMPER W581GY7595 AWG22 1/0.65 SN 7.5 AUTO
23 CE507 C ELECTRO CEXF1E101V 25V RSS 100MF (6.3X11) TP 86 JW524 WIRE JUMPER W581GY1005 AWG22 1/0.65 SN 10 AUTO
24 CE508~509 C ELECTRO CEXF1H478V 50V RSS 0.47MF (5X11) TP 87 JW525 WIRE JUMPER W581GY12J5 AWG22 1/0.65 SN 12.5 AUTO
25 CE510 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP 88 JW526 WIRE JUMPER W581GY1005 AWG22 1/0.65 SN 10 AUTO
26 CE511 C ELECTRO CEXF1H229V 50V RSS 2.2MF (5X11) TP 89 JW527 WIRE JUMPER W581GY7595 AWG22 1/0.65 SN 7.5 AUTO
27 CE512 C ELECTRO CEXF1H338V 50V RSS 0.33MF (5X11) TP 90 JW528~529 WIRE JUMPER W581GY1005 AWG22 1/0.65 SN 10 AUTO
28 CE513~514 C ELECTRO CEXF1E101V 25V RSS 100MF (6.3X11) TP 91 JW530~534 WIRE JUMPER W581GY7595 AWG22 1/0.65 SN 7.5 AUTO
29 CE515 C ELECTRO CEXF1H109V 50V RSS 1MF (5X11) TP 92 JW535 WIRE JUMPER W581GY6095 AWG22 1/0.65 SN 6 AUTO
30 CE516 C ELECTRO CEXF1E101V 25V RSS 100MF (6.3X11) TP 93 JW536~538 WIRE JUMPER W581GY1005 AWG22 1/0.65 SN 10 AUTO
31 CE517 C ELECTRO CEXF1H479V 50V RSS 4.7MF (5X11) TP 94 JW539 WIRE JUMPER W581GY6095 AWG22 1/0.65 SN 6 AUTO
32 CE518 C ELECTRO CEXF1E470V 25V RSS 47MF (5X11) TP 95 JW540 R CARBON FILM RD-AZ102J- 1/6 1K OHM J
33 CE519~520 C ELECTRO CEXF1H479V 50V RSS 4.7MF (5X11) TP 96 JW541 WIRE JUMPER W581GY6095 AWG22 1/0.65 SN 6 AUTO
34 CE521 C ELECTRO CEXF1E101V 25V RSS 100MF (6.3X11) TP 97 JW542 WIRE JUMPER W581GY1005 AWG22 1/0.65 SN 10 AUTO
35 CE522~523 C ELECTRO CEXF1H479V 50V RSS 4.7MF (5X11) TP 98 JW543 R CARBON FILM RD-AZ472J- 1/6 4.7K OHM J
36 CE524 C ELECTRO CEXF1E221V 25V RSS 220MF (8X11.5) TP 99 JW544~545 WIRE JUMPER W581GY6095 AWG22 1/0.65 SN 6 AUTO
37 CE525~526 C ELECTRO CEXF1E101V 25V RSS 100MF (6.3X11) TP 100 JW546 WIRE JUMPER W581GY1005 AWG22 1/0.65 SN 10 AUTO
38 CM501 C MYLAR CMXM1H473J 50V 0.047MF J 101 JW547 WIRE JUMPER W581GY6095 AWG22 1/0.65 SN 6 AUTO
39 CM502 C MYLAR CMXM1H103J 50V 0.01MF J (TP) 102 JW548 WIRE JUMPER W581GY7595 AWG22 1/0.65 SN 7.5 AUTO
40 CM503~504 C MYLAR CMXM1H104J 50V 0.1MF J 103 JW549~554 WIRE JUMPER W581GY6095 AWG22 1/0.65 SN 6 AUTO
41 CM505~506 C MYLAR CMXM1H103J 50V 0.01MF J (TP) 104 JW555 WIRE JUMPER W581GY1005 AWG22 1/0.65 SN 10 AUTO
42 CM507 C MYLAR CMXM1H333J 50V 0.033MF J (TP) 105 JW556 WIRE JUMPER W581GY12J5 AWG22 1/0.65 SN 12.5 AUTO
43 CM508~509 C MYLAR CMXM1H472J 50V 0.0047MF J 106 JW557 WIRE JUMPER W581GY1005 AWG22 1/0.65 SN 10 AUTO
44 CM510 C MYLAR CMXM1H103J 50V 0.01MF J (TP) 107 JW558~559 WIRE JUMPER W581GY6095 AWG22 1/0.65 SN 6 AUTO
45 CM511 C MYLAR CMXM1H104J 50V 0.1MF J 108 JW560 WIRE JUMPER W581GY7595 AWG22 1/0.65 SN 7.5 AUTO
46 CM512 C MYLAR CMXM1H222J 50V 2200PF J 109 JW561~562 WIRE JUMPER W581GY6095 AWG22 1/0.65 SN 6 AUTO
47 CM513~514 C MYLAR CMXM1H104J 50V 0.1MF J 110 JW563~564 WIRE JUMPER W581GY7595 AWG22 1/0.65 SN 7.5 AUTO
48 CM515 C MYLAR CMXM1H333J 50V 0.033MF J (TP) 111 JW565 R CARBON FILM RD-2Y150J- 1/2 15 OHM J
49 CM516 C MYLAR CMXM1H472J 50V 0.0047MF J 112 JW566 R CARBON FILM RD-4Z109J- 1/4 1 OHM J
50 CM517 C MYLAR CMXM1H103J 50V 0.01MF J (TP) 113 JW567~575 WIRE JUMPER W581GY6095 AWG22 1/0.65 SN 6 AUTO
51 CM518 C MYLAR CMXM1H152J 50V 1500PF J 114 JW576 WIRE JUMPER W581GY7595 AWG22 1/0.65 SN 7.5 AUTO
52 CM519 C MYLAR CMXM1H103J 50V 0.01MF J (TP) 115 JW577 WIRE JUMPER W581GY6095 AWG22 1/0.65 SN 6 AUTO
53 CM520 C MYLAR CMXM1H333J 50V 0.033MF J (TP) 116 JW578 R CARBON FILM RD-AZ472J- 1/6 4.7K OHM J
54 CM521 C MYLAR CMXM1H103J 50V 0.01MF J (TP) 117 L501~502 COIL PEAKING 5CPZ101K02 100UH K (AXIAL 3.5MM)
55 CM522 C MYLAR CMXM1H333J 50V 0.033MF J (TP) 118 Q501 TR TZTC3198Y- KTC3198Y-(1815Y) (AUTO)
56 CM523 C MYLAR CMXM1H152J 50V 1500PF J 119 Q502 TR TKSC2331Y- KSC2331Y
57 CM525 C MYLAR CMXM1H152J 50V 1500PF J 120 Q503~504 TR TKSA928AY- KSA928A-Y
58 CN501 CONN AS 9738835600 FFC 16P P1.0X110MM R 121 R501 R CARBON FILM RD-AZ100J- 1/6 10 OHM J
59 CN503 CONN AS 9738832900 #30 UL1007 6P 170 P=2.0 122 R502 R CARBON FILM RD-AZ561J- 1/6 560 OHM J
60 CN505 CONN AS 9738832000 AWG26 10P 350 P=2.0 BR 123 R503 R CARBON FILM RD-AZ121J- 1/6 120 OHM J
61 CN508 CONN AS 9738832400 FFT 19P 300MM P=1.25 124 R504 R CARBON FILM RD-AZ102J- 1/6 1K OHM J
62 CN509 CONN AS 9738832101 8P 250 P=2.5 BOARDIN 125 R505~506 R CARBON FILM RD-AZ332J- 1/6 3.3K OHM J
63 CW501 CONN WAFER 9CD6259300 52807-1610 126 R507 R CARBON FILM RD-AZ273J- 1/6 27K OHM J
- 19 -
Electrical Parts List
