Daewoo AXG-324 User manual

Service Manual
S/N No. :
Jun. 2003
DAEWOO ELECTRONICS CO., LTD.
http ://svc.dwe.co.kr
Mini Component System
Model:
AXG-324/325/326(K)
AXW-324/325/326(K)
M
U
L
T
I
J
O
G
9CD830110
AXG-324/325/326(K)
AXW-324/325/326(K)

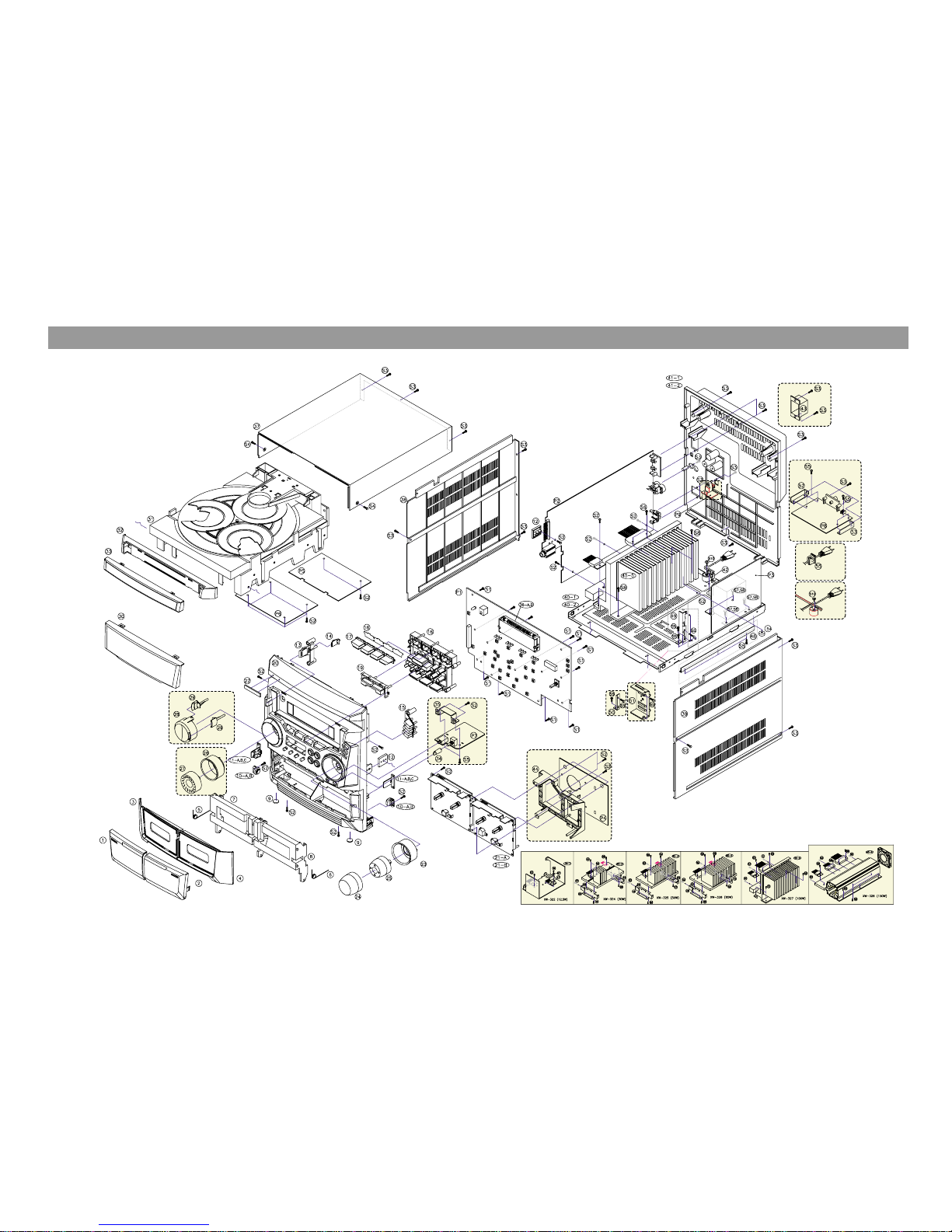

ExplodedViewandMechanicalPartsList
6

ExplodedViewandMechanicalPartsList
7
40-2 CHASSIS BOTTOM 9CD0607100 SECC 1.0T 1 324/325/326/327/328
41-1 COVER BACK 9CD0409800 MIPS 1 322/324/325/326
41-2 COVER BACK 9CD0414800 SECC 1.0T 1 327/328
42 HOLDER AC CORD 9CD2303300 ABS 1 324/325/326/327/328
43 COVER ANT 9CD0410400 ABS 1
44 HOLDER PCB 9CD2304800 MIPS 1 327/328
45-1 HEAT SINK 10 9CD4404500 AL 1 322
45-2 HEAT SINK N30 9CD4406200 AL 1 324
45-3 HEAT SINK N50 9CD4405800 AL 1 325
45-4 HEAT SINK N65 9CD4408200 AL 1 326
45-5 HEAT SINK N100 9CD4406100 AL 1 327
45-6 HEAT SINK N150A 9CD4407900 AL 1 328
46 BRACKET HEAT TR 9CD2414600 SECC 1.0T 2 324/325/326
47 BRACKET HEAT TR 9CD2414600 SUS 0.5T 1 322
48 FRAME BOTTOM 9CD0607800 SECC 1.0T 1 327/328
49 BRKT PCB C 9CD2414500 SECC 1.0T 1 327/328
50 BRKT PCB A 9CD2413100 SECC 1.0T 1 327DP
51 HEAT SINK PW 9CD4404200 AL 1 327/328
52 BRACKET TUNER PCB L 9CD24159L0 SECC 1.0T 1 327/328
53 BRACKET TUNER PCB R 9CD24159R0 SECC 1.0T 1 327/328
54 FOOT RUBBER 9CD0801000 RUBBER 2 327/328
55 STOPPER AC CORD 9CD5700500 66NYLON 1 327/328
SCREW TYPE 322
324 325 326 327 328
S1 SCREW TAPTTITE 7173261011 TT2 BIN 2.6 X 10 MFZN 14 14 14 14 14 14
S2 SCREW TAPTTITE 7173301011 TT2 BIN 3.0X10 MFZN 16 15 15 15 15 15
S3 SCREW TAPTTITE 7173301212 TT2 BIN 3.0X12 BK 21 21 21 21 21 23
S4 SCREW TAPTTITE 7173301612 TT2 BIN 3.0X16 BK 22 2222
S5 SCREW TAPTTITE 7173300411 TT2 BIN 3.0X6 MFZN 5 8 8 8 12 13
S6 SCREW TAPTTITE 7173301411 TT2 BIN 3.0X14 MFZN * 4 4448
S7 SCREW TAPTTITE 7173400611 TT2 BIN 4.0X6 MFZN * 4 4444
S8 SCREW TAPTTITE 7173401011 TT2 BIN 4.0X10 MFZN 4* **4*
S9 WASHER SCREW 9CD3102401 TT2 BIN 3.0X8 + D12 1* ****
S10 WASHER SCREW 9CD3102400 TT2 BIN 3.0X10 + D14 11 11**
W1 WASHER PLAIN 1* ****
P2 1
P3 1
P4 1
P5 1
P6 1
P7 1
P8 1
P9 1
PCB TUNER 328
option
PCB MAIN
PCB POWER
PCB TAPE
PCB JACK(Optcal)
PCB CD
PCB MIC
PCB MP3 option
327/328
327/328
324/325/326/327/328
Part NameNo.
No.
No.
Part Code
Part Code
Description
Description
Qty Remark
Part Name Qty
Qty
Remark
1 WINDOW DOOR A 9CD16197A0 ACRYL 1
2 WINDOW DOOR B 9CD16197B0 ACRYL 1
3 DOOR COVER A 9CD18136A0 MIPS 1
4 DOOR COVER B 9CD18136B0 MIPS 1
5 SRING DOOR EJECT L 9CD30080L0 STS 0.9 1
6 SRING DOOR EJECT R 9CD30080R0 STS 0.9 1
7 DOOR FRAME A 9CD18113A0 MIPS 1
8 DOOR FRAME B 9CD18113B0 MIPS 1
9 CUSHION FOOT 9CD4207700 URETHAN 2
10-A DAMPER GEAR B 9CD2603200 ACETAL 2
10-B DAMPER BASE B 9CD2603300 ABS 2
11-A LOCKER BASE 9CDOB01900 ABS 2
11-B LOCKER CAM 9CDOB02000 ABS 2
11-C LOCKER SPRING 9CDOB01600 STS 2
12 BRKT SIDE 9CD2412900 ABS 2
13 KNOB POWER 9CD1348700 MIPS 1
14 LENS LED 9CD1619900 ACRYL 1
15 KNOB CD 9CD1348710 MIPS 1
16 KNOB CONTROL 9CD1348400 MIPS 1
17 KNOB FUNCTION 9CD1348600 ACRYL 1
18 PLATE FILTER 9CD0912800 T0.15 1 option
19 KNOB SET 9CD1348500 MIPS 1
20 PANEL FRONT 9CD0311100 MIPS 1
21-A CASSETTE DECK LOGIC 9CD6010000 1 322
21-B CASSETTE DECK LOGIC 9CD6010100 1 324/325/327/328
22 BADGE DAEWOO 9CD1500900 ABS 1
23 DECO VOLUME 9CD3104200 ABS 1
24 KNOB CAP 9CD1349300 MIPS 1
25 KNOB VOLUME 9CD1348200 MIPS 1
26 RING REFLECTOR 9CD3104210 ACRYL 1
27 KNOB JOG 9CD1348210 MIPS 1 327/328
28 KNOB TUNE 9CD1349400 MIPS 1 322/324/325/326
29 LENS DECO 9CD1620000 ACRYL 2
30 WINDOW FLT 9CD1619500 ACRYL 1
31 CD DECK MECHA 9CD6009300 1
32 DOOR CD 9CD1813700 MIPS 1
33 WINDOW CD DOOR 9CD1619600 ACRYL 1
34 KNOB MIC 9CD1332000 MIPS 1 Option
Option
35 BRACKET MIC PCB 9CD2415500 SECC 1.0T 1
36-A GUIDE FLT 9CD2506500 ABS 1 322/324/325/326
36-B GUIDE FLT 9CD2506300 ABS 1 327/328
37 COVER TOP 9CD0411400 MIPS 1
38 COVER SIDE L 9CD04115L0 MIPS 1
39 COVER SIDE R 9CD04115R0 MIPS 1
40-1 CHASSIS BOTTOM 9CD0607500 ABS 1 322
Part Name
No. Part Code Description Qty Remark

SchematicDiagram MODEL XG-325
10
0dB
w
-87dB
-Q
0dB
w
-87dB
-Q
MAIN

ALC
TAPE

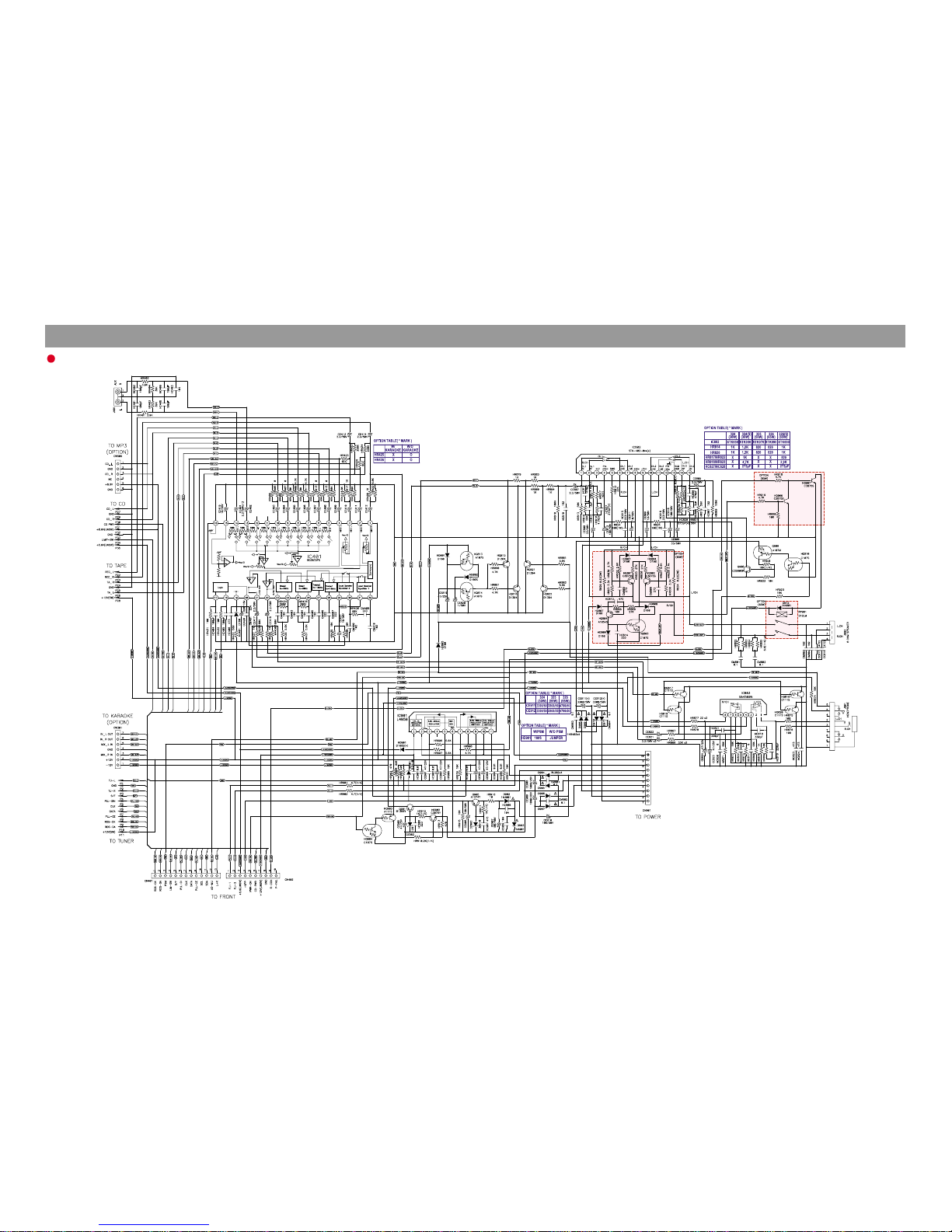

SchematicDiagram MODEL XG-325
11

SchematicDiagram MODEL XG-325
12
3.23.2
#2 : STEREO(0V)
MONO(5V)
#3 : NORMAL(V=< 0.5V )
MUTE(1.4V=<V=<2.2V)
SEEK(V>=3.5V)
2.1
2.12.1
1716151413
Pin No.
IC201
#1 : SD ON(0V)
OTHERWISE(5V)
Vtg(V)
GND
5
2.1
4
2.1
3
4.82.1
21
Vtg(V)
Pin No.
#5
#4
4.8
Name
4.8 #3
#1 #2
1211109876
#9#8
#7 : FM(3.6V), AM(1.0V)
#6 : FM(0V), AM(1.3V)
#7#6
4.5
#5 : FM(4.1V), AM(3.0V)
#4 : FM(4V), AM(2.6V) #3 : FM(3.7), AM(0)
#1 : FM(3.7), AM(0)
IC202
3.54.8
24232221201918
#8 : FM(0.6V), AM(2.3V)
#9 : FM(?V), AM(?V)
#5 : TUNING ON(VCC)
TUNING OFF(0V)
#7 : FM(2.4V), AM(0V)
VCC
1918171615
N.C
14
12Pin No.
Vtg(V)
13
#4 : FM(0), AM(12)
#5
#2 : TUNING ON(VCC)
TUNING OFF(0V)
#2 : TUNING ON(VCC)
TUNING OFF(0V)
?#6
#6 : FM(0V), AM(2.4V)
#7 1.1 1.1
#8 : VT
#2#1VCC00
87654
0
3
N.C2.5
12Pin No.
Vtg(V) #3 #4
11109
Name
E(1)
Q001 Q003
12
0
N.C
Vtg(V)
2.5GND
222120
B(3)
C(2) 12
0
0
0
#8
MAIN GND
HR003 3 & 4 GANG
2 GANG 47 OHM 270 OHM
CE
FTZ
S-AM
OPTION TABLE( * MARK )
HR219HR215HR214HR003
XX
XX
OO
HC217HC216
O
OO
XX
HC215HC214
O
HC203
MJ
MS2
MS3
MS2
MS3
MS3 CF002CF001
HR220 JW204 JW205
1000pF
1000pF
470pF
0
REMARK
Q104 IC205
12
512
0BASIC : FM
GND
S-AM
FTZ
CE
S-AM
CE
FTZ
S-AM
FTZ
CE
J001HR212 HR213HR202 HR203
9736322201
9736321900
9736321900
1K 1K10K
2.7K 2.7K18K
33K 10K
18K 1K 1K
27K
O
47 O
X
270
47 XO
X
XO O
XX
O
OO
XX
O
O
R217
JW
L202
O
X
X
L201
O
X
X
R218
JW
10K 10K
10K 10K 2-Gang
JW208
9737613801:3-Gang
4-Gang
9737613201:
9737613501:
TU001
O
X
O
TUNER

SchematicDiagram MODEL XG-325
13
CD

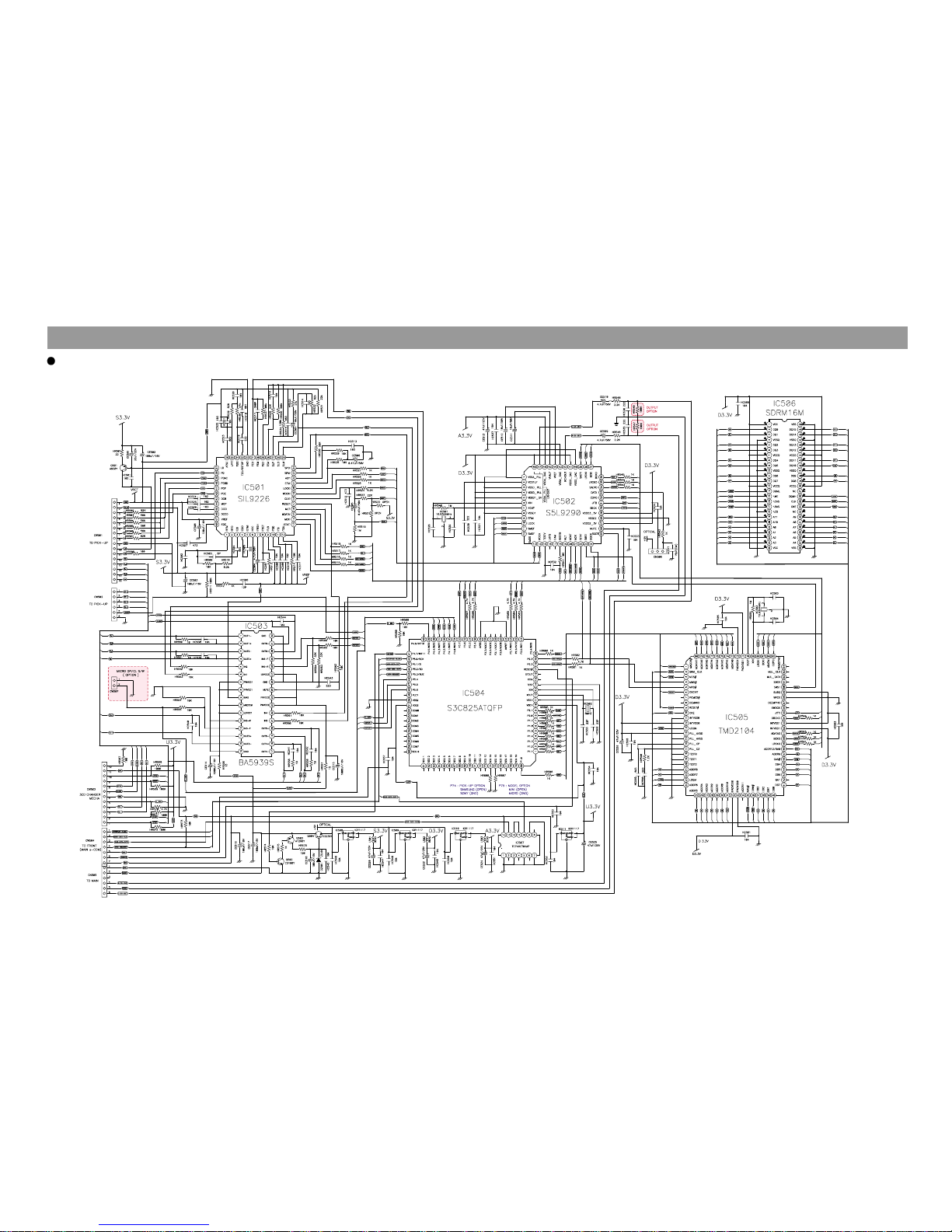

SchematicDiagram MODEL XG-325
MP3 CD [XG-324/325/326(K) Only]
14

SchematicDiagram MODEL XG-325
15
FRONT

SchematicDiagram MODEL XG-325
16
KARAOKE [AXG-326K/AXW-326K Only]

SchematicDiagram MODEL XG-325
17
POWER

ElectricalPartsList
24
Location Part Code Part Name Description
B1000 9CD6589300-01 PCB MAIN 330X197X1.6T
CC206 CCZF1H473Z C CERA HIKF 50V 0.047MF Z (AXIAL)
CE001 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE101 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE102 CEXF1C221V C ELECTRO 16V RSS 220MF (6.3X11) TP
CE201 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
CE202 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CE203 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
CE204~CE205 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE206 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
CE207 CEXF1H478V C ELECTRO 50V RSS 0.47MF (5X11) TP
CE208 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
CE209~CE210 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE211 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
CE212 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
CE214 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CE215 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE270~CE271 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CE401~CE414 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE417~CE418 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE419 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CE420 CEXF1C221V C ELECTRO 16V RSS 220MF (6.3X11) TP
CE421 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CE500 CEXF1C102V C ELECTRO 16V RSS 1000MF (10X20) TP
CE501~CE502 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
CE503 CEXF1C102V C ELECTRO 16V RSS 1000MF (10X20) TP
CE505~CE507 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
CE511 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CE513 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CE514~CE515 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
CE516 CEXF1C221V C ELECTRO 16V RSS 220MF (6.3X11) TP
CE520 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CE521 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
CE523~CE524 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
CE525 CEXF1E330V C ELECTRO 25V RSS 33MF (5X11) TP
CE527~CE528 CEXF1H478V C ELECTRO 50V RSS 0.47MF (5X11) TP
CE601 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE602 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
CE605~CE606 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE607~CE608 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE609 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CE610~CE611 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE612~CE613 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE614~CE615 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CE616 CEXF1H339V C ELECTRO 50V RSS 3.3MF (5X11) TP
CE617~CE618 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE619 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CE620~CE621 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE805 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE806 CEXF1H330V C ELECTRO 50V RSS 33MF (5X11) TP
CE807 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE808 CEXF1H330V C ELECTRO 50V RSS 33MF (5X11) TP
CE809 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CE810 CEXF1H101V C ELECTRO 50V RSS 100MF (8X11.5) TP
CE811 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CE812 CEXF1H101V C ELECTRO 50V RSS 100MF (8X11.5) TP
CE819 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE820 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
CE821~CE822 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE823~CE824 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE901~CE905 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE906~CE907 CEXF1H101V C ELECTRO 50V RSS 100MF (8X11.5) TP
CE908~CE909 CEXF1E102V C ELECTRO 25V RSS 1000MF (13X20)
CE910 CEXF1H101V C ELECTRO 50V RSS 100MF (8X11.5) TP
CE911~CE912 CEXF1H332V C ELECTRO 50V RSS 3300MF (26X41)
CF001~CF002 5PLT107MS3 FILTER CERA LT10.7MS3
CF201 5PPCFAZ077 FILTER PCFAZ-077
CM201~CM202 CMXM2A183J C MYLAR 100V 0.018MF J
CM401 HCBK224KBA C CHIP CERA 50V X7R 0.22MF Z 2012
CM402~CM405 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
CM406~CM407 HCBK222KBA C CHIP CERA 50V X7R 2200PF K 1608
CM408 HCBK223KBA C CHIP CERA 50V X7R 0.022MF M 1608
CM409~CM410 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
CM600~CM601 HCBK683KBA C CHIP CERA 50V X7R 0.068MF M 1608
CM602 CMXM2A103J C MYLAR 100V 0.01MF J
CM603 CMXM2A332J C MYLAR 100V 3300PF J
CM605 CMXM2A392J C MYLAR 100V 3900PF J
CM606~CM607 HCBK123KBA C CHIP CERA 50V X7R 0.012MF M 1608
CM608 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
CM609~CM610 HCBK682KBA C CHIP CERA 50V X7R 6800PF K 1608
CM611~CM612 CMXM2A223J C MYLAR 100V 0.022MF J
CM613 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
CM801~CM802 CMXM2A104J C MYLAR 100V 0.1MF J
MAIN PCB ASS'Y [9CDC064901]
Location Part Code Part Name Description
CM803~CM804 CMXM2A122J C MYLAR 100V 1200PF J
CM901~CM904 CMXM2A104J C MYLAR 100V 0.1MF J
CN400 9736407600 CONN PIN 53095-1310 13PIN BASE
CN401 9736407800 CONN PIN 53095-1010 10PIN BASE
CN500 9738840800 CONN AS FFC 16P P1.0X250MM R
CN601 9738835000 CONN AS UL 2851 #28X2C0 3P 260MM
CN602 9728804301-1 CONN AS #28 7P SHIELD 250MM
CN900 9738833900 CONN AS #22 8P BOARD-IN 350MM
CW101 2503-WR-02 WAFER 2P S2B-XH-A
CW500 9738842900 WAFER 16P FFC PIT1.0
CW501 2001-WS-06 WAFER 6P 2.0MM
CW507 2001-WS-12 WAFER 12P 2.0MM
CW508 9CD6263900 WAFER 52045-1745
CW600 2503-WS-07 WAFER 7P 2.5MM
CW601 2503-WS-03 WAFER 3P 2.5MM
CW602 2503-WS-07 WAFER 7P 2.5MM
D902~D903 DIN4001--- DIODE IN4001
D904~D907 DRL202---- DIODE RL202
D908~D911 DIN5402--- DIODE IN5402
HZ901 DRLZ6R2B-- DIODE ZENER CHIP RLZ6.2B
HZ902 DRLZ12B--- DIODE ZENER CHIP RLZ12B
HZ903 DRLZ30B--- DIODE ZENER CHIP RLZ30B
HC001 HCBK473KBA C CHIP CERA 50V X7R 0.047MF M 1608
HC002 HCBK103KBA C CHIP CERA 50V X7R 0.01MF M 1608
HC004 HCBK103KBA C CHIP CERA 50V X7R 0.01MF M 1608
HC006 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC102 HCBK103KBA C CHIP CERA 50V X7R 0.01MF M 1608
HC103 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC104 HCQK150JBA C CHIP CERA 50V CH 15PF J 1608
HC201 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC202 HCBK473KBA C CHIP CERA 50V X7R 0.047MF M 1608
HC203 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
HC204 HCBK103KBA C CHIP CERA 50V X7R 0.01MF M 1608
HC205 HCBK472KBA C CHIP CERA 50V X7R 4700PF K 1608
HC206 HCQK409DBA C CHIP CERA 50V CH 4PF D 1608
HC207 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC209 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC210~HC212 HCBK103KBA C CHIP CERA 50V X7R 0.01MF M 1608
HC214~HC215 HCBK682KBA C CHIP CERA 50V X7R 6800PF K 1608
HC251~HC252 HCBK103KBA C CHIP CERA 50V X7R 0.01MF M 1608
HC253~HC254 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
HC255 HCQK330JBA C CHIP CERA 50V CH 33PF J 1608
HC256 HCQK360JBA C CHIP CERA 50V CH 36PF J 1608
HC270 HCQK331JBA C CHIP CERA 50V CH 330PF J 1608
HC272 HCBK103KBA C CHIP CERA 50V X7R 0.01MF M 1608
HC276~HC277 HCQK220JBA C CHIP CERA 50V CH 22PF J 1608
HC290 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC401~HC402 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HC403 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC404~HC405 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HC406 HCBK473KBA C CHIP CERA 50V X7R 0.047MF M 1608
HC408~HC409 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HC500~HC502 HCBK103KBA C CHIP CERA 50V X7R 0.01MF M 1608
HC503~HC506 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC507~HC509 HCBK103KBA C CHIP CERA 50V X7R 0.01MF M 1608
HC510~HC512 HCBK222KBA C CHIP CERA 50V X7R 2200PF K 1608
HC513~HC517 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC520 HCBK103KBA C CHIP CERA 50V X7R 0.01MF M 1608
HC521 HCBK683KBA C CHIP CERA 50V X7R 0.068MF M 1608
HC523 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC524 HCQK391JBA C CHIP CERA 50V CH 390PF J 1608
HC525 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC526 HCQK681JBA C CHIP CERA 50V CH 680PF J 1608
HC527 HCBK222KBA C CHIP CERA 50V X7R 2200PF K 1608
HC528 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC530 HCBK682KBA C CHIP CERA 50V X7R 6800PF K 1608
HC531 HCBK103KBA C CHIP CERA 50V X7R 0.01MF M 1608
HC532 HCBK473KBA C CHIP CERA 50V X7R 0.047MF M 1608
HC533 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC534 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
HC535~HC536 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC537 HCBK103KBA C CHIP CERA 50V X7R 0.01MF M 1608
HC538 HCBK222KBA C CHIP CERA 50V X7R 2200PF K 1608
HC539 HCBK562KBA C CHIP CERA 50V X7R 5600PF K 1608
HC540 HCQK409DBA C CHIP CERA 50V CH 4PF D 1608
HC541 HCQK270JBA C CHIP CERA 50V CH 27PF J 1608
HC542 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
HC543~HC545 HCBK103KBA C CHIP CERA 50V X7R 0.01MF M 1608
HC546 HCBK473KBA C CHIP CERA 50V X7R 0.047MF M 1608
HC549 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HC560 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC561 HCBK223KBA C CHIP CERA 50V X7R 0.022MF M 1608
HC562~HC566 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC600 HCBK103KBA C CHIP CERA 50V X7R 0.01MF M 1608

ElectricalPartsList
25
Location Part Code Part Name Description
HC603~HC604 HCQK470JBA C CHIP CERA 50V CH 47PF J 1608
HC605~HC606 HCQK221JBA C CHIP CERA 50V CH 220PF J 1608
HC609~HC611 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HC616~HC619 HCBK122KBA C CHIP CERA 50V X7R 1200PF J 1608
HC620 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HC621~HC622 HCQK331JBA C CHIP CERA 50V CH 330PF J 1608
HC807 HCBK152KBA C CHIP CERA 50V X7R 1500PF K 1608
HC808 HCQK471JBA C CHIP CERA 50V CH 470PF J 1608
HC809 HCQK309JBA C CHIP CERA 50V CH 3PF J 1608
HC810 HCBK152KBA C CHIP CERA 50V X7R 1500PF K 1608
HC811 HCQK471JBA C CHIP CERA 50V CH 470PF J 1608
HC812 HCQK309JBA C CHIP CERA 50V CH 3PF J 1608
HC815~HC816 HCBK223KBA C CHIP CERA 50V X7R 0.022MF M 1608
HC818 HCQK331JBA C CHIP CERA 50V CH 330PF J 1608
HC819 HCQK221JBA C CHIP CERA 50V CH 220PF J 1608
HC821 HCQK331JBA C CHIP CERA 50V CH 330PF J 1608
HC822 HCQK221JBA C CHIP CERA 50V CH 220PF J 1608
HC823~HC824 HCBK473KBA C CHIP CERA 50V X7R 0.047MF M 1608
HC825~HC826 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC901~HC905 HCBK103KBA C CHIP CERA 50V X7R 0.01MF M 1608
HC906 HCBK223KBA C CHIP CERA 50V X7R 0.022MF M 1608
HC907 HCBK473KBA C CHIP CERA 50V X7R 0.047MF M 1608
HC908~HC909 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HD401 DZDS160--- DIODE SW CHIP KDS160
HD500 DZDS160--- DIODE SW CHIP KDS160
HD601~HD602 DZDS160--- DIODE SW CHIP KDS160
HD801~HD802 DZDS160--- DIODE SW CHIP KDS160
HD805 DZDS160--- DIODE SW CHIP KDS160
HD901 HRFT000-BA R CHIP 1/10 0 OHM J 1608
HQ500 TZTC3875S- TR CHIP KTC3875Y
HQ501 TZTA1504S- TR CHIP KTA1504S
HQ600 TZRC111S-- TR CHIP KRC111S
HQ601 TZRA107S-- TR CHIP KRA107S
HQ602 TZRC111S-- TR CHIP KRC111S
HQ603~HQ604 TZTA1504S- TR CHIP KTA1504S
HQ605 TZRC111S-- TR CHIP KRC111S
HQ606 TZTD1304-- TR CHIP KTD1304
HQ608 TZTA1504S- TR CHIP KTA1504S
HQ609 TZTD1304-- TR CHIP KTD1304
HQ612 TZTD1304-- TR CHIP KTD1304
HQ614 TZRC111S-- TR CHIP KRC111S
HQ616 TZTD1304-- TR CHIP KTD1304
HQ813~HQ814 TZRA107S-- TR CHIP KRA107S
HQ815~HQ816 TZTD1304-- TR CHIP KTD1304
HQ817~HQ820 TZRC111S-- TR CHIP KRC111S
HQ821~HQ822 TZTD1304-- TR CHIP KTD1304
HQ902 TZTC3875S- TR CHIP KTC3875Y
HQ903 TZRA111S-- TR CHIP KRA111S
HQ904 TZRC107S-- TR CHIP KRC107S
HQ910 TZRC107S-- TR CHIP KRC107S
HR003 HRFT470JBA R CHIP 1/10 47 OHM J 1608
HR004 HRFT100JBA R CHIP 1/10 10 OHM J 1608
HR005 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
HR006 HRFT681JBA R CHIP 1/10 680 OHM J 1608
HR007 HRFT331JBA R CHIP 1/10 330 OHM J 1608
HR008 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR012 HRFT271JBA R CHIP 1/10 270 OHM J 1608
HR101 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR103~HR106 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR107 HRFT223JBA R CHIP 1/10 22K OHM J 1608
HR109 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR202 HRFT333JBA R CHIP 1/10 33K OHM J 1608
HR203 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR204 HRFT220JBA R CHIP 1/10 22 OHM J 1608
HR205~HR206 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR207 HRFT000-BA R CHIP 1/10 0 OHM J 1608
HR208 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
HR209 HRFT683JBA R CHIP 1/10 68K OHM J 1608
HR211~HR213 HRFT000-BA R CHIP 1/10 0 OHM J 1608
HR216 HRFT473JBA R CHIP 1/10 47K OHM J 1608
HR219~HR220 HRFT223JBA R CHIP 1/10 22K OHM J 1608
HR221 HRFT683JBA R CHIP 1/10 68K OHM J 1608
HR222 HRFT220JBA R CHIP 1/10 22 OHM J 1608
HR251 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR253 HRFT222JBA R CHIP 1/10 2.2K OHM J 1608
HR254 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR255 HRFT100JBA R CHIP 1/10 10 OHM J 1608
HR256 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR257~HR258 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR259 HRFT123JBA R CHIP 1/10 12K OHM J 1608
HR260 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR261~HR263 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR264 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR270 HRFT100JBA R CHIP 1/10 10 OHM J 1608
Location Part Code Part Name Description
HR271~HR272 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR290 HRFT105JBA R CHIP 1/10 1M OHM J 1608
HR401~HR402 HRFT392JBA R CHIP 1/10 3.9K OHM J 1608
HR403 HRFT393JBA R CHIP 1/10 39K OHM J 1608
HR404 HRFT393JBA R CHIP 1/10 39K OHM J 1608
HR405 HRFT000-BA R CHIP 1/10 0 OHM J 1608
HR407 HRFT000-BA R CHIP 1/10 0 OHM J 1608
HR409 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR410 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR411 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR412 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR413 HRFT000-BA R CHIP 1/10 0 OHM J 1608
HR415 HRFT000-BA R CHIP 1/10 0 OHM J 1608
HR417 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR418 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR419 HRFT682JBA R CHIP 1/10 6.8K OHM J 1608
HR420 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR421 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR422 HRFT682JBA R CHIP 1/10 6.8K OHM J 1608
HR423~HR424 HRFT224JBA R CHIP 1/10 220K OHM J 1608
HR425~HR426 HRFT000-BA R CHIP 1/10 0 OHM J 1608
HR427 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR428 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR429 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR430 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR431 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR432 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR433 HRFT561JBA R CHIP 1/10 560 OHM J 1608
HR434 HRFT394JBA R CHIP 1/10 390K OHM J 1608
HR435 HRFT562JBA R CHIP 1/10 5.6K OHM J 1608
HR436 HRFT394JBA R CHIP 1/10 390K OHM J 1608
HR437 HRFT562JBA R CHIP 1/10 5.6K OHM J 1608
HR438 HRFT683JBA R CHIP 1/10 68K OHM J 1608
HR439~HR440 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR501 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR502~HR503 HRFT121JBA R CHIP 1/10 120 OHM J 1608
HR504 HRF4100JEA R CHIP 1/4W 10 OHM J 3216
HR505 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR513 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR514 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR515 HRFT105JBA R CHIP 1/10 1M OHM J 1608
HR516~HR519 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR520~HR528 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR530 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR531 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR532 HRFT473JBA R CHIP 1/10 47K OHM J 1608
HR533 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR535 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR537~HR538 HRFT222JBA R CHIP 1/10 2.2K OHM J 1608
HR539 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR540 HRFT223JBA R CHIP 1/10 22K OHM J 1608
HR541 HRFT823JBA R CHIP 1/10 82K OHM J 1608
HR542 HRFT473JBA R CHIP 1/10 47K OHM J 1608
HR543 HRFT124JBA R CHIP 1/10 120K OHM J 1608
HR544 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR545 HRFT683JBA R CHIP 1/10 68K OHM J 1608
HR546 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR547 HRFT473JBA R CHIP 1/10 47K OHM J 1608
HR548 HRFT823JBA R CHIP 1/10 82K OHM J 1608
HR549~HR550 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR551 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR552~HR566 HRFT563JBA R CHIP 1/10 56K OHM J 1608
HR553 HRFT223JBA R CHIP 1/10 22K OHM J 1608
HR554 HRFT822JBA R CHIP 1/10 8.2K OHM J 1608
HR556 HRFT105JBA R CHIP 1/10 1M OHM J 1608
HR557 HRFT683JBA R CHIP 1/10 68K OHM J 1608
HR558 HRFT184JBA R CHIP 1/10 180K OHM J 1608
HR559 HRFT153JBA R CHIP 1/10 15K OHM J 1608
HR560 HRFT220JBA R CHIP 1/10 22 OHM J 1608
HR561 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR562 HRFT823JBA R CHIP 1/10 82K OHM J 1608
HR567 HRFT823JBA R CHIP 1/10 82K OHM J 1608
HR570 HRFT334JBA R CHIP 1/10 330K OHM J 1608
HR571 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR572 HRFT334JBA R CHIP 1/10 330K OHM J 1608
HR573 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR574 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR575~HR576 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR577 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR578~HR579 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR580~HR581 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR582~HR583 HRFT333JBA R CHIP 1/10 33K OHM J 1608
HR584 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR585~HR586 HRFT100JBA R CHIP 1/10 10 OHM J 1608

ElectricalPartsList
26
Location Part Code Part Name Description
HR589 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR590~HR591 HRFT153JBA R CHIP 1/10 15K OHM J 1608
HR592~HR594 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR595~HR596 HRFT100JBA R CHIP 1/10 10 OHM J 1608
HR600 HRFT100JBA R CHIP 1/10 10 OHM J 1608
HR601 HRFT561JBA R CHIP 1/10 560 OHM J 1608
HR602 HRFT392JBA R CHIP 1/10 3.9K OHM J 1608
HR603 HRFT821JBA R CHIP 1/10 820 OHM J 1608
HR604 HRFT682JBA R CHIP 1/10 6.8K OHM J 1608
HR605 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR606 HRFT561JBA R CHIP 1/10 560 OHM J 1608
HR607 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR608 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
HR609 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR610 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR611 HRFT479JBA R CHIP 1/10 4.7 OHM J 1608
HR613~HR614 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR615 HRFT333JBA R CHIP 1/10 33K OHM J 1608
HR616 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR618 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR619 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR620 HRF4101JEA R CHIP 1/4W 100 OHM J 3216
HR621 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR622~HR623 HRFT184JBA R CHIP 1/10 180K OHM J 1608
HR624 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR626 HRFT221JBA R CHIP 1/10 220 OHM J 1608
HR627 HRFT683JBA R CHIP 1/10 68K OHM J 1608
HR628~HR629 HRFT823JBA R CHIP 1/10 82K OHM J 1608
HR633~HR634 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR636 HRFT105JBA R CHIP 1/10 1M OHM J 1608
HR637 HRFT471JBA R CHIP 1/10 470 OHM J 1608
HR638~HR639 HRFT392JBA R CHIP 1/10 3.9K OHM J 1608
HR640 HRFT471JBA R CHIP 1/10 470 OHM J 1608
HR641~HR642 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR643~HR644 HRFT184JBA R CHIP 1/10 180K OHM J 1608
HR645 HRFT183JBA R CHIP 1/10 18K OHM J 1608
HR646 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR647 HRFT470JBA R CHIP 1/10 47 OHM J 1608
HR648~HR649 HRFT334JBA R CHIP 1/10 330K OHM J 1608
HR650~HR651 HRFT151JBA R CHIP 1/10 150 OHM J 1608
HR652~HR653 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR654~HR655 HRFT272JBA R CHIP 1/10 2.7K OHM J 1608
HR656 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR657 HRFT473JBA R CHIP 1/10 47K OHM J 1608
HR658 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR659~HR660 HRFT682JBA R CHIP 1/10 6.8K OHM J 1608
HR661 HRFT473JBA R CHIP 1/10 47K OHM J 1608
HR662~HR663 HRFT683JBA R CHIP 1/10 68K OHM J 1608
HR664~HR665 HRFT820JBA R CHIP 1/10 82 OHM J 1608
HR666~HR870 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR670 HRFT183JBA R CHIP 1/10 18K OHM J 1608
HR671 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR672~HR673 HRFT333JBA R CHIP 1/10 33K OHM J 1608
HR674~HR677 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR809~HR810 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR813 HRFT563JBA R CHIP 1/10 56K OHM J 1608
HR814 HRFT821JBA R CHIP 1/10 820 OHM J 1608
HR815 HRFT223JBA R CHIP 1/10 22K OHM J 1608
HR816 HRFT563JBA R CHIP 1/10 56K OHM J 1608
HR819 HRFT563JBA R CHIP 1/10 56K OHM J 1608
HR820 HRFT821JBA R CHIP 1/10 820 OHM J 1608
HR821 HRFT563JBA R CHIP 1/10 56K OHM J 1608
HR860 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR861 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR862~HR865 HRF4689JEA R CHIP 1/4W 6.8 OHM J 3216
HR866~HR867 HRFT333JBA R CHIP 1/10 33K OHM J 1608
HR868 HRFT563JBA R CHIP 1/10 56K OHM J 1608
HR869 HRFT183JBA R CHIP 1/10 18K OHM J 1608
HR871 HRFT563JBA R CHIP 1/10 56K OHM J 1608
HR872 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR873 HRFT183JBA R CHIP 1/10 18K OHM J 1608
HR874 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR875~HR876 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR877~HR878 HRFT220JBA R CHIP 1/10 22 OHM J 1608
HR879~HR880 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR881~HR882 HRFT562JBA R CHIP 1/10 5.6K OHM J 1608
HR883~HR884 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR901~HR902 HRF4479JEA R CHIP 1/4W 4.7 OHM J 3216
HR903 HRFT471JBA R CHIP 1/10 470 OHM J 1608
HR904~HR905 HRFT221JBA R CHIP 1/10 220 OHM J 1608
HR906~HR907 HRFT562JBA R CHIP 1/10 5.6K OHM J 1608
HR908 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR909~HR911 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR912 HRF4102JEA R CHIP 1/4 1K OHM J 3216
Location Part Code Part Name Description
HR913 HRFT471JBA R CHIP 1/10 470 OHM J 1608
HR914 HRF4222JEA R CHIP 1/4 2.2K OHM J 3216
HR915 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR916 HRFT100JBA R CHIP 1/10 10 OHM J 1608
HR917 HRF4102JEA R CHIP 1/4 1K OHM J 3216
HR921 HRF4103JEA R CHIP 1/4 10K OHM J 3216
HR922~HR923 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HZ201 DRLZ6R2B-- DIODE ZENER CHIP RLZ6.2B
HZ500 DRLZ5R6B-- DIODE ZENER CHIP RLZ5.6B
HZ501 DRLZ3R9B-- DIODE ZENER CHIP RLZ3.9B
IC201 1LA1844M-- IC LA1844M
IC202 1LC72131D- IC PLL LC72131D
IC270 1LC72723M- IC LC72723M
IC401 1BD3872FS- IC BD3872FS
IC501 1S1L9226-- IC SSP S1L9226
IC502 1S5L9290-- IC DSP S5L9290
IC503 1TC74HCT04AF IC TC74HCT04AF
IC504 1BA5939S-- IC MOTOR DRIVE BA5939S
IC600 1F4094BM1T IC HCF4094M013TR
IC602 1TA8189N-- IC TA8189N
IC603 1BA3126N-- IC SWITCHING BA3126N
IC802 1STK402070 IC STK 402-070
IC803 1BA4560N-- IC BA4560N(H/P AMP)
IC901 1L4959---- IC L4959
J001 9736321900 JACK ANT PAT-645
J401 9CD6313700 JACK RCA S-436P
J801 9766319501 JACK HEADPHONE HTJ-064-05B GOLD
J802 9736320500 JACK SPEAKER CJ-9007-040
JW201 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW202 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW203 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW204~JW206 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW207 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW208 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW209 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW210 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW211 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW212 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW213 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW214~JW215 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW216~JW217 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW218 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW219 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW220 W581GY17J5 WIRE JUMPER AWG22 1/0.65 SN 17.5 AUTO
JW221 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW222 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW223~JW229 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW230 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW231~JW232 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW233~JW235 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW236 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW237 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW400~JW402 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW403 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW404~JW408 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW409~JW410 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW411~ W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW413~JW422 W581GY17J5 WIRE JUMPER AWG22 1/0.65 SN 17.5 AUTO
JW423 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW424~JW425 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW426 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW502 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW504~JW505 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW506 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW507~JW511 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW512 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW513 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW514 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW515~JW521 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW516 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW522~JW525 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW526 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW527 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW528 W581GY17J5 WIRE JUMPER AWG22 1/0.65 SN 17.5 AUTO
JW529 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW530 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW531~JW533 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW534~JW536 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW537~JW541 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW542~JW545 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW543 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW544 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW546 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW547 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO

ElectricalPartsList
27
Location Part Code Part Name Description
JW548~JW549 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW550 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW551~JW552 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW553 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW554 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW555 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW556~JW558 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW559 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW560 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW561 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW562~JW563 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW564 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW565 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW566 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW567 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW568 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW569~JW570 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW571 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW572 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW573~JW575 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW576~JW579 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW580 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW585~JW586 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW587~JW589 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW590 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW600 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW601 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW602 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW603 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW604 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW605 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW606 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW607 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW608~JW609 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW610 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW611~JW612 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW613 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW614 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW615 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW616 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW617 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW618~JW620 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW621 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW622~JW624 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW625 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW626~JW627 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW800 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW801 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW802 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW803~JW805 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW806 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW807~JW808 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW809 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW811 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW812 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW813 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW814~JW819 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW820 W581GY17J5 WIRE JUMPER AWG22 1/0.65 SN 17.5 AUTO
JW821~JW823 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW824~JW827 W581GY17J5 WIRE JUMPER AWG22 1/0.65 SN 17.5 AUTO
JW828 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW829 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW830 W581GY17J5 WIRE JUMPER AWG22 1/0.65 SN 17.5 AUTO
JW832 W581GY17J5 WIRE JUMPER AWG22 1/0.65 SN 17.5 AUTO
JW900 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW901 W581GY17J5 WIRE JUMPER AWG22 1/0.65 SN 17.5 AUTO
JW902 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW903~JW905 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW906 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW907~JW908 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW909 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW910~JW911 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW912~JW913 W581GY17J5 WIRE JUMPER AWG22 1/0.65 SN 17.5 AUTO
JW914 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW915~JW916 W581GY17J5 WIRE JUMPER AWG22 1/0.65 SN 17.5 AUTO
JW917~JW919 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW920 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW921~JW922 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW923~JW924 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW925 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW926 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW927 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW928~JW929 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW930~JW931 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
Location Part Code Part Name Description
JW932~JW935 W581GY17J5 WIRE JUMPER AWG22 1/0.65 SN 17.5 AUTO
JW936 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW937 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW938~JW939 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
L001 5CPZ100K02 COIL PEAKING 10UH K (AXIAL 3.5MM)
L101 5LR0000835 AM RF UNIT KSNT-213M-1
L102 5CPZ100K02 COIL PEAKING 10UH K (AXIAL 3.5MM)
L203 5107FBKA33 COIL DET FM A33S
L251 5CPZ100K02 COIL PEAKING 10UH K (AXIAL 3.5MM)
L501 W581GY17J5 WIRE JUMPER AWG22 1/0.65 SN 17.5 AUTO
L600 5L0503K643 COIL BIAS OSC SM-10F 5.04MH
L601~L602 5LC333K804 COIL CHOKE 33MH K
Q001 TZTC3194Y- TR KTC3194Y (KTC1923Y) AUTO
Q003 TZRA107M-- TR KRA107M (KSR2006) AUTO
Q502~Q503 TZSC2331Y- TR KSC2331Y
Q510 TZTA1273Y- TR KTA1273Y (A966Y) (KSA928A-Y)
Q607 TZTC3205Y- TR KTC3205Y (KTC2236Y) AUTO
Q610 TZTA1273Y- TR KTA1273Y (A966Y) (KSA928A-Y)
Q901 TZTA1046Y- TR KTA1046Y (KTA1366Y) AUTO
Q905 TZTA1274Y- TR KTA1274Y
Q908 TZTC3200GR TR KTC3200GR (2240GR) AUTO
Q909 TZRA107M-- TR KRA107M (KSR2006) AUTO
R201 RD-AZ123J- R CARBON FILM 1/6 12K OHM J
R204A~R204B RD-AZ562J- R CARBON FILM 1/6 5.6K OHM J
R217~R218 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R252 RD-AZ470J- R CARBON FILM 1/6 47 OHM J
R587~R588 RD-2Y100J- R CARBON FILM 1/2 10 OHM J
R824~R825 RN01B101J- R METAL FILM 1W 100 OHM J
R829 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
R834 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
RV600 RV1417222- R SEMI FIXED 1/10 2.2K OHM B V6EK-PV1S
TU001 9737613201 TUNER PACK KST-F401VA-3
XC251 5XA7R2000D X-TAL 7.2M
XC270 5XA4R332M- X-TAL 4.332MHz
XC501 5PQZTT1693 RESONATOR CERA QZTT16.93MMX(3PIN)
Location Part Code Part Name Description
B701 9CD6588900-01 PCB FRONT 247X139X1.6T
CE701 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
CE702 CEXF1A102V C ELECTRO 10V RSS 1000MF (8X12.5)
CE703 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
CE704 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CE705 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE707 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CN701 9728812400 CONN AS #26 FLAT 200MM 7P
CN702 9728812100 CONN AS FFC 16P P1.25X150MM R
CN708 9728818700 CONN AS FFC 17P P=1.25X320MM R
CW400 9736407700 PIN WAFER 52084-1310 13P BOTTOM
CW401 9736407900 PIN WAFER 52084-1010 10P BOTTOM
CW702 9CD6261600 WAFER 52492-1620 BOTTOM ENTRY
CW708 9CD6261700 WAFER 52492-1720 BOTTOM ENTRY
D701~D706 DZN4148--- DIODE IN4148 AUTO 52MM
D709~D714 DZN4148--- DIODE IN4148 AUTO 52MM
FD701 DHNA11MS26 VFD HNA-11MS26
HC701 HCBK223KBA C CHIP CERA 50V X7R 0.022MF M 1608
HC702 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC703 HCBK223KBA C CHIP CERA 50V X7R 0.022MF M 1608
HC704~HC705 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC706~HC707 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HC708 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC709 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
HC712 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC713 HCQK150JBA C CHIP CERA 50V CH 15PF J 1608
HC714 HCQK180JBA C CHIP CERA 50V CH 18PF J 1608
HC717 HCBK223KBA C CHIP CERA 50V X7R 0.022MF M 1608
HC718~HC720 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC721 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HC722 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HC724~HC725 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608
HQ701 TZRC107S-- TR CHIP KRC107S
HQ702~HQ703 TZRC111S-- TR CHIP KRC111S
HQ704 TZTC3875S- TR CHIP KTC3875Y
HQ708~HQ710 TZRC107S-- TR CHIP KRC107S
HQ711~HQ714 TZRA111S-- TR CHIP KRA111S
HQ719 TZRA107S-- TR CHIP KRA107S
HR301 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR302 HRFT151JBA R CHIP 1/10 150 OHM J 1608
HR303 HRFT181JBA R CHIP 1/10 180 OHM J 1608
HR304 HRFT271JBA R CHIP 1/10 270 OHM J 1608
HR311 HRFT682JBA R CHIP 1/10 6.8K OHM J 1608
HR312 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR313 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR314 HRFT151JBA R CHIP 1/10 150 OHM J 1608
FRONT PCB ASS'Y [9CDC065001]

ElectricalPartsList
28
Location Part Code Part Name Description
HR315 HRFT181JBA R CHIP 1/10 180 OHM J 1608
HR316 HRFT271JBA R CHIP 1/10 270 OHM J 1608
HR317 HRFT331JBA R CHIP 1/10 330 OHM J 1608
HR318 HRFT391JBA R CHIP 1/10 390 OHM J 1608
HR319 HRFT471JBA R CHIP 1/10 470 OHM J 1608
HR320 HRFT561JBA R CHIP 1/10 560 OHM J 1608
HR321 HRFT821JBA R CHIP 1/10 820 OHM J 1608
HR322 HRFT152JBA R CHIP 1/10 1.5K OHM J 1608
HR325 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR326 HRFT151JBA R CHIP 1/10 150 OHM J 1608
HR327 HRFT181JBA R CHIP 1/10 180 OHM J 1608
HR328 HRFT271JBA R CHIP 1/10 270 OHM J 1608
HR329 HRFT331JBA R CHIP 1/10 330 OHM J 1608
HR330 HRFT391JBA R CHIP 1/10 390 OHM J 1608
HR331 HRFT471JBA R CHIP 1/10 470 OHM J 1608
HR332 HRFT561JBA R CHIP 1/10 560 OHM J 1608
HR333 HRFT821JBA R CHIP 1/10 820 OHM J 1608
HR701~HR702 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR706 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR708~HR709 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR710 HRFT683JBA R CHIP 1/10 68K OHM J 1608
HR711~HR712 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR713~HR714 HRFT473JBA R CHIP 1/10 47K OHM J 1608
HR715~HR717 HRFT152JBA R CHIP 1/10 1.5K OHM J 1608
HR718~HR719 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR722 HRFT333JBA R CHIP 1/10 33K OHM J 1608
HR723 HRFT683JBA R CHIP 1/10 68K OHM J 1608
HR724 HRFT393JBA R CHIP 1/10 39K OHM J 1608
HR725 HRFT333JBA R CHIP 1/10 33K OHM J 1608
HR726 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR727 HRFT333JBA R CHIP 1/10 33K OHM J 1608
HR728~HR732 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR733 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR734 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR735~HR736 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR737 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR738 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR739 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR740 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR741 HRFT182JBA R CHIP 1/10 1.8K OHM J 1608
HR742 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR743 HRFT222JBA R CHIP 1/10 2.2K OHM J 1608
HR746 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR747 HRFT222JBA R CHIP 1/10 2.2K OHM J 1608
HR748 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR749 HRFT222JBA R CHIP 1/10 2.2K OHM J 1608
HR751 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR752~HR753 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR754 HRFT100JBA R CHIP 1/10 10 OHM J 1608
HR755 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR756~HR757 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR758 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR759 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR760 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR761 HRFT106JBA R CHIP 1/10 10M OHM J 1608
HR762 HRFT334JBA R CHIP 1/10 330K OHM J 1608
HR763 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR764 HRFT100JBA R CHIP 1/10 10 OHM J 1608
HR766 HRFT391JBA R CHIP 1/10 390 OHM J 1608
HR767 HRFT271JBA R CHIP 1/10 270 OHM J 1608
HR768 HRFT391JBA R CHIP 1/10 390 OHM J 1608
HR769 HRFT271JBA R CHIP 1/10 270 OHM J 1608
HR770 HRFT391JBA R CHIP 1/10 390 OHM J 1608
HR771 HRFT271JBA R CHIP 1/10 270 OHM J 1608
HR772 HRFT391JBA R CHIP 1/10 390 OHM J 1608
HR773 HRFT271JBA R CHIP 1/10 270 OHM J 1608
HR776 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR778~HR780 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR781 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR782 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR783~HR786 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR787~HR788 HRFT473JBA R CHIP 1/10 47K OHM J 1608
HR789 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR790 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR791 HRFT562JBA R CHIP 1/10 5.6K OHM J 1608
IC701 1M38199294 IC U-COM M38199MF-294FP
IC702 1M24C04--- IC MEMORY M24C04-BN6
IC703 1BA3835F-- IC EQ BA3835F-E2
IC705 1HK381B-DW IC PRE AMP HK381BT-DW
JW301~JW305 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW306 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW307 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW308 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW309 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
Location Part Code Part Name Description
JW310~JW313 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW314 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW315~JW318 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW319 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW320~JW321 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW323 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW701 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW702~JW707 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW708 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW709 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW710 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW711 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW712 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW713 W581GY17J5 WIRE JUMPER AWG22 1/0.65 SN 17.5 AUTO
JW714 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW715 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW716 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW717~JW718 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW719 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW720 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW721 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW722~JW724 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW725~JW728 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW729 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW730~JW731 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW732 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW733 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW734 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW735~JW736 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW737 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW738 W581GY17J5 WIRE JUMPER AWG22 1/0.65 SN 17.5 AUTO
JW739~JW741 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW742 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW747 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW748 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW749~JW750 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW751 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW752~JW754 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW755~JW757 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW758~JW760 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW761 W581GY17J5 WIRE JUMPER AWG22 1/0.65 SN 17.5 AUTO
JW762~JW764 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW765 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW766 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW767 W581GY17J5 WIRE JUMPER AWG22 1/0.65 SN 17.5 AUTO
JW768 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW771 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW772 W581GY17J5 WIRE JUMPER AWG22 1/0.65 SN 17.5 AUTO
JW773 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW774~JW775 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW776 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW777~JW778 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW779 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW780~JW781 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW782 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW783 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW784~JW785 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW786 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW788 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW789~JW790 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW791 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW792 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW793 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW794 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW795 W581GY17J5 WIRE JUMPER AWG22 1/0.65 SN 17.5 AUTO
JW796~JW798 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW799 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
LD701~LD702 DSLR332MC3F LED SLR332MC3F(GREEN)PI3
LD703 DLBH4155-- LED LBH4155(BL) OVAL PI4.3
LD704~LD705 DSLR332MC3F LED SLR332MC3F(GREEN)PI3
LD706 DLBH4155-- LED LBH4155(BL) OVAL PI4.3
LD707~LD708 DSLR332MC3F LED SLR332MC3F(GREEN)PI3
LD709 DLBH4155-- LED LBH4155(BL) OVAL PI4.3
LD710~LD711 DSLR332MC3F LED SLR332MC3F(GREEN)PI3
LD712 DLBH4155-- LED LBH4155(BL) OVAL PI4.3
Q705~Q707 TZTA1273Y- TR KTA1273Y (A966Y) (KSA928A-Y)
R720 RD-AZ122J- R CARBON FILM 1/6 1.2K OHM J
R721 RD-AZ223J- R CARBON FILM 1/6 22K OHM J
R744 RD-4Z229J- R CARBON FILM 1/4 2.2 OHM J
R750 RD-4Z229J- R CARBON FILM 1/4 2.2 OHM J
SW701~SW705 5S50101Z67 SW TACT SKHV 10920A,5MM
SW712~SW719 5S50101Z67 SW TACT SKHV 10920A,5MM
SW722~SW725 5S50101Z67 SW TACT SKHV 10920A,5MM
SW728~SW729 5S50101Z67 SW TACT SKHV 10920A,5MM

ElectricalPartsList
29
Location Part Code Part Name Description
SW731~SW733 5S50101Z67 SW TACT SKHV 10920A,5MM
SW735~SW737 5S50101Z67 SW TACT SKHV 10920A,5MM
VR701 5SH122403- SW ENCODER EC12E24204 24P W/DETENT
XC701 5PQZTT80MT RESONATOR CERA 8 MHz RESONATOR(3PIN)
XC702 5XA32R768C X-TAL C38T 32.768KHz 20PPM
10 9CD2505600 GUIDE FLT ABS
Location Part Code Part Name Description
B901 9CD6580501-03 PCB POWER 108X123X1.6T
CD900 9736900200 CORD AC KKP419C,KLCE-2F,0.75SQURE
CE980 CEXF1E102V C ELECTRO 25V RSS 1000MF (13X20)
CW900 2503-WS-10 WAFER 10P 2.5MM
D980~D985 DIN4001--- DIODE IN4001
FC982~FC983 9734600700 CLIP FUSE FC-5N
F981 5FSGB1222R FUSE GLASS TUBE VDE N/T 1.25A 250V MF51
IC980 1KIA78L05B IC REGULATOR KIA78L05BP
JW980~JW981 W581GY17J5 WIRE JUMPER AWG22 1/0.65 SN 17.5 AUTO
JW987 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW989 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
PT980 5TP8028829 TRANS POWER EI=28X12 230V 50HZ
PT981 5TP8074885 TRANS POWER EI=74X42 230V 50HZ
Q981 TZTC3205Y- TR KTC3205Y (KTC2236Y) AUTO
RF980 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
RF982~RF983 RF01F4780J-32 R FUSIBLE 1W 0.47 OHM J (32É)
RY980 5SC2001A01 SW RELAY SDT-S-105LMR
R980 RN-2Y475J- R METAL FILM 1/2 4.7M OHM J
R981 RD-4Z101J- R CARBON FILM 1/4 100 OHM J
R982~R983 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
TP980~TP981 9716404000 PIN WRAPPING MFZN1.1X1.1 PANASERT
Location Part-Code Part Name Description
B001 9CD6588600 PCB MP3CD 110X110
CE501 CEXF1E330V C ELECTRO 25V RSS 33MF (5X11) TP
CE502~CE503 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP
CE504 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
CE505~CE506 CEXF1H478V C ELECTRO 50V RSS 0.47MF (5X11) TP
CE507 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CE508 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP
CE509~CE510 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
CE511~CE512 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CE514~CE515 CEXF1C102V C ELECTRO 16V RSS 1000MF (10X20) TP
CE516~CE518 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP
CE520 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE524~CE525 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CN501 9738840800 CONN AS FFC 16P P1.0X250MM R
CN504 9728816700 CONN AS FFC 7P P1.25X120MM R
CN505 9728816800 CONN AS #24 3P+UL1007 SHIELD 3P 250MM
CW501 9CD6259300 WAFER 52807-1610 SID ENTRY
CW502 2001-WS-06 WAFER 6P 2.0MM
CW503 2001-WS-12 WAFER 12P 2.0MM
CW504 9CD6260300 WAFER 52045-0745 TOP EMTRY
DZ501 DZTZ5R6B-- DIODE ZENER UZ-5.6B
HC501 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
HC502 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HC503 HCQK409DBA C CHIP CERA 50V CH 4PF D 1608
HC504 HCBK562KBA C CHIP CERA 50V X7R 5600PF K 1608
HC505 HCBK222KBA C CHIP CERA 50V X7R 2200PF K 1608
HC508~HC509 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC510 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
HC511 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC512 HCBK473KBA C CHIP CERA 50V X7R 0.047MF K 1608
HC513~HC514 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
HC515 HCBK683KBA C CHIP CERA 50V X7R 0.068MF K 1608
HC516 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC517 HCQK391JBA C CHIP CERA 50V CH 390PF J 1608
HC518 HCQK681JBA C CHIP CERA 50V CH 680PF J 1608
HC519 HCBK222KBA C CHIP CERA 50V X7R 2200PF K 1608
HC520~HC521 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC522 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
HC523 HCBK682KBA C CHIP CERA 50V X7R 6800PF K 1608
HC524~HC525 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
HC526 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
HC527 HCBK473KBA C CHIP CERA 50V X7R 0.047MF K 1608
HC530 HCBK222KBA C CHIP CERA 50V X7R 2200PF K 1608
HC532~HC534 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC535~HC536 HCBK222KBA C CHIP CERA 50V X7R 2200PF K 1608
HC538~HC542 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC543 HCBK223KBA C CHIP CERA 50V X7R 0.022MF K 1608
HC544~HC546 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC547 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
HC548~HC551 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC553~HC554 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
POWER PCB ASS'Y [9CDC065400]
MP3 CD PCB ASS'Y [9CDC063500] : AXG-324/325/326(K) Only
Location Part Code Part Name Description
HC555~HC556 HCQK220JBA C CHIP CERA 50V CH 22PF J 1608
HC557 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC559~HC560 HCBK563KBA C CHIP CERA 50V X7R 0.056MF K 1608
HC561~HC562 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC565~HC566 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC567~HC568 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HC569 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC570 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HR501 HRFT220JBA R CHIP 1/10 22 OHM J 1608
HR502 HRFT823JBA R CHIP 1/10 82K OHM J 1608
HR503~HR506 HRFT563JBA R CHIP 1/10 56K OHM J 1608
HR507 HRFT823JBA R CHIP 1/10 82K OHM J 1608
HR508 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR509 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR510 HRFT822JBA R CHIP 1/10 8.2K OHM J 1608
HR511 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR514 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR515~HR518 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR519 HRFT105JBA R CHIP 1/10 1M OHM J 1608
HR523 HRFT223JBA R CHIP 1/10 22K OHM J 1608
HR524 HRFT822JBA R CHIP 1/10 8.2K OHM J 1608
HR525~HR527 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR528~HR529 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR530 HRFT563JBA R CHIP 1/10 56K OHM J 1608
HR531 HRFT223JBA R CHIP 1/10 22K OHM J 1608
HR532 HRFT823JBA R CHIP 1/10 82K OHM J 1608
HR533 HRFT473JBA R CHIP 1/10 47K OHM J 1608
HR534 HRFT124JBA R CHIP 1/10 120K OHM J 1608
HR535 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR536 HRFT333JBA R CHIP 1/10 33K OHM J 1608
HR537 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR538 HRFT473JBA R CHIP 1/10 47K OHM J 1608
HR539 HRFT823JBA R CHIP 1/10 82K OHM J 1608
HR540 HRFT105JBA R CHIP 1/10 1M OHM J 1608
HR541 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR542~HR545 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR546 HRFT222JBA R CHIP 1/10 2.2K OHM J 1608
HR548 HRFT222JBA R CHIP 1/10 2.2K OHM J 1608
HR550~HR551 HRFT100JBA R CHIP 1/10 10 OHM J 1608
HR552~HR555 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR556~HR557 HRF4150JEA R CHIP 1/4 15 OHM J 3216
HR558~HR559 HRFT100JBA R CHIP 1/10 10 OHM J 1608
HR560~HR562 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR563~HR564 HRFT333JBA R CHIP 1/10 33K OHM J 1608
HR565~HR566 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR567 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR568~HR569 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR570 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR571~HR572 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR573 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR575 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR576 HRFT121JBA R CHIP 1/10 120 OHM J 1608
HR577 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR581 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR582~HR587 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR588 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR589 HRFT473JBA R CHIP 1/10 47K OHM J 1608
HR590 HRFT122JBA R CHIP 1/10 1.2K OHM J 1608
HR591~HR594 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR595 HRFT105JBA R CHIP 1/10 1M OHM J 1608
HR596~HR606 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR609~HR610 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR611 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR612~HR613 HRFT223JBA R CHIP 1/10 22K OHM J 1608
HR614~HR624 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR625~HR626 HRF4150JEA R CHIP 1/4 15 OHM J 3216
HR627~HR637 HRFT102JBA R CHIP 1/10 1K OHM J 1608
IC501 1S1L9226-- IC SSP S1L9226
IC502 1S5L9290-- IC DSP S5L9290
IC503 1BA5939S-- IC MOTOR DRIVE BA5939S
IC504 1S3C825A-- IC S3C825A
IC505 1TMD2104-- IC TMD2104
IC506 1HY57V1616 IC SDRAM HY57V1616
IC507 1TC74HCT04AF IC TC74HCT04AF
IC508~IC511 1LD1117S33 IC REGULATOR LD117AS33TR 3.3V (TO-223)
L501~L504 HLC104J01A COIL CHIP BEAD 120 OHM 100MHZ 2012
Q501 TZTA1273Y- TR KTA1273Y (A966Y) (KSA928A-Y)
Q502 TZRC107M-- TR KRC107M (DTC114YS) (KSR1006)
Q503 TZSA1980Y- TR 2SA1980Y (KTA1266Y) AUTO
Q504 TZTC3205Y- TR KTC3205Y (KTC2236Y) AUTO
XC501 5PQZTT1693 RESONATOR CERA QZTT16.93MMX(3PIN)
XC502 5PQZTA80MT RESONATOR CERA 8 MHz RESONATOR(2PIN)
XC503 5PQZTT1693 RESONATOR CERA QZTT16.93MMX(3PIN)

ElectricalPartsList
30
Location Part Code Part Name Description
Location Part Code Part Name Description
B001 9CD6580503 PCB OPTICAL 29X21X1.6T
CC561 CCZF1H104Z C CERA HIKF 50V 0.1MF Z (AXIAL)
CN509 2503-WS-03 WAFER 3P 2.5MM
IC507 1TXOC0805- IC TX OC0805-TX
JW581 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
Location Part Code Part Name Description
B1000 9CD6589000 PCB KARAOKE 197X139X1.6T
CC304 CFSL1H470J C CERA SL 50V 47PF J (FORMING)
CC306 CCFB1H101K C CERA HIKB 50V 100PF K (FORMING)
CC301 CCFF1H103Z C CERA HIKF 50V 0.01MF Z (FORMING)
CC302 CCFF1H103Z C CERA HIKF 50V 0.01MF Z (FORMING)
CC307 CCFB1H471K C CERA HIKB 50V 470PF K (FORMING)
CC303 CCFB1H681K C CERA HIKB 50V 680PF K (FORMING)
CE305 CEXF1H108V C ELECTRO 50V RSS 0.1MF (5X11) TP
CE302 CEXF1H478V C ELECTRO 50V RSS 0.47MF (5X11) TP
CE301 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE304 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE363 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE367 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE309 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
CE361 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
CE362 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CE368 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CN301 9728818900 CNOO AS UL2547 #28 SHIELD 2.5X220MM 8P
D301 DZN4148--- DIODE IN4148 AUTO 52MM
IC301 1NJM4558D- IC OP AMP NJM4558D
IC302 1NJM4558D- IC OP AMP NJM4558D
J301 9736323200 JACK H/P HT J035-13AB GOLD
OPTICAL JACK PCB ASS'Y [9CDC050700] : Optional
KARAOKE PCB ASS'Y [9CDC065200] : Optional
R351 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R352 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R363 RD-AZ152J- R CARBON FILM 1/6 1.5K OHM J
R364 RD-AZ152J- R CARBON FILM 1/6 1.5K OHM J
R355 RD-AZ182J- R CARBON FILM 1/6 1.8K OHM J
R357 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R358 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R367 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R370 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R360 RD-AZ562J- R CARBON FILM 1/6 5.6K OHM J
R362 RD-AZ562J- R CARBON FILM 1/6 5.6K OHM J
R365 RD-AZ562J- R CARBON FILM 1/6 5.6K OHM J
R368 RD-AZ183J- R CARBON FILM 1/6 18K OHM J
R369 RD-AZ183J- R CARBON FILM 1/6 18K OHM J
R354 RD-AZ223J- R CARBON FILM 1/6 22K OHM J
R356 RD-AZ273J- R CARBON FILM 1/6 27K OHM J
R382 RD-AZ393J- R CARBON FILM 1/6 39K OHM J
R359 RD-AZ473J- R CARBON FILM 1/6 47K OHM J
R361 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R366 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R353 RD-AZ104J- R CARBON FILM 1/6 100 K OHM J
VR301 5V1503728B VR ROTARY RK09K1110AV8
Q301 TZTC3198Y- TR KTC3198Y-(1815Y) (AUTO)
Q302 TZTC3198Y- TR KTC3198Y-(1815Y) (AUTO)
JW302 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW303 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW305 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW309 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW301 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW308 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
ASSY Loc. VALUE MODEL OPTION
JUMPER D/W CD, A/S, w/LED, w/o MP3
330 D/W CD, A/S, w/o LED, w/o MP3
680 D/W CD, A/R, w/LED, w/MP3
1.2K D/W CD, A/R, w/LED, w/o MP3
1.8K D/W CD, A/S, w/o LED, w/MP3
2.7K D/W CD, A/R, w/o LED, w/o MP3
3.9K S/S CD, A/S, w/LED, w/o MP3
6.8K S/S CD, A/S, w/o LED, w/o MP3
10K D/W CD, A/S, w/LED, w/MP3
15K S/S CD, A/R, w/LED, w/o MP3
22K D/W CD, A/R, w/LED, w/o MP3, Sony Pick-up
47K S/S CD, A/R, w/o LED, w/o MP3
R720FRONT
ElectricalPartsList[OptionTable]
12.5W 30W / 50W/65W 12.5W 30W / 50W/65W
322 O X O O
324 X O O O
325 X O O O
326 X O O O
Model FRONT PCBMAIN & POWER PCB
PCB Option
Model Option

ElectricalPartsList[OptionTable]
31
ASS'Y LOC Part Code Part Name Description W/PSM W/O PSM
CE980 CEXF1E102V C ELECTRO 25V RSS 1000MF (13X20) O X
CW900 2503-WS-10 WAFER 10P 2.5MM O X
CN900 9728804100 CONN AS #22 10P P2.5 350 BOARD-IN O X
CW900 2503-WS-8 WAFER X O
CN900 9738833900 CONN AS #22 8P BOARD-IN 350MM X O
D980 DIN4001--- DIODE IN4001 O X
D981 DIN4001--- DIODE IN4001 O X
D982 DIN4001--- DIODE IN4001 O X
D983 DIN4001--- DIODE IN4001 O X
D984 DIN4001--- DIODE IN4001 O X
D985 DIN4001--- DIODE IN4001 O X
HD901 DZDS160--- DIODE SW CHIP KDS160 O X
IC980 1KA78L05AZ IC KA78L05AZ O X
JW980 W581GY17J5 WIRE JUMPER AWG22 1/0.65 SN 17.5 AUTO O X
JW981 W581GY17J5 WIRE JUMPER AWG22 1/0.65 SN 17.5 AUTO O X
JW987 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO O X
JW990 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO X O
PT980 5TP8028829 TRANS POWER EI=28X12 230V 50HZ O X
Q981 TZTC3205Y- TR KTC3205Y (2236Y) O X
RF980 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO O X
RY980 5SC2001A01 SW RELAY SDT-S-105LMR O X
R981 RD-4Z101J- R CARBON FILM 1/4 100 OHM J O X
R982 RD-AZ103J- R CARBON FILM 1/6 10K OHM J O X
R983 RD-AZ103J- R CARBON FILM 1/6 10K OHM J O X
JW 330 1.2K 1.8K 2.7K 3.9K 6.8K 10K 22K
AM1 AM2 E/2B JAPAN ASIA1/12 ASIA2/24 CIS S/AM E2-2
XXXXX X X XO
FM/AM FM/AM FM/MW FM/AM FM/AM FM/AM FM/FM/MW FM/AM FM/MW
12 12 24 12 12 24 24 12 24
100/10 200/10 50/9 100/9 100/9 100/9 10/50/9 100/10 50/9
CH1 87.5MHz 87.5MHz 87.5MHz 76MHz 87.5MHz 87.5MHz 65MHz 87.5MHz 87.5MHz
CH2 90 90.1 90 80 90 90 67.1 90 90
CH3 98 98.1 98 92 98 98 69.5 98 98
CH4 106 106.1 106 104 106 106 72.1 106 106
CH5 108 108.1 108 108 108 108 74 108 108
STEP 100KHz 200KHz 50KHz 100KHz 100KHz 100KHz 10KHz 100KHz 50KHz
CH1 530KHz 530KHz 522KHz 522KHz 522KHz 522KHz 87.5MHz 530KHz 522KHz
CH2 600 600 603 603 603 603 90 600 603
CH3 1000 1000 999 999 999 999 98 1000 999
CH4 1400 1400 1404 1404 1404 1404 106 1400 1404
CH5 1710 1710 1620 1620 1620 1620 108 1620 1620
STEP 10KHz 10KHz 9KHz 9KHz 9KHz 9KHz 50KHz 10KHz 9KHz
CH1 X X X X X X 522KHz X X
CH2 XXXXX X " XX
CH3 XXXXX X " XX
CH4 XXXXX X " XX
CH5 XXXXX X " XX
CH6 X X X X X X 9KHz X X
Loc.
HOUR
STEP
ASS'Y
VALUE
ITEM
RDS
BAND
FM
AM
MW
PCB FRONT AS
R721
Power Save Mode Option
TUNER BAND Option

ElectricalPartsList[OptionTable]
32
ASS'Y LOC PART NAME
CF001 FILTER CERA 5PLT107MS3 LT10.7MS3 5PLT107MS3 LT10.7MS3 5PLT107MS2 LT10.7MS2
CF002 FILTER CERA 5PLT107MS3 LT10.7MS3 5PLT107MJA LT10.7MJA10 5PLT107MS2 LT10.7MS2
HC214 C CHIP CERA HCBK682KBA 50V X7R 6800PF K 1608 HCBK682KBA 50V X7R 6800PF K 1608
HC215 C CHIP CERA HCBK682KBA 50V X7R 6800PF K 1608 HCBK682KBA 50V X7R 6800PF K 1608
HC216 C CHIP CERA HCBK822KBA 50V X7R 8200PF K 1608
HC217 C CHIP CERA HCBK822KBA 50V X7R 8200PF K 1608
HR003 R CHIP HRFT470JBA 1/10 47 OHM J 1608 HRFT470JBA 1/10 47 OHM J 1608 HRFT271JBA 1/10 270 OHM J 1608
HR202 R CHIP HRFT333JBA 1/10 33K OHM J 1608 HRFT273JBA 1/10 27K OHM J 1608 HRFT183JBA 1/10 18K OHM J 1608
HR203 R CHIP HRFT103JBA 1/10 10K OHM J 1608 HRFT103JBA 1/10 10K OHM J 1608 HRFT183JBA 1/10 18K OHM J 1608
HR212 R CHIP HRFT000JBA 1/10 1K OHM J 1608 HRFT000JBA 1/10 1K OHM J 1608 HRFT272JBA 1/10 2.7K OHM J 1608
HR213 R CHIP HRFT000JBA 1/10 1K OHM J 1608 HRFT000JBA 1/10 1K OHM J 1608 HRFT272JBA 1/10 2.7K OHM J 1608
HR214 R CHIP HRFT332JBA 1/10 3.3K OHM J 1608 X
HR215 R CHIP HRFT332JBA 1/10 3.3K OHM J 1608 X
HR219 R CHIP HRFT223JBA 1/10 22K OHM J 1608 HRFT223JBA 1/10 22K OHM J 1608
HR220 R CHIP HRFT223JBA 1/10 22K OHM J 1608 HRFT223JBA 1/10 22K OHM J 1608
J001 JACK ANT 9736321900 PAT-645 9736321900 PAT-645 9736322201 PAT-646
JW204 WIRE JUMPER W581GY6095 AWG22 6MM W581GY6095 AWG22 6MM
JW205 WIRE JUMPER W581GY6095 AWG22 6MM W581GY6095 AWG22 6MM
JW208 WIRE JUMPER W581GY6095 AWG22 6MM W581GY6095 AWG22 6MM
L201 COIL 5P75J207-- 75J-207
L202 COIL 5P75J207-- 75J-207
R217 R CARBON FILM RD-AZ103J- 1/6 10K ÈJ W581GY6095 AWG22 6MM RD-AZ103J- 1/6 10K ÈJ
R218 R CARBON FILM RD-AZ103J- 1/6 10K ÈJ W581GY6095 AWG22 6MM RD-AZ103J- 1/6 10K ÈJ
TU001 TUNER PACK 9737613201 KST-F401VA-3 9737613501 KST-F404VA 9737613801 KST-F400VA-3
X
X
X
X
X
X
X
X
X
X
X
X
X
FCC & SIMPLE CE FTZ(FULL CE)
XX
SEMP(NON EMC)
X
X
ASS'Y LOC PART NAME
CE270 C-ELEC CEXF1H100V 50V RSS 10MF (5X11) TP
CE271 C-ELEC CEXF1H100V 50V RSS 10MF (5X11) TP
HC270 C-CERA HCQK331JBA 50V CH 330PF J 1608
HC272 C-CERA HCBK103KBA 50V X7R 0.01MF K 1608
HC276 C-CERA HCQK220JBA 50V CH 22PF J 1608
HC277 C-CERA HCQK220JBA 50V CH 22PF J 1608
IC270 IC RDS 1LC72723M- LC72723M
JW201 WIRE JUMPER W581GY6095 AWG22 6MM
JW223 WIRE JUMPER W581GY6095 AWG22 6MM
HR270 R CARBON FILM HRFT100JBA 1/10 10 OHM J 1608
HR271 R CARBON FILM HRFT103JBA 1/10 10K OHM J 1608
HR272 R CARBON FILM HRFT103JBA 1/10 10K OHM J 1608
XC202 X-TAL 5XA4R332M- 4.332MHz
JW717 WIRE JUMPER W581GY1005 AWG22 1/0.65 SN 10 AUTO
JW718 WIRE JUMPER W581GY1005 AWG22 1/0.65 SN 10 AUTO
X
X
FRONT
MAIN X
X
X
X
X
X
X
X
X
RDS
X
X
X
X
NO RDS
FTZ Option
RDS Option
