INSTRUCTION MANUAL
■Applying One-Touch Operation System.
■Realizing calm washing through the innovational low-noise
design.
■Before operating this washer, please read this instruction
completely. Thank you
Model: DWF-160MNP
Full-Auto Electric Washing Machine
=
CONTENTS Page
PARTS AND FEATURES.........................................................................................................................................2
WASHER SAFETY................................................. ................................................................................. .................3
INSTALLATION INSTRUCTIONS.......................... ................................................................................. ................4
ELECTRICAL REQUIREMENTS............................................................................................................................5
INLET HOSE CONNECTION..................................................................................................................................6
OPERATING YOUR WASHER......................................... ................................................................................. .....7
THE FUNCTIONS OF THE CONTROL PANEL....................................................................................................8
WASHING PROCEDURE AND PROGRAM SELECTION ...... ............................................................................... ..9
GENERAL PROCEDURE FOR OPERATION.....................................................................................................11
CARING FOR YOUR WASHER.............................. .................................................................................. ............12
HOW TO CLEAN THE FILTER............................. .................................................................................. ..............13
REMOVING STAINS..............................................................................................................................................14
TROUBLE SHOOTING..........................................................................................................................................15
SPECIFICATION..................................................... .................................................... . .............................. ............16
A NOTE TO YOU
Thank you for buying a DAEWOO appliance.
DAEWOO washers are easy to use, save time, and help you manage your home better.
This manual contains valuable information about how to operate and maintain your washer properly and safely.
Please read it carefully.
DWF-160MNP 01.3.26 9:35 PM ˘ ` 1

2
•GROUND WIRE
In case of 3-wire
power cord, ground
wire will not be
provided
•POWER CORD
•DRAIN HOSE
•LINT FILTER
•COLD WATER TAP
After using the washer,
close the water tap
•DETERGENT CASE
•ADJUSTABLE LEG
•SOFTENER INLET
•BLEACH INLET
•CONTROL PANEL
•POWER SWITCH
•PULSATOR

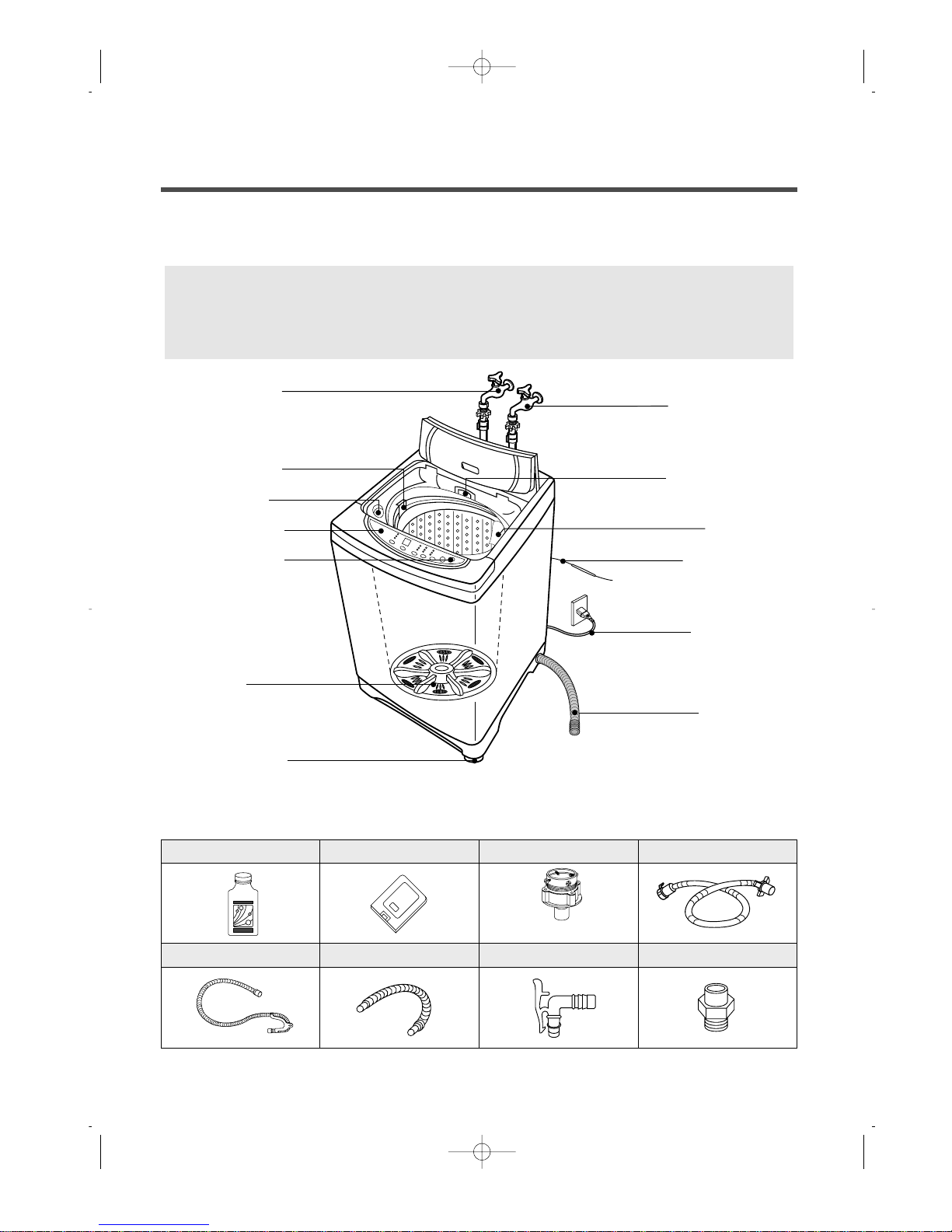

PARTS AND FEATURES
ACCESSORIES (Full Option)
DRYTEN (OPTION) COVER UNDER (OPTION) WATER TAP ADAPTER(OPTION)
In case of screw-shaped inlet hoses, water tap
adapters will not be provided.
INLET HOSE(OPTION)
HOSE DRAIN (FOR NON-PUMP) (OPTION) HOSE CONNECTOR (OPTION) HOSE DRAIN (FOR PUMP) (OPTION) CONNECTOR INLET(OPTION)
UP
DRYTEN
The parts and features of your washer are illustrated on this page.
Become familiar with all parts and features before using your washer.
NOTE
•
The drawings in this book may vary from your washer model.
They are designed to show the different features of all models covered by this book,
Your model may not include all features.
•HOT WATER TAP
After using the washer, close the water tap.
In case of the single valve model,
there is no hot water valve.
DWF-160MNP 01.3.26 9:35 PM ˘ ` 2

3
Read all instructions before using your washer
Save these instructions
Your safety is important to us.
To reduce the risk of fire, electrical shock, or injury when using your washer adhere to
the following basic precautions.
Understanding your responsibilities
•Flammable fluids (dry-cleaning solvents,
kerosene, gasoline, etc.) should not be
used or stored in or near your washer.
Do not add flammable fluids to your wash
water. These substances give off vapours
that can create a fire hazard or explosion.
•Have only a qualified person install, repair,
or replace parts on washer.
•Maintain washer properly.
•Protect washer from the weather and keep
it where the temperature will not fall below
freezing.
•Do not install the washer at a place of
extremely high humidity. It could cause an
electric shock or a short circuit.
•Ground washer properly.
•Connect washer to the correct outlet, electrical
supply, water supply, and drain supply.
•Do not wash fiberglass materials.
Small particles can stick to fabrics washed in following loads and cause skin irritation.
•After starting a cycle, do not reach into the
spin basket until all motion stops.
•Do not tamper with the controls.
•The appliance is not intended for use by
young children or infirm persons without
supervision.
•Do not use chlorine bleach and ammonia or acid (such as vinegar or rust remover) in the
same wash. Hazardous fumes can form.
•
Young children should be supervised to ensure
that they do not play with the appliance.
•If the supply cord is damaged, it must be
replaced by the manufacturer or its sevice
agent or a similarly qualified person in order
to avoid a hazard.
•Do not use hot water if standard temperature is over 50˚C (122˚F).
It could cause a deformation of plastic parts.
•Do not spray water on the control panel and back cover of the washer.
It could cause fire or an electric shock.
•In case of the dual valve model, if you connect only cold water inlet valve, while water temperature
is selected as hot or warm, there can be water leakage from unconnected water inlet valve.
•Unplug power supply cord before attempting to service your washer.
•
If the appliance is supplied from a cord extension
set or electrical portable outlet device it should be
positioned so it is not subjected to splashing or
ingress of moisture.
Please ...
WASHER SAFETY
DWF-160MNP 01.3.26 9:35 PM ˘ ` 3

4
Non-Pump Model Pump Model
Location of washer
Check location where washer will be installed. Make sure you have everything
necessary for correct installation.
Proper installation is your responsibility.
•Do not place or store your washer below 0°C (32°F) to avoid any damage from freezing.
•Install the washer on the horizontal solid floor.
Drain system
Never forget to install drain hose before operating your washer.
The packing box is opened, there are a drain hose.
INSTALLATION INSTRUCTIONS
•Connect the drain hose to the drain outlet at the back side of the washer.
Drain hose
Drain Outlet
Drain hose
If the washer is installed on an unsuitable floor, it could
make considerable noise, vibrate and cause a malfunction.
If washer is not level, adjust the front leg(A) up or down for
horizontal setting.
•Earthed electrical outlet(B) is required with 20cm of
bottom back of washer cabinet.
•Hot and cold water faucets (C) must be within 1m of the
upper back of the washer cabinet and provide water
pressure 0.3kgf/cm 2-8kgf/cm 2 (2.94N/cm 2-78.4N/cm2).
C
UP DOWN
B
A
NOTES
•The opening must not be obstructed by carpeting when the washing machine is
installed on a carpeted floor.
DWF-160MNP 01.3.26 9:35 PM ˘ ` 4

5
Recommended earthing method
WARNING
Laundry tub drain system Standpipe drain system
Pump Model
Non-Pump Model
1In case that it goes over
a door sill.
Don’t let the height of
the drain hose exceed
20cm from the bottom
of washer.
2In case of extending the
drain hose.
Don’t let the total length
exceed 3m.
3Be careful that the end
of the drain hose is not
immersed in water.
•Top of tub must be at least 86cm
(34inches) high and no higher than 130cm
from bottom of washer (A)
•Needs a 3cm minimum diameter
standpipe with minimum carry away
capacity of 30liters per minute.
•Top of tub must be at least 86cm
(34inches) high and no higher than 130cm
from bottom of washer (B)
20Cm
ELECTRICAL REQUIREMENTS
For your personal safety, this washer must be earthed.
This washer is equipped with a power supply cord (A) having a
earthing plug (B). To minimize possible shock hazard, the cord must
be plugged into a mating earthing-type wall receptacle (C).
If a mating wall receptacle is not available, it is the personal
responsibility and obligation of the customer to have the proper
earthed wall receptacle installed by a qualified electrician.
•Electrical earth is required on this washer
•If it does not fit the outlet, have a proper outlet
installed by a qualified electrician.
•Don’t earth to a gas pipe
•Don’t change the power supply cord plug.
•Check with a qualified electrician if you are not
sure the washer is properly earthed.
electrical shock hazard:failure to follow these instructions could result in
death or serious injury.
C
B
A
3m
A
B
DWF-160MNP 01.3.26 9:35 PM ˘`5

6
Be careful not to confuse hot water inlet and cold water inlet.
In using only one water tap or in case of attached one water inlet valve, connect the
inlet hose to the cold water inlet valve.
For Screw-Shaped Tap
For Ordinary Tap

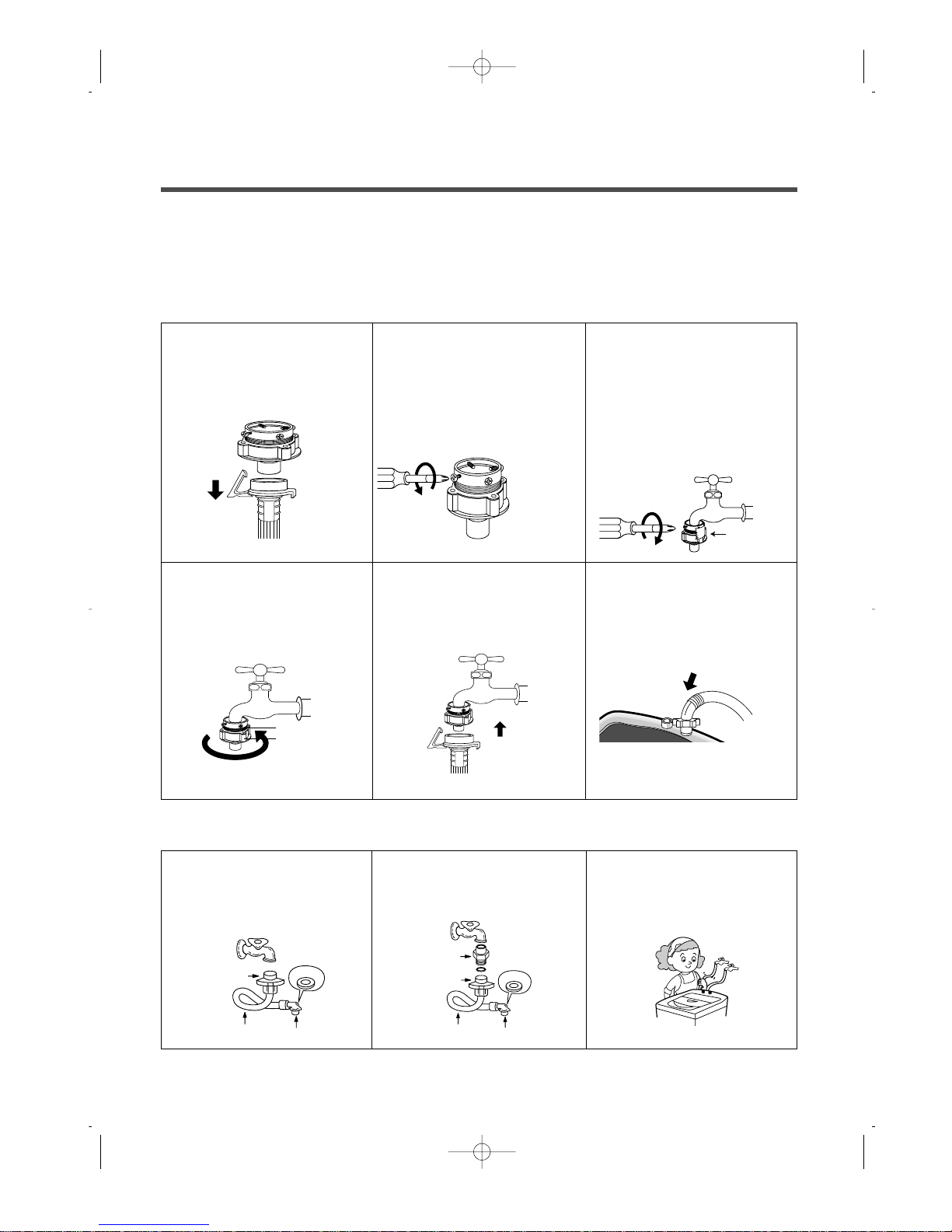

INLET HOSE CONNECTION
1Pull down the collar of
the inlet hose to separate
it from the water tap
adapter.
2Loosen the four screws
properly in fitting into
water tap.
3
123
Fit the water tap adapter
into the water tap
and tighten the four
screws evenly while
pushing up the adapter
so that the rubber
packing can stick to the
water tap tightly.
4Remove the tape, and
screw connector B into
connect A tightly.
5Connect the inlet hose to
the water tap adapter by
pulling down the collar of
the hose end.
6Connect the inlet hose
adapter of the hose to
the water inlet of the
washer by turning it
clockwise to be fixed
tightly.
•Please check the rubber
packing inside the inlet hose
adapter of the hose.
Connect the inlet hose to
the water tap by
screwing the connector
tightly.
Connect the connector-
inlet supplied if
necessary.
Insert the inlet hose
adapter into the water
inlet of washer and turn
it to be fixed.
*Check the packing in the inlet
TAPE
Connector B
Connector A
Connector
Connector
Rubber
Packing
Hose
Connector
Connector
Rubber
Packing
Hose
Connector
inlet
DWF-160MNP 01.3.26 9:35 PM ˘`6

7
Loading
Sorting
Preparing clothes for washing
To obtain the best washing results, you must operate your washer properly.
This section gives you this important information.
OPERATING YOUR WASHER
•Close zippers, snaps, and hooks to avoid
snagging other items.
Remove pins, buckles, and other hard
objects to avoid scratching the washer
interior.
•Empty pockets and turn them inside out.
•Turn down cuffs and turn synthetic knits
out to avoid pilling.
•Tie strings and sashes so they will not
tangle.
•Treat spots and stains.
(see "Removing stains" on page14)
•Drop items into washer loosely. Items
should move easily through wash water
for best cleaning and wrinkle-free results.
•Load washer properly and select correct
load size setting.
Overloading and selecting a setting too
small for the wash load can:
- cause poor cleaning
- increase wrinkling
- create excessive lint
- wear out items faster (because of pilling)
•Mix large and small items in each load.
Load evenly to maintain washer balance.
An unbalanced load can make the washer
vibrate during spin.
•Reduce wash time when using a small
load size setting. Loads with only a few
small items need less wash time.
•Use a large load size setting to reduce
wrinkling with permanent press clothes
and some synthetic knits. These items
should have more room to move in the
water than heavy items (towels, jeans)
•Separate heavily soiled items from lightly soiled ones, even if they would normally be
washed together.
•Separate dark colors from light colors, colorfast items from non-colorfast item.
DWF-160MNP 01.3.26 9:35 PM ˘`7

8

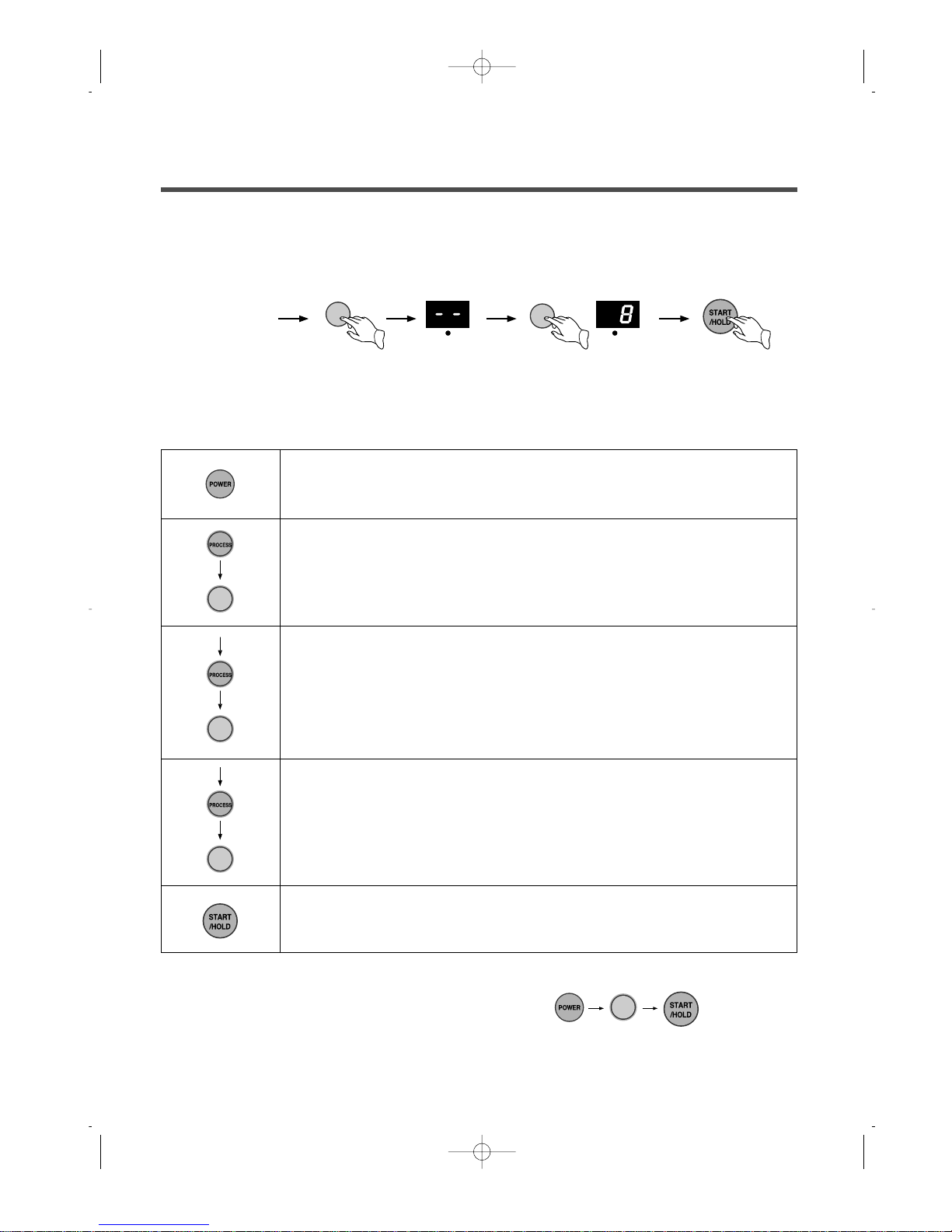

THE FUNCTIONS OF THE CONTROL PANEL
•Press this switch to turn the power on or off.
•It can be used to choose water temperature to be supplied.
•As the button is pressed, water temperature will be repeated.
COLD ➝COLD+HOT ➝HOT
•In case of the single valve model, there is no wash temperature
selector function.
•It can be used to adjust amount of water according to the size of the
load to be washed.
•As the button is pressed, water level is selected by
MID ➝ HIGH ➝ LOW
•It can be used to pre-engage time for wash.
•It is the button for the partial process or the combination of each
process (wash, rinse, spin) (See page 10)
•If you want to change wash time, rinse times, spin time, you must
press this button after selecting each process by the process button.
Also, this button can be used to spin only. (See page 10)
•It can be used to select the full-automatic program.
•As the button is pressed, program will be selected by following order:
FUZZY➝FUZZY+SOAK➝HEAVY ➝WOOL➝HEAVY+SOAK ➝SPEEDY
•Operation and temporary stop is repeated as it is pressed.
•When you want to change program in operating;
press the "START/HOLD" button ➝Select the program that you want to
change ➝press the "START/HOLD" button again.
RES.
HOURS
CONTROL
PROGRAM
RES.
CONTROL
PROGRAM
DWF-160MNP 01.3.26 9:35 PM ˘`8

9
PROGRAM
FULL AUTOMATIC PROGRAM
1. FUZZY PROGRAM (SENSOR);
•This selection is for general washing except extraordinary clothes.
•Artificial brain sensor selects properly the various kind of washing condition such as
•Procedure to press the button.
washing time, rinse times, spin time and water level.
5. SOAK PROGRAM;
•This selection is effective for heavily soiled clothes.
•If you want to soak, press the program button to adjust to "FUZZY+SOAK" or "HEAVY+SOAK".
•Procedure to press the button.
Adjust to
"SOAK" Adjust to
water level and
water temperature
WASHING PROCEDURE AND PROGRAM SELECTION
Adjust to Put the neutral
detergent.
2. HEAVY PROGRAM;
•This selection is effective for blue-jean, climbing clothes, rucksack, sports wear, etc..
•Procedure to press the button;
3. SPEEDY PROGRAM;
•This selection is useful to reduce water consumption and washing time for less dirty
•clothes.
Procedure to press the button;
4. WOOL PROGRAM;
•This selection is effective for wool clothes. (1.2kg’s limitation for 1-time wash)
•Do not put leather clothes, or chamois clothes into the washing tub for washing.
It may cause shrinkage or deformation to the clothes.
•Please use the neutral detergents only.
•The water temperature is fixed to "COLD".
•The water level "LOW" is not selected.
•Procedure to press the button.
Adjust to
"HEAVY"
PROGRAM
PROGRAM
PROGRAM
Adjust to water
level and water
temperature
Adjust to
"SPEEDY" Adjust to water level and
water temperature
"WOOL"
DWF-160MNP 01.3.26 9:35 PM ˘`9

10
RES.
RES.
WASH TIME CONTROL
•As the control button is pressed, wash time will be repeated as
following;
12
➝
15
➝
18
➝
0
➝
6
➝
9min.
•If you don’t want wash process, you must adjust wash time to 0 min..
RINSE TIMES CONTROL
•As the control button is pressed, rinse times will be repeated as
following;
2
➝
3
➝
4
➝
0
➝
1 time(s)
•If you don’t want rinse process, you must adjust rinse times to 0 times.
SPIN TIME CONTROL
•As the control button is pressed, spin time will repeated as following;
5
➝
7
➝
9
➝
0
➝
1
➝
3min.
•If you don’t want spin process, you must adjust spin time to 0 min..
Reserved Washing
•Reservation can be made from 2 hours to 48 hours.
•Procedure to press the button.
example) To make reservation to complete washing in 8 hours.
•Now the reservation is made.
•If you want to check the selected program, press the "START/HOLD" button again.
PARTIAL PROCESS & COMBINATION
adjust to "8"
CONVENIENT OPERATION FOR SPIN ONLY
•If you want spin only, it is convenient to operate
the button as following;
"--" shall blink
Select the program.
Adjust to water level
and water temperature. HOURS
MIN MIN
HOURS
CONTROL
CONTROL
CONTROL
CONTROL
DWF-160MNP 01.3.26 9:35 PM ˘`10

11

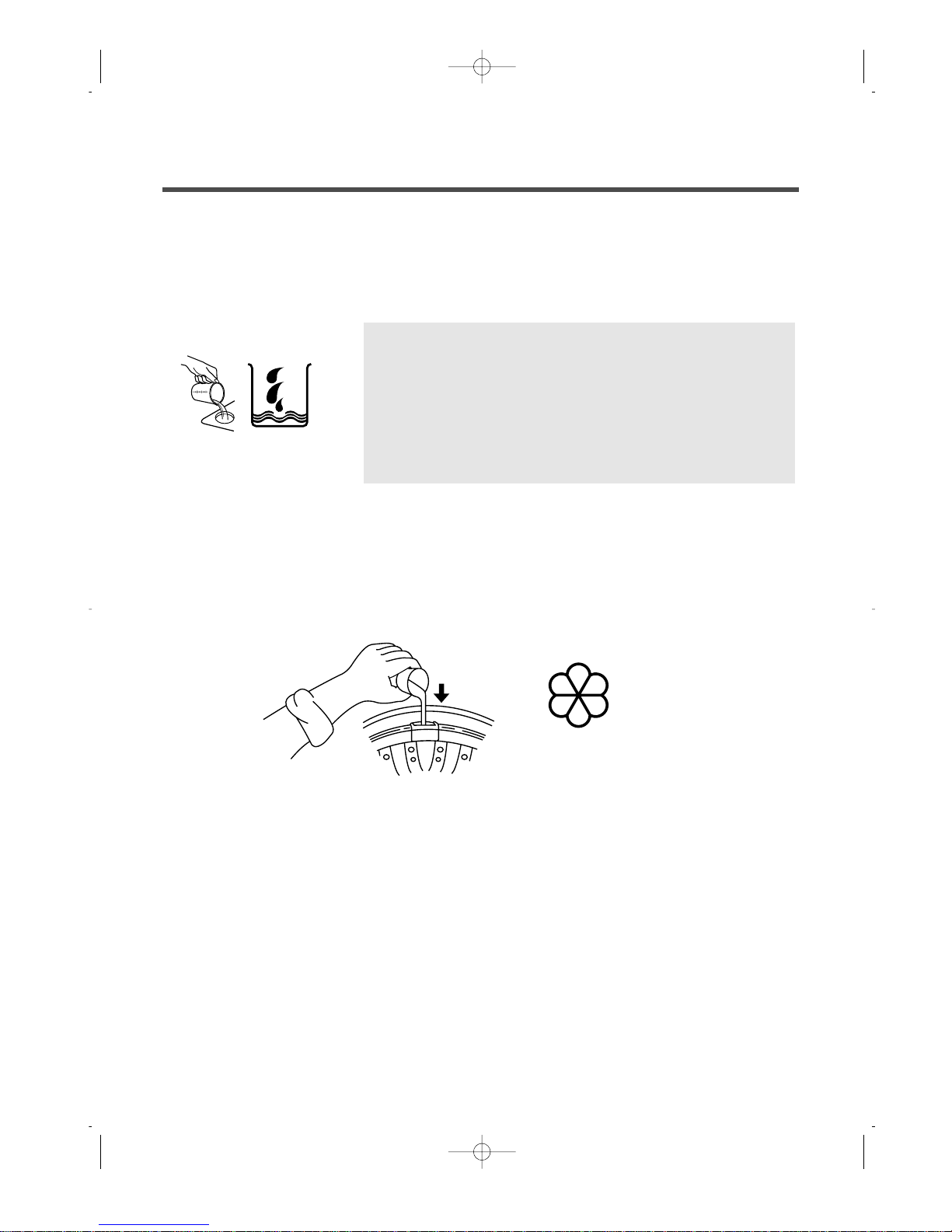

GENERAL PROCEDURE FOR OPERATION
1. Add measured detergent to the washer. (Follow manufacturer’s directions for safe use)
2. OPTIONAL STEP
If desired, add measured liquid chlorine bleach to the bleach inlet. use only liquid chlorine
in the bleach inlet.
* Follow manufacturer’s direction for safe use.
3. OPTIONAL STEP
If desired, add measured liquid fabric softener to the softener inlet.
•Pour liquid fabric softener into the dispenser using the amount recommended on the
package. Avoid dripping or spilling any fabric softener on the load.
•The dispenser is for liquid fabric softener use only.
4. Close the washer lid (door).
5. Press the power button.
6. Select the cycle. The full automatic cycle has five settings; FUZZY, HEAVY, SPEEDY,
WOOL, SOAK. (See page 9)
7. Press the START/HOLD button.
NOTE
• Do not let bleach splash, drip, or run down into washer
basket.
Undiluted bleach will damage any fabric it touches.
• Do not use this dispenser to add powdered chlorine or
color safe bleach to your wash load. The dispenser is for
liquid chlorine bleach use only.
Bleach inlet
(Symbol)
Softener inlet
(Symbol)
DWF-160MNP 01.3.26 9:35 PM ˘`11

12
To winterize washer To use washer again
Exterior Interior
CARING FOR YOUR WASHER
Proper care of your washer can extend its life. This section explains how to care for
your washer properly and safely.
Cleaning your washer
Winter storage or moving care
Install and store your washer where it will not freeze. Because some water may stay in the
hoses, freezing can damage your washer.
If storing or moving your washer during freezing weather, winterize it.
Non-use or vacation care
Operate your washer only when you are at home.
If will be on vacation or not using your washer for an extended period of time, you should;
•Unplug the power supply cord or turn off eletrical power to the washer.
•Turn off the water supply to the washer .
This helps avoid accidental flooding (due to a water pressure surge) while you are away.
Wipe up detergent, bleach, and other spills
with a soft, damp cloth or sponge as they
occur. Occasionally wipe the outside of the
washer to keep it looking like new one.
Clean interior with 250ml of chlorine bleach
mixed with 500ml of detergent.
Run washer through a complete cycle.
Repeat process if necessary.
•Turn off water faucet.
•Disconnect and drain water inlet hoses.
•Run washer on a drain and spin setting
(see page 10) for 1 minute.
•Unplug the power supply cord.
•Flush water pipes and hoses.
•Reconnect water inlet hoses.
•Turn on water faucet.
•Reconnect power supply cord.
Do not put sharp or metal object in your
washer, they can damage the finish. Check all pockets for
pins, clips, coins, bolts, nuts, etc..
Do not lay these objects on your washer after emptying
pockets.
DWF-160MNP 01.3.26 9:35 PM ˘`12

13

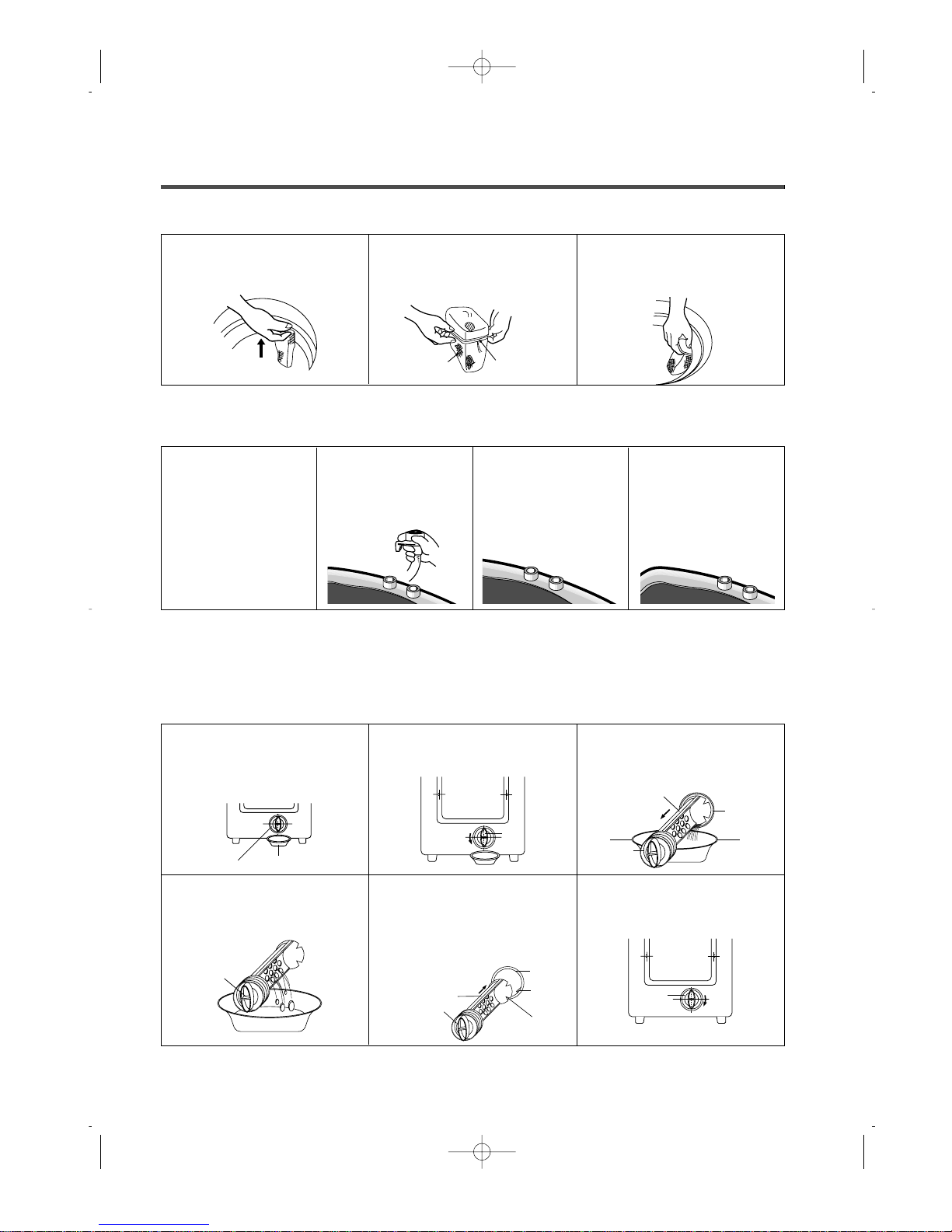

HOW TO CLEAN THE FILTER
Cleaning the Lint Filter
Cleaning the drain filter
•In case of "Pump-Model" drain hose, this filter’s equipped at the back side of washer.
•This drain filter is to screen the foreign stuffs such as threads, coins, pins, buttons etc ..
•If the drain filter is not cleaned at proper time (every 10 times of use), drain problem could
be caused.
1Pull the filter frame upward. 2Turn the lint filter inside
out, wash the lint off 3Return the filter as it was,
and insert the filter frame
1Pull the power
plug out before
cleaning it.
2Turn off the water
supply to the
washer and
Separate the inlet
hose.
3Pull the inlet filter
out. 4Remove the dirt from the inlet
filter with a brush.
1Put down the remained
water in the hose. And
put a container under the
2T urn the cap counterclockwise. 3Pull out the filter
assembly.
4Clean the drain filter. 5Put in the filter along the
guiding prominence of
the case. Please note the
left position of the filter
adjusting the groove to
the guide rib.
6Turn the cap clockwise
Cleaning the water inlet filter
•Clean the filter when water leaks from the water inlet.
with water.
Filter Frame
Lint Filter
filter to collect water .
FILTER CONTAINER
CAP
CASE
FILTER
CAP
CAP
FILTER
CASE
GUIDE
RIB
SUIT
into the slot.
CAP
tightly.
CAP
DWF-160MNP 01.3.26 9:35 PM ˘`13

14
Stained, heavily-soiled, or greasy items may need to be prewashed or soaked for best results.
Soaking helps remove protein-type stains like blood, milk, or grass. Prewashing helps loosen
soil before washing.
Stain removal rules
•Use warm water for soaking or prewashing stained laundry. Hot water can set stains.
•Most stains are easier to remove when they are fresh.
•Before treating any stain, find out what kind of stain it is, how old the stain is, what kind of
fabric it is, and if the fabric is colorfast. (Check the care label)
•Washing and drying can set some stains.
•Start with cold or warm water. Hot water can set some stains.
•When bleach is recommended, use a bleach that is safe for the fabric.
•Put the stained area face down on a paper towel or white cloth. Apply the stain remover
to the back of the stain. This forces the stain off fabric instead of through it.
Stain removal guide
STAIN TO REMOVE
REMOVING STAINS
Blood
Chewing gum
Cocoa, Chocolate
Coffee
Cream/Milk
Ice cream
Deodorant
Egg
Fabric/Softener
Fruit stains
Grass
Grease and oil
Iron or rust
Lipstick
Mildew
Mud
Paint-oil based
Paint-water based
Scorch marks
Rinse immediately in COLD water.
If stain remains, soak in cold water with an enzyme prewash.
Use ice in plastic bag to harden the gum.
Scrape off what you can and then sponge with white spirits.
Sponge with COLD water and soak in an enzyme prewash.
If stains persist, rub in a little detergent and rinse in cold water.
Blot up quickly and rinse out in COLD water.
Rub in a little detergent and wash in the maximum temperature allowed for the
fabric type.
Rinse in COLD water and wash normally.
If stain is still apparent, sponge with white spirits.
Rub affected area with white vinegar and then rinse under running COLD water.
Sponge with white spirits.
Treat stiffened areas with enzyme prewash.
Soak in a COLD enzyme prewash, rinse and wash normally.
Rub affected area with bar soap and wash normally.
Treat as soon as pressible by sponging with COLD water.
Rub a little detergent on the stain and wash normally.
Sponge with white spirits.
Rub in an enzyme prewash and wash normally.
Lay the affected area face down on an absorbent cloth and work from the back.
Sponge with white spirits or dry cleaning fluid. Wash normally.
Apply lemon juice and salt and place in the sun. Wash normally.
Sponge with white methylated spirits and wash normally.
Wash in WARM water and detergent.
Moisten area with lemon juice, dry in the sun and wash normally.
If stain persists and the fabric allows, use a bleach.
Brush off any dry mud. Rinse in cold water.
If stain persists, rub in a little detergent and wash normally.
Scrape off any fresh paint and sponge with a non flammable dry cleaning fluid
and wash normally.
Treat while still wet, rinse in WARM water and wash normally.
Dampen a cloth with hydrogen peroxide, lay it over the affected area and press
with a fairly hot iron.
DWF-160MNP 01.3.26 9:35 PM ˘`14

15
PROBLEM CHECK POINT
These cases are not malfunctions
• The sound "wing" heard during water supply is the operating sound made by the water
inlet valve.
• The sound "sha" heard in stopping the tub is the sound that comes from the
autobalancer of the tub.
TROUBLE SHOOTING
•The washer will not spin;
If the clothes is collected on one side
during spin and the tub becomes
unbalanced, the spin operation will be
interrupted, and then this unbalanced
condition will be corrected by following
operation: WATER SUPPLY RINSE
DRAIN However if the unbalanced
condition is unchanged despite repeating
the above operation, the lamp will
light up, and the buzzer will sound to
indicate a problem.
Most problems are easily solved if you understand the cause.
Check the following list for problem before calling for service.
Before calling for service, check these
•The washer will not
operate at all.
•Water is not supplied;
If water supply is not finished within 30
minutes, the lamp will light up, and
the buzzer will sound to indicate a problem.
•The washer will not drain;
If the drain is not finished within selected
time, lamp will light up, and the buzzer
will sound to indicate a problem.
•Is there a power failure?
•Is the power cord correctly connected to an electric outlet?
•Is the electric fuse broken?
•Did you turn on the power?
•Did you press Start/Hold button?
•Is there correct amount of water in the tub?
•Did you connect the inlet hose and open the water tap?
•Is the inlet hose or the water tap frozen?
•Is the water supply shut off?
•Does foreign matter block up the inlet hose filter?
•Is the drain hose frozen or blocked up by dirt?
•Is the drain hose kinked or deformed?
•Is the end of the drain hose immersed in water?
•Is there excessive dirt inside the pump housing?
•Is the clothes in the tub collected on one side?
•Is the washing machine installed on an uneven floor or is the
vibration serious?
•Is the lid open?
(The lamp will light up in this case.)
DWF-160MNP 01.3.26 9:35 PM ˘`15

16
MODEL NO. DWF-160MNP
Dimension (W✕H✕D, mm) 525 ✕858 ✕535
Unit Weight
Washing Capacity
28.5 kg / 29 kg (pump)
6.0 kg
Standard Water Consumption 130
Standard Water Level •HIGH (55 ) •MID (45 )•LOW (31 )
Operating Water Pressure 0.3kgf/cm2~8kgf/cm2(2.94N/cm 2~78.4N/cm 2)
SPECIFICATION
DWF-160MNP 01.3.26 9:35 PM ˘`16

VISION CREATIVE, INC.
`–‚‡†·º„fi•˛ 5¡526
·º¿ · ” ø 16 ˆ
·ª · ‰`ł–·º‚fi· TEL
MODEL DWF-160MNP(¿ )
BUYER SUPAREK
1´ 00.7.11 6´
2´ 00.7.13 7´
ˇ ` ⁄ 3´ 00.7.19 8´
4´ 00.7.24 9´
5´ 10´
`ƒ ˘˙ 00.7.18(han)
¿ ˛˛…… ‚µ ¿¿ ¿ ˇˇ
–
MEMO
00.7.19-2p ˆ•´
00.7.24-8p …`⁄
00.7.26-8p ˆ•´
00.9.23-(3p)-1page … `⁄ˆ •´
¿¿‹‹¶¶ Ù ˆˆ‡‡
VVIISSIIOONN··ªª··
Á
`˙
TEL: [phone] FAX: [phone]
DWF-160MNP 01.3.26 9:35 PM ˘ ` 17
