Daikin VAM 150FJVE User manual

Service
Manual
SiE00-01
Heat Recovery Ventilation
[Applied Models]
VAM 150FJVE
VAM 250FJVE
VAM 350FJVE
VAM 500FJVE
VAM 650FJVE
VAM 800FJVE
VAM1000FJVE
VAM1500FJVE
VAM2000FJVE

SiE00-01
Table of Contents i
Heat Recovery Ventilation
VAM 150FJVE
VAM 250FJVE
VAM 350FJVE
VAM 500FJVE
VAM 650FJVE
VAM 800FJVE
VAM1000FJVE
VAM1500FJVE
VAM2000FJVE

SiE00-01
ii Table of Contents
1. Introduction .............................................................................................v
1.1 Safety Cautions....................................................................................... v
Part 1 General Constructions .......................................................1
1. General Constructions ............................................................................2
1.1 Explanation..............................................................................................2
Part 2 Product Specification ........................................................5
1. Product Specification ..............................................................................6
1.1 Specification............................................................................................6
Part 3 Operation............................................................................9
1. Operation ..............................................................................................10
1.1 Explanation for Systems........................................................................10
1.2 Operation with The Remote Control
for Air Conditioning Operation HRV Units. (BRC301B61).....................11
Part Maintenance.....................................................................15
1. Maintenance..........................................................................................16
1.1 Maintenance for The Air Filter...............................................................16
1.2 Maintenance for The Heat Exchange Element......................................19
Part 5 Control Functions.............................................................21
1. Control Functions..................................................................................22
1.1 List of Control Functions........................................................................ 22
1.2 Explanation of Individual Functions.......................................................23
1.3 Layout of switches on Printed Circuit Board..........................................28
Part 6 Circuit Operations............................................................29
1. Circuit Operations .................................................................................30
1.1 Circuit Configuration..............................................................................30
1.2 Circuit Functions.................................................................................... 31
Part 7 Troubleshooting ...............................................................33
1. Troubleshooting ....................................................................................34
1.1 Error Code Indication............................................................................. 34
1.2 Overall Alarm......................................................................................... 35
1.3 Overall Malfunction................................................................................ 36
1.4 Indoor Air Thermistor Error.................................................................... 37
1.5 Outdoor Air Thermistor Error.................................................................38
1.6 Damper System Error (Alarm)............................................................... 39
1.7 Damper System Error (Alarm)............................................................... 40
1.8 Dedicated LCD Remote Controller........................................................41
1.9 Data Transmission Error
(Between LCD Remote Controller and Main Unit)................................. 42
1.10 Data Transmission Error (LCD Remote Controller)...............................43

SiE00-01
Table of Contents iii
1.11 Data Transmission Error (Between LCD Master Remote Controller
and Slave Remote Controller)...............................................................44
1.12 Field Setting Error..................................................................................45
1.13 Overlapping Central Control Address.................................................... 46
1.14 Main Unit PCB Assembly ......................................................................47
1.15 Dedicated LCD Remote Controller........................................................ 48
1.16 How to Check........................................................................................ 49
1.17 Thermistor ............................................................................................. 50
1.18 Power Transformer................................................................................ 51
1.19 Damper Motor........................................................................................52
Part 8 Supplementary Explanation.............................................53
1. Supplementary Explanation..................................................................54
1.1 Field Setting, Service Mode Operation..................................................54
Part 9 Appendix...........................................................................65
1. Appendix...............................................................................................66
1.1 Wiring Diagram...................................................................................... 66
Index .............................................................................................i
Drawings & Flow Charts ................................................................v

SiE00-01
iv Table of Contents

SiE00-01 Introduction
v
1. Introduction
1.1 Safety Cautions
Cautions and
Warnings 
Be sure to read the following safety cautions before conducting repair work.

The caution items are classified into “ Warning ” and “ Caution ”. The “ Warning ” items
are especially important since they can lead to death or serious injury if they are not followed closely.
The “
Caution ” items can also lead to serious accidents under some conditions if they are not
followed. Therefore, be sure to observe all the safety caution items described below.

About the pictograms
This symbol indicates an item for which caution must be exercised.
The pictogram shows the item to which attention must be paid.
This symbol indicates a prohibited action.
The prohibited item or action is shown inside or near the symbol.
This symbol indicates an action that must be taken, or an instruction.
The instruction is shown inside or near the symbol.

After the repair work is complete, be sure to conduct a test operation to ensure that the equipment
operates normally, and explain the cautions for operating the product to the customer

Introduction SiE00-01
vi

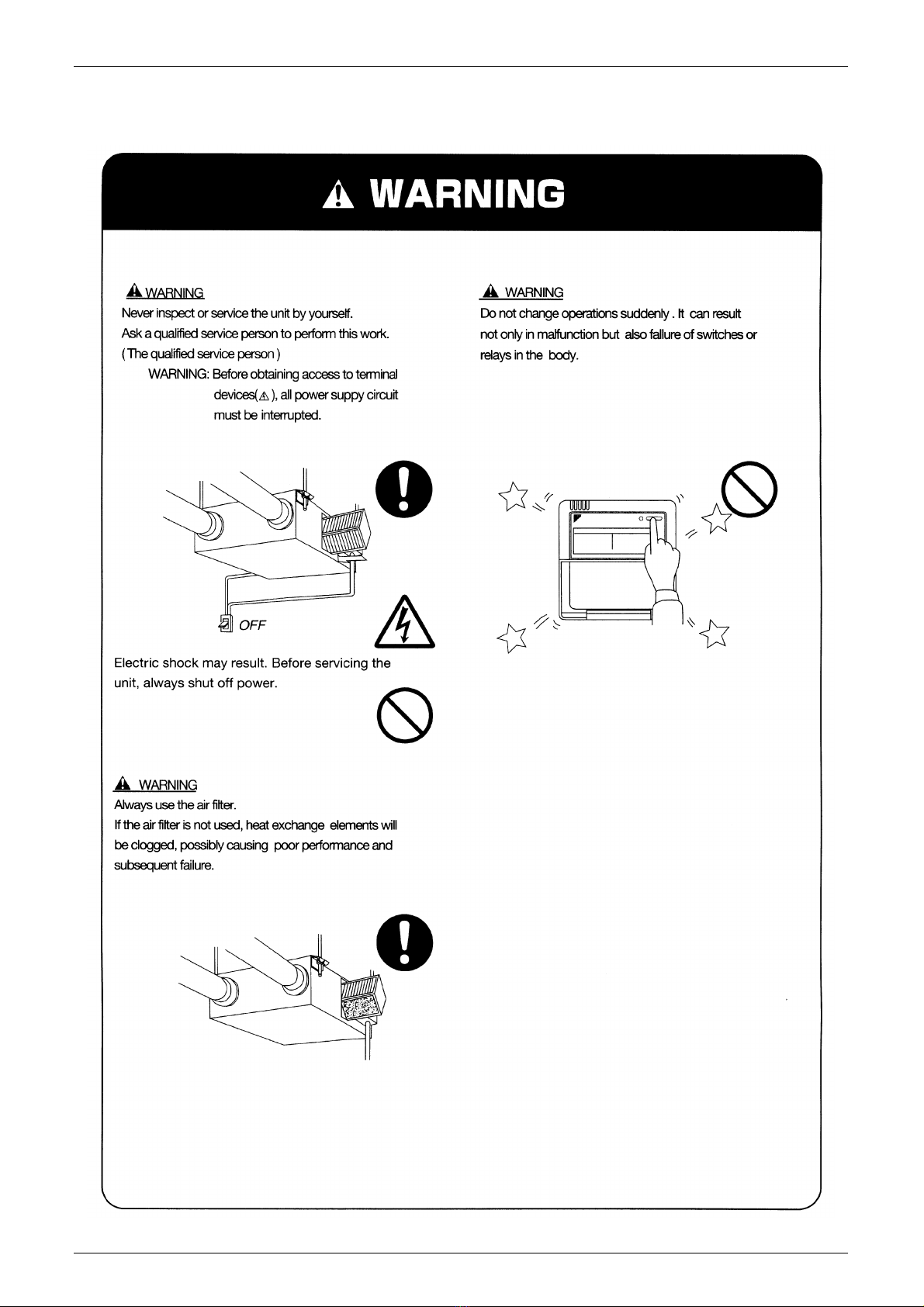

1.1.1 Cautions in Operation and Maintenance

SiE00-01 Introduction
vii

Introduction SiE00-01
viii
1.1.2 Using Icons
Icons are used to attract the attention of the reader to specific information. The meaning of each icon is
described in the table below:
1.1.3 Using Icons List
Icon Type of
Information Description
Note:
Note A “note” provides information that is not indispensable, but may
nevertheless be valuable to the reader, such as tips and tricks.
Caution
Caution A “caution” is used when there is danger that the reader, through
incorrect manipulation, may damage equipment, loose data, get an
unexpected result or has to restart (part of) a procedure.
Warning
Warning A “warning” is used when there is danger of personal injury.
Reference A “reference” guides the reader to other places in this binder or in this
manual, where he/she will find additional information on a specific topic.

SiE00-01
General Constructions 1
Part 1
General Constructions
1. General Constructions ............................................................................2
1.1 Explanation..............................................................................................2

General Constructions SiE00-01
2General Constructions
1. General Constructions
1.1 Explanation
VAM150FJVE
VAM250FJVE
VAM350FJVE
VAM500FJVE
VAM650FJVE
VAM800FJVE
VAM1000FJVE
1 Ceiling Hock 2 Duct Connection Flange
3 Exhaust Fan 4 Air Filter (Long Life Filter)
5 Damper 6 Switch Box
7 Maintenance Cover 8 Heat Exchange Elements
9 Name Plate 10 Air Supply Fan
11 Remote Controller (Option Parts) 12 Damper Motor
13 EA (Exhaust Air) [Exhaust Air to Outdoor] 14 OA (Outdoor Air) [Fresh Air from Outdoor]
15 Maintenance Space for The Air Filters, Heat
Exchange Elements and Switch Box 16 RA (Return Air) [Exhaust Air from Room]
17 SA (Supply Air) [Feed Air to Room]

SiE00-01 General Constructions
General Constructions 3
VAM1500FJVE
VAM2000FJVE
1 Ceiling Hock 2 Duct Connection Flange
3 Exhaust Fan 4 Air Filter (Long Life Filter)
5 Damper 6 Switch Box
7 Maintenance Cover 8 Heat Exchange Elements
9 Name Plate 10 Air Supply Fan
11 Remote Controller (Option Parts) 12 Damper Motor
13 EA (Exhaust Air) [Exhaust Air to Outdoor] 14 OA (Outdoor Air) [Fresh Air from Outdoor]
15 Maintenance Space for The Air Filters, Heat
Exchange Elements and Switch Box 16 RA (Return Air) [Exhaust Air from Room]
17 SA (Supply Air) [Feed Air to Room]

General Constructions SiE00-01
4General Constructions

SiE00-01
Product Specification 5
Part 2
Product Specification
1. Product Specification ..............................................................................6
1.1 Specification............................................................................................6

roduct Specification SiE00-01
6Product Specification
1. Product Specification
1.1 Specification
Test conditions are as follows
Notes: 1. Operation sound is measured at 1.5 m below the center the body.
2. Fan speed can be changed over to Low mode or High mode.
3. Operating sound is measured in an anechoic chamber.
Operating sound level generally become greater than this value depending on the operating conditions,
reflected sound, and peripheral noise.
4. The sound level at the air discharge port is about 8 dB higher than the unit’s operating sound.
(50 / 60Hz)
Model Name VAM150FJVE VAM250FJVE VAM350FJVE
Power Supply Single Phase 220 – 240 V / 220 V, 50 / 60 Hz
Temperature Exchanging
Efficiency Ultra-High % 74 / 74 72 / 72 75 / 75
High % 74 / 74 72 / 72 75 / 75
Low % 79 / 80 77 / 77 80 / 81
Enthalpy
Exchange
Efficiency
Cooling Ultra-High % 58 / 58 58 / 58 61 / 61
High % 58 / 58 58 / 58 61 / 61
Low % 64 / 66 62 / 63 67 / 68
Heating Ultra-High % 64 / 64 64 / 64 65 / 65
High % 64 / 64 64 / 64 65 / 65
Low % 69 / 71 68 / 69 70 / 71
Casing Galvanized Steel Plate
Insulating Material Self-extinguishable Urethane Foam
Dimensions H x W x D mm 269 x 760 x 509 269 x 760 x 509 285 x 812 x 800
Heat Exchanging System Air to Air Cross Flow Total Heat (Sensible Heat + Latent Heat) Exchange
Heat Exchanging Element Specially Processed Nonflammable Paper
Air Filter Multidirectional Fibrous Fleeces
Fan Type Sirroco Fan
Fan
Speed Ultra-High m
³ / h 150 / 150 250 / 250 350 / 350
High m
³ / h 150 / 150 250 / 250 350 / 350
Low m
³ / h 110 / 110 155 / 145 230 / 210
External
Static
Pressure
Ultra-High Pa 69 / 98 64 / 98 98 / 142
High Pa 39 / 54 39 / 54 70 / 85
Low Pa 20 / 24 20 / 20 25 / 15
Fan Motor Type Open Type Capacitor Permanent Split-phase Induction Motor, 4 Poles x 2
Motor Output kW 0.030 x 2 0.030 x 2 0.090 x 2
Operating
Sound Heat Exchange
Mode
Ultra-High dBA 27 – 28.5 / 28.52 28 – 29 / 29.5 32 – 34 / 34.5
High dBA 26 – 27.5 / 26.5 26 – 27 / 26 31.5 – 33 / 32
Low dBA 20.5 – 21.5 / 19 21 – 22 / 19.5 23.5 – 26 / 22
Byapss
Mode Ultra-High dBA 27 – 28.5 / 28 28 – 29 / 29 32 – 34 / 34.5
High dBA 26.5 – 27.5 / 27 27 – 28 / 27 31 – 32.5 / 33
Low dBA 20.5 – 21.5 / 20 21 – 22 / 20.5 24.5 – 26.5 / 22
Operation Range (Ambient) – 10
° C to 50 ° CDB (80% RH or Less)
Connection Duct Diameter mm
φ 100 φ 150 φ 150
Weight kg 24 24 33
Drawing Number 4D020371A 4D020372A 4D020373A
Condition Indoor unit Outdoor unit
°C DB R.H (%) ° CDB R.H (%)
Cooling condition 27 50 35 60
Heating condition 20 40 7 70

SiE00-01 roduct Specification
Product Specification 7
Test conditions are as follows
Notes: 1. Operation sound is measured at 1.5 m below the center the body.
2. Fan speed can be changed over to Low mode or High mode.
3. Operating sound is measured in an anechoic chamber.
Operating sound level generally become greater than this value depending on the operating conditions,
reflected sound, and peripheral noise.
4. The sound level at the air discharge port is about 8 dB higher than the unit’s operating sound.
(50 / 60Hz)
Model Name VAM500FJVE VAM650FJVE VAM800FJVE
Power Supply Single Phase 220 – 240 V / 220 V, 50 / 60 Hz
Temperature Exchanging
Efficiency Ultra-High % 74 / 74 74 / 74 74 / 74
High % 74 / 74 74 / 74 74 / 74
Low % 77 / 78.5 77 / 78 76 / 76
Enthalpy
Exchange
Efficiency
Cooling Ultra-High % 58 / 58 58 / 58 60 / 60
High % 58 / 58 58 / 58 60 / 60
Low % 63 / 65.5 63 / 65 62 / 63
Heating Ultra-High % 62 / 62 63 / 63 65 / 65
High % 62 / 62 63 / 63 65 / 65
Low % 67 / 68.5 66 / 68 67 / 68
Casing Galvanized Steel Plate
Insulating Material Self-extinguishable Urethane Foam
Dimensions H x W x D mm 285 x 812 x 800 348 x 988 x 852 348 x 988 x 852
Heat Exchanging System Air to Air Cross Flow Total Heat (Sensible Heat + Latent Heat) Exchange
Heat Exchanging Element Specially Processed Nonflammable Paper
Air Filter Multidirectional Fibrous Fleeces
Fan Type Sirroco Fan
Fan
Speed Ultra-High m
³ / h 500 / 500 650 / 650 800 / 800
High m
³ / h 500 / 500 650 / 650 800 / 800
Low m
³ / h 350 / 300 500 / 440 670 / 660
External
Static
Pressure
Ultra-High Pa 98 / 147 93 / 162 137 / 225
High Pa 54 / 54 39 / 69 98 / 118
Low Pa 25 / 20 25 / 34 49 / 69
Fan Motor Type Open Type Capacitor Permanent Split-phase Induction Motor, 4 Poles x 2
Motor Output kW 0.090
∞ 2 0.140 ∞ 2 0.230 ∞ 2
Operating
Sound Heat Exchange
Mode
Ultra-High dBA 33 – 34.5 / 34 34.5 – 35.5 / 36 36 – 37 / 37
High dBA 31.5 – 33 / 31 33 – 34 / 33 34.5 – 36 / 35
Low dBA 24.5 – 26.5 / 24 27 – 28 / 27 31 – 32 / 30
Byapss
Mode Ultra-High dBA 33.5 – 34.5 / 35 34.5 – 35.5 / 35.5 36 – 37 / 37
High dBA 32.5 – 33.5 / 33 34 – 35 / 34 34.5 – 36 / 35
Low dBA 25.5 – 27.5 / 24 27 – 28.5 / 27 31 – 33 / 31
Operation Range (Ambient) – 10
° C to 50 ° CDB (80% RH or Less)
Connection Duct Diameter mm
φ 200 φ 200 φ 250
Weight kg 33 48 48
Drawing Number 4D020374A 4D020375A 4D020376A
Condition Indoor Outdoor
° CDB R.H (%) ° CDB R.H (%)
Cooling condition 27 50 35 60
Heating condition 20 40 7 70

roduct Specification SiE00-01
8Product Specification
Test conditions are as follows
Notes: 1. Operation sound is measured at 1.5 m below the center the body.
2. Fan speed can be changed over to Low mode or High mode.
3. Operating sound is measured in an anechoic chamber.
Operating sound level generally become greater than this value depending on the operating conditions,
reflected sound, and peripheral noise.
4. The sound level at the air discharge port is about 8 dB higher than the unit’s operating sound.
(50 / 60Hz)
Model Name VAM1000FJVE VAM1500FJVE VAM2000FJVE
Power Supply Single Phase 220 – 240 V / 220 V, 50 / 60 Hz
Temperature Exchanging
Efficiency Ultra-High % 75 / 75 75 / 75 75 / 75
High % 75 / 75 75 / 75 75 / 75
Low % 76.5 / 78 78 / 78 78 / 78
Enthalpy
Exchange
Efficiency
Cooling Ultra-High % 61 / 61 61 / 61 61 / 61
High % 61 / 61 61 / 61 61 / 61
Low % 63 / 66 64 / 64 66 / 66
Heating Ultra-High % 66 / 66 66 / 66 66 / 66
High % 66 / 66 66 / 66 66 / 66
Low % 68 / 71 68 / 68 70 / 70
Casing Galvanized Steel Plate
Insulating Material Self-extinguishable Urethane Foam
Dimensions H
∞ W ∞ D mm 348 x 988 x 1140 710 x 1498 x 852 710 x 1498 x 1140
Heat Exchanging System Air to Air Cross Flow Total Heat (Sensible Heat + Latent Heat) Exchange
Heat Exchanging Element Specially Processed Nonflammable Paper
Air Filter Multidirectional Fibrous Fleeces
Fan Type Sirroco Fan
Fan
Speed Ultra-High m
∏ / h 1000 / 1000 1500 / 1500 2000 / 2000
High m
∏ / h 1000 / 1000 1500 / 1500 2000 / 2000
Low m
∏ / h 870 / 800 1200 / 1200 1400 / 1400
External
Static
Pressure
Ultra-High Pa 157 / 196 137 / 206 137 / 196
High Pa 98 / 108 98 / 118 78 / 88
Low Pa 78 / 69 49 / 69 59 / 69
Fan Motor Type Open Type Capacitor Permanent Split-phase Induction Motor, 4 Poles
∞ 2
Motor Output kW 0.230
∞ 2 0.230 ∞ 4 0.230 ∞ 4
Operating
Sound Heat Exchange
Mode
Ultra-High dBA 36 – 37 / 37 39.5 – 41.5 / 40.5 40 – 42.5 / 41
High dBA 35 – 36 / 35 38 – 39 / 38 38 – 41 / 38
Low dBA 31 – 32 / 30 34 – 36 / 33 35 – 37 / 35
Byapss
Mode Ultra-High dBA 36 – 37 / 37 40.5 – 41.5 / 40.5 40 – 42.5 / 41
High dBA 35.5 – 36 / 35 38 – 39 / 38 38 – 41 / 38
Low dBA 31 – 32 / 31 33.5 – 36 / 33 35 – 37 / 35
Operation Range (Ambient) – 10
° C to 50 ° CDB (80% RH or Less)
Connection Duct Diameter mm
φ 250 φ 350 φ 350
Weight kg 61 132 158
Drawing Number 4D020377A 4D020526A 4D020527A
Condition Indoor unit Outdoor unit
° CDB R.H (%) ° CDB R.H (%)
Cooling condition 27 50 35 60
Heating condition 20 40 7 70

SiE00-01
Operation
Part 3
Operation
1. Operation ..............................................................................................10
1.1 Explanation for Systems........................................................................10
1.2 Operation with The Remote Control for
Air Conditioning Operation HRV Units. (BRC301B61)..........................11

Operation SiE00-01
10 Operation
1. Operation
1.1 Explanation for Systems
This product is operated differently depending on the system configuration.
For the operation of the remote controller for indoor unit and centralized controller, refer to the instruction
manual provided with each unit.
Operation for Each System
System Example Operation Method
Independent
System The remote controller turns on and off the air conditioner and HRV unit.
Combined
Operation
SystemwithVRV
Systems and
Skyair Series
The remote controller for VRV turns on and off
the air conditioner and HRV unit.
If only the HRV unit is used without operating
the air conditioner, set the unit in the “ “
VENTILATION mode.
The ON/OFF and timer operation can not be
performed using the HRV remote controllers.
(The indication of centralized control
“ “ appears on the display.)
Other operations can be performed using the
HRV remote controllers. Starting and stopping
operations of the indoor unit and the HRV unit
can be performed using the indoor remote
controllers.
Centralized
System When the HRV remote controllers is not connected, the Centralized controller controls
the operation of the HRV unit.
WhentheHRVremote controllers is connected,
operation can be started and stopped using the
Centralized controller or the indoor and the
HRV remote controllers.
During the indication of centralized control
“ “ appears on the display, the ON/
OFF and timer operation may not be possible
with the HRV remote controlers. Other
operations can be performed using the HRV
remote controllers.

SiE00-01 Operation
Operation 11
1.2 Operation with The Remote Control for Air Conditioning Operation HRV Units.
(BRC301B61)
For non-independent systems, starting/stopping operation and timer operation may not be possible.
Use the air conditioner remote control or the Centralized controller in such cases.
Operation for
INDIVIDUAL
SYSTEM
1. Operation lamp
This pilot lamp (red) light up while the unit is in Operation.
2. Operation/Stop button
When pushed once, the unit starts operating.
When pushed twice, the unit stops.
3. Air flow rate changeover button
Air flow rate can be changed over to “ “ [Low] mode or ““[High] mode, “FRESH UP“
[Low FRESH UP] mode, “FRESH UP“[High FRESH UP] mode.
Remote Controller
for HRV
BRC301B61
For “Freshup“operation
When this indication does not show: The volume of outdoor air supplied into the room and that of the room
air exhausted outdoors is equivalent.
For “Freshup“operation,
If it is set to “Fresh up air supply“: The volume of outdoor air supplied into the room is larger than that of
room air exhausted outdoors.
(This operation prevents the odor and moisture from kitchens and toilets from flowing into the rooms.
If it is set to “Fresh up air exhaust“: The volume of room air exhausted outdoors is larger than that of
outdoor air suppied into the room.
(This operation prevents the hospital odor and floating bacteria from flowing out to the corridors.)
12
75
6
11
12
13
10
8
4
3
9
(HL006)
