Daikin JEHBCU-0150-M-1 User manual

T-CU01-NOV17-1
1
Technical Manual
Condensing unit
Condensing unit
for medium temperature application
for low temperature application
DRM Codes
DMSS Codes
DRM Codes
DMSS Codes
JEHBCU-0150-M-1
LRMRS0150AXV1
JEHBCU-0175-L-1
LRLRS0175AXV1
JEHBCU-0150-M-3
LRMRS0150AXY1
JEHBCU-0175-L-3
LRLRS0175AXY1
JEHBCU-0225-M-1
LRMRS0225AXV1
JEHBCU-0225-L-1
LRLRS0225AXV1
JEHBCU-0225-M-3
LRMRS0225AXY1
JEHBCU-0225-L-3
LRLRS0225AXY1
JEHBCU-0300-M-1
LRMRS0300AXV1
JEHBCU-0350-L-3
LRLRS0350AXY1
JEHBCU-0300-M-3
LRMRS0300AXY1
JEHBCU-0400-L-3
LRLRS0400AXY1
JEHBCU-0400-M-3
LRMRS0400AXY1
JEHBCU-0725-L-3
LRLRS0725AXY1
JEHBCU-0500-M-3
LRMRS0500AXY1
JEHBCU-0825-L-3
LRLRS0825AXY1
JEHBCU-0600-M-3
LRMRS0600AXY1
JEHBCU-0675-M-3
LRMRS0675AXY1
JEHBCU-0825-M-3
LRMRS0825AXY1
JEHBCU-1000-M-3
LRMRS1000AXY1

T-CU01-NOV17-1
2
1.
Nomenclature
3
2.
Standard Product Configuration
3
3.
Specifications
4
4.
5.
Product System Cycle
Outline Drawings
6
9
6.
Performance Data
11

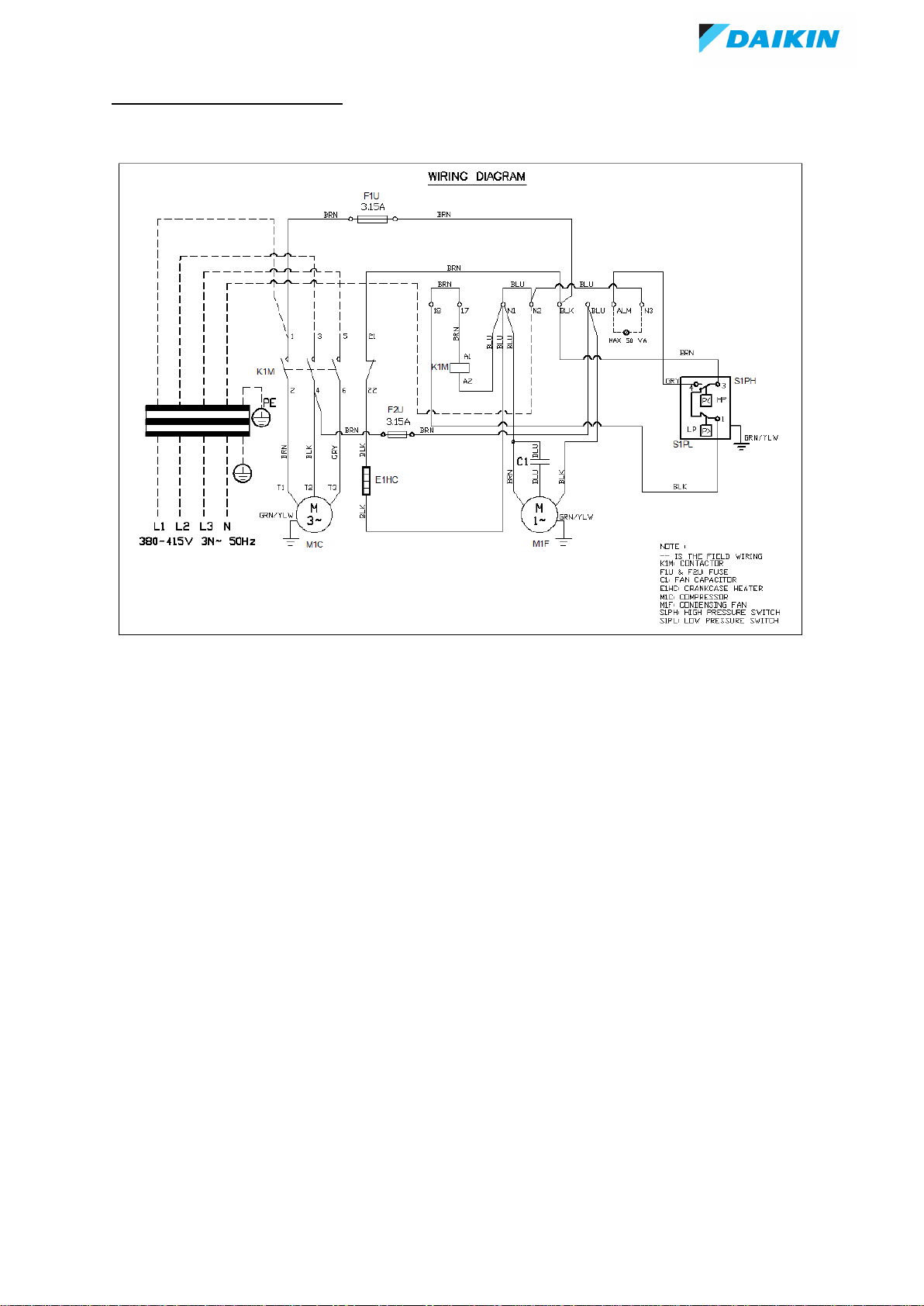

7.

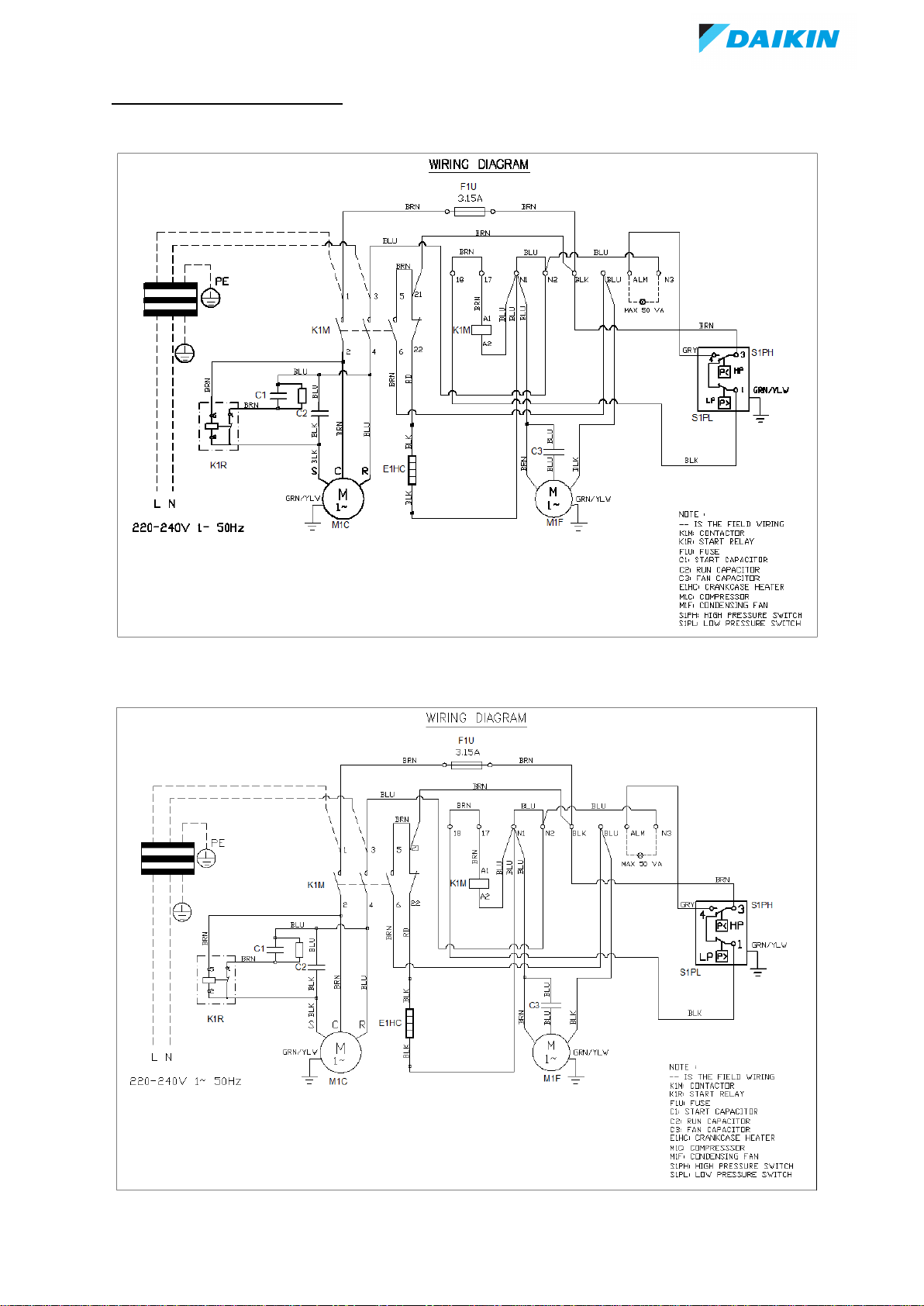

Wiring Diagram
14
8.
Safety and Health
19
9.
Installation & commissioning
20
10.
Checklist
28
11.
Service and Maintenance
28
12.
Trouble Shooting
29
13.
Exploded View
30

T-CU01-NOV17-1
3
1. Nomenclature
Digit
Description
1
L –Daikin low temperature air conditioner
2
R –Outdoor Unit
3 & 4
LR –Low Temp. Reciprocating;
MR –Medium Temp. Reciprocating
5
Refrigerant, S –R404A
6,7, 8 & 9
Compressor horse power, 0150 –1.5HP
10
A –First revision
11
X -Produce by Daikin Refrigeration Malaysia
12 & 13
Power supply:
V1 –1ph/50Hz/220~240V; Y1 –3ph/50Hz/380~415V
2. Standard Product Configuration
•Reliable reciprocating type compressor for medium and low temperature models with oil sight glass
•IP54 rated control panel
•Magnetic contactor (Note: except single phase medium temperature application condensing unit).
•External shut off valves for quick installation and easy access and maintenance.
•Weather proof housing made of epoxy coated steel
•Corrugated aluminium fin and inner groove hairpin condenser
•Liquid receiver is sized to accumulate refrigerant amount up to 25m piping length during pump down.
Fusible plug on the liquid receiver to protect system from exploded when ambient temperature goes
higher than 1000C
•Oil separator and non-return valve for low temperature models
•Sight glass and flare type filter drier
•Dual pressure switch to protect compressor
•Designed for zero ozone depletion potential (ODP=0) refrigerant R404A (available for all range
condensing units) or R134a (available for medium temperature application condensing units).
•The condensing unit is fully factory tested and is filled with nitrogen in order to always ensure the
highest quality of our products.

T-CU01-NOV17-1
4
3. Specifications
3.1 General Medium Temperature Application
Electrical Data
MCC**
DRM Codes DMSS Codes (A)
JEHBCU-0150-M-1 LRMRS0150AXV1 230V/1~/50Hz MTZ18-5VM 5.26 950 6.6 10 40 1 0.6
JEHBCU-0150-M-3 LRMRS0150AXY1 400V/3~/50Hz MTZ18-4VM 5.26 950 2.7 5 20 1 0.6
JEHBCU-0225-M-1 LRMRS0225AXV1 230V/1~/50Hz MTZ28-5VM 8.36 950 11 20 51 1 0.6
JEHBCU-0225-M-3 LRMRS0225AXY1 400V/3~/50Hz MTZ28-4VM 8.36 950 4 7.5 23 1 0.6
JEHBCU-0300-M-1 LRMRS0300AXV1 230V/1~/50Hz MTZ36-5VM 10.52 950 15.2 22 60 1 0.6
JEHBCU-0300-M-3 LRMRS0300AXY1 400V/3~/50Hz MTZ36-4VM 10.52 950 4.9 9 30 1 0.6
JEHBCU-0400-M-3 LRMRS0400AXY1 400V/3~/50Hz MTZ50-4VM 14.9 1800 6.5 12 47 1 1.1
JEHBCU-0500-M-3 LRMRS0500AXY1 400V/3~/50Hz MTZ64-4VM 18.74 1800 8.3 13.5 64 1 1.1
JEHBCU-0600-M-3 LRMRS0600AXY1 400V/3~/50Hz MTZ72-4VM 21.04 1800 8.7 17.5 80 1 1.1
JEHBCU-0675-M-3 LRMRS0675AXY1 400V/3~/50Hz MTZ80-4VM 23.63 1800 10.3 18.5 80 1 1.1
JEHBCU-0825-M-3 LRMRS0825AXY1 400V/3~/50Hz MTZ100-4VM 29.8 3900 12.4 22 90 2 1.2
JEHBCU-1000-M-3 LRMRS1000AXY1 400V/3~/50Hz MTZ125-4VM 37.49 3900 14.3 27 105 2 1.2
Polyester oil
(160PZ)
Model
Power Input
Fan Motors
No.
FLC (A)
LRC (A)
Compressor
Type
Swept
volume m³/h
Oil type
(Danfoss)
Oil Charge
(cm³)
Operating
Current (A)*
DRM Codes DMSS Codes
Suction
(inch)
Liquid (inch) Width (mm) Depth (mm) Height (mm)
JEHBCU-0150-M-1
LRMRS0150AXV1 1.5 3040 4.6 1/2 3/8 1109 478 649 82 38
JEHBCU-0150-M-3
LRMRS0150AXY1 1.5 3040 4.6 1/2 3/8 1109 478 649 82 38
JEHBCU-0225-M-1
LRMRS0225AXV1 3.1 2620 4.6 1/2 3/8 1109 478 649 89 39
JEHBCU-0225-M-3
LRMRS0225AXY1 3.1 2620 4.6 1/2 3/8 1109 478 649 89 39
JEHBCU-0300-M-1
LRMRS0300AXV1 3.1 2620 4.6 5/8 3/8 1109 478 649 89 40
JEHBCU-0300-M-3
LRMRS0300AXY1 3.1 2620 4.6 5/8 3/8 1109 478 649 89 40
JEHBCU-0400-M-3
LRMRS0400AXY1 4.7 6050 7.6 7/8 1/2 1335 529 884 120 40
JEHBCU-0500-M-3
LRMRS0500AXY1 4.7 6050 7.6 7/8 1/2 1335 529 884 120 42
JEHBCU-0600-M-3
LRMRS0600AXY1 7.6 5180 7.6 7/8 1/2 1335 529 884 126 45
JEHBCU-0675-M-3
LRMRS0675AXY1 7.6 5180 7.6 1 1/8 1/2 1335 529 884 126 45
JEHBCU-0825-M-3
LRMRS0825AXY1 6.9 6770 14 1 1/8 1/2 1258 590 1436 205 43
JEHBCU-1000-M-3
LRMRS1000AXY1 6.9 6770 14 1 1/8 1/2 1258 590 1436 205 43
Weight (kg)
Sound
pressure
dB(A) at
10m***
Model
Condenser
Airflow (m³/h)
Receiver
volume
(Litre)
Connection
Dimensions
Coil Volume
(Litre)
* Refer to condition: Evaporation temperature = -10°C, Outside ambient temperature = 32°C (Medium temperature application, R404A)
** MCC= Maximum Continuous Current
*** Sound Pressure Level measured in an anechoic room at (-10/+32°C) MT conditions. Alternative conditions may produce different results.

T-CU01-NOV17-1
5
3.2 General Low Temperature Application
Electrical Data
MCC**
DRM Codes
DMSS Codes (A)
JEHBCU-0175-L-1
LRLRS0175AXV1 230V/1~/50Hz NTZ48-5VM 8.3 950 5.9 11 37 1 0.6
JEHBCU-0175-L-3
LRLRS0175AXY1 400V/3~/50Hz NTZ48-4VM 8.3 950 2.6 4.8 16 1 0.6
JEHBCU-0225-L-1
LRLRS0225AXV1 230V/1~/50Hz NTZ68-5VM 11.8 950 10.8 17 53 1 0.6
JEHBCU-0225-L-3
LRLRS0225AXY1 400V/3~/50Hz NTZ68-4VM 11.8 950 4.1 8.4 25 1 0.6
JEHBCU-0350-L-3
LRLRS0350AXY1 400V/3~/50Hz NTZ96-4VM 16.7 1800 4.3 10.1 32 1 1.1
JEHBCU-0400-L-3
LRLRS0400AXY1 400V/3~/50Hz NTZ136-4VM 23.7 1800 7.5 14.3 51 1 1.1
JEHBCU-0725-L-3
LRLRS0725AXY1 400V/3~/50Hz NTZ215-4VM 37.4 3900 9.8 22.3 74 2 1.2
JEHBCU-0825-L-3
LRLRS0825AXY1 400V/3~/50Hz NTZ271-4VM 47.1 3900 12.8 27 96 2 1.2
Model
Polyester oil
(175Z)
Type
Swept volume
m³/h
Oil type
(Danfoss)
Oil Charge
(cm³)
Fan Motor
No.
FLC (A)
Polyester oil
(160Z)
Power Input
LRC (A)
Compressor
Operating
Current (A)*
DRM Codes
DMSS Codes Suction
(inch) Liquid (inch) Width (mm)
Depth
(mm)
Height
(mm)
JEHBCU-0175-L-1
LRLRS0175AXV1 1.5 3040 4.6 5/8 3/8 1109 478 649 86 38
JEHBCU-0175-L-3
LRLRS0175AXY1 1.5 3040 4.6 5/8 3/8 1109 478 649 86 38
JEHBCU-0225-L-1
LRLRS0225AXV1 3.1 2620 4.6 5/8 3/8 1109 478 649 92 39
JEHBCU-0225-L-3
LRLRS0225AXY1 3.1 2620 4.6 5/8 3/8 1109 478 649 92 39
JEHBCU-0350-L-3
LRLRS0350AXY1 5 6050 7.6 7/8 1/2 1335 529 884 125 42
JEHBCU-0400-L-3
LRLRS0400AXY1 5 6050 7.6 1 1/8 1/2 1335 529 884 125 42
JEHBCU-0725-L-3
LRLRS0725AXY1 6.9 6770 14 1 1/8 1/2 1258 590 1436 203 43
JEHBCU-0825-L-3
LRLRS0825AXY1 6.9 6770 14 1 1/8 1/2 1258 590 1436 203 43
Sound
pressure
dB(A) at
10m***
Condenser
Airflow (m³/h)
Receiver volume
(Litre)
Connection
Dimensions
Weight
(kg)
Model
Coil Volume
(Litre)
* Refer to condition: Evaporation temperature = -25°C, Outside ambient temperature = 32°C (Low temperature application, R404A)
** MCC= Maximum Continuous Current
*** Sound Pressure Level measured in an anechoic room at (-25/+32°C) LT conditions. Alternative conditions may produce different results.
Note: (1) Additional 500ml oil for condensing unit LRLRS00175~0225AXY1/V1 with oil separator.
(2) Additional 600ml oil for condensing unit LRLRS0350~0825AXY1/V1 with oil separator.

T-CU01-NOV17-1
6

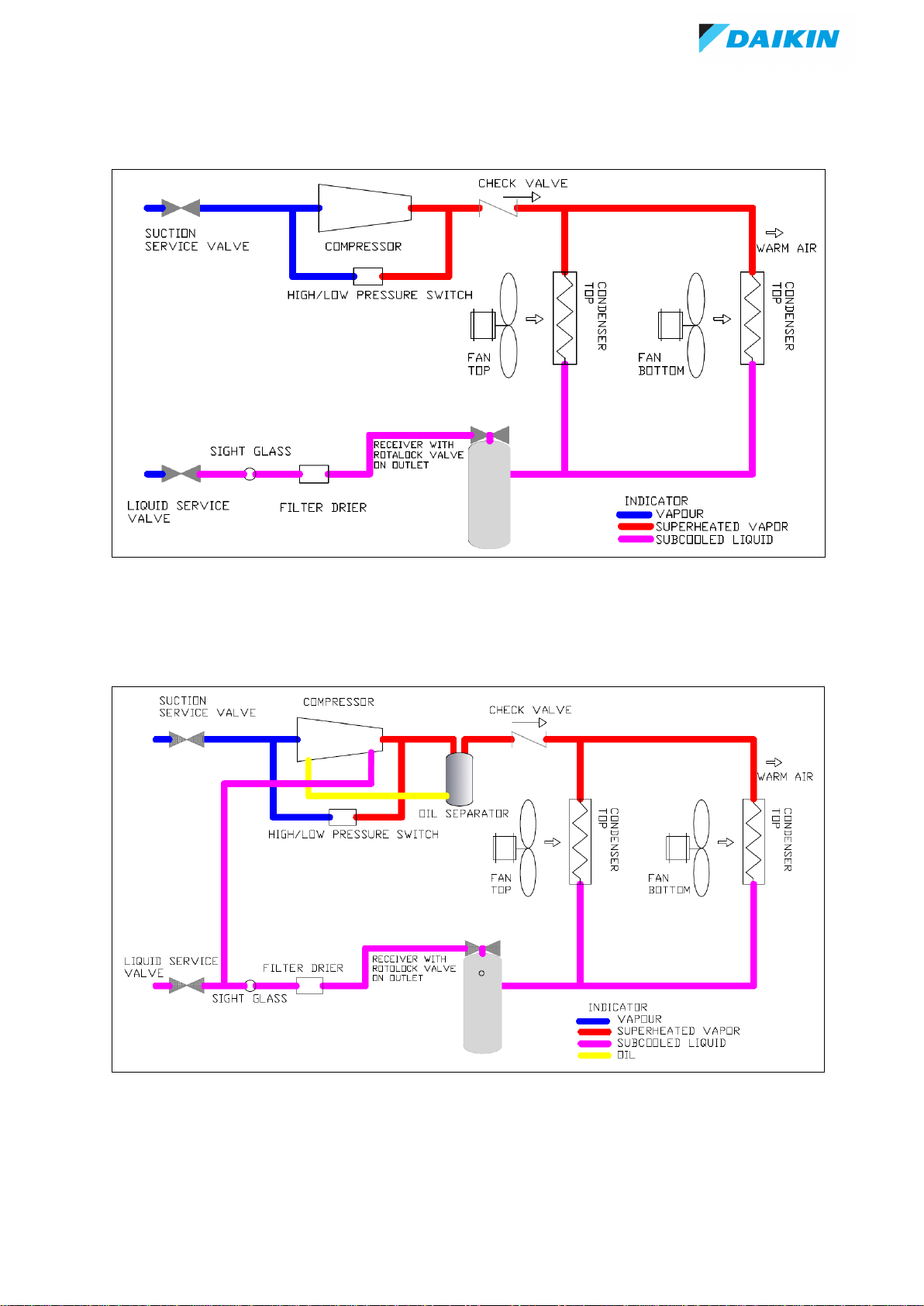

4. Product System Cycle
Series 2 MT : JEHBCU0150~JEHBCU0300
LRMRS0150~ LRMRS0300
Series 2 LT : JEHBCU0175~JEHBCU0225
LRLRS0175~ LRLRS0225

T-CU01-NOV17-1
7
Series 3 MT : JEHBCU0400~JEHBCU0675
LRMRS0400~ LRMRS0675
Series 3 LT : JEHBCU0350~JEHBCU0400
LRLRS0350~ LRLRS0400

T-CU01-NOV17-1
8
Series 4 MT : JEHBCU0825~JEHBCU1000
LRMRS0825~ LRMRS1000
Series 4 LT : JEHBCU0725~JEHBCU825
LRLRS0725~ LRLRS0825

T-CU01-NOV17-1
9

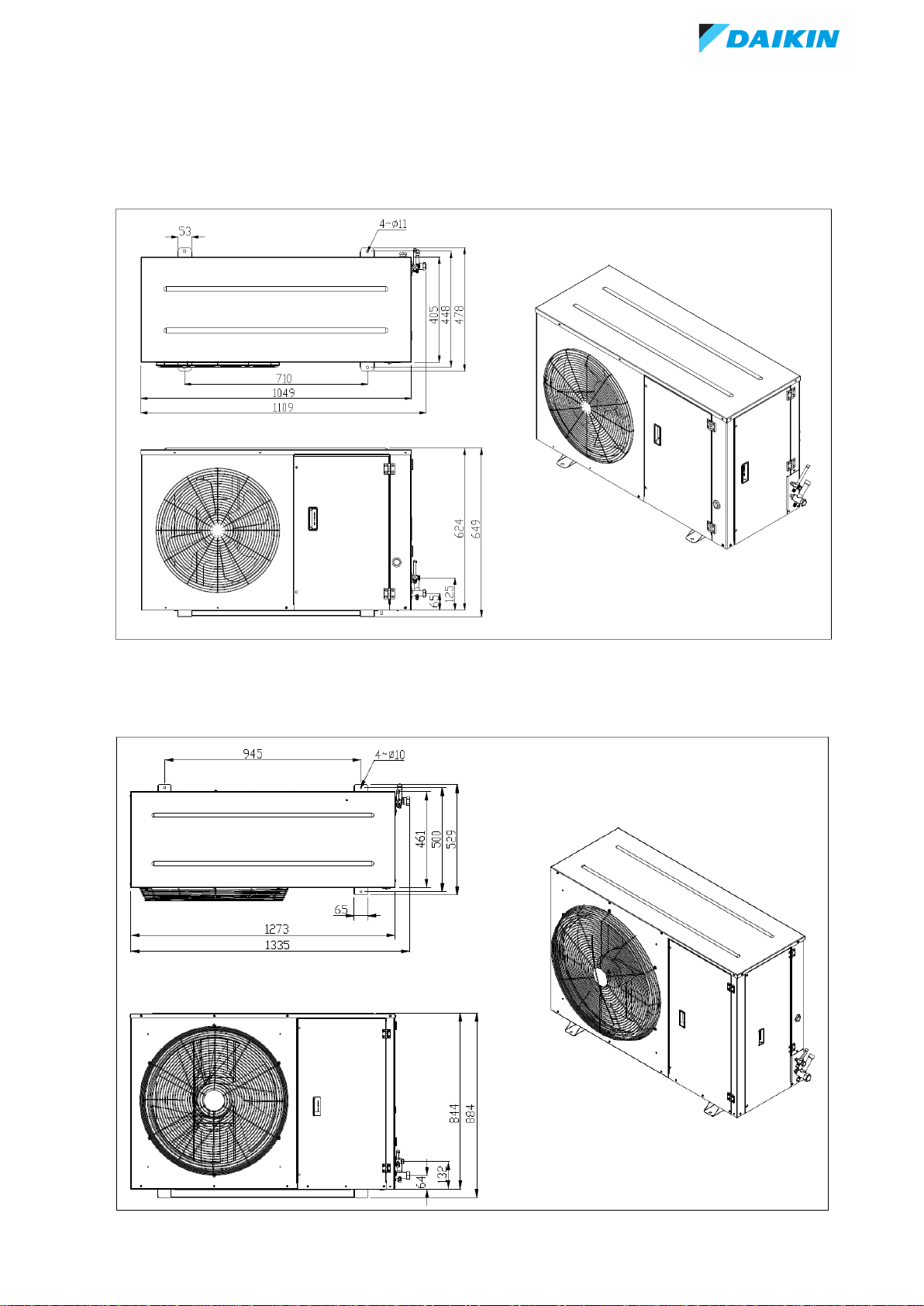

5. Outline Drawings
Series 2: JEHBCU0150~JEHBCU0300;
LRMRS0150~ LRMRS0300; LRLRS0175~ LRLRS0225
Series 3: JEHBCU0350~JEHBCU0675
LRMRS0400~ LRMRS0675; LRLRS0350~ LRLRS0400

T-CU01-NOV17-1
10

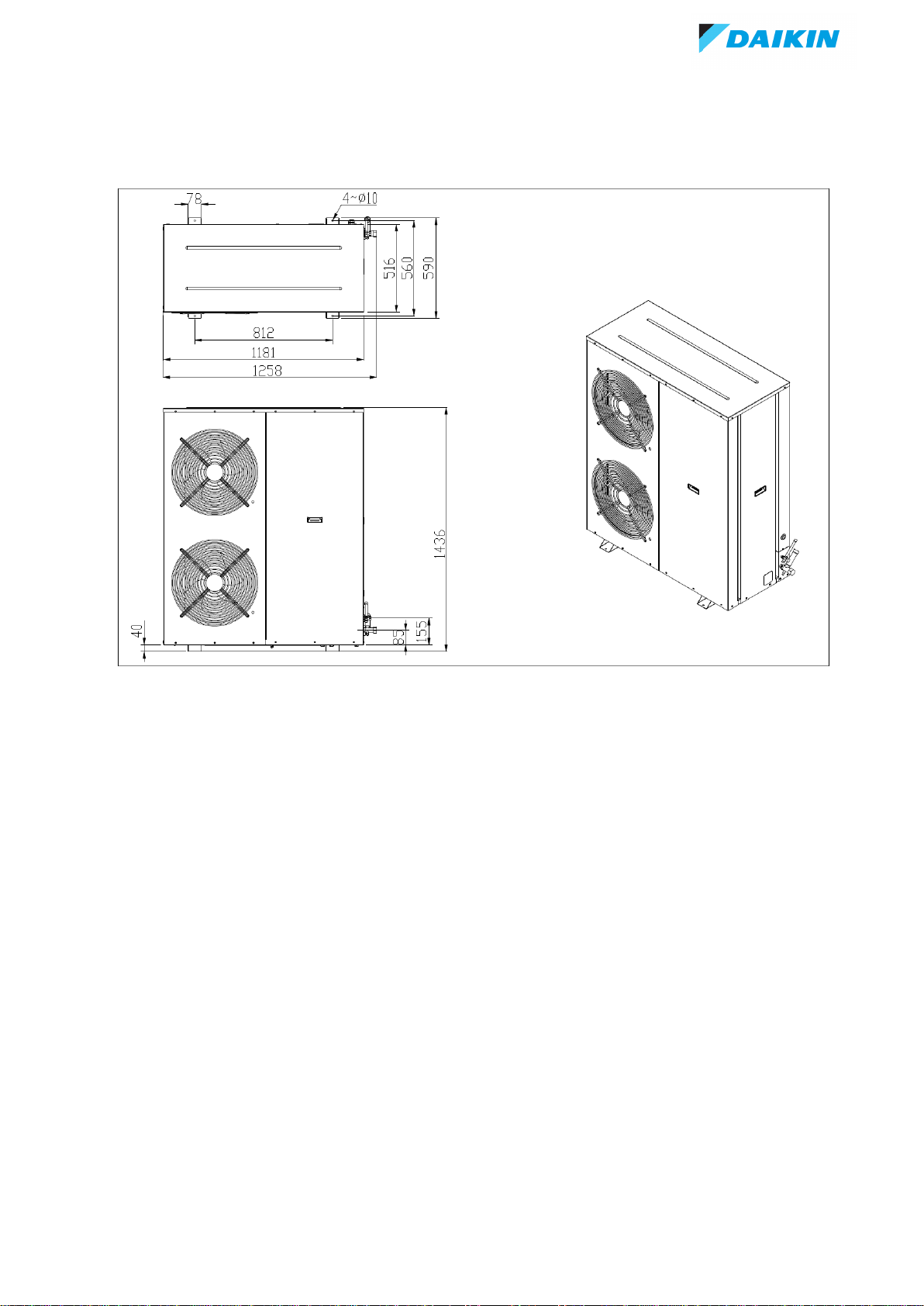

Series 4: JEHBCU0725~JEHBCU1000
LRMRS0825~ LRMRS1000; LRLRS0725~ LRLRS0825

T-CU01-NOV17-1
11
6. Performance Data
R404A Medium Temperature (Rating Condition: Superheat 10K, Sub cooling 0K)
TE
DRM Codes DMSS Codes TA
JEHBCU0150M1 LRMRS0150AXV1 CC (W) 1033 1438 1914 2459 3073 3758 4513
JEHBCU0150M3 LRMRS0150AXY1 PC (W) 945 1040 1137 1237 1339 1444 1550
CC (W) 900 1269 1708 2217 2796 3444 4163
PC (W) 959 1063 1169 1276 1385 1495 1607
CC (W) 730 1061 1457 1917 2441 3030 3684
PC (W) 973 1084 1197 1313 1431 1552 1675
JEHBCU0225M1 LRMRS0225AXV1 CC (W) 1851 2517 3258 4074 4967 5933 6976
JEHBCU0225M3 LRMRS0225AXY1 PC (W) 1394 1597 1799 1999 2198 2395 2395
CC (W) 1603 2230 2933 3710 4563 5491 6495
PC (W) 1409 1621 1831 2041 2249 2457 2663
CC (W) 1390 1963 2602 3303 4071 4902 5799
PC (W) 1418 1637 1859 2081 2306 2531 2758
JEHBCU0300M1 LRMRS0300AXV1 CC (W) 2479 3264 4161 5172 6295 7531 8881
JEHBCU0300M3 LRMRS0300AXY1 PC (W) 1936 2193 2460 2737 3024 3321 3627
CC (W) 2279 3026 3882 4844 5915 7092 8377
PC (W) 1957 2213 2484 2770 3071 3387 3718
CC (W) 2009 2737 3563 4484 5503 6618 7830
PC (W) 2015 2262 2530 2817 3125 3452 3800
JEHBCU0400M3 LRMRS0400AXY1 CC (W) 3491 4693 6095 7696 9495 11494 13691
PC (W) 2616 2927 3240 3555 3872 4191 4512
CC (W) 3118 4218 5518 7017 8714 10610 12705
PC (W) 2686 3004 3327 3655 3988 4326 4669
CC (W) 2668 3665 4840 6191 7721 9427 11311
PC (W) 2731 3064 3407 3760 4123 4496 4879
JEHBCU0500M3 LRMRS0500AXY1 CC (W) 4607 5973 7559 9365 11393 13640 16108
PC (W) 3149 3610 4076 4547 5023 5504 5989
CC (W) 4152 5421 6912 8623 10554 12705 15078
PC (W) 3265 3722 4189 4666 5153 5650 6157
CC (W) 3598 4801 6181 7739 9474 11386 13476
PC (W) 3309 3786 4278 4785 5307 5844 6396
JEHBCU0600M3 LRMRS0600AXY1 CC (W) 4949 6532 8325 10326 12539 14960 17591
PC (W) 3517 4001 4505 5029 5573 6137 6721
CC (W) 4495 5986 7676 9564 11652 13938 16424
PC (W) 3608 4093 4604 5139 5700 6285 6896
CC (W) 3908 5314 6877 8595 10469 12499 14686
PC (W) 3680 4173 4701 5264 5862 6495 7162
JEHBCU0675M3 LRMRS0675AXY1 CC (W) 5503 7263 9212 11348 13673 16185 18887
PC (W) 3840 4447 5065 5692 6330 6977 7635
CC (W) 4937 6626 8476 10488 12660 14994 17489
PC (W) 3911 4548 5190 5837 6489 7146 7808
CC (W) 4365 5962 7688 9544 11528 13642 15884
PC (W) 4047 4666 5310 5979 6673 7392 8136
JEHBCU0825M3 LRMRS0825AXY1
8.25 27 CC (W) 5961 8027 10320 12838 15582 18551 21747
PC (W) 4916 5601 6282 6959 7632 8301 8965
32 CC (W) 5356 7327 9488 11836 14373 17097 20010
PC (W) 5013 5696 6389 7092 7805 8528 9260
38 CC (W) 4675 6496 8485 10639 12961 15449 18104
PC (W) 5148 5817 6511 7230 7974 8743 9537
JEHBCU1000M3 LRMRS1000AXY1
10 27 CC (W) 8287 10547 13001 15648 18489 21523 24751
PC (W) 6158 7000 7893 8835 9828 10870 11963
32 CC (W) 7451 9697 12060 14543 17143 19862 22699
PC (W) 6286 7127 8029 8990 10012 11093 12235
38 CC (W) 6617 8678 10865 13174 15608 18164 -
PC (W) 6424 7281 8198 9175 10212 11309 -
MODEL
HP
MEDIUM TEMPERATURE
Series 2
1.5
27
32
38
2.25
27
32
6
27
32
38
38
3
27
32
38
6.75
27
32
38
Series 4
Series 3
5
27
32
38
4
27
32
38
5
-25
-20
-15
-10
-5
0
TE: Evaporating Temperature (ºC) CC: Cooling Capacity (W), 10%
TA: Ambient Temperature (ºC) PC: Power consumption (W), 10%

T-CU01-NOV17-1
12
R404A Low temperature (Rating Condition: Superheat 10K, Sub cooling 0K)
TE
DRM Codes DMSS Codes TA
JEHBCU0175L1 LRLRS0175AXV1 CC (W) 793 1130 1499 1900 2333
JEHBCU0175L3 LRLRS0175AXY1 PC (W) 720 937 1164 1401 1648
CC (W) 691 1018 1373 1753 2162
PC (W) 756 971 1196 1431 1676
CC (W) 529 860 1217 1602 2012
PC (W) 793 995 1212 1444 1691
JEHBCU0225L1 LRLRS0225AXV1 CC (W) 1347 1847 2389 2975 3602
JEHBCU0225L3 LRLRS0225AXY1 PC (W) 1348 1579 1840 2131 2452
CC (W) 1224 1685 2197 2765 3385
PC (W) 1443 1667 1922 2206 2521
CC (W) 1093 1516 2008 2570 3202
PC (W) 1449 1689 1955 2245 2561
JEHBCU0350L3 LRLRS0350AXY1 CC (W) 1619 2302 3119 4070 5156
PC (W) 1621 1953 2296 2648 3011
CC (W) 1346 1983 2760 3677 4732
PC (W) 1687 2021 2365 2719 3083
CC (W) 1161 1723 2442 3316 4347
PC (W) 1779 2101 2438 2790 3157
JEHBCU0400L3 LRLRS0400AXY1 CC (W) 2531 3440 4477 5645 6940
PC (W) 2554 3047 3574 4137 4734
CC (W) 2172 3036 4039 5183 6465
PC (W) 2567 3065 3603 4181 4799
CC (W) 1880 2682 3651 4786 6088
PC (W) 2578 3079 3625 4216 4852
JEHBCU0725L3 LRLRS0725AXY1 CC (W) 3746 5071 6513 8074 9753
PC (W) 3454 4220 5066 5992 6998
CC (W) 3300 4563 5965 7508 9189
PC (W) 3497 4272 5126 6061 7075
CC (W) 2755 3995 5390 6941 8648
PC (W) 3551 4318 5169 6106 7127
JEHBCU0825L3 LRLRS0825AXY1 CC (W) 5174 6954 8878 10949 13163
PC (W) 4796 5726 6755 7885 9114
CC (W) 4597 6254 8078 10068 12225
PC (W) 4868 5805 6846 7993 9244
CC (W) 3991 5494 7196 9097 11196
PC (W) 4931 5877 6932 8098 9373
MODEL
-25
HP
-40
-35
-30
LOW TEMPERATURE
Series 2
1.75
27
32
38
2.25
27
32
27
32
38
4
27
32
38
-20
Series 4
7.25
27
32
38
8.25
27
32
38
38
Series 3
3.5
TE: Evaporating Temperature (ºC) CC: Cooling Capacity (W), 10%
TA: Ambient Temperature (ºC) PC: Power consumption (W), 10%

T-CU01-NOV17-1
13
R134a (Rating Condition: Superheat 10K, Sub cooling 0K)
TE
DRM Codes DMSS Codes TA
JEHBCU0150M1 LRMRS0150AXV1 CC (W) 918 1347 1826 2355 2934 3563 4242
JEHBCU0150M3 LRMRS0150AXY1 PC (W) 701 751 801 853 905 959 1013
CC (W) 842 1229 1671 2168 2720 3327 3989
PC (W) 721 775 831 889 949 1011 1075
CC (W) 761 1091 1481 1931 2441 3011 3641
PC (W) 738 800 864 932 1002 1076 1152
JEHBCU0225M1 LRMRS0225AXV1 CC (W) 1547 2128 2823 3634 4559 5600 6755
JEHBCU0225M3 LRMRS0225AXY1 PC (W) 949 1053 1163 1280 1403 1533 1670
CC (W) 1436 1958 2595 3347 4214 5196 6293
PC (W) 973 1082 1197 1320 1449 1586 1730
CC (W) 1310 1763 2330 3013 3810 4723 5750
PC (W) 1002 1113 1234 1365 1506 1657 1818
JEHBCU0300M1 LRMRS0300AXV1 CC (W) 2426 3160 3998 4942 5990 7144 8402
JEHBCU0300M3 LRMRS0300AXY1 PC (W) 1313 1456 1609 1772 1945 2128 2321
CC (W) 2279 2948 3721 4600 5583 6672 7865
PC (W) 1353 1510 1677 1854 2041 2238 2445
CC (W) 1941 2584 3332 4185 5143 6206 7374
PC (W) 1396 1570 1754 1948 2152 2366 2590
JEHBCU0400M3 LRMRS0400AXY1 CC (W) 3198 4306 5624 7152 8890 10838 12996
PC (W) 1825 1991 2157 2324 2489 2655 2821
CC (W) 2917 3925 5143 6571 8209 10057 12115
PC (W) 1853 2044 2234 2424 2613 2802 2990
CC (W) 2593 3482 4582 5891 7411 9140 11080
PC (W) 1877 2097 2317 2535 2753 2969 3185
JEHBCU0500M3 LRMRS0500AXY1 CC (W) 3930 5271 6833 8614 10616 12837 15279
PC (W) 2196 2426 2672 2932 3208 3498 3804
CC (W) 3593 4823 6273 7943 9833 11943 14273
PC (W) 2200 2473 2756 3049 3352 3665 3988
CC (W) 3195 4295 5614 7154 8913 10893 13092
PC (W) 2222 2531 2850 3179 3518 3867 4226
JEHBCU0600M3 LRMRS0600AXY1 CC (W) 4594 6092 7814 9762 11934 14332 16954
PC (W) 2398 2658 2947 3267 3616 3996 4405
CC (W) 4309 5680 7272 9083 11115 13366 15838
PC (W) 2413 2717 3046 3400 3779 4183 4612
CC (W) 3811 5052 6507 8178 10063 12164 14479
PC (W) 2429 2765 3126 3512 3923 4359 4820
JEHBCU0675M3 LRMRS0675AXY1 CC (W) 5027 6653 8519 10625 12971 15557 18383
PC (W) 2604 2878 3188 3532 3912 4326 4776
CC (W) 4667 6153 7879 9845 12051 14497 17183
PC (W) 2634 2945 3292 3673 4090 4541 5028
CC (W) 4355 5676 7242 9053 11109 13410 15956
PC (W) 2675 3030 3421 3846 4307 4802 5333
JEHBCU0825M3 LRMRS0825AXY1 CC (W) 5800 7728 9922 12380 15104 18092 21346
PC (W) 3188 3549 3929 4330 4750 5191 5651
CC (W) 5322 7083 9110 11401 13958 16779 19866
PC (W) 3261 3662 4083 4524 4985 5466 5967
CC (W) 4796 6349 8172 10265 12628 15261 18164
PC (W) 3313 3775 4252 4744 5251 5773 6310
JEHBCU1000M3 LRMRS1000AXY1 CC (W) 7256 9494 11993 14751 17770 21048 24587
PC (W) 3647 4152 4687 5252 5847 6472 7127
CC (W) 6615 8667 10980 13552 16385 19477 22830
PC (W) 3686 4237 4818 5429 6070 6741 7442
CC (W) 5875 7701 9792 12148 14769 17655 20806
PC (W) 3685 4304 4947 5616 6309 7028 7771
Series 4
8.25
27
32
38
10
27
32
38
27
32
38
6.75
27
32
38
Series 3
4
27
32
38
5
27
32
38
6
2.25
27
32
38
3
27
32
38
0
5
10
15
MEDIUM TEMPERATURE
Series 2
1.5
27
32
38
HP
-15
-10
-5
MODEL
TE: Evaporating Temperature (ºC) CC: Cooling Capacity (W), 10%
TA: Ambient Temperature (ºC) PC: Power consumption (W), 10%

T-CU01-NOV17-1
14
7. Wiring Diagram
Series 2 MT (230V/1ph/50Hz)
JEHBCU0150M1, JEHBCU0225M1, JEHBCU0300M1
LRMRS0150AXV1, LRMRS0225AXV1, LRMRS0300AXV1
Series 2 MT (400V/3ph/50Hz)
JEHBCU0150M3, JEHBCU0225M3, JEHBCU0300M3
LRMRS0150AXY1, LRMRS0225AXY1, LRMRS0300AXY1
Important Note: All wiring and connections to the condensing unit must be made in
accordance to the local codes.

T-CU01-NOV17-1
15
Series 2 LT (230V/1ph/50Hz)
JEHBCU0175L1
LRLRS0175AXV1
JEHBCU0225L1
LRLRS0225AXV1

T-CU01-NOV17-1
16
Series 2 LT (400V/3ph/50Hz)
JEHBCU0175L3, JEHBCU0225L3
LRLRS0175AXY1, LRLRS0225AXY1

T-CU01-NOV17-1
17
Series 3 MT (400V/3ph/50Hz)
JEHBCU0400M3, JEHBCU0500M3, JEHBCU0600M3, JEHBCU0675M3
LRMRS0400AXY1, LRMRS0500AXY1, LRMRS0600AXY1, LRMRS0675AXY1
Series 3 LT (400V/3ph/50Hz)
JEHBCU0350L3, JEHBCU0400L3
LRLRS0350AXY1, LRLRS0400AXY1

T-CU01-NOV17-1
18
Series 4 MT (400V/3ph/50Hz)
JEHBCU0825M3, JEHBCU1000M3
LRMRS0825AXY1, LRMRS1000AXY1
Series 4 LT (400V/3ph/50Hz)
JEHBCU0725L3, JEHBCU0825L3
LRLRS0725AXY1, LRLRS0825AXY1

T-CU01-NOV17-1
19
8. Safety and Health
General Information
Before Installation
•Ensure the units received are the correct models for the intended application.
•Ensure the refrigerant, voltage and MWP are all suitable for the proposed application.
•Check there is no damage to the units. Any damage should be advised to the supplier immediately.
•Check that the proposed equipment locations are suitable and provide adequate support for the
weight of the units.
During Installation and subsequent maintenance
•Installation and maintenance are to be performed only by qualified personnel who are familiar with
local codes and regulations, and experienced with this type of equipment.
•The condensing unit is delivered with a protective nitrogen holding charge.
•If lifting equipment is required, ensure that it is suitable for purpose, certificated and that the
operatives are qualified to use it.
•Safe working methods are identified and operatives have suitable Personal Protective Equipment
(PPE).
•Ensure the working area has adequate ventilation during brazing procedures.
•The units contain moving machinery and electrical power hazards, which may cause severe injury
or death. Disconnect and shut off power before installation or service of the equipment.
•Refrigerant release into the atmosphere is illegal. Proper evacuation, recovery, handling and leak
testing procedures must be observed at all times.
•Units must be earthed and no maintenance work should be attempted prior to disconnecting the
electrical supply.
•The electrical covers and fan guards must remain fitted at all times.
•Use of the units outside of the design conditions and the application for which the units were
intended may be unsafe and be detrimental to the units, regardless of short or long term operation.
•The condensing units are not designed to withstand loads or stresses from other equipment or
personnel. Such extraneous loads or stress may cause failure/leak/injury.
•In some circumstances, a suction accumulator (not supplied) may be required. It offers protection
against refrigerant flood back during operation and also against off-cycle migration by adding
internal free volume to the low side of the system.
•Tests must be conducted to ensure the amount of off-cycle migration to the compressor does not
exceed the compressor’s charge limit.
•Wherever possible the system should be installed to utilize a pump down configuration.
•After installation, the system should be allowed to run for 3 –4 hours. Additional oil should be
added as necessary depending on length of pipe run. It should then be rechecked after 24 hours
once the system has stabilized. For details of the oil requirements, please refer to page 28 in the
service and maintenance section.
Important Note
Only qualified specialists could carry out the installation, maintenance and
commissioning of the system. To avoid potential injury, use care when working
around coil surfaces or sharp edges of metal cabinets. All piping and electrical
wiring should be installed in accordance with all applicable codes, ordinances and
local by-laws.

T-CU01-NOV17-1
20
9. Installation & Commissioning
9.1 Unit site location
•In order to achieve maximum cooling capacity, the installation location for the condensing unit should be
carefully selected.
•Install the condensing unit in such a way so that hot air ejected by the condensing unit cannot be drawn in
again (short circuit of hot discharge air). Allow sufficient space for maintenance around the unit.
•Ensure that there is no obstruction to air flow into or out of the unit. Remove obstacles which block air intake
or discharge.
•The location must be well ventilated, so the unit can draw in and distribute plenty of air thus lowering the
condensing temperature.
•To optimize the unit running conditions, the condenser coil must be cleaned at regular intervals.
•The unit must be level in all directions.
✓
✓
X
X
