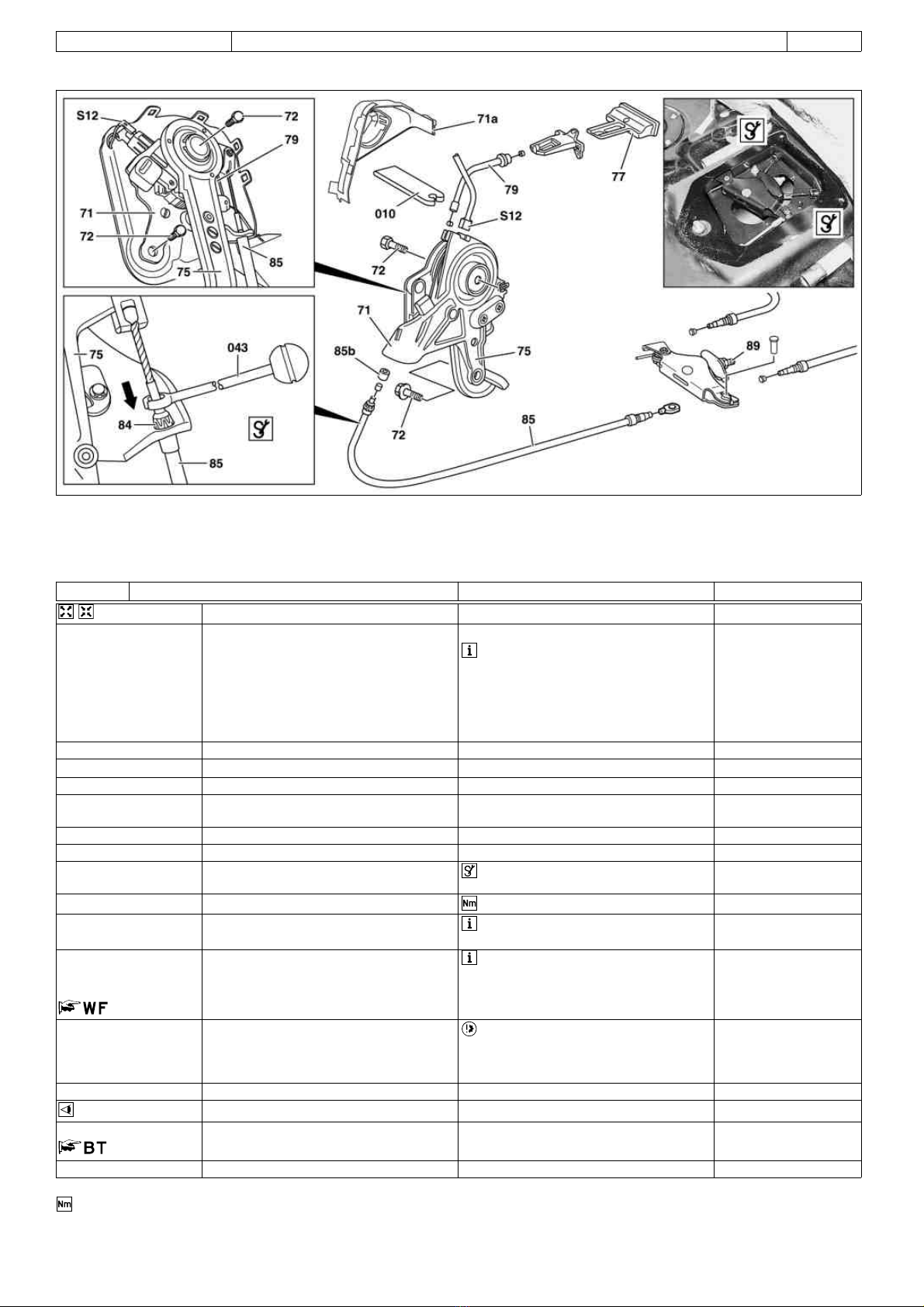

AR42.20-P-0510P Remove/install parking brake pedal assembly 27.6.07
MODEL 203, 209
P42.20-2062-09
Shown on pedal assembly, model 203
Modification notes
11.12.02 Check version of pedal assembly, added Step 11 BT42.20-P-0510-01A
Remove/install
1.1 Remove rear seat cushion Vehicles without code P98 Black Series
Fold rear seat cushion forwards.
Model 203.0/ 2/ 7, 209.3 with code 287 AR91.12-P-1020P
Through-loading feature
Model 203.0/ 7 without code 287 Through- AR91.12-P-1020PC
loading feature
Model 209.4 AR91.12-P-1020QA
1.2 Remove battery Vehicles with code P98 Black Series AR54.10-P-0005P
2.1 Remove cover panel under rear seat cushion Vehicles without code P98 Black Series
2.2 Remove cover panel under battery Vehicles with code P98 Black Series
3 Loosen adjusting nut (89) on cable slack
adjuster
4 Remove cover below instrument panel AR68.10-P-1500P
5 Remove cover (71a) of pedal assembly (71)
6 Unhook brake cable (85) from tensioning *129589116300
shackle on parking brake pedal (75)
7 Detach pedal assembly (71) *BA42.20-P-1001-01A
8 Detach plug from parking brake indicator To do this, raise the pedal assembly (71)
switch (S12) slightly.
9 Unhook release cable (79) from pedal On pedal assembly (71) with friction
assembly (71) brake: Unhook the release cable (79) from
the pedal assembly (71) using the tool (010).
Tool for parking brake cable release WF58.50-P-4220-01A
10 Remove pedal assembly (71) Do not loosen torx bolts on the back of
the pedal assembly (71). Otherwise the
pedal assembly (71) will be irreparably
damaged.
11 Install in the reverse order
Checking
12 Check version of pedal assembly (71)
Parking brake pedal assembly (71) modified BT42.20-P-0510-01A
13 Adjust parking brake AR42.20-P-0540A
Parking brake
