Dakota Micro, Inc. 9” AHD Quad Monitor
Part Number(s):
DM-H9Q / DMAC-H9QC2 / DMEC-H9QC2
*Kit shown without all components included in double camera kit
Reliable
Profitable
Capable
Table of Contents
I. Included Monitor & Camera Kit Components 2
II. Standard Features 3
A. Cameras
B. Monitors
C. Cables
III. Parts of an AgCam /EnduraCam 3-4
A. Camera
IV. Camera Mounting 4
A. Temporary Mounting
B. Permanent Mounting
C. Suggestions for Camera Mounting
V. Camera Warnings 4
VI. Cable Routing Tips & Warnings 4-5
VII. Monitor Installation & Mounting 5
A. Mounting Precautions
B. Universal Bracket Mounting
C. Finalizing Universal Bracket Installation
VIII. Installation 5
A. Monitor Wire Harness Details
IX. Power 6
A. Supplying Power with 12v Power Adaptor
B. Hardwire Power Adaptor
C. Fuses
X. Event Trigger Wire Operations 6
A. Event Trigger Wire Color Guide
B. Event Trigger Wires Explained
XI. Monitor, Quad, & Remote Operation 6-7
A. Quad Monitor Operations - Front
B. Remote Operations
XII. Standard Monitor Menu Settings 8-9
A. Standard Monitor Menu Settings Navigation
XIII. Specifications 10
A. Camera
B. LCD Monitor
C. Quad Processor
XIV. Warnings 11
XV. Product Warranty/Repair Process 12
XVI. Consumer Limited Warranty 12
XVII. Disclaimer 12
XVIII. Contact Us 12
MORE

Dakota Micro, Inc. DM-H9Q User Manual
Rev: 10/03/18 Page 1 of 12 Author: CNR
Always read the manual prior to operating this equipment. Also, please follow all safety signs and precautions.
See the Dakota Micro, Inc. website for installation training videos at www.dakotamicro.com.
I. INCLUDED MONITOR KIT COMPONENTS INCLUDED CAMERA KIT COMPONENETS
(PER PN: DM-H9Q) (PER PN: AGCAM - DMAC-CK1 ENDURACAM DMEC-CK1)
Thank you for purchasing equipment from Dakota Micro, Inc.
The AgCam® and EnduraCam® camera lines are a durable, reliable surveillance system with the innovative ability to be quickly
moved from one application to the next.
Description
Description
Dakota Micro, Inc.
9” AHD Quad
Monitor
AgCam®/EnduraCam®
AHD Camera
Monitor
Wire Harness
PN: DM-H9QMWH
Camera Bracket with
Magnetic Base
PN: DMAC-CBM
Monitor Remote
PN: DM-H9QRMT
(styles vary by kit &
battery is included)
Camera component
bag: Allen wrench,
(x2) nylon washers,
(x2) retaining screws
& camera pigtail*
PN: DMAC-CT
A/C Power Wall Plug
PN: DMAC-PA3
(styles vary by kit)
60’ Power/Video
Extension Cable
PN: DMAC-EC60
Monitor U-bracket
with 4 Wing Bolts
PN: DMAC-9M Bracket
20’ Power/Video
Extension Cable
PN: DMAC-EC20
Monitor Sun Shield
12v Cigarette Lighter
Power Adaptor
PN: DMAC-12v
(styles vary by kit)

Dakota Micro, Inc. DM-H9Q User Manual
Rev: 10/03/18 Page 2 of 12 Author: CNR
Training videos are available on the Dakota Micro website at: www.dakotamicro.com.
II. STANDARD FEATURES
A. Cameras
True HD Resolution (720P)
Made in the USA
3 Year Warranty
3 way programmability –Video System (NTSC or PAL), Video Output Type (AHD or Analog) and Mirroring
16:9 aspect ratio so image doesn’t need to be “stretched” to match monitors
Improved color and clarity over standard analog video cameras
Increased ability to interpret shadowed areas, allowing for a larger viewing area
IP69 Anodized Aluminum camera body - Waterproof, shockproof, and suitable for nearly any use.
Built-in, high quality CCD camera with high performance IR’s
IR has effective range of 75’+ in complete darkness, resists blooming and back reflection
Our exclusive camera body lens darkens in bright conditions and becomes completely transparent under low light
conditions. This lens is also transparent of infrared light, allowing the LED’s to penetrate even when it is darkened
Solid billeted aluminum camera body featured Dakota Micro’s proprietary triple o-ring seal making the 100%
waterproof even under direct high pressure spray and underwater use
Triple hardened glass lens resists scratching, scuffing and static buildup
Anodized camera body resists corrosion even in the harshest environments
Standard lens features a fixed 3.6mm with a 96° horizontal field
Optional lenses available for a narrower viewing angle, giving the option to view subjects further away, 6mm lens
55°, 12mm lens offers a 26° horizontal field of view, while a 16mm lens offers a 20° field of view
Removable/replaceable camera tail for easy replacement
B. Monitors
Feature the latest in Analog HD technology
View 1, 2, 3 or 4 cameras at the same time
LED backlit
View both NTSC and PAL cameras
Advanced LCD technology allows you to clearly see your image from any angle
Mirror the view of any of your cameras for use as a backup camera
2 Year Warranty
16:9 aspect ratio
4 Camera Inputs
Available in 7in or 9in size
Event triggers for each camera allow for triggered events to bring your camera to full view (IE: putting the vehicle in
reverse)
Color, brightness, contrast and volume controls that allow compensation for use in different environments
Remote control, sun shield, and metal U-bracket monitor stand included
C. Cables
Made in the USA
Silicone jacketing resists heat, cold, compression & crimping
Gold plated, corrosion resistant pins
Watertight connections
¼ twist lock keeps cables securely locked together
Our durable power/video extension cables come in 10ft, 20ft, 30ft, 40ft, 50ft, 60ft & 80ft lengths and feature
sturdy, watertight connectors
1 Year Warranty
IMPORTANT INFORMATION REGARDING ANALOG AND AHD EQUIPMENT

Dakota Micro, Inc. DM-H9Q User Manual
Rev: 10/03/18 Page 3 of 12 Author: CNR
Over the course of 2018, all Dakota Micro monitors will be transitioned to AHD (Analog High Definition). Both Legacy
(Analog) AgCam and EnduraCam cameras and AHD AgCam and EnduraCam cameras will function perfectly on the new
Dakota Micro AHD Monitors.
After the introduction of the complete line of AHD Monitors, Dakota Micro will no longer offer Analog monitors.
Utilizing the DM-H9Q monitor, customer cannot “mix and match” analog and AHD cameras.
All Analog Dakota Micro wireless and Quad (screen splitting) equipment will not work with AHD Monitors. AHD Versions
coming soon.
III. PARTS OF AN AGCAM / ENDURACAM
IV. CAMERA MOUNTING
After camera is securely mounted, plug the camera pigtail into rear of AgCam® / EnduraCam camera. You can now plug the
remaining end of the pigtail into your power/video extension cable. Make sure the extension cables are securely attached
and locked (¼ turn will lock the cables together).
A. Temporary Mounting
oFor temporary mounting, it is recommended that you use the supplied 65# pull magnet. If using magnetic
mount, fasten camera cable with a zip tie or other style fastener. This will act as a “safety wire” in the event your
camera is knocked loose for some reason. When selecting a location, make sure that the equipment surface is
clean of all foreign material and as flat as possible to ensure that the magnetic camera base will have good
contact and not vibrate off. The thicker the metal base, the more securely your magnet will hold.
B. Permanent Mounting
oFor permanent mounting, it is recommended that you remove the magnet and attach the camera bracket to any
solid surface with two (2) screws.
C. Suggestions for Camera Mounting
oWhen determining the location for the camera, it is always best to use a solid surface to minimize vibration.
oImportant- Ladders are not good mounting choices due to lack of stability.
oIf you will be using your AgCam® for assisting in visibility for towing, you will want to position the camera so you
can see the desired area and a portion of the vehicle/trailer in tow; this will give you some reference to distance.
V. CAMERA WARNINGS
A. NEVER RELY ON YOUR AGCAM® AS A SAFETY FEATURE.
It is up to your discretion to keep your road travel and other operations safe. Your AgCam®/ EnduraCam® will provide
you with information only based on what it sees. Operation of machinery safety guidelines still apply.

Dakota Micro, Inc. DM-H9Q User Manual
Rev: 10/03/18 Page 4 of 12 Author: CNR
VI. CABLE ROUTING TIPS & WARNINGS
There are two (2) lengths of cable that come standard with our AgCam®/ EnduraCam® camera kits: One (1) 20’ and one (1) 60’. If
you would like to purchase different, or additional, cable lengths, please contact your local AgCam® dealer.
A. Cable routing is important; where you choose to run the cables should not interfere with the normal operation of the
machine or any safety equipment.
B. ALWAYS be aware of any “pinch points” or other potential hazards to the cable(s).
C. Secure all cables to vehicle/equipment using cable clips, zip ties or other style fasteners.
D. If you intend to use your AgCam® for short length PTO operated implement, avoid excess cable lengths, if possible.
When you decide on a location, you should fix the camera to a permanent bracket using ¼ inch bolts, and attach any
loose cable securely so there is no chance of entanglement in the PTO or other moving parts.
E. If you use your AgCam®/ EnduraCam® to monitor a combine hopper or other combine operations, take care to
remember that combines have many moving parts. Use extreme care when routing cables, and it is strongly
recommended that you use bolts to secure the camera. While it would be sufficient to use the magnetic base for
monitoring purposes during road travel, it is advised to secure the camera with bolts during operation of the combine.
VII. MONITOR INSTALLATION & MOUNTING
A. Mounting Precautions
Remove your monitor carefully from packaging and inspect all mounting hardware. Mounting location is the most
important part of the monitor installation as it ensures you the maximum visual benefit from your AgCam® system.
With that said, when installing your monitor, ensure to follow these three (3) precautions:
1. The monitor is out of direct sunlight. This will prolong the life of the unit as well as ensure optimum visibility.
2. The monitor does not obstruct view.
3. The monitor does not interfere with the normal operation of equipment.
WARNING:
Dakota Micro, Inc. is not responsible for any damages caused to your monitor, or yourself, due to the improper installation
or use of a suction cup monitor mount, whether it be product sold by DM or product purchased from another source.
B. Universal Bracket Mounting
1. Hold monitors U-bracket in place on monitor.
2. Attach bracket with included wing bolts.
C. Finalizing Universal Bracket Installation
1. With the mount and monitor attached, find and
mark the desired position for the monitor.
2. Remove the monitor from the mount.
3. Attach the monitor to the mount and tighten
the wing nuts.
VIII. INSTALLATION
A. Monitor Wire Harness Details
1. Input to Monitor
2. AV1-4 Event Trigger Wires
(Pg. 6)
3. Power Input
4. RCA-Video Output
5. AV1 - Audio/Video Input
6. AV2 - Audio/Video Input
7. AV3 - Audio/Video Input
8. AV4 - Video Input

Dakota Micro, Inc. DM-H9Q User Manual
Rev: 10/03/18 Page 5 of 12 Author: CNR
IX. POWER
A. Supplying Power with 12v Power Adaptor
1. Attach the power input connector (3 above) to your included 12v cigarette lighter power adaptor.
2. Plug cigarette lighter adaptor into 12v power source.
B. Hardwire Power Adaptor
1. If you would like to hardwire your power supply, please contact your local AgCam® dealer for available
hardwire power adaptors (PN: DMAC-HARDWIRE).
2. Dakota Micro hardwire power adaptors have a maximum circuit capability of 5 amp.
C. Fuses
1. There is a small in-line glass fuse located on the red and black power wire (3 above). When replacing this fuse,
use a MAX 2amp glass fuse.
2. There is a small glass fuse located on the inside tip of the 12v portion of the power adaptor (PN: DMAC-12v).
When replacing this fuse, use a MAX 2amp glass fuse.
X. EVENT TRIGGER WIRE OPERATIONS
A. Event Trigger Wire Color Guide
1. Camera 1 –Green
2. Camera 2 –Purple
3. Camera 3 –Gray
4. Camera 4 –White
B. Event Trigger Wires Explained
Event trigger wires can be attached to any 12v positive event. This will cause the monitor to change to that
camera, regardless of the state of the monitor (i.e. ON/OFF or channel selection). The most recent event will be
the primary display. So, if two (2) video channels (AV1 & AV2) are attached to an event output, the event that
happens last will change the monitor to its respective camera view.
The wires can be attached to any positive output 10.5v to 16.9v switch or supply to cause the monitor to
automatically switch the unit to its respective channel camera. Example: If you were to attach the AV1 wire to a
positive output from an unloading auger on a combine, the monitor would switch from channel 2, 3, or 4 to
channel 1 when the auger is extended. The event circuit should be neutral in its normal state and change to HIGH
(+12v) when the event is considered to be active.

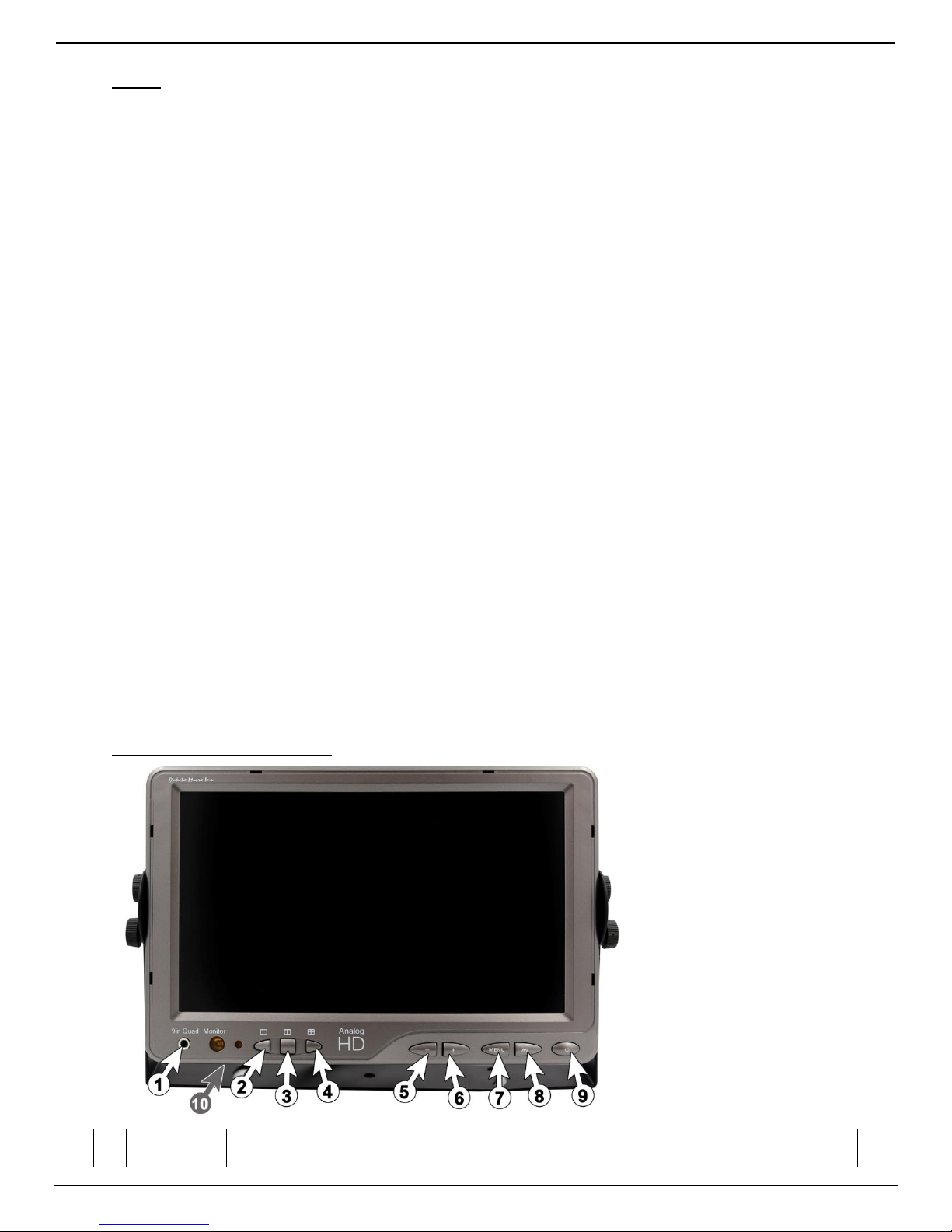

XI. REMOTE & MONITOR OPERATION
XII.
1
Headphone
Jack
Output for audio (disabled)

Dakota Micro, Inc. DM-H9Q User Manual
Rev: 10/03/18 Page 6 of 12 Author: CNR
NOTE: Turn the monitor on only after it has been securely mounted, supplied with power, and the cameras are connected
C. Remote Operations
POWER ON (give it a few seconds) / OFF
Switches between video channels
Displays Menu
Navigation Arrows
Navigation Arrows
Navigation Arrows
Navigation Arrows
Brings Channel 1/Camera 1 Full screen
Brings Channel 1/Camera 1 Full screen
Brings Channel 1/Camera 1 Full screen
Brings Channel 1/Camera 1 Full screen
2
Full Screen
Will show cameras 1/2/3/4 each time pressed.
3
Duplex
Screen
Will show cameras 1/2 and cameras 3/4 each time pressed.
4
Quad Screen
First press will display all four (4) cameras connected. Second press initiates auto. rotation
between Quad screen/cam 1/cam 2/cam 3/cam 4. Duration each camera remains on screen is
able to be changed in AUDIO menu (Auto Sequence Time).
5
- Key
To decrease parameter/Up/Down
6
+ Key
To increase parameter/Up/Down
7
MENU
Enables / Disables Menu
8
AV Key
Will show cameras 1/2/3/4 each time pressed/ In MENU acts as ENTER key & Down arrow
9
POWER
Turns monitor ON/OFF.
Port 10 is located on sides and bottom of monitor
10
Unused Input
Unused

Dakota Micro, Inc. DM-H9Q User Manual
Rev: 10/03/18 Page 7 of 12 Author: CNR
XII. MONITOR MENU SETTINGS
1. Press the MENU key on the face of monitor or remote. Use the AV button to toggle between menu sections
2. Use –and + keys on the monitor or the LEFT and RIGHT arrow keys on the remote to move through the icons
at the top of the screen.
3. Use the AV key on the monitor (up and down arrows on remote) to select an item under each section.
Selected menu items turn green.
4. Use –or + on the monitor (left and right arrows on remote) to change the value of the highlighted item.
5. To exit: Press the MENU button monitor (left or right arrow on remote) multiple times until the menu goes
away. Allow monitor to time out (approximately 10 seconds).
VIDEO
BRIGHTNESS: Adjusts the brightness of the image
CONTRAST: Adjusts the contrast of the image
COLOR: Adjusts the color of the image
SHARPNESS: Adjusts the sharpness of the image
ADVANCED CONTROL: Accesses additional display controls
VIDEO (ADVANCED CONTROL)
NOISE REDUCTION: When utilizing microphone, allows for noise
reduction settings
Vcom: Intense brightness setting, not useful in this
setting
UP-DOWN: Flips image displayed UP/DOWN
LEFT-RIGH: *Flips image displayed LEFT/RIGHT (Mirrored)
*Individual cameras can be mirrored in Picture setup
AUDIO
SOUND MODE: Choices of Music, Speech, Voice & Standard
BASS: Adjusts Bass levels
TREBLE: Adjusts Treble levels
AUTO SEQUENCE TIME: Allows for the adjustment of time spent on
each auto rotated camera when in quad mode
AHD1 PRIORITY: Prioritizes Camera 1 during event triggering
(if OFF, all cameras will be displayed)
AUTO DIM: Turns Auto Dimming Function ON/OFF

Dakota Micro, Inc. DM-H9Q User Manual
Rev: 10/03/18 Page 8 of 12 Author: CNR
SETTING
MENU LANGUAGE: Adjusts menu language
AHD1 TRIGGER DELAY: Turns ON/OFF Trigger Delay for Camera 1
AHD2 TRIGGER DELAY: Turns ON/OFF Trigger Delay for Camera 2
AHD3 TRIGGER DELAY: Turns ON/OFF Trigger Delay for Camera 3
AHD4 TRIGGER DELAY: Turns ON/OFF Trigger Delay for Camera 4
BLUE: Allows for selection of BLUE or BLACK screen
when no camera present on video input
RESET DEFAULTS: Restores all default settings
PICTURE SETUP
AHD1-4 MIRROR: Turns ON/OFF individual camera mirror
functions
AHD1-4 GUIDE LINE: Turns ON/OFF individual camera guide line

Dakota Micro, Inc. DM-H9Q User Manual
Rev: 10/03/18 Page 9 of 12 Author: CNR
XIII. SPECIFICATIONS
A. Camera
Image Sensor
1 / 2.7” CMOS Sony
Programmability
3 Way –Video System (NTSC or PAL), Video Output Type (AHD or
CVBS/Analog), Forward or Mirrored Programmable at factory level only
Video System
NTSC (Silver body) / PAL (Black body) –reprogrammable at factory
Resolution
AHD - Set from factory to 1280x720 = 720P
Legacy Analog (CVBS) –Set from factory to 480P
Minimum Illumination
0.01 LUX @ F1.2
Environmental Rating
IP69
Camera Board Lens
Fixed Board Lens 3.6mm standard. Also available in 6mm, 12mm & 16mm
Horizontal Field of View
AHD (720P) / Analog (480P)
3.6mm = AHD 96° / Analog 92°
6mm = AHD 55° / Analog 53°
12mm = AHD 26° / Analog 24°
16mm = AHD 20° / Analog 19°
Electronic Shutter
Auto / 1/25 (1/30) –1/50,000 sec.
Construction
Anodized 6061 Aluminum Case
Scanning System
Progressive
Operating Temp
-45°F~150°F (-42°C~66°C)
Connector Type
5 pin Conxall/Switchcraft (AgCam/EnduraCam connector)
Back Light Compensation
Auto On/Off
Warranty
3 Years
Connections
Video in (5 pin)/ 12v or AC power IN / Audio In
Camera Front Glass
Triple Hardened auto darkening glass
Power
12v 80mA (10-15 V Min/Max)
Camera Dimensions
2.13in(H)x2.12in(L) (54.1mmx53.8mm)
B. LCD Monitor
Screen Size
16:9 digital panel
Overall Size
9.25in(L)x 6.1in(H)x1.44in(D) 235mm(L)X155mm(H)X36.5mm(D)
Weight
30.4oz (862g)
Power Input
DC 10-32V
Color System
NTSC/PAL auto switch
Operating Temp.
-30°F~130°F (-34°C~+54°C)
Brightness
350cd/m2
Resolution (HxV)
1024(H)x600(V)
Contrast
500:1
Viewing Angle
L/R: 70° Up: 50° Down: 70°
Operating Voltage
Min. 12v (Check monitor label for specific voltage range)
Lighting Source
LED Backlit
Environmental Rating
IP50
Video Output Format
Full/Quad/split/ Auto Switch
Video Output Port
RCAx1 Video Out - Analog (CVBS) ONLY
Video Input Port
X4 AHD video input channels
C. Extension Cables
Connector Type
5 Pin Conxall/Switchcraft
Cable Type
Dual Core 26 AWG, Silicone Jacketed
RoHS Compliant
YES
Shielded
Yes
Strain Relief
Over molded
Watertight Connections
Yes
Operating Temp.
-45°F~150°F (-42°C~66°C)
Max Recommended Pulling Tension
10 lbs
