Dakota Micro DM-H7 User manual

DM(AG)-H7(H9)(WH7) User Manual
Rev: 07/30/20 Page 1 of 8Author: CNR
User’s Manual
9in or 7in AHD Monitor
AgCam® OR EnduraCam® Monitor Kit
Dakota Micro Part Number(s):
7in AHD Monitor – DM-H7
9in AHD Monitor – DM-H9
7in AHD Waterproof Monitor – DM-WH7
AGCO Part Number(s):
7in AHD Monitor – AG-H7
9in AHD Monitor – AG-H9
7in AHD Waterproof Monitor – AG-WH7
8659 148½ Ave. SE.
Cayuga, ND 58013
Management System Registered to ISO 9001
www.dakotamicro.com
Thank you for purchasing our Dakota Micro, Inc. products
Always read the manual prior to operating this equipment. Also, please follow all safety signs and precautions.
See the Dakota Micro, Inc. website for installation training videos at www.dakotamicro.com
Table of Contents
I. Included Monitor Kit Components 2
II. Standard Features 2
III. Important Information About AHD & Analog 2
IV. Monitor Installation & Mounting 2-3
V. Installation 3
VI. Power 3-4
VII. Event Trigger Wire Operations 4
A. Event Trigger Wire Color Guide
B. Event Trigger Wires Explained
VIII. Remote & Monitor Operations 4-5
A. Monitor Operations
B. Remote Operations
IX. Menu Settings 5-7
X. Specifications 7
XI. Consumer Limited Warranty 8

DM(AG)-H7(H9)(WH7) User Manual
Rev: 07/30/20 Page 2 of 8Author: CNR

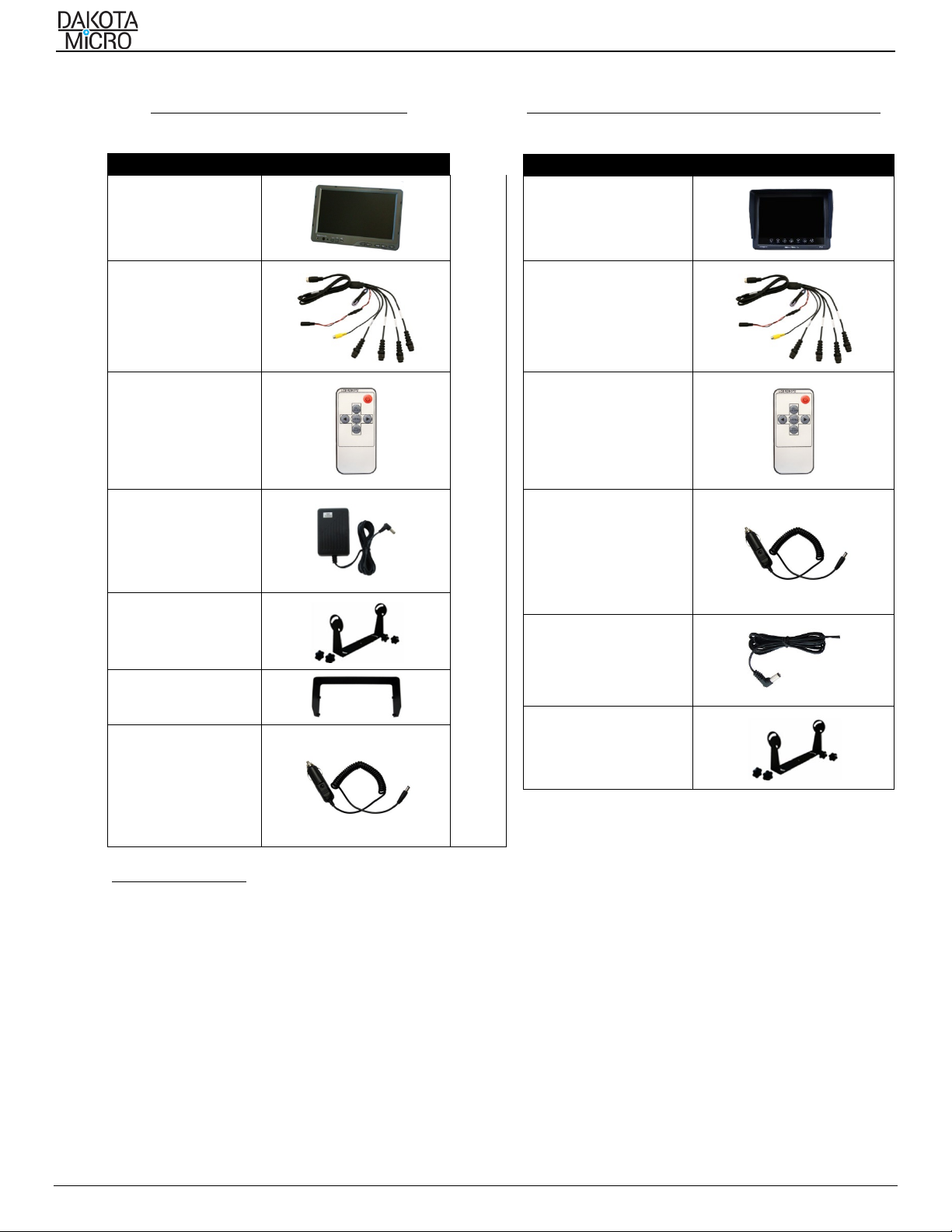

I. INCLUDED MONITOR KIT COMPONENTS INCLUDED WATERPROOF MONITOR KIT COMPONENTS
(PER PN: DM(AG)-H7/H9) (PER PN: DM(AG)-WH7)
II. MONITOR FEATURES
•Feature the latest in Analog HD technology
•LED backlit
•View both NTSC and PAL cameras
•Advanced LCD technology allows you to clearly see your image for any angle
•Mirror the view of any of your cameras for use as a backup camera
•2 Year Warranty
•16:9 aspect ration
•4 camera inputs
•Event triggers for each camera allow for triggered events to bring your camera to full view (I.E. putting the vehicle
in reverse)
•Color, brightness, contrast, and volume controls that allow comprehension for use in different environments
•Remote control, sun shield, multiple power options and metal U-bracket monitor stand included
Description
Dakota Micro, Inc.
7in or 9in AHD
Monitor
Monitor
Wire Harness
DM PN: DMAC-MWH
AGCO PN: AC-MWH
Monitor Remote
DM PN: DM-HRMT
AGCO PN ACREMOTE
(styles vary by kit
Not included in all kits)
A/C Power Wall Plug
DM PN: DMAC-PA
AGCO PN: ACACA1500
(styles vary by kit
Not included in all kits)
Monitor U-bracket
with 4 Wing Bolt
(styles vary by kit)
Monitor Sun Shield
12v Cigarette Lighter
Power Adapter
DM PN: DMAC-12V
AGCO PN: AC-12V
(styles vary by kit
Not included in all kits)
Description
Dakota Micro, Inc.
Waterproof 7in AHD
Monitor
Monitor
Wire Harness
DM PN: DMAC-MWH
AGCO PN: AC-MWH
Monitor Remote
DM PN: DM-HRMT
AGCO PN ACREMOTE
(styles vary by kit
Not included in all kits)
12v Cigarette Lighter
Power Adapter
DM PN: DMAC-12V
AGCO PN: AC-12V
(styles vary by kit
Not included in all kits)
12v Hardwire Power
Adapter
DM PN: DMAC-Hardwire
AGCO PN: AC12VHRDWR
Monitor U-bracket with
4 Wing Bolt
(styles vary by kit)

DM(AG)-H7(H9)(WH7) User Manual
Rev: 07/30/20 Page 3 of 8Author: CNR
III. IMPORTANT INFORMATION REGARDING ANALOG AND AHD EQUIPMENT
•After the introduction of the complete line of AHD Monitors, Dakota Micro will no longer offer Analog monitors.
•All analog Dakota Micro wireless equipment will not work with AHD Monitors. Please contact Customer Service
for help with your wireless set up.
IV. MONITOR MOUNTING
A. Mounting Precautions
Remove your monitor carefully from packaging and inspect all mounting hardware. Mounting location is the most
important part of the monitor installation as it ensures you the maximum visual benefit from your
AgCam®/EnduraCam® system. With that said, when installing your monitor, ensure to follow these three (3)
precautions:
1. The monitor is out of direct sunlight. This will prolong the life of the unit as well as ensure optimum visibility.
2. The monitor does not obstruct view.
3. The monitor does not interfere with the normal operation of equipment.
WARNING:
Dakota Micro, Inc. is not responsible for any damages caused to your monitor, or yourself, due to the improper installation or use
of a suction cup monitor mount, whether it be product sold by DM or product purchased from another source.
B. Universal Bracket Mounting
1. Hold monitor U-bracket in place on monitor.
2. Attach bracket with included wing bolts.
C. Finalizing Universal Bracket Installation
1. With the mount and monitor attached, find and
mark the desired position for the monitor.
2. Remove the monitor from the mount.
3. Attach the monitor to the mount and tighten the
wing nuts.
*Use ONLY the nuts included in kit, bolts longer
than 10mm will damage your monitor
V. INSTALLATION
A. Monitor Wire Harness Details
1. Input to Monitor
2. AV1-4 Event Trigger Wires
3. Power Input
4. RCA-Video Output
5. AV1 - Audio/Video Input
6. AV2 - Audio/Video Input
7. AV3 - Audio/Video Input
8. AV4 - Video Input

DM(AG)-H7(H9)(WH7) User Manual
Rev: 07/30/20 Page 4 of 8Author: CNR
VI. POWER
A. Supplying Power with 12v Power Adapter
1. Attach the power input connector (3 above) to your included 12v cigarette lighter power adapter.
2. Plug cigarette lighter adapter into 12v power source.
B. Hardwire Power Adapter (Included only with DM-WH7)
1. If you would like to hardwire your power supply, please contact your local Dakota Micro, Inc. dealer for
available hardwire power adapters (PN: DMAC-HARDWIRE).
2. Dakota Micro hardwire power adapters have a maximum circuit capability of 5 amp.
C. Fuses
1. There is a small in-line glass fuse located on the red and black power wire (3 above). When replacing this fuse,
use a MAX 2amp glass fuse.
2. There is a small glass fuse located on the inside tip of the 12v portion of the power adapter (PN: DMAC-12v).
When replacing this fuse, use a MAX 2amp glass fuse
VII. EVENT TRIGGER WIRE OPERATIONS
A. Event Trigger Wire Color Guide
1. Camera 1 – Green
2. Camera 2 – Purple
3. Camera 3 – Gray
4. Camera 4 – White
B. Event Trigger Wires Explained
Event trigger wires can be attached to any 12v positive event. This will cause the monitor to change to that
camera, regardless of the state of the monitor (i.e. ON/OFF or channel selection). The most recent event will be
the primary display. So, if two (2) video channels (AV1 & AV2) are attached to an event output, the event that
happens last will change the monitor to its respective camera view.
The wires can be attached to any positive output 10.5v to 16.9v switch or supply to cause the monitor to switch
the unit to its respective camera channel automatically. Example: if you were to attach the AV1 wire to a positive
output from an unloading auger on a combine, the monitor would switch from channel 2, 3, or 4 to channel 1
when the auger is extended. The event circuit should be neutral in its normal state and change to HIGH (+12v)
when the events are active.
VIII. REMOTE & MONITOR OPERATION
A. 7” or 9” Monitor Operations – Front (7in shown below)

DM(AG)-H7(H9)(WH7) User Manual
Rev: 07/30/20 Page 5 of 8Author: CNR

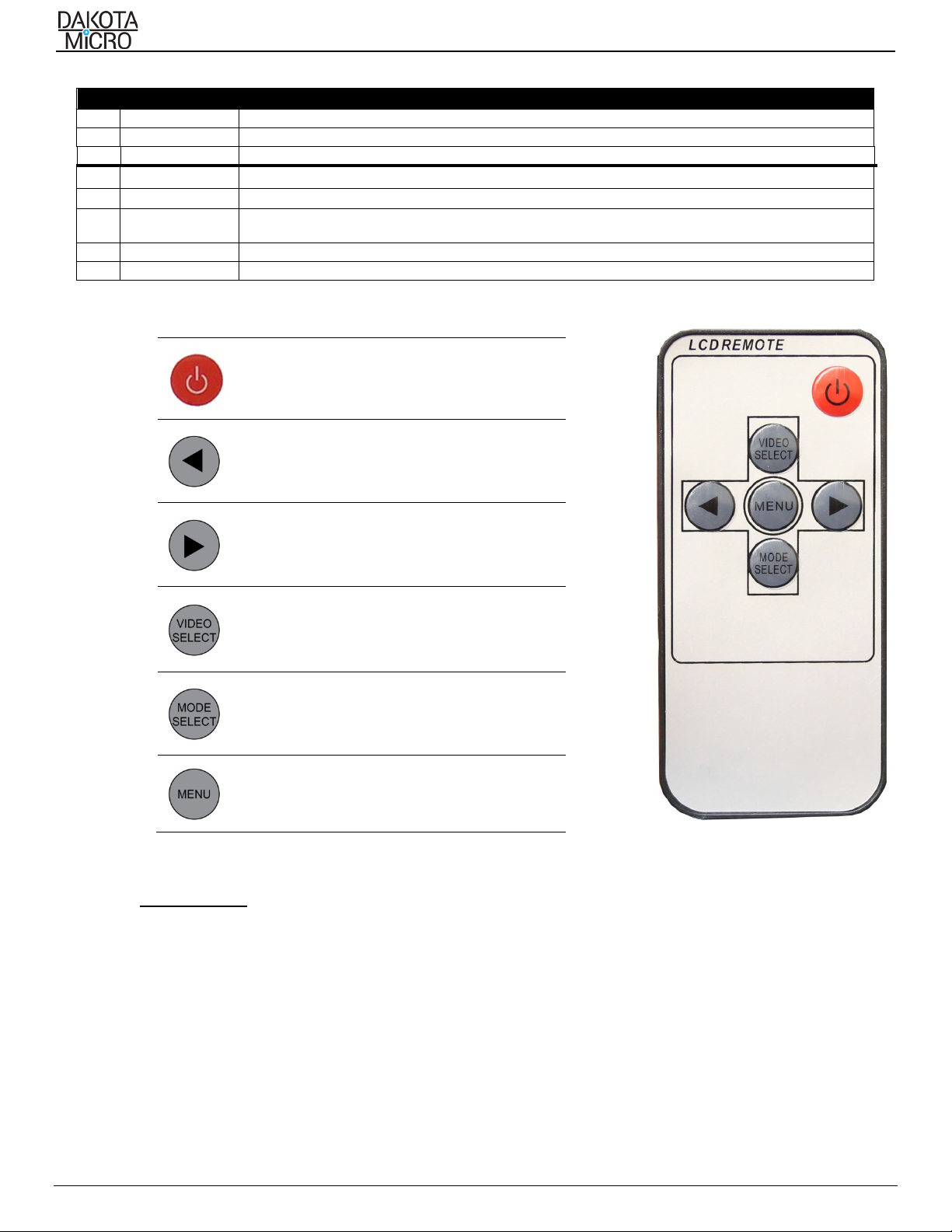

B. Remote Operations
POWER ON/OFF
Allows users to decrease parameter or toggle
menu settings ON/OFF
Allows users to increase parameter or toggle
menu settings ON/OFF
VIDEO SELECT – Manually toggles between
cameras, AV1, AV2, AV3 and AV4 and then back
to AV1
Non-Functional for this model monitor
MENU – Allows users to access menu. Once in
menu, toggles through menu options of Picture,
Volume, Function, System, & Clock
IX. MENU SETTINGS
1. Press the MENU key on the monitor or remote to bring up the menu
2. Press the + or – key to move right or left
3. Press the MENU key again to toggle through menu options.
4. Use the – and + keys on the monitor or the Left and Right arrow keys on the remote to change the value of
the highlighted it.
5. Use the + and - key to move up and down through the individual menu selections. Press MENU button to
select item.
6. To exit, allow monitor to time out (approximately 15 seconds) or exit the menu faster by pressing the power
button.
1-3 NO LONGER IN USE
1
Not Functional
Not Functional
2
Not Functional
Not Functional
3
Not Functional
Not Functional
4
- Key
To decrease parameter
5
+ Key
To increase parameter
6
MENU
Allows users to access menu. Once in menu, toggles through menu options of Display, Language, Function,
General
7
AV Key
Each button press switches between AV1, AV2, AV3, & AV4. Also selects menu options within sub menus
8
Power
Powers Monitor ON and OFF (2 second delay)

DM(AG)-H7(H9)(WH7) User Manual
Rev: 07/30/20 Page 6 of 8Author: CNR
HOME
DISPLAY:Adjusts the brightness of the image.
LANGUAGE:Select your preferred language.
FUNCTION:Viewing settings.
SYSTEM: Software settings.
DISPLAY
BRIGHTNESS: Adjust the brightness of the image.
CONTRAST: Adjusts the contrast of the image.
SATURATION: Adjust the level of saturation on image.
AUTO DIM: will dim monitor based on lighting conditions.
ROTATE: Allows you to rotate or reverse the image.
SLEEP: Set time the monitor will go into power saving mode.
LANGUAGE
LANGUAGE:Select your language (English is default).

DM(AG)-H7(H9)(WH7) User Manual
Rev: 07/30/20 Page 7 of 8Author: CNR

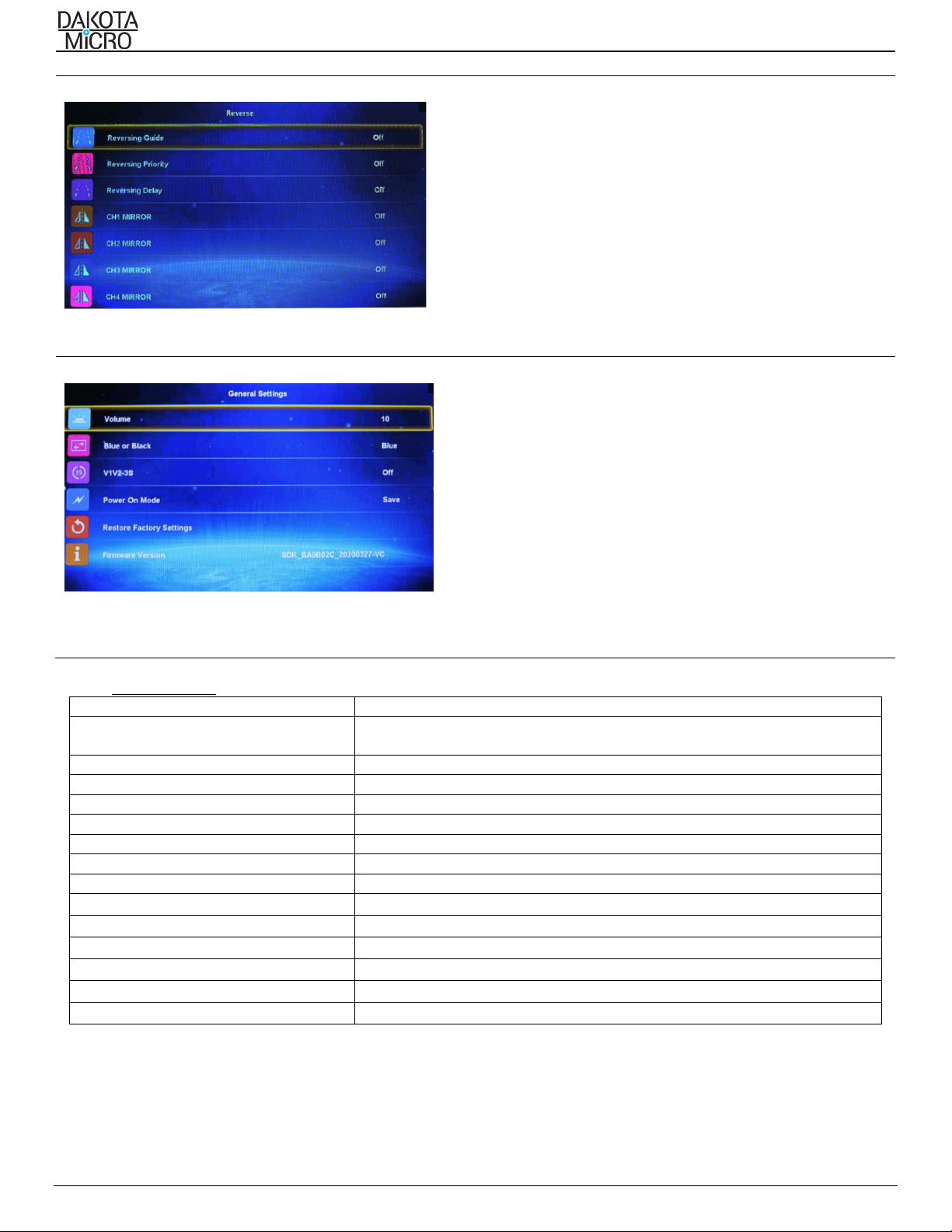

FUNCTION
REVERSING GUIDE: Allows you to turn on guidelines.
REVERSING PRIORITY: Not applicable on this monitor.
REVERSING DELAY: Set the time you would like monitor to
stay on when trigger has been disengaged.
CH1 MIRROR: Allows you to mirror image.
CH2 MIRROR: Allows you to mirror image.
CH 3 MIRROR: Allows you to mirror image.
CH 4 MIRROR: Allows you to mirror image.
GENERAL SETTINGS
VOLUME: Adjust volume level.
BLUE OR BLACK: Choose blue or black background.
V1V2-3S: Cycles cameras in 3 second intervals.
POWER ON MODE: Option to save, power on or off.
RESTORE FACTORY SETTINGS: Return settings to default.
FIRMWARE VERSION: Update firmware version.
XI. SPECIFICATIONS
Screen Size
16:9 Digital Panel
Overall Size
9in - 6.1(H)x9.25(W)x1.44(D)in 154.94(H)x234.95(W)x36.5(D)mm
7in - 4.84(H)x7.04(W)x1.14(D)in 123(H)x179(W)x29(D)mm
Weight
396g avg. (7in); 547g avg. (9in)
Power Input
DC 10–32v
Color System
NTSC/PAL auto switch
Operating Temp.
-30°F~130°F (-34°C~+54°C)
Brightness
350cd/m2
Resolution (HxV)
1024(H)x600(V)
Contrast
500:1
Viewing Angle
L/R: 70° Up: 50° Down: 70°
Operating Voltage
Min. 12v (Check monitor label for specific voltage range)
Lighting Source
LED Backlight
Environmental Rating
(Standard Monitor - IP50) (Waterproof Monitor – IP68)
Video Output Port
RCAx1 Video Out - Analog (CVBS) ONLY
Video Input Port
X4 AHD video input channels

DM(AG)-H7(H9)(WH7) User Manual
Rev: 07/30/20 Page 8 of 8Author: CNR
XIII. CONSUMER LIMITED WARRANTY
Subject to the disclaimer, limitations and other directions stated hereafter, Dakota Micro, Inc. warrants that the Product will be free
from defects in material and workmanship for periods as stated hereafter from the date of original purchase. THIS WARRANTY IS
EXPRESSLY MADE IN LIEU OF ANY AND ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS. THE EXCLUSIVE REMEDY OF THE BUYER IS LIMITED TO REPAIR OR REPLACEMENT OF THE
PRODUCT. EXCEPT AS STATED IN THIS WARRANTY, DAKOTA MICRO SHALL NOT BE LIABLE FOR ANY LOSS, INCONVENIENCE, OR
DAMAGE, INCLUDING DIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, RESULTING FROM THE USE OR INABILITY TO
USE THE PRODUCT, WHETHER RESULTING FROM BREACH OF WARRANTY, NEGLIGENCE, STRICT LIABILITY OF ANY OTHER LEGAL
THEORY. Any oral statements or representations made by anyone which are contrary to or at variance with the terms stated in this
LIMITED WARRANTY are void.
Dakota Micro will, at its option, either repair the defect or replace the defective Product or part thereof with a new or
remanufactured equivalent at no charge to the purchaser for parts or labor for the period of three (3) years for AgCam®
/EnduraCam® and InnoPro® cameras; two (2) years for AgCam®/ EnduraCam® monitors, and Wireless components; Twelve Months
(12) for all Overview Cameras & Monitors, cables and all other accessories.
The Dakota Micro limited warranty periods outlined above apply throughout the United States and Canada only. A one (1) year
maximum limited warranty for all Products applies to all other geographic locations unless otherwise stated in writing by Dakota
Micro.
This limited warranty does not apply to any issues connected with appearance that have no relation to the performance of the
Product nor to any Product the exterior of which has been damaged or defaced, which has been subjected to improper voltage or
other misuse, abnormal service or handling, or which has been altered or modified in design or construction.
In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth in the complete Dakota
Micro “Warranty & Repair Policy” available on our website at www.dakotamicro.com
Neither the sales personnel of Dakota Micro nor any dealer or any other person is authorized to make any warranties other than
those described herein, or to extend the duration of any warranties beyond the time periods described herein.
The warranties described herein shall be the sole and exclusive warranties and remedies provided by Dakota Micro. Correction of
defects, in the manner and for the period of time described herein, shall constitute complete fulfillment of all liabilities and
responsibilities of Dakota Micro to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims. In no
event shall Dakota Micro be liable or in any way responsible for any damages or defects in the Product which were caused by repairs
or attempted repairs performed by anyone other than Dakota Micro.
Some states do not allow the limitation or exclusion of incidental or consequential damages, so said limitation may not apply to you.
Any action at law, suit in equity, or other judicial proceeding for the enforcement of any right provided for herein or otherwise, or
with respect to any claim that a purchaser may have against Dakota Micro shall be instituted only in the Courts of the State of North
Dakota, either in the state district court located in Wahpeton, North Dakota or in Federal District Court location in Fargo, North
Dakota. Without regard to conflicts of law principles, the laws of the state of North Dakota shall govern the interpretation and
enforcement of the terms of this Limited Warranty and all aspects of the relationship between Dakota Micro and the purchaser.
This warranty gives you specific legal rights and you may also have other rights, which may vary from state to state.
I. CONTACT US
8659 148½ Ave. SE.
Cayuga, ND 58013
Management System Registered to ISO 9001
www.dakotamicro.com
