Warnings, Cautions, and Notes
All Warning notes contained in this manual indicate information that may endanger personnel.
WARNING Before working on any of the Vortek hoists, the main electrical disconnect must be
turned off and locked out according to OSHA regulations 29 CFR 1910.147.
The Daktronics rigging system is designed to raise and lower theatrical equipment under the rated hoist capacity
ONLY. This system is NOT designed to lift or lower personnel, and should never be used for that purpose.
Only trained and authorized personnel should be permitted to operate the Daktronics system. The unauthorized use,
alteration, or use for purposes other than those for which it was designed may cause injury to persons, damage to
the equipment, or create conditions which could lead to fatalities. All proper safety considerations must be observed.
While operating the Daktronics rigging system, a spotter must be used in conjunction with the user at all times. The
spotter must have a clear view of all moving elements while maintaining contact with the user. If an unsafe situation occurs, the
spotter must immediately signal the user to halt all movements until the environment is cleared of any person or obstruction.
All installation and maintenance involving the Vortek drive unit itself or the main electrical control cabinets will
require trained personnel. Simple daily maintenance activities such as cleaning of the touchscreen and the
M Series controller workstation may be carried out by the operators, and in most cases will be all that is needed
once installed.
Electrical Safety—General Warning
WARNING The voltages used in the motor drive and master control panels can cause severe electrical
shock and/or burns. Extreme care is necessary at all times when working with the motor
drives. Only authorized personnel should carry out any installation, commissioning, or
maintenance of the electrical systems. All drive systems have been tuned at the factory
and will not require any additional alteration or adjustment by the owner’s personnel
unless specifically authorized by a Daktronics representative.
01 SAFETY INFORMATION
SAFETY INFORMATION 1 SAFETY INFORMATION

Included Safety Features
Deadman Operation Movement Controls
Deadman controls only allow movement of hoists to commence and continue while the Execute Move
pushbutton is pressed. When the pushbutton is released all movement will come to a complete controlled
stop.
Emergency Stop
A red EMERGENCY STOP mushroom head pushbutton is located on each M Series control station. (There
may also be additional remote Emergency Stop locations installed). Pushing the button will disable all motor
drives through the Emergency Stop circuit and set all motor brakes. All motion of the attached loads on each
Vortek hoist immediately stops and inhibits all further movements until reset.
The Emergency Stops should ONLY be used for real emergencies or when required to disable the Daktronics
control system from inadvertent usage.
Vortek Back-Up Brake
This secondary mechanical braking system is designed to hold the rated load in the improbable case of
a failure of the primary motor brake or gearbox. This system is fully mechanical and acts independently of
any electrical inputs on the system.
Manufacturer’s Name and Address:
Daktronics
7200 Rawson Road
Victor, N.Y. 14564 USA
2

WARNING The Vortek batten hoists are not designed to raise and lower people.
These hoists should NEVER be used for this purpose.
The Vortek®hoist system is an automated rigging system, meaning that the load is not counter-weighted. Each hoist
can lift loads only up to the design capacity. Overloading will result in electrical overload protection shut down of
the hoist and possible damage to rigging components.
Each hoist system consists of an integral electric motor driven gear reducer, directly coupled to a cable drum,
which winds steel cables (wire ropes) leading over sheaves installed within the hoist assembly and along the
structural steel of the building. The cables support battens for attaching the load. The battens can be lowered to
within the specified trim above the stage floor to allow attachment of loads.
The Vortek M Series control system consists of three basic parts, as described below:
Motor and Electronic Variable Frequency Drive (VFD)
The motor, Electronic Variable Frequency Drive, and dynamic braking resistor for each motor are located
within each Vortek M Series motorized hoist. A local control panel is located on each hoist for programming
and diagnostics by factory personnel. There is a reset-able circuit breaker located at each power point on the
HV wire way. The rated twist-locking plug on each unit acts as the main high voltage disconnect along with its
corresponding CB.
Hoist Assembly (Cable Drum, Load Brake, Limit Switches, and Frame)
The Daktronics M Series control and hoist assemblies are usually mounted on the rigging steel at the top of the
stage house. Depending on design circumstances the Vortek M Series controlled hoists may be mounted in a
different location. The gear motor, helically grooved cable drum, support bearing, and frame structure are all
factory assembled and tested. Maximum upper height and minimum lower height are set by limit switches which
are adjusted by factory-trained personnel during installation and commissioning of the system. A position encoder
is located at the brake end of each hoist motor, attached directly to the motor shaft. Each hoist assembly is also
equipped with a LOAD BRAKE, a unique safety feature provided exclusively by Daktronics. This unit is designed
to engage automatically when the load is being lowered to greatly reduce any possibility of a loaded batten to
descend uncontrolled.
02GENERAL INFORMATION
GENERAL INFORMATION 3

Daktronics M Series Controller
Control of all hoists is possible from the M Series automation control console or, (depending on installation) a
pushbutton control station. The hoists can be controlled individually and at various speeds. Refer to Sections 4-9 of
this manual for the operating procedures.
WARNING If it is necessary to operate a hoist from a location where the operator's view of the moving
load is obstructed, a second person must be used to observe the load and communicate to
the operator.
Specifications
WARNING The Vortek M Series unit must only be used with a maximum load equal to the capacity stated for
the model below. Overloading the system may result in serious injury or an inoperable system.
THE FOLLOWING MODELS ARE VARIABLE SPEED AND DESIGNATED TO BE CONTROLLED THROUGH
THE DAKTRONICS M SERIES CONTROLLER:
USA (60Hz) M Series Based Models and Applications
M Series Controller- Single Purchase
HOIST MODEL NUMBER LOAD LBS (kg) SPEED FT/MIN (M/SEC)
VM-12180 0—1200 (540) 0—180 (0.9)
VM-14140 0—1400 (635) 0—140 (0.7)
VM-1740 0—1750 (793) 0—40 (0.2)
HM-4020 0—4000 (1814) 0—20 (0.1)
VM-2020 0—2000 (907) 0—20 (0.1)
VM-0820 0—800 (362) 0—20 (0.1)
4

M Series Controller - Double Purchase
HOIST MODEL NUMBER LOAD LBS (kg) SPEED FT/MIN (M/SEC)
VM-12180-2 0—2400 (1088) 0—90 (0.45)
VM-14140-2 0—2800 (1270) 0—140 (0.7)
VM-1740-2 0—3500 (1586) 0—20 (0.1)
HM-4020-2 0—8000 (3628) 0—10 (0.05)
VM-2020-2 0—4000 (1814) 0—10 (0.05)
VM-0820-2 0—1600 (725) 0—10 (0.05)
Maximum travel distance is 62' (18.9 m) for Single Purchase Units, 31' (9.4 m) for Double Purchase Units.
European (50Hz) M Series Based Models and Applications
M Series Controller - Single Purchase
HOIST MODEL NUMBER LOAD kg SPEED M/SEC
EVM-0509 500 kg 0.9
EVM-0607 630 kg 0.7
EVM-0702 790 kg 0.2
EHM-1801 1810 kg 0.1
M Series Controller - Double Purchase
HOIST MODEL NUMBER LOAD kg SPEED M/SEC
EVM-0509-2 1000 kg 0.45
EVM-0607-2 1260 kg 0.35
EVM-0702-2 1580 kg 0.1
EHM-1801-2 3620 kg 0.05
Maximum travel distance is 62' (18.9 m) for Single Purchase Units, 31' (9.4 m) for Double Purchase Units.
Dimensions of Classic Unit
• Average weight of self-contained hoist module is 600 lb (272 kg).
• Height = 19.35" (49.15 cm)
• Length = 12' 9" (3.9 m)
• Width = 9" (22.9 cm) -- 6" (15.2 cm) centers can be achieved by positioning self-containing
hoist modules on opposite or opposing sides of the stage (stage right and stage left).
Dimensions of Heavy-Duty Unit
• Average weight of self-contained hoist module is 2100 lb (952 kg).
• Height = 3'-4 21/32" (1.03 m)
• Length = 15' (4.57 m)
• Width = 2' (60.96 cm)
GENERAL INFORMATION 5

Each Vortek®hoist is connected to the main high voltage power buss through a safety twist-locking plug. This plug
brings in the main 3-phase power that is connected to the motor drive and motor brake located in each hoist
assembly. Connected to each Vortek M Series hoist assembly through safety locking connectors are 24 V DC
power, Emergency Stop (E-Stop) circuit and a network cable.
The motor drive controls all movements of the hoist. Each drive on each hoist contains programming to identify it
to the network. This programming also includes but is not limited to maximum speed and acceleration. Each motor
drive monitors an incremental encoder, limit switches, load and emergency stop status. The incremental encoder
is used for position control and motor operation feedback. The limit switches are used for maximum up and down
travel. Load sensing is used for the detection of an under load or overload condition. The emergency stop status is
used to detect the operation of the emergency stop system.
Monitoring of each hoist is done over a CC-Link high performance industrial network using a Programmable
Logic Controller (PLC). The PLC is located in the operator station along with the PLC power supply, a Network
communications card, an I/O module and an optional module for communications to a handheld pendant. A 24
VDC power supply for the system is also located in the operator station.
The Human Machine Interface (HMI) that is mounted on the operator station allows the operator to perform
hoist movement through a combination of touchscreen selection and pressing of the EXECUTE MOVE button.
No movement will occur until the EXECUTE MOVE button is pressed. All hoist information is entered on the HMI
screens and then stored in the PLC. The HMI communicates to the PLC which in turn communicates to the hoists
over Network.
03THEORY OF OPERATION
THEORY OF OPERATION 7

Controls Layout
All hoist operations are done through the operator station
HMI. The operator station consists of a touchscreen
monitor, EXECUTE MOVE button, POWER ON key switch,
EMERGENCY STOP button and a POWER ON light
(Figure 1).
Turn On Operator Station
Turn the key switch to the right.
MAIN Screen Control Functions
The MAIN screen (Figure 2) appears when the system
is first powered up. The system has to be logged on
to be able to select different screens. The user access
levels are described below.
There is also a CHANGE SCREEN LUMENS soft key
to change the screen brightness.
User Access Levels
Level 1 – Allows access to HOIST OPERATIONS and
SYSTEM OVERVIEW screens.
Level 2 -- Allows access to HOIST OPERATIONS,
SYSTEM OVERVIEW and CUEING screens.
Level 3 -- Allows access to HOIST OPERATIONS,
SYSTEM OVERVIEW, CUEING, MACHINE CONFIG.
and EDIT USER DATA screens.
Level 4 – Allows access to FACTORY CONFIG. screen.
All other screens can be accessed at this level.
Changing Screens
Changing to one of the other screens from the MAIN
screen is done by touching the appropriate button.
Alarms
An alarm bar is on the bottom of all screens to display
any alarms of the selected hoist. Touching the alarm
bar will bring up the alarm screen to display all current
alarms. The ALARM RESET button turns red if there is an
active alarm, otherwise it will remain orange. When the
button is red, press it to reset any VFD alarms.
Figure 2: MAIN Screen
04INITIAL OPERATION/MAIN SCREEN
9
Figure 1: M Series Touchscreen Monitor
INITIAL OPERATION/MAIN SCREEN

SYSTEM OVERVIEW Screen Layout

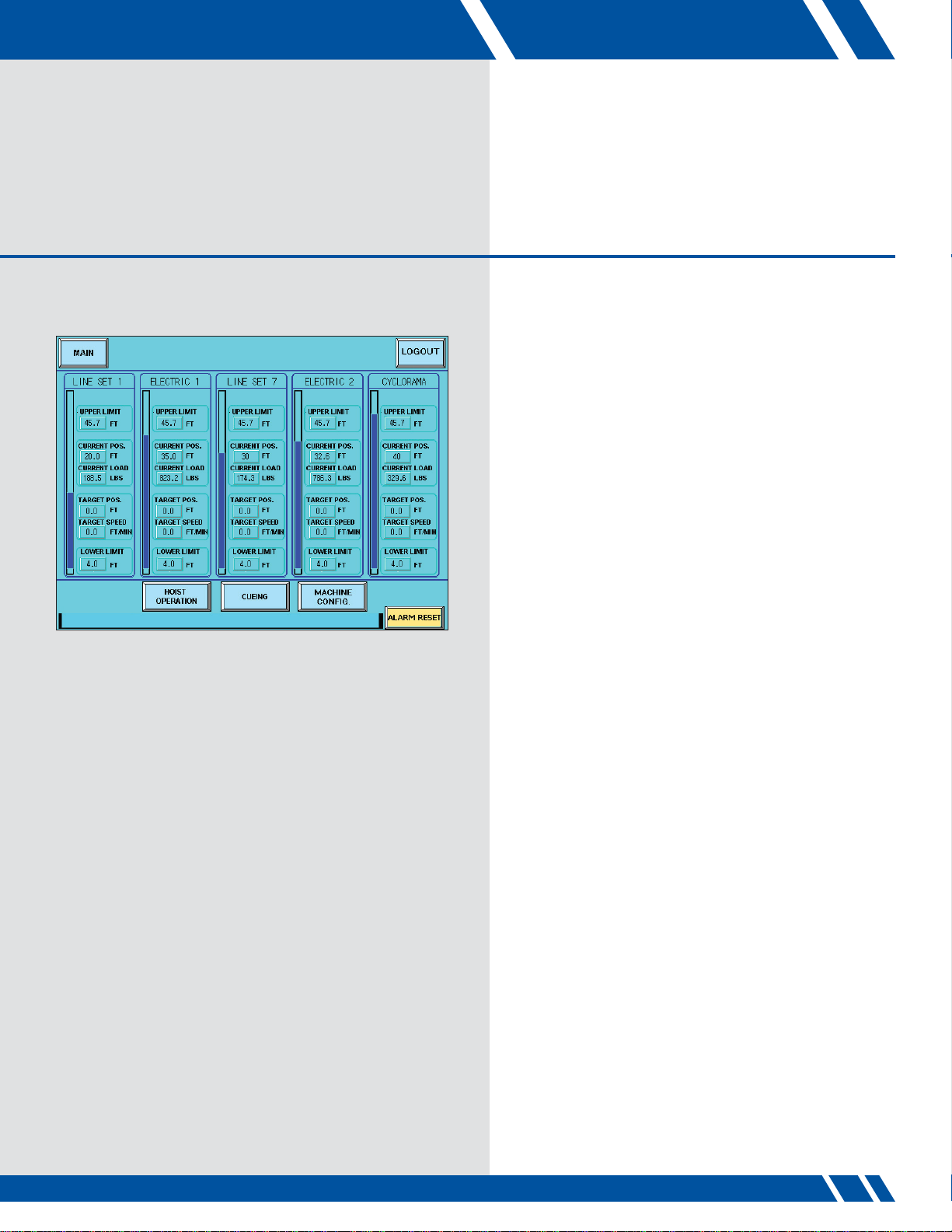

The SYSTEM OVERVIEW screen (Figure 3) lets the user
view the following information for each hoist connected
to the system:
1. HOIST NAME
2. UPPER LIMIT
3. CURRENT POS. (position)
4. CURRENT LOAD
5. TARGET POS. (position)
6. TARGET SPEED
7. LOWER LIMIT
Up to 5 hoists are displayed on the screen at one
time. Click the NEXT button to view more.
Figure 3: SYSTEM OVERVIEW Screen
SYSTEM OVERVIEW SCREEN
05SYSTEM OVERVIEW SCREEN
11

HOIST OPERATION SCREEN
06 HOIST OPERATION SCREEN
HOIST OPERATION Screen Layout
The HOIST OPERATION screen (Figure 4) allows the
user to select a hoist, jog a hoist, set up, and run the
hoist to different preset positions and speeds.
This screen has the following information for each hoist
connected to the system:
1. CURRENT HOIST NAME
2. UPPER LIMIT
3. CURRENT POS. (position)
4. CURRENT SPD. (speed)
5. CURRENT LOAD
6. TARGET POS. (position)
7. TARGET SPEED
8. LOWER LIMIT
Selecting Hoists
Different hoists can be selected by using the PREVIOUS
HOIST or NEXT HOIST buttons or by pressing the
CURRENT HOIST number and entering the desired
hoist node number. Note that the node number may be
different from the line set number.
JOG HOIST
First select the desired hoist. Press the HOIST SPEED
button and enter the appropriate speed using the
on-screen keyboard. Press the JOG HOIST UP or JOG
HOIST DOWN button, depending on the direction the
hoist needs to go.
If the wrong jog option is mistakenly selected, simply
press and release the button to deselect that option.
The EXECUTE MOVE button must be pressed and held
to execute the move. If the EXECUTE MOVE button is
released, all hoist movements will stop.
Figure 4: HOIST OPERATION Screen
13

Using Presets
a) Programming Presets
There are eight presets for each hoist. The presets are
programmed by selecting the POSITION and SPEED
buttons next to each of the eight presets and entering the
desired values using the on-screen keyboard.
b) Preset Operation
Only one preset can be selected at a time. In order to
run a hoist preset, the ENABLE PRESET MOVE button
must be selected. The desired SELECT PRESET button can
then be pressed.
The EXECUTE MOVE button must be pressed and held to
execute the preset move.
c) Clear Current Preset Values
Press Clear Current Preset Values to clear all
preset values to zero.

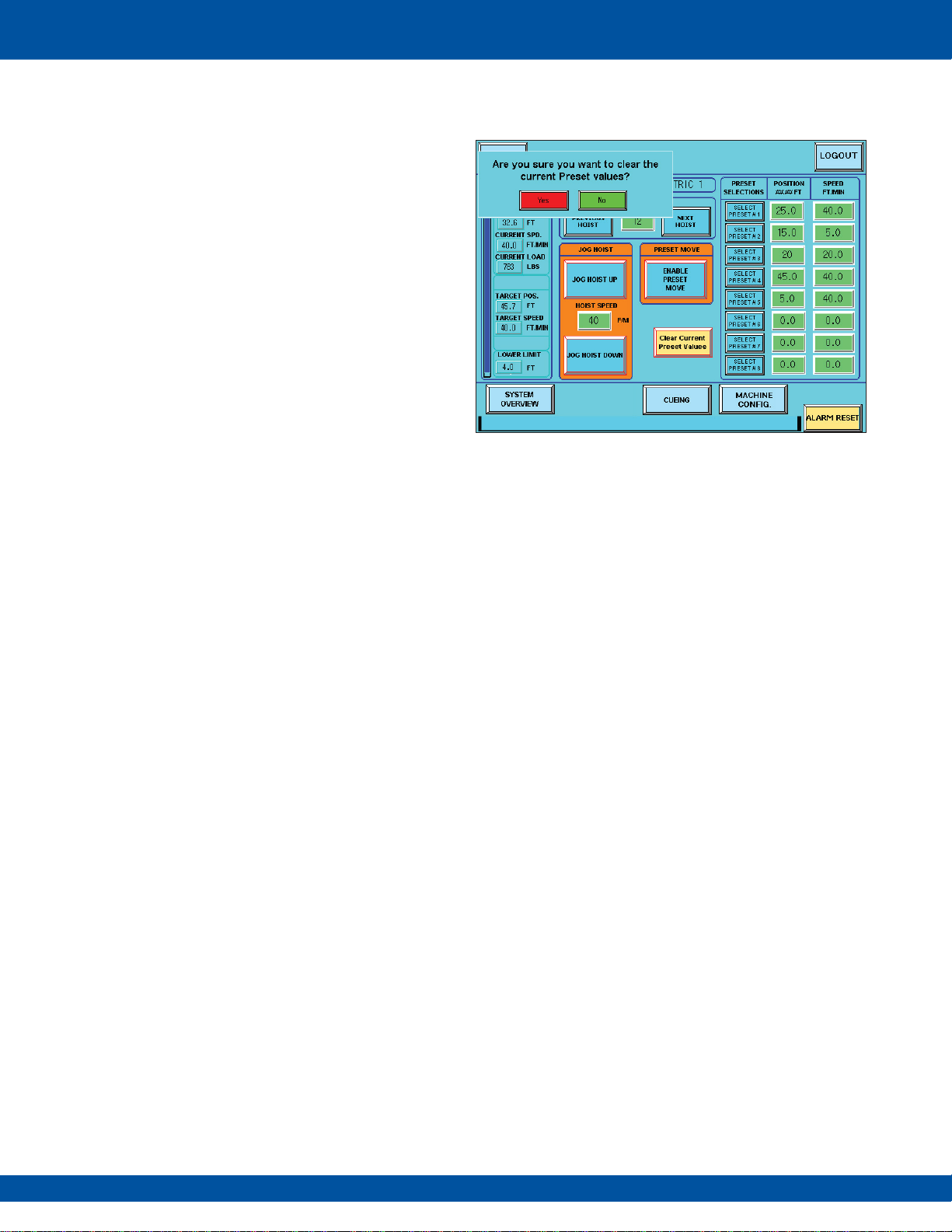

Press Yes to confirm or No to cancel (Figure 5).
Figure 5: Clear Current Preset Values
14

CUEING SCREEN
07 CUEING SCREEN
CUEING Screen Layout
The CUEING screen (Figure 6) allows the user to
program a cue with up to five hoists in the cue. The hoist
number and presets are used to program the cue. Up to
eight cues can be programmed.
Cue Setup
a. CUE NAME
Selecting the CUE NAME brings up an on-screen
keyboard that allows the user to enter a cue name of up
to 10 characters.
b. CURRENT CUE
This box displays the current active cue. Change to a
different cue using the PREVIOUS CUE and NEXT CUE
buttons or by pressing the current cue number and
entering the desired cue.
c. PRESET SELECTION
The cue is programmed by putting in the hoist node
number and entering the desired pre-programmed preset
for that hoist. The hoists must be entered in consecutively.
d. PRESET DATA
This shows the preset position that the hoist will move to
and the speed at which the hoist will move when the cue
is executed.
e. ACTUAL DATA
The actual data shows the current position and speed of
the programmed hoists.
f. ENABLE CUE OPERATIONS
To execute the cue once it is programmed, press the
ENABLE CUE OPERATIONS button. The button will
turn green and the text will change to CUE OPERATIONS
ENABLED (Figure 7).
The EXECUTE MOVE button must be pressed and held
until the cue is finished. If the EXECUTE MOVE button is
released, all hoist movements will stop.
Figure 6: CUEING Screen
15
Figure 7: Cue Operations Enabled

Clear Current Cue Values
Press Clear Current Cue Values to clear all
values of a cue.
Press Yes to confirm or No to cancel (Figure 8).
Figure 8: Clear Current Cue Values
16

08 MACHINE CONFIGURATION SCREEN
MACHINE CONFIGURATION SCREEN
MACHINE CONFIG. Screen Layout
The MACHINE CONFIG. screen (Figure 9) is where
the hoist limits can be changed, the hoist can be homed
for initial setup for full travel, and the load sensing can
be set up.
CURRENT HOIST
Change to a different hoist using the PREVIOUS HOIST
and NEXT HOIST buttons or by pressing the current hoist
number and entering the desired hoist.
CURRENT HOIST NAME
Selecting the CURRENT HOIST NAME brings up an
on-screen keyboard that allows the user to enter a hoist
name of up to 10 characters.
SOFT OPERATING LIMITS
The soft operating limits are where the UPPER/LOWER
TRAVEL LIMITS are set, along with the MAXIMUM SPEED
and HOIST RATED LOAD LIMIT. These limits are
configured by Vortek Service personnel.
The OFFSET FROM FLOOR is also displayed. This value
can only be changed as part of the home down routine.
HOME HOIST
Homing of the hoists should only be done
by Daktronics Service personnel or under the
supervision of a Daktronics Service Person.
The homing routine is where the limit switches are set for
the travel of the hoists. Soft limits are configured as part
of the home routine along with the position calibration.
Figure 9: MACHINE CONFIG. Screen
17

LOADING LIMITS
This is where the LOAD OFFSET and LOAD SPAN are
set up, along with the UPPER/LOWER LOAD LIMITS.
The span is normally set to “1.0” with the offset at “0.0”.
The upper and lower load limits should be set to a range
around the current load. For example if the load is 750
lbs, the upper limit might be set to 800 and the lower
limit to 700.
The CURRENT LOAD reading is displayed and the
LOAD SENSING can be set to ENABLED or DISABLED.
If the load sensing is enabled, the load value will turn
red if the load goes under or over the load limits.
An alarm will appear in the alarm bar (Figure 10).
This will also stop the hoist. It is up to the operator at that
point to see if the batten hung up on something to cause
the load shift. Once the load is back in range, the hoist
will function again, and the load reading will return back
to green.
Upper/Lower Limit Switches
The upper (UPPER SW.) and lower (LOWER SW.) limit
switch status is displayed above and underneath the
home up and down buttons. These should always show
“ON”. If one of the switches is off, then the hoist has
reached a limit switch, and an alarm stating this will be
displayed on the alarm bar.
Figure 10: Load Sensing Enabled
18

PENDANT CONTROLLER
09 PENDANT CONTROLLER
The pendant controller mimics the functionality of the
main operator station. The key switch turns the pendant
controller on and off. The pendant has a mushroom
e-stop button and the lower left button of the pendant
is the EXECUTE MOVE button. If the user changes to a
different screen using the pendant, the main operator
station will also change to that screen, and vice versa.
Figure 11: Pendant Controller
19

TROUBLESHOOTING
10 TROUBLESHOOTING
SYMPTOM POSSIBLE CAUSE CORRECTIVE ACTION
Controller is not on
Power failure Check incoming power to controller.
Key switch not turned on Turn key switch to ON.
Password will not work Forgot password
Have administrator level user
log in and create new user
with new password.
Vortek hoist will not move
when commanded
EMERGENCY STOP button pressed Check all EMERGENCY STOP
buttons.
Hoist is faulted
Check fault codes by pressing the
error bar at the bottom of the screen.
Reset hoist using reset button.
Hoist has reached limit Check limit, readjust as necessary.
Overload/Underload fault condition Check settings and reset parameters
if required. Refer to Section 8.
Preset information not set correctly or
there is no hoist speed set
Set preset information and/or hoist
speed. Refer to Section 6.
Touchscreen not operating Dirty touchscreen
Clean touchscreen with window
cleaner and soft cloth. Cycle power
to restart PLC and HMI.
No network communications
(CC-Link fault)
Main high voltage power turned off
to hoists
Check to make sure high voltage to
hoists is turned on.
Low voltage connector not connected
to hoist
Check connection of low voltage wire
way connector to hoist.
E-Stop circuit not resetting 24 VDC power problem
Open controller and check for green
light on 24 VDC power supply.
Check 24 VDC power fuse.
21
