DAL ACOUSTICS i10NCX User manual

i10NCX
Professional Sound Reinforcement Loudspeaker System
Operation Instructions
© German Audio Engineering GmbH*An der Strusbek 1*22926 Ahrensburg – User Manual DAL i10NCX v1.0
A C O U S T I C S

DAL Acoustics loudspeaker systems are designed and manufactured in Germany
by German Audio Engineering GmbH. German Audio Engineering works
exclusively with upstream suppliers who can guarantee consistent and verifiable
quality of their components and parts.
If you have a problem with one of our products, or if you need a spare part, please
contact your local distributor or contact us directly.
Thank you for choosing a DAL Acoustics product.
System Description:
The i10NCX systems is a compact coaxial 2-way point sources with passive
frequency dividing network in a ported cabinet made of waterproof glued
plywood with fine textured paint finish. The systems provides a coverage of 80°
radial. The system is protected by a robust protective grill with foam overlay. Two
integrated handles are provided for an easier handling. The i10NCX system is
primarily intended for fixed installation with shorter (critical) listening distance
but can be ordered with PU coating for mobile use. In stand-alone or spaced
array operation, it can be used as a main, support or effect speaker. Due to its
neutral reproduction characteristics and the high maximum SPL Level, it is
equally suitable for speech and music transmission. For low end support, the DAL
Sub-Low systems, BR12N, BR15N, BR115 and BR118 are suitable.
Featuring an 1,3” Hi driver with 2,5” (65mm) Voice coils coaxial loaded by an
efficient 10"cone driver with 2.5" (65mm) voice coil the i10NCX system provides
an audio bandwidth of 60Hz - 18KHz with a Peak power handling of 500W.
The i10NCX systems can be operated without the DAL Control & Drive Systems.
It's passive frequency deviding network features an integrated (RMS) protection
limiter for the high frequency driver. When operated with the DAL Control & Drive
System, the system is optimal parameterized for sonic quality and protected for
maximum continuous and peak sound pressure level. The DAL Control & Drive
Systems provides different settings for the operation of i10NCX combinations.
The i10NCX offers a dispersion pattern for stand-alone operation.
i10NCX Accessories
Wall Mount pan/tilt
U-Installation Yoke vertical
U-Installation Yoke horizontal
TV Spigot
Truss C-Clamp small, Truss C-Clamp large
© German Audio Engineering GmbH*An der Strusbek 1*22926 Ahrensburg – User Manual DAL i10NCX v1.0

Notes On The Operating Instructions:
Observe the explanations and notes in these operating instructions. If you lend or
pass on this product to third parties, please refer to this operating manual, pass
on this operating manual.
This symbol in connection with the signal word "Beware" indicates a possibly
dangerous situation. Failure to observe this safety instruction may result in
serious injury or even death.
This symbol in connection with the signal word "Warning" indicates a possibly
dangerous situation for persons with pacemakers. Non-observance can lead to
serious injuries or even death.
This symbol in connection with the signal word "Caution" indicates a possibly
dangerous situation with a high ambient noise level. It is recommended to wear
hearing protection in case of high noise level.
This symbol in conjunction with the signal word "Caution" indicates a warning of
a magnetic field present in the immediate vicinity of the object.
This symbol in connection with the signal word "Warning" indicates commands
to observe product-relevant operating conditions.
© German Audio Engineering GmbH*An der Strusbek 1*22926 Ahrensburg – User Manual DAL i10NCX v1.0

Intended use and application
General information: Operating Instructions DAL i10NCX
The information in this operating manual is given to the best of our knowledge
and is valid at the time of printing. We reserve the right to change specifications
of the product at any time. German Audio Engineering does not guarantee the
quality or suitability for use. German Audio Engineering GmbH (for DAL) assumes
no liability for direct or indirect damage or consequential damage resulting from
the use and operation of this product.
German Audio Engineering reserves the right to continuously develop the
product further and to make changes to the product as a result. German Audio
Engineering is always pleased to receive suggestions for improvement and
comments on the product.
Contact: [email protected] * www.GAE.de/DAL
German Audio Engineering GmbH
An der Strusbek 1 * 22926 Ahrensburg, Germany
Phone: [phone]
Safety and operational reliability
Observe the following safety instructions when operating loudspeakers to avoid
risks. The i10NCX loudspeaker has been developed exclusively for professional
use in sound reinforcement systems. The loudspeaker may only be used by
instructed and qualified personnel. Observe the operating modes described in
these operating instructions. Other uses are not permitted.
The i10N can be operated without the DAL Control & Drive electronics, but then it
the performance data may differ.
In operation avoid Feedback, distorted signals (clipping), peaks resulting from
plugging or unplugging devices in the signal chain, long term pure sine wave
tones with high power and too weak power amplifiers not specified by their
power ratings. Such signals and devices can cause loudspeaker overload or
damages and are not covered by our warranty.
© German Audio Engineering GmbH*An der Strusbek 1*22926 Ahrensburg – User Manual DAL i10NCX v1.0

Safety instructions:
Warning
Loudspeakers have a permanent magnetic field. Persons with pacemakers must
not be in the immediate vicinity of loudspeakers, as magnetic fields can lead to
interference with pacemakers. When repairing loudspeakers, it must be ruled out
that the magnetic components come into contact with persons wearing
pacemakers.
Warning
Loudspeakers have a permanent magnetic field. This can interfere with the
operation of other components in the immediate vicinity that are magnetically
sensitive.
Beware
The i10NCX is suitable for flown operation and offers mounting points for
this purpose. For flown operation, the original Manufacturer hardware must
be used and a proven static of the hanging point is mandatory. When
installing and commissioning in standing or stacked operation, pay careful
attention to secure footing and solid professional mounting. In stacked
operation, the loudspeakers must be secured as a group against slipping or
falling over, e. g. with suitable tension straps on stages. A falling
loudspeaker can cause great damage to property and personal injury. Use
only material specified by DAL for the installation and mounting of DAL
loudspeakers. This work must be carried out by qualified personnel.
Observe the applicable safety regulations when doing so.
Caution
Do not stand in the immediate vicinity of loudspeaker systems that are operated
at high sound pressure levels. Wear hearing protection when testing and setting
up speaker systems. These speaker systems - operated at high sound pressure
levels - can endanger health. Even seemingly low sound pressure levels of
90dB/SPL can cause long-term impairment or damage to hearing.
Attention
When setting up, storing and transporting loudspeakers, ensure that excessive
environmental influences such as direct sunlight, moisture, vibrations and dust
have no effect. When operating the loudspeakers, avoid feedback, distorted
signal transmission and playback as well as signal peaks that can be caused by
switching devices in the signal chain on and offor disconnecting them from the
signal chain during operation. Make sure that the loudspeaker is not exposed to
permanent thermal overloads, which may cause fire and result in damage to
property and personal injury. DAL will not be liable for any damage caused in this
way and will not accept any warranty or liability for consequential damage.
© German Audio Engineering GmbH*An der Strusbek 1*22926 Ahrensburg – User Manual DAL i10NCX v1.0
Warning
Caution
Beware
Caution

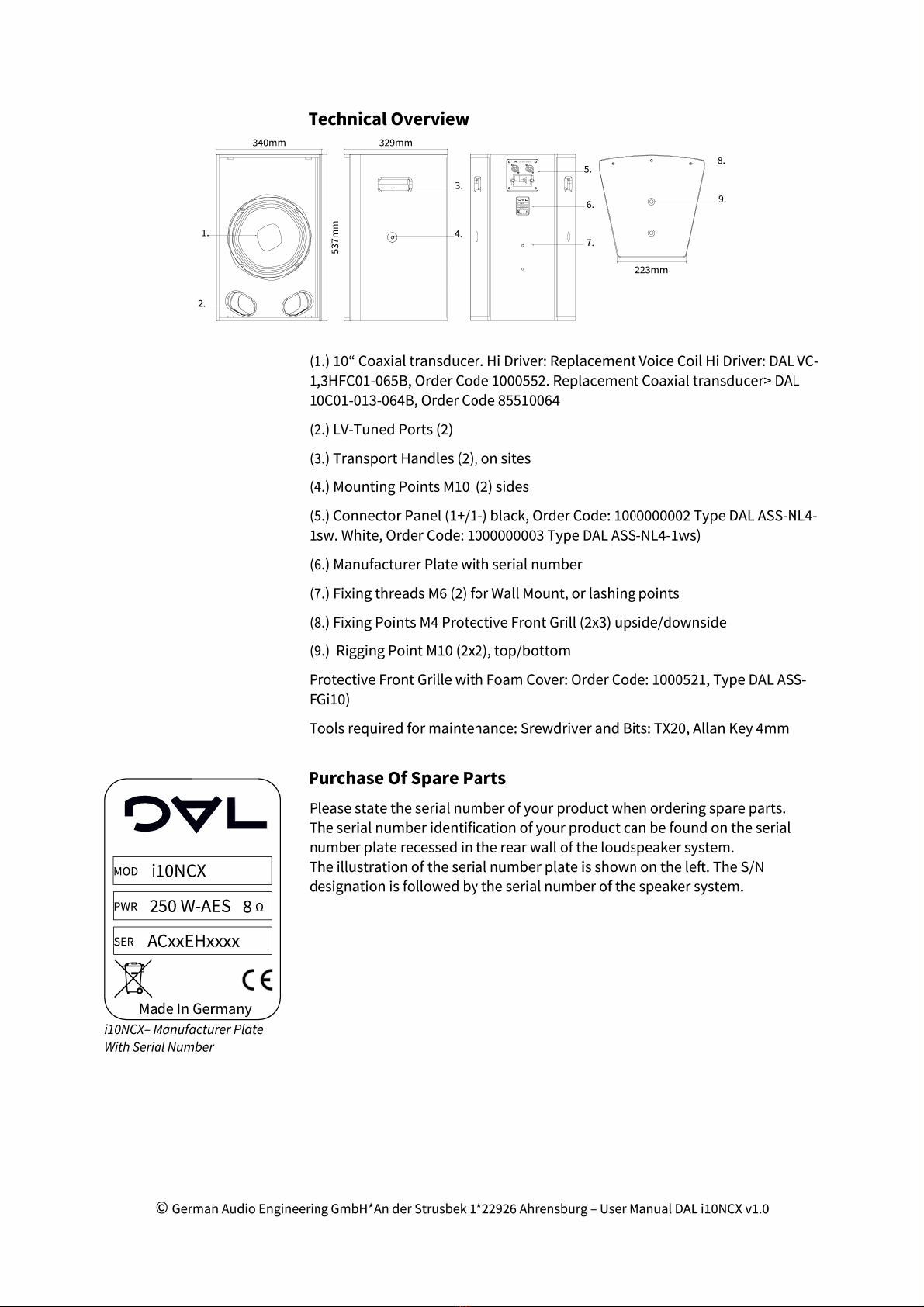

Technical Specifications
Acoustical Bandwidth (i10NCX FR-Mode) with DAL DS-4S / DS-4M: 60Hz – 20HHz
Acoustical Bandwidth (i10NCX Cut-Mode) with DAL DS-4S / DS-4M: 100Hz – 20KHz
Dispersion i10NCX (h x v): typically 80° radial
Electrical Phase Response: +/- 45°: 150Hz – 20KHz
Nominal Impedance (Re): 8Ohm
System Power: 250W (AES), 600W Peak
Continous SPL: >121dB/250W/1m, Pink Noise Crest Faktor 12dB
Peak SPL: > 132dB/500W/1m, Music Signal
Dimensions (H x W x D mm): 537 x 340 x 330
Net Weight: 18,2kg

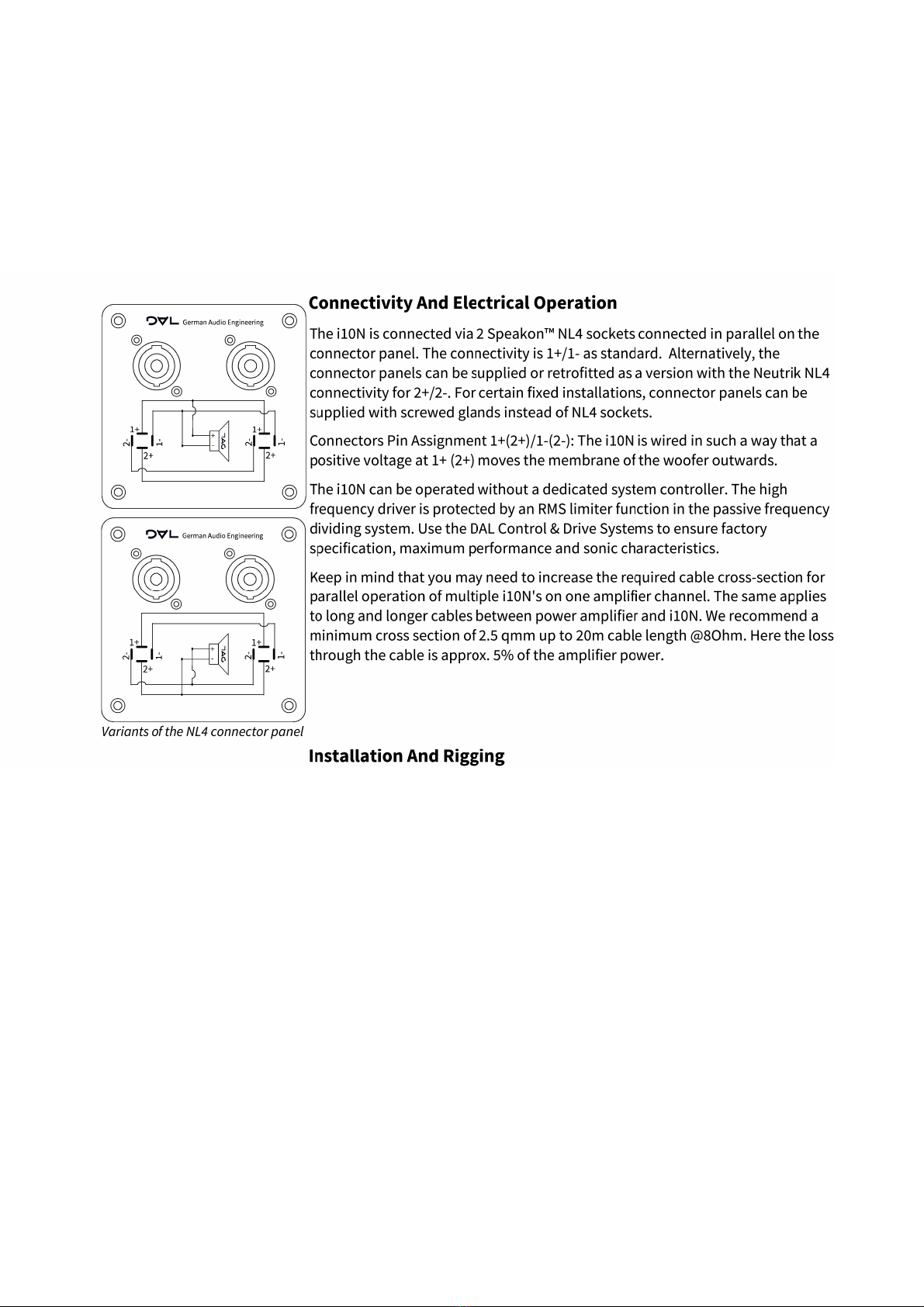

Connectivity: 2 x Speakon™ NL4 1+/1-, alternative 2+/2-
Standard Coating: fine textured black paint, optional RAL colours or black PU-
coating
Recommended Control & Drive System: DAL DS-4S, DAL DS-4M
For operation recall one of the following controler setups for DAL DS-4L DAL DS-
4M or DAL DS-4S:
i10NCXFR: Full Range stand - alone operation, spaced arrays
i10NCXCut: Low Cut operation with sub-/low support
Parallel connection of multiple i10NCX systems and DAL Control & Drive Systems:
DS-4L: 3 systems per channel
DS-4M: 2 systems per channel
DS-4S: 2 systems per channel
Technical Notes
Safety steels may be used only with the M10 threaded inserts. M6 or M8 threaded
inserts in the rear are to be used exclusively with DAL original accessories or are
designed as lashing points. A"er use, make sure that the countersunk screws
belonging to the cabinet are screwed back into the threaded sleeves in order to
maintain an air-tight system.
DAL protective grilles with foam lamination are the mechanical protection
component for the built-in transducers and offer a high acoustic transmission as
well as their affixing minimizes sonic influences of the grilles. The backing or
covering of the grilles with foam serves also as UV-light protection, dust
protection and improves the optical unobtrusive of the systems. Only
undamaged grilles and foams can fulfill these tasks. Replace warped grilles or
worn foams to maintain their function.
DAL loudspeaker systems with polyurea-coated or painted enclosures are
basically suitable for temporary outdoor operation, even in the rain.
For indefinite operation outdoors as in fixed installations, the loudspeaker
systems must be protected with a hood against direct sunlight and rain. If
necessary, the loudspeaker should be equipped with the optional front grille with
weather protection.
© German Audio Engineering GmbH*An der Strusbek 1*22926 Ahrensburg – User Manual DAL i10NCX v1.0

Most DAL loudspeaker systems can be supplied for extra charge from the factory
in a weatherproof (WR) or sea-weatherproof (SWR) variant.
For indefinite operation outdoors in subtropical and tropical areas, the
loudspeaker should be ordered as the WR variant. For indefinite operation at sea
and other areas with a humid and salty atmosphere, the loudspeaker should be
ordered in the SWR equipment variant. Both variants are manufactured at the
factory only.
The i10NCX is designed for standing or flown operation. When setting up,
suspending and positioning the system, make sure it is on a firm and leveled
surface and that the selected load points have a proven load-bearing capacity.
Use approved stands and approved mounting accessories that are designed for
the weight load. Additionally secure the ground stacked or flown speaker system
before commissioning to prevent personal injury and property damage.
© German Audio Engineering GmbH*An der Strusbek 1*22926 Ahrensburg – User Manual DAL i10NCX v1.0

Test And Maintenance
The wiring of the loudspeaker components inside the cabinet is according to the
diagram to the le". With an impulse phase checker, which delivers a signal with
non-inverted phase, a signal of positive polarity is obtained directly measured in
front of the cone transducer. If the same test is performed in front of the high
frequency driver/horn, a signal with positive polarity is obtained.
If the diaphragm of the high-frequency driver is replaced, make sure that the
original spacer ring (if originally fit) made of a thin plastic material remains in the
driver so that the new voice coil is correctly positioned in the magnetic field.
Transducers and horn need to fit back airtight in the cabinet a"er a service.
It is good practice to check loudspeaker systems frequently in concern of
mechanical integrity and distortion free sound reproduction.
Here is a simple way to quickly check sound reproduction. Use a sine wave
generator with sweep function or a tunable sine wave generator and a power
amplifier. Adjust the test system to deliver an appropriate sound power level and
tune the sine wave generator from low to high frequencies. Listen to the acoustic
output the loudspeaker delivers. The signals should be free of audible
distortions. Mechanical noise from the system or unwanted reproduction of side
tones should be followed up by inspection and search for the root cause.
Fixing and mounting points should be inspected frequently.
© German Audio Engineering GmbH*An der Strusbek 1*22926 Ahrensburg – User Manual DAL i10NCX v1.0
i10NCX - internal wiring schematic

Note on disposal
Observe the applicable national regulations and rules for disposal.
All products manufactured by German Audio Engineering GmbH are B2B
products and are supplied to commercial customers. The adjacent symbol of the
crossed-out trash bin can indicate that this product will be disposed of
exclusively by German Audio Engineering GmbH. For DAL products that do yet
bear this marking, the owner is responsible for proper disposal.
Our registration according to Elektro G is: WEEE-Register-Nr. DE 72073104
Manufacturer's declaration
The declaration applies to: DAL i10NCX 1000530 and all model variants that
correspond to the factory design and have not been modified by others.
Applied national standards and technical specifications:
DIN 18800, DIN 1055, DGUV regulation 17, BGI 810-13
Hamburg, 01.06.2018
© German Audio Engineering GmbH*An der Strusbek 1*22926 Ahrensburg – User Manual DAL i10NCX v1.0
