Danby dac12077ee Assembly instructions

Owner’s Use and Care Guide
Guide d’utiliser et soins de Propriètaire
Model • Modèle
DAC 12077EE
Danby Products Ltd, PO Box 1778, Guelph, Ontario Canada N1H 6Z9
Danby Products Inc, PO Box 669, Findlay, Ohio USA 45839-0669
Version 2.04.09JF
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE: If the air conditioner changes
ownership, be sure this manual accompanies the unit.
CONSERVER CES INSTRUCTIONS POUR CONSULTATION ULTÉRIEURE: En cas de
revente du climatiseur, ce manuel doit être inclus avec l’appareil.
CAUTION:
Read and follow all
safety rules and
operating instructions
before first use of this
product.
MISE EN GARDE:
Veuillez lire
attentivement les
consignes de sécurité
et les directives
d’utilisation avant
l’utilisation initiale de
ce produit.
AIR CONDITIONER
Unit Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Important Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
CLIMATISEUR
Specifications de l’unité . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Consignes de Sécurité Importantes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Consignes d’utilisation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Soins et Entretien . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Dépannage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Garantie . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Thank you for choosing a Danby Room Air Conditioner to cool your home. This Owner’s Use and
Care Guide will provide you with valuable information necessary for the proper care and maintenance
of your new appliance. If properly maintained, your Danby appliance will give you many years of
trouble free operation. Please take a few moments to read the instructions thoroughly and familiarize
yourself with all of the operational aspects of this appliance.
NOTE: This unit is NOT designed for “Through-the-wall” installation.
For easy reference, may we suggest you attach a copy of your sales slip/receipt to this page, along
with the following information, located on the manufacturers nameplate on the rear panel of the unit.
Model Number:
Serial Number:
Date of Purchase:
This information will be necessary if your unit requires servicing and/or for
general inquiries. To contact a Customer Service Representative, call Danby TOLL FREE:
1-800-26- (1-800-263-2629)
Model Number DAC12078EE
Voltage/Frequency 115V-60Hz
Noise Level 57 dB
Fan/Cooling Speeds 3/3
Cooling Capacity 12000 BTU
Energy Efficiency Rating (EER) 10.8
Input Wattage 1100
Unit Dimensions (W) x (D) x (H)(inches) 22”x 22 x 15 8/16”
Window Kit Dimensions Max Width 39 8/16”(1003mm)
Min. Width 26” (660mm)
Min. Height 16 4/16” (413mm)
Unit Weight 36.7 kg (80.9 lbs)
NOTE: Continuing research results in steady improvement. Therefore, this information and these
specifications are subject to change without notice.
CAUTION: Do not leave a room air conditioner unattended in a room where people or animals who
cannot react to a failed unit are located. A failed unit can cause extreme overheating and fire in an enclosed,
unattended space.
WELCOME
1
UNIT SPECIFICATIONS

READ ALL SAFETY INFORMATION BEFORE USING
1) All wiring must comply with local and national electrical
codes and must be installed by a qualified electrician. If you
have any questions regarding the following instructions,
contact a qualified electrician.
2) Check available power supply and resolve any wiring
problems BEFORE installing and operating this unit.
3) This 115V air conditioner uses 10 or less nameplate amps
and may be used in any properly wired, general purpose
household receptacle. See Table 1 for specifications for
individual branch circuit.
4) For your safety and protection, this unit is grounded
through the power cord plug when plugged into a matching
wall outlet. If you are not sure whether your wall outlet is
properly grounded, please consult a qualified electrician.
5) The wall outlet must match the 3-prong plug on the service
cord supplied with the unit. DO NOT use plug adapters. See
Table 2 for receptacle and fuse information. If it is necessary
to use an extension cord to connect your air conditioner, use
an approved “air conditioner” extension cord only
(available at most local hardware stores).
6) The rating plate on the unit contains electrical and other
technical data. The rating plate is located on the right side of
the unit, above the power cord.
TABLE 1
Suggested Individual Branch Circuit
Nameplate Amps *AWG Wire Size
4.9 to 10 14
AWG- American Wire Gauge
*Based on copper wire at 60°C temperature rating.
TABLE 2
Receptacle and Fuse Types
Rated Volts 125
Amps 15
Wall Outlet
Fuse Size 15
Time Delay Fuse Plug Type
(or Circuit Breaker)
ELECTRICAL
SPECIFICATIONS

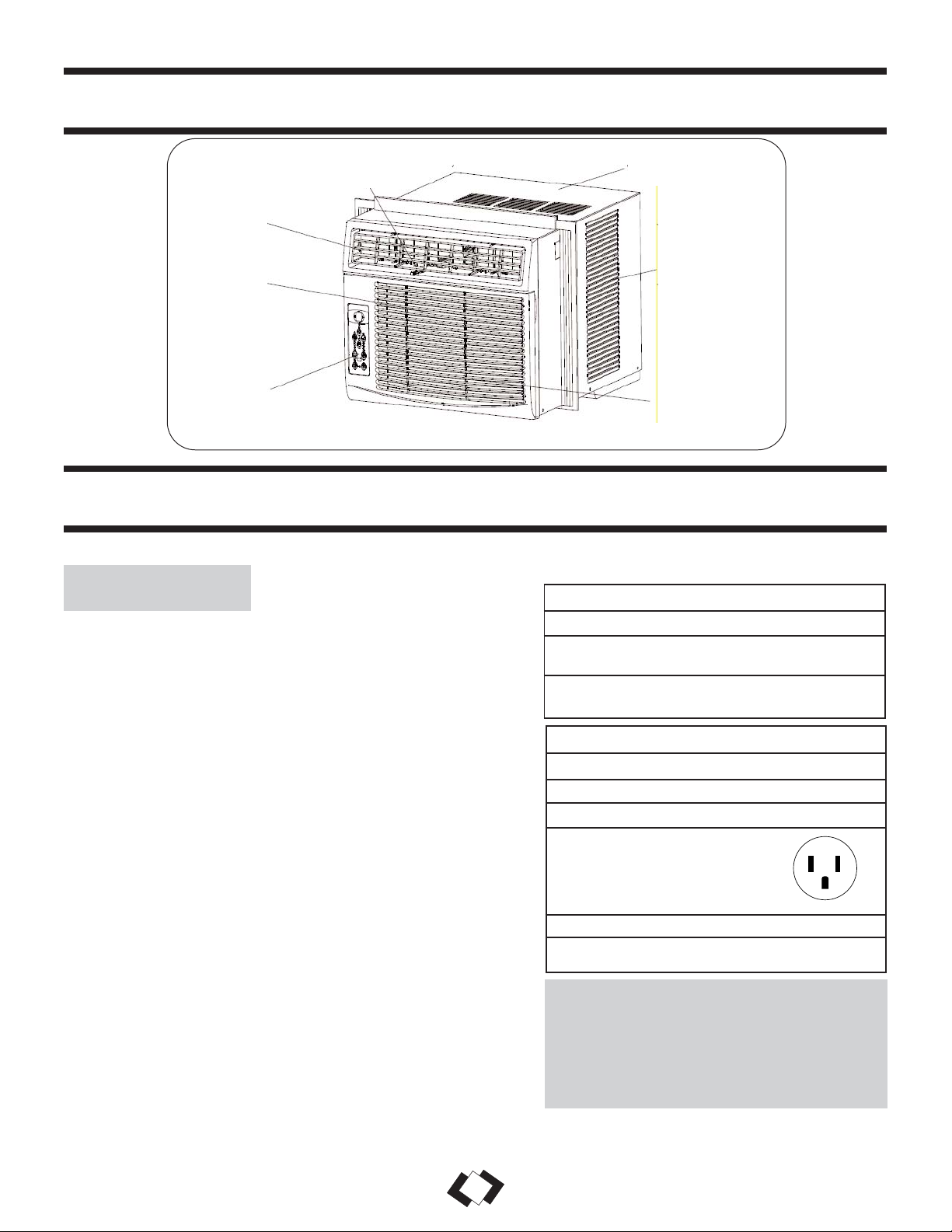

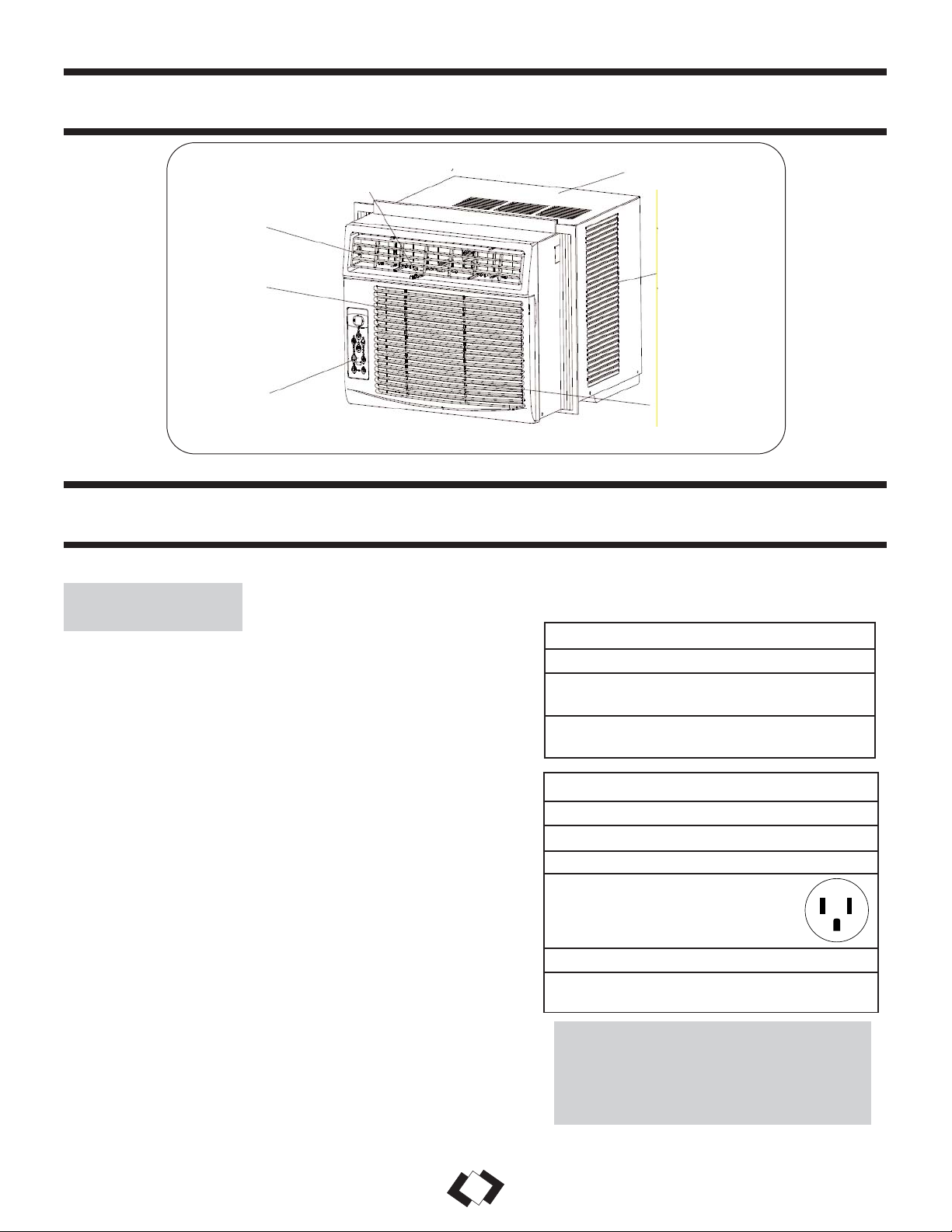

Fresh Air Ventilation Switch
(open for Fan only operation Cabinet
Exterior air
inlet
Filter
Interior air
outlet
Interior air
inlet
Control
Panel
PART IDENTIFICATION
IMPORTANT SAFETY INFORMATION
2
CAUTION: Do not leave this unit
unattended in a space where people or
animals cannot react to a failed unit are
located. A failed unit can cause extreme
overheating or death in such an enclosed,
unattended space.

Your Danby appliance is designed to be highly efficient in energy
savings. Follow these recommendations for greater efficiency.
1) Select a thermostat setting that suits your comfort
needs and leave at that chosen setting.
2) The filter is very efficient in removing airborne
particles. Keep the air filter clean. Normally, filters
should be cleaned every 2 weeks. More frequent
cleaning may be necessary depending on indoor air
quality.
3) Use drapes, curtains or shades to keep direct
sunlight from penetrating and heating room, but do not
allow drapes or curtains to obstruct the air flow around
the unit.
4) Start your air conditioner before the outdoor air
becomes hot and uncomfortable, to avoid an initial
period of discomfort while the unit is cooling off the
room.
5) When outdoor temperatures are cool enough, use
HIGH or LOW FAN only. This circulates indoor
air, providing some cooling comfort, and utilizes less
electricity than when operating on a cooling setting.
ENERGY-
SAVING TIPS
TOOLS NEEDED FOR INSTALLATION:
Screw Drivers: Both Phillips and flat head
Power Drill: 1/8 inch (3.2mm) diameter drill bit
Pencil Scissors
Measuring Tape Carpenters Level
ELECTRIC SHOCK HAZARD: To avoid the possibility of personal injury, disconnect power to the
unit before installing or servicing.
3/4” (19.1mm)
screws (9)
*Factory installed
on some models
Safety Lock (1)
Adhesive
Foam Seal(1)
Sash bracket (2)
“L” Shaped
mounting
bracket (1)
INSTALLATION HARDWARE
Your Room Air Conditioner is designed for easy
installtion in a single or double-hung window. This unit is NOT
designed for vertical (slider type) windows and/or through-the-wall
applications.
NOTE: Save the shipping carton and packing materials for future
storage or transport of the unit. From carton, remove the plastic bag
containing the installation hardware kit necessary for the installation
of your air conditioner. Please check the contents of hardware kit
against the corresponding model check list, prior to installation of the
unit. See Fig. 1.
CAUTION: Because the compressor is located on the controls
side of the unit (left side), this side will be heavier and more
awkward to manipulate. Inadequate support on control side of the
unit can result in personal injury and damage to your unit and
property. Therefore, it is recommended that you have someone assist
you during the installation of this unit.
Side Curtain RH (1)
Side Curtain LH (1)
3/8” (9.5mm) screws
(4) (*Factory
installed on some
models)
NOTE: Your unit is designed to evaporate condensation under normal conditions. However, under
extreme humidity conditions, excess condensation may cause basepan to overflow to the outside. The
unit should be installed where condensation run-off cannot drip on pedestrains or neighboring
properties
Fig. 1
IMPORTANT SAFETY INFORMATION (cont’d)
INSTALLATION
3

LOCATION

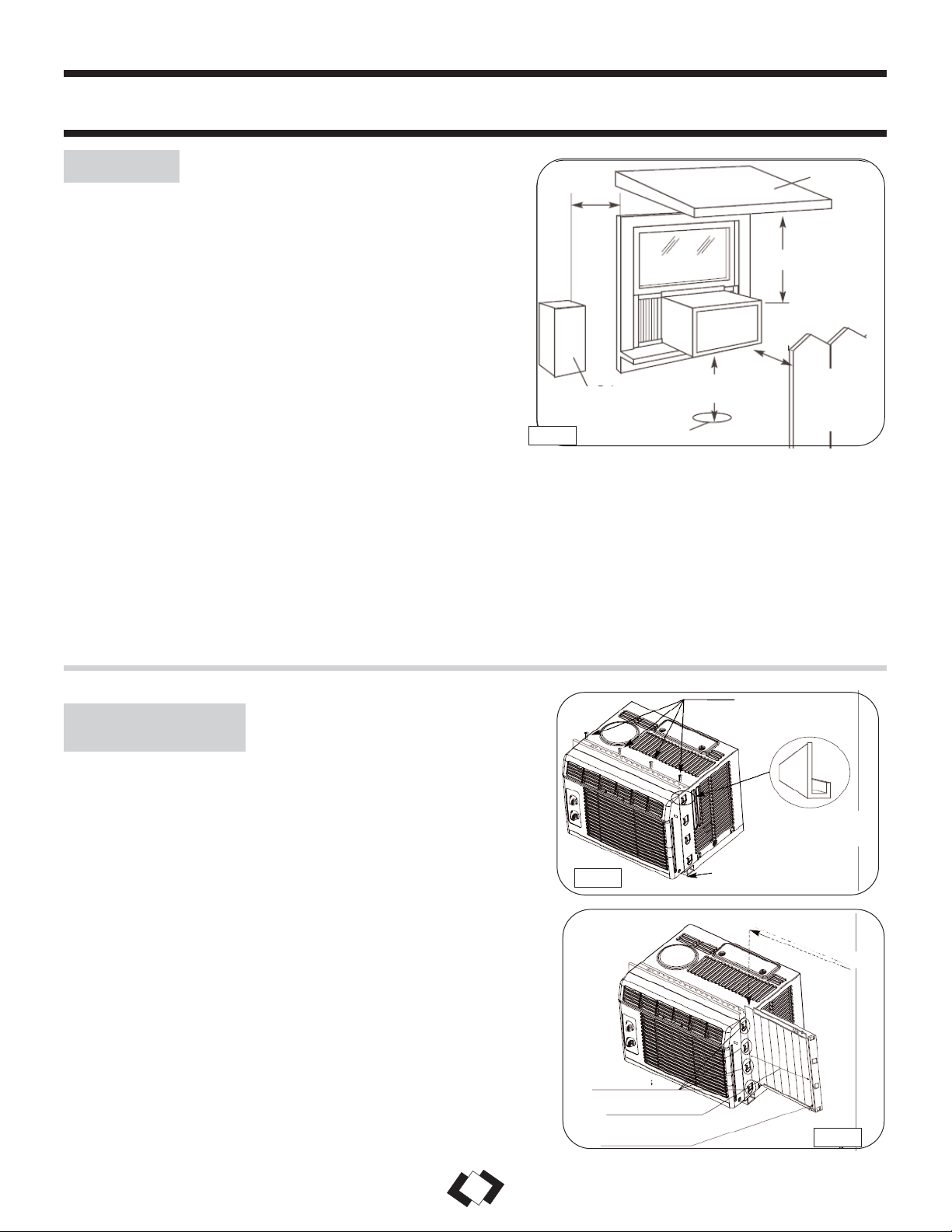

A) This room air conditioner is designed to fit easily into a single
or double hung window. However, since window designs vary, it
may be necessary to make some modifications for safe, proper
installation.
B) Make sure window and frame are structurally sound and free
from dry and rotted wood.
C) For maximum efficiency, install the air conditioner on a side
of the house or building which favours more shade than sunlight.
If the unit is in direct sunlight, it is advisable to provide an
awning over the unit.
D) Provide sufficient clearance around the cabinet to allow for
ample air circulation through the unit (See Fig. 2). The rear of the
unit should be outdoors and not in a garage nor inside a building.
Keep unit as far away as possible from obstacles/obstructions
and at least 30” above the floor or ground. Curtains and other
objects within a room should be prevented from blocking the
air flow.
E) Be certain the proper electrical outlet is within reach of the
installation. Use only a single outlet circuit rated at 15 amps.
All wiring should be in accordance with local and national
electrical codes.
F) DO NOT install unit where leakage of combustible gas is
suspected. Your air conditioner may fail to operate in air
containing oils (including machine oils), sulfide gas, near hot
springs, etc.
Awning
Fence,
wall, or
other
obstacle
Ground
Side
Obstruction
20”
Min
30”
Min
20”
Min
12” Min
Fig. 2
1) Assembly of the Upper Channel to Cabinet.
• “L” Shaped Top Channel: Install the “L” shaped channel to the
top of the cabinet as shown in Fig. 3, using four (4) 3/8” screws.
2) Assembly of the Side Curtains to Cabinet.
• Extend the shutter from the shutter frame and slide it into the
shutter tabs on the side channel of the air conditioner, as shown
in Fig. 4.
• Slide the shutters into the top (“L” Shaped) and bottom (“U”
Shaped) channels. The shutters are identified (on frame) as left
and right.
INSTALLATION
INSTRUCTIONS
3/8” screws
“L” shaped
mounting bracket
“U” shaped Channel
(Factory Installed)
Fig. 3
Slide down into tabs
Shutter tabs
Shutter
Shutter frame Fig. 4
INSTALLATION (cont’d)
4

3) Completing the Installation
• Cut the foam (non adhesive) sealing strip to fit the area of the
window sill that the air conditioner will rest on.
• Carefully place the air conditioner into the window with the
“L” shaped mounting bracket (on top) positioned in front of
the upper window sash. The bottom of the cabinet should be
positioned on the “recessed” portion of the window frame. Pull
the window down until it rests just behind the front flange of
the (top) “L” shaped mounting bracket (See Fig. 5).
• Expand the shutter frames (fully) on each side and secure the
top of the frames to the window sash using one 3/4” screw on
each side and one in the “L” shaped mounting bracket (Fig. 5).
• Secure the shutter clamp on each side of the (lower) shutter
and secure to window sill using one 3/4” screw on each side
(Fig. 5).
• Place the second foam sealing strip to fit the opening
between the inside and outside windows, then attach the safety
lock to the outside window frame using one 3/4” screw (See
Fig. 6).
Window sash
“L” Shaped
Mounting
Bracket
Shutter clamps
3/4” screws
Fig. 5
Safety Lock
3/4” screw
Foam Seal
Fig. 6
PLEASE NOTE: Window applications come in a variety of
different styles. Therefore, it may be necessary to modify or
improvise your particular installation.
INSTALLATION (cont’d)
5

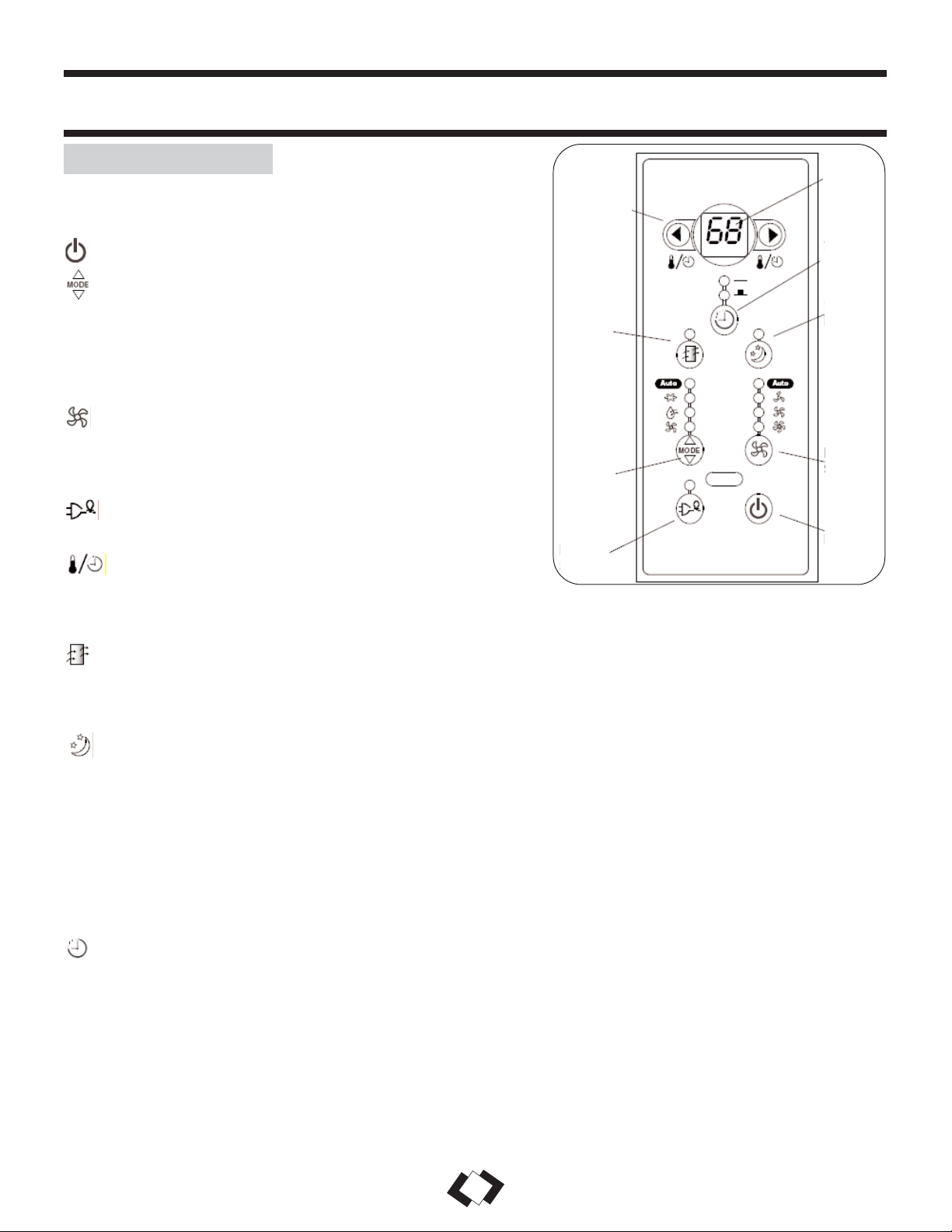

KEY PAD FEATURES
LED DISPLAY: Displays the following information
independently;Set Temperature, Ambient Room Temperature
and Auto Timer On/Off settings.
POWER: Turns unit On/Off.
MODE: Allows you to scroll through and select the
desired operating mode; Cool , Dry , Fan Only and *Auto
.The selected mode will be denoted by the adjacent indicator
light.*‘Auto’is a pre-set factory program that automatically
defines the mode (Cool or Dry) and fan speed based on the set
temperature.
FAN SPEED: Select from four different fan settings;Low
, Medium , High and Auto during Cool and Fan Only mode.
Please note: During ‘Dry’ mode the fan speed is automatically
defined .
ENERGY SAVER: Automatically cycles the fan on and
off while the compressor is not in use.
TEMP / TIMER CONTROL: Used to increase or
decrease the Temperature setting in 1°C increments, and
Auto-Timer On/Off settings in 30min./1hr. increments.
Note:This appliance displays temperature in °C ONLY.
CHECK FILTER: The adjacent indicator light will
illuminate as a reminder to clean the air conditioner filter (see
page 9) Once the filter has been cleaned and replaced,
depress the Check Filter button in order to resume operation.
SLEEP MODE: When activated, the current set
temperature is gradually increased over a one (1) hour period
then maintained for seven (7) hours. Once the program is
complete, the air conditioner will resume to its previous set
temperature (before sleep mode was activated). This feature is
meant to be used during the night time hours to prevent the
room from getting too cold (while you sleep) and results in
less compressor running time and reduced energy
consumption. Sleep mode may be cancelled by depressing the
Sleep Mode button while the program is running.
AUTO-TIMER: Used to initiate the Auto On/ Auto Off
timer.
While the Air Conditioner is off (Auto-On):
1) Press the Auto-Timer button once and the adjacent Auto-On
indicator light will
illuminate.
2) Use the Temp/Timer control cursors to select adelayed
Ontime of up to 24 hours.
Temp/Timer
Control
Check
Filter
Mode
Selector
Energy
Saver
LED
DISPLAY
Auto
Timer
Sleep
Mode
Fan
Speed
Power
Button
3) Select the appropriate mode under which
you want the unit to operate (Auto-Cool-Dry-
Fan Only)
4) Select the fan speed setting.
5) The time you selected will appear in the
LED display.
While the Air Conditioner is on (Auto-Off):
1) Press the Auto-Timer button twice and the
adjacent Auto-Off indicator light will
illuminate.
2) Use the Temp/Timer control cursors to select
a delayed Off time of up to 24 hours.
3) The time you selected will appear in the
LED displayThe Auto On and Auto Off timer
can operate during the same program by
defining the Auto-Off parameters immediately
after the Auto On parameters. The Auto-Timer
may be cancelled at any time by turning the
unit On/Off.
OPERATING INSTRUCTIONS
6

REMOTE CONTROL
FEATURES
Electronic Display: Displays the following information;
A: Remote Control power On/Off and Mode Icons
B: Clock and Auto-Timer settings
C: Current set temperature
D: Fan speed setting Control Buttons
1) Power switch.
2) Mode
3) Fan Speed
4) Energy Saver
5) Auto-Timer
6) Used to increase or decrease temperature settings in 1°
increments on the Celsius scale.
7) Cancels current Timer ON/OFF settings.
8) Lock prevents the remote control settings from inadvertently
being changed.
9) Clock: Depress the button for 3 seconds in order to set the
clock. Press the increase or decrease arrow to adjust the clock in
1 minute intervals, holding down the increase or decrease arrow
will adjust the time in 10 minute intervals.
10) Used to activate the SLEEP program.
11) Toggle the LED backlight on/off.
12) Restore remote control default settings.
To operate the hand held remote control will require two “AAA” Alkaline batteries (included ).
Batteries should be replaced when:
a) No signal (beep) is heard when attempting to program the main unit.
b) The main unit does not respond to a command issued by the remote control.
Battery replacement:
1) Slide the rear cover on the remote in the direction of the arrow. Continue pulling (gently) until the cover
separates completely from the unit.
2) Insert (2) batteries (AAA) following the same orientation (polarity) depicted inside the battery chamber
(+/-).
3) Re-install rear cover.
4) If the remote control will not be used for extended periods of time (vacations etc.), batteries should be
removed.
The remote operates within a range of 8 meters (26 ft.) from the receiver located inside the main unit.
Any obstruction between the receiver and remote may cause signal interference, limiting the ability to
program the main unit.
OPERATING INSTRUCTIONS (cont’d)
7

When cleaning the air conditioner, be sure to turn the SELECTOR knob to the “OFF” position and
disconnect the power cord from the electrical outlet.
1) DO NOT use gasoline, benzene, thinner, or any other chemicals to clean this unit, as these substances may
cause damage to the finish and deformation of plastic parts.
2) Never attempt to clean the unit by pouring water directly over any of the surface areas, as this will cause
deterioration of electrical components and wiring insulation.
AIR FILTER
If the air filter becomes clogged with dust, air flow is obstructed and reduces efficiency. The air filter should be
cleaned every 2 weeks.
AIR FILTER REMOVAL:
The air filter is located behind the air intake front grill. To remove the air filter, grasp the sides of the front grill
and pull forward to open and access the filter.
To reinstall the air filter, reverse the above procedures. The air filter may be vacuumed or washed by hand in
warm water. Dry thoroughly before re-installing.
CLEANING AIR FILTER:
1) Use a vacuum cleaner with soft brush attachment
2) Wash the filter in lukewarm water below 40°C (104°F): To get best results, wash with soapy water or a
neutral cleaning agent.
3) Rinse the filter with clean water and dry thoroughly before re-installing.
IMPORTANT: DO NOT forget to install the air filter. If the air conditioner is left to operate without
the air filter, dust is not removed from the room air and may result in machine failure. When the air inlet grill
and cabinet are dirty, wipe with lukewarm water (below 40°C). Use of a mild detergent is recommended.
END OF
SEASON CARE
1) Operate the fan alone for half a day to dry out the inside of the unit.
2) Turn off power and remove plug from wall socket.
3) Clean filter.
4) Store (covered) air conditioner in a dry location.
CAUTION: When installing and/or removing the air conditioner from the window, ensure that
caution is taken to prevent it from falling backward. It is recommended that installation or removal of the
air conditioner is done with assistance to prevent injury to persons or damage to the unit or property.
CARE AND MAINTENANCE
8

PROBLEM POSSIBLE CAUSE SOLUTION
• Air conditioner will not
operate.
• Inefficient or no cooling.
• Noisy unit
• Odors
• Water dripping outside
• Water dripping inside
• Ice or frost build-up
• No power to the unit.
• Dirty air filter
• Unit size inappropriate for
application
• Blocked air flow
• Power interruption, settings
changed too quickly, or
compressor overload tripped.
• Loose parts
• Inadequate support
• Formation of mold, mildew,
or algae on wet surfaces.
• Hot and humid weather
• Unit is not properly angled to
allow water to drain outside
• Low outside temperature
• Unit air filter is dirty
• Check connection of power cord
to power source
• Check fuse or circuit breaker
• Set SELECTOR SWITCH to
position other than “OFF”
• The power cord “RESET” button
must always be pushed in
(engaged) for correct operation.
• Clean/replace air filter
• Check with dealer to determine
proper unit capacity for application
• Remove obstruction from grill or
outdoor louvres
• Turn the unit off and wait 5
minutes before attempting to restart.
• Tighten loose parts
• Provide additional support to unit
• Clean unit thoroughly
• Place algaecide tablet in base pan
• Condensation run-off is normal
under these conditions
• Unit must be installed on an angle
for proper condensation run-off.
Check the unit and make any
adjustments.
• When outdoor temperature is
approximately 18.3°C (65°F) or
below, frost may form when unit is
in cooling mode. Switch unit to
FAN (only) operation until frost
melts.
• Remove and clean filter.
Occasionally, a problem may occur that is minor, and a service call may not be necessary. Use this
troubleshooting guide for a possible solution. If the unit continues to operate improperly, call an authorized
service depot or Danby’s Toll Free Number for assistance:
1-800-26- (1-800-263-2629)
NOTES:
1) If circuit breaker is tripped repeatedly, or fuse is blown more than once, contact a qualified
technician
2) When unit is installed using proper installation steps, unit is properly tipped toward the outdoors to allow
for condensation run-off.
TROUBLESHOOTING
9
