WELCOME
1
Welcome to the Danby family. We are proud of our quality products, and we believe in dependable service, like you will
find in this Owner’s Use and Care Guide, and like you will receive from our friendly customer service department. Best of
all, you will experience these values each and every time you use your Danby appliance. That is important, because your
new appliance will be a part of your family for a long time.
For easy reference, we suggest you attach a copy of your sales slip/receipt to this page, along with the following
information, located on the manufacturer’s nameplate on the right side of the unit above the powercord.
Note the information below; you will need this information to obtain service under warranty.
To receive service, you must provide the original receipt.
NOTE: THIS UNIT IS NOT DESIGNED FOR “THROUGH-THE-WALL” INSTALLATION.
Model No:
Serial No:
Date Purchased:
NEED HELP?
Before you call for service, here are a few things you can do to
help us serve you better:
Read this Owner’s Use and Care Guide:
It contains instructions to help you use and maintain your
appliance properly.
If you received a damaged appliance:
Immediately contact the retailer (or builder) that sold you the
appliance.
Save time and money:
Check the Troubleshooting section at the end of the guide
before calling. This section helps you solve common problems
that may occur.
If you do need service, you can relax, knowing help is only a
phone call away.
WARNING
Improper connection of the grounding plug can result in risk of
fire, electric shock and/or injury to persons associated with the
appliance. Check with a qualified service representative if in doubt
that the appliance is properly grounded.
1-800-26-
(1-800-263-2629)

Important Safety Information
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
FOR YOUR SAFETY: Read these instructions carefully before operating the unit.
ELECTRICAL SPECIFICATIONS
1. All wiring must comply with local and national electrical codes and must be installed by a qualified electrician. If you
have any questions regarding the following instructions, contact a qualified electrician.
2. Check available power supply and resolve any wiring problems BEFORE installing and operating this unit.
3. This 115V or 230/208V air conditioner uses 11.8 or less nameplate amps and may be used in any properly wired,
general purpose household receptacle. See Table 1 for specifications for individual branch circuit.
4. For your safety and protection, this unit is grounded through the powercord plug when plugged into a matching wall
outlet. If you are not sure whether your wall outlet is properly grounded, please consult a qualified electrician.
5. The wall outlet must match the 3-prong plug on the service cord supplied with the unit. DO NOT use plug adapters.
See Table 2 for receptacle and fuse information.
6. The rating plate on the unit contains electrical and other technical data. The rating plate is located on the right side of
the unit, above the powercord.
TABLE 1 - DAC180BBUWDB
Suggested Individual Branch Circuit
Nameplate Amps *AWG Wire Size
7.0/7.5 14
AWG- American Wire Guage
*Based on copper wire at 105°C (221°F) temperature
rating.
TABLE 2
Recept and Fuse Types
Model DAC180BBUWDB
Rated Volts 240 240
250
Amps 15 15
30
Wall Outlet
Fuse Size 15 15
20
Time Delay Fuse Plug Type
(or Circuit Breaker) 2
TABLE 1 - DAC250BBUWDB
Suggested Individual Branch Circuit
Nameplate Amps *AWG Wire Size
10.8/11.8 12
AWG- American Wire Guage
*Based on copper wire at 105°C (221°F) temperature
rating.
TABLE 2
Recept and Fuse Types
Model DAC250BBUWDB
Rated Volts 240 240
250
Amps 20 15
30
Wall Outlet
Fuse Size 20 15
20
Time Delay Fuse Plug Type
(or Circuit Breaker)
WARNING: Do not under any corcumstances, cut, remove
or bypass the grounding prong on the power plug.

Your appliance is designed to be highly efficient in energy savings. Follow these recommendations for greater effi-
ciency.
1. Select a thermostat setting that suits your comfort needs and leave at that chosen setting.
2. The air filter is very efficient in removing airborne particles. Keep the air filter clean at all times (usually cleaned every
2 weeks depending on indoor air quality).
3. Use drapes, curtains or shades to keep direct sunlight from penetrating and heating the room, but do not allow drapes
or curtains to obstruct the air flow around the unit.
4. Start your air conditioner before the outdoor air becomes hot, to avoid an initial period of discomfort while the unit is
cooling the room.
5. When outdoor temperatures are cool enough, use the FAN MODE only, on HIGH, MEDIUM, or LOW setting. This
circulates indoor air, providing some cooling comfort, and utilizes less electricity than when operating on a cooling
setting.
Important Safety Information
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
FOR YOUR SAFETY: Read these instructions carefully before operating the unit.
ENERGY SAVING TIPS
The power cord supplied with this air conditioner contains a device that senses damage to the power cord. To test if your
power cord is working properly, you must do the following:
1. Connect the power supply cord to an electrical outlet.
2. The power supply cord has two buttons located on the head of the plug. One button is marked “TEST”, and the other
is marked “RESET”. Press the “TEST” button; you will hear a click as the “RESET” button pops out.
3. Press the “RESET” button; you will hear a click as the button engages.
4. The power supply cord is now energized and supplying electricity to the air conditioner (on some products this is also
indicated by a light on the plug head).
NOTE: The power cord supplied with this air conditioner contains a current leakage detection device designed to reduce
the risk of fire. In the event the power supply cord is damaged, it cannot be repaired and must be replaced with a new
cord from the product manufacturer.
• Under no circumstances should this device be used to turn the unit on or off.
• The “RESET” button must always be pushed in (engaged) for correct operation.
• The power supply cord must be replaced if it fails to reset when the “TEST” button is pushed in.
NOTE: Some plugs have buttons on the top.
POWER SUPPLY CORD
Plug in and press
RESET
TEST
RESET
3

FEATURES
Control Panel
Interior Air
Inlet
Cabinet
UNIT CONTROL PANEL
1. ON/OFF Button: Press to turn the unit on/off. NOTE: The unit will automatically launch the Energy Saver function
when it is in Cool, Dry and Auto modes.
2. Temperature UP/DOWN Buttons: To change the temperature setting, press or hold either the UP ( ) or DOWN
( ) button, until the desired temperature is seen on the display. This temperature will be automatically maintained
anywhere between 17°C (62°F) and 30°C (86°F). In Cooling mode, the display reads the set temperature, while in
Fan mode, the current room temperature is displayed.
3. Fan Speed Button: Select from four different fan settings:Auto, Low, Med or High. Each time the button is pressed,
the fan speed is shifted.
4. Mode Button: Allows you to scroll through and select the desired operating mode: Auto, Cool, Dry and Fan. The se-
lected mode will be denoted by the adjacent indicator light.
Operation in Auto Mode:
• Auto is a pre-set factory program that automatically defines the mode and fan speed, based on the set temperature
you have chosen. An example ofAuto operation is as follows:
• If you would like to cool down your room, your desired / set temperature will be below the room temperature, and your
air conditioner will go into cooling mode. Once the room has reached your desired temperature, the air conditioner will
switch to Fan mode, and circulate the cooled air around the room. When the temperature in the room goes up, the
unit will switch back to cooling mode, and the Auto cycle will start again.
Operation in Dry Mode:
• Please note that in this mode you cannot set the desired humidity level, it is automatically pre-set. The fan speed in
this setting is defaulted to “low”. Since the compressor is operating in order to remove moisture from the air, you will
experience a degree of cooling as a by-product.
Operation in Fan Only Mode:
• Use this function, when cooling is not desired, such as for room air circulation, or to exhaust stale air. Remember
to open the vent during this function, but keep it closed during cooling, for maximum cooling efficiency. In this mode
you can choose any fan speed you prefer. In Fan mode, the temperature cannot be set, and the display will read the
current room temperature.
5. Energy Saver: This is the default setting on this model. The unit will automatically cycle the fan on and off while
the compressor is not in use. The fan will continue to run for 3 minutes after the compressor shuts off. The fan then
cycles on for 2 minutes at 10 minute intervals, until the room temperature is above the set temperature. At this point,
the compressor turns back on and cooling re-starts. When the unit is in Energy Saver mode, the indicator light above
the Energy Saver button will be illuminated. You can take the unit out of Energy Saver mode by pressing the Energy
Saver button - the indicator light about the button will turn off. If you choose the non-Energy Saver option, the fan will
run continuously when the compressor is not in use.
4

UNIT CONTROL PANEL
6. Sleep Button: Press the Sleep button to initiate the Sleep mode. In this mode, the selected temperature will
increase (when in cooling mode) by 1°C (2°F) one half-hour after Sleep mode has been selected. The temperature
will then increase by another 1°C (2°F) after an additional half-hour. This new temperature will be maintained for 6
hours before returning to the originally selected temperature. This ends the Sleep mode and the unit will continue to
operate as originally programmed. The Sleep mode program can be cancelled at any time during operation by
pressing the Sleep button again.
7. Timer (Auto Start / Stop Feature) Button: Pressing the Timer button will illuminate the indicator beside the word
“On”. This indicates that theAuto Start program has been initiated. Press or hold the Up ( ) or Down ( ) buttons
to change the Auto time by 0.5 hour increments, up to 10 hours, then at 1 hour increments up to 24 hours. The
control will count down the time remaining until the start of the program. The selected time will register in 5 seconds
and the system will automatically revert back to displaying the previous temperature setting. Turning the unit ON or
OFF at any time will cancel the Auto Start/Stop function.
8. Check Filter Button: This feature is a reminder to clean the air filter for more efficient operation. The LED (light)
illuminates after 250 hours of operation. To reset after cleaning the filter, press the check filter button and the light
will go off.
ADDITIONAL FEATURES:
• The Cool circuit has an automatic 3 minute time delayed start if the unit is turned off and on quickly. This prevents
overheating of the compressor and possible circuit breaker tripping. The fan will continue to run during this time.
• The control will maintain any set temperature within 2°, between 15°C-32°C (60°F - 90°F).
• The control is capable of displaying temperature in Celsius (°C) or Fahrenheit (°F). To convert from one to the other,
press and hold the UP and DOWN Temp./Timer buttons at the same time for 3 seconds.
5
FEATURES

FEATURES
ADJUSTING AIR FLOW
The 4-way air directional louvers allow you to direct the air flow up or down and left or right throughout the room as needed.
RECOMMENDATION: When cooling, adjust blades to face upward. If you orient the air flow blades downward and the unit
operates in cool mode for long periods of time, dew may form and drip from the surface of the blades.
Up or Down
Left or Right
OPERATING INSTRUCTIONS

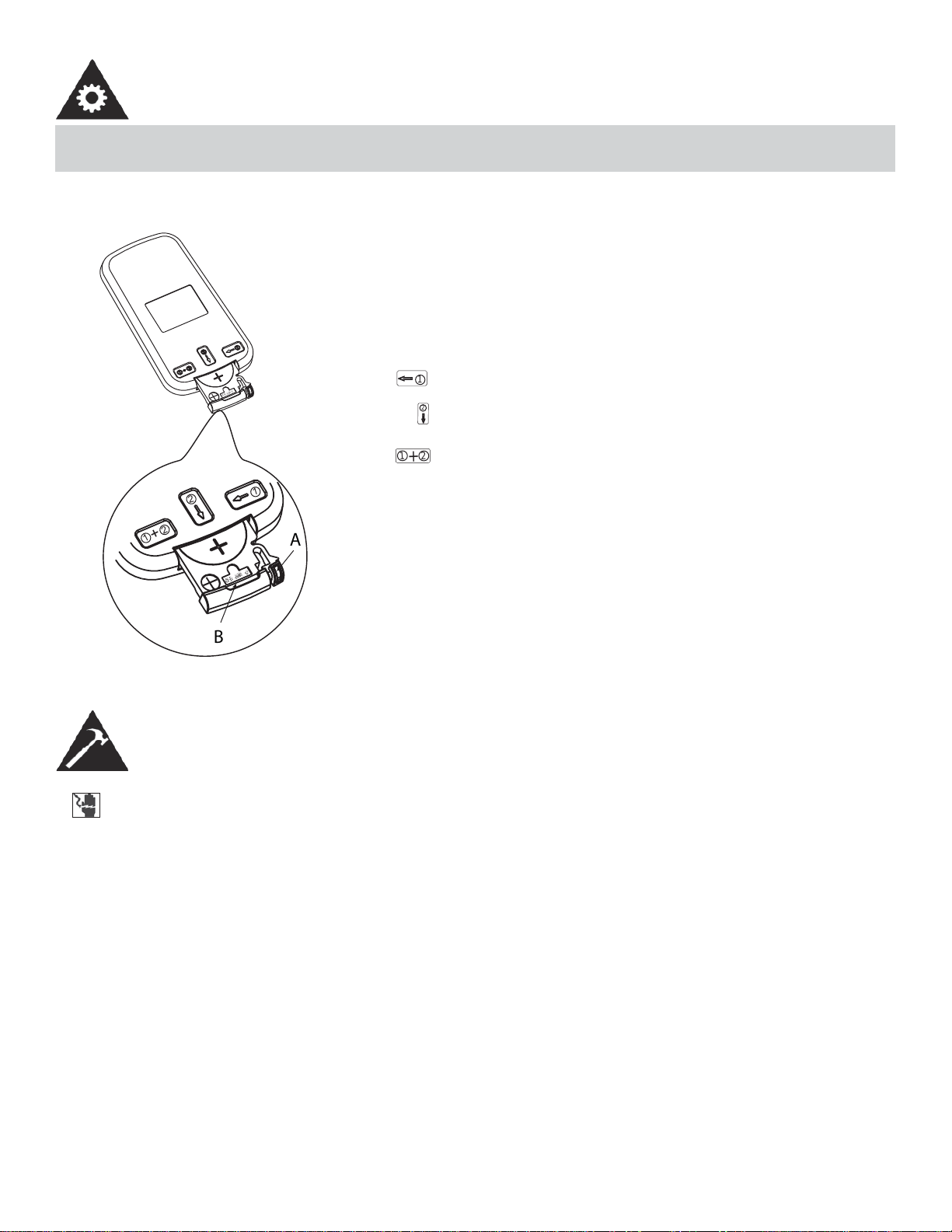

USING THE REMOTE CONTROL
äâi
äÅÅ
àä~Ä
èÄàã
êãèÄàã
~äíâ
éíÑ
âÇ
Å{âèÑ
àÄç
éáÄÄã
8m
Location of the remote controller
• Use the remote controller within a distance of 8 meters from the appliance, point-
ing it towards the receiver. Reception is confirmed by a beep.
• The air conditioner will not operate if curtains, doors or other materials block
the signals from the remote controller to the indoor unit.
• Prevent any liquid from falling into the remote controller. Do not expose the
remote controller to direct sunlight or heat.
• If the infrared signal receiver on the indoor unit is exposed to direct sunlight,
the air conditioner may not function properly. Use curtains to prevent the
sunlight from falling on the receiver.
• If other electrical appliances react to the remote controller, either move these
appliances or call the service depot.
CAUTION
6

REMOTE CONTROLLER SPECIFICATIONS
Model R15B
Rated Voltage 3.0V
Battery Type Button cell: CR2025
Battery Quantity 1pcs
Lowest Voltage of CPU Emitting Signal 2.0V
Signal Receiving Range 8m
Environment -8°C to 60°C (18°F to 140°F)
Model / Modèle :
R15B
ON/OFF BUTTON
Operation starts when this button
is pressed and stops when the
button is pressed again. NOTE:
The unit will automatically launch
the Energy Saver function when
it is in Cool, Dry, and Auto modes
(Only Auto-Cool and Auto-Fan
modes.)
TEMP UP BUTTON
Push this button to increase the
temperature setting in 1°C (1°F)
increments to 30°C (86°F) .
FAN BUTTON
Used to select the fan speed in
four steps:
LOW MED HIGH AUTO
ENERGY SAVER BUTTON
Press this button to activate the
energy saving mode. Press it
again to stop the function. This
function is available in COOL,
DRY, and AUTO modes (only
Auto-cool and Auto-fan modes).
MODE BUTTON
Each time you press this button,
a mode is selected in a sequence
that consists of AUTO, COOL,
DRY, FAN, and back to AUTO.
TEMP DOWN BUTTON
Push this button to decrease the
indoor temperature setting in 1°C
(1°F) increments to 17°C (62°F).
TIMER BUTTON
Push this button to activate the
“Auto Start” or “Auto Stop” pro-
gram from 0-24 hours (0.5/1 hour
increments).
SLEEP BUTTON
Press this button to activate the
SLEEP mode. This function is
available in COOL, and AUTO
modes only, and maintains the
most comfortable temperature for
you.
OPERATING INSTRUCTIONS
7

OPERATING INSTRUCTIONS
USING THE REMOTE CONTROLLER BUTTONS
Model / Modèle :
R15B
AUTO OPERATION
Ensure the unit is plugged in and power is available.
1. Press the ON/OFF button to start the air conditioner.
2. Press the mode button and select AUTO.
3. Press the TEMP + / - button to set the desired temperature. The temperature can be set
within a range of 17°C (62°F) to 30°C (86°F) in 1°C (1°F) increments.
NOTE:
1. In the auto mode, the air conditioner can logically choose the mode of Cool, Fan, Dehu-
midifying by sensing the difference between the actual ambient room temperature and
the set temperature on the remote controller.
2. In Auto mode, you cannot change the fan speed. It has already been automatically
controlled.
3. If the Auto mode is not comfortable for you, the desired mode can be selected manually.
-----------------------------------------------------------------------------------------------------------------------
Model / Modèle :
R15B
COOLING / FAN OPERATION
Ensure the unit is plugged in and power is available.
1. Press the ON/OFF button to start the air conditioner.
2. Press the MODE button to select Cool mode.
3. Press the TEMP +/- button to set the desired temperature. The temperature can be set
within a range of 17°C (62°F) to 30°C (86°F) in 1°C (1°F) increments.
4. Press the FAN button to select the fan speed in four-steps, LOW, MED, HIGH or AUTO.
NOTE:
In the FAN mode, the setting temperature is not displayed in the remote controller and you
are not able to control the room temperature either. In this case, only step 1, 2 and 4 may be
performed.
-----------------------------------------------------------------------------------------------------------------------
Model / Modèle :
R15B
DEHUMIDIFYING OPERATION
Ensure the unit is plugged in and power is available.
1. Press the ON/OFF button to start the air conditioner.
2. Press the MODE button to select Dehumidifying mode.
NOTE:
In the Dehumidifying mode, you cannot change the fan speed. It has already been automat-
ically controlled.
-----------------------------------------------------------------------------------------------------------------------
1
3
2
3
4
3
3
21
2
1
8

OPERATING INSTRUCTIONS
USING THE REMOTE CONTROLLER BUTTONS
Model / Modèle :
R15B
SLEEP OPERATION
• In this mode, the selected temperature will increase (when in cooling mode) by 1°C (2°F)
one half-hour after sleep mode has been selected.
• The temperature will increase by another 1°C (2°F) after an additional half-hour.
• This new temperature will be maintained for 6 hours before returning to the originally
selected temperature. This ends the Sleep mode and the unit will continue to operate as
originally programmed.
• The Sleep mode program can be cancelled at any time during operation by pressing the
Sleep button again.
-----------------------------------------------------------------------------------------------------------------------
Model / Modèle :
R15B
TIMER OPERATION
Pressing the TIMER button can set theAuto-start and Auto-stop time of the unit.
NOTE:
• To set Auto-start time, the unit must be in the OFF position.
• To set Auto-stop time, the unit must be in the ON position.
To set the Auto-start time
1. Push the TIMER button when the unit is off; only the Auto-start feature can be set.
2. Keep pressing the TIMER button. Each time pressed, will increase the selected time
by 0.5 hour increments. When the selected time has added up to 10 hours, each time
pressed will increase the selected time by 1 hour increments, up to 24 hours.
3. The time can be set in the range of 0-24 hours.
4. After the desired time has been selected, wait for about 10 seconds, until the setting
temperature reappears in the display window of the air conditioner. This indicates that
the program has been set.
-----------------------------------------------------------------------------------------------------------------------
1
1
Model / Modèle :
R15B
TIMER OPERATION
To set the Auto-stop time
1. Push the TIMER button when the unit is operational; only theAuto-stop feature can be
set.
2. Keep pressing the TIMER button. Each time pressed will increase the selected time by 1
hour increments, up to 24 hours.
3. The time can be set in a range of 0-24 hours.
4. After the desired time has been selected, wait for about 10 seconds, until the setting
temperature reappears in the display window of the air conditioner. This indicates that
the program has been set.
NOTE:
To cancel the TIMER setting, push the TIMER button until “0 hours” is displayed on the LCD
window of the air conditioner.
-----------------------------------------------------------------------------------------------------------------------
1
9

OPERATING INSTRUCTIONS
USING THE REMOTE CONTROLLER BUTTONS
Model / Modèle :
R15B
ENERGY SAVER OPERATION
This function is available in Cool, Dry, and Auto modes (onlyAuto-Cool and Auto-Fan
modes). The fan will continue to run for 3 minutes after the compressor has shut off. The
fan then cycles on for 2 minutes at 10 minute intervals, until the room temperature is
above the set temperature. At this point, the compressor turns back on and cooling starts.
-----------------------------------------------------------------------------------------------------------------------
1
• Protect the remote control from high temperatures, and keep it away from radiation exposure.
• Keep the control panel receiver out of direct sunlight.
• If the remote control will not be used for extended periods of time (vacations etc.), the battery should be removed.
• This Class B digital apparatus complies with the Canadian ICES-003 standard.
• The remote operates within a range of 8 meters (26 ft.) from the receiver located inside the main unit. Any obstruction
between the receiver and remote may cause signal interference, limiting the ability to program the main unit.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residen-
tial installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guaran-
tee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not approved by the
party responsible for FCC compliance could void the user’s authority to operate the equipment.
This appliance complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.
10

OPERATING INSTRUCTIONS
CHANGING THE BATTERY ON THE REMOTE
õÐä
à
äç
õÐ äà
äç
1
2
12
+
B
A
1
2
1
2
+
The remote controller is powered by one button cell housed in the
rear part and protected by a cover. Remove the button cell accord-
ing to the arrow marked at the back of the remote controller.
1. Slightly press “A” position according to the number 1 arrow
direction by your forefinger.
2. Press “B” position and pull it according to the number 2 arrow
direction by your thumb.
3. The above step 1 and 2 should be done simultaneously to
slide the button cell out.
INSTALLATION INSTRUCTIONS
TOOLS NEEDED FOR INSTALLATION:
• Screwdrivers: Phillips and flat head.
• Power Drill: 1/8in. (3.2mm) diameter drill bit
• Pencil
• Measuring Tape
• Scissors
• Carpenter’s Level
ELECTRIC SHOCK HAZARD
To avoid the possibility of personal injury, disconnect power to the unit before installing or servicing.
NOTE: Your RoomAir Conditioner is designed for easy installation in a single or double-hung window.
This unit is NOT designed for vertical (slider type) windows and/or through-the-wall applications.
11

INSTALLATION INSTRUCTIONS
BEFORE INSTALLING
• Check window opening size against dimensions of your unit.
• Check condition of window; all wood parts of the window must be in good shape and able to firmly hold the needed
screws. If not, make repairs before installing unit.
• Check for anything that could block airflow; check area outside window for things such as shrubs, trees, or awnings.
Inside, be sure furniture, drapes or blinds will not stop proper air flow.
• Carefully unpack air conditioner. Remove all packing material, and check for all included installation hardware.

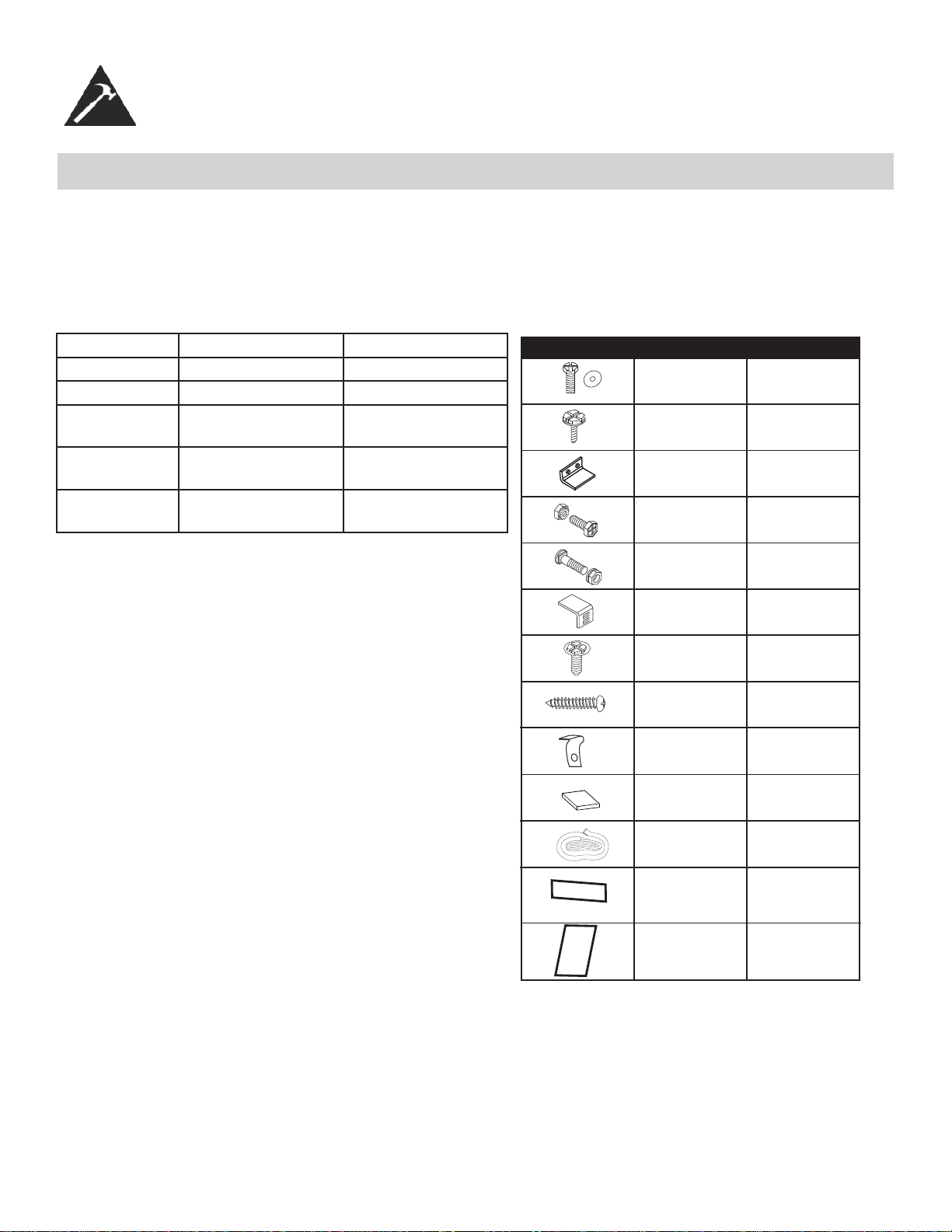

Model type: DAC180BBUWDB DAC250BBUWDB
Unit height: 17.9” (45.5 cm) 18.6” (47.3 cm)
Unit width: 23.6” (60 cm) 26.5” (67.3 cm)
Min. window
opening: 18.5” (47 cm) 19.5” (49.5 cm)
Min. window
width: 27.8” (70.6 cm) 31” (78.8 cm)
Max. window
width: 40.5” (102.9 cm) 42” (106.7 cm)
7/16” locking screw
& flat washer for
window panels
1/2in.(13mm)
long Hex-head
screw
Safety Lock
1/2in.(12.7mm)
long screw and
locknut
3/4” long flat head
bolt and locknut
Sill Angle Bracket
5/16in. long Hex-head
locking screw for top
angle side retainer.
13/16in. (20mm)
screw
Frame lock
2 each
7
1
4 each
2 each
2
10
2
2
Fig. 1 INSTALLATION HARDWARE
Foam insert 2
Windowsash
seal foam 1
Weather-Stripping 5
Foam Insert 2
12

1. This room air conditioner is designed to fit easily into a single or double hung window. However, since window designs
vary, it may be necessary to make some modifications for safe, proper installation.
2. Make sure window and frame are structurally sound and free from dry and rotted wood.
3. For maximum efficiency, install the air conditioner on a side of the house or building which favours more shade than
sunlight. If the unit is in direct sunlight, it is advisable to provide an awning over the unit.
4. Provide sufficient clearance around the cabinet to allow for ample air circulation through the unit (See Fig. 2). The
rear of the unit should be outdoors. It should not be in a garage, or inside a building. Keep unit as far away as possi-
ble from obstacles/obstructions and at least 30 in. (76 cm) above the floor or ground. Curtains and other objects within
the room should be prevented from blocking the air flow.
5. Be certain that the proper electrical outlet is within reach of the installation. Use only a single outlet circuit rated at 15
amps. All wiring should be in accordance with local and national electrical codes.
6. DO NOT install unit where leakage of combustible gas is suspected. Your air conditioner may fail to operate in air
containing oils (including machine oils), sulfide gas, near hot springs, etc.
NOTE: Your unit is designed to evaporate condensation under normal conditions. However, under extreme humidity con-
ditions, excess condensation may cause basepan to overflow to the outside. The unit should be installed where conden-
sation run-off cannot drip on pedestrians or neighbouring properties.
NOTE: It is normal for your unit to drip a small amount of water, especially on excessively humid days.
INSTALLATION INSTRUCTIONS
LOCATION
Awning
Fence,
wall, or
other
obstacle
Ground
Side
Obstruction
20 in.
(50.8 cm)
Min
30 in. (76.2 cm)
Min
Min
12 in. (30.5 cm) Min
20 in.
(50.8 cm)
Fig. 2
NOTE: Save the shipping carton and packing materials for future storage or transportation. From the carton, remove the
plastic bag containing the installation hardware kit necessary for the installation of your air conditioner. Please check the
contents of the hardware kit against the corresponding model check list, prior to installation.
NOTE: Your Room Air Condtioner is designed for easy installation in a single or double-hung window. This unit is NOT
designed for vertical (slider type) windows and/or through-the-wall applications.
CAUTION
Because the compressor is located on the controls
side of the unit (left side), this side will be heavier and
more awkward to manipulate. Inadequate support on the
control side of the unit can cause injury and damage to
the appliance and other property. Therefore, it is recom-
mended that you have someone assist you during the
installation of this unit.
13

INSTALLATION INSTRUCTIONS
WINDOW MOUNTING
1Remove Chassis:
1. Pull down front panel and remove filter (See Fig. A).
2. Lift front panel upwards and place to one side.
3. Locate the four (4) front screws and remove (Fig. B). These screws will be needed to re-install the front later.
4. Pry away the front panel from the cabinet sides as shown in Fig. C.
Fig. B
Fig. A
Fig. C
5. Gently lift front off unit and place to one side (See fig. D)
6. Remove shipping screw from top of unit and also on the side by the base if installed.
7. Hold the cabinet while pulling on the base handle, and carefully remove the chassis from the cabinet.
8. Add two foam inserts to holes in top of cabinet where shipping screws were removed from (See fig. E).
9. Your unit may come with internal packaging. This packaging must be removed prior to installing the air
conditioner back into the cabinet.
Fig. D Fig. E
Foam inserts
14

INSTALLATION INSTRUCTIONS
2Install Top Angle and Side Bracket:
1. Attach foam gasket to top angle above holes as shown in Fig. F.
2. Install top angle and side retainers to cabinet as shown in Fig. F.
5/16in. (8mm)
long hex-head
Fig. F
3Assemble Window Filler Panels (see Fig. G):
1. Place cabinet on floor, a bench, or table.
2. Slide the window filler panel frame into the top (L
shaped) and bottom (U shaped) channels. The shut-
ters are identified (on the frame) as left and right.
3. Insert washer head locking screws (2) into holes in
top leg of filler panel frame. Do not totally tighten. Al-
low left to slide freely. Screws will be tightened later.
Plastic
Frame
“U”Shaped Channel
Window Filler Panel
“L” Shaped Mounting
Bracket
4Install Top Angle and Side Bracket:
1. Open window and mark center of window sill.
2. Place cabinet in window with lower “U” channel of
cabinet firmly seated over window sill. Bring window
down temporarily behind top “L” bracket to hold
cabinet in place.
3. Shift cabinet left or right as needed to line up center
of cabinet on centre line marked on window sill.
4. Fasten cabinet to window sill with 2 screws (you
may want to pre-drill holes).
5. Add bottom rail seal over screws to window sill. See
Fig. H.
Fig. H
Bottom
Rail Seal
3/4in.(19mm) Long
Hex-head Screw
15

INSTALLATION INSTRUCTIONS
5Install Support Bracket:
1. Hold each support bracket flush against outside of sill, and tighten to bottom of cabinet as shown. in Fig. J¹.
Mark brackets at top level of sill, and remove.
2. Assemble sill anchor bracket to outside support legs at the market position, as seen in Fig. J² . Hand tighten,
but allow for any changes later. NOTE: Check that air conditioner is tilted downwards to the outside, about
3° to 4°, as shown in Fig. I. After installation, condensed water should not drain from the overflow drain hole
during normal use. If you notice water leaking out, check the angle of tilt, and make any necessary adjust-
ments. However, on a very humid day, water leakage can occur- this is normal. Measure the tilt angle from
the cabinet’s edge . The distance H should be approximately 1 1/4” to 1 5/8”.
3. Install support brackets (with sill anchor brackets attached) to correct hole in bottom of cabinet as shown in
Fig. K.
4. Tighten all 6 bolts securely.
Mark
Fig. J1
Left
Locknut
Sill Anchor
Bracket
Flat Head
Bolt 2 Each Required For
Each Support Bracket
Right
1/2in.(12.7mm) Long
Left Screws And
Locknuts
Fig. J2Fig. K
Window Sill
Window Sash
$ERXWóWRǫ
Sill Angle Bracket
Side Louvers
Fig. I
Measure
the tilt
angle from
the cabinet’s
edge. H
6Extend Window FIller Panels
1. Carefully raise the window to expose the filler panel locking screws. Loosen the screws do the filler panels slide
easily.
2. Extend panels to fill the widow completely. Using two 7/16 in (12mm) locking screws and a flat washer to tighten
the locking screws on top (Fig. L1).
3. Close the window behind the top angle.
4. Attach the top angle to the window frame using a 3/32 drill bit to drill one hole through the hole in the middle of
the top angle into the window frame, and drive one ½ HEX-HEAD locking screw through the hole in the middle
of the top angle into the window frame, see Fig. L2.
5. Extend the window filler panels out against the window frame.
6. Use a 1/8” drill bit to drill a starter hole through the hole in the top leg of each window filler panel and into the
window sash (Fig. L3). Connect with one ½” long hex head screw.
7. Attach the frame lock to the window sill using one 13/16” (20mm) screw on each side as shown in Fig. L3.
16
Locking Screw
7/16"Locking
Screw
and Washer
Fig.L2
1/ 2 long
HEX-HEAD
SCREW
Fig.15B
1/2in. (13mm) long
Hex-head screw
13/16in. (20mm) Screw & Frame Lock (2)
Fig. L3
(2)
1.
Fig.L1

7Install Window Lock and Sash Seal
1. Trim sash seal to fit window width. Insert into space between upper and lower sashes (Fig. M).
2. Attach right angle safety lock as shown in Fig. M.
INSTALLATION INSTRUCTIONS
8Install Chassis into Cabinet and Install:
1. Lift chassis and carefully slide into cabinet, leaving 6 inches protruding.
2. DO NOT push on controls or coils.
3. Be sure the chassis is firmly seated towards rear of cabinet.
4. Installation of front is the reverse of removal, outlined in section 1 (“Remove Chassis”)
Safety Lock
1/2” screw
Window
Sash Seal
Fig.M
17
Installing the Energy Efficient Foam Insert
• After the unit is installed in the window, measure the width of the side curtain.
• If necessary, cut the foam insert down to the width of the side curtain.
• Slide the foam insert into the side curtain.
• Repeat for the other side. (See below)
NOTE: Apply the supplied weather-stripping where needed (cracks and spaces between the foam insert, window
kit and window frame).


12345678910 11121314151617
123456
Step 1 Step 3Step 2

CLEANING THE CABINET
• Be sure to unplug the air conditioner to prevent shock or fire hazard. The cabinet and front may be dusted with an
oil-free cloth or washed with a soft cloth dampened in a solution of warm water and mild liquid dishwashing detergent.
Rinse thoroughly and wipe dry.
• Be sure to wring excess water from the cloth before wiping around the controls. Excess water in or around the con-
trols may cause damage to the air conditioner.
WINTER STORAGE
If you plan to store the air conditioner during the winter, remove it carefully from the window according to the installation
instructions. Cover it with plastic or return it to the original carton. Always store the unit in the upright position.
DISPOSAL
Check for local regulatory compliance regarding the approved and safe disposal of this appliance.
18
CARE AND MAINTENANCE
CLEANING THE AIR FILTER
CAUTION
Before cleaning or servicing this unit, disconnect from any electrical supply outlets to prevent
possible shock or fire hazard.
• DO NOT use gasoline, benzene, thinner, or any other chemicals to clean this unit, as these substances may cause
damage to the finish and deformation of plastic parts.
• Never use harsh cleaners, wax or polish on the cabinet front.
The air filter should be checked at least once a month to see if cleaning is
necessary. Trapped particles in the filter can build up and cause accumulation
of frost on the cooling coils.
• Push the vent handle to the vent closed position.
• Open the front panel.
• Grasp the filter, pull up and out.
• Wash the filter using liquid dishwashing detergent and warm water. Rinse
filter thoroughly.
• Gently shake excess water from the filter. Be sure the filter is thoroughly
dry before replacing.
• You may vacuum the filter to clean.
Note: Never use hot water over 40°C (104°F) to clean the air filter.
CAUTION
Never operate this unit without the air filter in place, as this may
result in damage to the unit.
