Danby DPAC120011H Assembly instructions

• PORTABLE AIR CONDITIONER
• CLIMATISEUR PORTATIF
Owner’s Use and Care Guide
Guide d’utilisation et soins de Propriètaire
Model • Modèle
DPAC120011H
V2.03.11.DM

Contents
CAUTION:
PRECAUTION:
Read and follow all safety rules and
operating instructions before first use of this
product.
Veuillez lire attentivement les consignes de
sécurité et les instructions d’utilisation avant
l’utilisation initiale de ce produit.
CLIMATISEUR PORTATIF
Guide d'utilisation et d'entretien
• Bienvenue ............................................................20
• Consignes de Sécurité Important ........................21-22
• l'identification des pièces .....................................22-24
• Consignes d’utilisation .........................................25-28
• Fonctionnement de la télécommande sans fil .....28-29
• Installation ............................................................30-33
• Soins et entretien .................................................34-35
• Dépannage ..........................................................36
• Garantie ...............................................................37
PORTABLE AIR CONDITIONER
Owner’s Use and Care Guide
• Welcome ..............................................................2
• Important safety information ................................3-4
• Identifying Parts ...................................................4-6
• Operating Instructions ..........................................7-10
• Operation of wireless remote control ...................10-11
• Installation instructions .........................................12-15
• Care and Maintenance ........................................16-17
• Troubleshooting ...................................................18
• Warranty ...............................................................19
Model • Modèle DPAC120011H

Welcome
Thank you for choosing a Danby appliance to provide you and your family with all of the “Home Comfort” requirements
of your home, cottage, or office. This Owner’s Use and Care Guide will provide you with valuable information necessary
for the proper care and maintenance of your new appliance. If properly maintained, your Danby appliance will give you
many years of trouble free operation. Please take a few moments to read the instructions thoroughly and familiarize
yourself with all of the operational aspects of this appliance.
Your Danby Portable Air-Conditioner is a multi-functional room air-exchanging, air-processing appliance, designed to
offer you the functions of; Air Conditioning, Dehumidifying, and Independent Fan. Each individual mode is featured with
“oscillating” air swing capabilities. This unit can be conveniently moved from room to room within your home and set up
in just minutes. Imagine the convenience of 4 Season Home Comfort at your fingertips, anywhere, anytime.
For easy reference, may we suggest you attach a copy of your sales slip/receipt to this page, along with the following
information, located on the manufacturers nameplate on the rear panel of the unit.
Model Number:
Serial Number:
Date of Purchase:
This information will be necessary if your unit requires servicing and/or for general inquiries. To contact a Customer
Service Representative, call Danby TOLL FREE: 1-800-263-2629
2

Important Safety Information
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
SAFETY
PRECAUTIONS
To prevent injury to the user or other people and property damage, the following instructions must be followed.
Incorrect operation due to ignoring these instructions may cause harm or damage.
Your air conditioner should be used in such a way that it is protected
from moisture. e.g. condensation, splashed water, etc.Do not place or
store your air conditioner where it can fall or be pulled into water or
any other liquid. Unplug immediately if it occurs.
Always transport your air conditioner in a vertical position and stand
on a stable, level surface during use.
Turn off the product when not in use.
Always contact a qualified person to carry out repairs. If the power
cord is damaged it must be repaired by a qualified repairer.
Keep an air path of at least 30cm all around the unit from walls,
furniture and curtains.
If the air conditioner is knocked over during use, turn off the unit and
unplug it immediately.
Always use the switch on the control panel to turn off unit.
ALWAYS DO THIS
Do not operate your air conditioner in a wet room such as a bathroom
or laundry room.
Do not touch the unit with wet or damp hands or when barefoot.
Do not press the buttons on the control panel with anything other than
your fingers.
Do not remove any fixed covers. Never use this appliance if it is not
working properly, or if it has been dropped or damaged.
Never use the plug to start and stop the unit.
Do not cover or obstruct the inlet or outlet grilles.
Do not use hazardous chemicals to clean or come into contact with
the unit. Do not use the unit in the presence of inflammable
substances or vapour such as alcohol, insecticides, petrol,etc.
Do not allow children to operate the unit unsupervised.
Do not use this product for functions other than those described in this
instruction manual.
NEVER DO THIS
3

Important Safety Information
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
To prevent injury to the user or other people and property damage, the following instructions must be followed.
Incorrect operation due to ignoring these instructions may cause harm or damage.
ENERGY SAVING TIPS • Use the unit in the recommended room size.
• Locate the unit where furniture cannot obstruct the air flow.
• Keep blinds/curtains closed during the sunniest part of the day.
• Keep the filters clean.
• Keep doors and windows closed to keep cool air in and warm air out
(cooling mode) or keep warm air in and cool air out (heating mode).
OPERATING
CONDITION
The air conditioner must be operated within the temperature range
indicated below:
MODE
COOL
DRY
HEAT (Electrical heat type)
ROOM TEMPERATURE
17°C(62°F) ~ 35°C(95°F)
13°C(55°F) ~ 35°C(95°F)
<30°C(88°F)
Note: Performance may be reduced outside of these operating

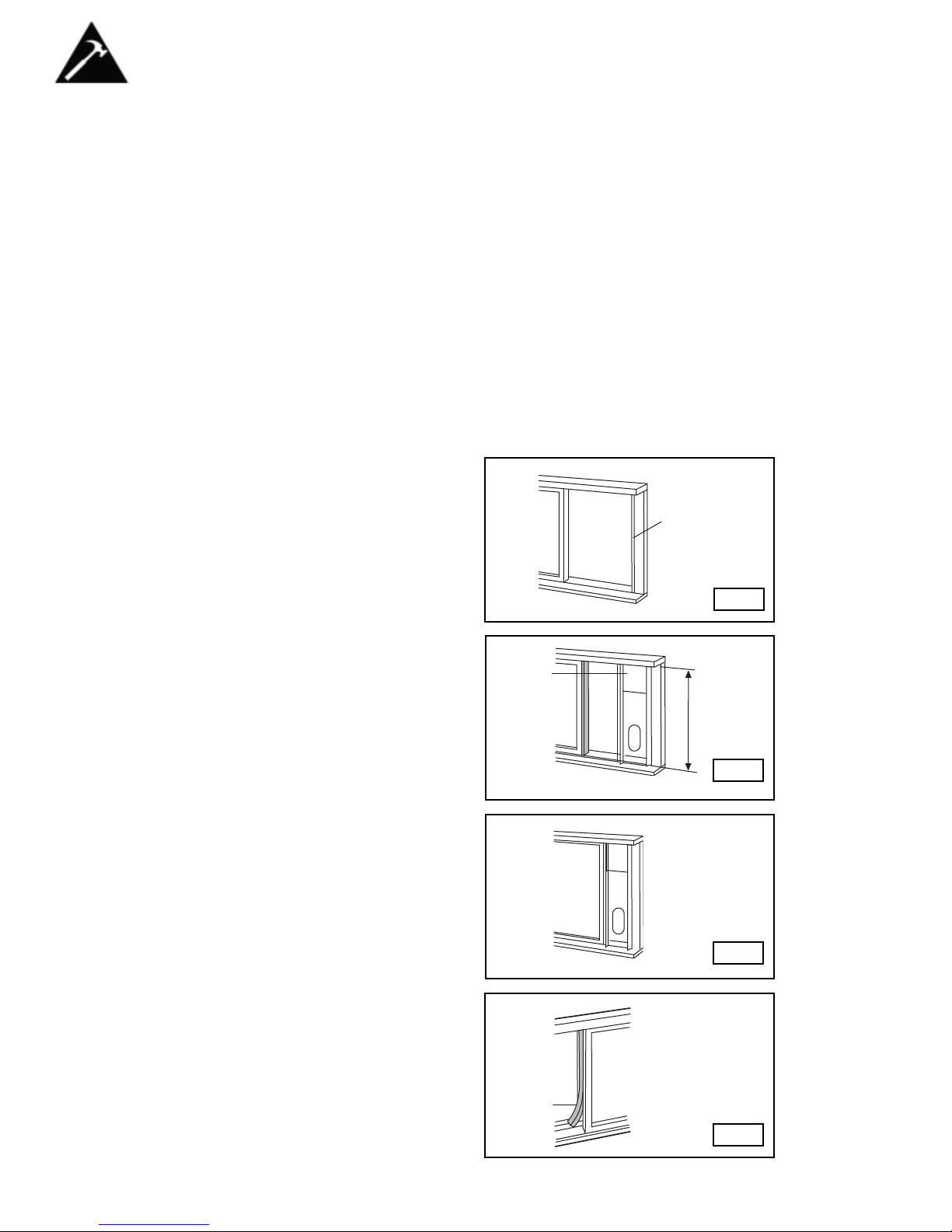

TOOLS FOR WINDOW
KIT INSTALLATION
1. Screwdriver (medium size Phillips)
2. Tape measure or ruler
3. Knife or scissors
4. Saw(In the event that the window kit needs to be cut down in size
because the window is too narrow for direct installation).
Identifying Parts
WARNING
• Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
• Avoid fire hazard or electric shock. Do not use an extension cord
or an adaptor plug. Do not remove any prong from the power
cord.
ELECTRICAL
INFORMATION WARNING
• Be sure the electrical service is adequate for the model you have
• Be sure the air conditioner is properly grounded. To minimize
shock and fire hazards, proper grounding is important. The
power cord is equipped with a three-prong grounding plug for
protection against shock hazards.
• Your air conditioner must be used in a properly grounded wall
receptacle. If the wall receptacle you intend to use is not
adequately grounded or protected by a time delay fuse or circuit
breaker, have a qualified electrician install the proper receptacle.
• Ensure the receptacle is accessible after the unit installation.
4
temperatures.
chosen. This information can be found on the nameplate, which
is located on the rear panel of the unit.

Band (For bundling the
power cord) * 1 pc
Foam Seal 3 pc
Remote Controller and 2-AAA
Batteries included 1 set
Identifying Parts

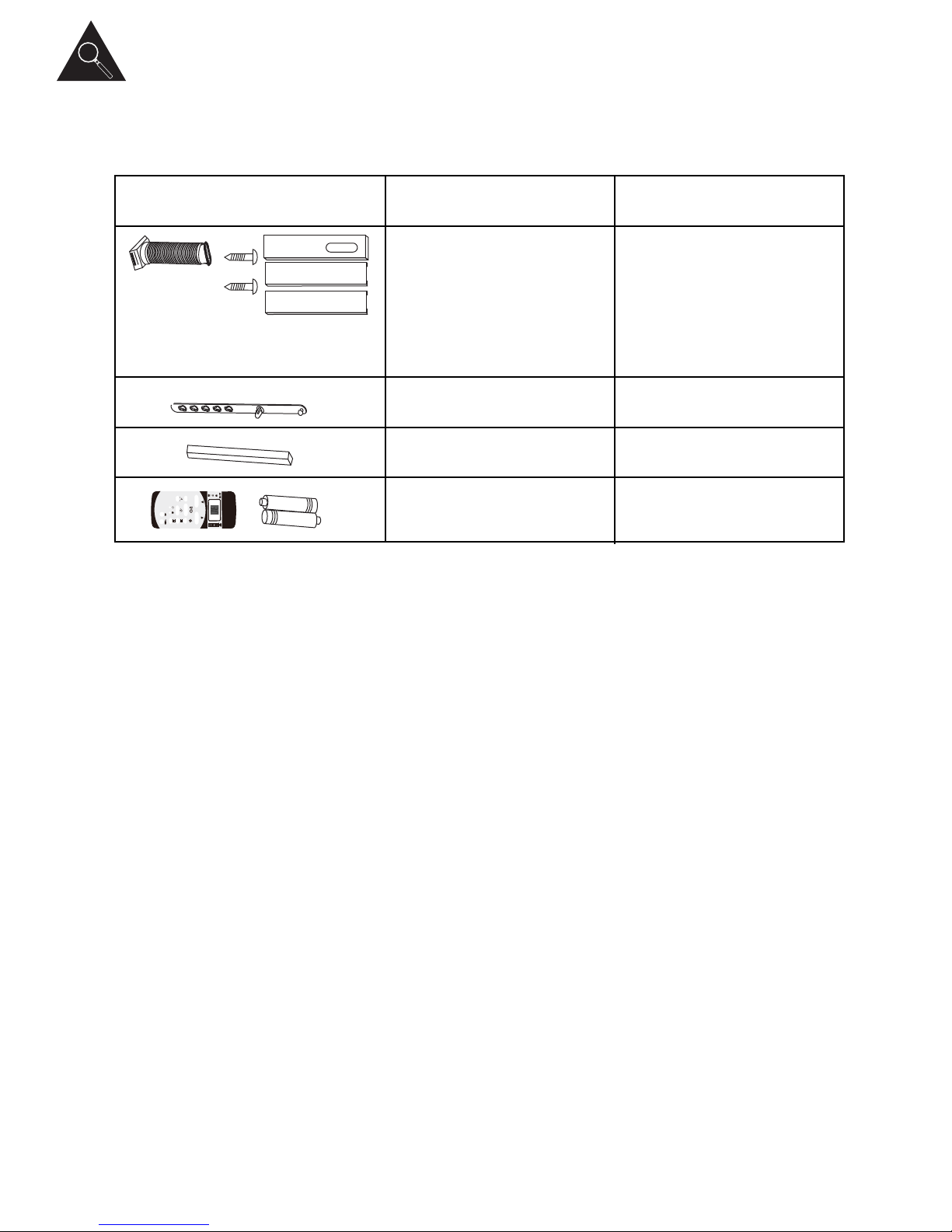

ACCESSORIES
PARTS PART NAME QUANTITY
Exhaust hose and Adaptor
Window slider kit and bolt.
1 Set
Check all the accessories are included in the package and please refer to the installation
instructions for their usage.
NOTE: All the illustrations in this manual are for explanation purpose only. Your air conditioner may
be slightly different. The actual shape shall prevail.
5
AUTO
.P
MET
E
D
O
M
O
)
C
(
.
P
ME
T
LED
TURBO

Identifying Parts
1
2
4
3
10
9
8
5
6
7
1. Operation Panel
2. Horizontal Louver Blade (Lift it up during
operation)
3. Air intake (air filter inside)
4. Carrying Handle (both sides)
NOTE: The illustrations are for explanation
purposes only. The actual shape of the machine
you purchased may be slightly different. The actual
shape should prevail.
FRONT
REAR

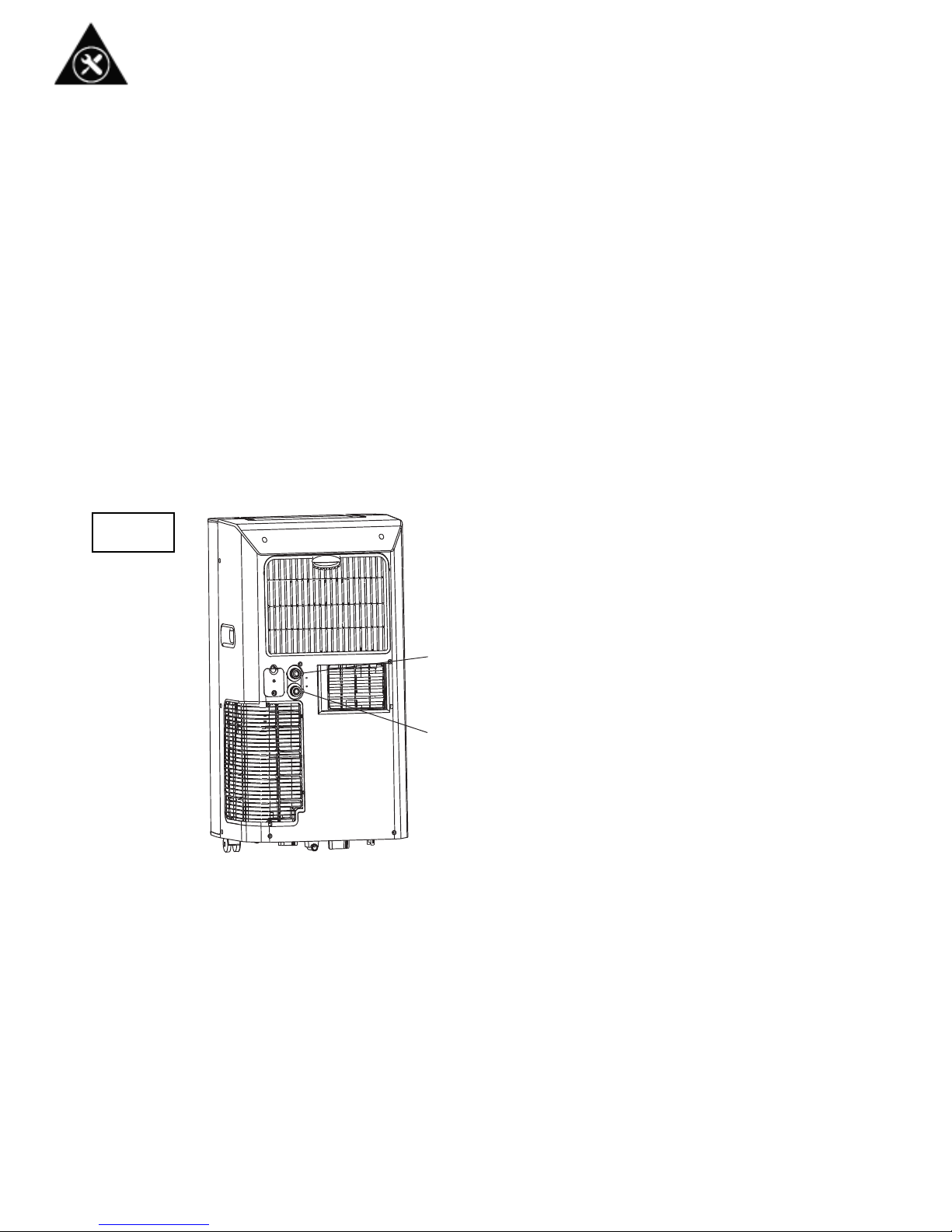

5. Air intake
6. Power cord outlet
7. Drain Outlet A (Used on dehumidifying
operation)
8. Drain Outlet B (Keep the drain outlet B plugged)
9. Air Outlet
10. Air intake (Air filter inside)
11. Bottom drain hole
12. Silver filter inside
6
11
12

Operating Instructions

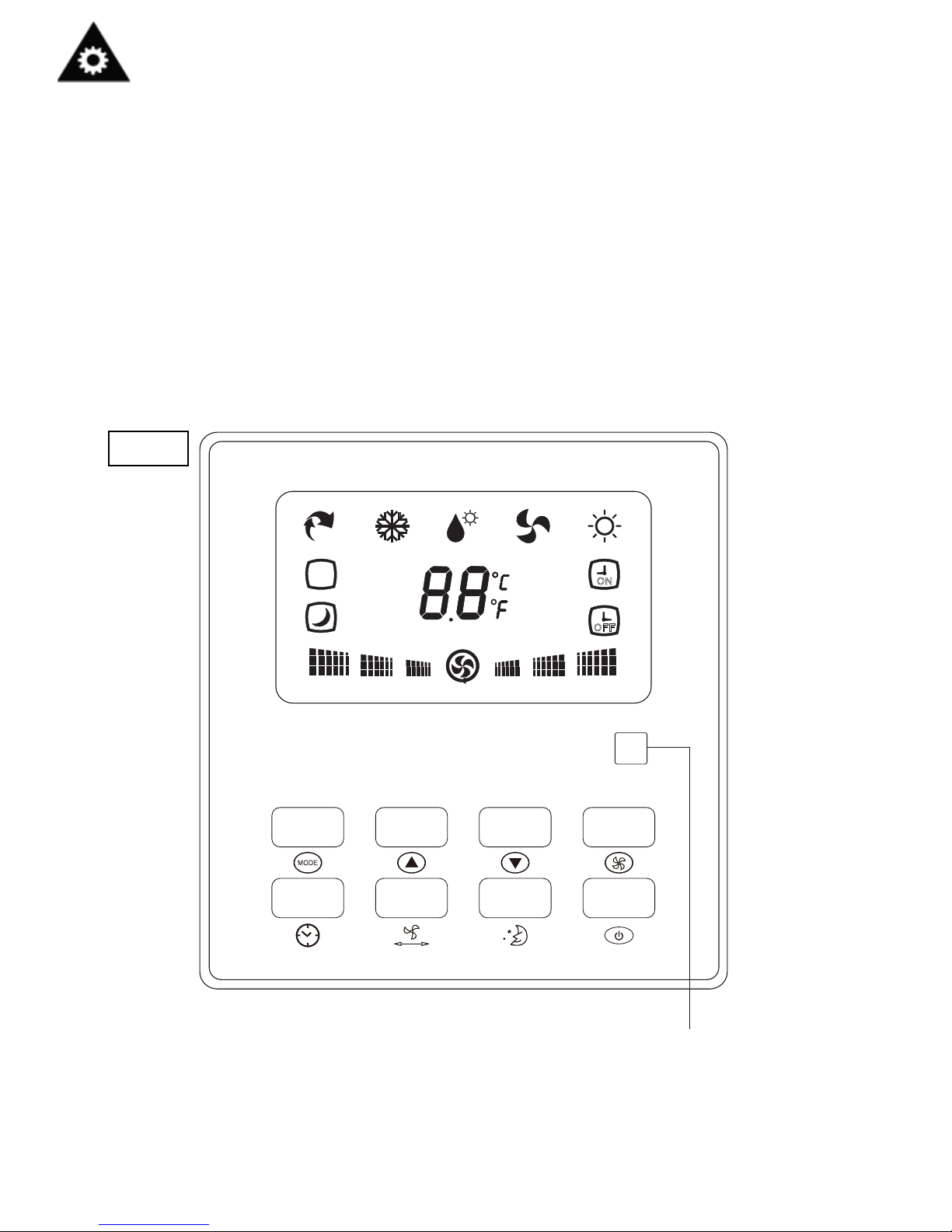

CONTROL PANEL
Before you begin, thoroughly familiarize yourself with the control panel
and remote controller and all its functions, then follow the symbol for the
functions you desire. The unit can be controlled by the unit control panel
alone or with the remote controller. Fig.3
NOTE:The following illustration is for explanation purposes only. The
actual shape of the control panel of the unit you purchased may be slightly
different. But the functions are the same.
7
Fig.3
ON
OF F
aut o
Turbo
Remote signal
recepter

Operating Instructions
INDICATOR LIGHTS
ON THE DISPLAY
WINDOW
8
au t
o
ON
OFF
Turbo
Timer on indicator
Timer off indicator
Auto operation indicator
Cooling operation indicator
Dry operation indicator
Fan operation indicator
Heating operation indicator
Turbo display
Fan Speed Indicator
Low ---------
Medium----
High --------
Display Window
Shows the set temperature in °C or °F and displays error codes.
Room temperature sensor error
Unplug the unit and plug it back in. If error repeats, call for service.
Evaporator temperature sensor error
Unplug the unit and plug it back in. If error repeats, call for service.
Condenser temperature sensor error
Unplug the unit and plug it back in. If error repeats, call for service.
Display panel communication error
Unplug the unit and plug it back in. If error repeats, call for service.
PROTECTION CODE
Bottom tray is full
Remove the bottom drain plug and drain off the water.
E4
NOTE: When P1 displays under COOL mode(or AUTO COOL mode) or
DRY mode, the unit will stop operating, but the upper fan motor will
continue to operate,and the lower fan motor will be controlled at high
speed.
BUTTON FUNCTIONS
ON CONTROL PANEL
1) MODE BUTTON
Press the MODE button to select the appropriate operating mode:
aut o
AUTO COOL DRY FAN HEAT
Sleep operationn

Operating Instructions
9
BUTTON FUNCTIONS
ON CONTROL PANEL • Used to adjust (increasing/decreasing) temperature settings(1°C/2°F
increments) in a range of 17°C(62°F) to 30°C(88°F).
NOTE: The control is capable of displaying temperature in degrees
Fahrenheit or degrees Celsius. To convert from one to the other, press
and hold the and buttons at the same time, for 3 seconds.
• Under Auto-timer setting, press or hold the button to change
increments up to 24 hours.
2) / UP/ DOWN BUTTONS
3) FAN BUTTON
Press the button to select the desired fan speed:
LOW MED HIGH TURBO AUTO
NOTE: The TURBO feature is used to set the strong fan speed, the set
temperature will be reached in the shortest amount of time. This feature
is only availabe on COOL mode.
FAN OPTIONS:
AUTO (1 speeds) AUTO
COOL (5 speeds) Low-Med-Hi-Turbo-Auto
DRY(1 speed) LOW
FAN (4 speeds) Low-Med-Hi-Auto
HEAT(4 speeds) Low-Med-Hi-Auto
4) TIMER BUTTON
using the / buttons.
5) SWING BUTTON
Allows the top horizontal louver blades to oscillate forward and
backward to the desired direction. Each press will change the swing
more, the louver blades will oscillate forward and backward
automatically.
6) SLEEP BUTTON
Press this button, the indicator displays and the selected
temperature will increase (cooling) or decrease(heating) by 1°C/2°F in
30 minutes.The temperature will then increase(cooling) or
decrease(heating) by another 1°C/2°F after an additional 30 minutes.
This new temperature will be maintained for 7 hours before it returns to
the unit will continue to operate as originally programmed. The
by pressing the button again, turning off the unit or pressing
the MODE buttons.
NOTE: This feature is unavailabe under FAN or DRY mode.
7) BUTTON
Power switch on/off
AUTO RESTART (on some models)
If the unit shuts off unexpectedly due to the power loss, it will restart with
the previous function setting automatically when the power resumes.
Used to initiate Timer ON start time / Timer OFF stop time program
the originally selected temperature. This ends the Sleep mode and
Sleep mode program can be cancelled at any time during operation
at one hour
the Auto time by 0.5 hour increments, up to 10 hours, then
angle for 6 degree. keep this button pressed without releasing for 2 seconds or

Operating Instructions
OPERATING INSTRUCTIONS
COOL feature
comes on.
•Press the buttons to select your desired
room temperature. The temperature can be set
within a range of 17°C-30°C/62°F-88°F.
•Press the " " button to choose the fan speed.
•Press the "MODE" button until the " " indicator light
comes on.
•Press the buttons to select your desired
room temperature The temperature can be set
within a range of 17°C-30°C/62°F-88°F.
•Press the " " button to choose the desired fan
speed.
DRY feature
•Press the "MODE" button until the " " indicator light
comes on.
•Under this mode, you cannot select a fan speed or adjust
the temperature. The fan motor operates at LOW speed.
•Keep windows and doors closed for the best
dehumidifying effect.
AUTO feature
•When you set the air conditioner in AUTO mode, it will
automatically select cooling, heating
, or fan only
operation depending on what temperature you have
selected and the room temperature.
•The air conditioner will control the room temperature
automatically and round the temperature point set by you.
•Under AUTO mode, you can not select the fan speed.
FAN feature
•Press the "MODE" button until the " " indicator light
comes on.
•Press the " " button to choose the fan speed.
The temperature cannot be adjusted.
TIMER feature
•When the unit is on, first press the button, the
TIMER OFF indicator light illuminates. It indicates the
Auto Stop program is initiated. Press the button again,the
TIMER ON indicator light illuminates. It indicates the Auto
Start program is initiated.
•When the unit is off, first press the Timer button, the
TIMER ON indicator light illuminates. It indicates the Auto
Start program is initiated. Press the button again,the
TIMER OFF indicator light illuminates.It indicates the
Auto Stop program is initiated.
•Press or hold the button to change the
Auto time by 0.5 hour increments, up to 10 hours, then at
1 hour increments up to 24 hours.
•
•
The selected time will register in 5 seconds and the
system will automatically revert back to display the
previous temperature setting.
For example,if you want to let the machine on one hour
later and last for one hour and then stop,set auto on
“1” and auto off “2”.
10
•Press the "MODE" button until the " " indicator light
HEAT feature

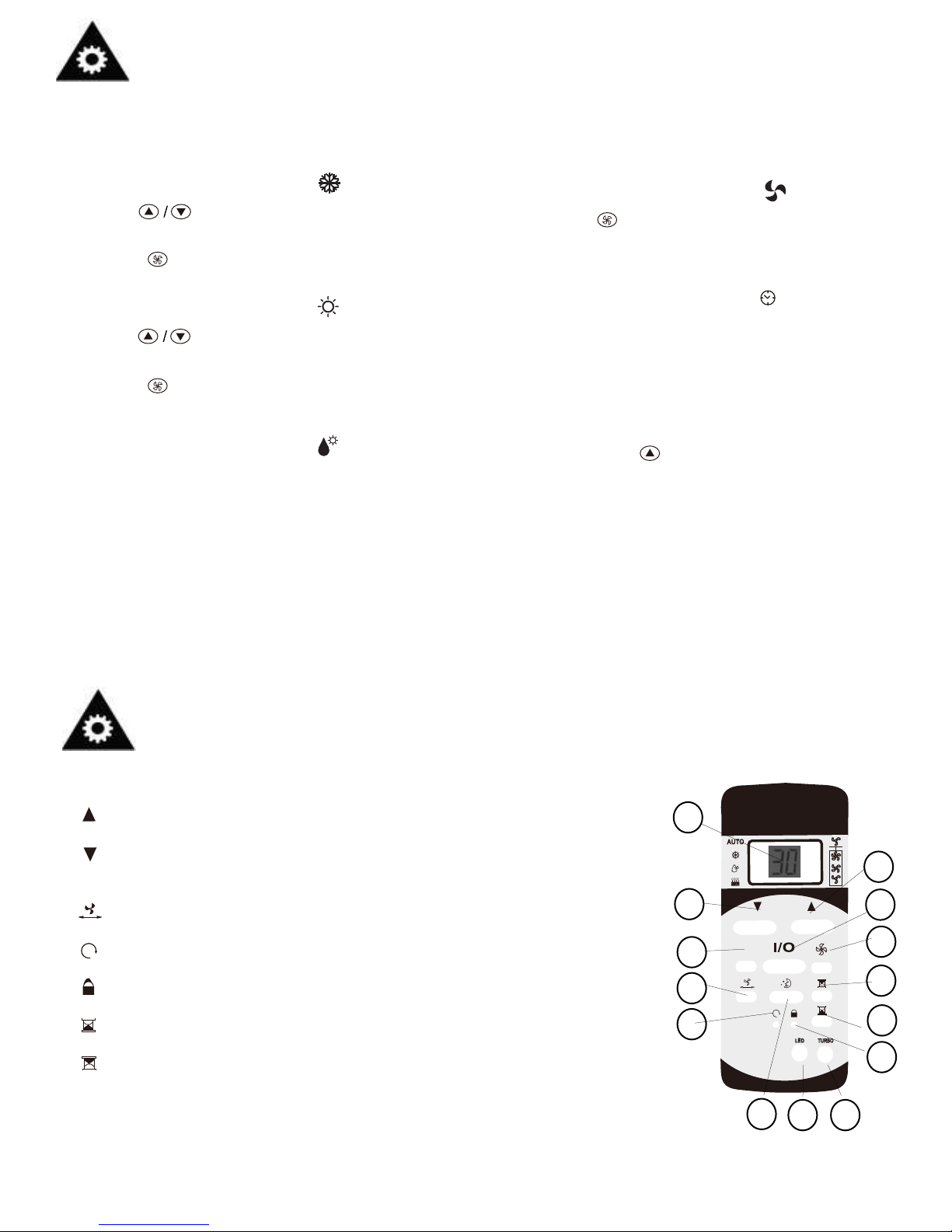

Operation of wireless remote control
AUTO
.PMET
MODE
O
TEMP.( C)
LED
TURBO
1
2
3
4
5
6
7
8
9
10
11
13
12 14
1) Display Window: Shows the set temperature (in °C )and theAuto-timer settings.
3)
the available operations.
5)
6) Reset: When pressed in, all settings are cancelled and the control returns to
its default (factory) settings.
7) Lock: When pressed in, all current settings become locked in (cannot be
adjusted) until the lock button is pressed again.
8)
9)
PART IDENTIFICATION:
2) Temp. Increase button:Press this
4) MODE button: Pressing rotates through
Temp. decrease button:Press this
button to decrease the set temperature
by one degree.
button to increase the set temperature
by one degree.
Swing Button: Used to stop or start louver movement and set the desired
up/down airflow direction.
Timer Off button: Press to initiate the Auto-Off program.Also used to adjust
the Auto-Off timer settings.
Timer On button: Press to initiate the Auto-On program.Also used to adjust
the Auto-On and Auto-Off timer setting.
For example,if you want to let the machine on one hour later and last for one hour
and then stop,set auto on “1” and auto off “2”.

or deactivates operation of the machine.
Operation of wireless remote control
11
) LED display Button
Press this button to clear the display on
the indoor unit, press it again to light the
display.
NOTE: To disconnect power completely, the power cord must be removed after deactivating the machine.
)
AUTO
1
2
3
4 5
6
7
REMOTE DISPLAY WINDOW:
1) Digital Display Area: Shows the set temperature (in °C). When the
Auto-timer is being programmed, the display also shows the Auto-timer
settings.
2) Transmission Indicator: This indicator flashes when the remote signals the
unit.
3) Mode Display: Indicates which operation is currently selected.
4) Lock Display: This indicator appears when the remote control has been
locked.
5)
6)
NOTE: To disconnect power completely, the power cord must be unplugged after deactivating the machine.
WARNING: Keep the remote control away from all liquids.
Important Notes on the Remote Control:
panel.
• Protect the remote control from high temperatures, and keep it away from radiation exposure.
• Keep the control panel receiver out of direct sunlight.
• Keep the remote control away from Electro-Magnetic-Interference (EMI) generated by other household appliances.
This display area shows the settings of the TIMER. That is, if only the Auto-on time function is set, it will
display TIMER ON. If only the Auto-off time function is set, it will display TIMER OFF. If both functions are
set, it will display TIMER ON OFF which indicates you have chosen both the Auto-on time and Auto-off time.
TIMER display
MODE display (FAN mode and fan speed)
10)
11)
12 Sleep button:Select this funtion the most
comfortable temperature and
save energy.
This function is available on COOL, HEAT
or AUTO mode only.
NOTE:
by
Sleep mode program can be
cancelled at any time during operation
pressing buttons.
the MODE, or
13
Used to start or stop the speed cooling
Note: The unit system will automatically
revert back to the previous settings after
continue operating under speed cooling
mode for about 20 minutes.
14) TURBO Button
7) ON/OFF dis play:
• Be sure there are no block between the remote control and the receiver (signal interceptor) on the unit’s control
This indicator will be displayed when the remote is operating
Fan Speed Selection button: Pressing alternates between available fan speeds (some operations only).
Power On/Off button: Pressing activates
during the sleeping time. It can maintain
• If the remote control will not be used for extended periods of time (vacations etc.), batteries should be removed.
• Do no t mix old and new batteries.
• Do not mix alkaline,standard (carbon-zinc), or rechargeable (ni-cad,ni-mh,etc) batteries.
• This Class B digital apparatus complies with Canadian ICES-003.
• The remote operates within a range of 8 meters (26 ft.) from the receiver located inside the main unit.Any obstruction between
the receiver and remote may cause signal interference, limiting the ability to program the main unit.
PARTIDENTIFICATION:

12
Installation Instructions
LOCATION •The air conditioner should be placed on a firm foundation to minimize
noise and vibration. For safe and secure positioning, place the unit on a
smooth, level floor strong enough to support the unit.
•The unit has casters to aid placement, but it should only be rolled on
smooth, flat surfaces. Use caution when rolling on carpet surfaces. Use
caution and protect floors when rolling over wood floors. Do not attempt
to roll the unit over objects.
•The unit must be placed within reach of a properly rated grounded
socket.
•Never place any obstacles around the air inlet or outlet of the unit.
•Allow at least 30cm of space from the wall for efficient air-conditioning.
WINDOW SLIDER KIT
INSTALLATION
Your slider window kit has been designed to fit most standard Vertical and
horizontal window applications, However, it may be necessary for you to
improvise/modify some aspects of the installation procedures for
certain types of window. Please refer to Fig. 6& Fig.7 for minimum and
maximum window openings. Window slider kit can be fixed with a bolt
(see Fig.7a).
NOTE: If the window opening is less than the mentioned minimum length
of the window slider kit, cut one side shorter but do not cut the side with
the whole in it.
Bolt
Window
slider
kit
30c m
30c
m
Fig.7 Fig.7a
Fig.6
Horizontal
Window
Window Slider Kit
Minimum:72.0cm(2.36ft).
Maxmum:203cm(6.66ft).
Horizontal
Window
Window Slider Kit
Minimum:72.0cm(2.36ft).
Maxmum:203cm(6.66ft).
Fig.5

13
Installation Instructions
INSTALLATION IN A
DOUBLE - HUNG SASH
WINDOW
1. Cut the foam seal (adhesive type) to the proper length and attach it to
the window stool. Fig.8
2. Attach the window slider kit to the window stool. Adjust the length of
the window slider kit according to the width of window, shorten the
Open the window sash and place the window slider kit on the window
stool. Fig.9
3. Cut the foam seal(adhesive type) to the proper length and attach it on
the top of the window. Shown as in Fig.10.
4. Close the window sash securely against the window.
5. Cut the foam seal to an appropriate length and seal the open gap
between the top window sash and outer window sash. Shown in
Fig.11.
Foam seal A
(adhesive type)
Fig.8
Fig.9
Window Kit
Window Stool
26.5’’~ 48’’
Fig.10
Window Kit
Window Stool
Fig.11
Foam seal
adjustable window kit if the width of window is less than 26.5 inches.

14
Installation Instructions
INSTALLATION IN A
SLIDING SASH
WINDOW
1. Cut the foam seal (adhesive type) to the proper length and attach it to
the window frame. See Fig.12.
2. Attach the window slider kit to the window stool. Adjust the length of
the window slider kit according to the height of window, shorten the
Open the window sash and place the window slider kit on the window
stool. See Fig.13.
3. Cut the foam seal (adhesive type) to the proper length and attach it on
the top of the window. Shown in Fig.14.
4. Close the sliding sash securely against the window.
5. Cut the foam seal to an appropriate length and seal the open gap
between the top window sash and outer window sash. Shown in
Fig.15.
Foam seal A
(adhesive type)
Fig.12
Fig.13
Window
Panel
Fig.14
Foam
Seal
Fig.15
adjustable window kit if the height of window is less than 26.5 inches.

15
Installation Instructions
EXHAUST HOSE
INSTALLATION:
The exhaust hose and adaptor must be installed or removed in
accordance with the usage mode.
COOL edomOTUAro
FAN,DEHUMIDIIFY or HEAT mode
Install
Remove
1. Install the window Exhaust adaptor (flat mouth) onto the exhaust
hose as shown in Fig.16. Refer to the previous pages for window kit
installation.
2. Install the flexible Exhaust hose as shown in Fig 17 and Fig 18.
ADAPTER
Fig.17 Fig.18
Fig.16

16
Care and Maintenance

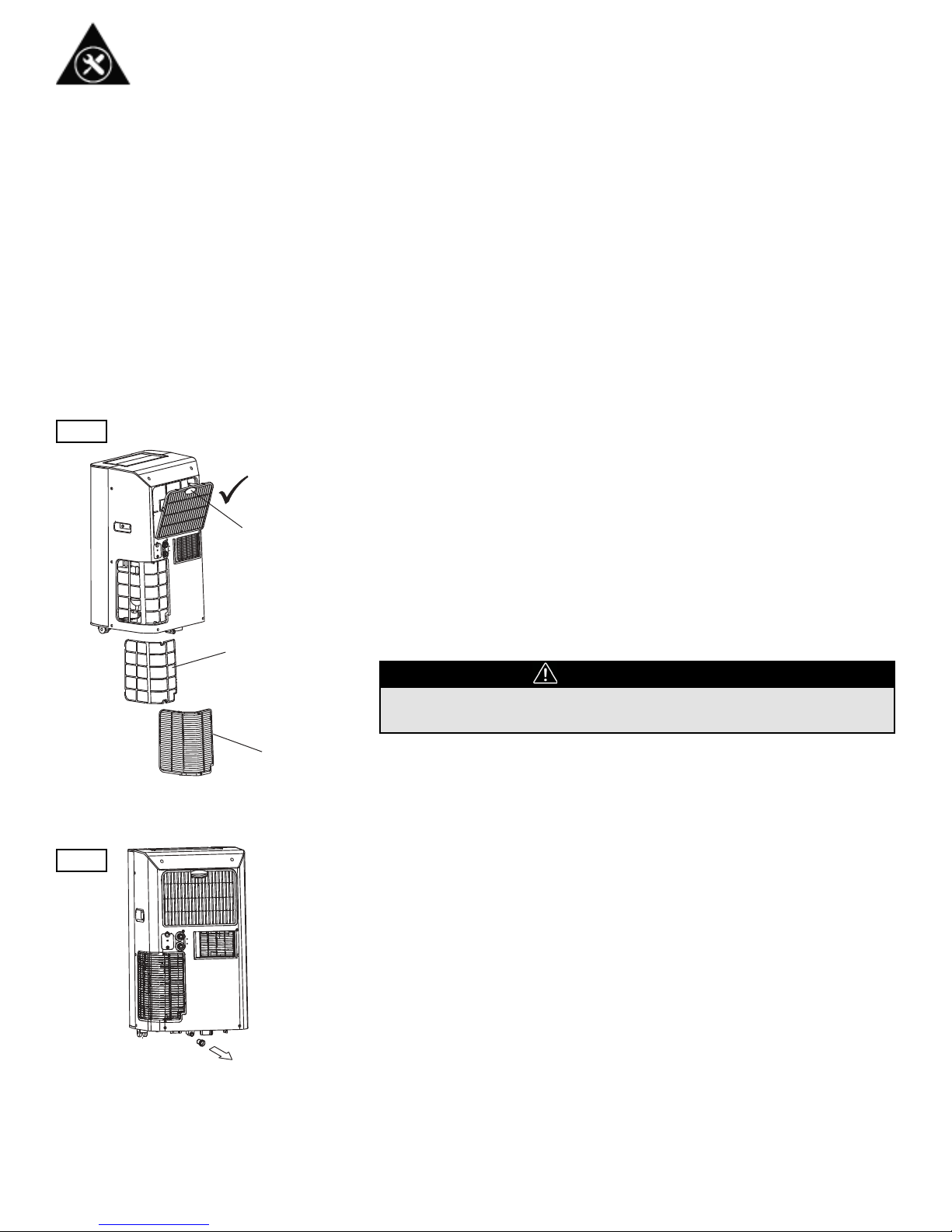

WATER DRAINAGE During Dehumidifying modes, remove the drain plug A from the back of
the unit (Fig.21), install the drain connector (5/8” universal female
connecter) with 3/4” hose (locally purchased).
when the level of the bottom tray reaches a predetermined level, the unit
beeps 8 times, the digital display area shows “P1” and the unit stops
operating. Carefully move the unit to a drain location, remove the bottom
drain plug and let the water drain away (Fig.24). Restart the machine until
the P1 symbol disappears. If the error repeats, call for service.
NOTE: When the relative humidity is less than 80%, the water drainage is
not needed during cooling operation. If performing above water drainage
during cooling operation, the cooling efficiency will be reduced.
floors from possible water spillage.
Drain outlet A
Fig.21
NOTE: When operating or draining water always protect carpeting or
Drain outlet B (Keep the drain outlet B plugged)

Care and Maintenance
CLEANING 1) Be sure to unplug the unit from the power before cleaning or
servicing.
2) Do not use gasoline, thinner or other chemicals to clean the unit.
3) Do not wash the unit directly under a tap or using a hose. It may cause
electrical damage or danger.
4) If the power cord is damaged, it should be repaired by the manufacturer
(Please call the service depot)
5) Use a lint-free cloth soaked with neutral detergent to clean the unit
enclosure. Finish cleaning by using a dry clean cloth.
17
AIR FILTER Clean the air filter at least once every two weeks to prevent inferior
fan operation because of dust. (more frequently if you have pets due
to pet hair build up).
REMOVAL
Grasp the filter tab, pull the filter out then up. Then remove the screw on
the side air intake grille, pull the filter out. See Fig.23.
CLEANING
Wash the air filter by immersing it gently in warm water (about
40°C/104°F) with a neutral detergent. Rinse the filter and dry it in a shady
place.
MOUNTING
Replace the air filters. A Replacement air filter is available through the
Customer Service Parts Department.
CAUTION
Never operate the unit without the air filter in place as this may
result in damage to the unit.
STORING THE UNIT OR LEAVING IT IDLE:
- When you plan to leave this unit unused for a long time, remove the
bottom rubber plug from the back hole and attach a section of the
continuous drain hose. All the water in the bottom tray would drain
outside through the drain hose. (See Fig.24)
- Keep the appliance running on FAN mode for half a day in a warm room
to dry the appliance inside and prevent mold forming.
- Stop the appliance and unplug it, wrap the cord and bundle it with tape.
- Remove the batteries from the remote controller.
- Clean the air filter and reinstall it.
Filter tap
Air filter
Air intake grille
Fig.23
Fig.24
- Disconnect the exhaust hose, keep it in a safe place.

Troubleshooting
Occasionally a problem may arise that is minor in nature, and a service call may not be neccessary. Use this
troubleshooting guide for a possible solution. If the unit continues to operate improperly, call an authorized service depot
or Danby’s Toll Free Number 1-800-263-2629 for assistance.
18
Unit does not start
when pressing on/off
button
•Water tank is full
• Room temperature is lower than the
set temperature. (Cooling mode)
• Dump the water out.
• Reset the temperature.
Not cool enough
• The windows or doors in the room
are not closed.
• There are heat sources inside the
room.
• Exhaust air duct is not connected or
blocked.
• Temperature setting is too high.
• Air filter is blocked by dust.
• Make sure all the windows and doors
are closed.
• Remove the heat sources if possible.
• Connect the duct and make sure it
can function properly.
• Decrease the set temperature.
• Clean the air filter.
PROBLEM POSSIBLE CAUSE SOLUTION
Noisy or vibration • The ground is not level or not flat
enough. • Place the unit on a flat, level ground
if possible.
Gurgling sound • The sound comes from the flowing of
the refrigerant inside the air
conditioner
• It is normal
Power shut off at
Heating mode
• The automatic over heat protection
function. When the temperature at
the air outlet exceeds 70°C/158°F,
the device wi ll stop.
• Switch on again after the unit has
cooled down.
Compressor does not
work and the digital
display area shows P1.
• The bottom tray is full • Rremove the bottom plug and drain
the collected water away. If it does
not work after restart, contact the
service depot.
The cooling indicator
light flashes at 1Hz and
the digital display area
shows E1.
• The room temperature Sensor is off
or short-circuit. • Contact the service depot.
The FAN indicator light
flashes at 1Hz and the
digital display area
shows E2.
• The Evaporator Temperature Sensor
is off or short-circuit. • Contact the service depot.
The Dehumidifying
indicator light flashes at
1Hz and the digital
display area shows E3.
• The Condenser Temperature Sensor
is off or short-circuit. • Contact the service depot.

LIMITED IN-HOME APPLIANCE WARRANTY
This quality product is warranted to be free from manufacturer’s defects in material and workmanship, provided that the unit is used under the normal operating
conditions intended by the manufacturer.
This warranty is available only to the person to whom the unit was originally sold by Danby Products Limited (Canada) or Danby Products Inc. (U.S.A.) (hereafter
“Danby”) or by an authorized distributor of Danby, and is non-transferable.
TERMS OF WARRANTY
Plastic parts, are warranted for thirty (30) days only from purchase date, with no extensions provided.
First 18 Months During the first eighteen (18) months, any functional parts of this product found to be defective, will be repaired or replaced, at warrantor’s
option, at no charge to the ORIGINAL purchaser.
To obtain Danby reserves the right to limit the boundaries of “In Home Service” to the proximity of an Authorized Service Depot. Any appliance
Service requiring service outside the limited boundaries of “In Home Service” ,
i
t will be the consumer’s responsibility to transport the appliance (at
their own expense) to the original retailer (point of purchase) or a service depot for repair. See “Boundaries of In Home Service” below.
Contact your dealer from whom your unit was purchased, or contact your nearest authorized Danby service depot, where service
must be performed by a qualified service technician.
If service is performed on the units by anyone other than an authorized service depot, or the unit is used for commercial application, all
obligations of Danby under this warranty shall be void.
Boundaries of If the appliance is installed in a location that is 100 kilometers (62 miles) or more from the nearest service center your unit must be
In Home Service
delivered to the nearest authorized Danby Service Depot, as service must only be performed by a technician qualified and certified for
warranty service by Danby. Transportation charges to and from the service location are not protected by this arranty and are the
responsibility of the purchaser.
Nothing within this warranty shall imply that Danby will be responsible or liable for any spoilage or damage to food or other contents of this appliance, whether due
to any defect of the appliance, or its use, whether proper or improper.
EXCLUSIONS
Save as herein provided, Danby, there are no other warranties, conditions, representations or guarantees, express or implied, made or intended by Danby or its
authorized distributors and all other warranties, conditions, representations or guarantees, including any warranties, conditions, representations or guarantees
under any Sale of Goods Act or like legislation or statue is hereby expressly excluded. Save as herein provided, Danby shall not be responsible for any damages
to persons or property, including the unit itself, howsoever caused or any consequential damages arising from the malfunction of the unit and by the purchase of
the unit, the purchaser does hereby agree to indemnify and hold harmless Danby from any claim for damages to persons or property caused by the unit.
GENERAL PROVISIONS
No warranty or insurance herein contained or set out shall apply when damage or repair is caused by any of the following:
1) Power failure.
2) Damage in transit or when moving the appliance.
3) Improper power supply such as low voltage, defective house wiring or inadequate fuses.
4) Accident, alteration, abuse or misuse of the appliance such as inadequate air circulation in the room or abnormal operating conditions
(extremely high or low room temperature).
5) Use for commercial or industrial purposes (ie. If the appliance is not installed in a domestic residence).
6) Fire, water damage, theft, war, riot, hostility, acts of God such as hurricanes, floods etc.
7) Service calls resulting in customer education.
8 ) Improper Installation (ie. Building-in of a free standing appliance or using an appliance outdoors that is not approved for outdoor application).
Proof of purchase date will be required for warranty claims; so, please retain bills of sale. In the event warranty service is required, present this document to our
AUTHORIZED SERVICE DEPOT.
Danby Products Limited
PO Box 1778, Guelph, Ontario, Canada N1H 6Z9
Telephone: [phone] FAX: [phone]
Danby Products Inc.
PO Box 669,Findlay, Ohio, U.S.A. 45840
Telephone: [phone] FAX: [phone]
04/09
1-800-263-2629
Warranty Service
In-home
