Operator’s Manual
Aeroquip® by Danfoss FT1360
Crimp Machine

Aeroquip FT1360 Crimp Machine Operator’s Manual
2 | © Danfoss | Aeroquip FT1360 Crimp Machine Operator’s Manual | 2023.06. AQ453358079899en-010101
Warning
Aeroquip fitting tolerances are engineered to match Aeroquip
hose tolerances. The use of Aeroquip fittings on hose supplied by
other manufacturers and/or the use of Aeroquip hose with fittings
supplied by other manufacturers may result in the production of
unreliable and unsafe hose assemblies and is neither recommended
nor authorized by Aeroquip.
Failure to follow Aeroquip process and product instructions and
limitations could lead to premature hose assembly failures resulting
in property damage, serious injury or death.
The user must exercise extreme care when operating any Aeroquip
assembly equipment with powered moving components. Safety
glasses must be worn at all times when using any Aeroquip
assembly equipment.
Read and understand the owners and operators manual before
attempting to operate any equipment.
Danfoss hereby disclaims any obligation or liability (including
incidental and consequential damages) arising from breach of
contract, warranty, or tort (under negligence or strict liability
theories) should Aeroquip hose, fittings or assembly equipment
be used with the hose, fittings or assembly equipment supplied by
another manufacturer or in the event that product instructions for
each specified hose assembly are not followed.

Aeroquip FT1360 Crimp Machine Operator’s Manual
AQ453358079899en-010101 © Danfoss | Aeroquip FT1360 Crimp Machine Operator’s Manual | 2023.06. | 3
FT1360
CAPABILITIES
• ALL SIZES THRU -32 INCLUDING INTERNAL SKIVE
DIE SIZE
• FT1307 CAGE STYLE DIES ARE 1.100”WIDE AND 2.000” LONG
• FT1209 CAGE STYLE DIES ARE 1.237“ WIDE AND 3.250“ LONG
POWER UNIT
• 10 H.P./ 3 PHASE/18 GPM WITH SLOW DOWN CIRCUITRY
CYLINDER SIZE
• 8“ BORE/ 5 3/4“ STROKE/ 4” ROD
MAJOR USE
• PRODUCTION CRIMP MACHINE (LARGE DISTRIBUTORS, OEM’S)
• FTl209 REPLACEMENT
COMMENTS
• BACKSTOP LOCATOR SYSTEM STANDARD
• WORK-LAMP STANDARD
• STATIONARY CAGE (CRIMP RING MOVES ONTO DIES FOR CRIMP OPERATION)
• DIGITAL ENCODER/TRANSDUCER POSITION SYSTEM
• 2:1 CALIBRATION RATIO, SAME AS FT1330 AND FT1340

Aeroquip FT1360 Crimp Machine Operator’s Manual
4 | © Danfoss | Aeroquip FT1360 Crimp Machine Operator’s Manual | 2023.06. AQ453358079899en-010101
Table of Contents
Introduction..........................................................................................................................................5
Safety Instructions...............................................................................................................................6
Specifications....................................................................................................................................... 7
Installation............................................................................................................................................ 7
Tooling................................................................................................................................................... 7
Basic Machine Operation................................................................................................................... 8
Maintenance.........................................................................................................................................8
Using the PowerSource Crimp Spec Tool........................................................................................8
Operating Instructions....................................................................................................................... 9
Crimping Precrimped -32 Fittings..................................................................................................11
Field Crimp Assemblies....................................................................................................................12
Recalibration Procedure...................................................................................................................12
Machine Breakdown.........................................................................................................................13
Cylinder Assembly.............................................................................................................................16
Electrical Schematic..........................................................................................................................18
Power Unit & Hydraulic Breakdown.............................................................................................. 20
Crimp Die Cage Assembly............................................................................................................... 22

Aeroquip FT1360 Crimp Machine Operator’s Manual
AQ453358079899en-010101 © Danfoss | Aeroquip FT1360 Crimp Machine Operator’s Manual | 2023.06. | 5
Introduction
The Aeroquip FT1360 crimp machine has been designed to provide production style crimping capability for all Aeroquip distributors as
well as original equipment manufacturers. The user can crimp -2 through -40 size Aeroquip fittings onto all Aeroquip hose styles including
four and six wire spiral hoses requiring internal skive crimp style fittings.
Each set of eight crimp dies is contained in a die cage which slides in and out of the machine as one package, thus eliminating time
consuming and messy die insertion and removal.
A compact hydraulic power unit supplies pressure to a cylinder which provides the required crimping force through the mechanical
advantage of a crimp ring and crimp die cage.
The crimp die cage is fixed, and the crimp ring moves over the cage to ease in crimping without the fitting moving.

Aeroquip FT1360 Crimp Machine Operator’s Manual
6 | © Danfoss | Aeroquip FT1360 Crimp Machine Operator’s Manual | 2023.06. AQ453358079899en-010101
1. KEEP WORK AREA CLEAN.
Cluttered areas and
benches invite accidents.
2. AVOID DANGEROUS
ENVIRONMENT. Keep the
work area well lit. Do not
operate equipment when
floors are slippery. Always
ensure you have sound
footing with both feet on
the floor. Do not operate
controls if hands or controls
are wet.
3. PREVENT
UNAUTHORIZED
OPERATION. Do not
permit anyone to operate
this machine unless they
have read and thoroughly
understand this manual.
Unplug the machine when
not in use.
4. USE THE RIGHT DIE CAGE.
Do not force the dies to
do a job they were not
designed for. Never mix
dies of different sets. Dies
are assembled in a cage.
5. WEAR PROPER APPAREL
Do not wear loose clothing
or jewelry that could get
caught in moving parts.
Rubber-soled footwear
is recommend for best
footing.
6. DO NOT OVERREACH.
Keep proper footing and
balance at all times.
7. MAINTAIN DIES WITH
CARE. Most dies used
on the FT1360 crimp
machine are hardened tool
steel affording the best
combination of strength
and wear resistance for
long life. Hardened dies are
generally brittle and care
should be taken to avoid
any sharp impact. Never
strike a die with a hardened
instrument.
8. INSERT CRIMP DIE CAGE.
CAUTION: MAKE SURE
DIES ARE COMPLETELY
IN PLACE, FLAT AGAINST
PRESSURE PLATE OR
DAMAGE TO THE DIES OR
MACHINE MAY RESULT.
9. CHECK PARTS. Check for
alignment of all moving
parts, broken parts, and
any other conditions that
may affect the machine’s
operations.
10. STORE DIES PROPERLY.
Never place die cages,
tools, fittings, or any other
material on the machine
where it may interfere
or fall into the crimping
operation.
11. DO NOT OVER PRESSURE.
Do not exceed 3.100 psi
hydraulic pressure supplied
to machine. This setting
is preset at the factory
and should not require
adjustment.
12. DIE CAGE TOOLING
CHANGE. Do not insert
or remove die cage while
power unit is turned on.
13. AVOID PINCH POINT. Do
not rest hand on crimp
ring. Keep hands well away
from all moving parts.
Do not operate with any
personnel close to moving
parts.
14. USE PROPER
PROCEDURES. Never rush
a hose assembly. Always
take the time required
to ensure all specified
procedures are followed.
Limited Safety Instructions

Aeroquip FT1360 Crimp Machine Operator’s Manual
AQ453358079899en-010101 © Danfoss | Aeroquip FT1360 Crimp Machine Operator’s Manual | 2023.06. | 7
Specications
Dimensions 32” wide, 42” deep, 50” high
Weight 2,000 lbs.
Motor 10 HP
Electrical Requirements 230/460 volts, 60 Hz, 3 phase
Pump 15 gpm to preset limit, 2 gpm to 3,000 psi
Reservoir 10 gallon, SAE 10W hydraulic oil
Hose -4 through -40 textile and wire reinforced, through -32 six wire spiral
Installation
The FT1360 crimp machine is delivered completely plumbed and wired. The reservoir has been filled with 10 weight hydraulic oil.
1. Uncrate the machine and position it in its work location on a floor capable of supporting a machine weighing 2000 pounds.
2. Position the disconnect switch to the “OFF” position.
3. The transformer in electrical box is wired for 460 volts.
4. The machine comes wired for 460 volts. Thermal overloads and fuses are provided for conversion to 230 volts. Consult Danfoss with
any questions regarding assistance with conversion procedures.
*5. Install 460 volt power into the disconnect.
* If the FT1360 crimp machine fails to operate properly, 2 of the incoming disconnect 3Ø lines must be switched.
Tooling
Crimp Die Cages: Crimp dies for the FT1360 crimp machine are contained in a die cage which can be inserted as a package into the
machine, thus eliminating time consuming and inaccurate insertion of individual dies. Each set of eight crimp dies is contained in a
separate die cage, thus eliminating concern from inter-mixing dies of different sets.
Crimp die cage part numbers are similar to crimp die part numbers. In either case the die suffix number is the same. Use the PowerSource
Crimp Spec tool to determine the tooling that should be used. The FT1209 crimp dies are longer than the FT1307 dies. They will
accommodate the longer sockets required with these assemblies.

Aeroquip FT1360 Crimp Machine Operator’s Manual
8 | © Danfoss | Aeroquip FT1360 Crimp Machine Operator’s Manual | 2023.06. AQ453358079899en-010101
Basic Machine Operation
With the machine installed as outlined in this manual and with the disconnect switch turned on. push the start button. The pump will start
running.
The crimp ring is pulled over the crimp cage by a hydraulic cylinder. Depressing the footswitch will move the crimp ring forward extending
the cylinder. Pressing the jog reverse button will move the crimp ring back to its retracted position..
You will find that being able to jog the crimp ring in either direction will be very helpful when positioning the fitting within the crimp dies
during the crimping cycle or when setting up the fitting locator.
Using the PowerSource Crimp Spec Tool
Visit the PowerSource Crimp Spec tool at danfoss.com/crimp for tooling and Crimp Spec details.
Maintenance
1. Sliding surfaces must be kept free of dirt and other abrasive materials.
2. Surfaces of crimp dies and the crimp ring where metal to metal contact is made should be lubricated with high efficiency PTFE grease
(Danfoss part number FF91455) at the beginning of each production run or as required during production (minimum of once per 25
crimps, and more often with larger hose).
3. All exposed black metal surfaces should be coated occasionally with a light film of oil to prevent corrosion.
4. The oil level in the fluid reservoir of the hydraulic power unit should be checked periodically and maintained at a level one inch below
the top of .the reservoir. Note: The crimp die cage should be retracted fully when the oil level is checked. Add SAE 10 weight hydraulic
oil as necessary.

Aeroquip FT1360 Crimp Machine Operator’s Manual
AQ453358079899en-010101 © Danfoss | Aeroquip FT1360 Crimp Machine Operator’s Manual | 2023.06. | 9
Operating Instructions
Hose Preparation
1. Hose Preparation and Pre-Assembly
Select the proper hose, nipple and socket combination. Cut the hose to length, assemble and crimp. Skiving is required for flat factory
crimp.
2. Crimp Machine Setup
Determine the correct crimp die cage to be used to crimp the assembly you have selected. With the cylinder retracted fully, install the
crimp die cage by sliding it downward against the pressure plate until the shoulder bolts on the pressure plate are seated in the slots on
the back of the crimp die cage and the bolt on the back of the crimp die cage is seated in the slot at the top of the pressure plate.

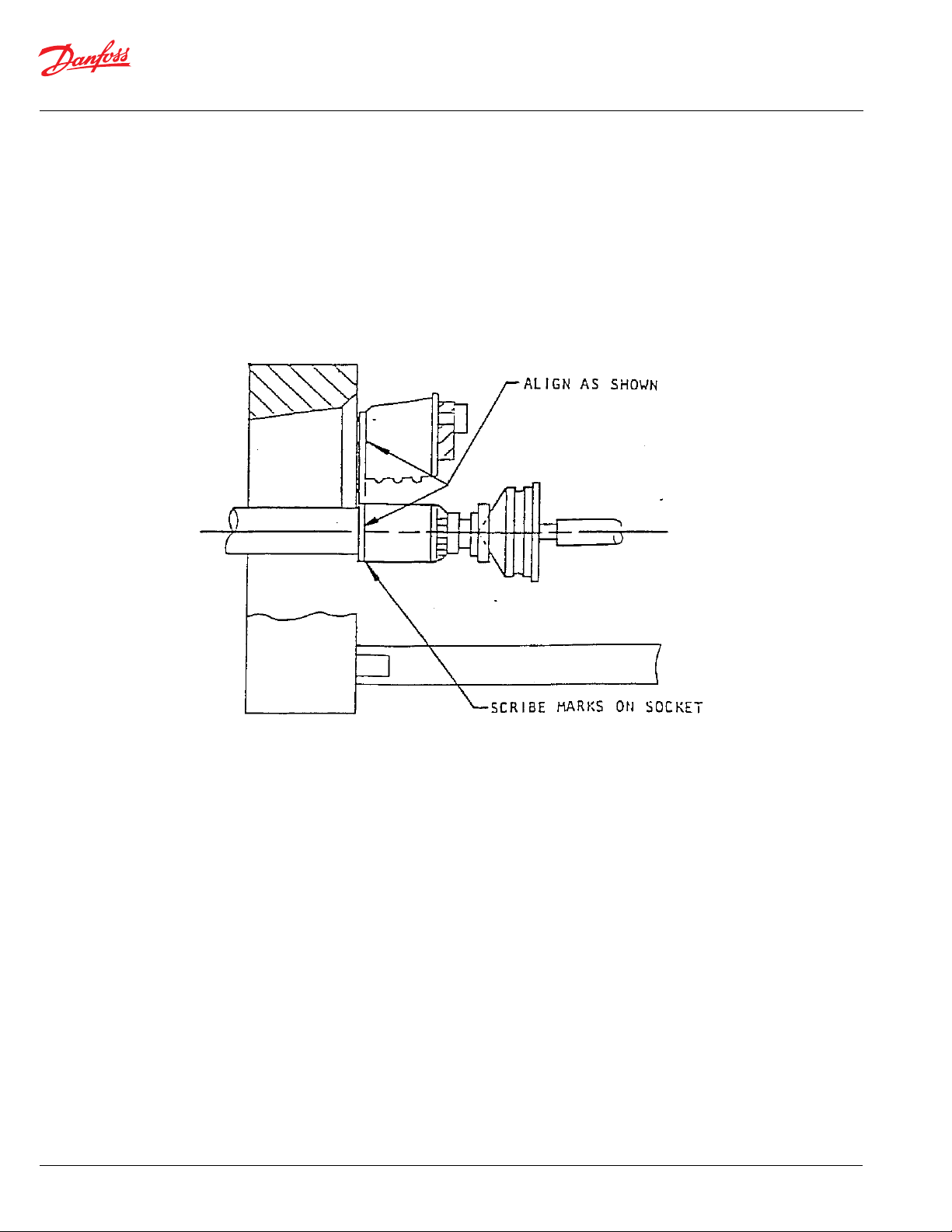

3. Positioning The Fitting Locator
Straight Fittings
If only one hose assembly is being crimped on this setup, you will probably choose to locate the fittings visually rather than set the locator.
Whether the fitting is positioned within the dies visually or with the aid of the locator, the proper position will be the same. The scribe line
at the skirt end of the socket must be lined up with the face of the jaw inset. The locator, can be moved forward by loosening the locking
knob. When the locator touches the end of the fitting tighten the knob. The locator is spring loaded to accommodate for hose growth
during crimping operation.

Aeroquip FT1360 Crimp Machine Operator’s Manual
10 | © Danfoss | Aeroquip FT1360 Crimp Machine Operator’s Manual | 2023.06. AQ453358079899en-010101
Setting the digital encoder
The forward travel of the crimp cylinder is limited or controlled by the linear Transducer position system. By setting the encoder to a
number between 000 and 999 you can control the last 2 inches of cylinder travel. The larger the encoder number the further the cylinder
travels before it stops, therefore the crimp diameter gets smaller as the encoder number increases.
Example:
You want to crimp FC195-16 hose with a 1401 -16 socket. Find that the crimp diameter to is 1.529 - 1.539. The goal is to hit the average
diameter which is 1.534. Crimp an assembly with the encoder at 000. If you do not make an impression on the socket, increase the setting
by 100 and crimp again. Continue this process until you can measure an impression. Let’s say for example that at 300 you’ve made an
impression in the socket and measure one of the flats to be 1.793. Because the ratio of the encoder to cylinder is approximately 2 to 1, the
new encoder setting will be (1.793 -1.534) x 2 added to 300. The new setting should be approximately 818. Readjust if necessary, and once
you have an established setting, record it in the “Micro Setting” column within your crimp specification bulletin. Remember, always check
your first assembly for proper crimp diameter.
Shortening the return stroke

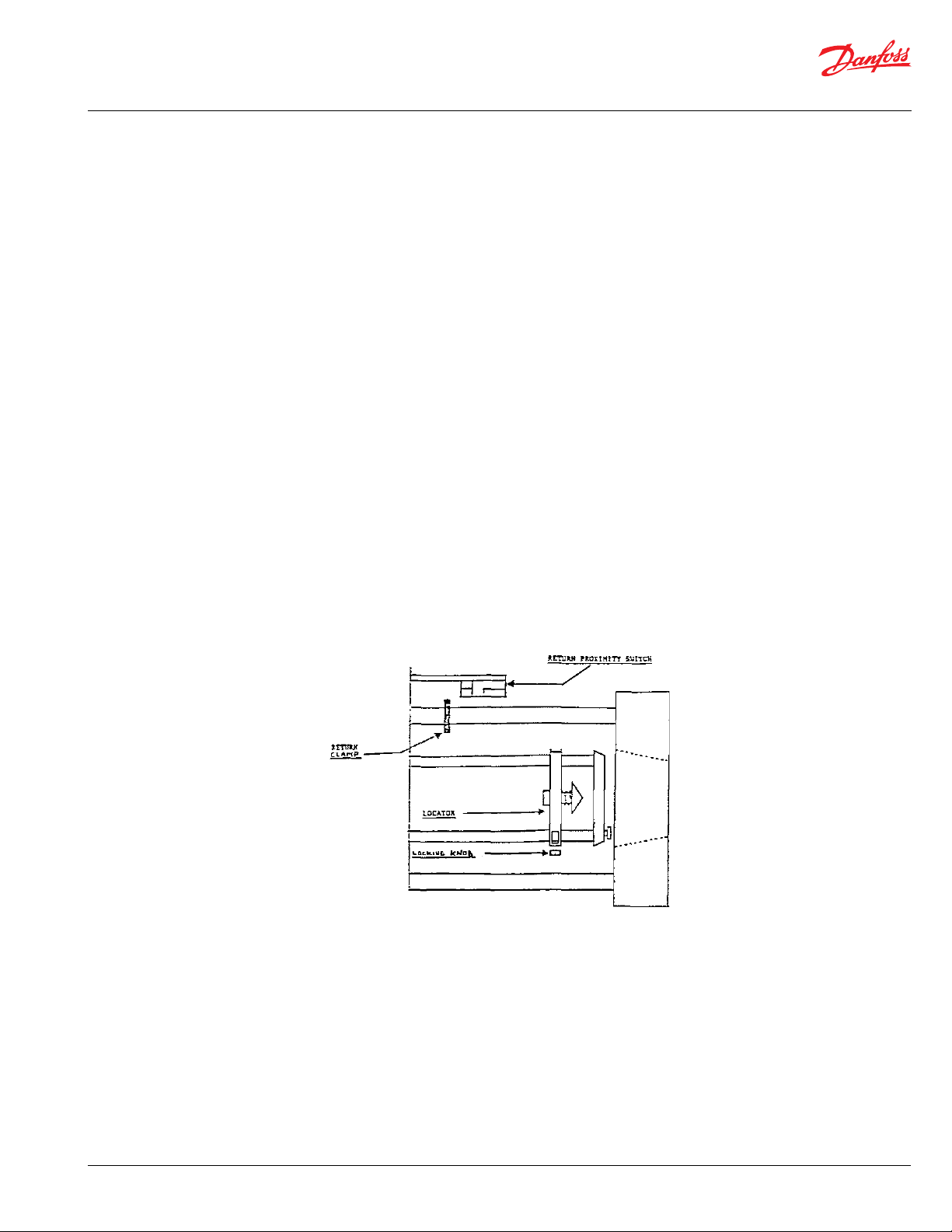

When crimping several identical assemblies, it may be desirable to shorten the machine cycle time by shortening the return stroke of
the cylinder. This can be done by jogging the crimp ring forward until just enough clearance remains to insert the uncrimped fitting into
position. Now slide the split clamp nearest the proximity switch directly under the front of the cylinder back to check the return stroke. It is
infinitely adjustable by sliding the split collar.

Aeroquip FT1360 Crimp Machine Operator’s Manual
AQ453358079899en-010101 © Danfoss | Aeroquip FT1360 Crimp Machine Operator’s Manual | 2023.06. | 11
Crimping precrimped -32 assemblies
The crimp dies in the FT1307-200-23 crimp die cage are shorter than the required length of crimp for -32 size Danfoss fittings. In order to
crimp a -32 size fitting with these dies, it is necessary to use a special fitting onto which the socket has been pre-crimped at the factory.
The chart below shows the proper position for loading -32 pre-crimped fittings within the FT1307-200-23 crimp die cage.
Two piece -32 fittings (separate nipple and socket) can be crimped with the FT1360 crimp machine using the FT1209-200-17 crimp die
cage. Proper location in this case will be the same as described in the section “Position the Fitting Locator”.
HOSE A
1509-32 .41
1529-32 .41
2661-32 .40
2665-32 .41
2681-32 .41
2766-32 .41
2781-32 .41
2791-32 .35
FC194-32 .41

Aeroquip FT1360 Crimp Machine Operator’s Manual
12 | © Danfoss | Aeroquip FT1360 Crimp Machine Operator’s Manual | 2023.06. AQ453358079899en-010101
Crimping field crimp style assemblies
Field crimp (barrel crimp) style hose assemblies were designed for “on location” repairs with a minimum of equipment. Skiving is not
required with field crimp fittings. The socket is pre-crimped to the nipple so the fitting can simply be pushed onto the hose and crimped.
When crimping field crimp style hose assemblies, special procedures must be followed when locating these assemblies in the crimp die
cage. The crimp socket has a line scribed near each end. The distance between the scribe lines is equal to the length of the crimp dies.
When crimped, the dies must be centered between the scribe lines. This can be done by aligning the face of either end of the crimp die
with the scribe line on that end of the socket (See Illustration).
Recalibration procedure
1. Insert an FT1307-200-8 crimp cage into the crimper and then crimp a 1401-16 socket using a setting of 920 on the digital encoder.
2. If a diameter of 1.483 + .003 is obtained, no further adjustments are necessary.
3. If a diameter of less than 1.483 is obtained, the transducer backstop must be moved toward the transducer. Consequently, if the
diameter is more than 1.483 the backstop must be moved away from the transducer.
4. The transducer backstop is located at the top left side of the crimper as shown on page 13, detail 19.

Aeroquip FT1360 Crimp Machine Operator’s Manual
AQ453358079899en-010101 © Danfoss | Aeroquip FT1360 Crimp Machine Operator’s Manual | 2023.06. | 13

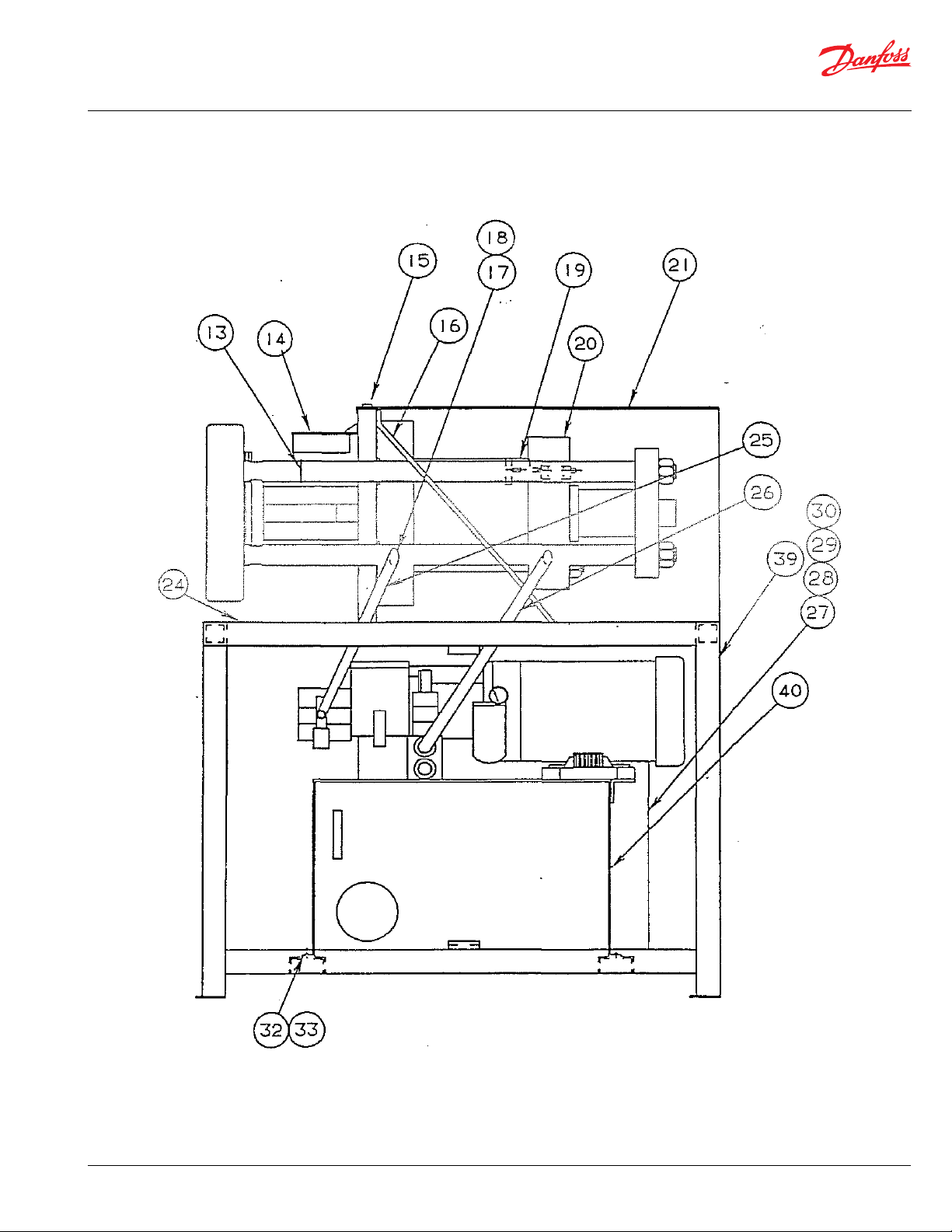

FT1360 Crimp Machine

Aeroquip FT1360 Crimp Machine Operator’s Manual
14 | © Danfoss | Aeroquip FT1360 Crimp Machine Operator’s Manual | 2023.06. AQ453358079899en-010101
FT1360 Crimp Machine

Aeroquip FT1360 Crimp Machine Operator’s Manual
AQ453358079899en-010101 © Danfoss | Aeroquip FT1360 Crimp Machine Operator’s Manual | 2023.06. | 15
DETAIL NUMBER PART NUMBER DESCRIPTION NUMBER REQUIRED
1 FT1330-2-5-4 Foot Switch 1
2 FT1360-3-20 Cylinder Support 1
3 FT1360-3-19 1/4-20 x .62 Soc Hd Cap Screw 2
4 FT1244-3-62 Decal, Aeroquip 1
5 FT1350-3-1 Control Box Panel 1
6 FT1350-3-29 Enclosure Box Panel, Back 1
7 FT1360-3-26 #10-24 x .50 Button Hd Cap Screw 8
8 FT1350-2-5-20 Transducer 1
9 FT1289-3-60 Decal, Caution 1
10 FT1330-3-68 Light 1
11 SC2307 ID Tag 1
13 FT1350-3-31 Locator Collar, McMaster #6436K25 1
14 FT1350-3-24 Proximity Switch Holder 1
15 FT1360-3-27 5/16-18 x .75 Button Hd Cap Screw 1
16 FT1350-3-30 Brace 1
17 FT1360-3-14 Aeroquip Adapter To Suit At Assembly
18 FT1360-3-33 Aeroquip Adapter To Suit At Assembly
19 FT1350-3-23 Backstop, Transducer 1
20 FT1360-2-2 Cylinder Subassembly 1
21 FT1360-3-17 Cabinet Cover 1
22 FT1360-3-2 Plate 1
23 FT1360-3-3 #10-24 x 1.00 Soc Countersunk Screw 2
24 FT1360-3-32 Rubber Pad, 32“ x 13” 1
25 FT1360-3-25 Aeroquip Hose Assembly To Suit 1
26 FT1360-3-22 Aeroquip Hose Assembly To Suit 1
27 FT1360-3-6 Enclosure, Hoffman #A-242408FMLP 1
28 FT1360-3-7 Panel, Hoffman #A-24P24 -1
29 FT1360-3-8 1/4-20 x .38 Button Hd Cap Screw 4
30 FT1360-3-8 1/4-20 Hex Nut 4
31 FT1360-3-18 1/2-20 x .75 Soc Hd Cap Screw 4
32 FT1360-3-4 #8-32 x .5 Soc Hd Cap Screw 4
33 FT1360-3-28 Rubber Grommet To Suit At Assembly 4
35 FT1289-3-62 Guard 1
36 FT1360-2-20 Crate 1
37 FF91455 High efficiency PTFE grease 1
38 FT1340-3-4 Locator Assembly 1
39 FT1360-2-4 Cabinet Assembly 1
40 FT1360-2-12 Power Unit 1
FT1360 Crimp Machine parts list

Aeroquip FT1360 Crimp Machine Operator’s Manual
16 | © Danfoss | Aeroquip FT1360 Crimp Machine Operator’s Manual | 2023.06. AQ453358079899en-010101
Cylinder subassembly

Aeroquip FT1360 Crimp Machine Operator’s Manual
AQ453358079899en-010101 © Danfoss | Aeroquip FT1360 Crimp Machine Operator’s Manual | 2023.06. | 17
Cylinder subassembly
DETAIL NUMBER PART NUMBER DESCRIPTION NUMBER REQUIRED
1 FT1360-2-2-1 Cylinder, T-J #TG14NAXCXAAAA333 1
2 FT1350-2-2-2 Crimp Ring 1
3 FT1360-2-2-3 Tie Rod 4
4 FT1350-2-2-4 Push Plate 1
5 FT1350-2-2-5 Pressure Plate 1
6 FT1360-2-2-6 Front Plate 1
7 FT1360-2-2-7 Push Rod 4
8 FT1303-3-76 3/8-16 x .50 Soc Hd Shoulder Screw 2
9 FT1360-2-2-9 1 1/8-12 Hex Nut 4
10 FT1289-2-2-15 Crimp Insert 1
11 FT1289-2-2-14 Ring, Danfoss T-J #6471 1
12 FT1360-2-2-10 1 1/8-12 x 4.75 Soc Hd Cap Screw 4
13 FT1360-2-2-11 1 1/2-12 x 3.00 Soc Hd Cap Screw 1
14 FT1360-2-2-12 1/2-20 x 1.38 Soc Hd Cap Screw 4

Aeroquip FT1360 Crimp Machine Operator’s Manual
18 | © Danfoss | Aeroquip FT1360 Crimp Machine Operator’s Manual | 2023.06. AQ453358079899en-010101
Electrical schematic

Aeroquip FT1360 Crimp Machine Operator’s Manual
AQ453358079899en-010101 © Danfoss | Aeroquip FT1360 Crimp Machine Operator’s Manual | 2023.06. | 19
Electrical schematic parts list
DETAIL NUMBER PART NUMBER DESCRIPTION NUMBER REQUIRED
1 FT1360-2-8-1 Disconnect 1
2 FT1340-2-5-2 Fuse Holder 1
3 FT1360-2-8-3 Fuse 3
4 FT1330-2-5-4 Foot Switch 1
5 FT1244-2-5-5 Push Bution/Contact Block 1
6 FT1244-2-5-6 Relay 3
7 FT1340-2-5-10 300V Terminal 11
8 FT1340-2-5-9 600V Terminal 1
9 FT1350-2-8-9 Stop Switch 1
10 FT1360-2-8-10 Overload Relay 1
11 FT1289-2-5-11 Foot Switch Cord 1
12 FT1244-2-5-12 Solenoid Cord 3
13 FT1360-2-8-13 Fuse Block 1
14 FT1360-2-8-14 Motor Cord 1
15 FT1244-2-5-15 Proximity Switch Cord “I
16 FT1360-2-8-16 Control Transformer 1
17 FT1350-2-5-17 Digital Knobpot 1
18 FT1244-2-5-18 Cord Connectors 5
19 FT1340-2-5-3 2 Amp Fuse 1
20 FT1350-2-5-20 Linear Transducer 1
21 FT1350-2-5-21 Aeroquip Dual Limit Control Board 1
22 FT1350-2-5-22 Card Connector 1
23 FT1350-2-5-23 Proximity Switch 1
24 FT1350-2-5-24 Counter 1
25 FTI330-3-68 Light 1
26 FT1350-2-5-26 Transducer Connector 1
27 FT1360-2-8-27 Motor Contactor 1
28 FT1360-2-8-28 Heater Element 3
29 FT1350-2-8-29 Start Switch 1
30 FT1360-2-8-30 Conn. Terminal 1
31 FT1360-2-8-21 Conn. Enclosure 1
32 FT1360-2-8-32 Relay 1

Aeroquip FT1360 Crimp Machine Operator’s Manual
20 | © Danfoss | Aeroquip FT1360 Crimp Machine Operator’s Manual | 2023.06. AQ453358079899en-010101

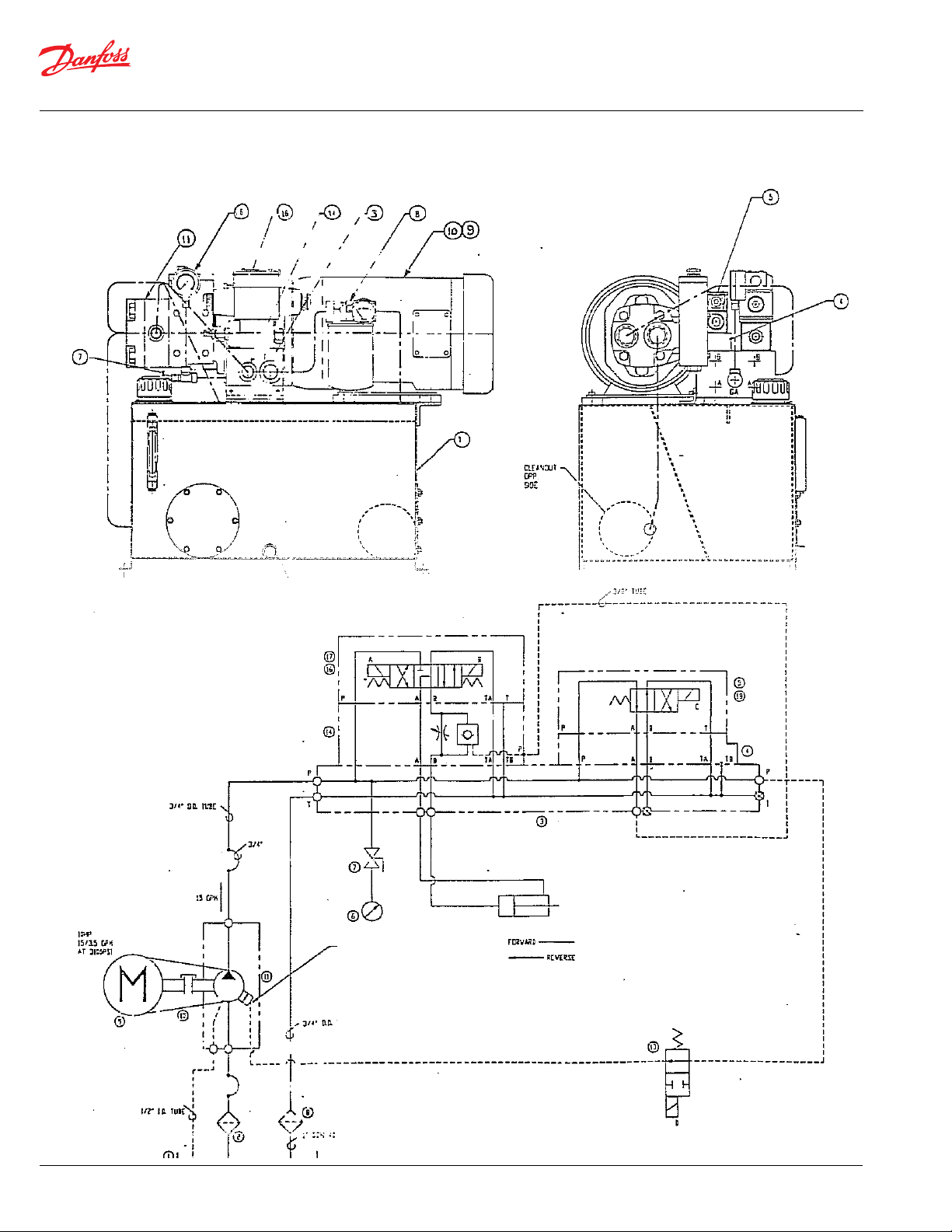

Hydraulic diagram
NOTE: VALVE XX #13 TO
BE CONNECTED TO PUMP
COMPENSATOR ON PORT
MEANT FOR MAX VOLUME
ADJUSTMENT LOCATED ON
OPPOSITE FACE TO PRESS
ADJUSTMENT SCREW
