Danfoss VACON NXS Air-cooled User manual

Operating Guide
VACON® NXS/NXP Air-cooled
Wall-mounted and Standalone
drives.danfoss.com

1
1.1
1.2
1.3
1.4
1.5
2
2.1
2.2
2.3
3
3.1
3.2
3.3
3.4
3.5
3.6
3.7
3.8
3.8.1
3.8.2
3.8.3
3.8.4
4
4.1
4.1.1
4.1.2
4.1.3
4.2
4.3
4.4
5
5.1
5.1.1
Contents
Introduction 10
Purpose of this Operating Guide 10
Additional Resources 10
Disposal 10
Type Approvals and Certifications 10
Start-up Quick Guide 11
Safety 12
Safety Symbols 12
Danger and Warnings 12
Cautions and Notices 13
Product Overview 16
Intended Use 16
Manual Version 16

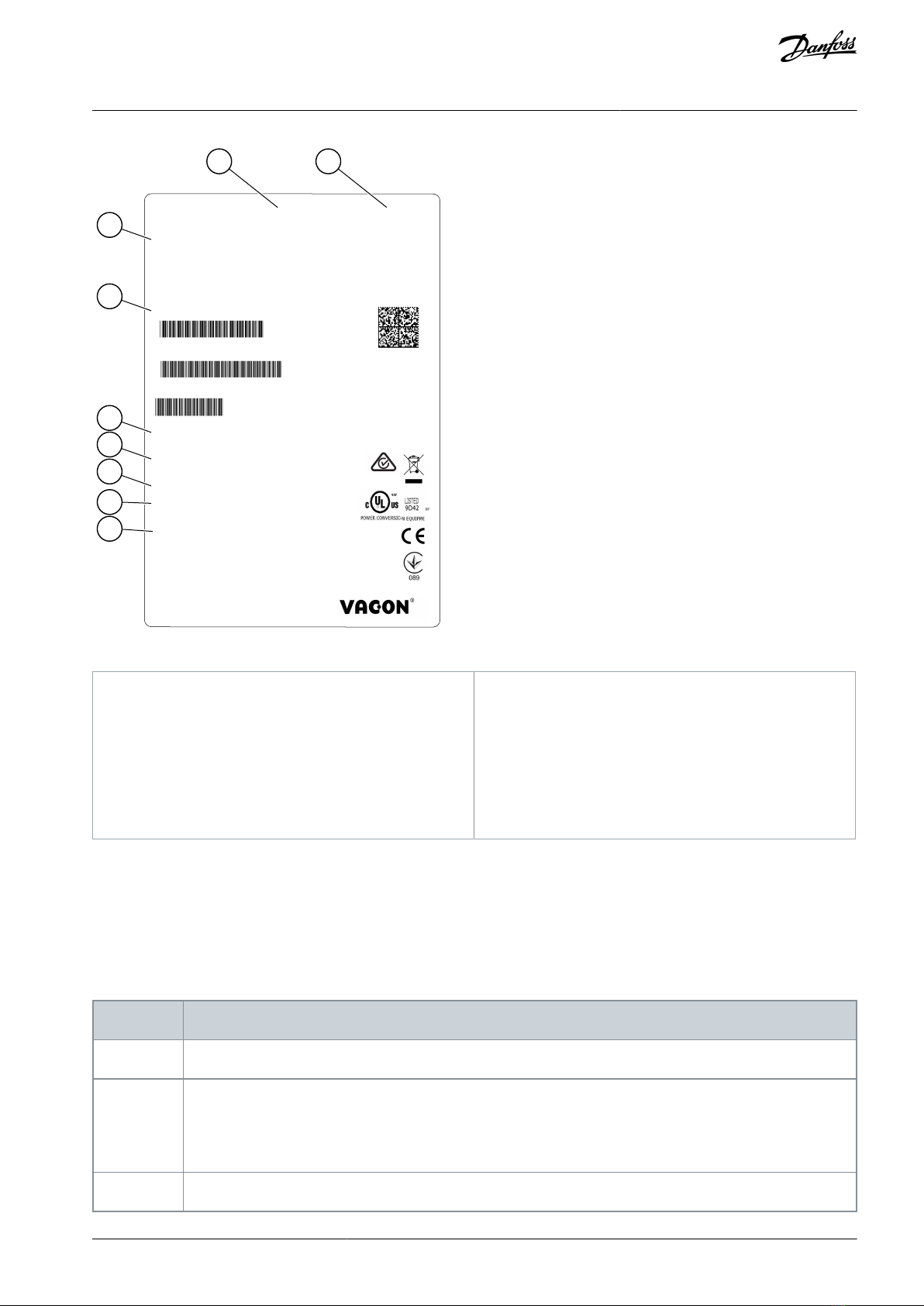

Package Label 16
Description of the Type Code 17
Enclosure Sizes 19
Available Protection Ratings 22
Available EMC Classes 22
Control Panel 24
Introduction to Control Panel 24
Keypad 24
Display 26
Basic Menu Structure 27
Receiving the Delivery 28
Checking the Delivery 28
Accessories for FR4/FI4–FR6/FI6 28
Accessories for FR7/FI7–FR8/FI8 29
Accessories for FR10–FR11 Standalone 29
Storing the Product 29
Lifting the Product 30
Using the Product Modified Label 31
Mounting the Unit 32
Environmental Requirements 32
General Environmental Requirements 32
AQ275638903263en-000601/DPD00910 | 3Danfoss A/S © 2022.12
Contents
VACON® NXS/NXP Air-cooled
Operating Guide

5.1.2
5.2
5.2.1
5.2.2
5.2.3
5.3
5.3.1
5.3.2
6
6.1
6.1.1
6.1.2
6.1.3
6.1.4
6.1.5
6.1.6
6.1.7
6.2
6.2.1
6.3
6.4
6.4.1
6.4.2
6.4.3
6.4.4
6.4.5
6.4.6
6.4.7
6.4.8
6.5
6.5.1
6.5.2
6.5.3
6.5.4
6.5.5
6.5.6
6.5.7
High Altitude Installation 32
Cooling Requirements 33
General Cooling Requirements 33
Cooling of FR4 to FR9 33
Cooling of Standalone AC drives (FR10 to FR11) 35
Installation Sequence 36
Installation Sequence for Wall-mounted AC Drives 36
Installation Sequence for Standalone AC Drives 37
Electrical Installation 38
Cable Connections 38
General Cable Requirements 38
UL Standards on Cabling 38
Cable Selection and Dimensioning 39
Cable Selection and Dimensioning, North America 39
Fuse Selection 39
Principle of the Power Unit Topology 39
Brake Resistor Cables 40
EMC-compliant Installation 40
Installation in a Corner-grounded Network 41
Grounding 41
Get Access and Locate the Terminals 43
Get Access and Locate the Terminals for FR4/FI4 43
Get Access and Locate the Terminals for FR5 45
Get Access and Locate the Terminals for FR6/FI6 47
Get Access and Locate the Terminals for FR7/FI7 49
Get Access and Locate the Terminals for FR8/FI8 51
Get Access and Locate the Terminals for FR9 53
Get Access and Locate the Terminals for FR10 Standalone 55
Get Access and Locate the Terminals for FR11 Standalone 57
Installing the Cables 59
Additional Instructions for Cable Installation 60
Installing the Cables, FR4–FR6/FI4–FI6 60
Installing the Cables, FR7/FI7 63
Installing the Cables, FR8/FI8 66
Installing the Cables, FR9 69
Installing the Cables, FR10 Standalone 72
Installing the Cables, FR11 Standalone 76
AQ275638903263en-000601/DPD009104 | Danfoss A/S © 2022.12
Contents
VACON® NXS/NXP Air-cooled
Operating Guide

6.6
6.6.1
6.6.2
6.6.3
7
7.1
7.2
7.3
7.3.1
7.3.2
7.3.2.1
7.3.2.2
7.3.3
7.4
7.5
8
8.1
8.2
8.2.1
8.3
8.3.1
8.3.2
8.3.3
8.4
8.4.1
8.4.2
8.4.3
8.4.4
8.4.4.1
8.4.5
8.4.6
8.4.7
8.4.7.1
8.4.7.2
8.5
8.5.1
8.5.2
Installation in an IT System 81
Installing the AC drive in an IT System, FR4–FR6 81
Installing the AC Drive in an IT System, FR7 84
Installing the AC Drive in an IT System, FR8–FR11 86
Control Unit 87
Control Unit Components 87
Control Voltage (+24 V/EXT +24 V) 87
Control Unit Cabling 88
Selection of the Control Cables 88
Control Terminals on OPTA1 88
Digital Input Signal Inversions 90
Jumper Selections on the OPTA1 Basic Board 91
Control Terminals on OPTA2 and OPTA3 92
Installation of Option Boards 93
Galvanic Isolation Barriers 94
Using the Control Panel 95
Navigating on the Control Panel 95
Using the Monitoring Menu (M1) 95
Monitored Values 95
Using the Parameter Menu (M2) 97
Finding the Parameter 97
Selecting Values 98
Editing the Values Digit by Digit 98
Using the Keypad Control Menu 100
Finding the Keypad Control Menu 100
Keypad Control Parameters M3 100
Changing the Control Mode 101
Keypad Reference 101
Editing the Frequency Reference 101
Changing the Rotation Direction 101
Disabling the Stop Motor Function 102
Special Functions in Keypad Control Menu 102
Selecting the Keypad as the Control Mode 102
Copying the Frequency Reference Set to the Control Panel 102
Using the Active Faults Menu (M4) 103
Finding the Active Faults Menu 103
Examining the Fault Time Data Record 103
AQ275638903263en-000601/DPD00910 | 5Danfoss A/S © 2022.12
Contents
VACON® NXS/NXP Air-cooled
Operating Guide

8.5.3
8.6
8.6.1
8.6.2
8.7
8.7.1
8.7.2
8.7.3
8.7.4
8.7.5
8.7.5.1
8.7.5.2
8.7.5.3
8.7.5.4
8.7.5.5
8.7.6
8.7.6.1
8.7.6.2
8.7.6.3
8.7.6.4
8.7.6.5
8.7.6.6
8.7.6.7
8.7.6.8
8.7.6.9
8.7.7
8.7.7.1
8.7.7.2
8.7.7.3
8.7.7.4
8.7.7.5
8.7.7.6
8.7.8
8.7.8.1
8.7.8.2
8.7.8.3
8.7.8.4
8.7.8.5
Fault Time Data Record 103
Using the Fault History Menu (M5) 104
Fault History Menu (M5) 104
Resetting the Fault History 104
Using the System Menu (M6) 105
Finding the System Menu 105
System Menu Functions 105
Changing the Language 108
Changing the Application 108
Copy Parameters (S6.3) 108
Saving Parameter Sets (Parameter Sets S6.3.1) 109
Uploading Parameters to Control Panel (Up To Keypad, S6.3.2) 109
Downloading Parameters to Drive (Down From Keypad, S6.3.3) 109
Activating or Deactivating the Automatic Parameter Back-up (P6.3.4) 109
Comparing the Parameters 110
Security 110
Finding the Security Menu 110
Passwords 111
Setting a Password 111
Entering a Password 111
Deactivating the Password Function 111
Locking a Parameter 111
Start-up Wizard (P6.5.3) 112
Activating/Deactivating the Start-up Wizard 112
Enabling/Disabling the Change of Multimonitoring Items 112
Keypad Settings 113
Finding the Keypad Settings Menu 113
Changing the Default Page 113
Default Page in the Operating Menu (P6.6.2) 113
Setting the Timeout Time 113
Contrast Adjustment (P6.6.4) 113
Backlight Time (P6.6.5) 114
Hardware Settings 114
Finding the Hardware Setting Menu 114
Setting the Internal Brake Resistor Connection 114
Fan Control 114
Changing the Fan Control Settings 115
HMI Acknowledge Timeout (P6.7.3) 115
AQ275638903263en-000601/DPD009106 | Danfoss A/S © 2022.12
Contents
VACON® NXS/NXP Air-cooled
Operating Guide

8.7.8.6
8.7.8.7
8.7.8.8
8.7.8.9
8.7.9
8.7.9.1
8.7.9.2
8.7.9.3
8.7.9.4
8.7.9.5
8.7.9.6
8.7.9.7
8.7.9.8
8.7.9.9
8.7.9.10
8.8
8.8.1
8.8.2
8.8.3
8.9
9
9.1
9.2
9.3
9.3.1
9.3.2
9.3.3
9.4
9.4.1
9.4.2
9.4.2.1
9.4.2.2
9.4.3
9.4.4
10
10.1
10.2
Changing the HMI Acknowledge Timeout 115
Changing the Number of Retries to Receive HMI Acknowledgement (P6.7.4) 115
Sine Filter (P6.7.5) 115
Pre-charge Mode (P6.7.6) 116
System Info 116
Finding the System Info Menu 116
Total Counters (S6.8.1) 116
Trip Counters (S6.8.2) 116
Resetting the Trip Counters 116
Software (S6.8.3) 117
Applications (S6.8.4) 117
Examining the Application Page 117
Hardware (S6.8.5) 117
Checking the Status of an Option Board 118
Debug Menu (S6.8.7) 118
Using the Expander Board Menu 118
Expander Board Menu 118
Examining the Connected Option Boards 118
Finding the Option Board Parameters 119
Further Control Panel Functions 119
Commissioning 120
Safety Checks before Starting the Commissioning 120
Commissioning the AC Drive 121
Measuring the Cable and Motor Insulation 121
Insulation Checks of the Motor Cable 121
Insulation Checks of the Mains Cable 122
Insulation Checks of the Motor 122
Checks after Commissioning 122
Testing the AC Drive after Commissioning 122
RUN Test without Load 123
Test A: Controls from the Control Terminals 123
Test B: Control from the Keypad 123
Start-up Test 123
Identification Run 123
Maintenance 124
Preventive Maintenance Recommendations 124
Reforming the Capacitors 126
AQ275638903263en-000601/DPD00910 | 7Danfoss A/S © 2022.12
Contents
VACON® NXS/NXP Air-cooled
Operating Guide

11
11.1
11.2
11.3
11.4
12
12.1
12.2
12.2.1
12.2.2
12.2.2.1
12.2.2.2
12.2.2.3
12.2.2.4
12.2.3
12.2.3.1
12.2.3.2
12.2.3.3
12.2.4
12.2.4.1
12.3
12.3.1
12.3.2
12.3.3
12.3.4
12.3.5
12.3.6
12.3.7
12.3.8
12.3.9
12.4
12.5
12.6
12.7
12.7.1
12.7.2
12.7.3
Fault Tracing 128
General Information on Fault Tracing 128
Resetting a Fault 128
Creating Service Info File 128
Error Message on Control Panel Display 129
Specifications 130
Weights of the AC Drive 130
Dimensions 130
List of Dimension Information 130
Wall-mounted 131
Dimensions for FR4–FR6 131
Dimensions for FR7 133
Dimensions for FR8 134
Dimensions for FR9 136
Flange mounting 138
Dimensions for Flange Mounting, FR4–FR6 138
Dimensions for Flange Mounting, FR7–FR8 140
Dimensions for Flange Mounting, FR9 142
Standalone 143
Dimensions for FR10–FR11 Standalone 143
Cable and Fuse Sizes 146
List of Cable and Fuse Size Information 146
Cable and Fuse Sizes for 208–240 V and 380–500 V, FR4 to FR9 146
Cable and Fuse Sizes for 208–240 V and 380–500 V, FR4 to FR9, North America 147
Cable and Fuse Sizes for 525–690 V, FR6 to FR9 148
Cable and Fuse Sizes for 525–690 V (UL Rating 600 V), FR6 to FR9, North America 149
Cable and Fuse Sizes for 380–500 V, FR10 to FR11 Standalone 150
Cable and Fuse Sizes for 380–500 V, FR10 to FR11, North America 151
Cable and Fuse Sizes for 525–690 V, FR10 to FR11 151
Cable and Fuse Sizes for 525–690 V (UL Rating 600 V), FR10 to FR11, North America 152
Cable Stripping Lengths 152
Tightening Torques for Cover Screws 154
Tightening Torques of the Terminals 154
Power ratings 155
Overload Capability 155
Power Ratings for Mains Voltage 208–240 V 156
Power Ratings for Mains Voltage 208–240 V, North America 157
AQ275638903263en-000601/DPD009108 | Danfoss A/S © 2022.12
Contents
VACON® NXS/NXP Air-cooled
Operating Guide

12.7.4
12.7.5
12.7.6
12.7.7
12.8
12.9
12.9.1
12.9.2
12.9.3
12.9.4
12.9.5
12.10
Power Ratings for Mains Voltage 380–500 V 158
Power Ratings for Mains Voltage 380–500 V, North America 159
Power Ratings for Mains Voltage 525–690 V (UL Rating 600 V) 160
Power Ratings for Mains Voltage 525–690 V (UL Rating 600 V), North America 162
VACON® NXP Technical Data 163
Brake Chopper Ratings 167
Brake Chopper Ratings 167
Brake Chopper Ratings for Mains Voltage 208–240 V 168
Brake Chopper Ratings for Mains Voltage 380–500 V 169
Brake Chopper Ratings for Mains Voltage 525–690 V 170
Internal Brake Resistors, FR4–FR6 (380–500 V) 171
Faults and Alarms 171
AQ275638903263en-000601/DPD00910 | 9Danfoss A/S © 2022.12
Contents
VACON® NXS/NXP Air-cooled
Operating Guide

•
•
•
1 Introduction
1.1 Purpose of this Operating Guide
This operating guide provides information for safe installation and commissioning of the AC drive. It is intended for use by qualified
personnel. Read and follow the instructions to use the drive safely and professionally. Pay particular attention to the safety instruc-
tions and general warnings. Always keep this operating guide available with the drive.
1.2 Additional Resources
Other resources are available to understand advanced AC drive functions and programming.
The VACON®NX manuals provide greater detail on working with parameters and show many application examples.
The VACON®NX I/O Boards User Manual gives more information on the I/O boards and their installation.
Instructions for operation with option boards and other optional equipment.
Supplementary publications and manuals are available from Danfoss.
NOTE! Download the English and French product manuals with applicable safety, warning and caution information from https://
www.danfoss.com/en/service-and-support/.
REMARQUE Vous pouvez télécharger les versions anglaise et française des manuels produit contenant l'ensemble des informa-
tions de sécurité, avertissements et mises en garde applicables sur le site https://www.danfoss.com/en/service-and-support/.
1.3 Disposal
Do not dispose of equipment containing electrical components together with domestic waste. Collect it separately in accordance
with local and currently valid legislation.
1.4 Type Approvals and Certifications
The following list is a selection of possible type approvals and certifications for Danfoss drives:
089
NOTICE
The specific approvals and certification for the drive are on the nameplate of the drive. For more information, contact the local
Danfoss office or partner.
AQ275638903263en-000601 / DPD0091010 | Danfoss A/S © 2022.12
Introduction
VACON® NXS/NXP Air-cooled
Operating Guide

1.
2.
3.
4.
5.
6.
7.
-a.
-b.
8.
-
-
-
-
-
9.
1.5 Start-up Quick Guide
Do at minimum these procedures during the installation and commissioning.
If there are problems, speak to the local distributor.
Vacon Ltd is not responsible for the use of the AC drives against the instructions.
Procedure
Check that the delivery agrees to the order, see 4.1 Checking the Delivery.
Before starting the commissioning, read carefully the safety instructions in 2.2 Danger and Warnings and 2.3 Cautions and
Notices.
Before the mechanical installation, check the minimum clearances around the AC drive (5.2.2 Cooling of FR4 to FR9 and
5.2.3 Cooling of Standalone AC drives (FR10 to FR11)) and check the ambient conditions in 12.8 VACON® NXP Technical
Data.
Check the dimensions of the motor cable, mains cable, mains fuses and check the cable connections. Read 6.1 Cable Con-
nections, 6.2 EMC-compliant Installation and 6.3 Grounding.
Obey the installation instructions, see 6.5 Installing the Cables.
Find information on the control connections in 7.3.2 Control Terminals on OPTA1.
If the start-up wizard is active, select the language of the control panel and the application. Accept the selections with the
[enter] button. If the start-up wizard is not active, obey the instructions a and b.
Select the language of the control panel from the Menu M6, page 6.1. For instructions, see 8.7.3 Changing the Lan-
guage.
Select the application from the Menu M6, page 6.2. For instructions, see 8.7.4 Changing the Application.
All parameters have factory default values. To make sure that the AC drive operates correctly, make sure that these group
G2.1 parameters have the same data as the nameplate. For more information on the parameters in the list, see the VACON®
All in One Application Manual.
Nominal voltage of the motor
Nominal frequency of the motor
Nominal speed of the motor
Nominal current of the motor
Motor cos phi
Obey the commissioning instructions, see 9.2 Commissioning the AC Drive.
The VACON®NXS/NXP AC drive is ready for operation.
AQ275638903263en-000601 / DPD00910 | 11Danfoss A/S © 2022.12
Introduction
VACON® NXS/NXP Air-cooled
Operating Guide

-
-
-
2 Safety
2.1 Safety Symbols
The following symbols are used in this manual:
DANGER
Indicates a hazardous situation which, if not avoided, will result in death or serious injury.
WARNING
Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION
Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
NOTICE
Indicates information considered important, but not hazard-related (for example, messages relating to property damage).
2.2 Danger and Warnings
DANGER
SHOCK HAZARD FROM POWER UNIT COMPONENTS
The power unit components are live when the drive is connected to mains. A contact with this voltage can lead to death or seri-
ous injury.
Do not touch the components of the power unit when the drive is connected to mains. Before connecting the drive to mains,
make sure that the covers of the drive are closed.
DANGER
SHOCK HAZARD FROM TERMINALS
The motor terminals U, V, W, the brake resistor terminals, or the DC terminals are live when the drive is connected to mains, also
when the motor does not operate. A contact with this voltage can lead to death or serious injury.
Do not touch the motor terminals U, V, W, the brake resistor terminals, or the DC terminals when the drive is connected to
mains. Before connecting the drive to mains, make sure that the covers of the drive are closed.
DANGER
SHOCK HAZARD FROM DC LINK OR EXTERNAL SOURCE
The terminal connections and the components of the drive can be live 5 minutes after the drive is disconnected from the mains
and the motor has stopped. Also the load side of the drive can generate voltage. A contact with this voltage can lead to death or
serious injury.
Before doing electrical work on the drive:
Disconnect the drive from the mains and make sure that the motor has stopped.
Lock out and tag out the power source to the drive.
Make sure that no external source generates unintended voltage during work.
Wait 5 minutes before opening the cabinet door or the cover of the AC drive.
Use a measuring device to make sure that there is no voltage.
AQ275638903263en-000601 / DPD0091012 | Danfoss A/S © 2022.12
Safety
VACON® NXS/NXP Air-cooled
Operating Guide

-
-
-
-
-
-
-
WARNING
SHOCK HAZARD FROM CONTROL TERMINALS
The control terminals can have a dangerous voltage also when the drive is disconnected from mains. A contact with this voltage
can lead to injury.
Make sure that there is no voltage in the control terminals before touching the control terminals.
WARNING
ACCIDENTAL MOTOR START
When there is a power-up, a power break, or a fault reset, the motor starts immediately if the start signal is active, unless the pulse
control for Start/Stop logic is selected. If the parameters, the applications or the software change, the I/O functions (including the
start inputs) can change. If you activate the auto reset function, the motor starts automatically after an automatic fault reset. See
the Application Guide. Failure to ensure that the motor, system, and any attached equipment are ready for start can result in
personal injury or equipment damage.
Disconnect the motor from the drive if an accidental start can be dangerous. Make sure that the equipment is safe to operate
under any condition.
WARNING
LEAKAGE CURRENT HAZARD
Leakage currents exceed 3.5 mA. Failure to ground the drive properly can result in death or serious injury.
Ensure the correct grounding of the equipment by a certified electrical installer.
WARNING
SHOCK HAZARD FROM PE CONDUCTOR
The drive can cause a DC current in the PE conductor. Failure to use a residual current-operated protective (RCD) device Type B or
a residual current-operated monitoring (RCM) device can lead to the RCD not providing the intended protection and therefore
can result in death or serious injury.
Use a type B RCD or RCM device on the mains side of the drive.
2.3 Cautions and Notices
CAUTION
DAMAGE TO THE AC DRIVE FROM INCORRECT MEASUREMENTS
Doing measurements on the AC drive when it is connected to mains can damage the drive.
Do not do measurements when the AC drive is connected to mains.
CAUTION
DAMAGE TO THE AC DRIVE FROM INCORRECT SPARE PARTS
Using spare parts that are not from the manufacturer can damage the drive.
Do not use spare parts that are not from the manufacturer.
CAUTION
DAMAGE TO THE AC DRIVE FROM INSUFFICIENT GROUNDING
Not using a grounding conductor can damage the drive.
Make sure that the AC drive is always grounded with a grounding conductor that is connected to the grounding terminal
that is identified with the PE symbol.
AQ275638903263en-000601 / DPD00910 | 13Danfoss A/S © 2022.12
Safety
VACON® NXS/NXP Air-cooled
Operating Guide

-
-
-
-
-
-
CAUTION
CUT HAZARD FROM SHARP EDGES
There can be sharp edges in the AC drive that can cause cuts.
Wear protective gloves when mounting, cabling, or doing maintenance operations.
CAUTION
BURN HAZARD FROM HOT SURFACES
Touching surfaces, which are marked with the 'hot surface' sticker, can result in injury.
Do not touch surfaces which are marked with the 'hot surface' sticker.
NOTICE
DAMAGE TO THE AC DRIVE FROM STATIC VOLTAGE
Some of the electronic components inside the AC drive are sensitive to ESD. Static voltage can damage the components.
Remember to use ESD protection always when working with electronic components of the AC drive. Do not touch the com-
ponents on the circuit boards without proper ESD protection.
NOTICE
DAMAGE TO THE AC DRIVE FROM MOVEMENT
Movement after installation can damage the drive.
Do not move the AC drive during operation. Use a fixed installation to prevent damage to the drive.
NOTICE
DAMAGE TO THE AC DRIVE FROM INCORRECT EMC LEVEL
The EMC level requirements for the AC drive depend on the installation environment. An incorrect EMC level can damage the
drive.
Before connecting the AC drive to the mains, make sure that the EMC level of the AC drive is correct for the mains.
NOTICE
RADIO INTERFERENCE
In a residential environment, this product can cause radio interference.
Take supplementary mitigation measures.
NOTICE
MAINS DISCONNECTION DEVICE
If the AC drive is used as a part of a machine, the machine manufacturer must supply a mains disconnection device (refer to EN
60204-1).
NOTICE
MALFUNCTION OF FAULT CURRENT PROTECTIVE SWITCHES
Because there are high capacitive currents in the AC drive, it is possible that the fault current protective switches do not operate
correctly.
AQ275638903263en-000601 / DPD0091014 | Danfoss A/S © 2022.12
Safety
VACON® NXS/NXP Air-cooled
Operating Guide

-
NOTICE
VOLTAGE WITHSTAND TESTS
Doing voltage withstand tests can damage the drive.
Do not do voltage withstand tests on the AC drive. The manufacturer has already done the tests.
AQ275638903263en-000601 / DPD00910 | 15Danfoss A/S © 2022.12
Safety
VACON® NXS/NXP Air-cooled
Operating Guide

•
•
3 Product Overview
3.1 Intended Use
The drive is an electronic motor controller intended for:
Regulation of motor speed in response to system feedback or to remote commands from external controllers. A power drive
system consists of the AC drive, the motor, and equipment driven by the motor.
System and motor status surveillance.
The drive can also be used for motor overload protection.
VACON®NXP drive can be used as programmable logic controller (PLC) in many applications due to extensive I/O and fieldbus op-
tions and easy programmability. Custom application development can be done with VACON®Programming tool and standard PLC
programming languages defined in the IEC 61131/3.
Depending on the configuration, the drive can be used in standalone applications or form part of a larger appliance or installation.
The drive is allowed for use in residential, industrial, and commercial environments in accordance with local laws and standards.
NOTICE
In a residential environment, this product can cause radio interference, in which case supplementary mitigation measures can be
required.
Foreseeable misuse
Do not use the drive in applications which are non-compliant with specified operating conditions and environments. Ensure com-
pliance with the conditions specified in 12.8 VACON® NXP Technical Data.
3.2 Manual Version
This manual is regularly reviewed and updated. All suggestions for improvement are welcome.
The original language of this manual is English.
Table 1: Manual and Software Version
Edition
Remarks
DPD00910J
Changed information about FR10 Standalone drive structure in 6.5.6 Installing the Cables, FR10 Standalone and
12.2.4.1 Dimensions for FR10–FR11 Standalone.
Added Z class definition for protection rating in 3.4 Description of the Type Code.
Added tightening torque information for FR8 in 12.6 Tightening Torques of the Terminals.
Other minor changes.
3.3 Package Label
The package label gives detailed information about the delivery.
AQ275638903263en-000601 / DPD0091016 | Danfoss A/S © 2022.12
Product Overview
VACON® NXS/NXP Air-cooled
Operating Guide

•
•
•
A B
H
G
F
E
D
C
I
e30bf961.10
1003322235
V00001687465
NXP00875-A2H1SSS-A1A2000000
171208
B.ID :
S/ N:
Type:
AC DRI VE
V00001687465
7DP-008752-116SC8
Made in Finland
Danfoss A/S, 6430 Nordborg, Denmark
135X9219
87A 40°C / 72A 50°C
87A 40°C / 72A 50°C
45kW:400V / 60HP:480V
IP21/Type1
3~AC,0-Uin, 0-320Hz,
Uin:3~AC,380-500V, 50/60Hz,
POWER :
OUTPUT:
INPUT:
Danfoss Limited
0018131571
NXP00002V195
Ma rks:
Cust. Or d. No :
Appl icat ion :
Firm w are :
7DP-008752-116SC8
Code:
Illustration 1: Package Label of VACON®NXS/NXP AC Drives
A
The batch ID
B
The order number of VACON®
C
The type code
D
The serial number
E
The mains voltage
F
The nominal output current
G
The protection rating
H
The firmware code
I
The order number of the customer
3.4 Description of the Type Code
The type code of VACON®is made of standard codes and optional codes. Each part of the type code agrees to the data in the order.
Example
The code can have this format, for example:
NXP00035-A2H1SSV-A1A2C30000+DNOT
Table 2: Description of the Type Code
Code
Description
VACON
This part is same for all the products.
NXP
The product range:
NXP = VACON®NXP
NXS = VACON®NXS
0003
The drive rating in amperes. For example, 0003 = 3 A
AQ275638903263en-000601 / DPD00910 | 17Danfoss A/S © 2022.12
Product Overview
VACON® NXS/NXP Air-cooled
Operating Guide

•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
-
-
•
-
-
-
-
Code
Description
5
The mains voltage:
2 = 208–240 V
5 = 380–500 V
6 = 525–690 V (IEC)
525–600 V (cULus)
A
The control panel:
A = standard (text display)
B = no local control panel
F = dummy keypad
G = graphical display
2
The protection rating:
0 = IP00
2 = IP21 (UL Type 1)
5 = IP54 (UL Type 12)
T = flange-mounted (through-hole mounted), power part IP54, control part IP21
Z = flange-mounted (through-hole mounted), power part IP54, control part IP00
H
The EMC emission level:
C = complies with the category C1 of standard IEC/EN 61800-3 + A1, 1st environment, and nominal voltage
less than 1000 V
H = complies with the category C2 of standard IEC/EN 61800-3 + A1, fixed installations, and nominal voltage
less than 1000 V
L = complies with the category C3 of standard IEC/EN 61800-3 + A1, 2nd environment, and nominal voltage
less than 1000 V
T = complies with the standard IEC/EN 61800-3 + A1 when used in IT networks (C4).
N = No EMC emission protection. An external EMC filter is necessary.
1
The brake chopper:(1)
0 = No brake chopper
1 = Internal brake chopper
2 = Internal brake chopper and resistor, available for:
208–240 V (FR4–FR6)
380–500 V (FR4–FR6)
SSV
The hardware changes:
The supply, the first letter (Xxx):
S = 6-pulse connection (FR4 to FR11)
B = Additional DC-connection (FR8 to FR11)
O = Standard and input switch (Standalone)
J = FR10 to 11 standalone with main switch and DC-link terminals
AQ275638903263en-000601 / DPD0091018 | Danfoss A/S © 2022.12
Product Overview
VACON® NXS/NXP Air-cooled
Operating Guide

-
-
•
-
•
-
-
-
-
-
-
-
-
-
-
•
•
•
•
•
Code
Description
P = Standard and input swithc UL (Standalone)
K = DC link connectors and input switch UL (standalone)
The mounting, the second letter: (xXx):
S = Air-cooled drive
The boards, the third letter (xxX):
S = Standard boards (FR4 to FR8)
V = Coated boards (FR4 to FR8)
F = Standard boards (FR9 to FR11)
G = Coated boards (FR9 to FR11)
A = Fiber, Integrated control (FR10 to FR11 standalone drives)
B = Fiber, Integrated control, Coated boards (FR10 to FR11 standalone drives)
N = separate IP54 (UL Type 12) control box, standard boards, fiber connection (FR9 IP00, ≥ FR10)
O = separate IP54 (UL Type 12) control box, coated boards, fiber connection (FR9 IP00, ≥ FR10)
X = separate IP00 control box, standard boards (FR9 IP00)
Y = separate IP00 control box, coated boards (FR9 IP00)
A1A2C30000
The option boards. 2 characters for each slot. 00 = the slot is not used
The option board abbreviations:
A = basic I/O board
B = expander I/O board
C = fieldbus board
D = special board
E = fieldbus board
For example, E3 = PROFIBUS DP
+DNOT
The optional codes. See full list of option codes in the VACON®NXP Selection Guide.
1A brake resistor is available as an option for external installation for 208–240 V (FR7–FR11), 380–500 V (FR7–FR11), and 525–690 V (all enclosure
sizes).
3.5 Enclosure Sizes
Example
The codes for nominal current and nominal mains voltage are part of the type code (see 3.4 Description of the Type Code) on the
package label (see 3.3 Package Label). Use these values to find out the enclosure size of the AC drive from the table.
In the example "NXP00035-A2H1SSS-A1A2C30000+DNOT", the code for nominal current is 0003 and the code for nominal mains
voltage is 5.
Table 3: Enclosure Sizes
Nominal mains voltage
Nominal current
Enclosure size
2 (208–240 V)
0003
FR4
0004
0007
0008
AQ275638903263en-000601 / DPD00910 | 19Danfoss A/S © 2022.12
Product Overview
VACON® NXS/NXP Air-cooled
Operating Guide

Nominal mains voltage
Nominal current
Enclosure size
0011
0012
0017
FR5
0025
0031
0048
FR6
0061
0075
FR7
0088
0114
0140
FR8
0170
0205
0261
FR9
0300
5 (380–500 V)
0003
FR4
0004
0005
0007
0009
0012
0016
FR5
0022
0031
0038
FR6
0045
AQ275638903263en-000601 / DPD0091020 | Danfoss A/S © 2022.12
Product Overview
VACON® NXS/NXP Air-cooled
Operating Guide
