DAPAudio DSP-2448 MKII User manual

DSP-2448 MKII
ORDERCODE D2031

Congratulations!
You have bought a great, innovative product from DAP Audio.
The DAP Audio DSP-2448 MKII brings excitement to any venue. Whether you want simple plug-&-play
action or a sophisticated show, this product provides the effect you need.
You can rely on DAP Audio, for more excellent audio products.
We design and manufacture professional audio equipment for the entertainment industry.
New products are being launched regularly. We work hard to keep you, our customer, satisfied.
For more information: [email protected]
You can get some of the best quality, best priced products on the market from DAP Audio.
So next time, turn to DAP Audio for more great audio equipment.
Always get the best -- with DAP Audio !
Thank you!

1
2
2
3
4
4
4
5
6
6
6
6
7
7
7
8
8
8
9
9
10
11
12
15
16
17
17
17
18
DAP Audio
DAP Audio DSP-2448 MKII Product Guide
Warning..…...................................................................................…………………………………………..
Safety-instructions………………………………………………………………………………………….….
Operating Determinations…………………………………………………………………………………….
Description..…..............................................................................……….………………………………….
Features………………………………………………………………………………….………………….….
Overview Front side..…………………………………………………………………………………....…….
Overview Back side..…………………………………………………………………………………….…….
Installation..................................................................……………………………..…………………………
Set Up and Operation.....................................................................……..…………………………….……
Menu Functions………..………………………………………………………………………..……….…….
Parameters.….……….…….……….……..……….……..……….……..……….……..……….…..….
Lock…..……..……..……..……..……..……..……..……..……..……..……..……..……..……..…….
Equalizer…..……..……..……..……..……..……..……..……..……..……..……..……..……..……...
Effect Off/ Bypass…..……..……..……..……..……..……..……..……..……..……..……..……..…..
Store..……..……..……..……..……..……..……..……..……..……..……..……..……..……..……….
Bypass & Store..……..……..……..……..……....……..……..……..……..……..……..……..…...….
Communication between 2 units or more..……..……..……..……..……..……..……..……....…….
MIDI Control..................................................................……………………………..……………………….
Using DSP-2448 MKII in the AUX Bus.........................……………………………..…………………….…
Using the DSP 2448 MKII in a MIDI system..............……………………………..……………………..….
Effect lists..……..……..……..……..……..……..……..……..……..……..……..……....……..……..……....
Preset Values..……..……..……..……..……..……..……..……..……..……..……..……....……..…………
MIDI Implementation Chart…………………………………………………………………………………..….
Connection Cables..............................….......................................………..………….…….………….…..
Maintenance………..............................….......................................………..………….…….………….…..
Replacing the Fuse........................................................................…………………….…………………
Troubleshooting………..............................…................................………..………….…….………….…..
Product Specifications.................................................................……………….…….…………………..

2
WARNING
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE YOUR INITIAL START-UP!
SAFETY INSTRUCTIONS
Every person involved with the installation, operation and maintenance of this system has to:
-be qualified
-follow the instructions of this manual
Before you initial start-up, please make sure that there is no damage caused by transportation. Should there
be any, consult your dealer and do not use the system.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to follow
the safety instructions and warning notes written in this manual.
Please consider that damages caused by manual modifications to the system are not subject to warranty.
This system contains no user-serviceable parts. Refer servicing to qualified technicians only.
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual or any unauthorized modification to the system.
•Never let the power-cord come into contact with other cables! Handle the power-cord and all
connections with the mains with particular caution!
•Never remove warning or informative labels from the unit.
•Never use anything to cover the ground contact.
•Do not insert objects into air vents.
•Do not connect this system to a dimmerpack.
•Do not switch the system on and off in short intervals, as this would reduce the system’s life.
•Do not open this device. Risk: hazardous radiation exposure.
•Do not run the output of any amplifier channel, back into another channel’s input.
•Do not connect (parallel or series) an amplifier output with any other amplifier output.
•Only use system indoor, avoid contact with water or other liquids.
•Avoid flames and do not put close to flammable liquids or gases.
•Always disconnect power from the mains, when system is not used. Only handle the power-cord by
the plug. Never pull out the plug by tugging the power-cord.
•Make sure you don’t use the wrong kind of cables or defective cables.
•Make sure that the signals into the mixer are balanced, otherwise hum could be created.
•Make sure you use DI boxes to balance unbalanced signals; All incoming signals should be clear.
•Make sure that the available voltage is not higher than stated on the rear panel.
CAUTION!
Keep this system away from rain and moisture!
CAUTION! Be careful with your operations.
With a dangerous voltage you can suffer
a dan
g
erous electric shock when touchin
g
the wires!

3
•Make sure that the power-cord is never crimped or damaged. Check the system and the power-cord
from time to time.
•Always operate the unit with the AC ground wire connected to the electrical system ground.
•Connecting amplifier outputs to oscilloscopes or other test equipment, while the amplifier is in
bridged mode, may damage both the amplifier and test equipment.
•Do not drive the inputs with a signal level bigger, than required to drive the equipment to full output.
•In system setup, the amplifier's output power must be 50%-100% more than the loaded
loudspeakers rated power.
•Please turn off the power switch, when changing the power cord or signal cable, or select the input
mode switch.
•In typical use, Please set the volume to 0dB position.
•Sometimes, when you want to send one signal to more than one amplifier, you should use a signal
distributor.
•Extreme frequency boosts in connection with a high input signal level may lead to overdriving your
equipment. Should this occur, it is necessary to reduce the input signal level by using the INPUT
control.
•To emphasize a frequency range, you don’t necessarily have to move its respective sliding control
upward; try lowering surrounding frequency ranges instead. This way, you avoid causing the next
piece of equipment in your sound path to overdrive. You also preserve valuable dynamic reserve
(“headroom”)
•For replacement use fuses of same type and rating only.
•Prevent distortion! Make sure that all components connected to the DSP-2448 MKII have sufficient
power ratings. Otherwise distortion will be generated because the components are operated at their
limits.
•Avoid ground loops! Always be sure to connect the power amps and the mixing console to the same
electrical circuit to ensure the same phase!
•If system is dropped or struck, disconnect mains power supply immediately. Have a qualified
engineer inspect for safety before operating.
•If the system has been exposed to drastic temperature fluctuation (e.g. after transportation), do not
switch it on immediately. The arising condensation water might damage your system. Leave the
system switched off until it has reached room temperature.
•Repairs, servicing and electric connection must be carried out by a qualified technician.
•WARRANTY: Till one year after date of purchase.
OPERATING DETERMINATIONS
If this system is operated in any other way, than the one described in this manual, the product may suffer
damages and the warranty becomes void.
Any other operation may lead to dangers like short-circuit, burns, electric shock, etc.
You endanger your own safety and the safety of others!
Improper installation can cause serious damage to people and property !

4
Description of the device
Features
The DSP-2448 MKII is a professional Digital Effect Processor:
• 48 pre-programmed (P1-P48) and 48 programmable effects (U1-U48).
• 768 effect settings
• 3-band parametric Equalizer
• 48 kHz Sampling rate
• 24-bit Sigma-Delta, 64/128 times oversampling
• Connection via balanced XLR-sockets or jacks
• Total real-time MIDI control
• 16 x 2 backlight LCD Display

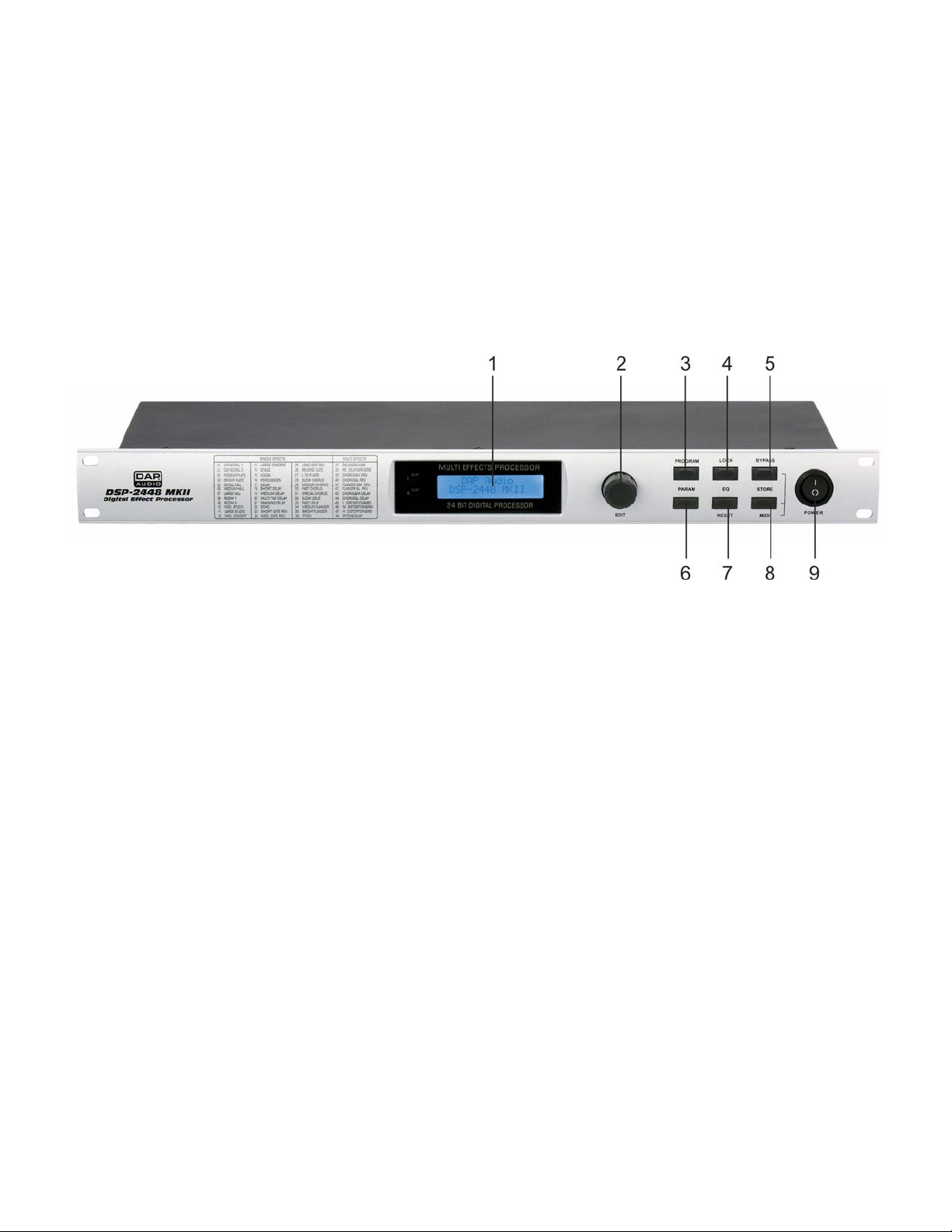

Overview
Fig. 1
1) LCD Display
2) Jog-wheel: For adjusting the parameters. Turning the jog-wheel to the right increases the parameter
value, turning to the left decreases the value.
3) Program-Button
4) Lock-Button
5) Bypass-Button
Bypass allows you to instantly compare the original sound.
6) Parameter-Button
7) EQ / Reset-Button
8) Store / MIDI-Button
9) Power Switch-Button

5
Fig. 2
DSP-2448 MKII DESCRIPTION REAR PANEL:
10) IEC Connector + Fuse
11) AC Voltage Selector 115V/230V
12) Midi Out
13) Midi Thru
14) Midi In
15) XLR Output 2
16) TRS Output 2
17) Input Level –20dB / + 4dB
18) TRS Input 2
19) XLR Input 2
20) TRS Output 1
21) XLR Output 1
22) Input Level –20dB / + 4dB
23) TRS Input 1
24) XLR Input 1
Fig. 3
25) Clip LED: for Left / Right Input / Output indication
26) Program: You can select between P1 – P48.
27) Parameters: Adjust each parameter

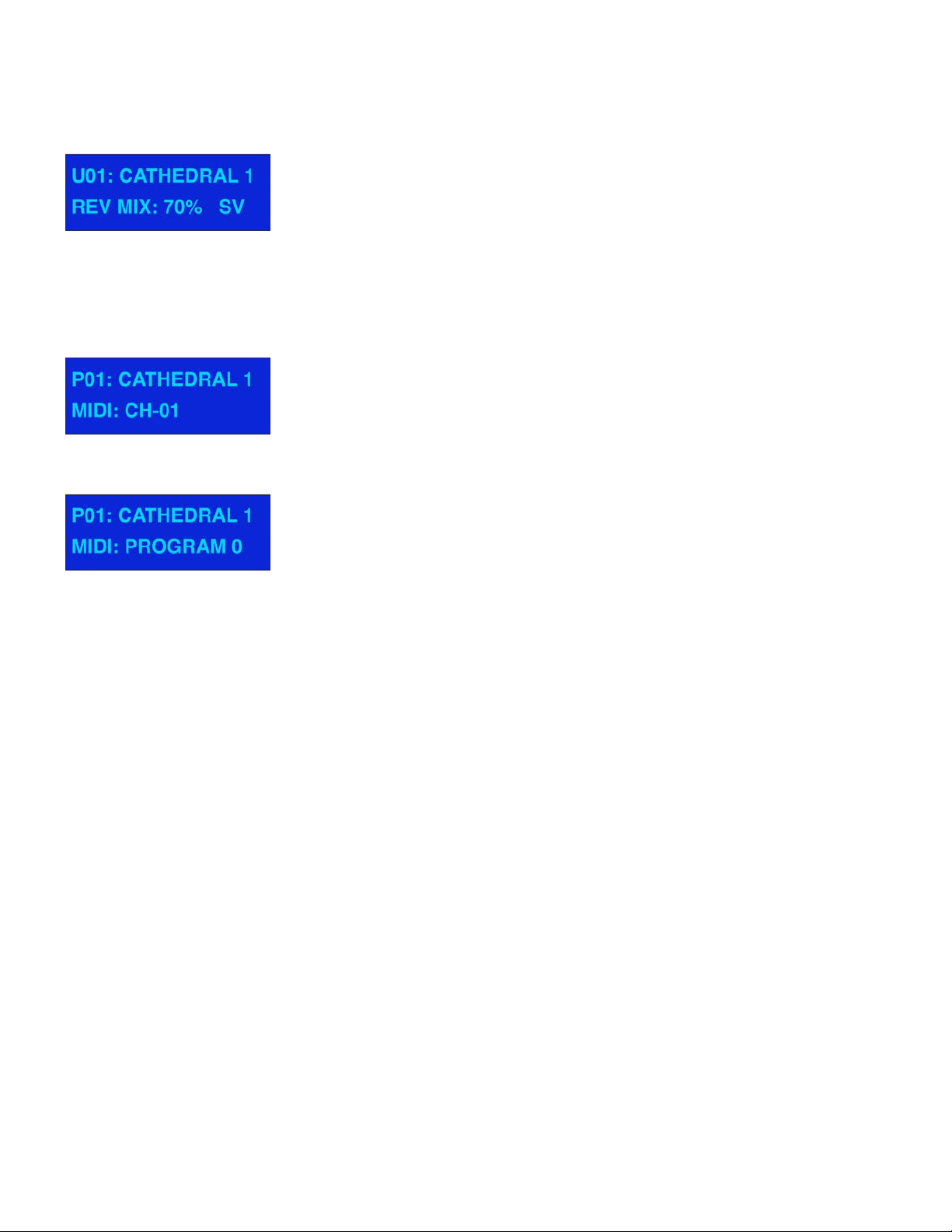

28) SV: This reminds the user that the editable parameters are ready to be saved and stored in the memory,
by blinking slowly every second. Press the STORE-button twice and the SV indication in the display will
disappear. The display will show:

6
Installation
Remove all packing materials from the DSP-2448 MKII. Check that all foam and plastic padding is removed.
Screw the equipment into a 19" rack. Connect all cables.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.
Set Up and Operation
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. Do not attempt to operate a 120V specification product on 240V power, or vice versa.
Install this device on a flat surface, not bending or curved.
Do not supply power before all components of the system are set up and connected properly.
Menu Functions
Press the PROG-Button (3) to select a program and the LCD screen will display the program effect.
In the display the “:” symbol is blinking, to indicate you can change the program from P1-P48.
Press the PROG-Button (3) again to select USER PROGRAM EFFECT.
You can now select any program memory from U1-U48 by turning the jog-wheel.
Parameters
Press the PARAM-Button (6) to edit the present parameter shown in the display. If the “:” symbol is blinking,
you can adjust a parameter by using the jog-wheel (2). When you keep pressing this button, you are able to
select different parameters. SV keeps blinking in the top right corner of the display, meaning the parameter
has been edited and reminding the user to save his changes or not. Press the STORE-Button (8) to save
the edited value.
Example: If you want to edit all the P02 parameter values.
Press the PARAM-Button (6) and the display shows REV MIX: 50%. In the display the “:” symbol
is blinking, to indicate you can use the jog-wheel to increase REV MIX: 50% to REV MIX: 70%.
Press the PARAM-Button (6) again, the display will show REV TIME: 7.0s. In the display the “:”
symbol is blinking, to indicate you can use the jog-wheel to decrease the value from 7.0s to 6.8s.
Press the PARAM-Button (6) again, the display will show REV H FREQ. In the display the “:”
symbol is blinking, to indicate you can use the jog-wheel to increase/decrease the parameter
values.
Press the PARAM-Button (6) again, the display will show REV L FREQ. In the display the “:”
symbol is blinking, to indicate you can use the jog-wheel to increase/decrease the parameter
values.
Press the PARAM-Button (6) again, the display will show REV DENS. In the display the “:”
symbol is blinking, to indicate you can use the jog-wheel to increase/decrease the parameter
values.
Press the PARAM-Button (6) again, the display will show RV LPF. In the display the “:”
symbol is blinking, to indicate you can use the jog-wheel to increase/decrease the parameter
values.

7
Lock
First hold the LOCK-button (4) for a few seconds, the display will show “ö”. The device is now in Lock-mode
and you cannot alter any values.
Press and hold the LOCK-button (4) again to disable the Lock function. The device returns to its original
function.
Equalizer
Press the EQ / RESET-button (7) to activate Parametric EQ octave, the display will also show the
Frequency & Gain.
If the “:” symbol is blinking, you can adjust the EQ.
You can select: LOW BAND EQ, MID BAND EQ or HIGH BAND EQ, using the jog-wheel.
Press the EQ / RESET-button (7) again. The “F” in the display will start blinking, meaning you are able to
adjust Frequencies between 250Hz-16KHz by using the jog-wheel.
Press the EQ / RESET-button (7) again. Now you are able to adjust the Gain between –12dB to +12dB. If
you press EQ / RESET-button (7) again, you return to the EQ adjustment. If you hold the button for more
than 3 seconds you will RESET the present program and it will be reset to the factory default settings.
Effect Off/ Bypass
Press the Bypass-button (5) to disable the sound effect. The display shows:
If you press this button again, the sound effect program is enabled. When the Bypass-button (5) is held
longer, the input signal will directly be sent to the output..
Hold this button again for a longer period to resume to program function.

8
Store
Press the STORE-button (8) to save the edited parameter values. You are able to STORE any user
program between U01-U48. If U01 blinks, SV blinks, indicating the user is able to select any user program
from U01-U48 with the jog-wheel (2).
Press the STORE-button (8) again and the program will be stored. The display will show STORE OK!
If you go back to the USER PROGRAM Mode you will see that the previous changes have been SAVED.
Bypass & Store
Press the BYPASS & STORE-buttons (5+8) together to enter the MIDI program function. The LCD display
will show:
In the MIDI channel mode you are able to select Channel 1-16 or OFF.
If you press the BYPASS-button (5) again, you are able to select four types of programs (P0, P1, P2, P3).
Press the PROGRAM-button (3) to enter MIDI communication. You may have MIDI control now. Press the
BYPASS-button (5) again to exit the MIDI program. The settings will not be stored.
Communication between 2 units or more
Set the first DSP-2448 MKII to MIDI: PROGRAM 3. Then press the PROGRAM-button (3). Now you are
able to control another DSP. Remember that the setting must be exactly the same and the MIDI IN & MIDI
OUT have to be connected. Turn the jog-wheel of the first DSP (connected from the MIDI OUT to the MIDI
IN of the second device) to control the programs from P1-P48 or U1-U48 of the other DSP-2448 MKII
connecting to MIDI IN.

9
MIDI Control
Press the BYPASS & STORE buttons (5+8) to enable MIDI control mode. All parameters can be edited with
the jog-wheel (2) & BYPASS-button (5).
MIDI control allows you to select: a MIDI channel
Configure the controller.
If you press the BYPASS-button (5) once, you can select the MIDI channel.
The display reads CH-XX. By turning the jog-wheel (2), you are able to select a channel from 1-16 or OFF.
To switch off the MIDI function, simply select OFF.
If you press the BYPASS-button (5) twice, you can configure the controller commands.
There are 4 controller modes:
Display Mode
Program 0 Program changes are not transmitted
Program 1 Program changes are received but not transmitted
Program 2 Program changes are transmitted but not received
Program 3 Program changes are transmitted and received
Using DSP-2448 MKII in the AUX Bus
By connecting the DSP 2448 MKII to an AUX bus of your mixing console, you can control the amount of
signal sent to the effect processor with the AUX control, independent of the channel fader.
Example, various drum sounds: while a lot of reverb is applied to the snare drum, the effect intensity could
be reduced in the channels assigned to the toms. To use the DSP in the AUX-bus, the unit must be wired as
followed:
Fig. 4

10
Using the DSP 2448 MKII in a MIDI system
With its built-in MIDI interface the DSP can be integrated into any MIDI system. It transmits and receives
both program changes via MIDI from a sequencer or any other MIDI device.
Fig. 5

11
Effect Lists
Effect Mode Name
01 Cathedral 1
02 Cathedral 2
03 Medium Plate
04 Bright Plate
05 Small Hall
06 Medium Hall
07 Large Hall
08 Room 1
09 Room 2
10 Medium Studio
11 Large Studio
12 Medium Concert
13 Large Concert
14 Stage
15 Vocal
16 Percussion
17 Delay
18 Short Delay
19 Medium Delay
20 Multi Tap Delay
21 Panning Delay
22 Echo
23 Short Gate Rev.
24 Medium Gate Rev.
25 Long Gate Rev.
26 Reverse Gate
27 L to R Gate
28 Slow Chorus
29 Medium Chorus
30 Fast Chorus
31 Special Chorus
32 Slow Leslie
33 Fast Leslie
34 Medium Flanger
35 Bright Flanger
36 Pitch
37 Delay & Reverb
38 Re. Delay & Reverb
39 Chorus & M. Rev.
40 Chorus & L. Rev.
41 Flanger & M. Rev.
42 Flanger & L. Rev.
43 Chorus & M. Delay
44 Chorus & L. Delay
45 L. Disortion & Rev.
46 M. Disortion & Rev.
47 H. Disortion & Rev.
48 Pitch & Delay

12
Preset Values
NAME MIX TIME (s) H
FREQ
L FREQ DENS LPF
01 Cathedral 1 33 7 91 0 37 91
02 Cathedral 2 33 7 73 0 37 91
03 Medium Plate 33 1.9 73 0 37 91
04 Bright Plate 33 2.6 73 0 37 91
05 Small Hall 33 2.4 91 0 37 91
06 Medium Hall 33 2.7 91 0 37 91
07 Large Hall 33 7.8 91 0 37 91
08 Room 1 37 2.7 91 0 37 91
09 Room 2 37 4.7 69 0 37 91
10 Medium Studio 20 2.4 75 0 100 91
11 Large Studio 20 4.6 75 0 100 91
12 Medium Concert 20 2.7 87 0 100 91
13 Large Concert 20 6.2 87 0 100 91
14 Stage 20 2.7 75 0 100 91
15 Vocal 20 2.6 87 0 100 91
16 Percussion 20 5.4 87 0 100 91
NAME MIX TIME (s) FB
17 Delay 45 560 26
18 Short Delay 45 70 0
19 Medium Delay 45 470 0
20 Multi Tap Delay 45 380 16
21 Panning Delay 45 1000 0
22 Echo 45 690 13
NAME MIX TIME (s) DENS LPF
23 Short Gate Rev. 37 130 24 85
24 Medium Gate Rev. 18 860 37 85
25 Long Gate Rev. 18 1000 37 85
26 Reverse Gate 18 460 37 85
27 L to R Gate 73 1000 37 85
NAME MIX Left
Coar
Right
Coar
L FUNE R FUNE DEL TIME
(ms)
DEL
FB)
36 Pitch 100 -12 +12 0 0 10 0
48 Pitch & Delay 100 -12 [phone]

13
NAME MIX DEL (ms) DEPTH FB NAME
28 Slow Chorus 61 16 29 14 12
29 Medium Chorus 61 16 45 8 0
30 Fast Chorus 61 8 16 26 0
31 Special Chorus 61 74 100 2 37
32 Slow Leslie 45 24 45 8 20
33 Fast Leslie 33 24 4 81 20
34 Medium Flanger 61 24 27 4 85
35 Bright Flanger 77 32 53 6 77
43 Chorus & M. Delay 61 74 69 6 29
44 Chorus & L. Delay 61 100 29 12 45
NAME REV
MIX
REV
TIME (S)
REV H
FREQ
REV
DENS
REV L
FREQ
REV
LPF
DEL
MIX
DEL
TIME
(ms)
DEL
FB
37 Delay & Reverb 45 1.1 91 0 37 0 45 1000 0
38 Re. Delay & Reverb 0 4.6 10 91 0 0 9 460 100
NAME REV
MIX
REV
TIME
(S)
REV H
FREQ
REV L
FREQ
REV
DENS
REV
LPF
CHO
MIX
CHO
DEL
CHO
DEPTH
CHO
RATE
CHO
FB
39 Chorus &
M. Rev.
8 2.1 24 24 75 0 12 18 61 16 69
40 Chorus &
L. Rev.
20 .1 24 33 75 0 12 18 61 20 16
NAME REV
MIX
REV
TIME
(S)
REV H
FREQ
REV L
FREQ
REV
DENS
REV
LPF
FLG
MIX
FLG
DEL
FLG
DEPTH
FLG
RATE
FLG
FB
41 Flanger &
M. Rev.
45 2.5 75 0 0 91 61 24 24 8 24
42 Flanger &
L. Rev.
45 3.4 75 0 0 91 77 32 53 6 37
NAME REV
MIX
REV
TIME
(S)
REV H
FREQ
REV L
FREQ
REV
DENS
REV
LPF
DIST
DEPTH
DIST
LPF
45 L. Disortion
& Rev.
20 2.1 37 6 24 69 10 45
46 M. Disortion
& Rev.
20 2.1 37 6 24 69 37 45
46 H. Disortion
& Rev.
20 3.4 87 6 24 69 100 37

14
1. Reverb parameter
MIX: Reverb effecting-mixing level
TIME: Reverberation time
H FREQ REV: High Frequency Reverberation ratio
L FREQ REV: Low Frequency Reverberation ratio
DENS: Reverb Density
PFL: Pre Low-pass filter
2. Delay Group parameter
MIX: Delay mixing level
TIME: Delay Time
FB: Feedback
3. Chorus / Flanger parameters
MIX: Chorus / Flanger mixing level
DEL: Chorus / Flanger Delay Time
DEPTH: Chorus / Flanger Depth
RATE: Chorus / Flanger Rate
FB: Chorus / Flanger Feedback
4. Noise / Gate parameters
GATE MIX: Noise / Gate mixing level
GATE TIME: Noise / Gate Time
GATE DENS: Noise / Gate Density
GATE LPF: Noise / Gate Pre Low-pass filter
5. Pitch parameters
PITCH MIX: Pitch mixing level
L COARSE: Left channel detune
R COARSE: Right channel detune
L FINE TN: Left channel fine tuning
R FINE TN: Right channel fine tuning
DEL TIME: Delay Time
DEL FB: Delay Feedback
6. Distortion parameters
DISTORTION ON: On / Off Distortion select
DIST DEPTH: Distortion Depth
DIST LPF: Distortion Low-pass filter
7. Delay + Reverb
8.Chorus + Reverb
9. Flanger + Reverb
10. Chorus + Delay
11. Distortion + Reverb
12. Pitch + Delay etc combine effect parameters

15
MIDI Implementation Chart
MIDI IMPLEMENTATION CHART DSP-2448
Function Transmitted Recognized Remarks
Basic channel Default OFF OFF
Changed 1-16 1-16
Mode Default
Messages X X
Altered
Note number XX
True voice X X
Velocity Note ON X X
Note OFF X X
After touch Key's X X
Channel O
0-47
O
0-47 Selects U01-U48
Pitch bend XX
Control change XX
Prog Change OO
0-47 0-47 Selects P01-P48
SysEx XX
Common Song pos X X
Song Sel X X
Tune X X
System real time Clock X X
Commands X X
Aux Messages Local ON/OFF X X
All Notes OFF X X
Active Sense X X
Reset X X
O:YES Mode 1: OMNI ON, POLY Mode 2: OMNI ON, MONO
X:NO Mode 3: OMNI OFF, POLY Mode 4: OMNI OFF, MONO

16
Connection Cables
Take care of the connector cables, always holding them by the connectors and avoiding knots and twists
when coiling them: This gives the advantage of increasing their life and reliability, which is always to your
advantage.
Periodically check that your cables are in good condition, that they are correctly wired and that all their
contacts are perfectly efficient: a great number of problems (faulty contacts, ground hum, discharges, etc.)
are caused entirely by using unsuitable or faulty cables.
Headphones Unbalanced mono 1/4” jack plug Balanced mono 1/4” jack plug
Compensation of interference with balanced connections

17
Maintenance
The DSP-2448 MKII equalizer requires almost no maintenance. However, you should keep the unit clean.
Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid.
Keep connections clean. Disconnect electric power, and then wipe the audio connections with a damp cloth.
Make sure connections are thoroughly dry before linking equipment or supplying electric power.
Replacing a Fuse
Power surges, short-circuit or inappropriate electrical power supply may cause a fuse to burn out. If the fuse
burns out, the product will not function whatsoever. If this happens, follow the directions below to do so.
1. Unplug the unit from electric power source.
2. Insert a flat-head screwdriver into a slot in the fuse cover. Gently pry up the fuse cover.
3. Remove the used fuse. If brown or unclear, it is burned out.
4. Insert the replacement fuse into the holder where the old fuse was. Reinsert the fuse cover. Be sure to
use a fuse of the same type and specification. See the product specification label for details.
Troubleshooting
Dap Audio DSP-2448 MKII
This troubleshooting guide is meant to help solve simple problems.
If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit operates
properly, do not carry out following steps.
1. If the device does not operate properly, unplug the device.
2. Check the power from the wall, all cables etc.
3. If all of the above appears to be O.K., plug the unit in again.
4. If you are unable to determine the cause of the problem, do not open the equalizer, as this may damage
the unit and the warranty will become void.
5. Return the equalizer to your Dap Audio dealer.

18
Product Specifications
Model: DAP Audio DSP-2448 MKII
Power supply: 230 VAC, 50 Hz
Power consumption: 10 W
Analog Inputs
Connectors: XLR or balanced 1/4" jack
Type: RF filtered, servo balanced, 20 KOhm unbalanced
Input Impedance: 40 KOhm balanced, 20 KOhm unbalanced
Nominal Operating Level: -20 dB to +4 dB
Max. Input level: +16 dB at +4 dB nominal level, +2 dB at -20 dB nominal level
Analog Outputs
Connectors: XLR or balanced 1/4" jack
Type: Electronically servo-balanced output stage
Output impedance: 66balanced, 33unbalanced
Max. Output level: +16 dB at +4 dB nominal level, +2 dB at -20 dB nominal level
System Specifications
Frequency Response: 20Hz to 20KHz, ±1dB
Crosstalk: -95 dB, 20 Hz to 20 KHz
S/N: 98 dB, A weighted, 20 Hz to 20 KHz
THD: <0.065%, @1KHz, 0dB
MIDI Interface
Type: 5-Pin-DIN-Socket IN / OUT / THRU
Digital Processing
Converters: 24-bit Sigma-Delta, 64/128-times over-sampling
Sampling Rate: 48KHz
Display: 2x16LCD Display
Dimensions: 482 x 152 x 45 mm (LxWxH)
Weight: 3 kg
Design and product specifications are subject to change without prior notice.
