DAPAudio EB-16 User manual

EB-16 Wireless PLL 614-638 MHz / 740-764MHz / 822-846 V3
Highlite International B.V. –Vestastraat 2 –6468 EX –Kerkrade –the Netherlands
Ordercode: D143261 / D143273 / D143282
MANUAL
ENGLISH

1
Ordercode: D143261
EB-16 Wireless PLL
Table of contents
Warning ...............................................................................................................................................................................2
Unpacking Instructions.................................................................................................................................................2
Safety Instructions .........................................................................................................................................................2
Operating Determinations ..........................................................................................................................................3
Return Procedure..........................................................................................................................................................4
Claims..............................................................................................................................................................................4
Description of the device.................................................................................................................................................5
Features ..........................................................................................................................................................................5
Overview ........................................................................................................................................................................5
Installation...........................................................................................................................................................................5
Set Up and Operation .......................................................................................................................................................6
Names and Functions ..................................................................................................................................................6
Altering the settings ......................................................................................................................................................6
Tips for achieving maximum performance..............................................................................................................7
Approval .............................................................................................................................................................................7
Exclusion of liability .......................................................................................................................................................7
CE Certificate .....................................................................................................................................................................8
Maintenance....................................................................................................................................................................11
Troubleshooting ...............................................................................................................................................................11
Product Specifications....................................................................................................................................................12
Dimensions........................................................................................................................................................................13

2
Ordercode: D143261
EB-16 Wireless PLL
Warning
Unpacking Instructions
Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure
that all parts are present, and have been received in good condition. Notify the dealer immediately and
retain packing material for inspection if any parts appear damaged from shipping or the carton itself
shows signs of mishandling. Save the carton and all packing materials. In the event that a device must be
returned to the factory, it is important that the device is returned in the original factory box and packing.
Your shipment includes:
•DAP EB-16 Wireless PLL
•Pouch
•Screwdriver
•User manual
Safety Instructions
Every person involved with the installation, operation and maintenance of this system has to:
•be qualified
•follow the instructions of this manual
Before the initial start-up, please make sure that there is no damage caused by transportation.
Should there be any, consult your dealer and do not use the system.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to
follow the safety instructions and warning notes written in this manual.
Please consider that damages caused by manual modifications to the system are not subject to
warranty.
This system contains no user-serviceable parts. Refer servicing to qualified technicians only.

3
Ordercode: D143261
EB-16 Wireless PLL
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual or any unauthorized modification to the system.
Never remove warning or informative labels from the unit.
Never leave any cables lying around.
Do not switch the system on and off in short intervals, as this would reduce the system’s life.
Do not open the device and do not modify the device.
Do not drive the inputs with a signal level bigger, than required to drive the equipment to full output.
Only use system indoors, avoid contact with water or other liquids.
Avoid flames and do not put close to flammable liquids or gases.
Make sure you do not use the wrong kind of cables or defective cables.
Make sure that the signals into the mixer are balanced, otherwise hum could be created.
Make sure you use DI boxes to balance unbalanced signals; All incoming signals should be clear.
Please turn off the power switch, when changing the microphone or select another channel.
If the system has been exposed to drastic temperature fluctuation (e.g. after transportation), do not
switch it on immediately. The arising condensation water might damage your system. Leave the
system switched off until it has reached room temperature.
If your Dap Audio device fails to work properly, discontinue use immediately. Pack the unit securely
(preferably in the original packing material), and return it to your Dap Audio dealer for service.
Repairs, servicing and electric connection must be carried out by a qualified technician.
For replacement use fuses of same type and rating only.
WARRANTY: Till one year after date of purchase.
Operating Determinations
●This device is not designed for permanent operation. Consistent operation breaks will ensure that the
device will serve you for a long time without defects.
●The relative humidity must not exceed 50 % with an ambient temperature of 40° C.
●If this device is operated in any other way, than the one described in this manual, the product may
suffer damages and the warranty becomes void.
●Any other operation may lead to dangers like short-circuit, burns, electric shock, crash etc.
You endanger your own safety and the safety of others!

4
Ordercode: D143261
EB-16 Wireless PLL
Return Procedure
Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.
Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned
without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.
Call Highlite 0031-455667723 or mail [e-mail] and request an RMA prior to shipping the fixture.
Be prepared to provide the model number, serial number and a brief description of the cause for the
return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the
customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace
product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.
Note: If you are given an RMA number, please include the following information on a piece of paper
inside the box:
01) Your name
02) Your address
03) Your phone number
04) A brief description of the symptoms
Claims
The client has the obligation to check the delivered goods immediately upon delivery for any short-
comings and/or visible defects, or perform this check after our announcement that the goods are at their
disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be
reported to the carrier upon receipt of merchandise.
It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is
damaged due to shipping. Transportation damage has to be reported to us within one day after receipt
of the delivery.
Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with
a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless
otherwise agreed in writing.
Complaints against us must be made known in writing or by fax within 10 working days after receipt of the
invoice. After this period complaints will not be handled anymore.
Complaints will only then be considered if the client has so far complied with all parts of the agreement,
regardless of the agreement of which the obligation is resulting.

5
Ordercode: D143261
EB-16 Wireless PLL
Description of the device
The EB-16 is a wireless PLL beltpack-transmitter with 16 fixed frequencies. There are two types ranges
available:
D143261, frequency range 614 –638MHz
D143273, frequency range 740 –764MHz
D143182, frequency range 822 –846MHz
Features
●16 switchable frequencies
●Compatible with lavalier and headset microphones
●Powered by AA batteries
●Equipped with 4P mini XLR connector
●Pouch included
Overview
Fig. 01
Installation
Remove all packing materials from the EB-16. Check that all foam and plastic padding is removed.
Damages caused by non-observance are not subject to warranty.

6
Ordercode: D143261
EB-16 Wireless PLL
Set Up and Operation
Before turning the EB-16 on, always make sure that the frequency range is allowed in your country.
Names and Functions
01
02
03
01) Open the battery compartment.
02) Put 2 batteries (2x Battery UM3, AA1.5V) in the holder. Pay attention to the polarity of the batteries
and put the batteries correctly in the battery compartment. Close the battery compartment again.
03) Set the switch on top in the ON position. The LED will light green if the unit is working correctly. If the
LED lights up red, you need to change the batteries.
Altering the settings
01) To alter the channel setting, please rotate the channel switch, using the supplied screwdriver.
02) To alter the Gain adjustment, please turn the trimmer using the supplied screwdriver.

7
Ordercode: D143261
EB-16 Wireless PLL
Tips for achieving maximum performance.
Make sure you can always see a receiver antenna from the transmitter position.
Keep the distance from transmitter to receiver antenna as short as possible.
Point the receiver antennas away from each other at 45 degrees angle from vertical position.
Avoid placing the receiver antennas near metal surfaces and obstructions.
Replace battery as soon as low battery LED lights.
If stacking or rack mounting receivers in a multiple system setup. Do not allow antennas to cross.
Perform a walk-through before performance or presentation. If dead spots are found, adjust the
location of the receiver. If dead spots remain, mark the dead spots and avoid them.
Approval
The DAP D143261, D143273 and the D143282 are Class II wireless devices.
D143261: 614-638MHz for use in: Austria, Belgium, Denmark, France, Germany, Italy, Luxemburg,
Netherlands, Poland, Sweden, Switzerland, Turkey.
D143273: 740-764MHz for use in: Austria, Belgium, Denmark, France, Luxemburg, Netherlands,
Poland, Sweden, Switzerland, Turkey.
D143282: 822–846 MHz for use in: France, Luxemburg, Poland, Turkey.
Exclusion of liability
The frequency tables in this publication are made according to national laws and regulations. The
frequencies are checked on a regular basis. We don’t take any responsibility for eventual discrepancies
between our listed frequencies and the frequencies actually approved in a given country. We strongly
suggest you to inform in your own country or region for any changes or adaptions regarding the allowed
frequencies.
Be aware that in some countries, you are only allowed to partly use the frequency range of the device or
use the frequency range of the device as a secondary user. If your country is not listed above it is still
possible that there are exceptions. Therefore, we strongly advise you to consult your local authority as
listed below:
Telecoms & Postal Regulatory Authorities in Europe
Austria: Rundfunk und Telekom Regulierungs-GmbH www.rtr.at
Belgium: Belgian Institute of postal services and telecommunications (BIPT) www.bipt.be
Czech Republic: Czech Telecommunication Office www.ctu.cz
Denmark: National Telecom Agency www.tst.dk
Finland: Finnish Communications Regulatory Authority (FICORA) www.ficora.fi
France: Autorité de Régulation des Télécommunications (ART) www.art-telecom.fr
Germany: Die Bundesnetzagenturie www.bundesnetzagentur.de
Greece: National Telecommunications Commission (EET) www.eett.gr
Hungary: Communication Authority (HIF) www.hif.hu
Iceland: Post and Telecom Administration (PTA) www.pta.is
Ireland: Commission for Communications Regulation (ComReg) www.comreg.ie
Italy: Italian Communications Authority (AGC) www.agcom.it
Latvia: Telecommunication State Inspection www.vei.lv
Liechtenstein: Office for Communications (AK) www.ak.li
Lithuania: Radio Administration www.rrt.lt
Luxembourg: Institut Luxembourgeois des Télécommunications (ILT) www.etat.lu/ILT
The Netherlands: Onafhankelijke Post en Telecommunicatie Autoriteit (OPTA) www.opta.nl
Agentschap Telecom www.agentschap-telecom.nl
Ministry of Economic Affairs www.ez.nl
Norway: Norwegian Post and Telecommunications Authority (NPT) www.npt.no
Poland: Urzad Regulacji Telekomunikacji (URT) www.urt.gov.pl
Portugal: Autoridad Nacional De Comunicaçòes (ICP-Anacom) www.anacom.pt
Slovenia: Agencija za telekomunikacije, radiodifuzijo in pošto www.atrp.si

H. De la Haye / Director
Name
Address
Signature of representative
Name Issued Date
Product Name
Ordercode
Trade Name
Supplier Details
R&TTE Directive : 1999/5/EC
Radio Spectrum Matter: EN 300 422-2 V1.2.2 (2008-03)
Emmission/Immunity: EN 301 489-1 V1.8.1 (2008-04)
EN 301 489-9 V1.4.1 (2007-11)
Product Details
Applicable Standards Details
Declaration
Highlite International BV.
Vestastraat 2, 6468 EX Kerkrade,
The Netherlands
Oct. 13, 2010
Supplementary Information
Low voltage Directive : 2006/95/EC
EN 60065:2002+A1:2006+A11: 2008
I hereby declare under our sole responsibility that the
product forementioned, to which this declaration relates,
complies with the above mentioned Standards and
Directives.
The conformity to above standards is verified by TÜV Rheinland EPS B.V.
DAP AUDIO
D143261B
EB-16B Wireless PLL 614-638MHz
Vestastraat 2
6468EX Kerkrade
The Netherlands
Highlite International BV

H. De la Haye / Director
Name
Address
Signature of representative
Name Issued Date
Product Name
Order code
Trade Name
Supplier Details
R&TTE Directive : 1999/5/EC
Radio Spectrum Matter: EN 300 422-2 V1.2.2 (2008-03)
Emmission/Immunity: EN 301 489-1 V1.8.1 (2008-04)
EN 301 489-9 V1.4.1 (2007-11)
Product Details
Applicable Standards Details
Declaration
Highlite International BV.
Vestastraat 2, 6468 EX Kerkrade,
The Netherlands
Oct. 13, 2010
Supplementary Information
Low voltage Directive : 2006/95/EC
EN 60065:2002+A1:2006+A11: 2008
Highlite International BV
Vestastraat 2
6468EX Kerkrade
The Netherlands
EB-16 Wireless PLL 740-764MHz
D143273
DAP AUDIO
The conformity to above standards is verified by TÜV Rheinland EPS B.V.
I hereby declare under our sole responsibility that the
product forementioned, to which this declaration relates,
complies with the above mentioned Standards and
Directives.

H. De la Haye / Director
Name
Address
Signature of representative
Name Issued Date
Product Name
Ordercode
Trade Name
Supplier Details
R&TTE Directive : 1999/5/EC
Radio Spectrum Matter: EN 300 422-2 V1.2.2 (2008-03)
Emmission/Immunity: EN 301 489-1 V1.8.1 (2008-04)
EN 301 489-9 V1.4.1 (2007-11)
Product Details
Applicable Standards Details
Declaration
Highlite International BV.
Vestastraat 2, 6468 EX Kerkrade,
The Netherlands
Oct. 13, 2010
Supplementary Information
Low voltage Directive : 2006/95/EC
EN 60065:2002+A1:2006+A11: 2008
I hereby declare under our sole responsibility that the
product forementioned, to which this declaration relates,
complies with the above mentioned Standards and
Directives.
The conformity to above standards is verified by TÜV Rheinland EPS B.V.
DAP AUDIO
D143282
EB-16 Wireless PLL 822-846
Vestastraat 2
6468EX Kerkrade
The Netherlands
Highlite International BV

11
Ordercode: D143261
EB-16 Wireless PLL
Maintenance
The DAP Audio EB-16 requires almost no maintenance. However, you should keep the unit clean.
Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in
liquid. Do not use alcohol or solvents.
Keep connections clean. Disconnect electric power, and then wipe the audio connections with a damp
cloth. Make sure connections are thoroughly dry before linking equipment or supplying electric power.
Troubleshooting
DAP Audio EB-16
This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps
below in sequence until a solution is found. Once the unit operates properly, do not carry out following
steps.
01) If the device does not operate properly, unplug the device.
02) Check power from the wall, all cables, connections, etc.
03) If all of the above appears to be O.K., plug the unit in again.
04) If nothing happens after 30 seconds, unplug the device.
05) Return the device to your DAP Audio dealer.

12
Ordercode: D143261
EB-16 Wireless PLL
Product Specifications
Model
DAP Audio EB-16
Frequency Preparation
Crystal
Carrier Frequency Range
502-960 MHz
RF Output
10 mW
Stability
±0.005%
Frequency Deviation
±48 kHz
Controls
Power On/Off, AF gain
Spurious Rejection
< -60 dBC
Audio Freq. Response
50Hz –16kHz
Phantom Power
5Vdc (pin 2)
16 switchable frequencies
Compatible with lavalier and headset microphones
Equipped with 4P mini XLR connector
Pouch included
Battery
2x UM3, AA 1.5V
Dimensions
114 x 68 x 25 mm (LxWxH)
Weight
1,08 Kg
Design and product specifications are subject to change without prior notice.
Website: www.Dap-audio.info
Email: [e-mail]

13
Ordercode: D143261
EB-16 Wireless PLL

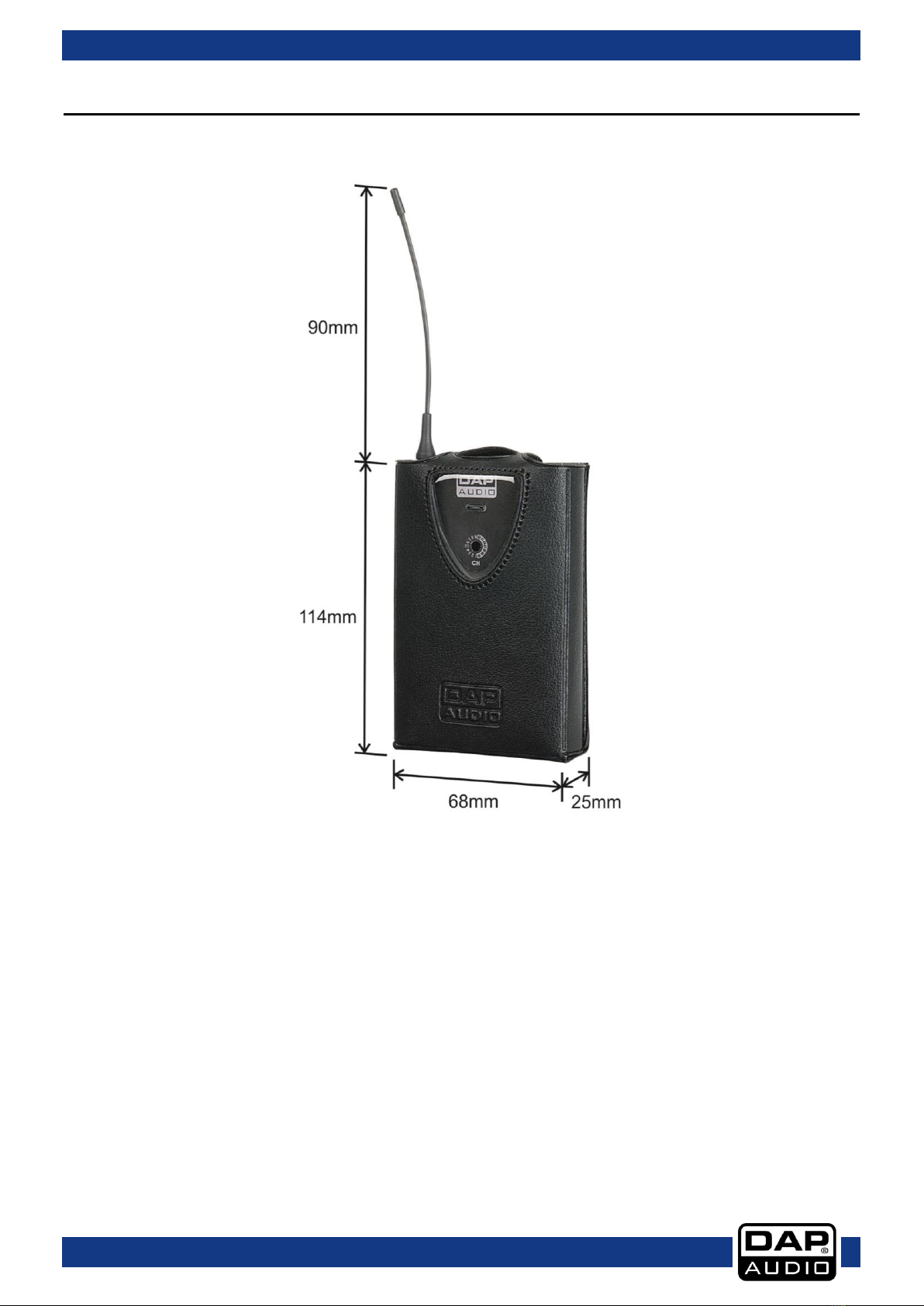

Dimensions

14
Ordercode: D143261
EB-16 Wireless PLL

©2015 DAP Audio
