DARCHE ECLIPSE 270 Installation guide

ECLIPSE 270° AWNING
SET-UP & CARE INSTRUCTIONS
CAREFULLY READ INSTRUCTIONS PRIOR
TO FIRST USE OF THE ECLIPSE 270°
AWNING IF YOU REQUIRE ADDITIONAL
ASSISTANCE, CONTACT YOUR DARCHE
RETAILER, OR CALL DARCHE ON
1300 367 695

GET TO KNOW YOUR AWNING
We recommend you check all parts are included prior to first use.
ECLIPSE 270° CONTENTS
1Eclipse 270° Awning
3Mounting brackets
6‘U’ Bolts with nuts and washers
625mm M8 mounting bolts and nuts
6Twist-lock leg poles
(3 in a canvas bag)
2Tension straps
13 Pegs
13 Guy ropes
ECLIPSE 270° AWNING
SET-UP & CARE INSTRUCTIONS
ATTACHING BRACKET TO ROOF-RACK
ATTACH AWNING TO BRACKET
1
Darche recommend using an experienced after-market
4x4 Accessories fitter to mount the Eclipse Awning to
your vehicle. Fasteners and fixing connections should
be checked regularly on both the awning and roof rack
to ensure the awning is always mounted securely to your
vehicle roof rack.
PROLONGED TRAVELING ON UNEVEN ROUGH
OR CORRUGATED TERRAIN WILL REQUIRE MORE
FREQUENT INSPECTIONS.
NOTE: Darche takes no responsibility for the fitment of
the Eclipse Awning to any vehicle or roof rack.
Darche’s Eclipse Awning brackets have been designed
to fit most common roof rack configurations. However,
with the ever increasing number of roof rack designs
available it is difficult to supply a mounting bracket to
accommodate all. Below are examples of how to mount
the Eclipse Awning brackets to Flat style and Basket style
roof racks. The bracket can also be mounted on roof
bars, however, additional specific attachments may need
to be sourced from your roof rack supplier.
If in doubt, please visit your roof rack specialist for
specific roof rack mounting options and advice on load
capacities.
1 2 3 4
ROOF BAR
SPECIFIC
BRACKET. NOT
SUPPLIED.
2
Insert supplied 25mm M8 bolts into grooves in aluminium backing plate.

SET-UP

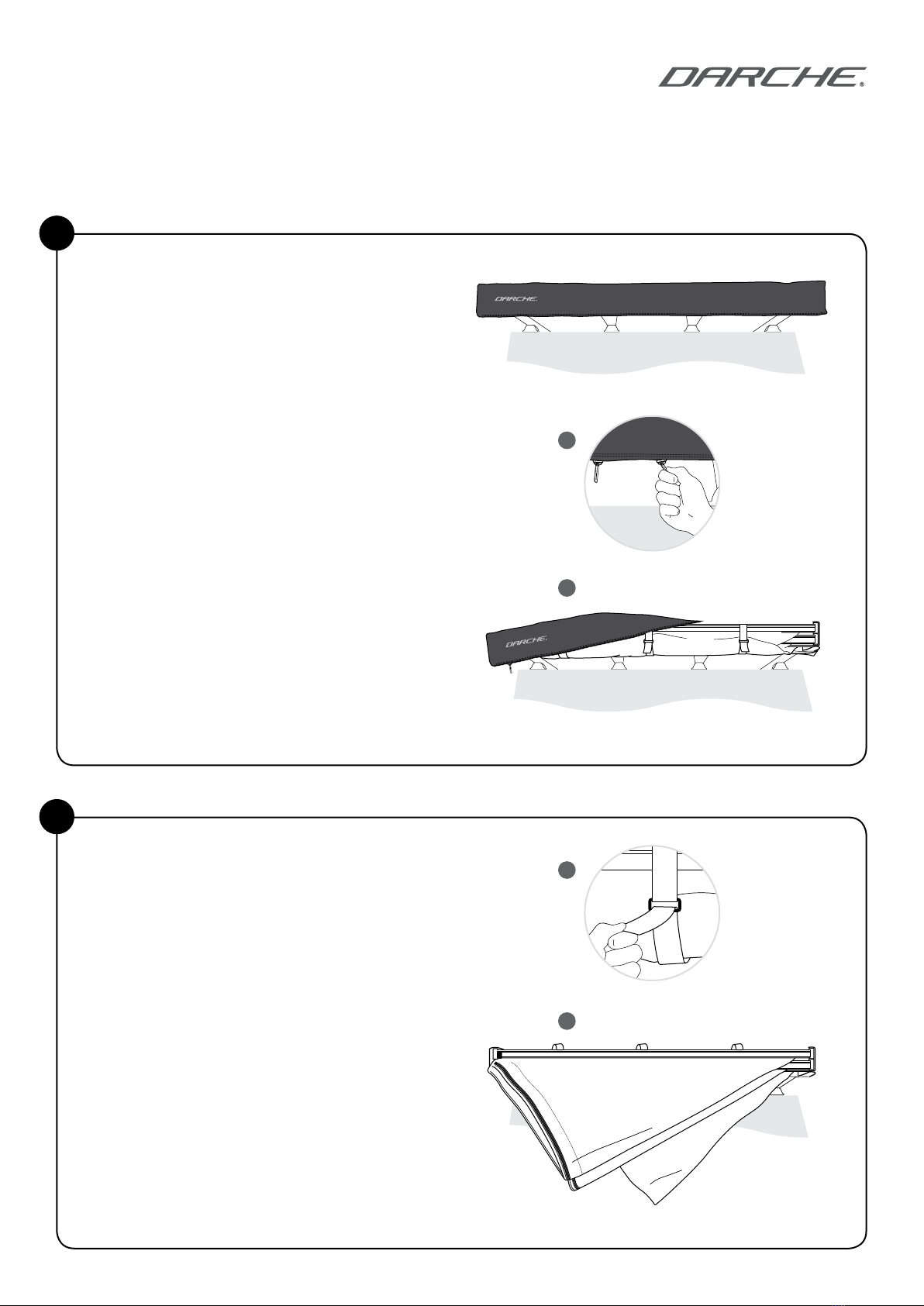

REMOVE COVER
Unzip cover and fold it over the
awning body.
RELEASE AWNING
Release the three Velcro straps and
allow canvas to drape.
3
4
ECLIPSE 270° AWNING
SET-UP & CARE INSTRUCTIONS
1
1
2
2
ECLIPSE
E C L I P S E

SET-UP
OPENING
To begin setting up the awning
follow steps to
AWNING WILL SELF-
SUPPORT DURING
SET UP ONLY
5
ECLIPSE 270° AWNING
SET-UP & CARE INSTRUCTIONS
SWING OUT
RIGHT ARM TO 90°
SWING OUT
LEFT ARM FULLY
SWING OUT LEFT ARM
FULLY AND ATTACH
TO ROOF RACK USING
SUPPLIED TENSION
STRAP
1
2
SWING OUT RIGHT
ARM FULLY TOWARD
REAR OF VEHICLE
AND ATTACH TO ROOF
RACK USING SUPPLIED
TENSION STRAP
4
3
STRAP ARMS TO
ROOF RACK
41
TIP

SET-UP
POLE SET-UP
•Undo the Velcro straps securing
each support leg. Leg will pivot
down to a vertical position. Adjust
to desired height by unlocking
and locking the internal twist
locking mechanism.
•Attach individual support legs to
the remaining rafters by inserting
into holes at the end of each
rafter.
•Secure the end of each rafter by
anchoring and tensioning guy
ropes.
ENSURE ALL GUY ROPES
ARE SECURED.
IF ATTACHING OPTIONAL
WALLS, EACH RAFTER
MUST MUST BE
SUPPORTED BY A LEG
POLE.
6
ECLIPSE 270° AWNING
SET-UP & CARE INSTRUCTIONS
1
4
2
IN CASE OF RAIN,
LOWER THE SUPPORT
LEGS TO ALLOW
DOWNWARD SLOPE
AND GUY OFF BETWEEN
RAFTERS TO FORM
VALLEYS FOR WATER
RUN-OFF.
TIP

E C L I P S E
PACK-DOWN
7
ECLIPSE 270° AWNING
SET-UP & CARE INSTRUCTIONS
PACK-DOWN
•Undo all pegs / guy ropes.
•Fold away legs and stow away
using attached velcro straps.
•Stow 3 x additional legs in canvas
carry bag.
•Release front and rear
tension straps.
•Fold the RHS of awning back 90°
from the awning body ensuring
the top rafters sit directly on top
of the bottom rafters.
•Fold the LHS of awning back 90°
from the awning body ensuring
the top rafters sit directly on top
of the bottom rafters.
•At this point fold the LHS of the
awning toward the awning body
followed by the RHS. Canvas
should drape down in a triangular
shape.
•Roll canvas and secure using
Velcro straps.
•Position PVC bag over awning and
zip up to complete pack down.
DO NOT STOW THE CANVAS

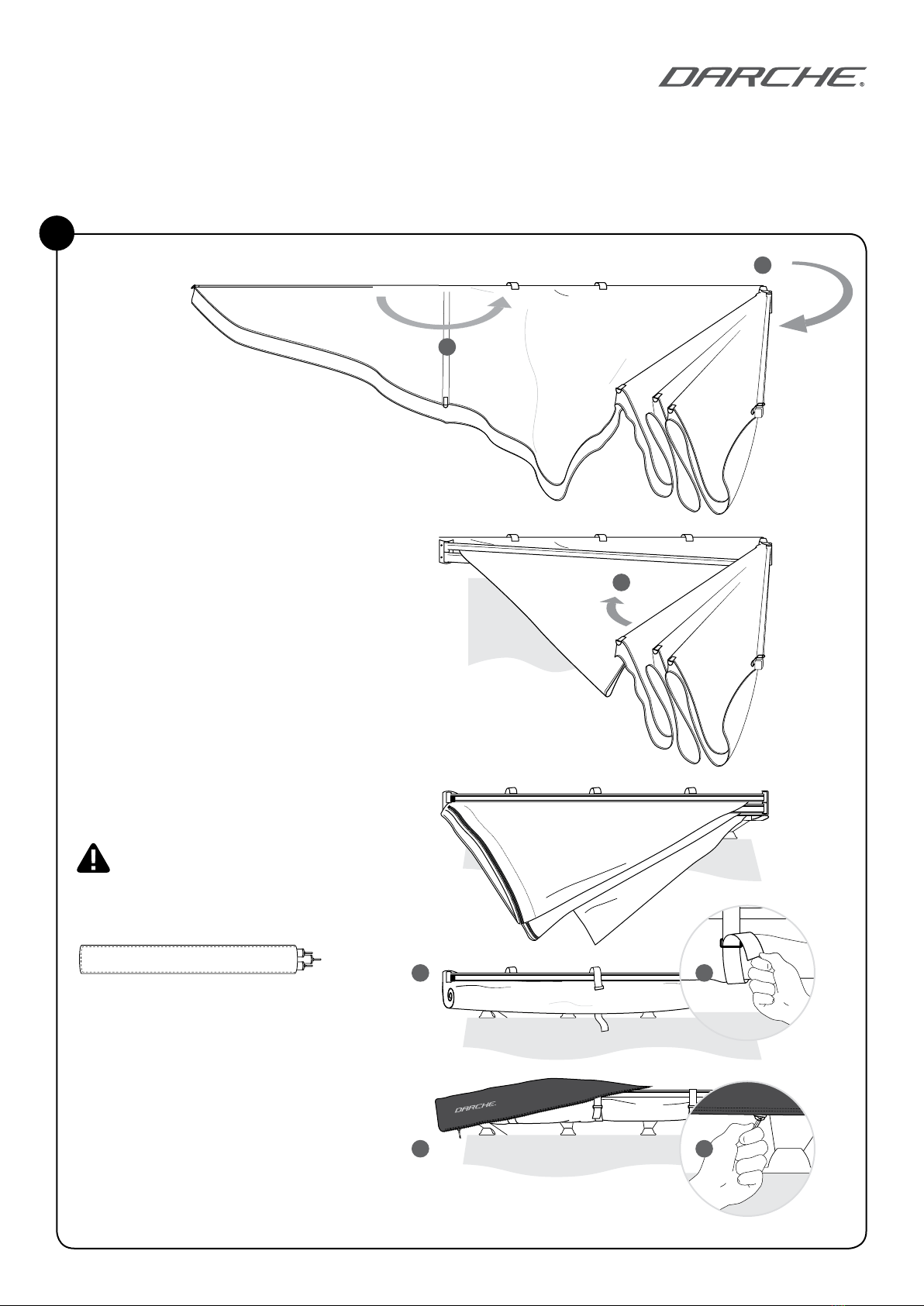

CARRY BAG CONTAINING
THE ADDITIONAL LEGS
INSIDE THE AWNING’S
TRANSIT COVER.
1
2
3
4
6
5
7

CLEANING
Clean with cold water and a soft bristle brush. Do not use
soaps and detergents. Do not expose to petrol, diesel, oils or
chemicals of any nature.
STORING
Correct storage is vital for the longevity of your Eclipse
Awning. If on occasion the awning is required to be stowed
wet, it is essential it is unpacked and dried as soon as
possible. Rot, mildew damage and incorrect storage is not
covered under warranty.
STRUCTURAL INTEGRITY
The Darche Eclipse Awning has been designed for general
camping use under normal conditions. Always ensure all
guy ropes are anchored correctly. It may be necessary
to re-adjust guy ropes and pegs at times to maintain the
structural integrity of the awning.
To avoid chances of personal injury and or
property damage, Darche highly recommends
the Eclipse Awning should NOT be erected
during windy conditions.
Damaged caused by wind and or adverse weather
will not be covered under warranty.
VEHICLE FITTING
Darche recommends using an experienced aftermarket
4x4 accessories fitter to mount the Eclipse Awning to
your vehicle. Fasteners and fixing connections should
be checked regularly on both the awning and roof rack
to ensure the awning is always mounted securely to your
vehicle roof rack.
Prolonged travelling on uneven rough or corrugated terrain
will require more frequent inspections.
Darche takes no responsibility for the fitment of the
Eclipse Awning to any vehicle or roof rack.
Darche’s Eclipse Awning brackets have been designed to fit
most common roof rack configurations. However, with the
ever increasing number of roof rack designs now available it
is difficult to supply a mounting bracket to accommodate all.
If in doubt please visit your roof rack specialist for specific
roof rack mounting options and advice on load capacities.
WATERPROOFNESS
Darche has taken great care in its refined raw material
selection, design and development of their tents and
awnings in regards to waterproofness. With the use of
water repellent coatings and High Frequency seam sealing,
Darche have strived to eliminate water ingress as best as
possible on its recreational tents, shelters and awnings.
Unfortunately with the addition of zips and multiple layer
seams, wind driven rain may cause water to ingress at
times. To minimise this, ensure all rain flaps are adequately
covering the zips.
Seams connecting multiple layers of fabric could leak at
times depending on weather conditions and location. A
quick and easy solution is to rub a softened wax stick over
the affected area.
USING THE OPTIONAL WALLS
The zip on awning walls will provide a sheltered / protected
area around the awning. When attached to the awning, they
are designed to create a shaded area and help reduce dust.
IN WINDY CONDITIONS IT IS HIGHLY RECOMMENDED
NOT TO ERECT THE AWNING AND WALLS AS PERSONAL
INJURY AND OR PROPERTY DAMAGE MAY OCCUR.
SAFETY WARNINGS
KEEP ALL FLAME AND HEAT
SOURCES AWAY FROM THE
FABRIC.
UNDER NO CIRCUMSTANCES
SHOULD ANY NAKED FLAME
SOURCES BE USED NEAR THE
AWNING.
KEEP CAMP FIRES AWAY FROM
THE AWNING.
KEEP A LOOK OUT FOR ANY
AIRBORNE BURNING EMBERS
THAT MAY COME INTO CONTACT
WITH THE TENT.
KEEP A FIRE EXTINGUISHER OR
WATER BUCKET NEARBY.
DO NOT OPERATE ANY DEVICE
WHICH BURNS FUEL INSIDE
THE AWNING WHILE WALLS ARE
ATTACHED.
KEEP EXITS CLEAR.
DARCHE RECOMMENDS FIXING
ALL GUY ROPES AT ALL TIMES
WHEN AWNING IS IN USE.
REMAIN CAUTIOUS AROUND GUY
ROPES TO PREVENT INJURY.
ENSURE CHILDREN ARE
SUPERVISED AROUND THE
AWNING AT ALL TIMES.
ECLIPSE 270° AWNING
CARE INSTRUCTIONS

darche.com.au
Designed and tested in Australia for Australian conditions.
A brand by Charles Parsons.
Telephone [phone].
Email: [email protected]
75 Heyington Avenue,
Thomastown VIC 3074, Australia
DARCHE: LEADERS IN OUTDOOR DESIGN. PROUDLY AUSTRALIAN.
