DASS Tech DASS 3.0i LV Instruction manual

DASSTECH Solar Photovoltaic
DSP-123i-ODS
Version 1.1
Manual for Use and Installation

DASS 3.0i LV (DSP-123i-ODS) User manual
Copyright © DASS Tech Co., Ltd
Contents
Preface........................................................................................................................................I
1. Basic safety information................................................................................................... - 1 -
1.1. Safety instructions...............................................................................................- 1 -
1.2. Symbols and signs...............................................................................................- 4 -
2. Product characteristics...................................................................................................... - 6 -

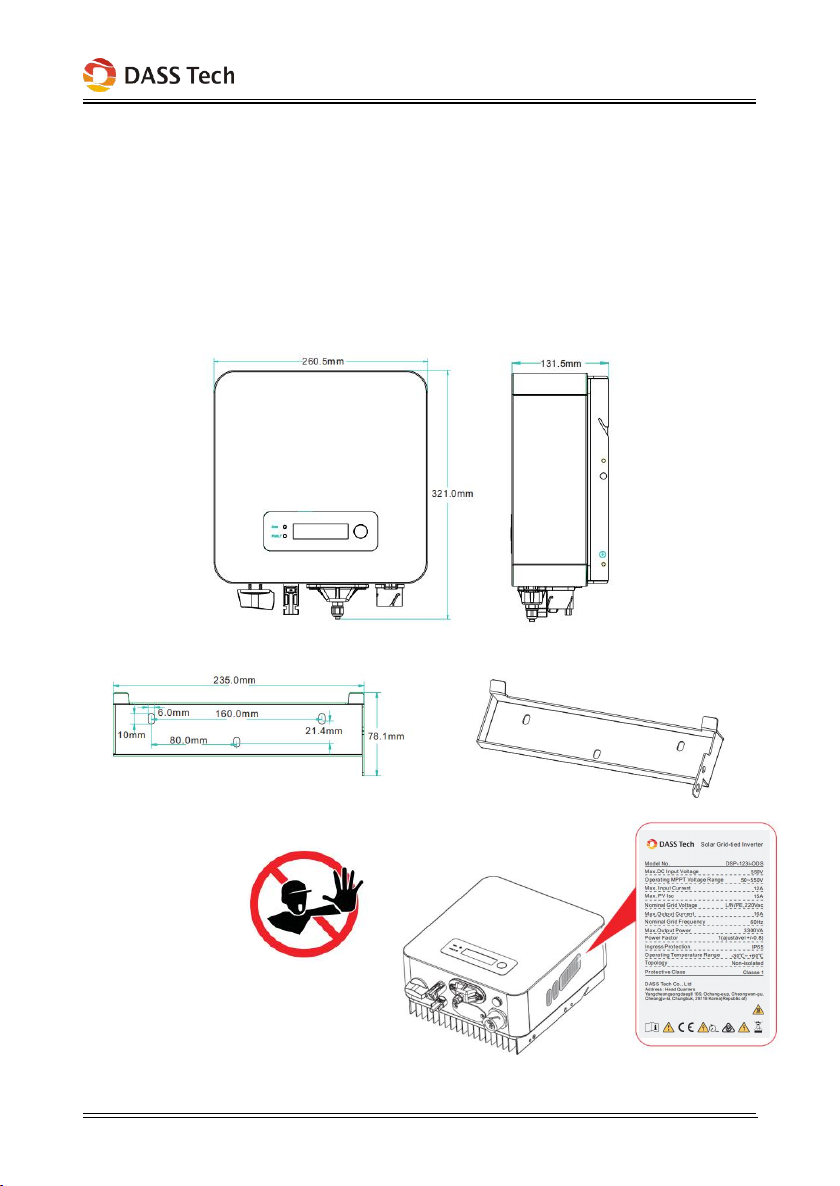

2.1. Product dimensions............................................................................................. - 6 -
2.2. Function description............................................................................................- 8 -
2.3. Efficiency curve.................................................................................................. - 9 -
3. Installation...................................................................................................................... - 10 -

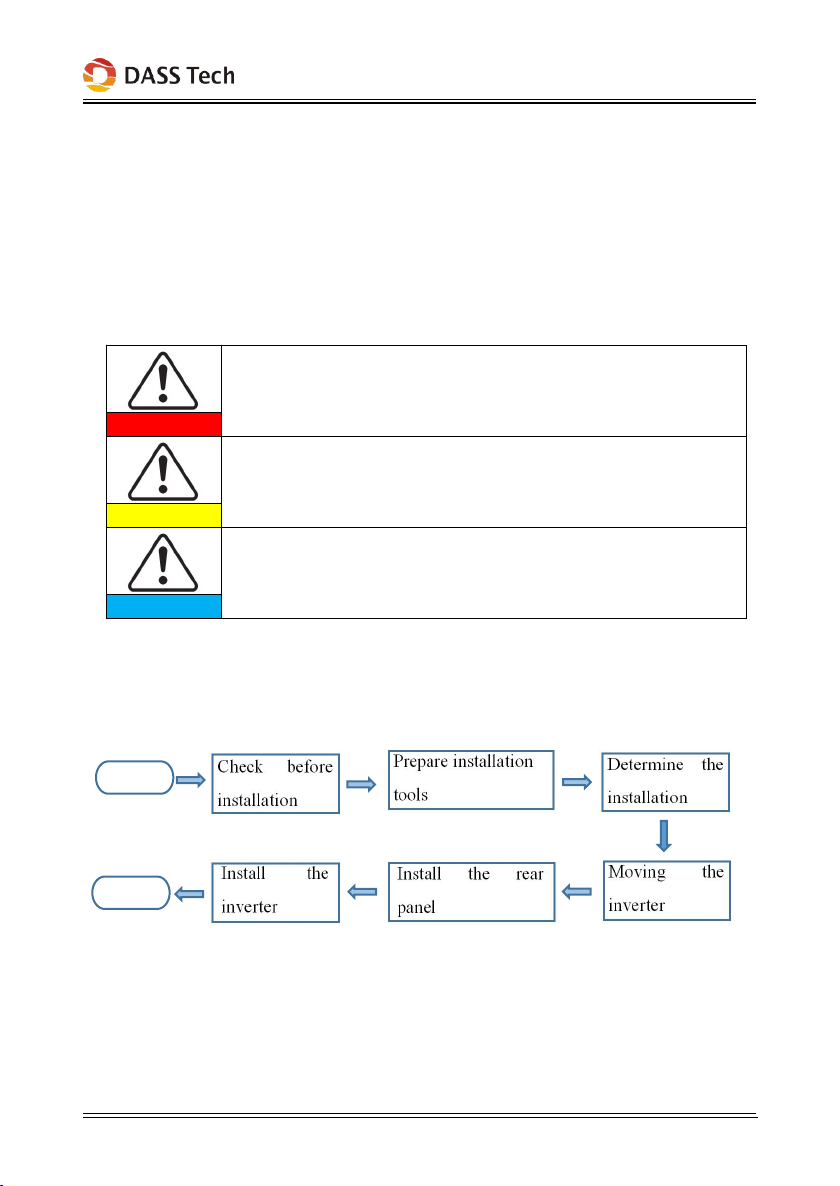

3.1. Installation Process........................................................................................... - 10 -
3.2. Checking Before Installation............................................................................ - 10 -

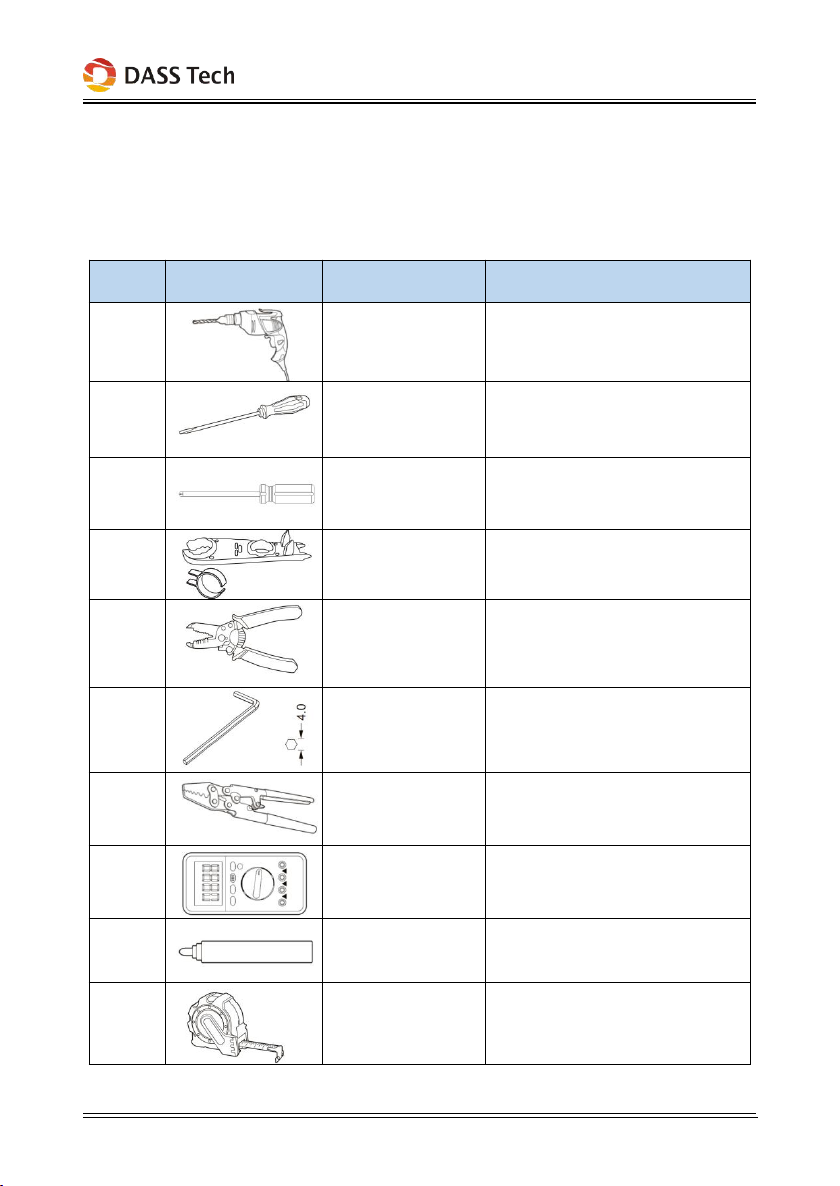

3.3. Tools..................................................................................................................- 13 -

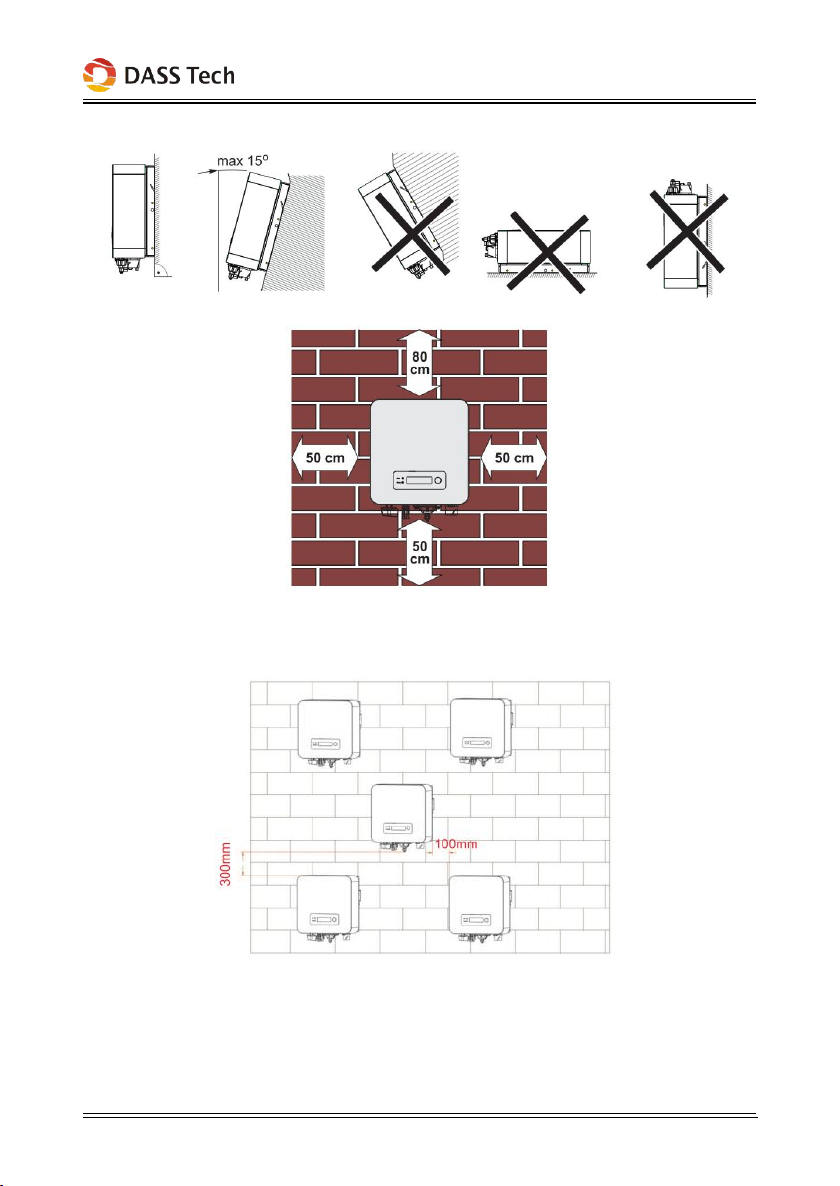

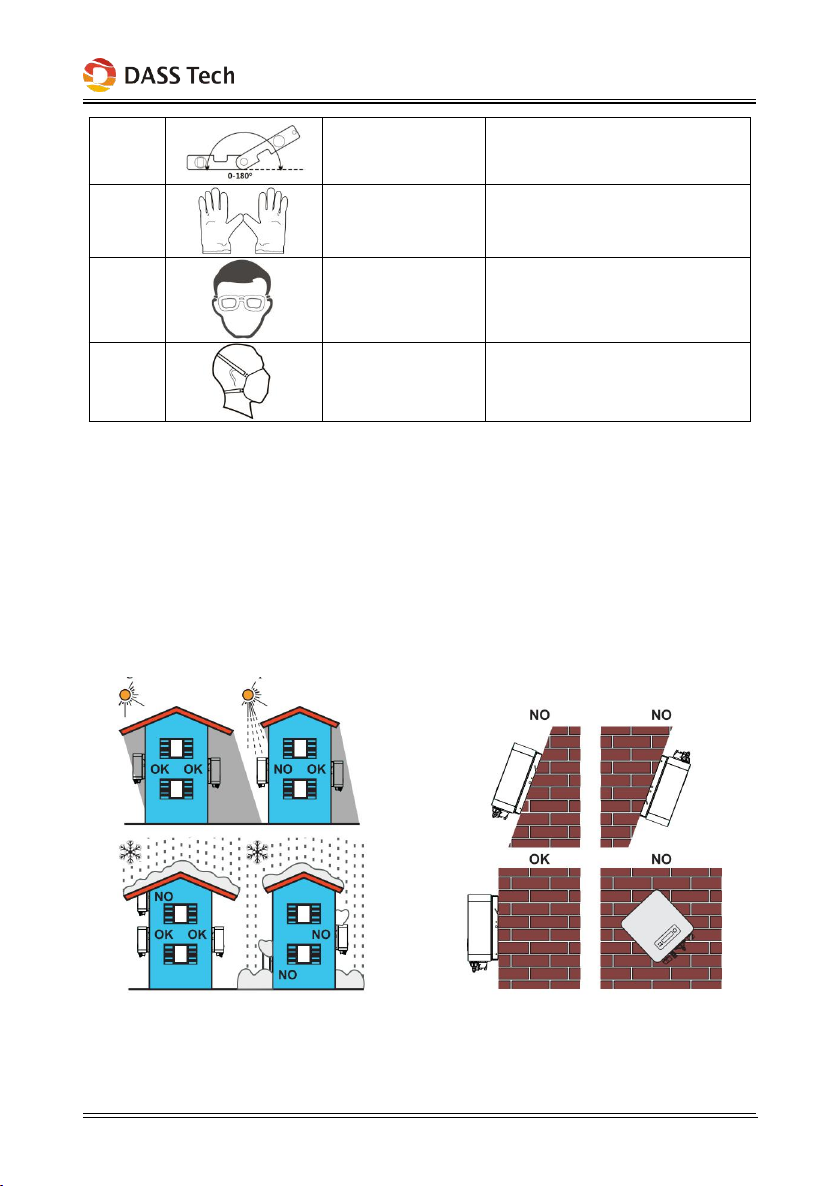

3.4. Determining the Installation Position............................................................... - 14 -
3.5. Moving the DASS 3.0i LV (DSP-123i-ODS)................................................... - 16 -
3.6. Installing DASS 3.0i LV (DSP-123i-ODS).......................................................- 17 -
4. Electrical Connections.................................................................................................... - 19 -
4.1. Electrical connection.........................................................................................- 20 -
4.2. Connecting PGND Cables................................................................................ - 20 -
4.3. Connecting DC Input Power Cables................................................................. - 22 -
4.4. Connecting AC Output Power Cables...............................................................- 24 -
4.5. RS485,CT,inverter logic interface connection.................................................. - 31 -
4.6. WIFI/GPRS module installation procedure...................................................... - 37 -
4.7. Communication method....................................................................................- 37 -
5. Commissioning of inverter............................................................................................. - 40 -
5.1. Safety inspection before commissioning.......................................................... - 40 -
5.2. Start inverter......................................................................................................- 40 -
6. Operation interface......................................................................................................... - 41 -
6.1. Operation and Display Panel.............................................................................- 41 -
6.2. Standard Interface............................................................................................. - 42 -
6.3. Main Interface................................................................................................... - 44 -
6.4. Update Software online.....................................................................................- 49 -
7. Trouble shooting............................................................................................................. - 51 -
7.1. Trouble shooting............................................................................................... - 51 -
7.2. Maintenance...................................................................................................... - 56 -
8. Technical data................................................................................................................. - 58 -
8.1. Input parameters (DC)...................................................................................... - 58 -
8.2. Output parameters (AC)....................................................................................- 59 -
8.3. Efficiency,Protection and Communication....................................................... - 60 -
8.4. General Date..................................................................................................... - 61 -
9. Quality Assurance...........................................................................................................- 62 -

DASS 3.0i LV (DSP-123i-ODS) User manual
Copyright © DASS Tech Co., Ltd
Notice
This manual contains important safety instructions that must be followed
during installation and maintenance of the equipment.
Save these instructions!
This manual must be considered as an integral part of the equipment. The
manual must always accompany the equipment,even when it is transferred to
another user or field.
Copyright Declaration
The copyright of this manual belongs to DASS Tech Co., Ltd.Any corporation
or individual should not plagiarize, partially copy or fully copy it (including
software, ect .),and no reproduction or distribution of it in any form or by any
means.All right reserved.

DASS 3.0i LV (DSP-123i-ODS) User manual
Copyright © DASS Tech Co., Ltd
I
Preface
Outline
Please read the product manual carefully before installation,operation or
maintenance.This manual contains important safety instructions and installation
instructions that must be followed during installation and maintenance of the
equipment.
Scope
This product manual describes the installation,electrical connections,
commissioning,maintenance and troubleshooting of
DASS 3.0i LV (DSP-123i-ODS)
Keep this manual where it will be accessible at all times.
Target Group
This manual is intended for qualified electrical technical personnel who are
responsible for inverter installation and commissioning in the PV power system and
PV plant operator.
Symbols Used
This manual is provides safety operation information and uses the symbol in
order to ensure personal and property security and property security and use
inverter efficiently when operating the inverter. You must understand these
emphasized information to avoid the personal injury and property loss.Please read
the following symbols used in this manual carefully.

DASS 3.0i LV (DSP-123i-ODS) User manual
Copyright © DASS Tech Co., Ltd
II
Danger indicates a hazardous situation which, if not
avoided, will result in death or serious injury.
Danger
Warning indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
Warning
Caution indicates a hazardous situation which, if not
avoided, could result in minor or moderate injury.
Caution
Attention indicates potential risks which, if not
avoided, may lead to equipment fault or property damage.
Attention
Note provides tips that are valuable for the optimal
operation of the product.
Note

DASS 3.0i LV (DSP-123i-ODS) User manual
Copyright © DASS Tech Co., Ltd
- 1 -
1. Basic safety information
If you have any question or problem when you read the
following information, please contact DASS Tech Co., Ltd.
Note
Outlines of this chapter
Safety instruction
It mainly introduce the safety instruction when install and operate the
equipment.
Symbols and signs
It mainly introduce the safety symbols on the inverter.
1.1. Safety instructions
Read and understand the instructions of this manual, and be familiar with
relevant safety symbols in this chapter, then start to install and troubleshoot the
equipment.
According to the national and state requirements, before connecting to the
electrical grid, you must get permission from the local electrical grid operation can
only be performed by qualified electrical engineer.
Please contact the nearest authorized service center if any maintenance or
repair is needed.Contact your distributor for the information of the nearest
authorized service center. Do NOT repair it by yourself, it may cause injury or
property damage.
Before installing and maintaining the equipment, you should turn the DC
switch OFF to cut off the high voltage DC of the PV array. You can also turn the
switch in the PV combiner box OFF to cut off the high voltage DC. Otherwise,
serious injury may be caused.

DASS 3.0i LV (DSP-123i-ODS) User manual
Copyright © DASS Tech Co., Ltd
- 2 -
Qualified persons
The customer must make sure the operator has the necessary skill and training
to do his/her job.Staff in charge of using and maintaining the equipment must be
skilled,aware and mature for the described tasks and must have the reliability to
correctly interpret what is described in the manual. For safety reason only a
qualified electrician, who has received training and / or has demonstrated skills and
knowledge in construction and in operation of this unit, can install this inverter.
DASS Tech Co., Ltd does not take any responsibility for the property destruction
and personal injury because of any incorrect use.
Installation requirements
Please install inverter according to the following section. Fix the inverter on
an appropriate objects with enough load bearing capacity (such as walls, PV racks
etc.), and ensure that inverter is vertical placed. Choose a place suitable for
installing electrical devices. And assure there is enough fire exit space, convenient
for maintenance. Maintain proper ventilation to ensure enough air cycle to cool the
inverter.
Transport requirements
If you find packing problems that may cause the damage of the inverter, or
find any visible damage, please immediately notice the responsible transportation
company. You can ask solar equipment installation contractor or DASS Tech Co.,

DASS 3.0i LV (DSP-123i-ODS) User manual
Copyright © DASS Tech Co., Ltd
- 3 -
Ltd for help if necessary.
Transport of the equipment, especially by road, must be carried out with by
suitable ways and means for protecting the components (in particular, the electronic
components) from violent shocks, humidity, vibration, etc.
Electric connection
Please comply with all the current electrical regulations about accident
prevention in dealing with the solar invert.
Before the electrical connection, make sure to use opaque
material to cover the PV modules or to disconnect PV array DC
switch. Exposure to the sun, PV array will produce a dangerous
voltage!
Danger
All installation accomplished only by professional electrical
engineer!
Must be trained;
Completely read the manual operation and understand
relevant matter.
Warning
Get permission from the local electrical gird operator,
complete all electrical connections by professional electrical
engineer, then connect inverter to electrical grid.
Attention
It’s forbidden to remove the tamper evident label, or open the
inverter. Otherwise DASS Tech Co., Ltd will not provide warranty
or maintenance!
Note
Operation
Touching the electrical grid or the terminal of the equipment
may lead to electrocution or fire!
Don’t touch the terminal or conductor connected to the
electrical grid.
Pay attention to any instructions or safety documents related to
grid connection.
Danger
Some internal components will be very hot when inverter is
working. Please wear protective gloves!
Attention
Maintenance and repair

DASS 3.0i LV (DSP-123i-ODS) User manual
Copyright © DASS Tech Co., Ltd
- 4 -
Before any repair work, turn OFF the AC circuit breaker
between the inverter and electrical grid first, then turn OFF the DC
switch.
After turning OFF the AC circuit breaker and DC switch, wait
for 5 minutes at least before carrying out any maintenance or repair
work.
Danger
Inverter should work again after removing any faults. If you
need any repair work, please contact with the local authorized
service center.
Can’t open the internal components of inverter without
authorized. DASS Tech Co., Ltd does not take any responsibility for
the losses from that.
Attention
EMC / noise level of inverter
Electromagnetic compatibility (EMC) refers to that one electrical equipment
functions in a given electromagnetic environment without any trouble or error, and
impose no unacceptable effect upon the environment. Therefore, EMC represents
the quality characters of an electrical equipment.The inherent noise-immune
character: immunity to internal electrical noise.External noise immunity: immunity
to electromagnetic noise of external system.Noise emission level: influence of
electromagnetic emission upon environment.
Electromagnetic radiation from inverter may be harmful to
health!
Please do not continue to stay around the inverter in less than 20
cm when inverter is working.
Danger
1.2. Symbols and signs
Caution of burn injuries due to hot enclosure!
You can only touch the screen and pressing key of the inverter
while it’s working.
Caution
PV array should be grounded in accordance to the requirements
of the local electrical grid operator!
We suggest that all PV module frames and inverter are reliably
grounded to protect the PV system and personnel security.
Attention
Ensure input DC voltage < Max. DC voltage .Over voltage may
cause permanent damage to inverter or other losses, which will not
be included in warranty!
Warning

DASS 3.0i LV (DSP-123i-ODS) User manual
Copyright © DASS Tech Co., Ltd
- 5 -
Signs on the inverter
There are some symbols which are related to security on the inverter. Please
read and understand the content of the symbols, and then start the installation.
There is a residual voltage in the inverter! Before opening the
equipment, operator should wait for five minutes to ensure the
capacitor is discharged completely.
Caution, risk of electric shock.
Caution hot surface.
Comply with the Conformite Europeenne (CE) certification.
Grounding point.
Please read this manual before install DASS 3.0i LV
(DSP-123i-ODS).
This indicates the degree of protection of the equipment
according to IEC standard 70-1 (EN 60529 June 1997).
Positive pole and negative pole of the input voltage (DC).

DASS 3.0i LV (DSP-123i-ODS) User manual
Copyright © DASS Tech Co., Ltd
- 6 -
2. Product characteristics
Outlines of this chapter
Product dimensions
It introduces the field of use, and the overall dimensions of DASS 3.0i LV
(DSP-123i-ODS) inverters.
Function description
It introduces how DASS 3.0i LV (DSP-123i-ODS) inverters work and the
function modules inside.
Efficiency curves
It introduces the efficiency curves of in the inverter.
2.1. Product dimensions
DASS 3.0i LV (DSP-123i-ODS) is a single MPPT grid-tied PV inverter which
converts the DC power generated by PV arrays into sine wave single-phase AC
power and feeds it to the public electrical grid, AC circuit breaker (refer to Section
4.4) and DC switch used as disconnect device, and the disconnect device shall be
easily accessible.
Figure2-1 PV Grid-tied System
DASS 3.0i LV (DSP-123i-ODS) can only be used with photovoltaic modules
that do not require one of the poles to be grounded. The operating current during

DASS 3.0i LV (DSP-123i-ODS) User manual
Copyright © DASS Tech Co., Ltd
- 7 -
normal operation must not exceed the limits specified in the technical specifications.
Only the photovoltaic modules can be connected to the input of the inverter (do not
connect batteries or other sources of power supply).
The choice of optional parts of inverter should be made by a qualified
technician who knows the installation conditions clearly.
DASS 3.0i LV (DSP-123i-ODS):L×W×H=321mm×260.5mm×131.5mm
Figure 2-2 Front view and left view dimensions of DASS 3.0i LV (DSP-123i-ODS)
Figure 2-3 Bracket dimensions of DASS 3.0i LV (DSP-123i-ODS)

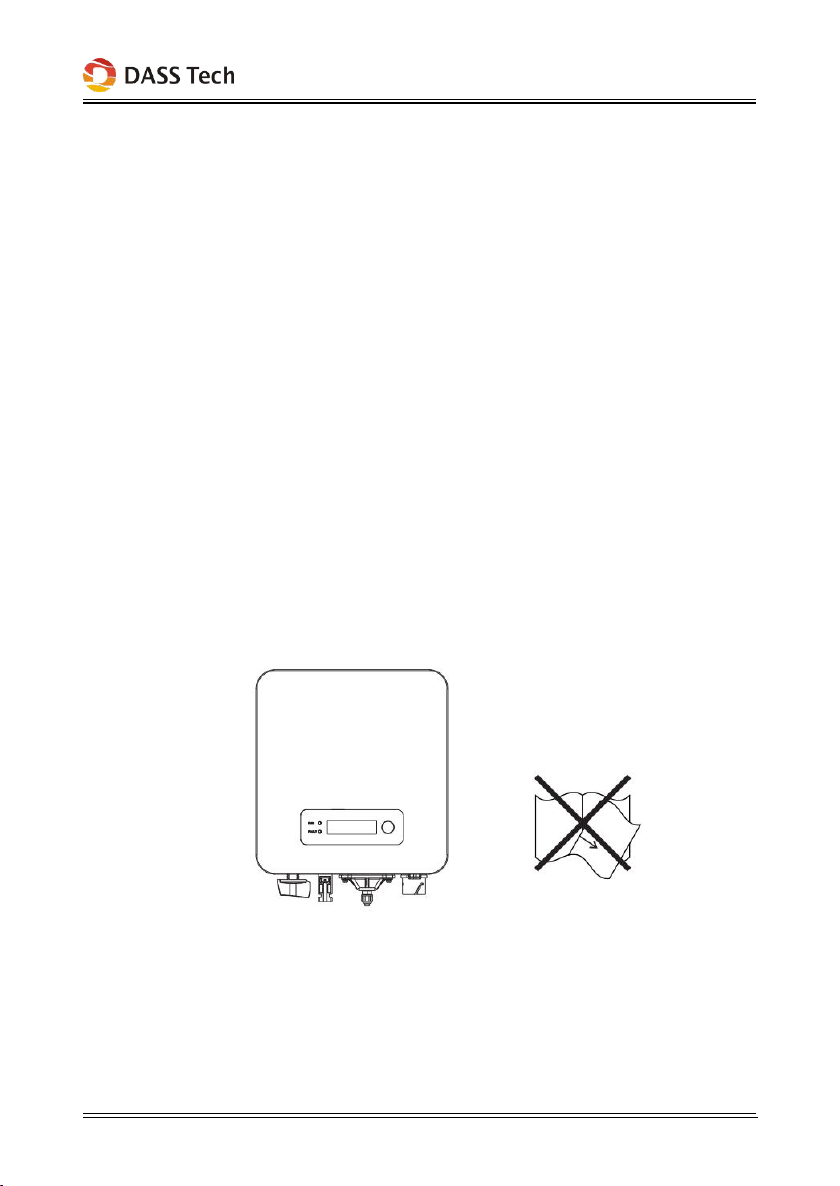

Labels on the equipment
The labels must
NOT be hidden with
objects and extraneous parts
(rags,boxes,equipment,etc.);they
must be cleaned regularly and
kept visible at all times.

DASS 3.0i LV (DSP-123i-ODS) User manual
Copyright © DASS Tech Co., Ltd
- 8 -
2.2. Function description
DC power generated by PV array is filtered through Input Board before
entering into Power Board. Input Board also offer functions such as insulation
impedance detection and input DC voltage / current detection. DC power is
converted to AC power by Power Board. AC power is filtered through Output
Board then AC power is fed into the grid. Output Board also offer functions such as
grid voltage / output current detection, GFCI and output isolation relay. Control
Board provides the auxiliary power, controls the operation state of inverter and
shows the operation status by Display Board. Display Board displays fault code
when inverter is in abnormal operation conditions. At the same time, Control Board
can trigger the relay so as to protect the internal components.
Function module
A. Energy management unit
This control can be used to switch the inverter on/off through an external
(remote) control.
B. Feeding reactive power into the grid
The inverter is able to produce reactive power and can therefore feed it into
the grid through the setting of the phase shift factor. Feed-in management can be
controlled directly by the grid company through a dedicated RS485 serial interface.
C. Limiting the active power fed into the grid
The inverter, if enabled can limit the amount of active power fed into the grid
by the inverter to the desired value (Expressed as a percentage).
D. Self power reduction when grid is over frequency
When the grid frequency is higher than the limited value, inverter will reduce
output power which is necessary for the grid stability.
E. Data transmission
The inverter or a group of inverters may be monitored remotely through an

DASS 3.0i LV (DSP-123i-ODS) User manual
Copyright © DASS Tech Co., Ltd
- 9 -
advanced communication system based on RS-485 serial interface, or remotely via
the WIFI/GPRS.
F. Software update
Support usb flash drive local upgrade software and WIFI/GPRS remote
upgrade software.
Electrical block diagram
Figure2-4 Electrical block diagram
2.3. Efficiency curve

DASS 3.0i LV (DSP-123i-ODS) User manual
Copyright © DASS Tech Co., Ltd
- 10 -
3. Installation
Outlines of this chapter
This topic describes how to install the DASS 3.0i LV (DSP-123i-ODS) .
Installation notes
3.1. Installation Process
Figure3-1 Installation flowchart
3.2. Checking Before Installation
Checking Outer Packing Materials
Do NOT install the DASS 3.0i LV (DSP-123i-ODS) on
flammable material.
Do NOT install the DASS 3.0i LV (DSP-123i-ODS) in an area
used to store Flammable or explosive material.
Danger
The enclosure and heat sink are very hot while the inverter is
working, therefore do NOT install the DASS 3.0i LV
(DSP-123i-ODS) in places where you might touch them
inadvertently.
Caution
Consider the weight of DASS 3.0i LV (DSP-123i-ODS) when
transporting and moving the inverters.
Choose an appropriate mounting position and surface.
Assign at least two persons to install the inverter.
Attention
Start
Check before
installation
Prepare installation
tools
Determine the
installation
Moving the
inverter
Install the rear
panel
Install the
inverter
End

DASS 3.0i LV (DSP-123i-ODS) User manual
Copyright © DASS Tech Co., Ltd
- 11 -
Packing materials and components may be damaged during transportation.
Therefore, check the outer packing materials before installing the inverter. Check
the outer packing materials for damage, such as holes and cracks. If any damage is
found, do not unpack the DASS 3.0i LV (DSP-123i-ODS) and contact the dealer as
soon as possible. You are advised to remove the packing materials within 24 hours
before installing the DASS 3.0i LV (DSP-123i-ODS) inverter.
Checking Deliverables
After unpacking the inverter, check whether deliverables are intact and
complete. If any damage is found or any component is missing, contact the dealer.
Table3-1 shows the components and mechanical parts that should be delivered.
NO.
Description
Quantity
1
DASS 3.0i LV
(DSP-123i-ODS)
1pcs
2
Rear panel
1pcs
3
PV+ input terminal
1pcs
4
PV- input terminal
1pcs
5
Metal terminals secured
to PV+ input power
cables
1pcs

DASS 3.0i LV (DSP-123i-ODS) User manual
Copyright © DASS Tech Co., Ltd
- 12 -

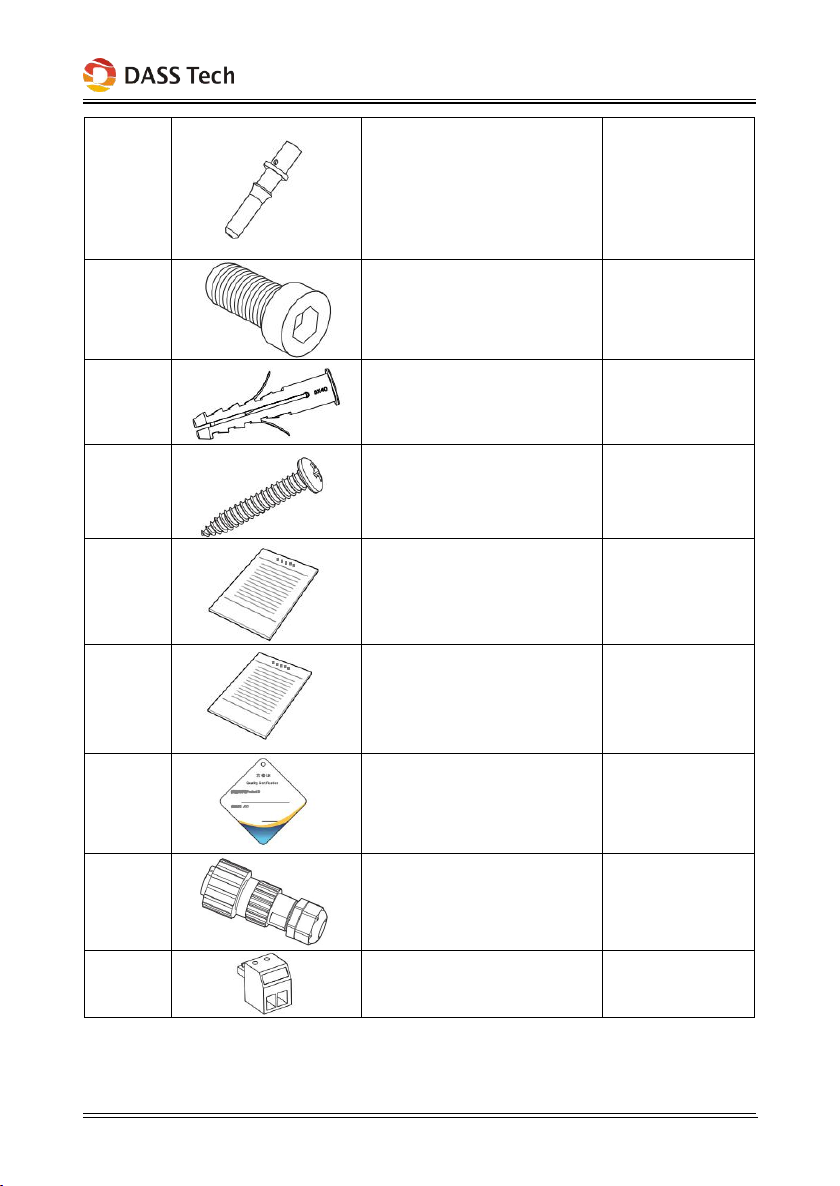

6
Metal terminals secured
to PV- input power
cables
1pcs
7
M5Hexagon screws
2pcs
8
Expansion bolts
3pcs
9
Self-tapping screw
5pcs
10
Manual
1pcs
11
The warranty card
1pcs
12
Registration Form
1pcs
13
AC output terminal
1pcs
14
485 terminal (2pin)
1pcs

DASS 3.0i LV (DSP-123i-ODS) User manual
Copyright © DASS Tech Co., Ltd
- 13 -
3.3. Tools
Prepare tools required for installation and electrical connections.
Table 3-2 shows the tools required for installation and electrical connections.
NO.
Tool
Model
Function
1
Hammer drill
Recommend drill
dia. 6mm
Used to drill holes on the wall.
2
Screwdriver
wiring
3
Cross screwdriver
Remove and install AC terminal
screws
4
Removal tool
Remove PV terminal
5
Wire stripper
Strip wire
6
4mm Allen
Wrench
Turn the screw to connect rear
panel with inverter.
7
Crimping tool
Used to crimp power cables
8
Multi-meter
Used to check grounding
9
Marker
Used to mark signs
10
Measuring tape
Used to measure distances

DASS 3.0i LV (DSP-123i-ODS) User manual
Copyright © DASS Tech Co., Ltd
- 14 -
11
Level
Used to ensure that the rear panel
is properly installed
12
ESD gloves
Operators wear
13
Safety goggles
Operators wear
14
Anti-dust respirator
Operators wear
3.4. Determining the Installation Position
Determine an appropriate position for installing the DASS 3.0i LV
(DSP-123i-ODS) inverter. Comply with the following requirements when
determining the installation position:
Figure3-2 Installation Requirements

DASS 3.0i LV (DSP-123i-ODS) User manual
Copyright © DASS Tech Co., Ltd
- 15 -
clearance for single DASS 3.0i LV (DSP-123i-ODS) Inverter
Installation of multiple DASS 3.0i LV (DSP-123i-ODS) inverter
