Dometic SINEPOWER MSI 212 User manual

MSI 212, MSI 224, MSI 412, MSI 424
Sine wave inverter
Installation and Operating Manual. . . . . . . . 6
Sinus-Wechselrichter
Montage- und Bedienungsanleitung . . . . . 19
Onduleur sinusoïdal
Instructions de montage
et de service . . . . . . . . . . . . . . . . . . . . . . . . .32
Convertidor de ondas seno
Instrucciones de montaje y de uso . . . . . . .45
Conversor sinusoidal
Instruções de montagem e manual de
instruções . . . . . . . . . . . . . . . . . . . . . . . . . . .58
Inverter sinusoidale
Istruzioni di montaggio e d’uso . . . . . . . . . 71
Sinus ondulator
Montagehandleiding en
gebruiksaanwijzing . . . . . . . . . . . . . . . . . . .84
Sinus ensretter
Monterings- og betjeningsvejledning . . . .97
Sinus växelriktare
Monterings- och bruksanvisning . . . . . . . 110
Sinus vekselretter
Monterings- og bruksanvisning . . . . . . . .123
Sinus -vaihtosuuntaaja
Asennus- ja käyttöohje . . . . . . . . . . . . . . . 136
Синусоидальный инвертор
Инструкция по монтажу и эксплуатации 149
Przetwornica sinusoidalna
Instrukcja montażu i obsługi. . . . . . . . . . . 164
Sínusový menič napätia
Návod na montáž a uvedenie
do prevádzky. . . . . . . . . . . . . . . . . . . . . . . 178
Sinusový měnič
Návod k montáži a obsluze . . . . . . . . . . . 192
Szinuszos inverter
Szerelési és használati útmutató . . . . . . . 206
EN
DE
FR
ES
PT
IT
NL
DA
SV
NO
FI
RU
PL
SK
CS
HU
ENERGY & LIGHTING
SINEPOWER
MSI200-MSI400-IO-16s.book Seite 1 Freitag, 27. Oktober 2017 9:59 21

MSI200-MSI400-IO-16s.book Seite 2 Freitag, 27. Oktober 2017 9:59 21

SinePower
3
4
5
67
1
3
2
4
67
1
3
2
MSI412, MSI424
MSI212, MSI224
1
MSI200-MSI400-IO-16s.book Seite 3 Freitag, 27. Oktober 2017 9:59 21

SinePower
4
1
2
2
1.
2.
3.
3
MSI200-MSI400-IO-16s.book Seite 4 Freitag, 27. Oktober 2017 9:59 21

SinePower
5
A
B
A
B
4
1
2
5
2
1
6
MSI200-MSI400-IO-16s.book Seite 5 Freitag, 27. Oktober 2017 9:59 21

EN
SinePower
6
Please read this instruction manual carefully before installation and first
use, and store it in a safe place. If you pass on the product to another
person, hand over this instruction manual along with it.
Contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
4 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
5 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
6 Fastening the inverter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
7 Connecting the inverter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
8 Using the inverter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
9 Cleaning and caring for the inverter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
10 Rectifying faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
11 Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
12 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
13 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
MSI200-MSI400-IO-16s.book Seite 6 Freitag, 27. Oktober 2017 9:59 21

EN
SinePower Explanation of symbols
7
1 Explanation of symbols
!
!
A
I
2 Safety instructions
The manufacturer accepts no liability for damage in the following cases:
•Faulty assembly or connection
•Damage to the product resulting from mechanical influences and excess voltage
•Alterations to the product without express permission from the manufacturer
•Use for purposes other than those described in the operating manual
2.1 General safety
!WARNING!
•Electronic devices are not toys!
Keep electrical appliances out of reach from children or infirm
persons. Do not let them use the appliances without supervision.
• Persons (including children) whose physical, sensory or mental
capabilities or lack of experience and knowledge prevents them from
using the appliance safely should not use this appliance without initial
supervision or instruction by a responsible person.
•Use the device only as intended.
•Do not operate the device in a damp or wet environment.
WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or
serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
NOTE
Supplementary information for operating the product.
MSI200-MSI400-IO-16s.book Seite 7 Freitag, 27. Oktober 2017 9:59 21

EN
Safety instructions SinePower
8
•Maintenance and repair work may only be carried out by qualified
personnel who are familiar with the risks involved and the relevant
regulations.
2.2 Safety when installing the device
!WARNING!
•Never connect more than one consumer device to the inverter. If you
connect more than one device, a short circuit may occur.
•Take the precautions necessary to ensure that children cannot inter-
fere with operation.
Dangerous situations may occur which cannot be recognised by
children!
!CAUTION!
•Ensure the device is standing firmly.
The device must be set up and fastened in such a way that it cannot tip
over or fall down.
ANOTICE!
•Do not expose the device to a heat source (such as direct sunlight or
heating). Avoid additional heating of the device in this way.
Electrical cables
!CAUTION!
•Lay the cables so that they cannot be tripped over or damaged.
ANOTICE!
•If cables have to be fed through metal walls or other walls with sharp
edges, use ducts or wire bushings to prevent damage.
•Do not lay cables which are loose or bent next to electrically conduc-
tive material (metal).
•Do not pull on the cables.
•Do not lay the 230 V mains cable and the 12/24 V DC cable in the
same duct.
•Fasten the cables securely.
MSI200-MSI400-IO-16s.book Seite 8 Freitag, 27. Oktober 2017 9:59 21

EN
SinePower Scope of delivery
9
2.3 Operating the appliance safely
!WARNING!
•Operate the device only if you are certain that the housing and the
cables are undamaged.
•Even after the fuse triggers, parts of the inverter remain live.
•Always disconnect the power supply when working on the device.
ANOTICE!
•Make sure the air inlets and outlets of the device are not covered.
•Ensure good ventilation.
•Do not connect the 230 V output of the inverter (fig. 51, page 5) to
a different 230 V source.
3Scopeofdelivery
•Sine wave inverter
•4 holders
•Instruction Manual
4 Intended use
The SinePower inverters are used to convert a direct current of 12 V or 24 V into a
230 V AC supply of 50 Hz.
•12 V:
SinePower MSI212
SinePower MSI412
•24 V:
SinePower MSI224
SinePower MSI424
Rechargeable devices with USB interface can be charged via the USB port (5 V,
2000 mA).
This device is exclusively intended for vehicle use.
MSI200-MSI400-IO-16s.book Seite 9 Freitag, 27. Oktober 2017 9:59 21

EN
Technical description SinePower
10
5 Technical description
The inverters can be used anywhere where there is a 12 Vgor 24 Vgvoltage
source. The inverters are connected to:
•Vehicle socket: MSI212 (12 Vg), MSI224 (24 Vg)
•Vehicle battery: MSI412 (12 Vg), MSI424 (24 Vg)
Devices MSI412 and MSI424 can be switched on and off optionally using an
external switch.
The devices are additionally cooled with a load and temperature-dependent fan
(fig. 22, page 4).
The maximum constant output for the devices is as follows:
•For inverters MSI212 and MSI224 150 W
•For inverters MSI412 and MSI424 350 W
Never connect devices that have a higher power requirement.
I
If the system has a short circuit, the device switches off.
If the voltage is too high, the device switches off and must be restarted manually.
If the input voltage is too high or too low or the system overheats, the device
switches off and then on again after a short while.
NOTE
Note when connecting devices with an electrical drive (such as power
drills and refrigerators), that they often need more power than is stated
on the type plate.
MSI200-MSI400-IO-16s.book Seite 10 Freitag, 27. Oktober 2017 9:59 21

EN
SinePower Fastening the inverter
11
The inverter has the following connections, displays and control elements:
I
6 Fastening the inverter
You can fasten the inverter using the four holders supplied.
When selecting the installation location, observe the following instructions:
•The inverter can be mounted horizontally or vertically.
•The inverter must be installed in a place that is protected from moisture.
•The inverter may not be installed in the presence of flammable materials.
•The inverter may not be installed in a dusty environment.
•The place of installation must be well-ventilated. A ventilation system must be
present for installations in small, closed spaces. The minimum clearance around
the inverter must be at least 25 cm.
NOTE
The version for continental Europe is depicted.
Pos. in
fig. 1, page 3 Element
1 Switches
0: device is switched off
I: device is switched on
2 Green Status LED: lights up when inverter is in operation
3 Red Status LED: indicates malfunction
4 USB port
5MSI412,MSI424only:Connection for external switch
6 Cover for 230 Vwsafety socket
7 Holders
Pos. in
fig. 2, page 4 Element
1 Connection cable for direct current
2Fan
MSI200-MSI400-IO-16s.book Seite 11 Freitag, 27. Oktober 2017 9:59 21

EN
Connecting the inverter SinePower
12
•The air intake on the underside or the air outlet on the back side of the inverter
must remain clear.
•For ambient temperatures higher than 40 °C (such as in engine or heating com-
partments, or direct sunlight), the heat from the inverter under load can lead to
the automatic shut-off of the inverter.
•The installation surface must be level and sufficiently strong.
A

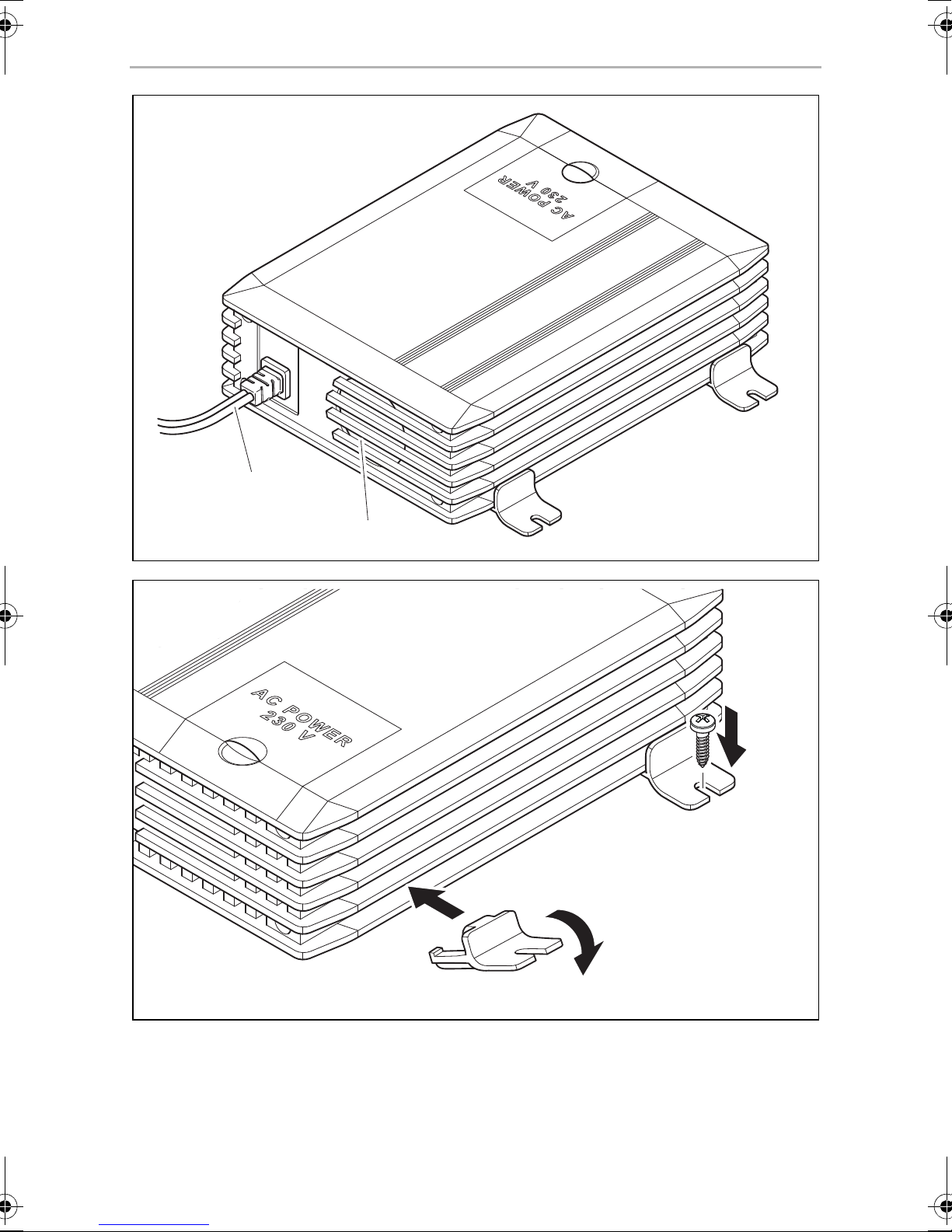

Fasten the inverter as follows (fig. 3, page 4):
➤Clip two holders on the lower left bar and two on the right.
You can move the holders as required.
➤Fasten the inverter by screwing one screw through each hole in the holders.
7 Connecting the inverter
A
7.1 Connecting the MSI212 and MSI224
The connection is made via a plug that is connected to a 12 V vehicle socket (for
MSI212) and a 24 V vehicle socket (for MSI224) (fig. 6, page 5).
➤Connect the middle pin (1) of the plug to the positive wire.
➤Connect the two side brackets (2) of the plug to the negative wire.
A
NOTICE!
Before drilling any holes, ensure that no electrical cables or other parts
of the vehicle can be damaged by drilling, sawing and filing.
NOTICE!
The cable between the battery and the inverter may not exceed a
maximum length of 2 m.
NOTICE!
•Make sure that the plug is firmly connected in the vehicle socket. If
the connection is loose, the plug may heat up.
•The rating of the vehicle socket, the supply cable, and the fuse must
be at least 15 A. Do not put in a fuse with a higher rating.
MSI200-MSI400-IO-16s.book Seite 12 Freitag, 27. Oktober 2017 9:59 21

EN
SinePower Connecting the inverter
13
7.2 Connecting the MSI412 and MSI424
Make sure that a professional fuse is installed between the positive pole (+) and the
inverter. Mind the following values:
•MSI412: 50 A
•MSI424: 25 A
A
➤To set up the inverter, connect the red cable to the positive pole (+) of the vehicle
battery and the black cable to the negative pole (–) of the vehicle battery.
Make sure the vehicle battery terminals are clean when connecting them.
Connecting the external switch contact to the inverter
➤Connect the external switch to the remote port according to the wiring diagram
(fig. 4, page 5).
➤Put the switch (fig. 11, page 3) in position “I”.
✓The green status LED lights up (fig. 12, page 3) when the switch is closed.
NOTICE!
•If no sufficient, professional fuse is installed, the inverter could be
damaged and the guarantee is invalidated.
•Do not reverse the polarity. Reversing the polarity of the connections
will cause a great spark and the internal fuses will melt. These fuses
should only be replaced by a qualified electrician.
MSI200-MSI400-IO-16s.book Seite 13 Freitag, 27. Oktober 2017 9:59 21

EN
Using the inverter SinePower
14
8Usingtheinverter
I
➤Lift up the cover (fig. 52, page 5).
➤Connect your power consuming device, to the socket (fig. 13, page 3) of the
inverter.
➤Switch the inverter on by pressing the switch (fig. 11, page 3) on the device
(position “I”) …
➤… or (MSI412, MSI424 only) switch on the inverter using the external switch
(optional).
✓The green Status LED lights up (fig. 12, page 3). The power consuming device
is supplied with voltage.
Charging the device via the USB port
I
➤Connect the device to the USB port (fig. 14, page 3) of the inverter.
9 Cleaning and caring for the inverter
A
➤Occasionally clean the device with a damp cloth.
NOTE
•When operating the inverter at a high load for lengthy periods, it is
advisable to start the engine in order to recharge the vehicle battery.
•You can operate the inverter with the engine running or switched off.
However, do not start the engine while the inverter is switched on,
since the power supply to the cigarette lighter is disconnected
during ignition.
NOTE
Also observe the operating manual of the device you want to charge via
the USB port.
NOTICE!
Do not use any sharp or hard objects for cleaning since they may
damage the device.
MSI200-MSI400-IO-16s.book Seite 14 Freitag, 27. Oktober 2017 9:59 21

EN
SinePower Rectifying faults
15
10 Rectifying faults
INOTE
If you have detailed questions on the specifications of the inverter
please contact the manufacturer.
Fault Cause Remedy
No output voltage, no LED lights
up
No contact to the battery Check contact and cable.
Defective fuse (in the inverter or
the vehicle)
Have an electrician change the
fuse.
No output voltage, green and
red LED light, power consuming
device is swichted off
The battery voltage is less than
11 V (MSI212/MSI412) or 22 V
(MSI224/MSI424)
Charge the battery (start the
engine).
Poor contact to the battery Clean the contacts.
Input voltage too high. Check the input voltage.
reduce the input voltage.
No output voltage, green and
red LED light, power consuming
device is switched on
Overheating Switch off power consuming
devices.
Let the inverter cool down and
ensure better ventilation.
Make certain that the ventilation
slots are not covered.
Lower the ambient temperature.
Inadequate cable connection
(cross section too small or poor
contact)
Use a cable with a larger cross
section and check contacts.
The device switches on and off
repeatedly (up to five times, then
the inverter is switched off)
Excessive load Switch off the device.
Reduce the load.
Switch on the device.
No output voltage, green and
red LED light
Excessive load Switch off the device.
Reduce the load.
Switch on the device.
Short circuit or electrical wiring
error
Switch off the device.
Remove short circuit.
Check electrical wiring.
Switch on the device.
The inverter switches off when
the consumer is switched on,
red Status LED lights
Starting current too high Compare the device power with
the maximum power of the
inverter.
MSI200-MSI400-IO-16s.book Seite 15 Freitag, 27. Oktober 2017 9:59 21

EN
Guarantee SinePower
16
11 Guarantee
The statutory warranty period applies. If the product is defective, please contact the
manufacturer's branch in your country (see the back of the instruction manual for the
addresses) or your retailer.
For repair and guarantee processing, please include the following documents when
you send in the device:
•A copy of the receipt with purchasing date
•A reason for the claim or description of the fault
12 Disposal
➤Place the packaging material in the appropriate recycling waste bins wherever
possible.
MIf you wish to finally dispose of the product, ask your local recycling centre
or specialist dealer for details about how to do this in accordance with the
applicable disposal regulations.
MSI200-MSI400-IO-16s.book Seite 16 Freitag, 27. Oktober 2017 9:59 21

EN
SinePower Technical data
17
13 Technical data
MSI212 MSI224
Rated input voltage: 12 Vg24 Vg
Constant output power: 150 W 150 W
Peak output power: 300 W 300 W
Output voltage: 230 Vwpure sine wave
Output frequency: 50 Hz
Connection data USB charging socket: 5 Vg, 2000 mA
Idle current consumption: < 0.6 A < 0.5 A
Input voltage range: 11 – 15 Vg22 – 30 Vg
Low voltage shutdown: <11 Vg<22 Vg
Ambient temperature: 0 °C to +40 °C
Heat dissipation: Fan
Dimensions: 124 x 199 x 49 mm
Weight: 0.8 kg
Testing/certification:
8
MSI200-MSI400-IO-16s.book Seite 17 Freitag, 27. Oktober 2017 9:59 21

EN
Technical data SinePower
18
For the current EU declaration of conformity for your device please refer to the
respective product page on dometic.com or contact the manufacturer directly (see
back page).
MSI412 MSI424
Rated input voltage: 12 Vg24 Vg
Constant output power: 350 W 350 W
Peak output power: 700 W 700 W
Output voltage: 230 Vwpure sine wave
Output frequency: 50 Hz
Connection data USB charging socket: 5 Vg, 2000 mA
Idle current consumption: < 0.6 A < 0.5 A
Input voltage range: 11 – 15 Vg22 – 30 Vg
Low voltage shutdown: <11 Vg<22 Vg
Ambient temperature: 0 °C to +40 °C
Heat dissipation: Fan
Dimensions: 124 x 199 x 49 mm
Weight: 0.8 kg
Testing/certification:
8
MSI200-MSI400-IO-16s.book Seite 18 Freitag, 27. Oktober 2017 9:59 21

DE
SinePower
19
Bitte lesen Sie diese Anleitung vor Einbau und Inbetriebnahme sorgfältig
durch und bewahren Sie sie auf. Geben Sie sie im Falle einer Weitergabe
des Produktes an den Nutzer weiter.
Inhaltsverzeichnis
1 Erklärung der Symbole . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
2 Sicherheitshinweise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
3 Lieferumfang . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
4 Bestimmungsgemäßer Gebrauch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5 Technische Beschreibung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6 Wechselrichter befestigen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
7 Wechselrichter anschließen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
8 Wechselrichter benutzen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
9 Wechselrichter pflegen und reinigen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
10 Fehlerbeseitigung. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
11 Gewährleistung. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
12 Entsorgung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
13 Technische Daten . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
MSI200-MSI400-IO-16s.book Seite 19 Freitag, 27. Oktober 2017 9:59 21

DE
Erklärung der Symbole SinePower
20
1 Erklärung der Symbole
!
!
A
I
2 Sicherheitshinweise
Der Hersteller übernimmt in folgenden Fällen keine Haftung für Schäden:
•Montage- oder Anschlussfehler
•Beschädigungen am Produkt durch mechanische Einflüsse und Über-
spannungen
•Veränderungen am Produkt ohne ausdrückliche Genehmigung vom Hersteller
•Verwendung für andere als die in der Anleitung beschriebenen Zwecke
2.1 Grundlegende Sicherheit
!WARNUNG!
•Elektrogeräte sind kein Kinderspielzeug!
Kinder können Gefahren, die von elektrischen Geräten ausgehen,
nicht richtig einschätzen. Lassen Sie Kinder nicht ohne Aufsicht elekt-
rische Geräte benutzen.
•Personen (einschließlich Kinder), die aufgrund ihrer physischen,
sensorischen oder geistigen Fähigkeiten oder ihrer Unerfahrenheit
oder Unkenntnis nicht in der Lage sind, das Gerät sicher zu benutzen,
sollten dieses Gerät nicht ohne Aufsicht oder Anweisung durch eine
verantwortliche Person nutzen.
WARNUNG!
Sicherheitshinweis: Nichtbeachtung kann zu Tod oder schwerer
Verletzung führen.
VORSICHT!
Sicherheitshinweis: Nichtbeachtung kann zu Verletzungen führen.
ACHTUNG!
Nichtbeachtung kann zu Materialschäden führen und die Funktion des
Produktes beeinträchtigen.
HINWEIS
Ergänzende Informationen zur Bedienung des Produktes.
MSI200-MSI400-IO-16s.book Seite 20 Freitag, 27. Oktober 2017 9:59 21
