TWELVE CHANNEL

MULTI-ZONE

AMPLIFIER

Model: MA1240a User Manual

(2)

Thank you for purchasing the Dayton Audio®MA1240a Twelve Channel Multi-Zone Ampliﬁer.The versatility of the

MA1240a makes it the perfect choice for almost every type of custom multi-room audio system.Its tabletop or rack-

mountable design allows it to be integrated easily into high-end whole house audio systems.

INSTALLATION:

Dayton Audio ampliﬁers are designed to help deliver a great audio experience. However, where you place the ampliﬁer can

have a large effect on the performance you receive, and the life of the unit. If you are not rack-mounting the ampliﬁer, posi-

tion it with all feet resting on a solid level surface. Be sure that the ampliﬁer is in a well-ventilated area and DO NOT install

the ampliﬁer near a source of heat or in an extremely humid or wet location.

CAUTION: All connections and switching must be done with the ampliﬁer’s power switch positioned to ‘Off’. Connect the

power cord last to be sure that the ampliﬁer is off during all of your connections and set up.

FEATURES:

• 12 channels (6 stereo zones) in one convenient enclosure

• Stable Class AB design delivers superior audiophile sound

quality and performance

• Independent and bus inputs provides unparalleled ﬂexibility

• Bridgeable channel outputs provide additional power

when needed

• Independent channel gain controls allow the output of

each speaker to be perfectly matched

• Switchable 115/230V input voltage

• Manual, auto, or triggered on/off for integration into any

automated system

• Multi-stage protection circuitry for reliability and easy

troubleshooting of audio system

• Installer-friendly setup and connections

• Can be converted easily between rack-mount and

tabletop conﬁgurations

• Heavy-duty steel chassis with brushed aluminum faceplate

FRONT PANEL:

1. Master Power Switch / Indicator LED

Front panel pushbutton power switch turns the ampliﬁer

on and off.When the switch is on and the indicator LED

is red, the ampliﬁer is in standby mode.The remote turn

on switch (located on the rear) is either in the “trigger”

or “auto” position.When the LED is blue, the ampliﬁer is

fully active.The master power switch will turn off the am-

pliﬁer no matter which power mode has been selected.

2. Zone Status Indicators

Each pair of channels or zones has a bi-color LED to

indicateitsoperationalstatus.Theseindicatorsprovidequick

andeasytroubleshootingofthesystem.Ifthecircuitrydeter-

mines that a channel must be shut down due to excessive

heat or low impedance (a short), only the channels that are

affected will be turned off causing the zone LED to turn red.

Theremainingzoneswillcontinuetooperateand maintaina

blue LED status. Once the condition has been corrected for

the zone in question, the status LED will return to blue.

Note:Whenthe powerLEDisredand thezonestatusLEDS

are not lit (off), indicates the unit is in standby mode.

Fuse:T8AL 250VAC FOR 115VAC 60Hz

Fuse:T4AL 250AVC FOR 230VAC 50Hz

Date Code:

(3)

REAR PANEL:

3. BUS Line Inputs / Outputs

The MA1240a has two common or BUS inputs that

receives audio signals from standard line-level audio

sources and sends them to any or all channels.The BUS

line outputs are direct feed-through to allow the BUS

inputs to be fed to other ampliﬁers.Be sure to use high

quality RCA cables that feature low impedance, shielding

and high quality connectors.

4. RemoteTurn-On Switch

Thisswitch selects the turn-onstimulithat will puttheampli-

ﬁer in ready mode.“Trigger” setting relies on 3-30V AC/DC

voltage going into the trigger input to activate the ampliﬁer.

“Auto”setting senses a signal on the RCA line-level inputs

andautomaticallyputstheampinready mode.“On”setting

puts the amp constantly in ready mode so that it can be

controlled by the master power switch on the front panel.

In “Auto” mode, the ampliﬁer will take approximately 15

minutes to return from ready to standby mode.

5.Trigger Input / Output

The trigger input is a handy feature when connecting the

ampliﬁer to an automated audio system.The 3.5mm mini-

plug jack will accept a 3-30V AC/DC output from another

device, or from a separate power supply.When the trigger

inputisenergized,the amp turnsfrom standbytoONmode.

When using the MA1240a with a receiver without a trigger

output, the voltage can come from a 12V wall wart (3.5mm

tip-positiveconnector) plugged into the receiver’s switched

outlet and the trigger input.The MA1240a can also provide

an output trigger voltage (12DC @500mA max.) to turn on

and off other devices in the audio system.When the ampli-

ﬁer turns off (standby mode), the voltage will drop to zero.

Note: Remember there is a delay of approximately 15

minutes before the ampliﬁer goes to standby when using

the “Auto” turn-on mode.

6. Channel Gain Control

Each channel has its own independent level adjustment.

This allows the output level of each speaker to be per-

fectly matched to its area. It can also be used to limit the

maximum audio level in a certain area.

7. Bridging Switch

By simply ﬂipping a single switch, two channels can be

combined to increase the total power output.This is helpful

when extra power is needed in certain areas.

Note: The minimum impedance for bridged channels is 8

ohms.Also,pleaseobservetheproperspeakerwiring when

bridging channels. Input selection and volume settings for

bridged channels will be controlled bytheleftchannel.“BR”

is bridged mode and “ST” is non-bridged or stereo mode.

CAUTION: Only change switch positions when the

ampliﬁer is turned off.

8. Input Selection Switch

Each channel is capable of delivering the source from

many inputs. The three main inputs are BUS 1, BUS 2

and LINE IN. The selection for these inputs is done via

the Input Selection switch associated with each channel.

Select the desired source input. Set the Input Selection

switch to BUS 1 (will play source connected to the BUS

1 input), BUS 2 (will play source connected to the BUS

2 input) or LINE IN (will play source connected to that

channel’s LINE IN).

CAUTION: Only change switch positions when the

ampliﬁer is turned off.

9. Speaker OutputTerminals

The MA1240a uses high quality Phoenix style connectors

for the speaker connections. Use 14-18 gauge stranded

two-conductor loudspeaker wire.Ensure that at least

2 inches of each conductor are separated. Strip away

¼ inch of insulation from each conductor. Connect the

appropriate conductor to each screw terminal, observing

correct polarity. Also, please observe proper speaker wir-

ing when bridging channels.

10. Individual Channel Input

All twelve channels have their own dedicated input that

allows the connection of audio sources in addition to

the common BUS inputs.This is useful when using the

MA1240a with an audio matrix switcher.

11. AC Voltage Switch

Theunitisset at the factory for115VU.S.operation;simply

connect the included IEC power cord to your wall outlet.

For230Voperation,movethe voltageselectorswitch to the

230V position. When operating at 230V the internal fuse

located in the IEC socket should also be changed.In most

230V applications a separate power cord will be required

and is not included.

12. IEC Power Connector

The unit comes with an IEC jack that permits removal of

the AC power cord.This allows the ﬂexibility of changing

the power cord for different countries.The IEC socket

also houses the main fuse holder. Plug the power cord

supplied with the ampliﬁer into the ampliﬁer and wall

outlet or appropriate surge protector.

CAUTION: DO NOT plug the ampliﬁer’s power cord into

a switched outlet, such as what is provided on some Sur-

round Receivers. If you wish to have the ampliﬁer turn on

when the Receiver is powered up, use one of the power

modes, such as Trigger or Auto.

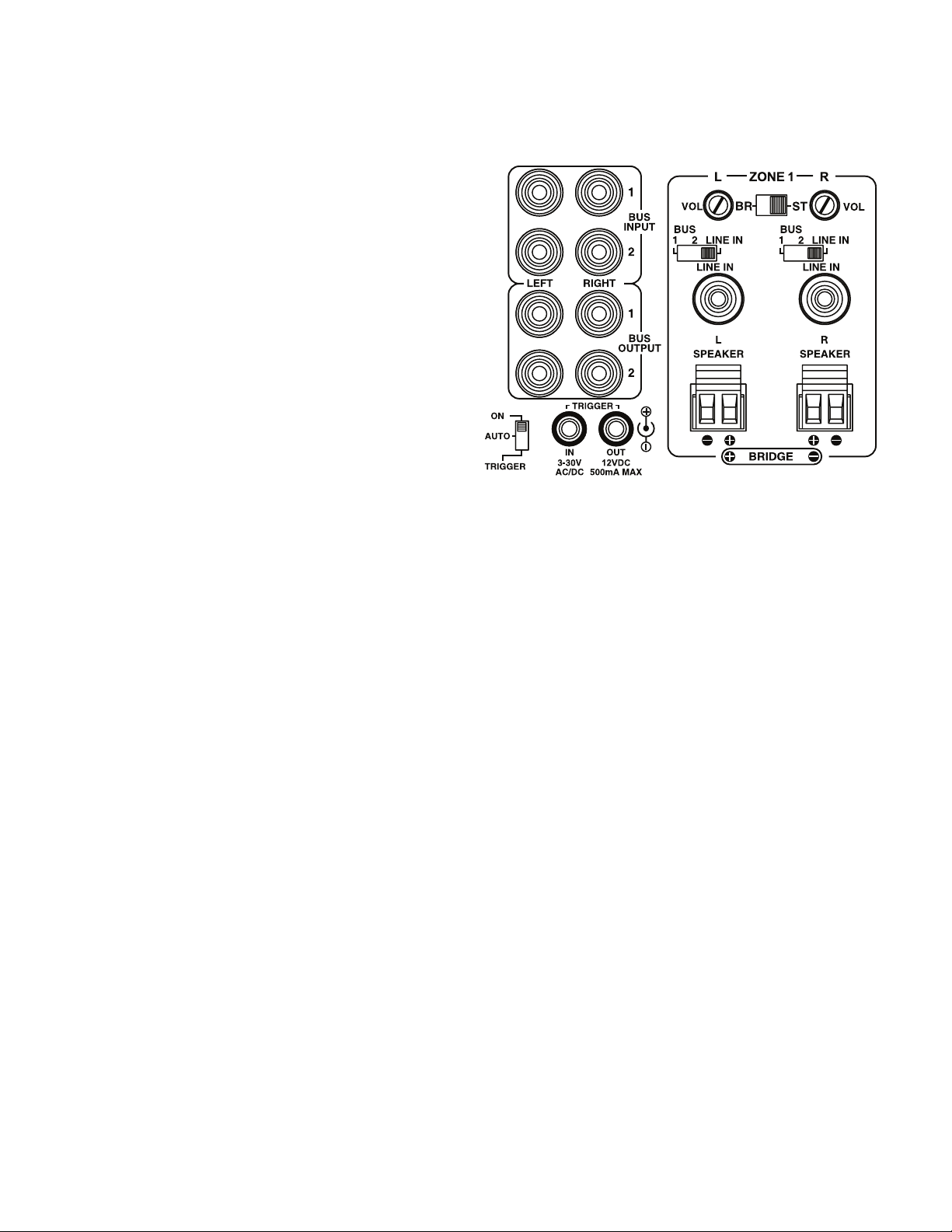

CLOSE UP OF CONNECTIONS

(4)

NOTES ABOUT HUM:

While the MA1240a has been designed to minimize the possibility

of hum in the audio system, it is still possible that a hum will oc-

cur in rare circumstances. Its safety grounding can create a path

for small amounts of 60 Hz energy to travel through the line-level

audio system. Although not dangerous, this energy can cause

difﬁculty with the auto signal sensing circuit, and at the very least

will interfere with the quiet enjoyment of your system. The ﬁrst

course of action should be trying to make sure that all of the audio

components are connected to either the same electrical outlet, or

at least into the same circuit branch. Next, cable TV systems are

notoriously the culprit, so be sure to try disconnecting all coaxial

feeds that are connected to the system.If this solves the problem,

install a coaxial line isolator and reconnect the system.In the very

worstcase,aline-level audioisolator/transformerconnectedtothe

line-in of the ampliﬁer will usually solve the problem.

TYPICAL 6-ROOM INSTALLATION

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of electric shock, do not remove cover. No user serviceable parts inside. Refer

servicing to qualiﬁed personnel. To reduce the risk of ﬁre and shock do not expose unit to rain or

moisture.The unit should be connected to an earth grounded AC electrical socket.The unit should

be operated in a well ventilated area. Minimum clearance is 2 inches from the ventilation openings.

Note: Unit is set at the factory for 120V operation. Be sure to change the fuse (4A rating) before

switching to 230V operation.

daytonaudio.com

tel + 937.743.8248

info@daytonaudio.com

705 Pleasant Valley Dr.

Springboro, OH 45066

USA

SPECIFICATIONS:

Rated Power Output: 40 watts per channel RMS at 8 ohms

Bridged Power Output: 80 watts per channel RMS at 8 ohms

(8 ohm minimum)

Input Sensitivity:

380 mV for full output with all level controls at max.

Input Impedance: 18K ohm

Frequency Response: 5 Hz to 72 kHz

Distortion: .005% THD 20 Hz-20 kHz @ 30W (8 ohm)

Distortion (Bridged): .010% THD 20 Hz-20 kHz @ 80W (8 ohm)

Channel Crosstalk: 80 dB

Signal to Noise Ratio: 105 dB A-weighted

Efﬁciency: 63%

Power Requirements: 115/230 VAC, 60 Hz/50 Hz

Stand-By Power Rating: 115V, 0.264W *

AutoTurn-On Sensitivity: 13.7mV

Dimensions: 16.7”W x 4” H (including feet) x 14.25” D

Weight: 33 lbs.

*The MA1240a complies with the ENERGY STAR and CE EuP directive.
