SERIES 4 & SERIES 5
12 O’CLOCK CABINET
Installation Instructions

OVERVIEW
2
SERIES 4 & SERIES 5 12 O’CLOCK CABINET
Installation Instructions
VALANCE
(varies by model)
ACCESSORIES PANEL
AND CABLE CHASE
COMPUTER
STORAGE
DELIVERY MOUNTING
NITROUS STORAGE
METAL SUB BASE
SOLID SURFACE
COUNTERTOP
(varies by model)
GFCI ELECTRICAL
OUTLETS / USB HUB
CLOCK MODULE
(Series 5 only)

SERIES 4 & SERIES 5 12 O’CLOCK CABINET
Installation Instructions
INTRODUCTION
3
Overview
Introduction
Dimensional Specications
Site Preparation
Installation
Door and Drawer Alignments
Electrical Outlets
BEFORE YOU BEGIN
SYMBOLS USED IN THIS MANUAL
Study the overview and dimensional specications. Make sure
the planned location will have the necessary space available for
installation, including room for all of the operatory equipment.
Locate all documentation supplied with the package. Manuals
and installation sheets may be found in one or more boxes
accompanying their respective components. Set aside the
Instructions For Use for the end user to review.
The following symbols may be used throughout this product manual:
WARNING: Failure to carefully follow the described
procedure may result in damage to the equipment or the
operator.
ELECTRICAL HAZARD: Risk of electrical shock
present. Ensure that power is disconnected before
attempting procedure.
TABLE OF CONTENTS
2
3
4
5
6
9
10
CAUTION: Failure to carefully follow the described
procedure may result in damage to the equipment.
NOTE: Take note of additional important information.
Not a warning or caution.
Regulatory information is delivered with
DCI Edge dental equipment as mandated
by agency requirements and can be found
in the accompanying Instructions For Use
for this device.
REGULATORY INFORMATION

DIMENSIONAL SPECIFICATIONS - SERIES 5
4
SERIES 4 & SERIES 5 12 O’CLOCK CABINET
Installation Instructions
TOP VIEW
SIDE VIEW FRONT VIEW

SERIES 4 & SERIES 5 12 O’CLOCK CABINET
Installation Instructions
SITE PREPARATION
5
FIRST STEPS
AIR
Pipe: 1/2” n.p.t. Protruding 1” from the oor. Supplied by contractor.
Air supply: pressure 80-100 psi. Air should be free from contaminants.
Pipe: 1/2” n.p.t. Protruding 1” from the oor. Supplied by contractor.
Water supply: pressure 40-80 psi. Water should be ushed clean before connecting to this equipment.
ELECTRICAL
Electrical: 4 x 4 x 2-1/4” Connection Box with 1/2” conduit knockouts.
Wire box as per local code with top of the box no higher than 4-1/2” above nished oor.
Voltage: 115 VAC, 3 wire, 15 or 20 amp with ground fault circuit interrupter (Series 5 cabinet only).
Pipe: supplied by contractor. Terminated with 5/8 OD tube protruding 1” from the nished oor.
Pipe: 5/8” OD tube protruding 1” from the oor. Place trap in-line and use vented tting to conform to local codes.
Supplied by contractor.
CENTRAL VACUUM
GRAVITY DRAIN
WATER
1
Lay the installation template over plumbing stub-ups and check the position in the operatory.
2Install air and water shut-off valves (not supplied).
3Install 4 x 4 electrical connection box.
4Mark the cabinet mounting points according to the template.
WARNING: Ensure the cabinet is
properly grounded to protective earth.
WARNING: 3rd party x-ray systems must be
connected to a dedicated electrical circuit.
CAUTION: Electrical utilities must be installed according to local codes and by a licensed electrician.
See “Electrical Outlets” Page 11

INSTALLATION
WALL HANGING RAIL
1
Remove cabinet modules from their packaging.
2
Identify the hardware kits and provided literature.
6
SERIES 4 & SERIES 5 12 O’CLOCK CABINET
Installation Instructions
WARNING: Always lift cabinets by the bottom edge, being careful to lift with your legs and not your
back. Do not lift from the underside of the counter.
1
Identify the location of the wall studs in the wall to which the cabinet will be mounted and make a mark 71-1/2” from
the oor at the center of each stud.
2
Identify the vertical centerline of the cabinet position on the wall, and make a mark on the centerline which is 71-1/2”
from the oor. Draw a level, horizontal line at the height of your centerline mark.
3
Locate the 40” hanging rail and place it against the wall with the hole centers of rail aligned with the horizonal line.
5
Mount the rail to the wall using the lag screws provided. Use toggle bolts between studs to maximize strength as
necessary.
4
Find the midpoint on the hanging rail and align it with your centerline mark. Identify the holes in the hanging rail
which align to the marks you made for your studs. Keep the rail midpoint as close to the centerline mark as possible.
For cabinets which include a Support Wall, skip to the next page.
PREPARATIONS

SERIES 4 & SERIES 5 12 O’CLOCK CABINET
Installation Instructions
INSTALLATION
7
1Position the Support Wall in its nal location in the installation area and align the back face of the Lower
Cabinet to it. Be sure the Lower Cabinet is centered against the Support Wall.
2
With a helper, use the 1/2” holes in the metal base frame to mount the Support Wall to the oor. Secure using
1/2” lag bolts (or 1/2” anchors for concrete).
3
Level the cabinet with the 4 levelers included. Note
that there are access holes inside the cabinets to use
the 5mm Hex tool provided.
5
Use the provided oor mount brackets and
3/8” lag bolts (or 3/8” anchors for concrete).
Insert the lag bolt or anchor through the slot in
the bracket and drive the lag bolt into the oor to
secure the metal base to the oor.
4
Attach the Lower Cabinet to the Support Wall using the wood screws provided.
For cabinets with a Support Wall
SUPPORT WALL & LOWER CABINET
Position the bracket inside
of the base and overlapping
the bottom ange.

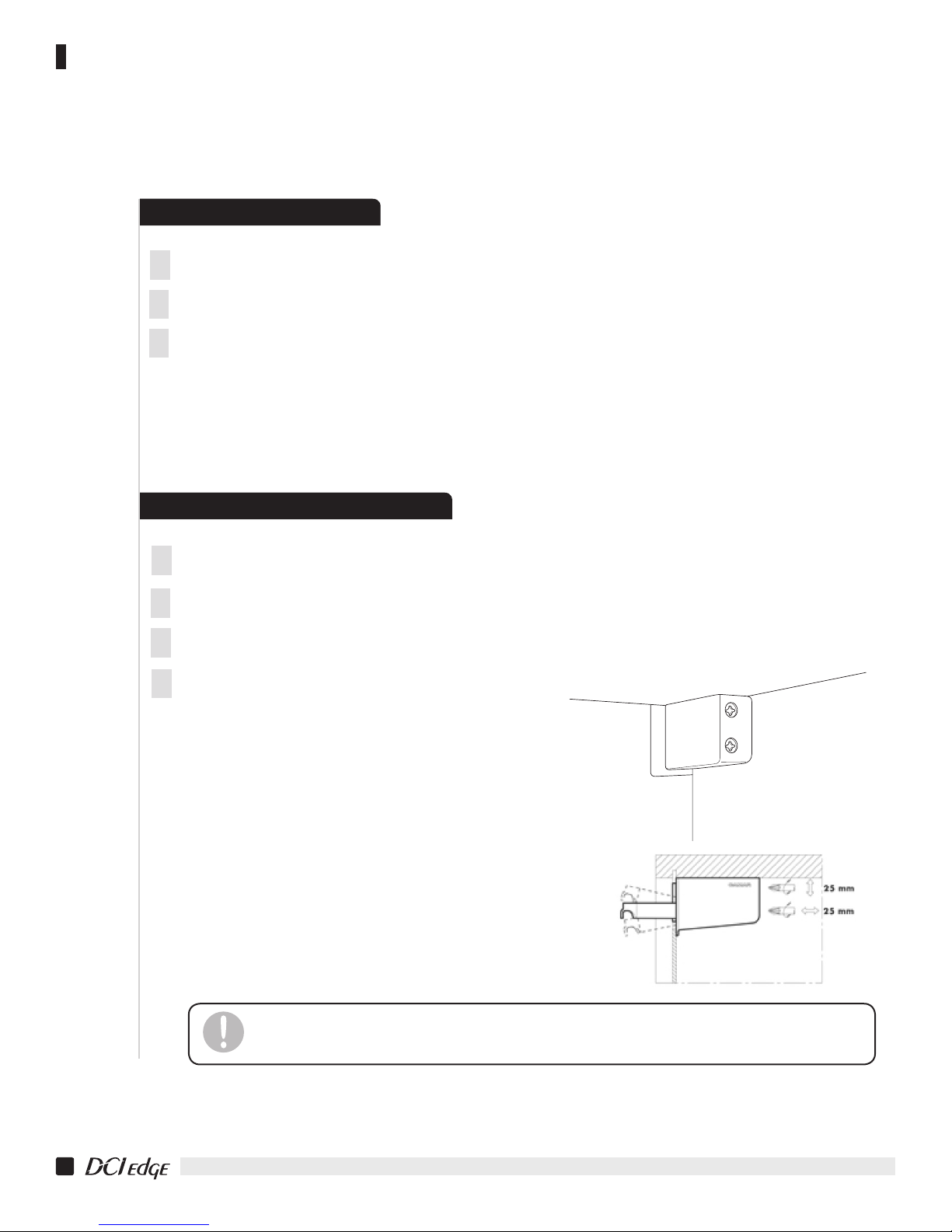

INSTALLATION
INSTALLING THE CHASE
1Remove the front panel from the Chase.
2
Center the Chase on the counter of the Lower Module.
3If mounting to a wall,
drill and screw the back of the chase
to the wall studs using the screws provided. Use toggle
bolts if no studs align with the chase.
INSTALLING THE UPPER CABINET
1
Remove the doors and shelves from the upper module to make it easier to lift.
2
With a helper, hang the Upper Module on the hanging rail located on the wall (see page 6) or on the Support Wall.
8
SERIES 4 & SERIES 5 12 O’CLOCK CABINET
Installation Instructions
3
Ensure that all brackets are engaged on the rail.
If mounting to a Support Wall, drill and attach the Chase
directly to the Support Wall using the wood screws provided.
4
Adjust the attachment at the rail as follows using a
Pozidrive #2 screwdriver:
Level the Upper Cabinet using the brackets which are
located in the upper corners of the Upper Cabinet.
Make small adjustments to each bracket so as to
ensure that they stay mounted on the rail.
The top screw of the bracket will raise or lower the
Upper Cabinet on each corner. Turning the screw
clockwise raises the cabinet. Counterclockwise
lowers it.
Once leveling is complete, use the lower screw of the
bracket to draw the Upper Cabinet to the wall.
NOTE: ALWAYS use a #2 Pozidrive screwdriver when making adjustments to the hanging brackets
which are located in the upper corners of the Upper Cabinet.

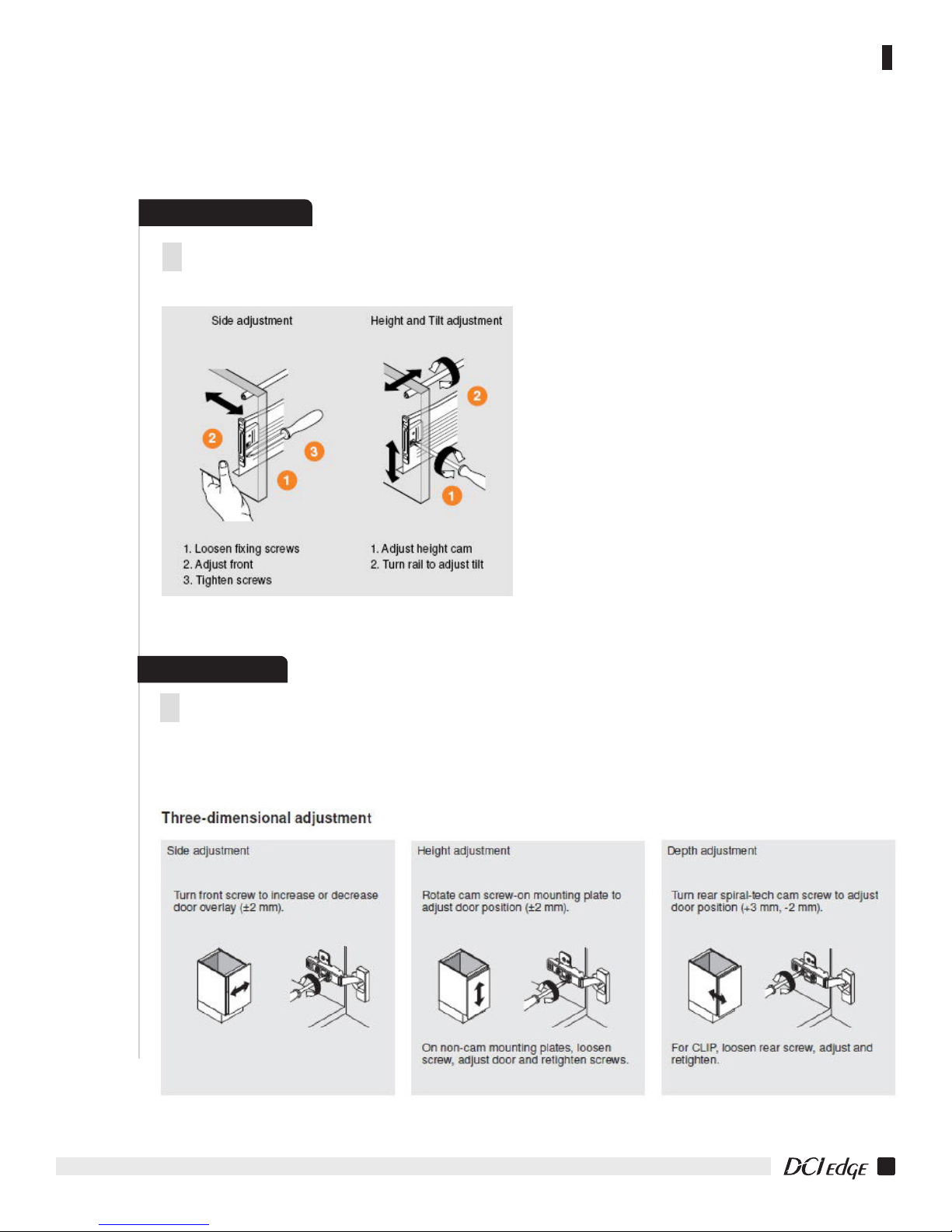

DOOR AND DRAWER ALIGNMENTS
9
SERIES 4 & SERIES 5 12 O’CLOCK CABINET
Installation Instructions
ALIGN DRAWERS
ALIGN DOORS
1
Align drawer faces and seams by adjusting the drawer face attachment.
2
Align door faces and seams by adjusting the hinges.

ELECTRICAL OUTLETS (SERIES 5 ONLY)
10
SERIES 4 & SERIES 5 12 O’CLOCK CABINET
Installation Instructions
DIAGRAM
This product must be connected to a grounded metal, permanent wiring system, or an equipment-grounding
conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead
on the product.
GREEN WIRE - CONNECT TO MAINS GROUND
BLACK WIRE - CONNECT TO NEGATIVE CONTACTS
WHITE WIRE - CONNECT TO POSITIVE CONTACTS
GROUNDING INSTRUCTIONS

DCI International, LLC
305 N. Springbrook Road
Newberg, OR 97132, USA
PN 67017, Rev. A, 2018-09-14
