ddtop GLCG User manual

1/ 10
WWW.DDTOP.COM
GLCG
BUFFER/BARRIER FLUID SYSTEM
Operation Manual
GLCG-DT-JS-1034-2019(A)

2/ 10
WWW.DDTOP.COM
Preface
Thank you for choosing the products of Dandong TOP Electrical Appliance (Group) Co.
This instruction manual provides you with important information on installation, connection and
commissioning as well as for maintenance, troubleshooting and storage. Please read it carefully
before installation and commissioning and keep it close to the instrument as an integral part of the
product, so that you can refer to it at any time.
You can download this instruction manual by entering the version number at www.ddtop.com.
If the instrument is not operated in accordance with these instructions, the protection provided by
the instrument may be impaired.
Trademark, Copyright and Restriction Instructions
Dandong Top Electronics Instrument (Group) Co., Ltd.®, Dandong Top Pump Co., Ltd.®, DDTOP®
are registered trademarks of the company.
The performance specifications of this instrument are effective from the date of publication and are
subject to change without notice. Dandong Top Electronics Instrument (Group)Co.,Ltd. reserves the
right to modify the products described in this manual at any time without notice.
Quality Assurance
Dandong Top Electronics Instrument (Group) Co., Ltd. guarantees all LBTC Positive Displacement
Rotary Vane Flow Meter to be free from defects in materials and manufacturing processes within
one year from the date of delivery.
During the warranty period, Dandong Top Electronics Instrument (Group) Co., Ltd. is responsible for
repairing or replacing the equipment free of charge for the buyer (or owner) if the product is
returned with quality problems and the claim made is determined to be covered by the warranty
after inspection by the manufacturer.
Dandong Top Electronics Instrument (Group) Co. Ltd. shall not be liable for improper use of the
equipment, labor claims, direct or subsequent damage, or costs arising from the installation and use
of the equipment. Dandong Top Electronics Instrument (Group) Co., Ltd. does not provide any
warranty, either express or implied, except for special written warranty certificates for certain
products of Dandong Top Electronics Instrument (Group) Co., Ltd.

3/ 10
WWW.DDTOP.COM
Quality
Dandong Top Electronics Instrument (Group) Co., Ltd. has passed the ISO9001 quality system
certification. The whole production process is carried out in strict accordance with the provisions of
the quality system to provide the strongest guarantee for the quality of products and services.

4/ 10
WWW.DDTOP.COM
CONTENT
1 Safety Tips .................................................................................................................................................5
1.1 An explosion may cause death or serious injury. ............................................................................. 5
1.2 Serious injury or death may result from process leakage.............................................................. 5
1.3 Failure to comply with safety installation guidelines may result in death or serious injury.5
2 Product Description ...................................................................................................................................5
2.1 Main product structure - Figure 1......................................................................................................... 5
2.2 Operating Principle..................................................................................................................................... 6
2.3 Packaging....................................................................................................................................................... 6
2.4 Lifting for transport..................................................................................................................................... 6
2.5 Storage............................................................................................................................................................ 6
3.2 Main Technical parameters.....................................................................................................................7
4 Outline drawing .........................................................................................................................................7
Figure 2 Outline drawing ............................................................................................................................8
5 Unpacking and Checking...........................................................................................................................8
5.1 Precautions for unpacking inspection .................................................................................................. 8
5.2 Check the contents ..................................................................................................................................... 9
6 Installation..................................................................................................................................................9
6.1 Installation tools........................................................................................................................................... 9
6.1.1 Wrenches, welding machines, etc. for process connections...................................................... 9
6.2 Methods of use and operating procedures - Figure 4................................................................... 9
7 Disassembly.............................................................................................................................................10
7.1 Warnings ......................................................................................................................................................10
7.2 Waste removal............................................................................................................................................10

5/ 10
WWW.DDTOP.COM
1 Safety Tips
Unauthorized modification or alteration of the product is expressly forbidden for safety
reasons. Repair or replacement is permitted only with parts specified by the
manufacturer.
1.1 An explosion may cause death or serious injury.
When installing equipment in explosive atmospheres, always follow applicable local,
national, and international standards, codes, and procedures. Ensure that equipment is
installed in accordance with intrinsically safe or non-flammable site work procedures.
1.2 Serious injury or death may result from process leakage.
If the process seal is damaged, leakage of media may occur at the connection.
1.3 Failure to comply with safety installation guidelines may result in death or serious injury.
All operations described in these instructions must be performed by trained and
qualified or end-user appointed personnel.
2 Product Description

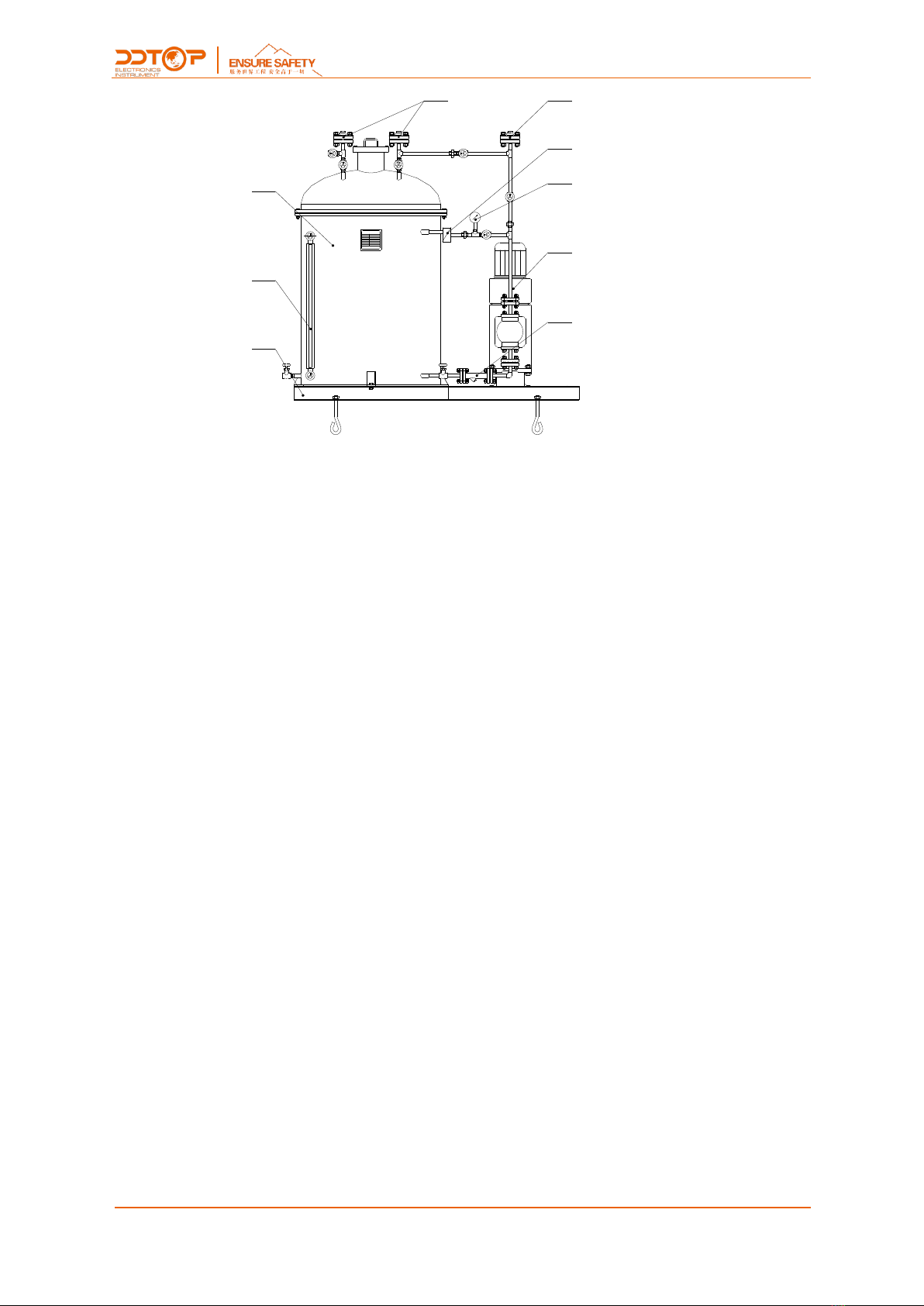

2.1 Main product structure - Figure 1

6/ 10
WWW.DDTOP.COM
日期/编 号
丹东 通博 电器 （集 团 ） 有限 公司
型 号 GLCG-200/16GLCG-200/16
出口流量 200L/h200L/h
出口压力 0-16MPa0-16MPa
电机电压 /功率 380VAC/4.0KW380VAC/4.0KW
储罐容 量 1.1m31.1m3
防爆等 级 ExdExdⅡCT4CT4
材 质 304304
隔离液 充灌装 置
1 2
3
4
5
6
7
8
9
Figure 1
1. Inlet flanges: connecting to the air and water pipes of the device separately.
2. Outlet flanges: connecting to piping to be filled
3. Relief valve: stabilizing pressure and preventing overload to ensure constant export pressure.
4. Pressure gauge: indicating the change in outlet pressure.
5. Metering pumps: pressurizing and delivering isolation fluid.
6. Filter: filtering impurities from storage tanks
7. Base frame: fixing and supporting
8. Glass tube level meter: displaying the height of the isolated liquid level in the tank.
9. Liquid storage tanks: storage of isolation fluids
2.2 Operating Principle
Buffer/Barrier Fluid System is mainly composed of isolated fluid storage tank, level gauge, filter,
metering pump and various valves, etc. The device is pressurized by metering pump to deliver the
isolated fluid in the storage tank to the process device, to achieve antifreeze and cleaning effect and
ensure the continuous and stable operation of the process device.
2.3 Packaging
Please take the packaging waste to a special recycling facility.
2.4 Lifting for transport
Please use qualified lifting equipment and lifting straps, and pay attention to safety.
2.5 Storage
Storage temperature -20℃~40℃; storage humidity≤20%.

7/ 10
WWW.DDTOP.COM
3.2 Main Technical parameters
Outlet Pressure: 0～5MPa, 0～8MPa, 0～10MPa, 0～16MPa
Outlet Flow Rate: 125L/h, 160L/h, 200L/h
Tank Capacity: 1.1 m3
Motor Power：2.2kW、4kW
Power Supply：380VAC 50Hz
System Material: 304

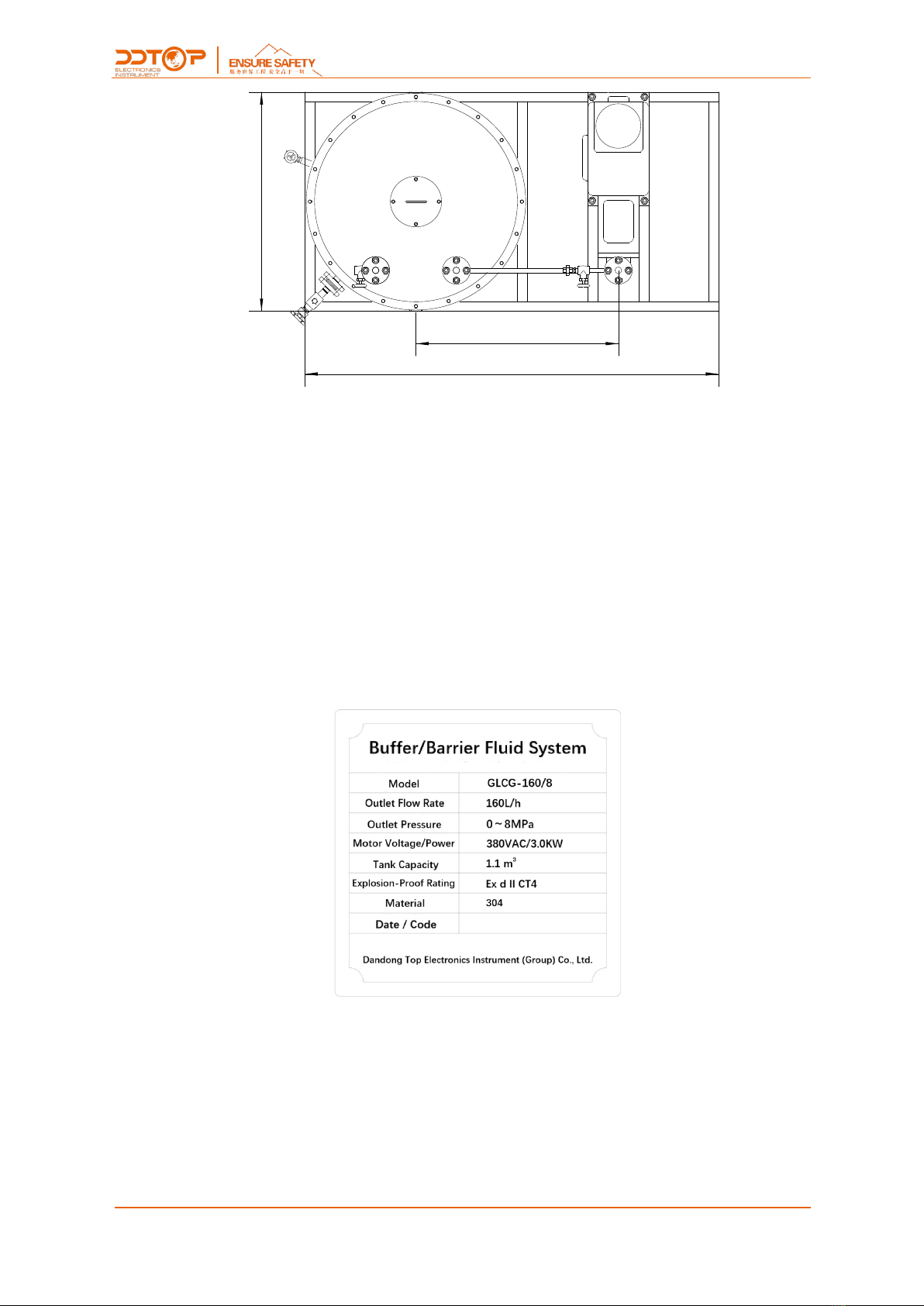

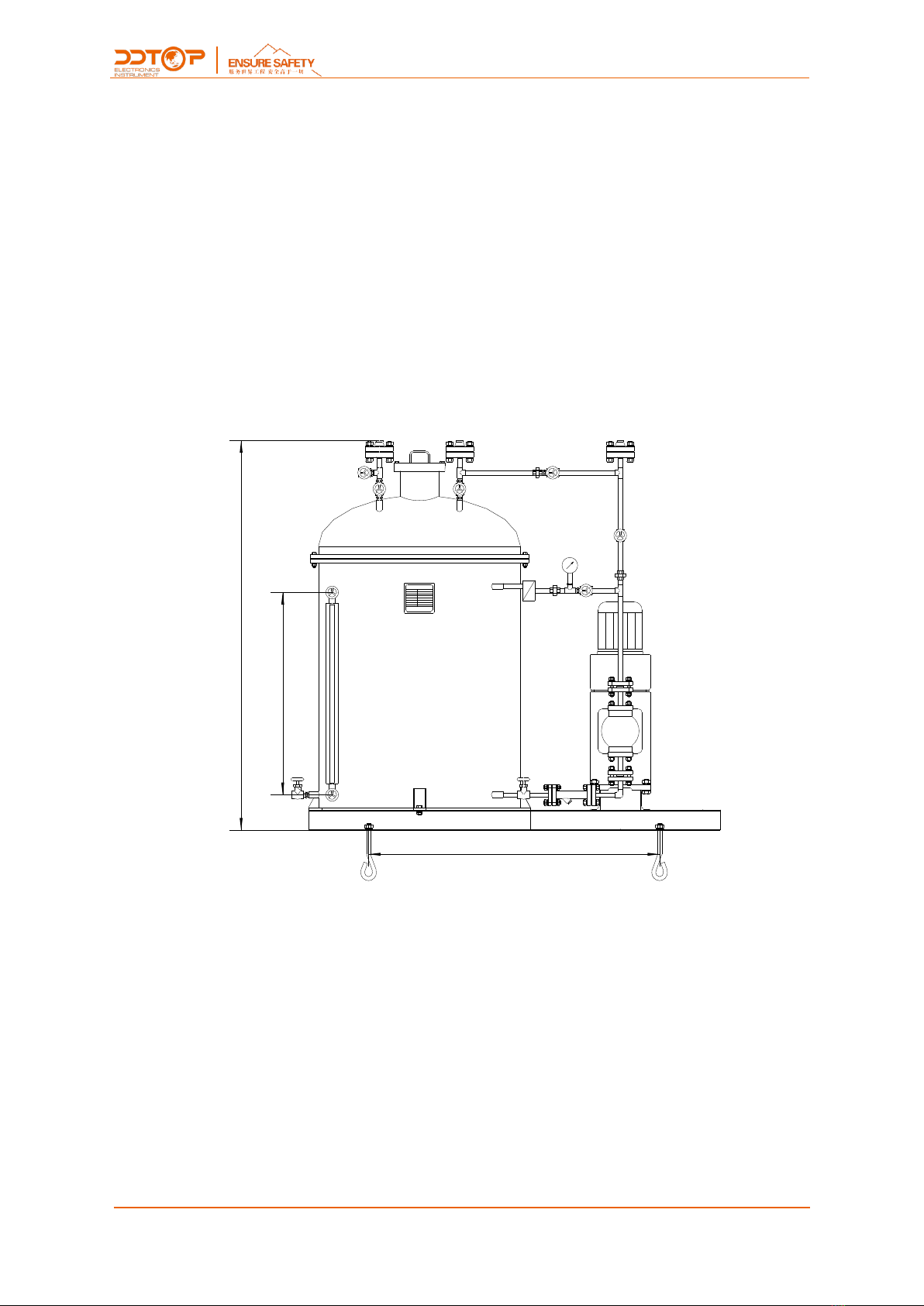

4 Outline drawing
日期/编号
丹东 通 博 电 器 （ 集 团 ） 有 限 公 司
型 号 GL CG- 200/16GLCG -200/16
出口流量 200 L/h200L/h
出口压力 0-1 6MPa0 -16MPa
电机电压/功率 380V AC/4.0KW380V AC/4.0KW
储罐容量 1.1m31. 1m3
防爆等级 ExdE xdⅡCT4C T4
材 质 3043 04
隔离液充灌装置
1800
1000
1450

8/ 10
WWW.DDTOP.COM
1100
1000
2050
Figure 2 Outline drawing
5 Unpacking and Checking
5.1 Precautions for unpacking inspection
5.1.1 Check whether the Product Name Plate (Figure 3) is consistent with the information in the
supply list.
Figure 3 Product Name Plate
5.1.2 Check whether the quantity and material of each part are correct against the packing list.

9/ 10
WWW.DDTOP.COM
5.2 Check the contents
5.2.1 Check the appearance of the meter for defects, damage, etc.
6 Installation
6.1 Installation tools
6.1.1 Wrenches, welding machines, etc. for process connections
6.2 Methods of use and operating procedures - Figure 4
空气 水
出口接空气系统
快换接头
1 2 3 4 5
6
7
8910
图4
1. After the installation of the equipment, the first thing is to check the equipment thoroughly and
carefully. The liquid storage tank and pipeline should be purged and cleaned to prevent debris from
entering the pipeline system.
2. When filling the isolation fluid, connect the No. 10 isolation fluid tank with quick-change
couplings as shown in Figure 4. Close valve 2 and slowly open valve 1. Slowly press the antifreeze
solution into the reservoir with compressed air and close valve 1 when the demand is reached.
3. Close valve 4 and open valve 3. Fill the tank proportionally with fresh water and open valve 2. Stir
the solution with compressed air, and close valve 3.

10 / 10
WWW.DDTOP.COM
4. Once the above is completed, the outlet pressure adjustment can be made. First, close the valve 5,
and open the valve 7, start the metering pump. After the metering pump runs normally, adjust the
pressure regulator 6 until it is adjusted to the required pressure. At this point you can open the
valve 5 on the system for filling.
5. During the summer months, valves 3 and 5 can be closed and valve 4 opened to directly fill the
system with fresh water, depending on the conditions.
7 Disassembly
7.1 Warnings
Before disassembly, attention should be paid to hazardous process conditions, such as excessive
pressure in the piping.
7.2 Waste removal
Please follow the existing guidelines for waste disposal in your region.
