Sirius Signal C-1002 User manual

Our Products Are Made in the USA
C-1002 Operation Manual
SKU: SSDC1002-ROC
Keep Americans working, buy made in the USA!
(Complies with “Buy American Act” — may contain imported components)
Patent Pending
Batteries installed and ready for immediate use
Please READ INSTRUCTIONS before use or servicing

Sirius Signal | 1042 N. El Camino Real, B-200 Encinitas, CA 92024 | [phone] |SiriusSignal.com
2
Contents
1FEATURES.................................................................................................................4
2SAFETY WARNINGS..................................................................................................4
3MODES ....................................................................................................................4
3.1 Manual Mode ......................................................................................................4
3.2 Bluetooth Mode ...............................................................................................5
4CHANGING BATTERIES.............................................................................................5
4.1 Reinstalling the LED Module .................................................................................6
5SPECIFICATIONS ......................................................................................................7
5.1 Environment ........................................................................................................7
5.2 Buoyancy .............................................................................................................7
5.3 LED Wavelength...................................................................................................7
5.4 Run Time .............................................................................................................7
5.5 Average Effective Intensity for Visual Light ............................................................8
5.6 Average Effective Intensity for Infrared Light .........................................................8
5.7 Sure Swift Paddle Switch Design ...........................................................................8
5.8 Battery Requirement.............................................................................................8
5.9 Bluetooth .............................................................................................................8
5.10 Dimensions.......................................................................................................8
5.11 Weight ..............................................................................................................8
5.12 Additional Compliance......................................................................................9
6DISPLAYING THE LIGHT............................................................................................9
7MAINTENANCE ........................................................................................................9
8THE SIRIUS SIGNAL SYSTEM .....................................................................................9
9THE SIRIUS SIGNAL APPLICATION ............................................................................9
9.1 Installation of Phone Application ........................................................................10
9.2 Operation of Phone Application .........................................................................10
9.2.1 Home Page...............................................................................................10
9.2.2 Test Light ..................................................................................................10

Sirius Signal | 1042 N. El Camino Real, B-200 Encinitas, CA 92024 | [phone] |SiriusSignal.com
3
9.2.3 Float Plan .................................................................................................11
9.2.4 Contacts ...................................................................................................11
9.2.5 Check-Me .................................................................................................11
9.2.6 SOS..........................................................................................................11
9.2.7 First Aid ....................................................................................................12
10 TROUBLESHOOTING..............................................................................................12
10.1 Light Won’t Light .............................................................................................12
10.2 Only Half the LEDs Light .................................................................................12
10.3 Mobile App Issue. ...........................................................................................13
Figures
Figure 1: Polarity of CR2032 Coin Cell ............................................................................6
Figure 2: Polarity of CR123A Batteries .............................................................................6
Figure 3: Installation of CR123A Batteries in Battery Tray .................................................7
Figure 4: Illustration of Collar Position When Properly Tightened......................................7
Figure 5: Collar Retention Tab .........................................................................................5
Figure 6: Reinstalling the LED Module..............................................................................6

Sirius Signal | 1042 N. El Camino Real, B-200 Encinitas, CA 92024 | [phone] |SiriusSignal.com
4
1 FEATURES
1.1 Manually turn on the light by setting the Sure Swift Paddle Switch two
clicks fully to the right. DO NOT PULL DOWN OR PUSH UP ON
SWITCH; IT OPERATES SIDE TO SIDE.
1.2 Enable Bluetooth mode by setting the switch to the center position.
1.3 DO NOT LEAVE UNIT SWITCH IN BLUETOOTH MODE UNLESS
OPERATING LIGHT FOR DISTRESS SITUATIONS. IF SWITCH IS LEFT IN
BLUETOOTH MODE WHEN NOT USING DEVICE, PRIMARY CELLS WILL
DISCHARGE.
2 SAFETY WARNINGS
2.1 This is not a toy and should be treated as such. The SOS function should only
be used in an emergency.
2.2 Use only premium CR123A lithium batteries.
2.3 Do not mix batteries from different manufacturers.
2.4 Do not mix fresh and used batteries.
2.5 Observe the proper polarity installation of the batteries.
2.6 Dispose of the used batteries properly.
2.7 Warning: Do not look directly at the light; it is extremely bright. In addition, it
contains an infrared LED emitting infrared light that can’t be seen.
2.8 The red collar can become warm during extended operation. If used as a
handheld device, do not touch the collar during operation.
3 MODES
3.1 Manual Mode
With label facing toward you, turn the Sure Swift Paddle Switch two clicks fully to the
right (past the SECOND detente). DO NOT PULL DOWN OR PUSH UP ON SWITCH;
IT OPERATES SIDE TO SIDE.
The light will begin the SOS pattern — 3 short orange/red flashes followed by 3 longer
cyan flashes followed by 3 orange/red flashes. The pattern repeats. To turn unit off, fully
return switch with left two clicks to the off position marked on the label.
Do not leave the unit switch in Bluetooth mode unless operating the light for
distress situations. If the switch is left in Bluetooth mode when not using the device,
primary cells will discharge.
!
!
!
!

Sirius Signal | 1042 N. El Camino Real, B-200 Encinitas, CA 92024 | [phone] |SiriusSignal.com
5
3.2 Bluetooth Mode
Move the Sure Swift Paddle Switch to the middle Bluetooth position (past the FIRST
detente). Use the Sirius Signal application to turn on the light (available by registering your
device at SiriusSignal.com). Open the application and press the Test Light button. It might
take up to 30 seconds to connect. Upon connecting, the light will begin the SOS pattern: 3
short orange/red flashes followed by 3 longer cyan flashes followed by 3 orange/red
flashes. The pattern repeats.
Bluetooth mode requires a cell phone with the Sirius Signal application to work.
Do not leave the unit switch in Bluetooth mode unless operating the light for
distress situations. If the switch is left in Bluetooth mode when not using the device,
primary cells will discharge.
4 CHANGING BATTERIES
The light requires eight premium CR123A lithium batteries and one CR2032 lithium coin
cell. The light will operate without the coin cell, but it is required as a backup for the
Bluetooth. Periodically, the state of the batteries should be checked by turning the light on
for a moment. The battery capacity can also be checked by switching the light to Bluetooth
mode. The Sirius Signal application will the report the capacity on the first page. Green
signifies charged batteries; red signifies low charge.
To replace the batteries, unscrew the red collar while intermittently striking the side of the
float on hard flat surface. This will release the watertight seals. Gently lift the LED module
out of the housing along with the red collar. Remove the spent batteries and replace them
with the new batteries, observing the proper polarity. See Figures 2 and 3 on the next
page. The polarity is shown on the battery holder for the CR123A batteries. Use good
quality batteries. Replace the coin cell (CR2032) with the positive side facing the outside of
the module. See Figure 1.
Collar retention tab
The molded retention collar tab does not need to be fully
seated in the collar groove to prevent it from separating from
the body. See Figure 5.
Figure 5.
!

Sirius Signal | 1042 N. El Camino Real, B-200 Encinitas, CA 92024 | [phone] |SiriusSignal.com
6
4.1 Reinstalling the LED Module
Hold unit with label facing you. Check O-ring on top of the
body for fitment in top groove, then carefully align the
module to go back inside the housing. Take note of hole in
the PC board. See Figure 6. Reinstall, making certain the
hole goes over the red rotor shaft. Advance the collar slightly
to engage threads. Do not cross the threads. Slowly turn the
collar while gently rotating and pushing optic downward
until it locks into place. Continue tightening the collar until it
stops against float. Fully tightened, the raised bump should
be well past 3 o’clock. See Figure 4. IF YOU EXPERIENCE
ANY, DIFFICULTY STOP. Unscrew the collar, remove the
module, and then try again.
Figure 6.
Figure 1: Polarity of CR2032 Coin Cell Figure 2: Polarity of CR123A Batteries

Sirius Signal | 1042 N. El Camino Real, B-200 Encinitas, CA 92024 | [phone] |SiriusSignal.com
7

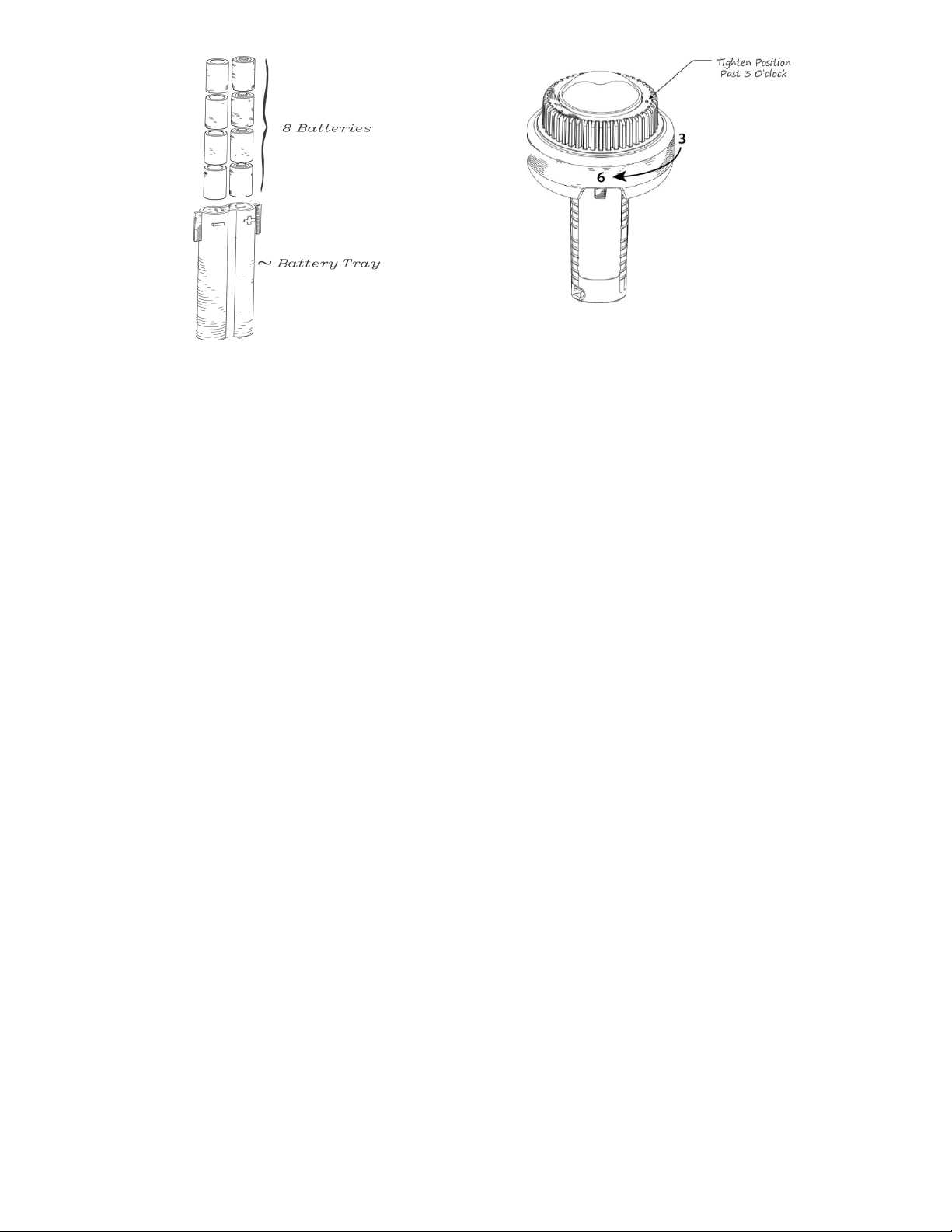

Figure 3: Installation of CR123A Batteries in Battery
Tray
Figure 4: Illustration of Collar Position When Properly
Tightened
5 SPECIFICATIONS
5.1 Environment
The operating temperature range is -1°C to +30°C (30.2°F to 86°F), and the storage
temperature range is -20°C to +55°C (-4°F to 131°F).
5.2 Buoyancy
The device is capable of floating with the light output fully visible above the waterline in
calm freshwater or saltwater. It is also submersible.
5.3 LED Wavelength
The LED wavelength is 6 red/orange 610-620 nm 6 cyan 490-520nm 1 IR 740-890
(flashes USCG spec SOS signal in colors and infrared).
5.4 Run Time
Performance specification run time is two hours. The C1002 has an innovative feature that
allows the light to continue after the specified two hours at half power, illuminating half of
the LEDs. This extends the total operational run time approximately six hours.
5.5 Average Effective Intensity for Visual Light
For the orange/red and cyan LEDs, the Average Effective Intensity exceeds 50cd in a
hemispherical distribution.

Sirius Signal | 1042 N. El Camino Real, B-200 Encinitas, CA 92024 | [phone] |SiriusSignal.com
8
5.6 Average Effective Intensity for Infrared Light
The infrared LED output is described in a different way. It significantly exceeds 21mW/Sr in
a hemispherical distribution.
5.7 Sure Swift Paddle Switch Design
The switch is designed to be activated with one hand SIDE TO SIDE. With the label
facing upward, the OFF position is marked fully left, Bluetooth is in the middle, and
manual ON is far right.The added space in the Bluetooth mode switch area provides
additional momentum for a single-hand activation even with a glove on.
5.8 Battery Requirement DO NOT USE
RECHAREABLES
Requires eight CR123A batteries (included) and one CR2032 coin cell (included).
Device performance can vary widely by selection of batteries. Look for premium, high
milliamp hour range batteries of at least 1600 mAh for optimal performance.
5.9 Bluetooth
Bluetooth-enabled with enhanced connectivity.
Do not leave the unit switch in Bluetooth mode unless operating the
light for distress situations. If switch is left in Bluetooth mode when
not using the device, primary cells will discharge.
5.10 Dimensions
5.10.1 Height: 8.5” (21.59cm)
5.10.2 Diameter: 5” (12.70cm)
5.11 Weight
5.11.1 Without batteries: 1.080 lbs.
5.11.2 With batteries: 1.366 lbs.
5.11.3 Shipping weight (with packaging): 1.708 lbs., P/N SOS C-1002
5.12 Additional Compliance
5.12.1 CE (European Compliant)
!

Sirius Signal | 1042 N. El Camino Real, B-200 Encinitas, CA 92024 | [phone] |SiriusSignal.com
9
5.12.2 RoHS Compliant
6 DISPLAYING THE LIGHT
The light can be used as a handheld location device that can be manually operated. In
addition, it can be attached to the craft and displayed at a higher point such as optional
mount or rod holder so it can be seen at a greater distance. Put the light in Bluetooth
mode. After positioning it, use the Sirius Signal application to turn it on.
The distance to the horizon—the practical limit on the distance any light can be seen—can
be estimated by the following formula:
7 MAINTENANCE AND SERVICE PARTS
The light can be cleaned with a soft cloth and warm water.During routine battery
replacement or inspection, if any seals look dry, apply a quality silicone grease on
the seal surface. All service parts are available directly from Sirius Signal.
8 THE SIRIUS SIGNAL SYSTEM
As a precision safety device, the light provides an intense visual SOS for greater than two
hours. It is the “Locate” part of Sirius Signal's “Alert and Locate” system.
This system is composed of an application that comprises the “Alert” part of the system.
This application allows you to send location data via text and phone calls to recipients you
select to alert them you have a problem. The light provides the “Locate” function to allow
respondents to find you.
9 THE SIRIUS SIGNAL APPLICATION
You can register your device at https://siriussignal.com/owners/.Registration allows you to
download the Sirius Signal application to your phone; it’s compatible with Android 5.0 and
up and IOS 13.0 and up. You will be allowed multiple downloads of the Sirius app with the
issued product code key. If you are not the original purchaser of the Sirius Signal C-1002
SOS eVDSD, but it is part of your boat’s safety equipment, you will need to re-register as
the new owner of unit. A small fee is required. Go to the Sirius Signal website. Click on
store, then “choose new product code key” to purchase.
9.1 Installation of Phone Application
See video on our website, SiriusSignal.com/application/, or follow the directions below.

Sirius Signal | 1042 N. El Camino Real, B-200 Encinitas, CA 92024 | [phone] |SiriusSignal.com
10
Android
Search for Sirius Signal in the Google Play store or use the following link:
https://play.google.com/store/apps/details?id=siriussignals.siriussignals.Click
“Install” on the Google Play profile screen. This will install the app on your device.
iPhone
Open the Apple Store App and search for the Sirius Signal application or use this link to
go directly to the App Store download screen:
https://apps.apple.com/app/id1501459745. Once on the app profile screen, tap
“Get” and tap “Install.” This will install the app on your device.
9.2 Operation of Phone Application
Tap on the Sirius Signal icon to open the application.
9.2.1 Home Page
Clicking the “Test Light” button toggles the light on or off if the switch on the light is in the
center position, Bluetooth mode. (It might take a few seconds to connect to the
phone the first time the button is pressed.)
Clicking on the blue box or clicking on the triple bar on the upper left and choosing
“Contacts” allows you to enter a list of contacts for the “Check-Me” or “SOS” functions.
Clicking the white “Start Trip” button sends you to the “Float Plan” form provided to inform
others of the details of your trip.
Clicking on the yellow Check-Me button causes the program to send the previously set up
message to the previously set up list of Check-Me recipients.
Clicking on the red SOS button causes the program to send the previously set up message
and a text to voice phone call to the previously set up list of emergency recipients.
9.2.2 Test Light
This button toggles the C1002 light on and off. Set the switch on the light to the center
Bluetooth mode position. Place the device in an open position where it can be seen, the
higher the better. Then open the Sirius Signal application and tap the “Test Light” button. It
can take up to 30 seconds to connect. The light will then turn on and begin flashing SOS.
9.2.3 Float Plan
Fill out the Float Plan to describe your trip. The float plan pulls recipients from the contact
entry list only. List the passengers aboard, preferably in alphabetic order. Add the area of
operation or final destination. If you will be going to multiple destinations, list them. Enter
your departure and arrival times so respondents will know when you’re expected back. List
