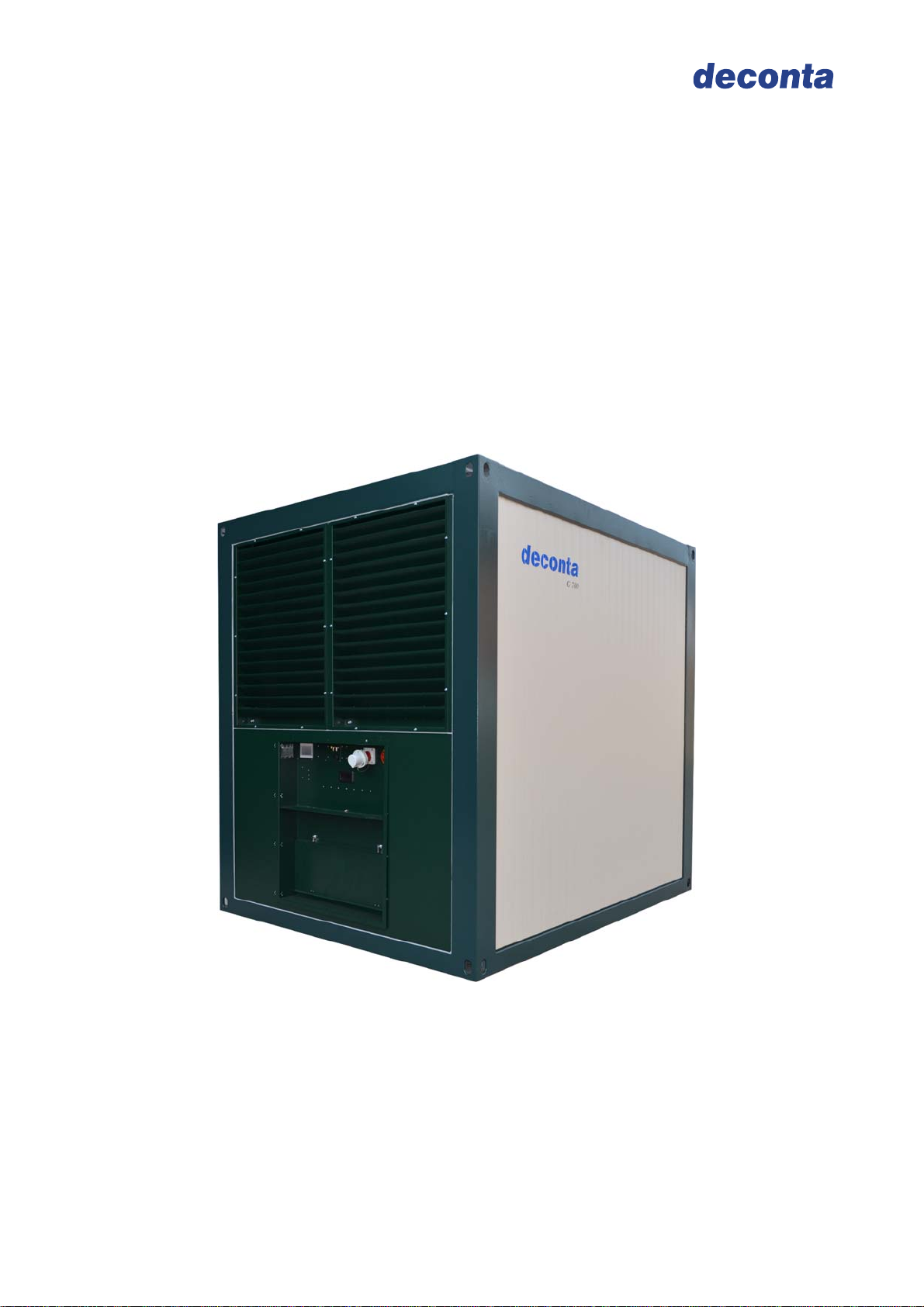

deconta green dec G 700 User guide

Original instruction manual
Negative Pressure Units
green dec
G 700
Manufacturer: deconta GmbH
Im Geer 20, 46419 Isselburg
Designation / Type No.: Negative pressure unit green dec G 700 Typ 704
Serial No.: .................

Instruction Manual
Negative Pressure Unit green dec G 700
Version 3 Page 2
Table of contents
1.Basic safety advice............................................................................................................3
1.1.Intended use....................................................................................................................................4
1.2.Dangers ...........................................................................................................................................5
2.Transport and storage.......................................................................................................6
2.1.Transport..........................................................................................................................................6
2.2.Storage ............................................................................................................................................6
3.Delivery contents ...............................................................................................................6
4.Technical data....................................................................................................................7
4.1.Performance data............................................................................................................................7
4.2.Connections, dimensions, weights ..................................................................................................7
4.3.Filter description / classification.......................................................................................................8
4.3.1.Pre-filter ...................................................................................................................................8
4.3.2.Bag filter...................................................................................................................................9
4.3.3.HEPA filter ...............................................................................................................................9
5.Technical description ......................................................................................................10
5.1.Unit description..............................................................................................................................10
5.2.Control SRE connect.....................................................................................................................10
6.Assembly instruction.......................................................................................................11
7.Initial operation ................................................................................................................12
7.1.Preparations ..................................................................................................................................12
7.2.Control SRE connect.....................................................................................................................13

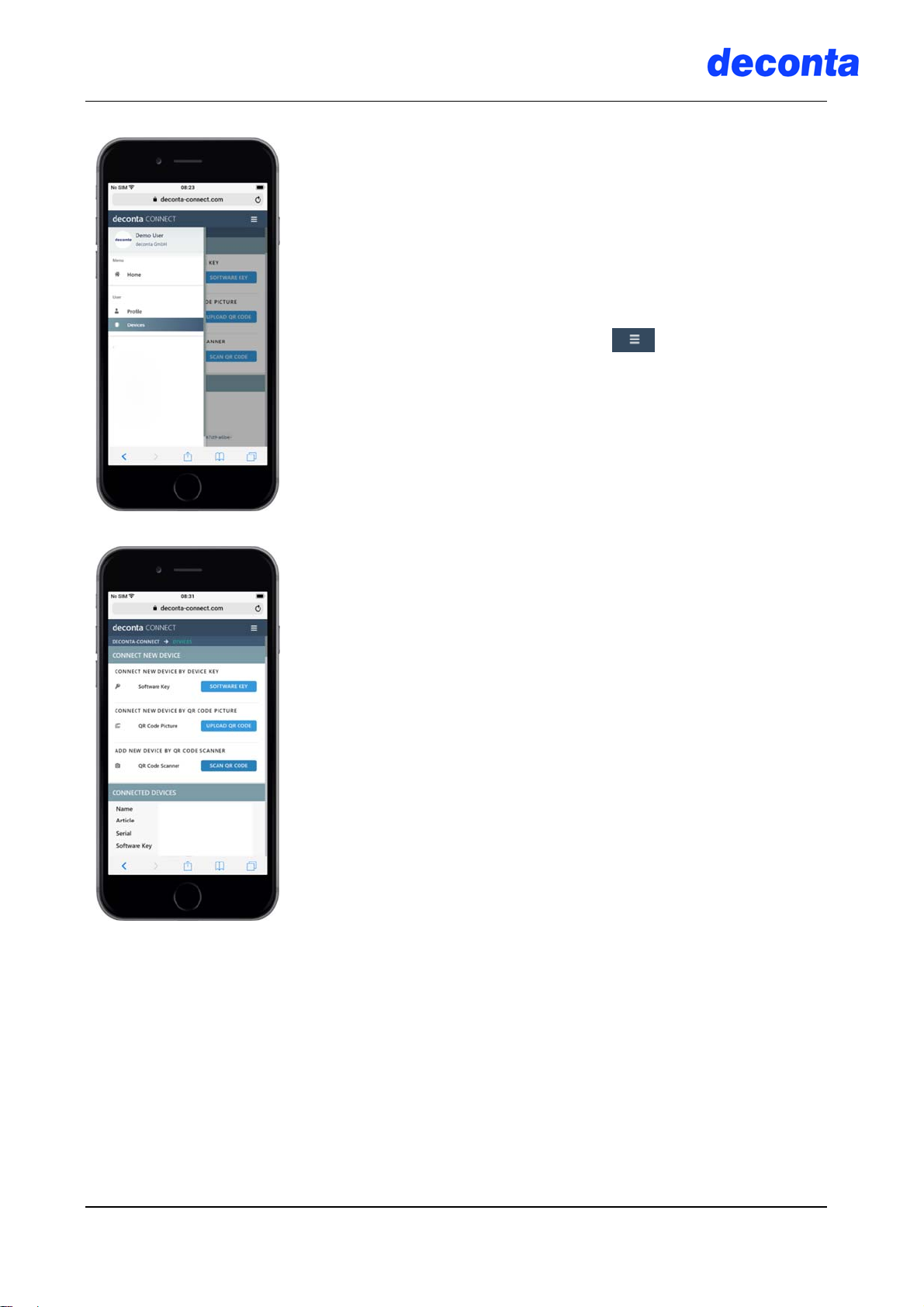

7.2.1.Create your user account ......................................................................................................14
7.2.2.Add the device to your user account.....................................................................................15

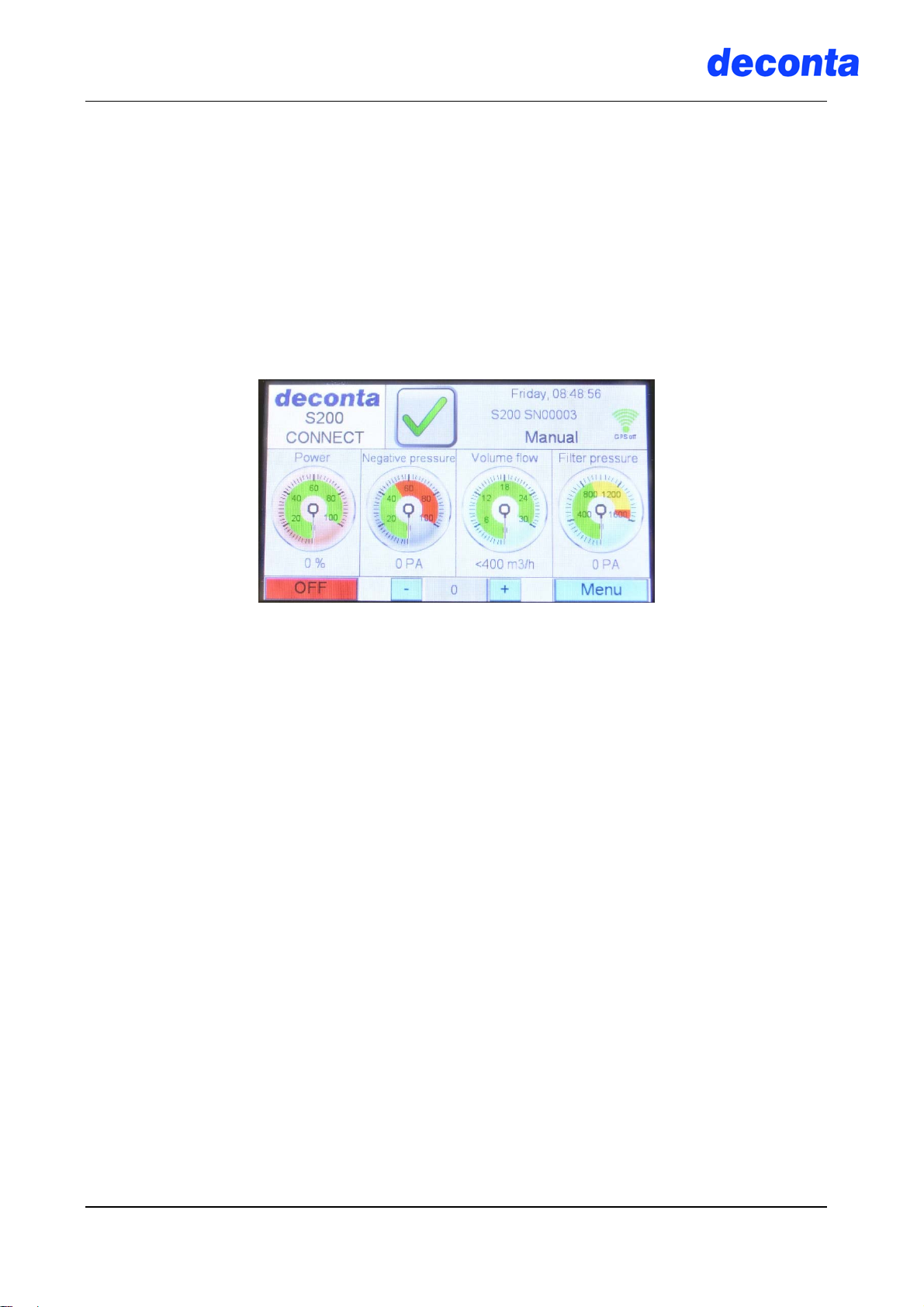

7.2.3.Manual mode.........................................................................................................................18
7.2.4.Automatic mode.....................................................................................................................19
7.2.5.Day / Night setting .................................................................................................................20
7.2.6.Standby mode........................................................................................................................20
7.2.7.Consumption..........................................................................................................................21
7.2.8.Dust sensor............................................................................................................................21
7.2.9.Service...................................................................................................................................22
7.2.10.Software packages................................................................................................................24
7.2.11.Device information.................................................................................................................25
7.2.12.Alarms....................................................................................................................................25
7.2.13.Turn off the device.................................................................................................................27
8.Maintenance .....................................................................................................................28
8.1.Information on filter change...........................................................................................................28
8.2.Filter change..................................................................................................................................29
9.Possible disturbances and their elimination.................................................................32
10.Sound level measurements.............................................................................................33
11.Declaration of Conformity...............................................................................................34

Instruction Manual
Negative Pressure Unit green dec G 700
Version 3 Page 3
The copyright of this instruction manual remains with deconta. This manual is intended for assembly,
operation and maintenance personnel. It contains instructions and drafts of technical nature which may
neither be distributed nor used in any unauthorised way for competitive purposes or passed on to others.
1.Basic safety advice
The operation of the negative pressure unit (NPU) must only be carried out by trained
competent personnel. The information and instructions contained within this publication
are of paramount importance to the user.
The manual is always to be kept in the immediate proximity, accessible to all personnel.
deconta insists as the NPU user you follow the information and instruction contained within
the handbook and only use it in accordance with the regulations and never use this
Negative Pressure Unit in an inappropriate way. In case of non-observance, deconta
assumes no liability.
To ensure safe operation of the NPU, the following must be strictly observed:
Do not use in potentially explosive atmospheres.
Maintenance work, including removal and replacement of the filters, may only be
carried out by authorized persons wearing suitable protective clothing.
The device must be completely disconnected from the power supply during all
repairs and maintenance work.
The safety and protective systems must be maintained and functioning correctly.
Safety instructions affixed to the unit must be maintained in a legible condition and
must be adhered to.
General, legal and other binding regulations and procedures for accident prevention
and handling of hazardous substances must be observed.
To ensure safety, modifications to the device are not permitted.
To avoid damage, never operate the unit without built-in filters.
ATTENTION!
The negative pressure units are not suitable for use in condensing, corrosive,
flammable and explosive atmospheres.
We explicitly refer to the additional regional and national safety measures and
regulations when operating the device technology.
The filter must be checked by an oil thread test (DOP / DEHS) upon initial operation
and after each HEPA filter change by the operator.
Devices with SRE connect control should be checked and calibrated once a year
by the deconta service.
In addition to the instruction manual, general, legal and other binding regulations on
accident prevention and environmental protection must be observed.

Instruction Manual
Negative Pressure Unit green dec G 700
Version 3 Page 4
1.1.Intended use
The negative pressure unit is designed for filtering non-condensing, asbestos-
contaminated room air, in the temperature range up to +45 ° C, with exhaust air discharged
to atmosphere.
In the case of asbestos removal work within contaminated areas, it is expected that
airborne asbestos fibres will escape the contaminated area and pose a risk to human
health and environment. For these reasons, contaminated areas are separated from the
asbestos-free areas and kept under dynamic negative pressure by means of negative
pressure units.
An integrated filter system reduces the airborne asbestos fiber concentration to a figure of
max. 1000F/m
3
in the exhaust air. The exhaust air is expelled to the open air.
The device is not suitable for filtering flammable gases or dusts.
The user must comply with the specified operating parameters of this manual.
The device may only be used according to its intended use. Any further use beyond this is
not intended. The user is liable for any damages or injuries of any kind whatsoever.

Instruction Manual
Negative Pressure Unit green dec G 700
Version 3 Page 5
1.2.Dangers
DANGER
Electric shock due to faulty mains cable.
Touching a defective mains cable may result in death or serious injury.
Do not damage the mains cable (e.g. by vehicle overrun, tearing, squeezing).
Regularly check the mains cable for damage.
Have defective mains cable replaced before use by the deconta service or a
qualified electrician
CAUTION
Damage due to unsuitable mains voltage.
The device can be damaged if it is connected to an unsuitable mains voltage.
Check whether the voltage indicated on the rating plate matches the local mains
voltage.
WARNING
Hazardous materials.
The following materials must not be filtered:
Hot materials (glowing cigarettes, hot ash, etc.)
Combustible, explosive, aggressive materials and dusts
WARNING
Contaminated filters.
Filter changes may only be carried out by authorised persons who carry suitable
protective clothing.
Dispose of the filter according to the legal requirements.

Instruction Manual
Negative Pressure Unit green dec G 700
Version 3 Page 6
2.Transport and storage
2.1.Transport
A crane / forklift with a minimum lifting capacity of 2.2 tons is required for unloading. The
unloading point should be firm and level.
Transport damages must be documented immediately upon delivery by the supplier.
Please also note any damage on the consignment note.
2.2.Storage
To avoid any damages, the device should only be stored in clean dry inaccessible rooms
intended for unauthorised persons only.
Attach the transport lids on the suction side and, if used filters are installed, also cover
them.
3.Delivery contents
Included in the delivery contents of a negative pressure unit, independent of whether a
device has been purchased or rented, unless other agreements have been made:
Negative Pressure Unit
Instruction manual
Transport lid (3 parts)
25 m measuring hose
Return after the end of the rental period
For the protection of our customers and in the sense of dangerous goods transport
regulations, we must insist on the following conditions of return:
As listed above
Thoroughly cleaned (ready for use)
Free from any adhesive residues
Without residual fiber bonding agent
Without filters
Without damages

Instruction Manual
Negative Pressure Unit green dec G 700
Version 3 Page 7
4.Technical data
4.1.Performance data
Air performance incl. filters 70.000 m³/h
Power connection 400 V, 50 Hz
Power consumption 35 A
Motor power 4 x 5,7 kW
Filter system 3-stage
Pre-filter EU4 dimensions: 610 x 610 x 47
Bag filter F5 dimensions: 592 x 592 x 600
HEPA filter dimensions:: 610 x 610 x 292
4.2.Connections, dimensions, weights
Power connection 400 V, 63 A
CEE add-on device connector, 5-pin
Length x width x height 2990 x 2435 x 2890 mm
Total weight without filter approx. 1900 kg
Total weight incl. filter approx. 2200 kg

Instruction Manual
Negative Pressure Unit green dec G 700
Version 3 Page 8
4.3.Filter description / classification
Integrated in the device is a 3-stage filter combination.
4.3.1. Pre-filter
Quality class acc. to DIN 24185 / EN 779 G4 / EU4
Frame Cardboard frame, 47 mm wide
Filter medium Synthetic
Degree of separation (Am) 90 %
Nominal volume flow 5400m³/h/m²
Nominal flow velocity at nominal volume 1,5 m/s
Initial pressure drop 42 Pa
Recommended final pressure drop 250 Pa
Temperature / humidity 100°C/100% RH (relative humidity)
Filter dimensions (in mm) 610 x 610 x47

Instruction Manual
Negative Pressure Unit green dec G 700
Version 3 Page 9
4.3.2. Bag filter
Filter class acc. to DIN EN 779 F5
Degree of separation (Am) 96 %
Nominal volume flow 3400 m³/h
Initial pressure drop 48 Pa
Recommended final pressure drop 250 Pa
Temperature / humidity 55 °C / 100 % RH (relative
humidity)
Filter dimensions (in m²) 5,1 m²
Filter dimensions (in mm) 592 x 592 x 600 mm
4.3.3. HEPA filter
Frame Plastic
Filter medium Micro fiberglass paper
Casting compound Polyurethane
Seal Polyurethane
Filter class H13 or H 14 acc. to EN 1822
Temperature / humidity 70°C/100% RH
(relative humidity)
Filter dimensions (in mm): 610 x 610 x 292
Grip protection Double-sided

Instruction Manual
Negative Pressure Unit green dec G 700
Version 3 Page 10
5.Technical description
5.1.Unit description
Negative pressure unit as a container system for filtering asbestos-contaminated room air
via a 3-stage filter unit.
effective air output 70,000 m³ / h
three filter stages consisting of a HEPA filter, bag filter and pre-filter
energy-efficient and performance-optimised fan with high-capacity
HEPA filter acc. to EN 1822 class H13 or H14
automatic or manual negative pressure control / volume flow control
automatic soft start, even after power failure
all operating control and functional elements are shock-protected
automatically opening / closing exhaust flaps

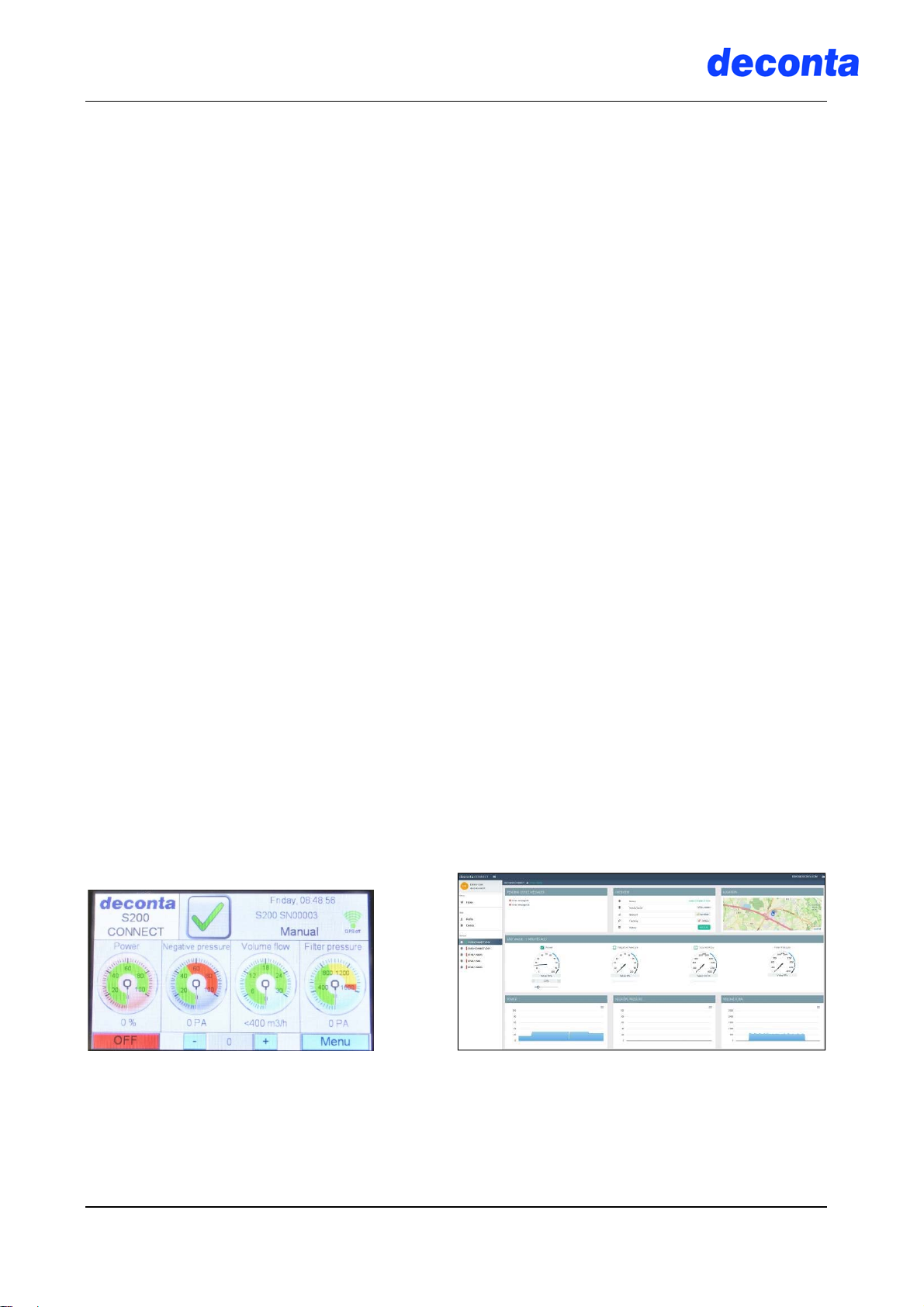

5.2.Control SRE connect
IoT (Internet of Things) => Devices with SRE connect control can be remotely controlled
and monitored with any internet-enabled computer, mobile phone or tablet.
For power regulation, the negative pressure unit is supplied with a control via a touch
display to measure and regulate the negative pressure and / or the volume flow.
The negative pressure is measured between the containment area and a reference point
to be defined (adjacent rooms) and kept at the set point value by continuous speed
control of the electric fan.
The volume flow is measured in the device and kept at the set point value by continuous
speed control of the electric fan.
A manual control is also possible.
A filter sensor monitors the particle concentration in the exhaust air and triggers an
optical and acoustic alarm if a value of 100 particles per liter is permanently exceeded.
A necessary filter change is shown on the display.

Instruction Manual
Negative Pressure Unit green dec G 700
Version 3 Page 11
6.Assembly instruction
The Negative Pressure Unit is shipped ready-to-use from the factory and is intended for
immediate commissioning.
In case of visible damage, do not operate the unit.
Please contact deconta GmbH immediately.
• Place the container on the containment area
• Seal the container with the containment area
• Ensure sufficient supply air in the containment area
• Remove the transport lid
• Establish a power connection
clean area
containment area
supply
air

Instruction Manual
Negative Pressure Unit green dec G 700
Version 3 Page 12

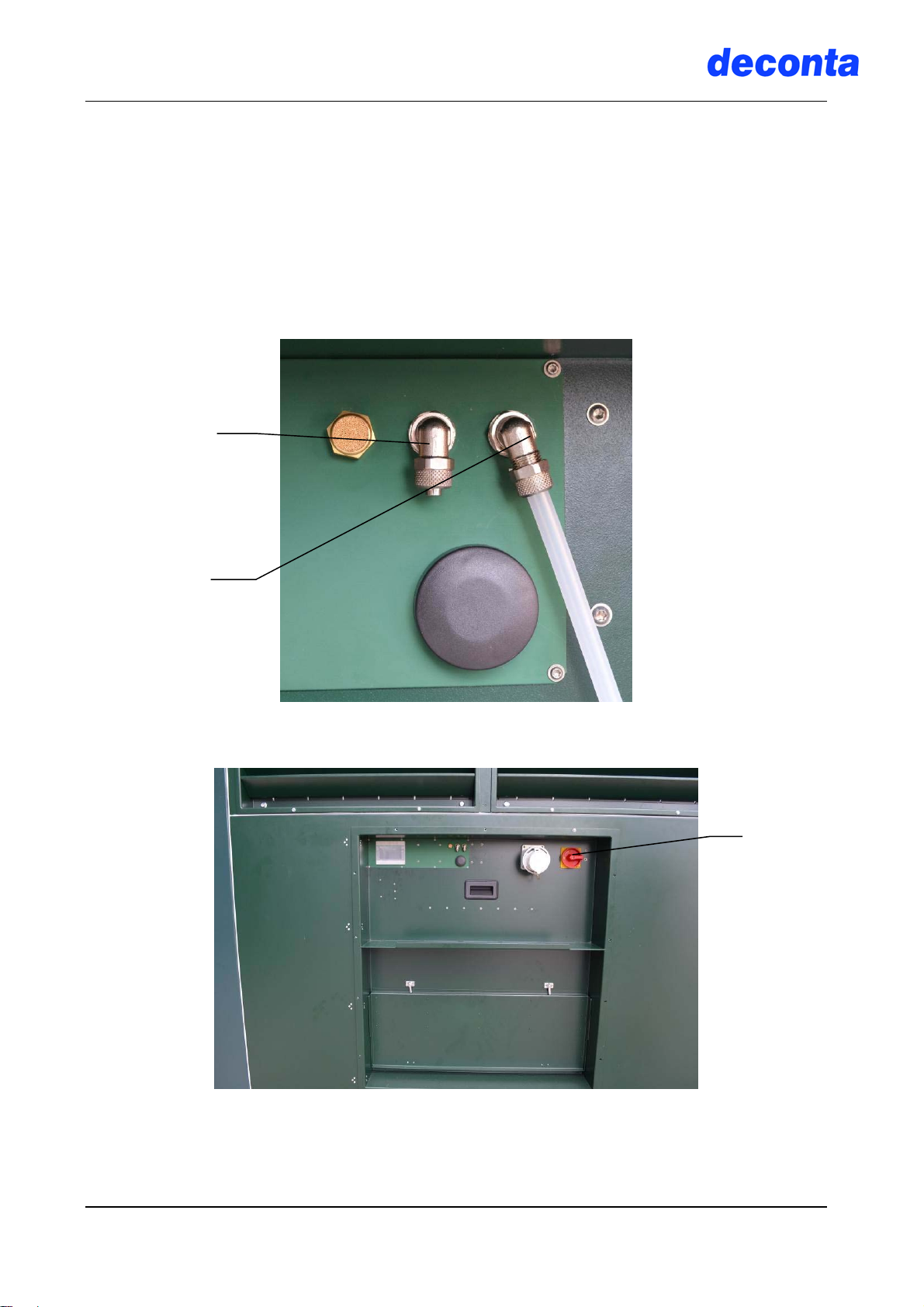

7.Initial operation
7.1.Preparations
Set the measuring point in the contaminated area and connect it to the negative
pressure connection with the PE hose 8 x 1
Determine the measuring point in the clean area (adjoining rooms) and connect to
the atmosphere connection with PE hose 8 x 1
Turn on the main switch
After initialization, the device is ready for operation. The last saved settings are set
automatically.
connection
atmos
p
here
connection
negative
pressure
main switch

Instruction Manual
Negative Pressure Unit green dec G 700
Version 3 Page 13
7.2.Control SRE connect
The connect functions are supported by default in the following countries:
Albania, Algeria, Armenia, Aruba, Australia, Austria, Azerbaijan, Bangladesh, Belarus,
Belgium, Bolivia, Bonaire, Bulgaria, Cambodia, China, Croatia, Curacao, Cyprus, Czech
Republic, Denmark, El Salvador, Estonia, Faroe Islands, Finland, France, French Guyana,
Georgia, Germany, Ghana, Gibraltar, Greece, Guadeloupe, Guyana, Honduras, Hong
Kong, Hungary, Iceland, Indonesia, Ireland, Israel, Italy, Japan, Jersey, Kazakhstan,
Kuwait, Kyrgyzstan, Laos, Latvia, Liechtenstein, Lithuania, Luxembourg, Macau,
Macedonia, Malaysia, Malta, Martinique, Moldova, Mongolia, Montenegro, Nepal,
Netherlands, Netherlands Antilles, New Zealand, Nigeria, Norway, Pakistan, Palestine,
Panama, Papua New Guinea, Philippines, Poland, Portugal, Puerto Rico, Qatar, Romania,
Russia, Saint Eustatius and Saba, Saint Martin (French part), Saint-Barthélemy, Serbia,
Singapore, Slovakia, Slovenia, South Africa, South Korea, Spain, Suriname, Sweden,
Switzerland, Taiwan, Tajikistan, Tanzania, Thailand, Tonga, Trinidad and Tobago, Tunisia,
Turkey, Ukraine, United Kingdom, United States, Uzbekistan, Vietnam, Virgin Islands,
U.S., Zambia
All other, unlisted countries on request.

Instruction Manual
Negative Pressure Unit green dec G 700
Version 3 Page 14
7.2.1. Create your user account
Open the website www.deconta-connect.com in your internet browser.
Press the tab „Sign Up“ and enter your e-mail address and desired
password. The password must be at least 8 characters long and
must meet 3 of the following 4 criteria:
.
At least 1 number
At least 1 capital letter
At least 1 lowercase letter
At least 1 special character
After successful registration, this page appears.
Now you can allocate any number of devices to the
user account.

Instruction Manual
Negative Pressure Unit green dec G 700
Version 3 Page 15
7.2.2. Add the device to your user account
Turn on your device.
Press the button „Menu“.
Press the button „Service“.
Press the button „deconta connect“.
The page with a QR code and below a key
are displayed.

Instruction Manual
Negative Pressure Unit green dec G 700
Version 3 Page 16
Log in with your e-mail address and with your password
on the connect page.
Press the menu icon and then choose
„Devices“.
Press the button „SCAN QR CODE (our
recommendation) or alternatively press the button
„SOFTWARE KEY“.

Instruction Manual
Negative Pressure Unit green dec G 700
Version 3 Page 17
Scan the QR code, that appears on the device’s display.
If the QR code is detected, the button „SUBMIT“
changes to green. In order to add the device, press this
button.
Now the device is registered in your user account.
Alternative registration via the button „SOFTWARE
KEY“.
Enter the key that appears on the device below the QR
code in the field provided. Then press the green button
„SUBMIT DEVICE KEY“ and the device is registered in
your user account.

Instruction Manual
Negative Pressure Unit green dec G 700
Version 3 Page 18
The negative pressure unit can be operated via the touch display on the device or via the
central control station (supplied by customer).
The control can be used in 2 different operating modes.
7.2.3. Manual mode
In manual operation mode, the fan power is specified with the "+" and "-" buttons.
The display shows the performance value in % (power), the measured negative pressure
in the containment area in Pa, the volume flow in m³/h and cfm and the filter pressure in
Pa.

Instruction Manual
Negative Pressure Unit green dec G 700
Version 3 Page 19
7.2.4. Automatic mode
To make the settings and turn on / off the automatic mode, press the "Menu" button. In the
following menu press on the button "Automatic mode settings".
The following parameters can be set:
• minimum negative pressure in day mode
• minimum negative pressure in night mode
• minimum volume flow in m³/h
• maximum negative pressure
The automatic mode is started by pressing the button "Start automatic".
By comparing the entered set point with the permanently measured actual value, the
speed of the fan is automatically adjusted, meaning that the fan automatically runs "up"
or "down".

Instruction Manual
Negative Pressure Unit green dec G 700
Version 3 Page 20
7.2.5. Day / Night setting
By selecting time ranges, it is possible to set on which days and at what time the set value
in automatic mode for the minimum negative pressure in night mode is activated.
7.2.6. Standby mode
A negative pressure unit with SRE connect can be operated as a standby device
(replacement device). If this function is activated, the device switches itself automatically
on if a predefined negative pressure falls below the minimal negative pressure (for
example, if the actual negative pressure unit fails).
The standby mode is switched on in the menu by pressing the button "stand-by".
In the field “Standby waiting time”, a delay of 0-600 seconds can be entered for power
up.
