Waterlogic® Countertop
Service Guide
Waterlogic® Countertop Pure Kit
K-FU-00S20-00C1L-13-0-XXX
(includes sediment filters FT-0003-L00-XXX,
carbon filter FT-0006-L00-XXX, UV lamp CT-2090-C)
Only for use with Waterlogic® Countertop
F-FWCU1-M-HCA-TT-XX-YY2

2
Your Guide
Thank you for purchasing the Waterlogic® Countertop Pure Kit.
Please read this manual before servicing the Countertop machine.
Index
Declarations 3
Box contents 4
12 month servicing guide 6
Product disposal 16
Performance Data Sheet 17

Waterlogic® Countertop Service Guide - Version 1, May 2015
3
Declaration and Safety Precautions
Waterlogic International Ltd
1. Do not remove any panels or covers from the appliance unless acceptable in this instruction.
2. When any abnormal case happens, firstly unplug the appliance.
3. The appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning the use of the appliance by a person responsible for their safety.
4. The appliance can be used by children aged from 12 years and above if they have been given
supervision or instruction concerning use of the appliance in a safe way and if they understand the
hazards involved. Cleaning and user maintenance shall not be made by children unless they are older
than 12 and supervised. Keep the appliance and its power cord out of reach of children aged less than
12 years.
5. If the supply cord or the detachable cord sets of the appliance are damaged, it must be replaced by
the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.
6. The appliance is to be supplied through a residual current device (RCD) having a rated residual
operating current not exceeding 30mA.
7. The appliance is intended to be used in household and similar applications such as
- staff kitchen areas in shops, offices and other working environments;
- farm houses and by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.
8. The appliance contains a UV-C emitter (UV lamp)
9. Unintended use of the appliance or damage to the housing may result in the escape of dangerous
UV-C radiation. UV-C radiation may, even in little doses, cause harm to the eyes and skin.
10. Appliances that are obviously damaged must not be used.
11. Read the maintenance instructions before opening the appliance.
12. The appliance must be disconnected from the power supply before replacing the UV lamp.
13. The UV lamp must be replaced at 12 month intervals or when necessary. If the unit is placed
in a high use area, the UV lamp will need to be replaced more frequently.
14. WARNING: Do not operate the UV lamp when it is removed from the appliance enclosure.
15. In accordance with these instructions, the appliance must be properly located and installed before
use.
16. Appliance must be unplugged before maintenance, cleaning, sanitizing or repairing.
17. The appliance heats water to a temperature above 203°F (95°C). Water temperatures above 125°F
(52°C) can cause severe burns or death from scalding. Most at risk of being scalded are children, the
disabled and the elderly.
18. Follow proper grounding safety precautions and instructions prior to plugging in appliance.
19. WARNING: Boil the water should the purification unit fail.
20. Note: Flush 2 liters of water from the system after a system failure.

4

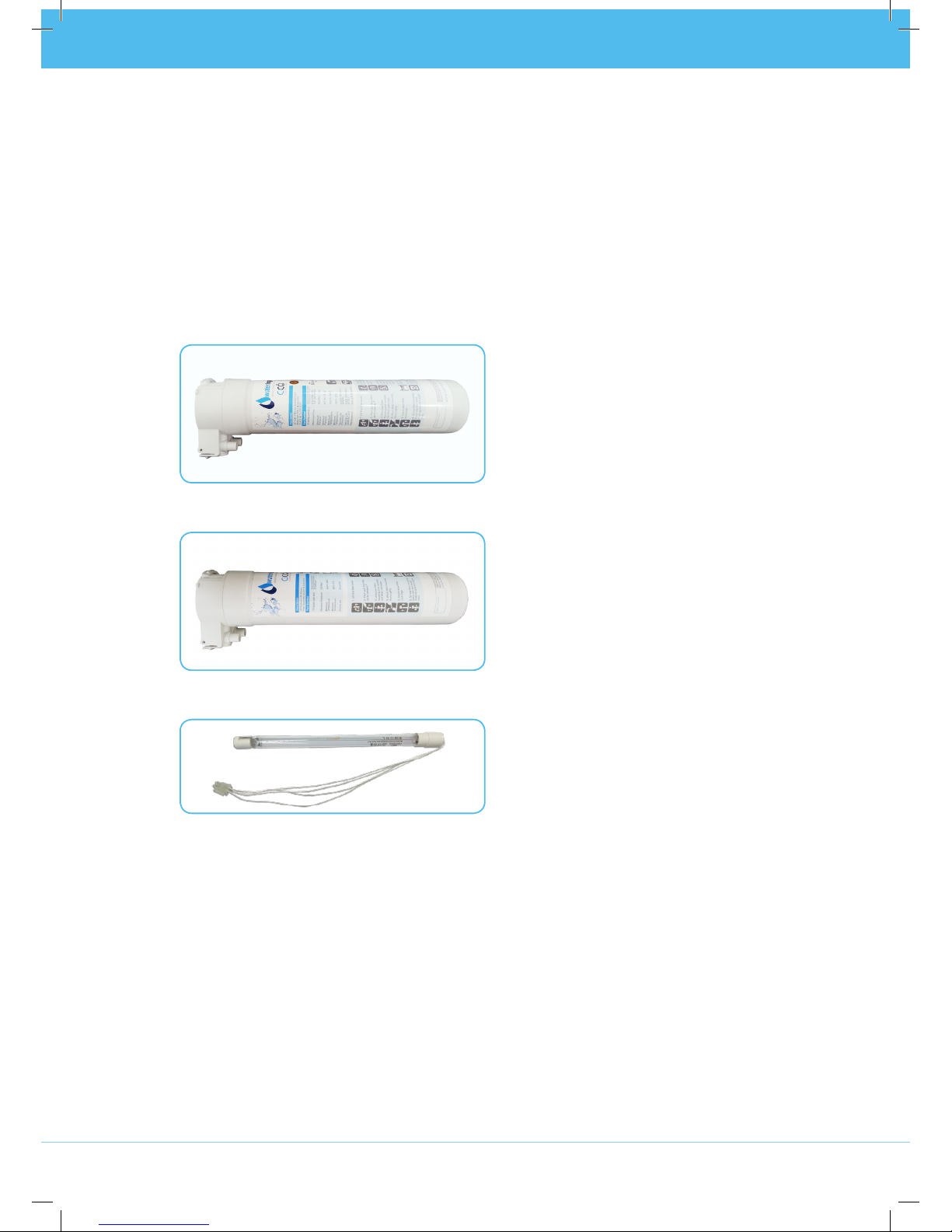

IN THE COUNTERTOP PURE KIT BOX YOU WILL FIND:
1. Waterlogic® sediment filter
2. Waterlogic carbon block filter (CBC)
3. Waterlogic® Firewall® UV bulb
Box Contents

Waterlogic® Countertop Service Guide - Version 1, May 2015
5
Box Contents
CT-2090-C FT-0003-L00-XX X FT-0006-L00-XX X
1-800-574-0435
Where to buy
the Hybrid Pure Kit is available from the retailer where you
purchased your machine, call us if you want more details
1-800-574-0435
Where to buy
the Hybrid Pure Kit is available from the retailer where you
purchased your machine, call us if you want more details
CT-2090-C FT-0003-L00-XX X FT-0006-L00-XX X
1-800-574-0435
Where to buy
the Hybrid Pure Kit is available from the retailer where you
purchased your machine, call us if you want more details
1-800-574-0435
Where to buy
the Hybrid Pure Kit is available from the retailer where you
purchased your machine, call us if you want more details
CT-2090-C
FT-0003-L00-XX X FT-0006-L00-XX X
1-800-574-0435
Where to buy
the Hybrid Pure Kit is available from the retailer where you
purchased your machine, call us if you want more details
1-800-574-0435
Where to buy
the Hybrid Pure Kit is available from the retailer where you
purchased your machine, call us if you want more details
This system, when used with FT-0006-L00-XXX 1 micron CBC cyst and lead reduction
filter, has been tested and certified by WQA according to NSF/ANSI 42, NSF/ANSI 53,
NSF/ANSI 55 Class A and NSF/ANSI P231 as verified and substantiated by test data.
To ensure the highest quality of water and compliance with NSF Protocol P231, the
Countertop model that is on sale in the US includes a 1 micron carbon block filter with
cyst & lead reduction capabilities, and a 13 Watt UV-C lamp, that requires periodoc
replacement (annually, in most cases).
Please ensure you purchase only original Waterlogic replacement parts sold in the US.
Part numbers:
• The Countertop Pure Kit which is sold in the US: K-FU-00S20-00C1L-13-0-XXX
• Sediment filter assembly included in the Countertop Pure Kit: FT-0003-L00-XXX
• Carbon block filter assembly included in the Countertop Pure Kit: FT-0006-L00-XXX
• UV lamp included in the Countertop Pure Kit: CT-2090-C
** Please note the letters “XXX” can be any 3 letters.
Do not use with water that is microbiologically unsafe or of unkown quality without
adequate disinfection before or after the system.
Systems certified for cyst reduction may be used on disinfected waters that may
contain filterable cysts.
MODEL NUMBER: FFWCU1MHCATTXXYY2
Important Note About Servicing
CT-2090-C FT-0003-L00-XX X FT-0006-L00-XX X
1-800-574-0435
Where to buy
the Hybrid Pure Kit is available from the retailer where you
purchased your machine, call us if you want more details
1-800-574-0435
Where to buy
the Hybrid Pure Kit is available from the retailer where you
purchased your machine, call us if you want more details
CT-2090-C FT-0003-L00-XX X FT-0006-L00-XX X
1-800-574-0435
Where to buy
the Hybrid Pure Kit is available from the retailer where you
purchased your machine, call us if you want more details
1-800-574-0435
Where to buy
the Hybrid Pure Kit is available from the retailer where you
purchased your machine, call us if you want more details
CT-2090-C
UV lamp
FT-0003-L00-XXX
Sediment Filter
FT-0006-L00-XXX
Carbon Block Filter

66
12 Month Servicing Guide
• Servicing of the Countertop needs to take place every 12 months. Operational,
maintenance, and replacement requirements are essential for the water-treatment
device to perform as represented
• During the 12 month service it is recommended you de-scale the hot tank in order
to remove any calcium build up inside the tank, just like you would a kettle. Please
use the Waterlogic Countertop De-scaling Kit. If you do de-scale the machine,
please do so prior this service procedure
• The filter and UV lamp must be replaced at this service
• Some units may have screws holding the lid on that will need to be unscrewed
before the lid can be removed. This will be model dependant. Screws will need
to be put back when the lid is replaced
• Servicing must be performed by an adult
WHAT YOU ARE GOING TO NEED WHEN SERVICING
THE WATERLOGIC COUNTERTOP
Countertop Pure Kit,
which includes a sediment
filter, a carbon filter and
a UV lamp
Please make sure you use only
original Waterlogic replacement
parts. If you are not sure which
replacement parts to use, please
consult with your local Waterlogic
retailer or distributor
Phillips / cross head
screwdriver
A container that can
hold 5 litres
Latex rubber gloves
Recommended

Waterlogic® Countertop Service Guide - Version 1, May 2015
7
12 Month Servicing Guide
A)
B)

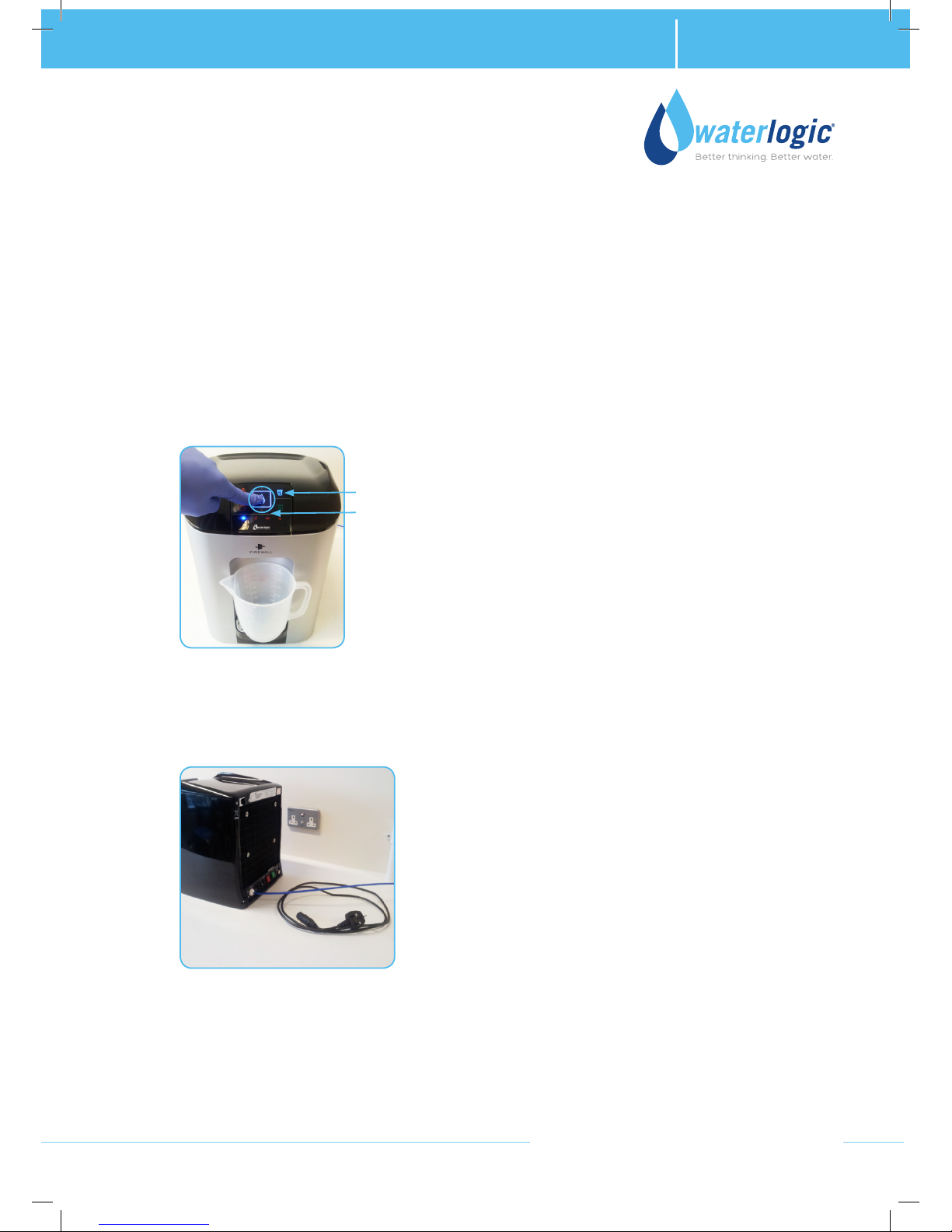

1. PREPARING FOR SERVICE
1.1 Put on the rubber gloves to minimise the chance of any contamination to the
machine.
1.2 Turn off the incoming water supply at the isolation point
1.3 Select the cold water icon until it lights up. Whilst the cold water icon is lit select
and hold the central dispense button, when the water stops flowing release the
button and continue to step 1.3. (see picture A)
1.4 Turn off the red and green power switches at the back of the Countertop to
the ‘0’ position and remove the power lead from the wall socket and machine (see
picture B)
Cold water icon
Central
dispense
button

8
C)

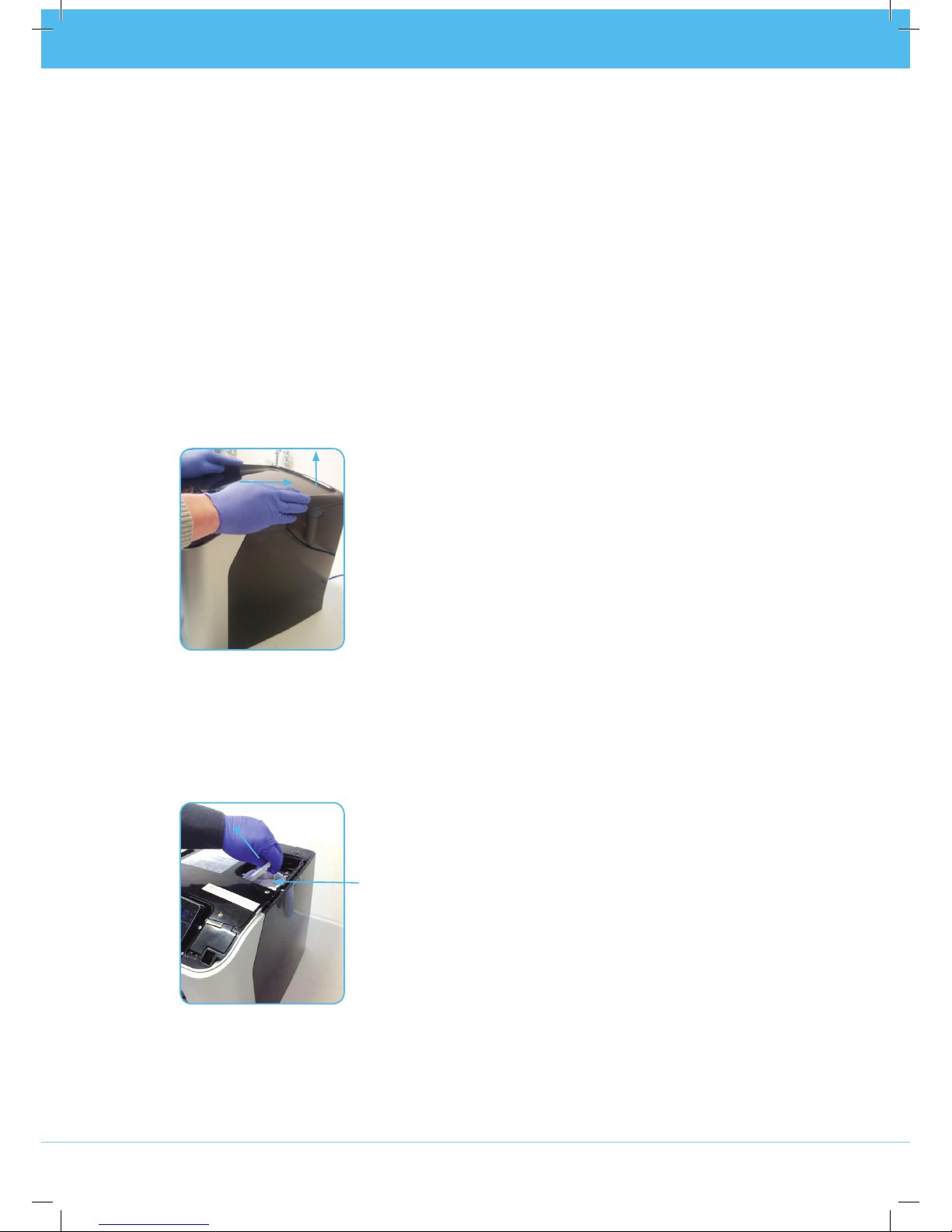

1.5 Remove the top cover from the machine by placing your hands on the top of it,
pushing it backwards (step 1) and lifting it upwards (step 2) (see picture C).
You may be required to remove two screws at the back of the machine to enable
you to remove the top cover (this is dependant on the machine model)
Note: you may need to move the machine from under wall units to allow access.
This is why it is important you fit an extra 15-30cm of the flexible tubing from the
water supply when installing the unit.
Please take care not to dislodge the flexible tubing connection.
Step 1 Step 2
The carbon block
filter is closer to
the front of the
machine
2. REPLACING THE CARBON BLOCK FILTER
2.1 Insert your finger into the loop at the top of the carbon block filter (the filter that
is closer to the front of the machine) and pull it up until it is in the vertical position
(see picture D)
D)

Waterlogic® Countertop Service Guide - Version 1, May 2015
9
E)
2.2 Remove the filter by pulling straight upwards on the filter loop (see picture E)
2.3 Insert the new carbon block filter assembly into its cradle, with the filter loop
on the left (see picture F) , which enables the filter shape to perfectly fit the cradle
profile
2.4 Push the filter firmly into place until the filter sits snugly and is flush with the
cradle top surface then lock the filter into place by closing the locking lever until it
‘clicks’ into place (see picture G)
G)
F)

10

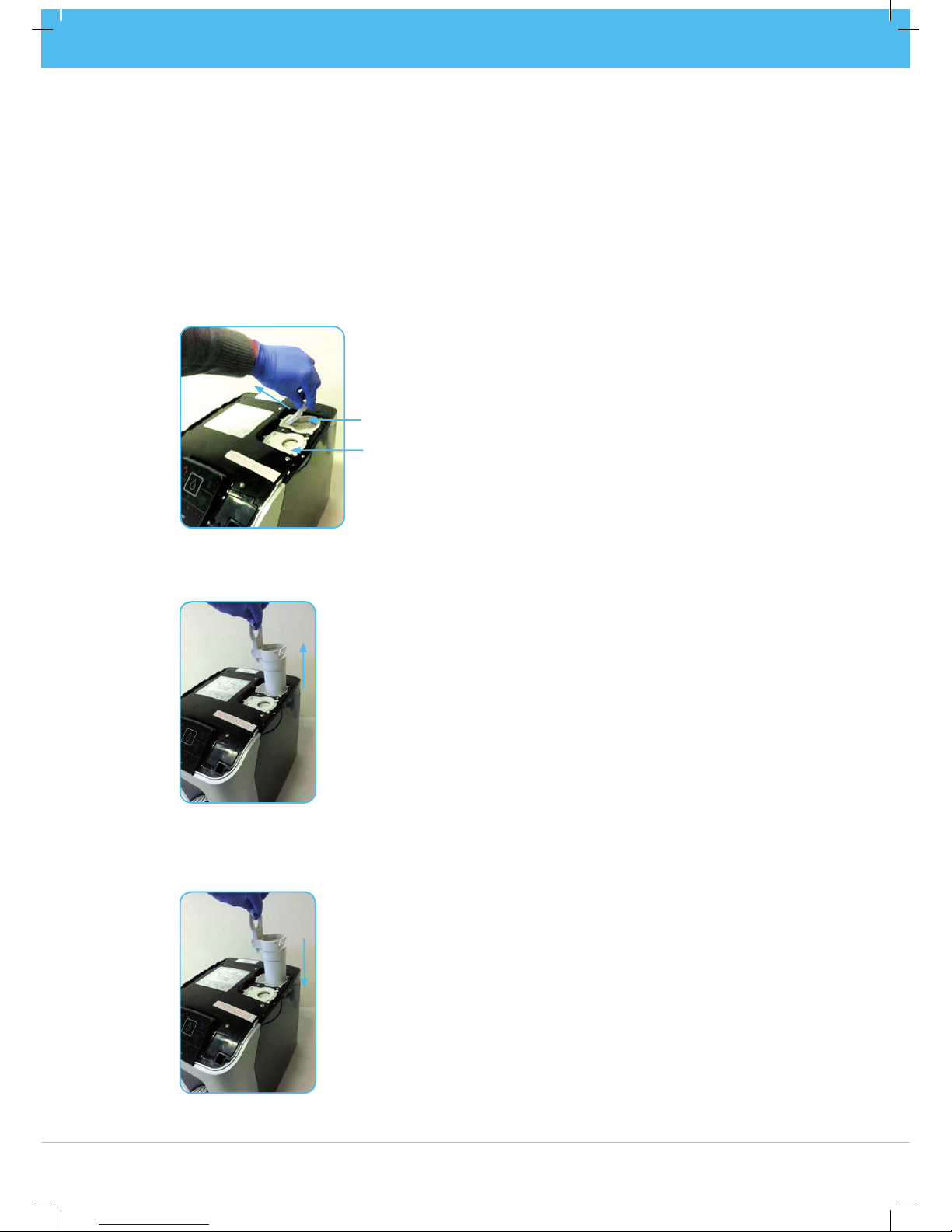

3. REPLACING THE SEDIMENT FILTER
3.1 Insert your finger into the loop at the top of the sediment filter (the one which is
closer to the back of the machine) and pull it up until it is in the vertical position (see
picture H)
H)
I)
3.2 Remove the filter by pulling straight upwards on the filter loop (see picture I)
3.3 Insert the new sediment filter assembly into its cradle, with the filter loop on the
left (see picture J), which enables the filter shape to perfectly fit the cradle profile
J)
Sediment filter (some machines may not have this
option, due to better water conditions in some regions)
Carbon block filter

Waterlogic® Countertop Service Guide - Version 1, May 2015
11

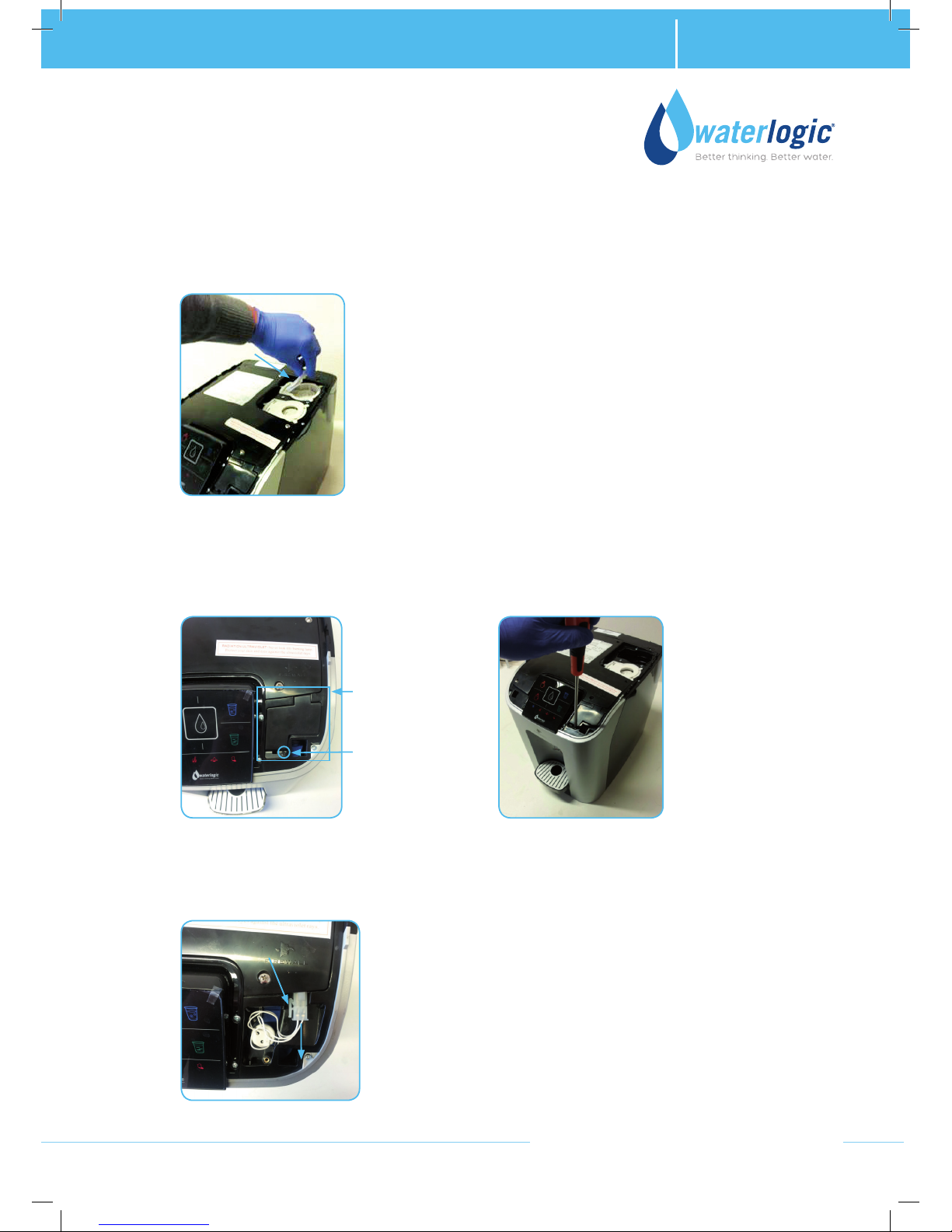

4. REPLACING THE UV LAMP
4.1 Remove the UV lamp protective cover from the front right hand side of the
machine by undoing the fixing screw and lifting the cover up (see pictures L & M)
4.2 Disconnect the UV lamp connector by pressing in the clip on the side of the
connector (step 1) and pulling the connector towards the front of the machine (step
2) (see picture N)
M)L)
UV
protective
cover
UV
protective
cover fixing
screw
K)
3.4 Push the filter firmly into place until the filter sits snugly and is flush with the
cradle top surface then lock the filter into place by closing the locking lever until it
‘clicks’ into place (see picture K)
N)
Step 1
Step 2

12
O)
Old
UV lamp
4.4 Take the new UV lamp and insert it into the same position at the front of the
machine where the old lamp was positioned, making sure you hold the lamp only
by the white end cap (see picture P). Please take care when inserting the lamp to
avoid breaking it - ensure that it is fully vertical when you insert it, and do not use
excessive force
4.5 Insert the connector on the new UV lamp into the UV connector in the machine
(see picture Q)
P)
New
UV lamp
UV
Connector
Q)
4.3 Holding onto the white end cap of the UV lamp, pull firmly upwards to remove
the lamp. Make sure you do not pull the lamp out at an angle, as you may risk
breaking or damaging the machine’s internal components (see picture O)

Waterlogic® Countertop Service Guide - Version 1, May 2015
13
R)
4.6 Refit the UV lamp protective cover and secure it in place with the fixing screw
(see picture R)
4.7 Refit the top cover onto the machine by placing into position, making sure the
two fixing lugs at the front are lined up with the grooves (step 1) and then pulling the
cover firmly towards yourself until it clicks into place (step 2) (see picture S).
If your machine has screws holding down the top cover, screw them back in at this
stage. Hand tighten only.
4.8 Reconnect the power lead into the back of the machine and then insert the plug
into the wall socket (see picture T)
S)
Step 2
Step 1
T)

14
4.9 Turn on the red power switch on the back of the machine to the “I” position.
U)
Turn on the red switch
5.3 Select and hold the ambient water icon until it lights up. Whilst the ambient
water icon is lit, select and hold the central dispense button to start dispensing water.
Continue to hold the dispense button until 8 litres of ambient water has passed
through the machine. Once 8 litres has passed through release the dispense button
and the water flow will stop. This will sufficiently generate the filter and flush it of
any excess carbon fines.
5. FLUSHING THE NEW FILTERS
5.1 Turn on the incoming water supply at the isolation point.
5.2 Place your container in the machine’s dispense area for the flushing process
(see picture V).
V)

Waterlogic® Countertop Service Guide - Version 1, May 2015
15
5.4 Turn on the green heater / compressor switch at the back of the Countertop to
the ‘I’ position (see pictureX).
W)
Central dispense
button
Ambient water
icon
6. CHECKING THE MACHINE FUNCTIONS AND WATER QUALITY
6.1 The machine will now begin to heat / chill the water. The hot water should be up
to operating temperature after 8-10 minutes and the cold water will take between
60-90 minutes to cool.
6.2 The water should now be taste tested, if there is any hint of taste in the water
then flush an additional 5 liters of hot and then 5 liters of cold. Do another taste test
and if necessary repeat.
7. RESETTING THE FILTER TIME
7.1 To reset the filter timer, hold down the hot and cold icons simultaneously for 10
seconds, until the appliance “beeps”. If the filter warning indicator was lit, it should
disappear at this stage.
X)
Turn
on

16
Product Disposal
At the end of this products life, please ensure that it is disposed of in an environmentally
friendly manner which is in line with your Country requirements/guidelines.
WEEE EU ONLY
Please be aware that our products are covered by the Waste Electrical and Electronic
(WEEE) directive (2002/96/EC). The symbol shown above denotes that the product
should not be disposed of with general/household waste. Hand it in at an official
collection point for recycling.
ROHS
All Waterlogic machines comply with EC Directive (2002/95/EC) on the Restriction of
the Use of Certain Hazardous Substances in Electrical and Electrical Equipment (RoHS).

Waterlogic® Countertop Service Guide - Version 1, May 2015
17
Product Disposal
Performance Data Sheet
MODEL NAME: FFWCU1MHCATTXXYY2 WATERLOGIC
COUNTERTOP WATER PURIFIER WITH CYST/LEAD REMOVAL
FILTER FT0006L00YYY AND SEDIMENT REMOVAL FILTER
FT0003L00YYY
XX: COLOR CODE, -YY2: CUSTOMER CODE
IMPORTANT NOTICE
This system, when used with FT-0006-L00-WLT 1 micron CBC cyst
and reduction filter, has been tested according to NSF/ANSI 42, NSF/
ANSI 53, NSF/ANSI 55 Class A and NSF/ANSI P231 for the reduction
of the substances listed below.
Tested using flow rate=0.5 GPM; pressure=60 psi; pH=7.5 ± 0.5; temp.=20 ± 1.0 °C.
The concentration of the indicated substances in water entering the system was reduced
to a concentration less than or equal to the permissible limit for water leaving the system,
as specified in NSF/ANSI 42, NSF/ANSI 53, NSF/ANSI 55 Class A and NSFANSI P231.
While testing was conducted under standard laboratory conditions, actual performance
may vary.
Filter Performance Data Table
Parameter
Minumum
% reduction
requirement /
Max euent
concentration
Average
Influent
Challenge
Euent
Average
Euent
Maximum
Percent
Reduction
Average
Percent
Reduction
Minimum
Chlorine >=50% reduction 1.90 ppm 0.02 mg/L 0.02 mg/L 98.9% 98.9%
Cyst >=99.95%
reduction
120,000
oocyst/L
38
oocyst/L
< 50
oocyst/L 99.99% 99.97%
Lead
(Low pH = 6.5) < 10 ug/L 144 ug/L 0.49 ug/L 1.60 ug/L 99.7% 98.9%
Lead
(High pH =
8.5)
< 10 ug/L 140 ug/L 1.47 ug/L 7.50 ug/L 98.9% 94.6%
Particulate
Class I (>=0.5
um to <1 um)
>=85% reduction >/=10,000
particles/ml
288
particles/ml
704
particles/ml 97.9% 94.9%

18
GENERAL INSTALLATION/OPERATION/MAINTENANCE
REQUIREMENTS
• This appliance is for use with potable drinking water only. Never use this appliance
with unknown or unsafe sources.
• Flush the hot tank, cold tank and filters as instructed.
• Replace filter cartridge when rated capacity is reached, or every 12 months, or
when flow becomes to slow.
• Replace UV lamps every 12 months, or when the UV intensity is lower than required.
• Install in compliance with state and local laws and regulations.
Manufactured by Qingdao Waterlogic Manufacturing Co., Ltd
No 10 Jinling Road, Jinling Industrial Zone, Chengyang District, Qingdao, 266111,
Shandong, P.R. CHINA TEL: [phone]
Tested using flow rate=0.5 GPM; pressure=60 psi; pH=7.5 ± 0.5; temp.=20 ± 1.0 °C.
Operating Specifications
Filter Capacity 2,500 Gallons / 9,464 Liters
Lead Capacity 1,250 Gallons / 4,732 Liters
Maximun Flow Rate 0.34 GPM / 1.3 LPM
Feed Water Temperature 2 °C / 35 °F - 32 °C / 90 °F
Operating Temperature 5 °C / 41 °F - 30 °C / 86 °F
Working Pressure 0.26Mpa / 37.7Psi - 0.414Mpa / 60 Psi
Electrical Requirements EU: 220-240V 50Hz / maximum 3.0 amps;
USA: 120V 60Hz / maximum 6.2 amps
UV Performance Data Table
Parameter Log Reduction Average
Bacteria (R.terrogema) 7.4 Log
Virus (MS2)* 3.16 Log
Note: 2 Log reduction of MS2 is equivalent to 4 Log reduction of Poliovirus or Rotavirus

Waterlogic® Countertop Service Guide - Version 1, May 2015
19
Tested using flow rate=0.5 GPM; pressure=60 psi; pH=7.5 ± 0.5; temp.=20 ± 1.0 °C.
SPECIAL NOTICES
• The contaminants or other substances removed or reduced by this water treatment
system are not necessarily in your water.
• Do not use with water that is microbiologically unsafe or of unknown quality without
adequate disinfection before or after the system.
• System certified for cyst reduction may be used on disinfected waters that may contain
filterable cysts.
• This Class A system conforms to NSF/ANSI 55 for the disinfection of microbiologically
contaminated water that meets all other public health standards. The system is not
intended to convert wastewater or raw sewage to drinking water. This system is
intended to be installed on visually clear water.
NSF/ANSI 55 defines wastewater to include human and/or animal body waste, toilet
paper, and any other material Intended to be deposited in a receptacle designed
to receive urine and/or feces (blackwaste); and other waste materials deposited in
plumbing fixtures (greywaste).
• Performance may vary based on local water conditions seconds.
WARRANTY
Waterlogic International (Waterlogic) warrants that the products delivered will be free
from any defects in workmanship or materials. Further, the warranty provided here in
applies, only when used within the products specifications and service life, from the date
of installation, beyond which time or use Waterlogic is absolved of any and all liability for
any use of the product. In the event of defect or non-conformity, buyer shall promptly
notify Waterlogic in writing, supplying proof of purchase dates, installation dates, and will
protect and retain the products for investigation, or Waterlogic is absolved of any and all
liability for any use of the product. There are no other warranties, either merchantability
or fitness, either expressed or implied.
FOR IOWA ONLY
The Manufacturer’s PDS shall be given to the buyer by the seller and shall be signed
and dated by the buyer and the seller prior to the consummation of the sales of the
water treatment system and retained on file by the seller for a minimum of two years.
Seller _________________________ Date _______________________
Buyer __________________________ Date______________________
Operating Specifications
Filter Capacity 2,500 Gallons / 9,464 Liters
Lead Capacity 1,250 Gallons / 4,732 Liters
Maximun Flow Rate 0.34 GPM / 1.3 LPM
Feed Water Temperature 2 °C / 35 °F - 32 °C / 90 °F
Operating Temperature 5 °C / 41 °F - 30 °C / 86 °F
Working Pressure 0.26Mpa / 37.7Psi - 0.414Mpa / 60 Psi
Electrical Requirements EU: 220-240V 50Hz / maximum 3.0 amps;
USA: 120V 60Hz / maximum 6.2 amps
UV Performance Data Table
Parameter Log Reduction Average
Bacteria (R.terrogema) 7.4 Log
Virus (MS2)* 3.16 Log
Note: 2 Log reduction of MS2 is equivalent to 4 Log reduction of Poliovirus or Rotavirus

20
ENG0878-18/05/15
We hope you love drinking good water as much as we do.
Please let us know your thoughts by email to
[e-mail]
To speak to a Water Expert,
please refer to your Guarantee
and After-sales service card
for contact details.
