This manual:
• Familiarizes the operator with the equipment
• Explains installation and setup procedures
• Provides basic programming information
• Explains the various modes of operation
• Gives specifications
Read this Manual First
Before you operate the Culligan High Efficiency Sulfur-Cleer Water Filter, read this manual to
become familiar with the device and its capabilities.
Safe Practices
Throughout this manual there are paragraphs set off by special headings.
Notice (or Note) is used to emphasize installation, operation or maintenance information which is
important, but does not present any hazard. For example,
NOTICE The nipple must extend no more than 1 inch above the cover plate.
Caution is used when failure to follow directions could result in damage to equipment or property.
CAUTION! Disassembly while under water pressure can result in flooding.
Warning is used to indicate a hazard which could cause injury or death if ignored.
WARNING! Electrical shock hazard! Unplug the unit before removing the timer
mechanism or cover plates!
The CAUTION and WARNING paragraphs are not meant to cover all possible conditions and
situations that may occur. Understand that common sense, caution, and careful attention are
conditions which cannot be built into the equipment. These MUST be supplied by the personnel
installing, operating, or maintaining the system.
Be sure to check and follow the applicable plumbing codes and ordinances when installing this
equipment. Local codes may prohibit the discharge of sanitizing or descaling solutions to drain.
An extra solution tank should be used to neutralize the solution before discharging to drain.
Use protective clothing and proper face or eye protection equipment when handling chemicals or tools.
NOTE: The Culligan High Efficiency Sulfur-Cleer Water Filter is not intended
for use with water that is microbiologically unsafe or of unknown
quality without adequate disinfection either before or after the system.
NOTE: Check with your public works department for applicable local plumbing
and sanitation codes. Follow local codes if they differ from the
standards used in this manual. To ensure proper and efficient operation
of the Culligan High Efficiency Sulfur-Cleer Water Filter to your full
satisfaction, carefully follow the instructions in this manual.
About this
Manual

5
01023492 F 06/19
Thank You
Welcome To Your New World of Better Living with Culligan Water.
The Culligan High Efficiency Sulfur-Cleer™ 10” fiberglass
and Quadra Hull filters have been tested and certified by
WQA against NSF/ANSI Standard 372, CSA B483.1, and
NSF/ANSI Standard 42 for the effective reduction of iron
up to 1,000 gallons, and NSF/ANSI Standard 42 for the
effective reduction of hydrogen sulfide as verified and
substantiated by test data.
The Culligan High Efficiency Sulfur-Cleer™ 10” fiberglass
and Quadra Hull filters have been certified by IAPMO
R&T against NSF/ANSI 372, CSA B483.1, and NSF/ANSI
Standard 42 for the effective reduction of iron up to 1,000
gallons and NSF/ANSI Standard 42 for the reduction of
hydrogen sulfide as verified and substantiated by test data.
For installations in Massachusetts, Massachusetts
Plumbing Code 248 CMR shall be adhered to.
Consult your licensed plumber for installation of this system.
This system and its installation must comply with state and local regulations.
The use of saddle valves is not permitted.
Congratulations, too, on selecting one of the “first family” of water treatment in the prestigious
Culligan High Efficiency Water Filters. With Culligan’s many years of knowledge and experience
in water treatment, you can be confident that the model you selected has been designed and
engineered to provide years of service with a minimum of care and attention.
Some localities have corrosive water. A water filter cannot correct this problem and so its printed
warranty disclaims liability for corrosion of plumbing lines, fixtures or appliances. If you suspect
corrosion, your Culligan Dealer has equipment to control the problem.

601023492 F 06/19
10" Fiberglass 10" Quadrahull
Control Valve HE Control Valve HE Control Valve
Timer Electronic Electronic
Overall Conditioner Height 69" 69"
Media Tank Dimensions (D x H) 10x54 in. 10x54 in.
Filter Media Type 1.5 ft3Catalytic Carbon 1.5 ft3Catalytic Carbon
Underbedding Cullsan, 20 lbs. Cullsan, 20 lbs.
Capacity11000 gallons 1000 gallons
Freeboard218 in 18 in
Max. Clear Water (Soluble) Iron 10 ppm 10 ppm
Max. Hydrogen Sulfide 8 ppm 8 ppm
Minimum Alkalinity 100 ppm 100 ppm
pH 7.0–8.5 7.0–8.5
Service Flow @ Pressure Drop (Clean Bed)
Normal3
5 gpm @ 4 psi 5 gpm @ 4 psi
Maximum
Operating Pressure 20–60 psi/138–414 kPa 20–60 psi/138–414 kPa
Operating Temperature 33–120° F/1–49°C 33–120° F/1–49°C
Electrical Requirements 120 Volts/60 Hz 120 Volts/60 Hz
Power Consumption, Continuous/
Maximum
6 Watts/240 Watts 6 Watts/240 Watts
Drain Flow, Maximum 5.5 gpm 5.5 gpm
Backwash Regeneration Time 1–99 minutes 1–99 minutes
Eduction 1–99 minutes 1–99 minutes
Fast Rinse 1–99 minutes 1–99 minutes
1Capacity based on 5 gpm (10” unit) and 10 mg/L of dissolved iron.
2Measured from top of media bed to top of surface of tank threads (backwashed and drained).
3Max flow rates and pressure drop characteristics have not been certified by the Water Quality Association.
For the purposes of plumbing sizing, only the service flow rate and corresponding pressure drop may be used.
Specifications

7
01023492 F 06/19
Introduction
Culligan® High Efficiency Sulfur-Cleer™ is designed to meet the needs of applications for high quality
water. This manual contains important information about the unit, including information needed for
installation, operating, and maintenance procedures. A troubleshooting section provides a guide for
quick and accurate problem solving.
In order for the water treatment system to continue to provide high quality water, you must develop
a thorough understanding of the system and its operation. Review this manual before making any
attempt to install, operate, or service the system. Installation or maintenance done on this system
by an untrained service person can cause major damage to equipment or property damage.
CAUTION! The Sulfur-Cleer system must be supplied with cold water only.
Step 1
Aeration Operation Service Cycle
In the service cycle, raw water enters the inlet port of the medium tank and is directed through the inlet
strainer. The oxidation process begins when the water passes through the inlet strainer and cascades
through a head of air. This air/ water contact oxidizes the iron and/or hydrogen sulfide in the water. The water
is then filtered through the media. It then passes through the outlet of the aeration tank to the inlet of the filter.
Filter Tank Operation Service Cycle
Upon system demand for filtered water, the water is directed downward through the media toward the lower
manifold. Oxidized iron particles are trapped by the filter bed as the water passes through. Filtered water
enters the lower manifold and travels up the manifold to the outlet port on the filter valve.
Air Gap
(2x Pipe Dia.
or 1 inch,
whichever is
larger)
Filtered Water Out
Water Heater
Water Meter
Unfiltered
Water In
Drain Line
To Hose
Bibs
Figure 1. Sulfur-Cleer operating configuration.

801023492 F 06/19
Step 2
Aeration Operation Air Recharge Cycle
When energized, the air pump sends air through the solenoid valve into one end of the shuttle valve.
Once air pressure in the shuttle valve is greater than the water supply pressure at the other end of the
shuttle valve, the piston shifts to the open position. In the open position, the bleed-off port discharges
excess water and old air to the drain port through a flow restrictor. Simultaneously, the air inlet port
opens to provide a direct connection between the air pump and the top of the aeration tank. The air
pump runs for a preset period of time recharging the head of air in the aeration tank.
Air Recharge Shut Off
The timer turns power off to the air pump and the solenoid valve at the end of the recharge cycle. The
solenoid valve then closes the port between the air pump and the shuttle valve. The port between the
shuttle valve and the atmosphere opens and releases air pressure. This allows water pressure to shift
the piston to the closed position. With the piston in the closed position, the air recharge inlet port is
closed and direct communication between the bleed off tube and the drain port is also closed.
Timer Operation
A timer controls the air recharge cycle and how frequently it occurs. The timer simultaneously
energizes the air pump and the solenoid valve. After a preset amount of time, the timer shuts off
the air pump and de-energizes the solenoid valve.
Solenoid Valve Operation
The solenoid valve is a three-way valve having ports that connect to the air pump, shuttle valve and
the atmosphere. In the service cycle, the solenoid valve is de-energized and closes the port to the
air pump, providing a positive shutoff to the pump. This prevents water from backing up into the air
pump and damaging the pump. In the air recharge cycle, the solenoid valve closes the port to the
atmosphere and opens the port from the air pump.
Shuttle Valve Operation
In the service position, water pressure holds the shuttle valve piston in the closed position,
trapping the airhead in the aeration tank and closes the air recharge inlet port and drain port.
During air recharge cycle, air pressure is greater than the water pressure and forces the shuttle
valve piston in the open piston. The shuttle valve has an internal pressure relief valve that will
relieve pressure (greater than 100 psi) that may build up in the aeration tank. This precautionary
function protects components from failure due to excessive pressure.
Step 3
Filter Tank Operation—Backwash Cycle
Reversing the flow of water through the filter bed and backwashing dirty water to the drain cleans
the filter bed. Raw water enters the filter control valve through the inlet port and is directed down
the distributor tube and out the lower distributor at the bottom of the tank, flowing upward through
the multimedia filter bed toward the top of the tank into the control valve. Water is then directed
through a specific flow restrictor and out the drain port to be discharged to drain.
Step 4
Filter Tank Operation—Rinse Cycle
The rinse cycle packs the clean filter bed. Raw water enters the control valve through the inlet
port and is directed downward through the filter bed into the bottom distributor, up the distributor
tube into the control valve. Water is then directed through a specific flow restrictor and out the
drain port to be discharged to drain.

9
01023492 F 06/19
Operating Conditions
The concentration limits listed below reflect the minimum or maximum individual limit that each
contaminant was tested for separately without any interference of other contaminants in the influent water.
In reality, however, we know that these contaminants may be present in combination which
may limit the filter’s ability to remove these contaminants in higher concentrations. In some
cases, individual sellers of this equipment have had success removing higher concentrations of
contaminants—iron, for example—above the limitations we have listed. If you are considering
the installation of this system for the reduction/removal of iron and/or hydrogen sulfide beyond
the printed operating conditions below, we recommend that you consult Culligan for proper
application. Installation of this system under these circumstances may void part(s) and/or all of
the system warranty.
Compressor
The compressor does not operate during the recharge cycle.
General Instructions
The success of the installation will depend, to a great extent, on advanced planning and
preparation. Careful attention to the location of the unit, accessibility to electrical and drain facilities,
and the availability of the proper tools will ensure a professional-looking installation. Of utmost
importance is the assurance that the filter has been properly applied and meets all specifications.
Observe all state and plumbing codes, electrical codes and drain restrictions.
The system and installation must comply with all state and local laws and regulations.
Most codes require an anti-syphon device or air-gap.
NOTE: For installations in Massachusetts, the Commonwealth of
Massachusetts
Plumbing Code 248 CMR shall be adhered to. Consult with your
licensed
plumber for installation of this system.
pH—The pH level of the influent water must be 7.0–8.5.
Iron—This system is rated for a maximum of 10 ppm of ferrous (clear water) iron. Consult the factory if
iron bacteria is present.
Organic Matter (Tannins)—The presence of organic matter such as tannins will interfere with the
oxidation process of converting the dissolved element, such as iron or manganese, to a non-soluble
precipitate or solid substance, allowing it to be filtered out. The Sulfur-Cleer™ is not designed to remove
organic bound iron.
Alkalinity—A minimum alkalinity of 100 ppm is required for efficient removal of iron and hydrogen sulfide.
Hydrogen Sulfide—Often referred to as the rotten egg smell, hydrogen sulfide will be reduced
significantly on water supplies less than 8 ppm as tested by Culligan. Consult the factory if hydrogen
sulfide concentrations are greater than 8 ppm.
NOTE: Waste connection on drain outlets shall be designed and constructed
to provide for connection to the sanitary waste system through an air
gap of two pipe diameters or 25.4 mm (1 in.), whichever is larger.

10 01023492 F 06/19
Navigating the
Menus and
Keypad
DOWN button
CHECK MARK
or OK button
UP button
CANCEL (X) button
UP ARROW button: scrolls up the menu
Controller
Remote
DOWN ARROW button: scrolls down the menu
CHECK MARK button: selects the highlighted
option, opens a new screen, or accepts a
changed setting
CANCEL or Xbutton: returns to the previous
screen or cancels a changed setting
NOTE: Hold down the or to quickly scroll through the setting without
repeatedly pressing the button.

11
01023492 F 06/19
The following information can be displayed at the control valve or remote display. These settings are
read-only. Press or to scroll through the settings. Press to view the previous setting.
Screen Display Range Setting Description
FILTERING
JAN-01-19 11:19A N/A 1. From the HOME screen, press to view the main menu.
>1)INFORMATION
2)MANUAL MODE
1–6 2. The screen displays the main menu. Press to
select 1)INFORMATION.
FILTER LIFE LEFT
50000 GAL
0–
50,000
3. The screen displays the FILTER LIFE LEFT in gallons.
Press to select the next information screen.
FILTER LIFE LEFT
100 DAYS 0–100 4. The screen displays the FILTER LIFE LEFT in days.
Press to see the next information screen.
REMAIN CAPACITY
700 GAL
0–no
limit
5. The screen displays the filtering capacity remaining,
measured in gallons (liters), before initiating
reconditioning. Press to see the next information
screen.
CURRENT FLOWRATE
10.0 GPM
0–no
limit
6. The screen displays the current flow rate, measured in
gallons (liters) per minute. Press to see the next
information screen.
TODAY’s USAGE
100 GAL
0–no
limit
7. The screen displays today’s water usage, measured in
gallons (liters). Press to see the next information
screen.
AVERAGE DAILY
300 GAL
0–no
limit
8. The screen displays average water usage for this
configuration. Press to see the next information
screen.
NEXT REGEN ON
JAN-03 N/A
9. The screen displays the date of the next regeneration,
based on average daily water usage. Press to see
the next information screen.
Information

12 01023492 F 06/19
Screen Display Range Setting Description
TOTAL WATER USED
1000 GAL
0–no
limit
10. The screen the total water used for this configuration.
Whole numbers are displayed above 100 gallons.
Press to see the next information screen.
DEALER ID 11. The screen displays the local dealer’s ID number as
entered during the First Time Setup. Press to see
the next information screen.
EXT FILT CAP REM
20000 GAL
0–no
limit
12. If an external filter is used, the screen displays the
remaining capacity of the filter. When the remaining
capacity reaches zero, the system triggers the External
Filter Alarm. Press to return to the main menu.
>1)INFORMATION
2)MANUAL MODE
13. The screen displays the main menu. Press to exit to
the home screen.
FILTERING
JAN-01-19 11:19A 14. The screen displays the home screen.

13
01023492 F 06/19
To update the date and time on the HE Filter, follow this procedure.
Screen Display Range Setting Description
FILTERING
JAN-01-19 11:19A N/A 15. Start at the HOME SCREEN. Press to advance
to the MAIN MENU SCREEN.
2)MANUAL MODE
>3)SET DATE/TIME
N/A
16. Press to scroll to 3) SET DATE/TIME.
17. Press to display the date and time settings.
Set Month
SET MONTH
JAN Jan–Dec
18. The screen displays the month setting. Press
to display the next setting, or press to change
the month setting.
SET MONTH
>JAN Jan–Dec
19. The screen displays a cursor next to the month.
Press to display the next value
(for example, changing January to February).
SET MONTH
>FEB Jan–Dec
20. Press to display the next value
(for example, changing January to February).
SET MONTH
FEB
21. Press to accept the new value.
The screen displays the month without the cursor
and advances to the Day setting.
Set Day
SET DAY
>2 1–30
1. Press to advance to the next setting if the day is
correct, or press to change the day setting. Press
to display the next value (for example, change 1 to 2).
2. Press to accept the new value. The screen displays the
day without the cursor and advances to the Year setting.
Set Year
SET YEAR
>2019
2009–30
1. Press to advance to the next setting if the year is correct,
or press to change the year setting. Press to display
the next value (for example, change 2018 to 2019).
2. Press to accept the new value.
The screen displays the year without the cursor
and advances to the Clock Type setting.
Setting the
Date and Time

14 01023492 F 06/19

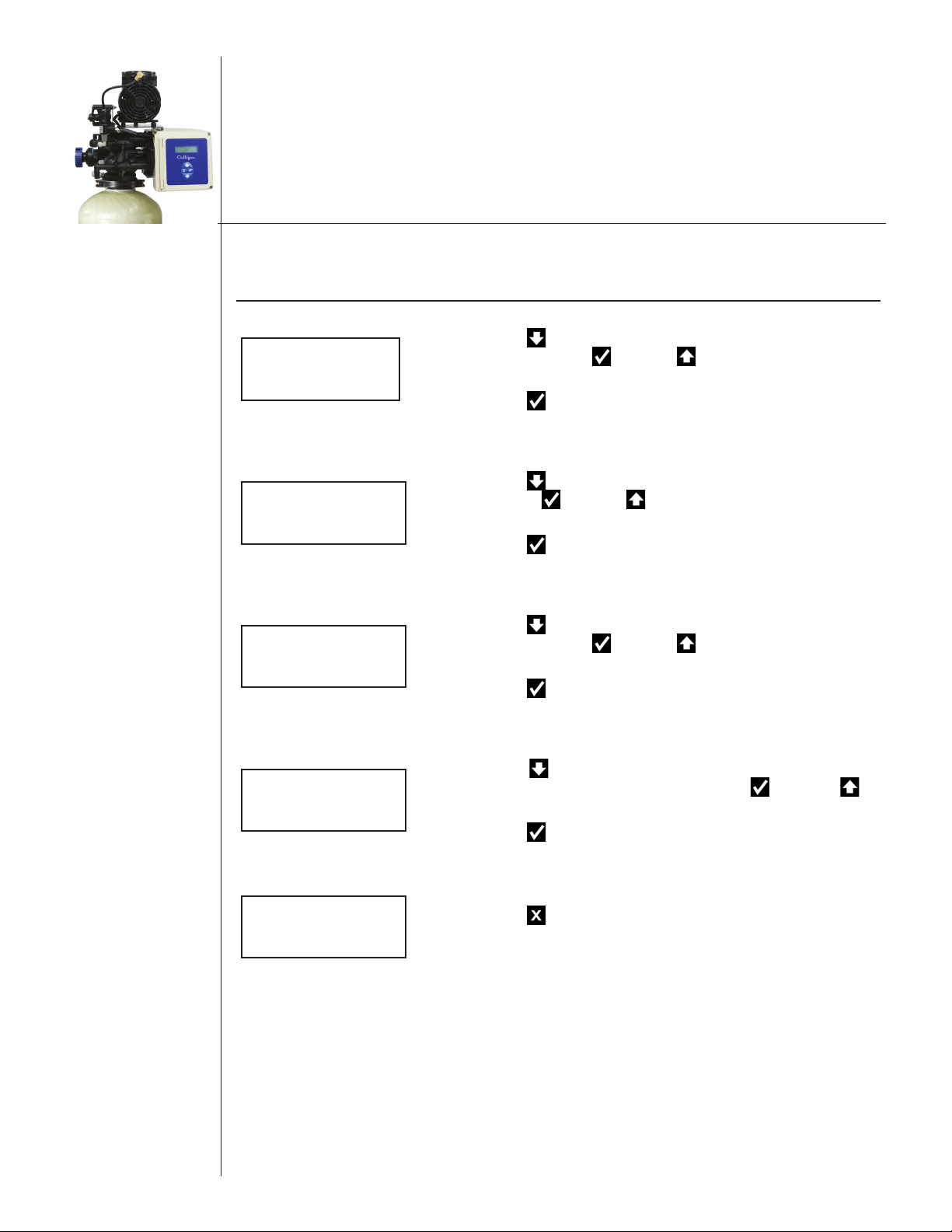

Screen Display Range Setting Description
Set Clock Type
CLOCK TYPE
>12 HR
12 or 24 Press to advance to the next setting if the clock type is
correct, or press and then to change the clock type
setting (leave at default setting, 12 hour).
Press to accept the new value.
The screen displays the clock type without the cursor
and advances to the Set Hour setting.
Set Hour
SET HOUR
>10AM
12PM–
11AM
Press to advance to the next setting if the hour is correct,
or press and then to change the hour (in this example,
from 12PM to 10AM).
Press to accept the new value. The screen displays
the hour setting without the cursor and advances to the
Set Minutes setting.
Set Minutes
SET MINUTES
>20
0–60 Press to advance to the next setting if the clock type is
correct, or press and then to change the minutes (in
this example, from 0 to 20).
Press to accept the new value. The screen displays the
minutes without the cursor and advances to the Daylight
Savings setting.
Set Daylight Savings Time
DAYLIGHT SAVINGS
>YES
Yes
No
Press to advance to the next setting if the daylight
savings time setting is correct, or press and then
to change the setting.
Press to accept the new value. The screen displays
the daylight savings setting without the cursor.
Return to the Home Screen
FILTERING
JAN-01-19 11:19A
Press until the screen displays the HOME SCREEN
and saves the settings.

15
01023492 F 06/19
Following these simple precautions will help assure continued trouble-free service
and keep your Culligan Water Conditioner looking like new for years.
1. Do not place heavy objects on top of the conditioner cover.
2. Use only mild soap and warm water when cleaning the exterior of the conditioner.
Never use harsh, abrasive cleaning compounds or those which contain acid, such as
vinegar, bleach and similar products.
3. Important: Protect your water conditioner and the entire drainline from freezing
temperatures. DANGER! If your unit should freeze, do not attempt to disassemble
it. Call your Culligan Dealer.
4. Important: Culligan water filters are sold for use on potable water, only. If at any time the
water becomes contaminated, such as during a “boil water” situation, the operation of the
water filter should be discontinued until it is verified that the water is again potable. To do
this, screw the blue knob on the back of the water filter against the barrel of the bypass
valve. Then, call your Culligan dealer to have your system sanitized before it is placed
back into service.
NOTE: Following the manufacturer’s instructions regarding operation,
maintenance and replacement requirements, including replacement of
filters if applicable, is essential for Culligan’s products to perform as
advertised.
5. Reset the time, if required, after any interruption of electrical power to keep the unit on its
normal schedule.
6. Should service, adjustment or trouble-shooting information be needed which is not
covered in the Use and Care Guide, call your Culligan Dealer.
If you have further questions, please call your local independently operated Culligan dealer.
He or she will be glad to be of assistance to you.
Recommended Preventative Maintenance Inspection Schedule
The Culligan High Efficiency Sulfur-Cleer water filter has been designed to provide a good, consistent
service life. Routinely inspecting the system may help avoid potentially costly breakdowns related to
circumstances outside of the control of the dealer and/or user. The filter is for problem water use and
routine maintenance is required. Contact your local Culligan dealer to perform routine maintenance.
Component Suggested Inspection
Frequency
Reason for Maintenance
Entire System At Start-up, after
infrequent use
(idle for one week or more)
or every 3–6 months if on
a private water supply.
On private supplies, the appearance of off-tastes
and odors, particularly if musty or “rotten egg”
(caused by harmless sulfate-reducing bacteria)
may indicate a need for the system to be sanitized.
Backwash Flow
Controller
Every 12 months or every
time service is performed
on the system.
Build up of sediment, iron and/or other foreign materials
(found in some water supplies but not necessarily all)
could negatively affect system performance.
Monitor item for normal or unexpected wear.
Media As needed. Sulfur-Cleer—Media may need to be reconditioned
or replaced depending on water characteristics.
Care and
Cleaning of
Your Water
Conditioner

16 01023492 F 06/19
Preventive
Maintenance
Maintenance Inspection
This Culligan Sulfur-Cleer™ water filter has been designed to provide a good, consistent service life.
Because of the nature of problem water, we recommend that the local Culligan dealer provide regular
maintenance/service contracts for the proper operation of your systems. The water filter service begins
with a multi-point inspection of your water filter system in an effort to uncover any and all problems that
may exist. Listed below is a recommended list of maintenance items to be inspected at a minimum of
once a year (or more frequently depending on the raw water quality).
Test Water Feed Product
Hardness
Iron
Hydrogen Sulfide
Chlorine
TDS
Other
Comments:
Bypass Valve
Bypass in Service or Bypass?
Condition of Bypass Valve
Operation OK?
Control Valve
Condition of Eductor (Sulfur-Cleer)
Condition of Solution Valve (Sulfur-Cleer)
Condition of Pistons
Condition of Solenoid Valve
Condition of Motor:
Condition of Flow Control
Condition of Optical Sensor
Condition of Check Valve
Condition of Compressor Output PSI
Control Settings Before After
Check /reset Time of Day
Check Time of Regeneration
Setting ON time (seconds), OFF time (gallons or minutes)
Backwash (minutes)
Chemical Draw/Slow Rinse (minutes)
Fast Rinse (minutes)
Cycle control Test Cycle OK?
Backwash
Chemical Draw
Slow rinse
Fast rinse
Media Tank
Freeboard inches:
Media Condition

17
01023492 F 06/19
There are several conditions that will cause the control to trip a regeneration. The screen displays
REGEN TONITE when the control has signaled for a regeneration. REGENERATING is displayed
while the control is in regeneration. The following are conditions that will call for regeneration:
1. When the Soft-Minder® meter has recorded the passage of a predetermined number of gallons.
2. At the preset time, when the number of days without a regeneration is equal to the
regeneration interval (timeclock backup) setting.
3. At the preset time, when Regen Tonite is selected. The screen displays Regen Tonite.
4. Immediately, when the Regen Now is selected. The screen displays Regenerating.
5. Immediately, if power to the unit has been off for more than three (3) hours and time
of day has been restored.
6. At the preset time based on Day-of-Week Regeneration setting.
Follow either procedure to bypass the filter or to initiate a manual regeneration or automatically bypass
the filter at the control valve or the remote display.
Delayed Regeneration
Screen Display Range Changing the Setting
FILTERING
JAN-01-19 12:01P N/A 1. At the HOME SCREEN, press and hold for at least
three seconds, then release the button.
REGEN TONITE
JAN-01-19 12:01P
Regen
Tonite
2. The first line of the display will toggle between FILTERING
and REGEN TONITE.
REGEN OFF
JAN-01-19 12:01P
Regen
Off
3. To cancel a delayed regeneration, press and hold the
for three (3) seconds, then release the button. The screen
displays REGEN OFF.
Immediate Regeneration
Screen Display Range Changing the Setting
FILTERING
JAN-01-19 12:01P N/A 1. At the HOME SCREEN, press and hold for at least ten
(10) seconds, then release the button.
REGEN NOW
JAN-01-19 12:01P
Regen
Now
2. The first line of the screen displays REGEN NOW.
The filter will initiate an immediate regeneration.
REGENERATING
JAN-01-19 12:01P
N/A
3. The first line of the screen displays REGENERATING.
Regeneration

18 01023492 F 06/19
Standard Manual Regeneration
Screen Display Range Changing the Setting
Filtering
JAN-01-19 12:01P N/A
1. This is the HOME SCREEN.
Press any button except to advance
to the MAIN MENU SCREEN.
1)INFORMATION
>2)MANUAL MODE 1–6 2. Press to 2)MANUAL MODE then press .
The screen displays the Manual Mode settings.
MANUAL MODE
>REGEN NOW
Regen Off
Regen
Now
Regen
Tonite
Bypass
3. Press and or to change the setting.
4. The default is REGEN NOW. Press the to select
this option to begin regeneration immediately.
5. If the screen displays REGEN OFF then the filter will
not regenerate.
6. If the screen displays REGEN TONITE then the filter
will regenerate that night at 2:00 a.m. (or at the preset
regeneration time). The screen displays two status
messages: FILTERING and REGEN TONITE.
7. If the screen displays BYPASS then for a specified time
the filter will be bypassed. Press to select the total
time the filter is to be in the bypass state.
MANUAL BYPASS
>OFF
Off
30 (min)
60
90
120
180
Manual
Bypass
8. Press and or to select the total time
the filter is to be in the bypass state.
9. Press to accept this setting.
The screen displays the Manual Mode menu.
1)INFORMATION
>2)MANUAL MODE
10. Press until the screen displays the HOME SCREEN
and saves the settings.

19
01023492 F 06/19
When and How
to Bypass Your
Water Filter
Normally, all water except outside lines passes through the water filter. There are times when the water filter
should be bypassed, using the Cul-Flo-Valv® Bypass, or a three-way bypass valve. You should bypass:
1. If lines to outside faucets do not bypass the water filter, and you do not want to waste
filtered water on lawn sprinkling or other outside uses.
2. If you are going away on vacation and do not want the unit to recharge.
Bypass Valve
In the back of Culligan water filter is a Cul-Flo-Valv® Bypass valve. To bypass the unit,
turn the blue knob clockwise. To return to soft water service, turn the blue knob counter-clockwise.
Figure 2. Bypass valve.
Bypassed
To BYPASS, turn the blue knob clockwise (see directional arrow on end of knob)
until the knob stops as shown in Figure 2. DO NOT OVERTIGHTEN!
About 1-1/4”
Insert a screwdriver
shank in this slot and
use as a lever if you
need extra force to
turn the knob
Figure 3. Service valve.
Filtered Water
To return to SERVICE, turn the blue knob counter-clockwise (see directional arrow on end of knob)
until the knob stops as shown in Figure 3. DO NOT OVERTIGHTEN!

20 01023492 F 06/19
Things to Check
Before You Call
for Service
If you unexpectedly experience changes in your water, make these simple checks before calling your
Culligan dealer. One of the following conditions may be the reason for your interruption of service.
Important
If any of the following conditions is found, the water filter should be manually reconditioned according to
instructions on page 18 after you have corrected the problem.
Power Supply
Check your power supply cord. Is it plugged fully into the electric outlet? Be certain that the outlet
is not controlled by a wall switch which has been turned off. Plug in the transformer then reset
conditioner to proper time of day.
Blown Fuse
Check the house fuse or circuit breaker panel. Replace a blown-out fuse or reset an open circuit breaker.
Power Failure
Any interruption in your power supply or time change—such as daylight savings—will disrupt your filter’s
reconditioning schedule by causing the timer to run off schedule. Reset the timer to the proper time of day.
Bypass Valves
Check to see if they are in the proper position. Cul-Flo-Valv®Bypass, if used, should be in the
“Service” position (see page 19). If hand valves are used, see that inlet and outlet valve are
opened and that the bypass valve is closed.
No Water
If you aren’t getting any water flow at all, make sure your water supply is working. Open a tap ahead of
the filter (outside tap) to see if you have any water pressure. If you have water pressure, check the bypass
valve. If it is in the Service position, put it into the bypass and call your Culligan dealer for service.
Increased Usage
Guests, family additions, new water-using appliances, etc., all will result in more water usage and will
require more capacity from your filter. You can reprogram your recondtioning schedule by following
the directions on page 17. Call your Culligan dealer for advice and save a service call.
