Philips AUT3234 User manual

Under-the-sink ltration
AUT3234
Water Solutions
User manual 1EN Manual del usuario 16ES
Manuel d'utilisation 33FR Manuale utente 49IT
Руководство пользователя 66RU

Content
EN
I. Product Introduction 1
II. Product Specifications 1
III. Product overview and
installation illustration
2
IV. Installation
Install the three-way ball valve
Install the faucet
Install the system
3
3
5
5
V. Usage instruction
Before the first-time use

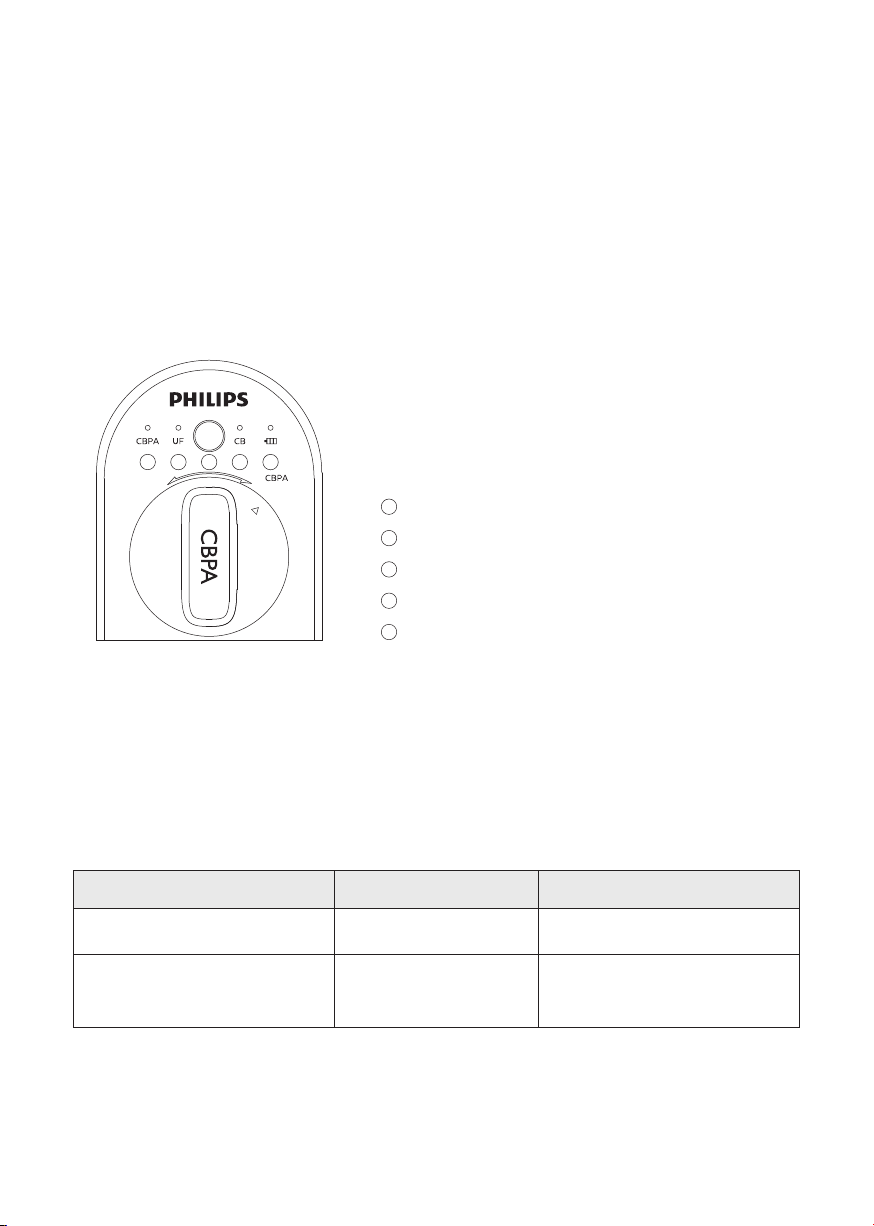

User interface
9
9
9
VI. Maintenance
Routine maintenance
Filter lifetime
Filter cartridge replacement
10
10
10
11
VII. Precautions
Warning
11
11
VIII. Troubleshooting 12
IX. Guarantee & Service 13
X. Packaging list 14
Installation

I. Product Introduction
Congratulations on your purchase and welcome to Philips! Our under-the-sink
water filtration system AUT3234 comes with a 4-stage ultrafiltration, which
eectively reduces particles, heavy metals, volatile organic compounds, pesticides,
bacteria, and pollutants down to 0.01 micron*, while retaining beneficial minerals
at the same time.
Read this user manual carefully before you use the appliance. Save it for future
reference.
* The substances removed or reduced by this system are not necessarily in all
user’s water.
** When the inlet water pressure exceeds 0.4 MPa, a pressure relief valve should
be installed before the system. When the inlet water pressure is below 0.1 MPa,
a pressure booster should be installed before the system. The pressure relief valve
and extra pressure booster need to be purchased separately.
Product name Philips under-the-sink water filtration system
AUT3234
2 liters/minute
CBPA filter: 4000 liters
UF filter: 8000 liters
CB filter: 4000 liters
Product model
Water flow rate
Filtration capacity
Inlet water pressure 0.1-0.4 MPa**
Inlet water temperature 5℃-38℃
Applicable water source
Municipal tap water, which meets all European
Directive on Water for Human Consumption 98/83
requirements and its national transpositions in
the various EU member states.
II. Product Specification
Rated voltage
1
4.5V

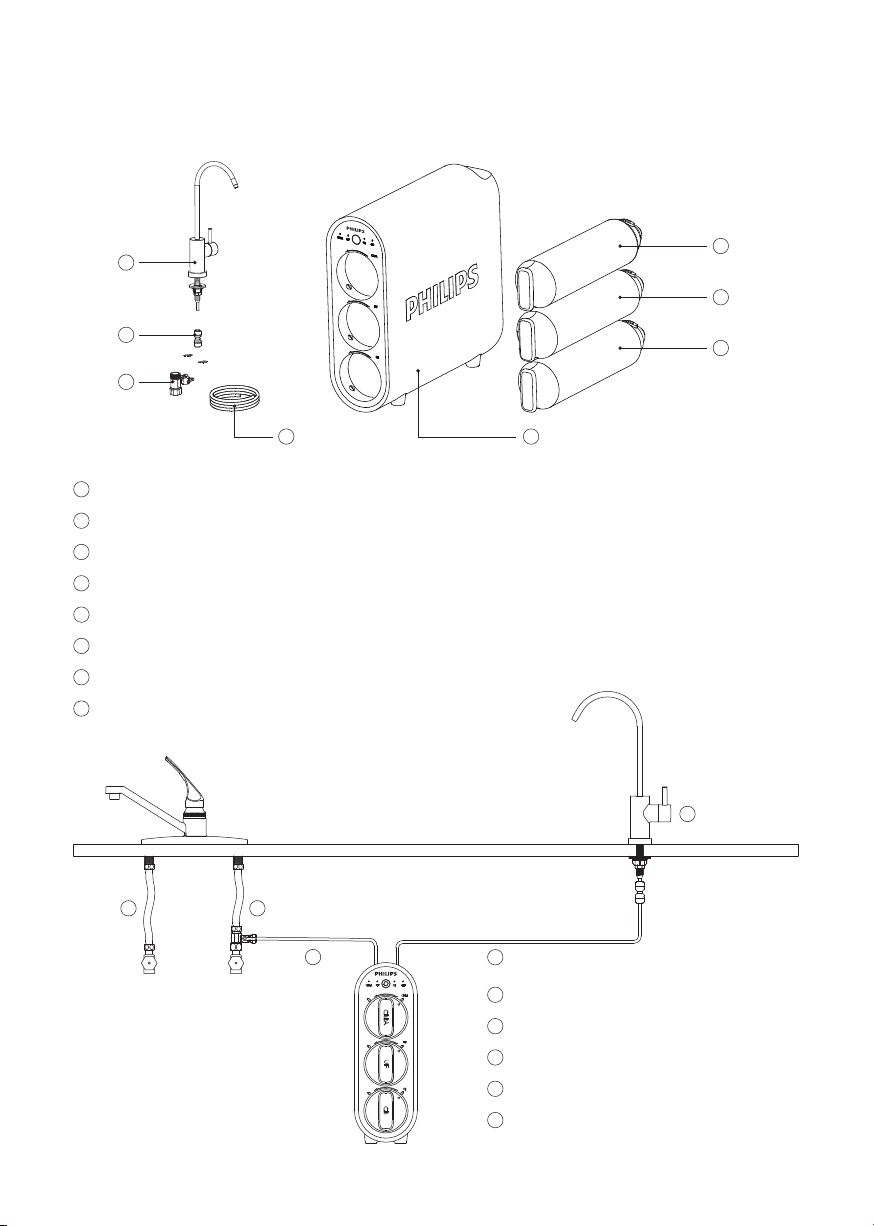

III. Product overview and installation illustration
Carbon block and sediment filter 2-in-1 filter (CBPA)
1
Hollow ber membrane lter (UF)
2
Carbon block filter (CB)
3
1/4” PE pipe
5
System
4
Hot
1
Cold
2
Filtered water outlet pipe
3
Faucet
5
Water inlet pipe
4
Three-way ball valve
6
Quick connect fitting
7
Faucet and accessory
8
2
1
2
3
45
1 2
34
5
7
6
8
CBPA
UF
CB

3
IV. Installation
Note:
- Before installation, it is important to check the condition of the system to
make sure it has not been damaged during transport.
- Unpack the system and its accessories. Remove the protective packaging material.
Recyclable materials have been used for the packaging and should be disposed
of in the appropriate recycling bins or at the specific local recycling center.
Warning: Keep plastic bags out of the reach of children, as they may be dangerous.
- Check if anything is missing according to the packing list and the overview.
- Given that the system will improve the quality of your drinking water, all tools
to be used in the installation process should be clean, rust and grease-free.
- The installation process should be carried out under appropriate hygienic
conditions, taking all necessary precautions concerning materials and components
that will come into contact with water to be treated or consumed.
- Avoid external contamination of the system through improper handling, using
gloves, sanitizing gel, and washing hands as often as is necessary during the
installation process, first use, and system maintenance.
- The system and installation shall comply with applicable local regulations.
- This product cannot be disposed of with other domestic waste products.
At the end of the product’s service life, it should be returned to the place of
purchase, or at a local recycling center, indicating that it contains electric
and electronic components. The appropriate collection and treatment
of the product, which no longer are to be used, contributes to the
preservation of natural resources and avoids any potential public health risks.

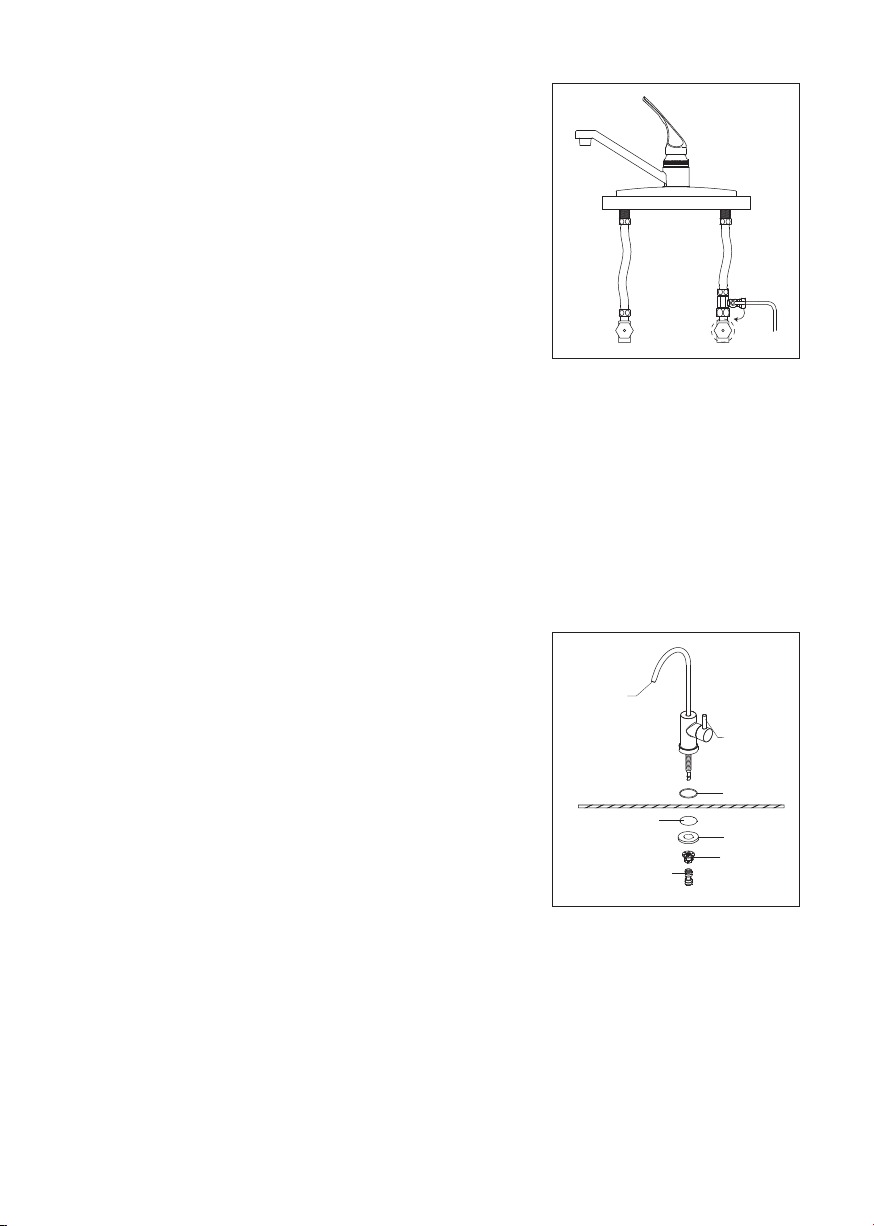

1. Install the three-way ball valve
a. Turn off the cold water supply. Turn on the kitchen cold water faucet to release
the pressure and allow water to drain from the line. Disconnect the cold water
hose from the cold water valve.
Cold
(1) (2)
Hot Cold

4

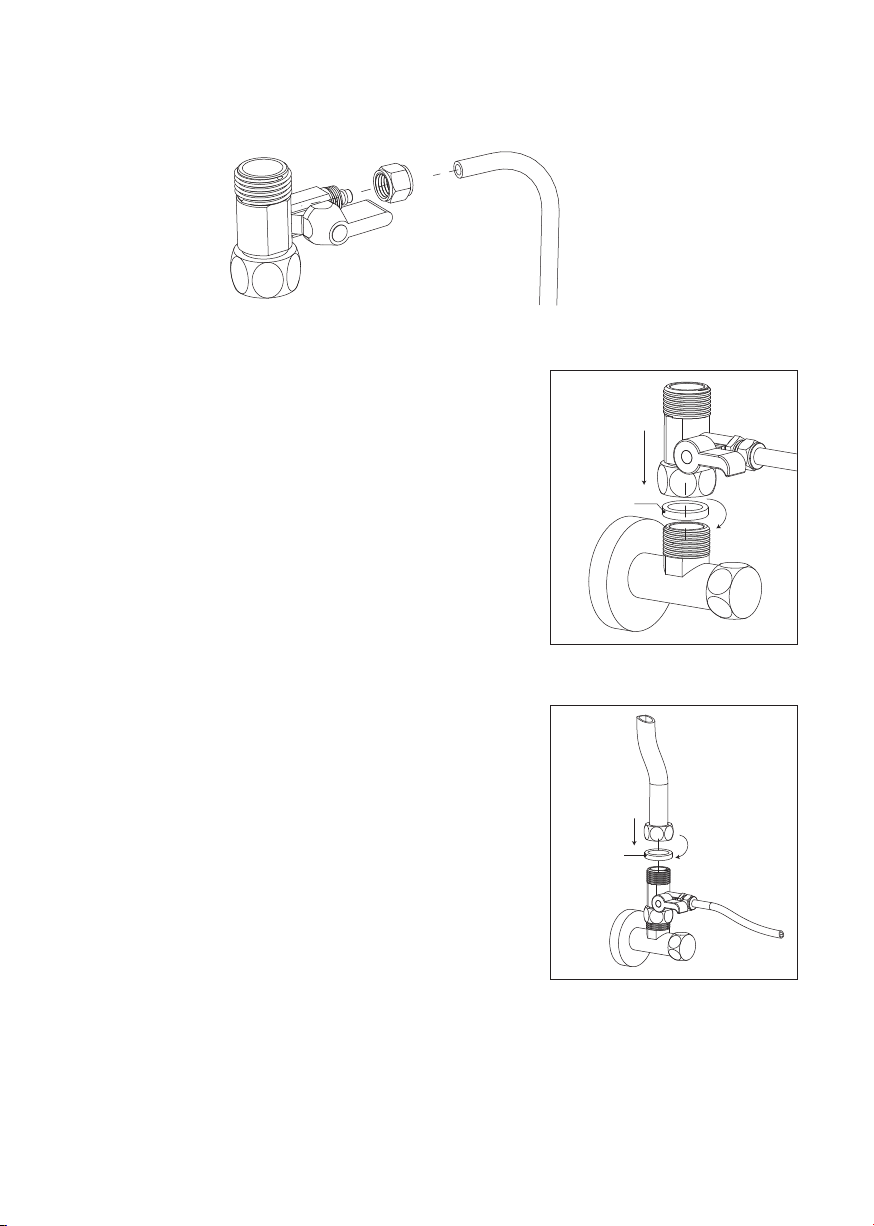

b. Slide the nut of the three-way ball valve onto the 1/4" PE pipe and insert the
pipe into the opening of the three-way ball valve. Tighten the nut with a wrench.
c. Install the three-way ball valve on the cold
water valve. Please don’t miss the gasket
inside the three-way ball valve during
installation.
d. Connect the cold water hose with the
three-way ball valve and screw it tightly
with a wrench. Please don’t miss the
gasket in the cold water hose during
installation.
Gasket
(1)
(2)
(1) (2)
Gasket

Water outlet
Lever
Washer
Washer
Spacer
Nut
Quick connect tting
5
e. Switch off the three-way ball valve. Turn on
the cold water supply. Wipe the connections
with a tissue to see if there is leakage. If the
tissue stays dry, it means the three-way ball
valve is installed properly.
Hot Cold
2. Install the faucet
Note:
Select an appropriate installation position. The environment where the faucet is
installed should adhere to any appropriate hygiene and sanitation conditions.
Make sure the faucet sits flat on top of the sink or countertop surface.
a. Drill a hole with a diameter of about 25mm. Skip this step if there is already a
hole in the sink or the countertop surface.

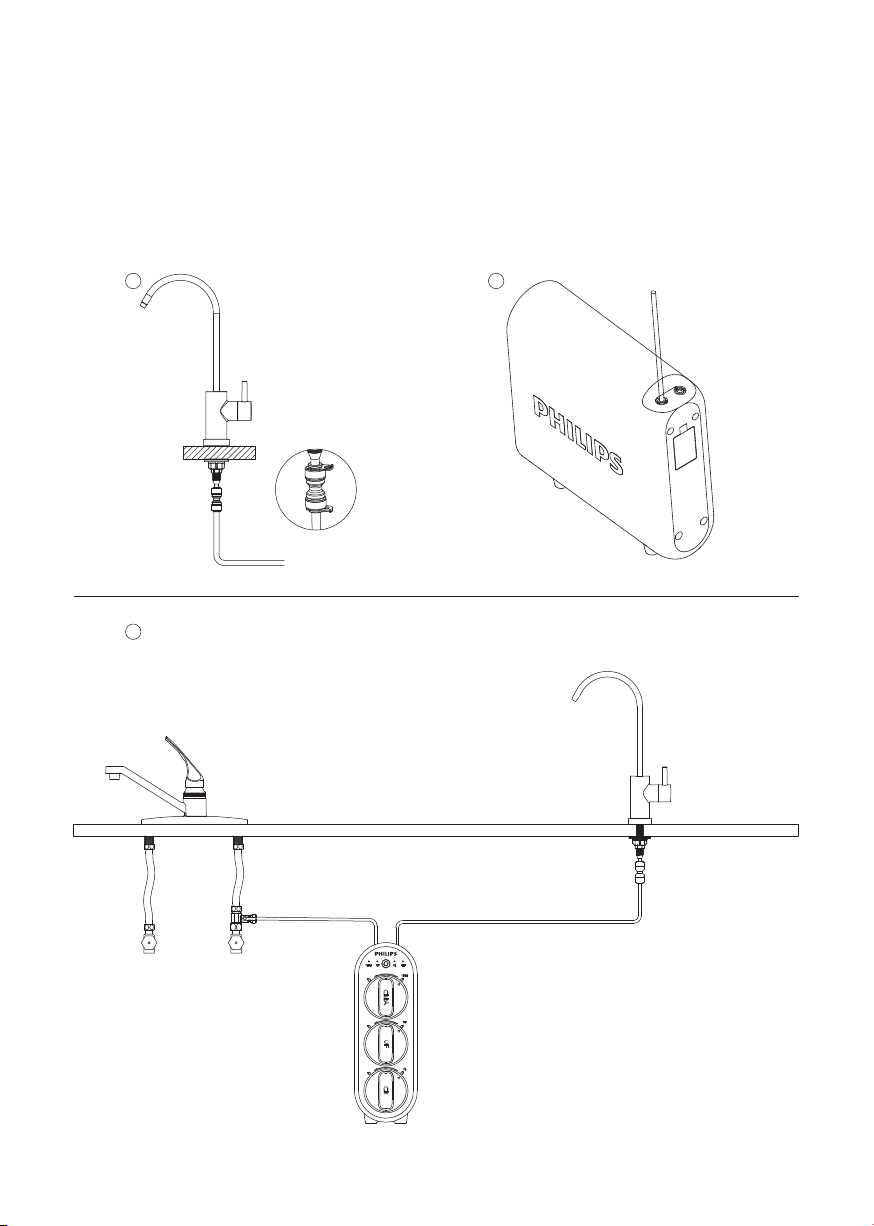

b. Install the faucet according to the diagram.
Screw the faucet stem nut all the way up the
faucet stem, and tighten it to secure the faucet.
3. Installing the system
Note:
Please check if there is sucient space for installing the system itself, its accessories,
connections, and for servicing and repair. Under no circumstances should the system
be installed outdoors. The environment where the system is installed should
adhere to any appropriate hygiene and sanitation conditions. Avoid any external
dripping liquids from pipes or drains etc onto the system.
(1)
(2)

6
This system should be placed on a stable and at surface. Keep the system away
from heat. It shall not be placed in a place that may have inammable gas leakage.
a. Press down the collets and pull out the plugs
of the water inlet and outlet holes in the back
of the system.
b. Connect the water inlet and the three-way ball valve.
Measure the length of the 1/4" pipe you
need to connect the system and the
three-way ball valve, and cut it accordingly
with a pipe cutter. Insert the other end of
the 1/4" pipe which has been connected
with the three-way ball valve into the water
inlet hole in the back of the system. Use a
clip to secure the pipe at the hole.
Note: The inlet water pressure should be within 0.1-0.4 MPa. If the pressure is too
low, a pressure booster should be installed before the system. If the pressure
is too high, a pressure relief valve should be installed before the system.
The pressure relief valve and extra pressure booster need to be purchased
separately.

7
c. Connect the water outlet and the faucet.
Measure the length of the 1/4” pipe you need, and cut it with a pipe cutter.
Insert one end of the pipe into a quick connect fitting, and connect the quick
connect fitting on the stem of the faucet. Use a clip to secure the pipe. Insert
the other end of the 1/4" pipe into the water outlet hole in the back of the
system until it stops.
1 2
3

8
d. Put in 3 AAA batteries.
e. Move the system to its space in the under-the-sink cabinet.
f. Remove the plastic wrap of the lter cartridges. Insert the lter cartridges in the
system accordingly, and turn them clockwise to align the triangle icon on the
filter cartridge with the lock icon on the system.
g. Check if the system is installed properly, and turn on the three-way ball valve.
AAA AAA AAA
CB
UF
CBPA
CBPA
UF
CB
(1)
(2)
