DeDietrich DHV7962A User manual

370
557
900
24°
1.0
•1
I

3
•1
1 x C 1 x L
3 x D/E
1x K
+
1 x N
1.1
II

2.1
125
150
•2
2.2
130 mm 180 mm
680 mm
520 mm
155 mm
900mm
III

1
2
K
1
21
2
3
•2
IV
B
A
C
D
E
2.3
2.4

•3
III

•4
12
3
4
4.1
4.2
IV

DEAR CUSTOMER,
EN
Discovering a De Dietrich product means experiencing
the range of unique emotions.
The attraction is immediate, from the moment you set eyes
on the product. The sheer quality of the design shines through,
thanks to the timeless style and outstanding finishes which make
each component an elegant and refined masterpiece in its own
right, each one in perfect harmony with the others.
Next, comes the irresistible urge to touch it.
De Dietrich design makes extensive use of robust and prestigious
materials, where the accent is place firmly upon authenticity.
By combining state-of-the-art technology with top quality materials,
De Dietrich produces
beautifully crafted products to help you get the most from the
culinary arts, a passion shared by all lovers of cooking and fine
food. We hope that you enjoy using this new appliance.
Thank you for choosing a De Dietrich product.

23
CONTENTS
Important safety advice and precautions ......................................24
Identification ....................................................................................26
Installation ........................................................................................27
Electrical connection ..........................................................................27
Fitting the hood ..................................................................................27
Use ....................................................................................................28
Switching on/off ................................................................................28
Saturated filter cassettes ..................................................................28
Saturated carbon filters ......................................................................28
Changing speed..................................................................................28
Configuration in evacuation mode ......................................................28
Time delay / deferred stop ..................................................................28
Eolysis function ..................................................................................29
Eolysis function programming ............................................................29
Fan auto-stop......................................................................................29
Light auto-stop....................................................................................29
Care....................................................................................................30
Problems ..........................................................................................31
Environment......................................................................................32
Customer service..............................................................................33
EN

24
IMPORTANT SAFETY ADVICE AND PRECAUTIONS
These instructions are also available on the brand’s web site.
Please read this advice carefully before installing and using your appliance. These
instructions are intended to protect your safety and the safety of others. Keep this
manual with the appliance. If you sell or give the appliance to someone else, make
sure that you also give them this manual.
• With a view to constantly improving our products, we reserve the right to make
changes to their technical, functional or aesthetic characteristics in line with
technological progress.

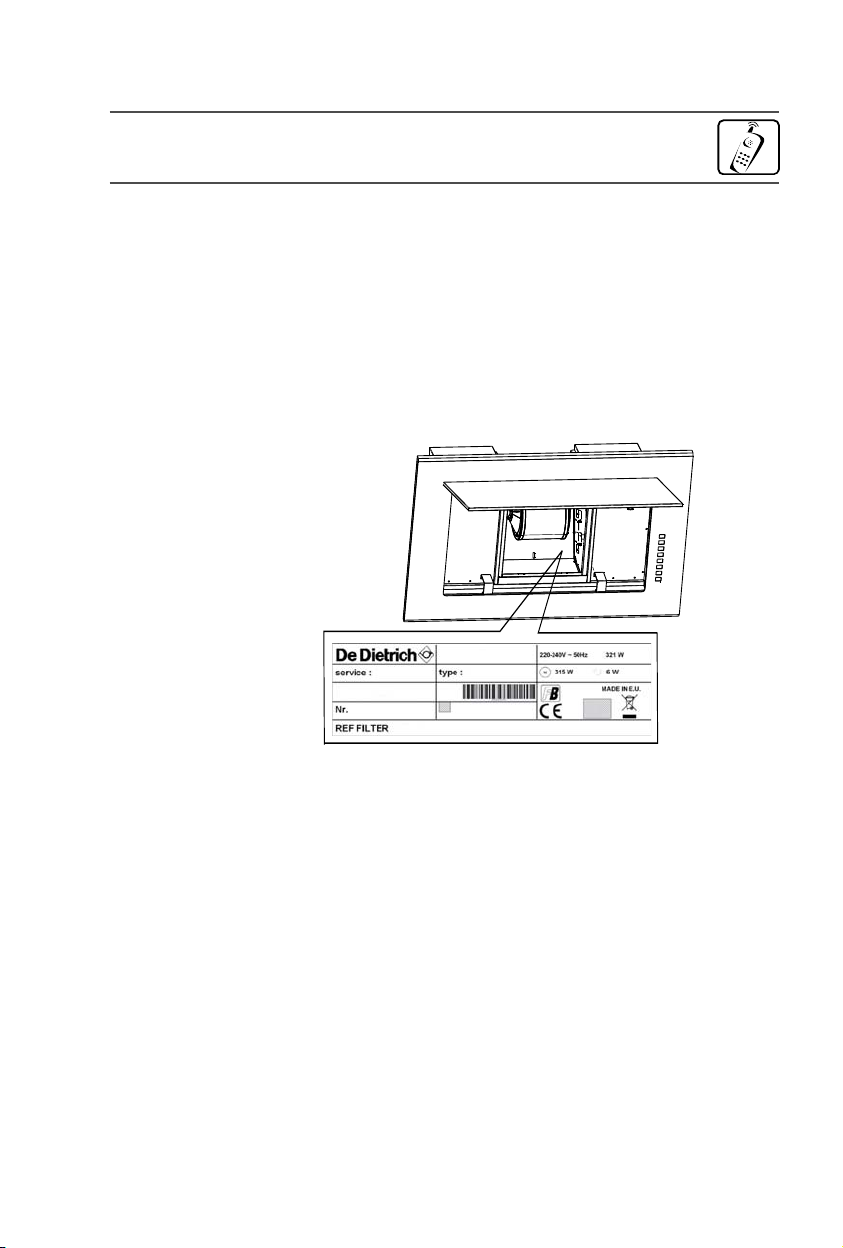

• To easily locate the make, model number, etc. of your appliance, we recommend that
you note this information on the “After-Sales Service Department and Customer
Support” page.
Important precautions
• This appliance was designed for use by private persons in their
homes. Do not use it for commercial or industrial purposes or for
any other purpose than that for which it was designed.
• When you receive the appliance, unpack it or have it unpacked
immediately. Check its general appearance. Make a note of any
reservations on the delivery slip and keep a copy.
• This appliance can be used by children aged under 8 and by
persons with diminished physical, sensory or mental capacities, or
persons without any experience or knowledge, provided that they
are properly attended to or are given the instructions on how to use
the appliance in complete safety and that any potential risks are
anticipated. Children must not play with the appliance. The appliance
must not be cleaned or maintained by unsupervised children.
• Caution: The accessible parts of this appliance may become hot
when used with cooking appliances.
• The appliance can be disconnected by using an
accessible power outlet or by incorporating a switch in
the fixed lines, in accordance with installation rules.
• Do not modify or attempt to modify any of this appliance’s
characteristics. Doing so could be dangerous.
• The appliance should only be repaired by an approved specialist.

25
IMPORTANT SAFETY ADVICE AND PRECAUTIONS
• Always disconnect the hood before carrying out cleaning or main-
tenance.
• Never use steam or high-pressure tools to clean your appliance
(due to electrical safety considerations).
Risk of asphyxiation
• Regulations on the evacuation of air must be complied with. Air
must not be sent into a duct used to evacuate fumes from
appliances that use gas or other fuels (this does not apply to
appliances that only emit air into the room).
• The room must be suitably ventilated when the cooker hood is used
at the same time as appliances that use gas or other fuels (this does
not apply to appliances that only emit air into the room).
Risk of fire
• Flambé-ing food or turning on gas rings below the hood, unless
they are covered by a pan is prohibited, since the flames could be
sucked in and damage the appliance.
• Keep a constant watch on fryers used below the hood. When hea-
ted to very high temperatures, oil and fat can catch fire.
• Clean the appliance and replace filters at the recommended fre-
quency. Accumulated deposits of grease could cause a fire.
• Using the hood above a solid fuel range (wood, coal, etc.) is prohi-
bited.
• If the hood is installed above a gas-fired appliance, leave at least
65 cm between the top of the hob and the underside of the hood. If
the instructions for a hob installed below the hood specify a dis-
tance greater than 65 cm, then that distance must be applied.

26
•1IDENTIFICATION
1.1 - PARTS LIST
C - Drilling template
D/E - Plug and + screws (duct support)
K - Fixing bracket
L - Hood
N - Carbon filters

27
•2INSTALLATION
ELECTRICAL CONNECTION
During installation and maintenance
operations, the appliance must be dis-
connected from the mains; fuses must
be isolated or removed.
The electrical connections should be
made before the appliance is installed in
its housing (2.2 Connection in white
area).
Check that:
- the electrical installation is sufficiently
rated,
- the supply wires are in good condition,
- the diameter of the wires complies with
the installation requirements.
This appliance is supplied fitted with a
3-core (phase, neutral and earth)
0.75mm2H 05 VVF cable. It must be
connected to a 220-240V single phase
mains network via an IEC 60083 socket
which must remain accessible after ins-
tallation, in accordance with the installa-
tion rules.
The fuse in your installation must be 10
or 16A. If the mains cable is damaged,
call after-sales service and so avoid any
danger.
If the electrical installation in your home
requires any changes in order to connect
your appliance, contact a professional
electrician.
If the hood malfunctions in any way,
unplug it or remove the fuse for the cir-
cuit concerned.
The installation must comply with current
regulations for the ventilation of rooms.
In particular, air must not be evacuated
into a duct used to evacuate fumes from
appliances using gas or other fuels.
Disused ducts may only be brought into
service, if approved by a competent spe-
cialist. The evacuation line, whatever its
type, must not emerge in a loft space.

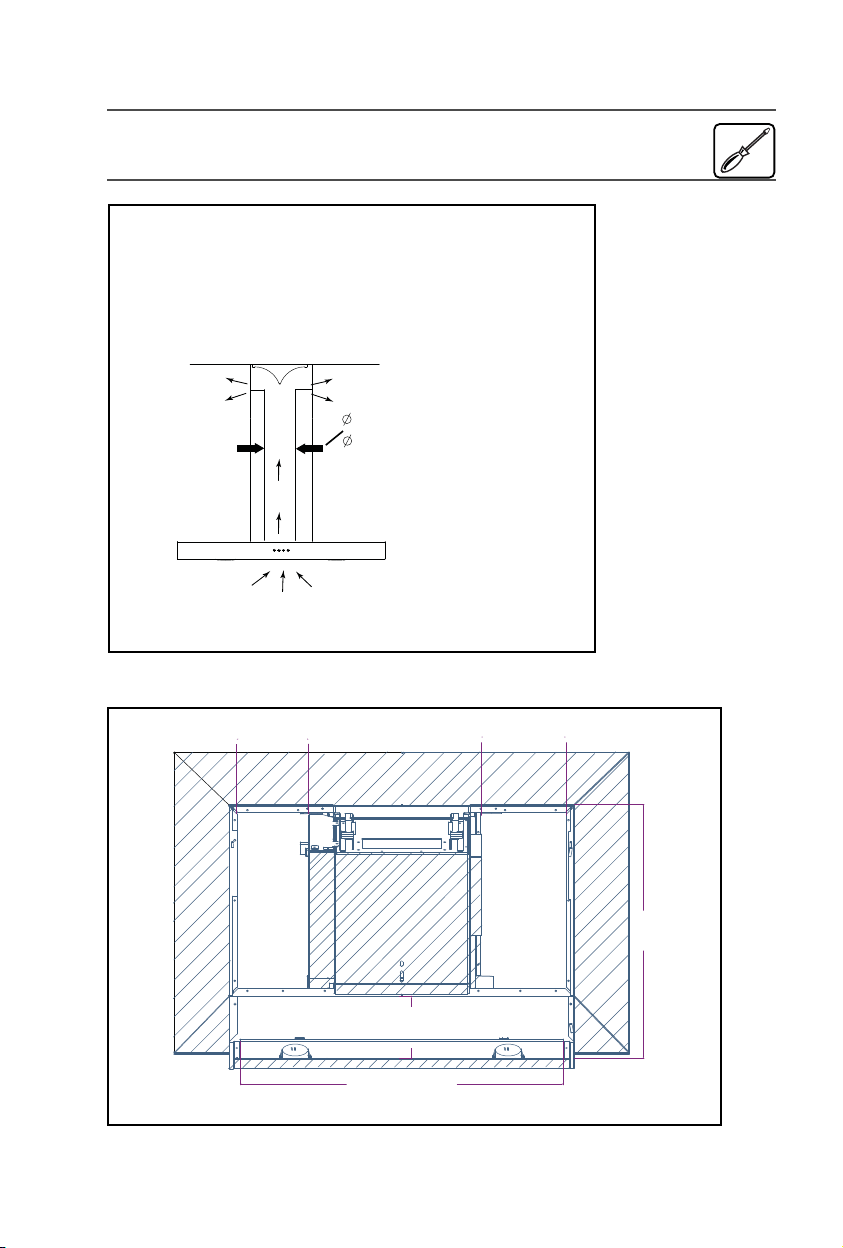

This hood is used in the recycling ver-
sion (2.1) with an activated carbon filter
(N) which retains odors (4.2: change of
the carbon filter), it can be used in the
evacuation version with the addition of
optional chimneys.
Energy saving advice
To obtain the best performance from
your appliance, limit the number of
bends and length of the duct as much as
possible.
ASSEMBLING THE HOOD

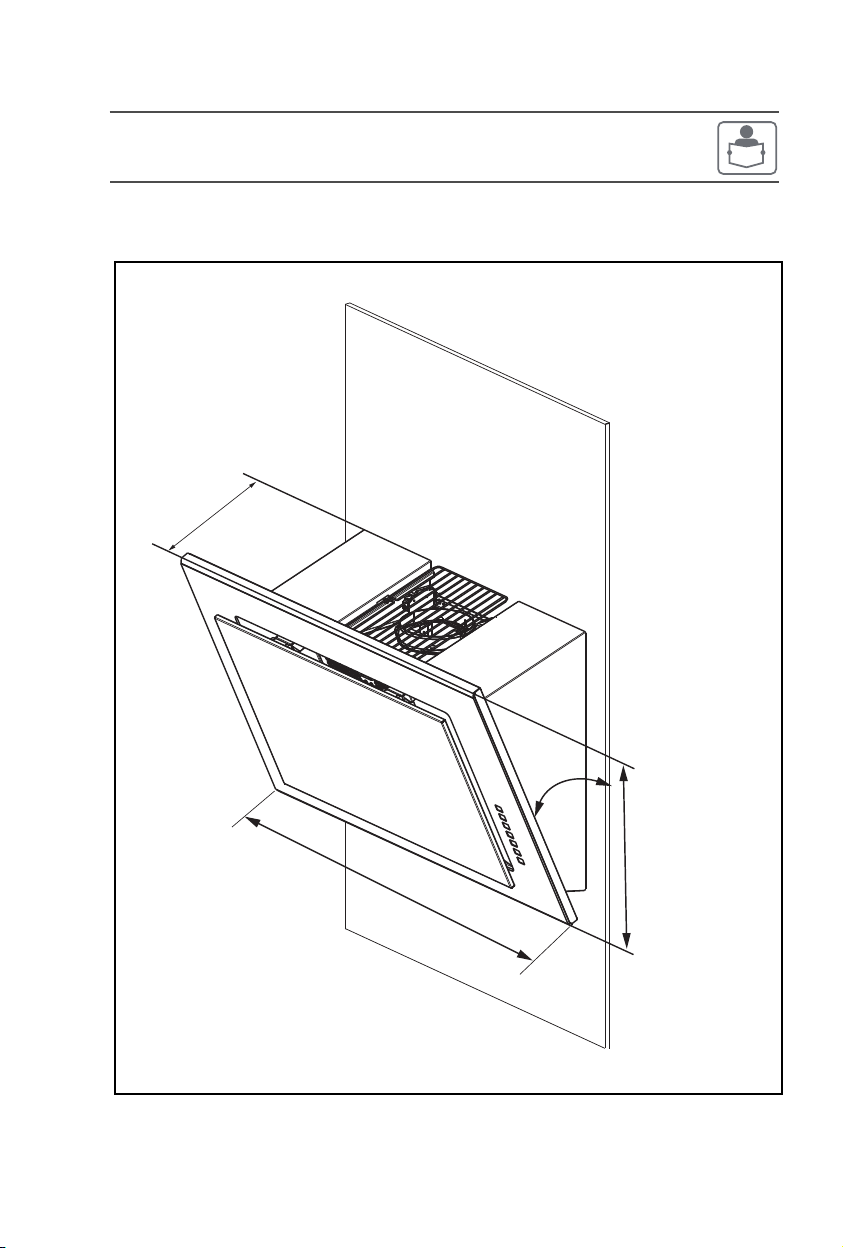

The distance between the hob (2.3) and
the lowest part of the hood must be
between 50 and 65 cm (use the tem-
plate (C) supplied with your appliance).
- Draw a horizontal line (A) at the chosen
height.
- Draw a vertical line (B) on the wall, cen-
tered with respect to the hob from the
ceiling to the limit of the previous hori-
zontal line (A).
- Place the drilling template (C) against
the wall, use dowels and screws adapt-
ed to your type of wall.
- Drill the holes. Push in the ankles.
- Screw the fastening bar (K) to the wall.
- Completely unscrew the screws n ° 2
(2.4) to make the hook as far as possi-
ble.
- Place the product on the bar.
- Screw down the bottom screw n ° 2 to
place the product on the wall.
- The screw of the top n ° 1 makes it pos-
sible to regulate the horizontability of
the hood.
- Open the hood door, remove the cas-
sette filter and install the anti-lifting
screw (3).
- Place the charcoal filter on the cassette
filter using the 2 metal fasteners (4).

•3USE
Note
This installation and user guide covers
several models. Slight differences in the
details and equipment may appear bet-
ween your appliance and the descrip-
tions given.
When the appliance is switched on for
the first time, all the touch keys light and
then switch off.
On/Off
Pressing the key starts the hood in
speed 1.
A long press on the key stops the
hood.
Saturated filter cassettes
The key flashes (1 short flash) for
2 minutes after the hood is switched off
to indicate that the filter cassettes should
be cleaned (see the “cleaning the filter
cassette” section).
Hold the key press (for at least
2 seconds) to reinitialise the “saturation”
function.
Saturated carbon filters
The key flashes (2 short flashes) for
2 minutes after the hood is switched off
to indicate that the carbon filters should
be changed (see the “changing the car-
bon filter” section).
Hold the key pressed (for at least
5 seconds) to reinitialise the “saturation”
function.
Changing speed
The function allows your hood to
remain at maximum speed 4 for
8 minutes and then to switch to speed 2.
After the hood has been started, you can
change the suction speed by pressing
on speed 2 (the key lights) or for
speed 3 (the key lights) for
10 minutes and then speed 2.
Configuring evacuation mode
Your hood must be switched off.
By default the hood is in recycling mode.
Pressing and holding the and
keys together (for at least 2 sec) allows
you to switch between Evacuation and
Recycling modes. The and keys
light and the or keys flash.
A short press on the key selects
recycling mode (the key flashes
and the key switches off).
A short press on the key selects
evacuation mode ( key flashes and
the key switches off).
A short press on the key confirms
the configuration (or automatically
confirmed after 10 seconds).
Time delay / deferred stop
At the end of cooking, you can press the
key to switch off the hood. This
function maintains suction at the selec-
ted speed for 10 minutes; the key
flashes.
To cancel the deferred stop, press the
key again and the deferred stop is can-
celled.
28

29
•3USE
Light
A short press on the key switches
the light on the hood on and off.
Eolysis function
A short press on the key starts the
function. For 1 hour the hood alternates
between 5 minutes at speed 1 with
10 minutes off; the key is lit and the
key flashes.
After 1 hour, the hood switches off on its
own. To interrupt this function, press the
key again.
Programming the Eolysis function
A long press on the key activates
programming.
The key flashes alternately with the
key, indicating the start of program-
ming.
The number of presses on the key
is the desired number of program hours
(maximum 9 = 9 hours).
The key flashes alternately with the
key (the number of successive
flashes is the number of hours selected).
The program is confirmed automatically
after 25 seconds or by a short press on
the key (the key flashes alterna-
tely with the key).
To cancel programming, press the
key.
Fan auto-stop
If you forget to switch off your hood, it
will switch off automatically after 9
hours.
Light auto-stop
If you forget to switch off the light on
your hood, it will switch off automatically
after 9 hours.
Energy saving advice
Adjust the speed to the cooking mode
and the number of pans. Use the rear
burners on your hob for preference.

30
•4CARE
4.1 - CLEANING THE FILTER CAS-
SETTES
They must be cleaned after every
30 hours approximately of use or at least
once a month. Use a brush, warm water
and a mild detergent. Rinse and dry
them carefully before putting back in
place.
- Lift and hold the door.
- Slide the cassette filter (1) downwards.
- Remove the grease trap (2) by lifting it
upwards.
- Wash, rinse and replace
4.2 - CHANGING THE CARBON FIL-
TER
This filter holds odours; it should be
replaced after approximately 120 hours
of use.
Order these filters from your dealer.
- Remove the filter cassettes.
- Remove the two metal fixings (4)
- Remove the carbon filters (3)
- Fit new filter on to the filter cassettes.
- Re-position the 2 fixings (4).
- Fit the filter cassette back in place.
- Repeat this operation for all filter cas-
settes.
CLEANING THE OUTER SURFACES
To clean the outer surfaces on your
hood, use soapy water and do not use
scouring creams or scouring sponges.
4.3 - CHANGING THE LED LAMPS
Contact after sales service.

31
•5PROBLEMS
The hood does not work.
Check that:
• there is not a power cut.
• a speed has actually been selected.
The hood is not coping.
Check that:
• the motor speed selected is sufficient
for the quantity of fumes or steam
released.
• the kitchen is sufficiently ventilated to
allow air to be taken in.
• the carbon filter is not saturated (hood
in recycling mode).
The hood stops during operation.
Check that:
• there is not a power cut.
• the all-pole cut-off device has not
tripped.

32
•6ENVIRONMENT
CARE FOR THE ENVIRONMENT
This appliance’s packaging can be
recycled. Recycle and contribute towards
protecting the environment by disposing
of packaging in local waste containers
designed for this purpose.
Your appliance also contains a
lot of recyclable material. This
logo indicates that used
appliances must not be mixed
with other waste.
Appliance recycling organised by your
manufacturer is carried out under
optimum conditions, in accordance with
European Directive 2002/96/EC on the
disposal of waste electrical and electronic
equipment.
Contact your local authority or retailer for
information on used appliance collection
points close to your home.
Thank you for helping to protect the
environment.

33
•7CUSTOMER SERVICE
Any repairs to your appliance must be
made by a qualified professional accredited
to work on the brand. When calling, please
provide the full references of your appliance
(commercial reference, service reference,
serial number), so that we can handle your
call better. This information appears on the
manufacturer’s nameplate on the
equipment.
