Defender SPARTAN5 User manual

INSTRUCTION MANUAL V1.0
Model#: SPARTAN5www.defender-usa.com
Security Camera
Indoor/Outdoor CMOS Color Camera w/ Night Vision

Model # SP5 2
PLEASE READ
NEED
HELP?
DO NOT RETURN THIS
PRODUCT TO THE STORE
Please contact a DEFENDER customer support representative rst regarding any additional information on
product features, specications or help with set-up.
Please contact us via one of the methods below:
Toll free telephone:
1.866.946.7828
For more product information visit www.defender-usa.com
Email:
suppor[email protected]
Online live web chat:
Visit www.defender-usa.com
Toll free fax:
1.888.771.1701
Note: You may nd updated versions of this manual by visiting our website

Model # SP5 3
PRODUCT WARRANTY
Please visit our website at www.defender-usa.com
for information about your product’s warranty.
We take quality very seriously. That is why all of our products come with a one year warranty from the original purchase date
against defects in workmanship and materials. If you have warranty or support issues please contact us using any of the following
methods:
Phone: [phone] Defender USA Defender CANADA
Fax: [phone] Industrial Parkway #Z64 4080 Montrose Road
Email: [email protected] Cheektowaga, NY Niagara Falls, ON
Website: www.defender-usa.com USA 14227 Canada L2H 1J9
Warranty Terms
1. Defender's products are guaranteed for a period of one year from the date of purchase against defects in workmanship and
materials. This warranty is limited to the repair, replacement or refund of the purchase price at Defender’s option.
2. This warranty becomes void if the product shows evidence of having been misused, mishandled or tampered with contrary
to the applicable instruction manual.
3. Routine cleaning, normal cosmetic and mechanical wear and tear are not covered under the terms of this warranty.
4. The warranty expressly provided for herein is the sole warranty provided in connection with the product itself and no other
warranty, expressed or implied is provided. Defender assumes no responsibilities for any other claims not specically
mentioned in this warranty.
5. This warranty does not cover shipping costs, insurance, or any other incidental charges.
6. You MUST call Defender before sending any product back for repair. You will be sent a Return Authorization number with
return instructions. When returning the product for warranty service, please pack it carefully in the original box with all
supplied accessories, and enclose your original receipt or copy, and a brief explanation of the problem (include RA #).
7. This warranty is valid only in Canada and the continental U.S.
8. This warranty cannot be re-issued.
Graphic Symbol Explanation
The lightning ash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of
insinuated “dangerous voltage” within the product’s enclosure that may be of sucient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating
maintenance (servicing) instructions in the literature accompanying the appliance.
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (BACK).
NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK, DO NOT OPEN MONITOR

Model # SP5 1
2
3
4
5
6
1
TABLE OF CONTENTS
WHAT IS INCLUDED
FEATURES
1 Indoor/Outdoor Night Vision
CMOS Color Camera
2 Window
Security Stickers
4 PIN DIN (female) to RCA (male)
Video/Power Wire
• BNC to RCA Connector
• 1 Power Adapter for Camera
• Camera Mounting Hardware
• Instruction Manual
• 1 Year Warranty
• Online/Toll Free Support

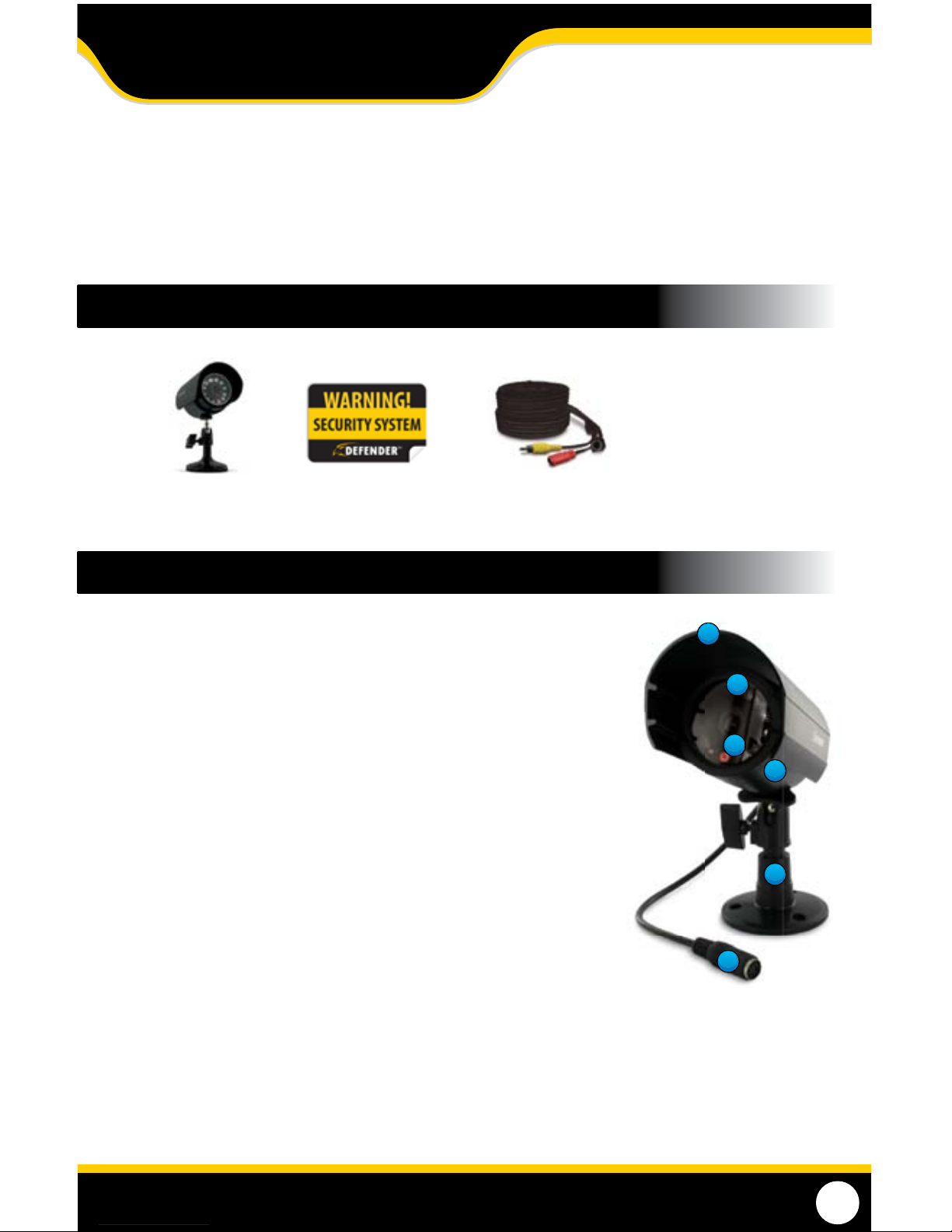

1. Sun Shield: Helps prevent glare from bright lights
2. Infrared (IR)LEDs: Allows the camera to see in the dark up to 15ft away
3. CDS Sensor: Turns on the infrared LEDs when it gets dark
4. Camera Housing: Made of protected metal to prevent rust
5. Camera Mount: Allows the camera to be desk or wall mounted
6. Video / Power Connection: Converts to RCA from 4 PIN DIN
IMPORTANT INFORMATION
While this camera is weather resistant, it is not waterproof. Please do not install it in areas
that receive direct rain or under eaves trough draining spots. Do not cut the DC power
cable of this camera. Do not cut the video connection wire to t with a dierent video
connection type. Any unauthorized modications will void your warranty.
Table of Contents
WHAT IS INCLUDED ...........................................................................................................................................................................1
FEATURES OF THE SPARTAN ...............................................................................................................................................................1
CAMERA INSTALLATION ....................................................................................................................................................................2
MOUNTING THE CAMERA ................................................................................................................................................................2
CONNECTING THE CAMERA STEP BY STEP .......................................................................................................................................2
TROUBLE SHOOTING ........................................................................................................................................................................3
SPECIFICATIONS...............................................................................................................................................................................4

Model # SP5 2
SETUP

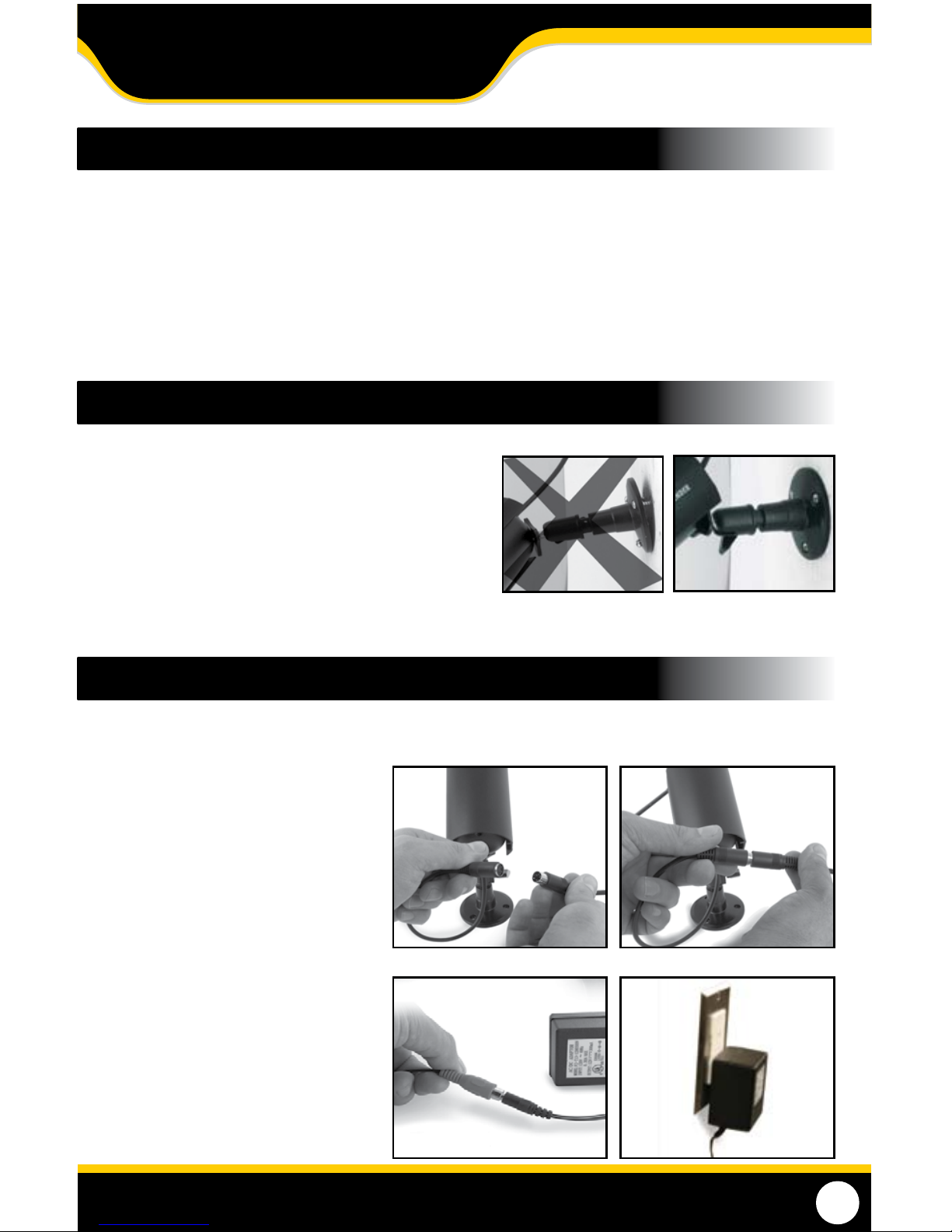

1. Screw the mounting bracket into the camera’s mounting hole,
turning it clockwise.
2. Unless you have purchased additional wiring, mount the
camera in the desired location no more than 60 feet from the
TV/Monitor/VCR DVR. You may wall mount or desk mount these
cameras.
3. Adjust cameras to the desired viewing angles.
1. Plug the 4 PIN DIN female connection
on the camera into the 4 PIN DIN male
connection on the 60ft video/power wire.
2. Match the two arrows on top of both
connecting cables.
3. Plug the camera’s power supply into the
power jack located on the 60ft video/
power wire.
4. Plug the camera’s power adapter into an
AC outlet.
1 2
3 4
• The camera should be installed between 8 and 13ft above the area to be monitored
• Ensure there are no obstructions in the camera’s view, to maximize viewing area
• Ensure that the sunshade is positioned to avoid glare and position camera away from direct sunlight
• Decide whether the camera will be wall-mounted or sit on a desk/table top. If wall mounting, use the mounting hardware in
the package. We recommend that the mounting bracket is secured using the included screws for all installations
• This camera comes with 60ft of video/power wire. Please make sure that you mount the cameras no more than 60ft from the
TV/monitor/VCR/DVR
• We recommend using a surge protected power bar to protect the cameras internal circuitry
MOUNTING THE CAMERA
CAMERA INSTALLATION
Follow these instructions for the installation of each camera. The 60ft video/power wire has two connections: one for video out,
and one for power.
CONNECTING THE CAMERA

Model # SP5 3
SETUP
Before contacting technical support, please follow the troubleshooting tips below for solutions to common issues.
No picture/signal:
• Make sure your TV/monitor is on the correct video input channel. This is NOT channel 3.
Common terms for this channel is INPUT, AV CHANNEL, LINE 1, LINE 2 and AUX. Please
use your TV or VCR manual to correctly identify this channel.
• If your camera is connected to a VCR/DVR, make sure that it is properly connected to your
TV/monitor.
• Check all connections to make sure they are secure and properly connected.
• Check your power supply to ensure that the camera is powered up.
Picture is too bright:
• Make sure your camera is not aimed at direct sunlight.
• Adjust the sunshade by sliding it forwards to block out excess light.
• Make sure nothing is obstructing the CDS sensor on the camera. If the CDS sensor is
blocked, night vision mode will be active and may produce extra light in your camera’s
picture.
• Move your camera to another location.
Picture is too dark:
• If using at night, make sure your camera’s subject is no more than 15ft away (may vary
based on amount of ambient light available).
• If using during the day, your camera may not be getting enough light. Adjust the
sunshade by sliding it backwards to let in more light.
• Check the brightness and contrast settings on your TV/monitor
• If your camera is connected to a VCR/DVR, check the brightness and contrast settings on
the VCR/DVR
• Move your camera to another location.
Night Vision is
not working:
• The night vision turns on automatically when light levels drop. Try the camera in a pitch
black setting. The area that it is in may have too much light and may not activate the
sensor.
• Cup your hands around the front of the camera and look at the LEDs. They should be
glowing red. If they are not, check the power supply.
56
5. Connect the 60ft video/power wire’s male
RCA plug to the VIDEO IN port of your TV/
monitor/VCR/DVR.
6. If your VIDEO IN port is a BNC connection
(common with DVR units), you will need
to attach the BNC to RCA adapter before
connecting the camera.
TROUBLESHOOTING

Model # SP5 4
4
SPECIFICATIONS
Camera Type ........................................................................................................................ Bullet
Image Sensor .....................................................................................................1/4" Color CMOS
Resolution .................................................................................................................400 TV Lines
Outdoor Use .............................................................................................................................Yes
IP Rating ................................................................................................................................IP55
Focal Length...................................................................................................................... 6.0mm
Focus Type ............................................................................................................................ Fixed
Night Vision ..............................................................................................................................Yes
Number of IR LEDs (and Range) .............................................................................. 11, up to 15ft
IR LED Control.......................................................................................... Automatic (CDS Sensor)
Min. Illumination ..................................................................................................................0 lux
Video Output ....................................................... 60ft 4 PIN DIN to RCA (male) Video/Power Wire
TV System .............................................................................................................................NTSC
Microphone .............................................................................................................................. No
Motion Detection ..................................................................................................................... No
Viewing Angle ............................................................................................................. 65 Degrees
Electronic Shutter ........................................................................................ 1/60 ~ 1/100000 sec
BLC ...........................................................................................................................................Yes
AGC .............................................................................................................................. Automatic
ELC ............................................................................................................................... Automatic
Sun Shield ................................................................................................................................Yes
IR Cut Filter ..............................................................................................................................Yes
Housing Material ................................................................................................................. Metal
Housing Color ........................................................................................................Midnight Black
Signal/Noise Ratio............................................................................................................. >48dB
Camera Bracket ........................................................................................................................Yes
Operating Temperature ............................................................................................14°F ~ 122°F
Operating Humidity .............................................................................................................. 95%
Camera Power Input.............................................................................................. DC 12V 200mA
Power Adapter Input ....................................................................................................120V 60Hz
LED Power Indicator ................................................................................................................. No
Dimensions .....................................................................................................3 1/8" x 2" x 4 3/8"
Weight ............................................................................................................0.6lbs (with stand)

Model # SP5 5
NOTES AREA
Customer Information Card
Contact Name:
Company:
Address:
Postal Code:
Phone Number:
Email:
Model Number of Product:
Serial Number of Product:
Purchase Date:
Place of Purchase:
NOTE: We recommend that you keep a record of your purchase receipt with your manual for any future returns or support issues.

Model # SP5 6
DRILLING TEMPLATE
To wall mount the camera, drill three holes using a 3/16" drill bit and the template below. Insert the supplied
wall anchors into holes and secure camera to wall with supplied screws.
DRILL HOLES IN
THESE POSITIONS

Disclaimer
Defender does not endorse the use of any Defender products for illegal ac-
tivities. Defender is not responsible or liable in any way shape or form for any
damage, vandalism, theft or any other action that may occur while a Defender
product is in use by the consumer.
VISIT US ON THE WEB!
► Product Information
►User Manuals
► Quick Start Guides
► Specication Sheets
► Software Updates
► Firmware Upgrades
www.defender-usa.com
Model#: SP5www.defender-usa.com
