Dear Buyer!
We congratulate you on having
bought the device under trade
name “Defiant”. We are sure that
our devices will become essential
and reliable assistance in your
housekeeping.
Avoid extreme temperature chang-
es. Rapid temperature change (e.g.
when the unit is moved from freez-
ing temperature to a warm room)
may cause condensation inside the
unit and a malfunction when it is
switched on. In this case leave the
unit at room temperature for at
least 1.5 hours before switching it
on.
If the unit has been in transit, leave
it indoors for at least 1.5 hours be-
fore starting operation.
To get the most out of your new "E
Skate", please read this manual and
safety instructions before use. Please
also save the instructions in case you
need to refer to them at a later date.
E-scooter Features
E-scooter Main Parts
Warnings & general information
Opening & folding E-scooter
Operation instruction
Safety instructions
Cycling operation
Maintaince of the electric scooter
Maintaince of flat tire
Button operation
Maintaince
Specification and parameters
Quality guarantee
E-SCOOTER APPEARANCE
E-SCOOTER FEATURES
1. Handle bar
2. Handle clutch
3. T tube
4. Main body tube

3
5. Height adjustable bottom
6. Speed controller
7. Brake grip
8. Fixed nut
9. Safety lock
10. Quick folding mechanism
11. Kickstand
12. Charger connector
13. Head light with horn
14. Head light/horn switch
15. Rear light
E-SCOOTER MAIN PARTS
Quick folding mechanism
Self-locking/Release grip
Free pneumatic
Rear solid tires
Anti-skid dock

4
Shock spring
Battery charger connector
Front pneumatic tyres
Speed control throttle/
ON/OFF button/Battery indicator
LED Head Light/Speed Limit Switch (Up on Down Off) Horn

5
Fixed nut
Kickstand
Warnings and general information
Warning!
The responsibility for E-SCOOTER
maintenance is yours.
Therefor read this manual carefully and
follow instructions. They will help you to
avoid risks.
General warning
٠Always follow the local laws and regu-
lations.
٠Never ride your scooter ln conditions
of poor visibility.
٠Do not do stunts, wheelies or jumps,
they will increase your chances of injury
and damage your E-SCOOTER
٠Never carry passengers.
PLEASE NOTICE
•SCOOTER is not liable for incidental
damages or consequential damages due
directly or indirectly to the use of this
product.
BEFORE RIDING:
Ensure that the M BUTTON is inserted
all the way in to the middle folding
mechanism/bridge.
IMPORTANT INFORMATION
Why reading the instruction is necessary
before driving?
This manual was written to help you
understand the proper use and mainte-
nance of E-SCOOTER.
It is important for you to understand
your new E-SCOOTER; its features and
performance, so that you will enjoy the
most from your first and every ride.
Also, it is important that your first ride
with E-SCOOTER will be in a remote
location, without any obstacles.
E-SCOOTER needs a short period for all
moving parts such as hinges and brakes
to adjust themselves into their correct
position.
OPENING AND FOLDING E-SCOOTER
OPENING E-SCOOTER

3
STEP 1

4
Step 4

5
Notice:
Before the driving you must ensure that the M button is inserted all the way into the
central folding mechanism. Otherwise you risk to injure yourself and damage the folding
system.
FOLDING E-SCOOTER
Step 1
Step 2

6
Step 2

7
Notice:
E-SCOOTER has a unique folding mech-
anism, which enables a quick and easy
fold for carrying, and transportation
and storage.

3
OPERATION
BATTERY
٠Do not operate motor while charging!
٠Indicator lights in the throttle are in-
tended only for general knowledge (full
/ empty) and does not give a precise
indication to the battery status.
٠Do not store E-SCOOTER for long
terms (more than two months) with
fully charged battery.
٠From time to time Discharge the bat-
tery by riding E-SCOOTER in the red led
light position until it slows down and
stops
DO NOT USE THE BATTERY IF THE
BOARD:
٠Is Broken
٠Emits an unusual odor or excessive
heat • Presents any leakage.
Avoid contact with substance oozing
form the battery.
Keep the battery away from children
and pets.
Exposure to the battery voltage can
cause death or serious injury.
The use, storage or charging of the E-
SCOOTER battery outside specified lim-
its may result in the annulment of the
warranty, battery damage, and an inef-
fective battery charging.
OPERATION
CHARGER AND BATTERY:
Your E-SCOOTER has an external
charger. Connect the charging cable to
E-SCOOTER charging socket under the
footboard, on the right side at the rear.
Then connect the chargers electric cable
to an electrical outlet.
Charging Light Red - Battery is charg-
ing.
Charging Light Green - Charging is
complete.
Avoid long periods of time with an un-
charged or fully charged battery.
To maximize your E-SCOOTER battery
performance, fully charge it for 9 hours,
once a month, or after each use of
twelve hours.
Unplug E-SCOOTER from the outlet be-
fore installing, removing the battery or
performing any maintenance. It is dan-
gerous to work on E-SCOOTER when
plugged into an AC outlet. Electrical
shock can cause serious injury and
damage the scooter.
Do not attempt to open the battery. Do
not insert anything in the battery and
do not attempt to open it's case with
any tool. Inserting an object into open-
ings or in the battery can cause electri-
cal shock, injury, burns or fire.Any at-
tempt to open the battery case will
damage it and cause release of danger-
ous toxic substances.
Charge the battery only using tools ap-
proved by E-SCOOTER.
Remove the battery and carry E-
SCOOTER according to all applicable
local and national requirements.
OPERATION
POWER SWITCH
There is a ON/OFF button on the throt-
tle. Pressing this button will operate E-
SCOOTER, indicator lights will turn on.
By pressing the button once, E-
SCOOTER will be turned off.
WARNING!
RELEASE SPEED CONTROL BEFORE
BRAKING!
OPERATION
Push button of SPEED CONTROL to ac-
celerate E-SCOOTER
THROTTLE SPEED CONTROL

4
♦Use this product for one person
only, do not carry others at the same
time.
♦Please wear safety helmet
when riding this product, please correct-
ly hold the operating lever by both
hands when riding, do not riding it by
one hand.
♦It is recommended to continu-
ously charging 6 hours to maintain the
best condition.
♦Please practice this product in
an open area, ride it after you are famil-
iar with this product.
♦Do not ride this product on an
unsafe road or violate the traffic laws.
♦Don't turn off the power supply
during riding.
♦Do not attempt to directly pass
the sidesteps of the gap is more than 3
cm, it may lead to scooter overturns
and damages or personal injury.
♦Do not use this product under
the environment below -5'C. Please
charge the lithium battery every 30
days.
♦Stamp your feet on the scooter
when riding.
♦Please slow down and drive carefully
when riding on a rough or uneven road.
♦Don't ride this product if there
is water, oil or ice on the road.
♦The user must adjust the product
height to an appropriate position, oth-
erwise it will cause injury or damage.
♦Do not immerse the product in
the water to a depth of more than 5 cm
or splash water on it, otherwise it will
cause the motor and the circuit faults.
As you accelerate, lean forwards. As you
brake, tilt your weight backwards
RIDING OPERATION
Ready to start
1. Find a flat field.
2.Open the product as previously de-
scribed.
3.Adjust T tube height.
Driving (start assist)
1.Press the POWER button.
2.In order to ensure the safety of users,
this product is set to assist start . First,
one foot on the E-scooter dock, the oth-
er one kick the ground, keep sliding and
sliding, then the E-scooter slowly and
gently speed up at the same time.
3.The E-scooter start moving forward,
at the same time put the foot on the
ground to the E-scooter dock. The
greater the Angle of pull accelerator, the
car run faster.
Stopping
Brake handle gently pull back, immedi-
ately to cut off the power supply and
speed down, then place one foot on the
ground. Remember do not to brake
hard. Because that would abrasion the
single side of tyre, lead to jump, it is
not comfortable.
Note: If it is raining, do not use this
product, unless control the speed less
than 10 km/h, and shall not brake hard,
avoid to slip.
Like most sports, cycling is also there is
the risk of injury and damage. By
choosing to ride E-SCOOTER the re-
sponsibility and all inherent risk is on
you. It is crucial that you know, under-
stand and act according to safety rules.

5
CYCLING OPERATION
Battery and charger
Each E-scooter is equipped with unique
lithium battery and charger, do not use
other sort charger, other sort charger
can’t charge for the battery.
Lithium battery (ternary lithium battery)
Battery can be charged at any time,
ensure the battery power is full at any
time, that is harmless for the battery;
please charge once less than one
month, if keep it too long to be charged,
please contact the dealer to starting
batteries again.
The charger
Chargers have overcharge protection
function, when the batteries charged
100%, automatically stop charging.
Charging instructions
1. Connect the charger cable to E-
SCOOTER charging socket.
2. Connect another charger cable to the
normal power supply socket (AC100-
240V).
3. Feed the charger power, charger indi-
cator light is red, said is charging, the
indicator light is green, said the battery
is full (it is best state to keep the green
light is on for two hours).
E-SCOOTER QUICK MAINTENANCE
E-SCOOTER was assembled by profes-
sional people. Any attempt to inde-
pendently fix or change
E-SCOOTER any parts, will cause dam-
age to E-Scooter, and will cancel the
manufacturer warranty given upon de-
livery.
Required Tools
E-SCOOTER REAR FLAT TIRE RE-
PAIR
1. Make sure the E-SCOOTER is un-
plugged and powered off.
2. Place E-SCOOTER on a high stable
surface only on it’s body, so that rear
and front wheels will be in the air
3. Use 3 mm Allen key to open both
rear plastic covers.
4. From E-SCOOTER right side gently
disconnect all mot0f connectors at-
tached to wires.
5. Use wrench to disassemble motor
nuts and motors.
6. Remember the exact order and place
of washers on each side of the motor.
7. Use professional spoon (not plastic or
small ones) to dismount tire from mo-
tor, be careful not to damage the motor,
rim, tire and tube, use liquid soap
around the rim to tire slide out of the
rim.
8. With tire repair glue leakage parts
9. Put the tire back in place. Use liquid
soap around the rim to put the tire back
in place. Do not use any tools for plac-
ing back tire on the rim, use hands only.
10.Check that your repair is completely
done by pumping air to 45 psi. Into the
wheel
11.In order to put E-SCOOTER back
together do all the steps in reverse or-
der.
NOTICE
MAKE SURE THE E-SCOOTER IS UN-
PLUGGED AND POWERED OFF
OPERATION

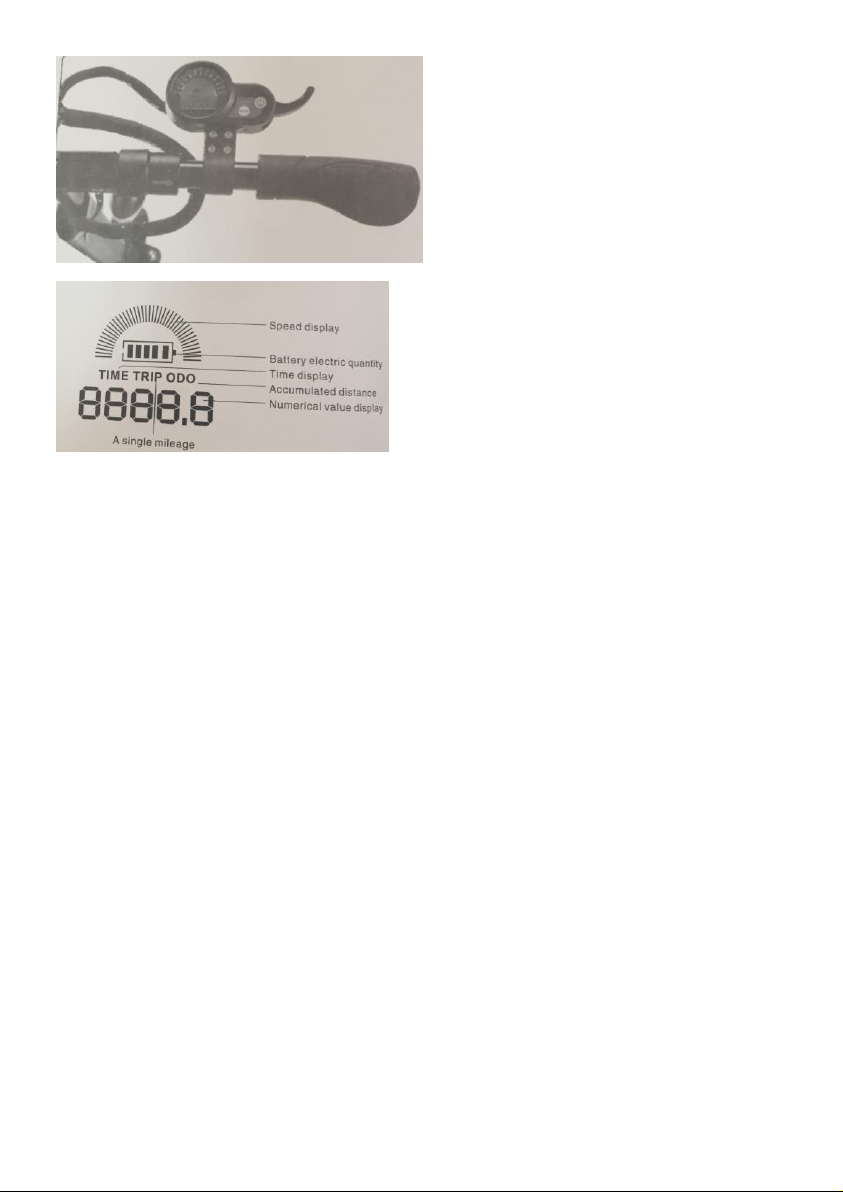

The displayed value of battery
speed are dynamic according to
the E-scooters running, time, single
mileage, accumulation mileage and
charging times are depended your
choosing function.
Long press the button for 3 sec-
onds, display system work, LCD light
and enter ready mode.
Short press the button E-
skateboards shows present gear posi-
tion and L1, L2 or L3 light is flashing,

6
"L3" is high gear position, fastest; "L1"
is low, speed is the slowest position, if
short press the button will change
the gear position to L1, L2, L3 and L1,
press the button or 5 seconds without
operation will automatically keep the
gears position and quit the system.
Gear set has the memory function, next
time operation system will run the user
date automatically. When the battery is
full and loaded weight is less than 70
kilograms, the gear position speed is as
follows:
L1: maximum speed at about 20 km/h
L2: maximum speed at about 30 km/h
L3: maximum speed at about 40 km/h
Short press button to enter a single
mileage display interface,
"TRIP" icon lit, numerical display area
shows four integers, such as "0123.5"
say the single mileage is123.5 km. In
the display interface of single mileage
long press button 3 seconds, a
single mileage can be reset.
Short press button to enter the
accumulated mileage display interface,
"ODO" icon lit, numerical display area
shows five integers, such as "12035"
say the accumulated mileage of 12035
kilometers. Accumulated mileage for the
total mileage of the vehicle, can not be
reset.
Short press button to enter the
cycle count display interface, numerical
display area shows five integers, such
as "00016" say the battery charging and
discharging times is16. when the bat-
tery power is less than 30% of the total
electricity meter charging time again is
filled again. On cycle count display in-
terface short press the Short press
Short mode button enter the time
display interface,
"TIME" icon lit. Initial time display for-
mat is "MM: SS", The before two num-
ber is minutes, after two number is sec-
onds, the time display format will
change to “HH:MM” format untill the
time display interface is “99:99” the
before two number is hours and the
after two is minutes.
Automatic shutdown
When the keys on the table is displayed
without operation and speed regulating
handle full relaxation (velocity is zero),
more than 90 seconds, save electricity
system will automatically shut down into
the state, Long press the switch
button 3 seconds to boot.
Start
The activation method for this scooter
for the non-zero start, need a foot
stepped on the skateboard first, and the
other kick the ground a few times to
give the scooter a velocity, and then
immediately upon the regulating handle
to the scooter to accelerate the speed,
so to start the scooter. Scooter starts to
move speed regulating handle to adjust
speed.
MAINTENANCE
Lubrication
Need every six months in folding handel
clutch set using a small amount of lubri-
cating oil or lubricant to do mainte-
nance.
•Note: do not use the WD40 (rust-
proof oil) to lubrication product parts,
front and rear wheels don't lubrication,
if in doubt, consult your dealer.
Tire
When the brake performance began to
decline, adjust the brake line regulator
in order to achieve the required sensi-
tivity.
If the brake line after adjustment, The
braking performance is still poor, Or the
brake noise, please replace brake pads
by dealer.
This product is equipped with lithium
battery can repeat charging at least two
years 800 times, When each time with
electric range too short, lithium batter-
ies need to be replaced.
General troubleshooting
Check the listing

7
When the product can't normal opera-
tion . Please check the following action
has been completed:
•The power supply has been opened.
•Display and surplus electricity power.
•Brake pull up has been let go.
•All sockets and connectors are clean
and accurate link.
If the above actions are completed
products are still unable to normal oper-
ation, Please inquire products dealers.
Product specifications and parame-
ters
Model
DF-SK8
Overall dimensions
103x127 cm
Product
specifica-
tion
Board width,
handle bar width
15cm,
54 mm
Vehicle weight
Contain bat-
teries 16.5 kg
largest load
120 kg
fop speed
≤35~40km/h
Climbing ability
15 degrees
slope
Battery type
ternary lithi-
um battery
Standard voltage:
36V
Perfor-
mance
parame-
ters
Battery capacity
10.4/15.4/18
.4 AH
Range
28/38/48km/
H
Motor type
Brushless dc
motor
Rated power out-
put
350w
Motor
parame-
ters
Maximum speed
1200rpm
Rated voltage
36V
Maximum output
torque
9.5N.m
Input voltage
AC100-240V
Battery
charger
parame-
ters
Output current
3 A
Charging time
8—12 H
A single charge
power consump-
tion
0.6 KWH
Tire
Tire size
8inch
Tire type
Pneumatic
tyres
Brake
Brake
| Hub brake
Lamp
type
LED
lamp with a
horn
SCOPE OF QUALITY ASSURANCE
Accessories
Quality
problem
Warranty
period
Service
content
Motor
Motor will
not be able
to use
A year
Free
mainte-
nance
Accelerator
Natural
conditions
(such as
impact
force can-
not be used
except
damage)
Three
months
Free
mainte-
nance
Controller
Failure oc-
curs under
normal use
A year
Free
mainte-
nance
Charger
Failure oc-
curs under
normal use
A year
Free
mainte-
nance
Lithium
battery
Can't
charge dis-
charge un-
der normal
use
Two years
800 times
Charge
and dis-
charge
Free
mainte-
nance
Car body
structure
Defor-
mation and
fracture
under nor-
mal use,
can't con-
tinue to use
A year
Free
mainte-
nance

8
Within the warranty period, the warran-
ty does not coyer following failures and
damages:
Not in accordance with the operating
instructions for pro maintenance and
protection.
Use the electric scooter for other uses,
such as stunt etc. danger behaviors, it
could lead to product damages or mal-
functions
Dismantling or use the unoriginal spare
parts at random.
Misuse or traffic accidents or other
damages caused by accidental colli-
sions.
Use it on an abnormal road to cause
damages or malfunctions.
Be Lent, improper use or unauthorized
use.
Natural disasters, force majeure rea-
sons.
Do not expose this product under the
sunlight or place it outdoors for a long
time, it will lead to the product rapid
aging and malfunctions.
Before putting into operation shelf life is
unlimited.
Service life –1 year.
SPECIFICATIONS
Motor: 350 W
Battery: 374W.h10.4Ah lithium
Charging time: 2-3 hours
Maximum user weight: 120 kg
Max speed: 30 km/h
Range: 30 km
Dimensions: 103x127cm
SET
E SKATE 1
INSTRUCTION MANUAL
WITH WARRANTY BOOK 1
PACKAGE 1
ENVIRONMENT FRIENDLY DISPOSAL
You can help protect the
environment! Please re-
member to respect the local
regulations: hand in the
non-working electrical
equipment to an appropriate
waste disposal center.
The manufacturer reserves the right
to change the specification and de-
sign of goods.

3
RU
ЭЛЕКТРОСАМОКАТ
Уважаемый покупатель!
Поздравляем Вас с приобретением
изделия торговой марки “Defiant”.
Мы уверены, что наши изделия
будут верными и надежными по-
мощниками в Вашем домашнем
хозяйстве.
Не подвергайте устройство резким
перепадам температур. Резкая
смена температуры (например,
внесение устройства с мороза в
теплое помещение) может вы-
звать конденсацию влаги внутри
устройства и нарушить его работо-
способность при включении.
Устройство должно отстояться в
теплом помещении не менее 1,5
часов. Ввод устройства в эксплуа-
тацию после транспортировки
производить не ранее, чем через
1,5 часа после внесения его в по-
мещение.
Чтобы получить максимальную отдачу
от вашего электросамоката, пожалуй-
ста, прочтите это руководство и ука-
зания по технике безопасности перед
использованием. Сохраните инструк-
ции на случай, если вам нужно будет
обратиться к ним позднее.
Характеристики электросамоката
Основные компоненты электросамока-
та
Предупреждения и общая информация
Раскладывание и складывание элек-
тросамоката
Инструкции по эксплуатации
Инструкции по безопасности
Эксплуатация
Обслуживание
Ремонт спустившего колеса
Работа кнопок
Технические характеристики и пара-
метры
Гарантия качества
Внешний вид электросамоката

4
1. Ручка
2. Ручка сцепления
3. T–образная трубка
4. Рулевая стойка
5. Кнопка регулировки высоты
6. Контроллер скорости
7. Ручка тормоза
8. Гайка-фиксатор
9. Фиксатор
10. Механизм быстрого складывания
11. Откидная подножка
12. Разъем зарядного устройства ак-
кумулятора
13. Передняя фара со звуковым сиг-
налом
14. Выключатель передней фа-
ры/сигнала
15. Задняя фара
Узлы электросамоката
