DEI DEI-737A User manual

TAIWAN DEI
DEI-737A
INSTRUCTION
ON
OFF
3
4
2
1
5
POWER
Set for temperature or timer
Off / 1 hr.
Auto off after one hour
Fan speed button
Select fan speeds
high / mid / low /auto
Display these symbols while
setting auto-on timer
Display sleep mode
Display this symbol while
transmitting
Power
Power on/off button Use to increase or decrease
the set temperature or timer
Select five different angle
of fan outlet or auto-swing
louver control button
Function selection
Select cooling,heating
, fan or dehum. modes
Sleep button
Use to enter sleep mode
I HR. OFFI HR. OFF TIMERTIMER
Timer
Display the set temperature
Display the fan speed
Display the position of fan
outlet
Display time while
setting timer
Use to begin auto-on timer
setting or auto-off timer
setting
Display the operating mode :

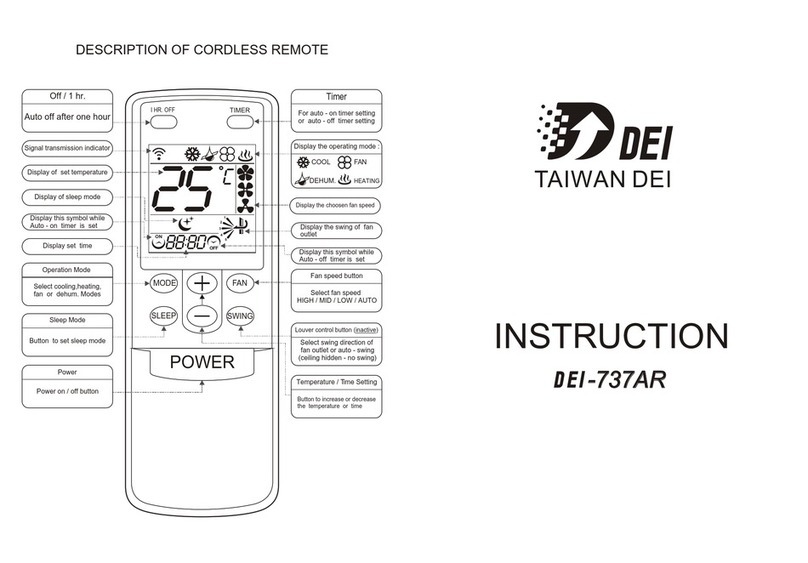

DESCRIPTION OF CORDLESS REMOTE
Display these symbols while
setting auto-off timer
COOL
DEHUM.
FAN
HEAT
MODE
SLEEP
FAN
SWING

Fan speeds 3A 250VAC 3
Chiller contact 3A 250VAC
Relay outputs 3-way valve 7A 250VAC
Reading range 5 45 1
Power supply AC110V AC220V 10 , Single phase 50Hz 60Hz
SPECIFICATION
Wiring
SPCIAL FUNCTIONS AND ERRORS
J2
Short Step motor set on the right.
Open Step motor set on the left.
SW2
1 ON with three minutes protection.
OFF without three minutes protection.
2 ON Continuously fan. Defult
OFF Fan actives as 3-way valve.
If sensor fail , red LED flashes rapidly.
If interval sensor fail, orange LED flashes rapidly.
Defult
Remove the jumper
Defult
ERROR
Check the connection
Return the goods back to
factory
FUSE5A
FUSE0.25A
110V 220V
CN4
SENSOR
CN5
P1
Z1
P2
J1J2
SW2
P1 P2
FAN
2WAY
/3WAY
HIGH MID LOW
AC1
AC1 AC2 Power supply
AC2
AC1
CHILLER NO CONTACT
CN5 connects to step motor (Blue wire on the right)
PINK
RED
WHITE
For 3-wire
3-way
NC
contact
45
45
7M
RECEIVER
LED POWER BUTTON
CAUTIONS
1.Before installing the controller, please check if the main power is turned off.
2.Before supplying power, please check if the power switch is selected properly.
3.Aviod installing the controller in a high humid environment to prevent failure.
4.The relay outputs shall be used within the operating limit of the controller as the
specification.
5.Read this instruction carefully to prevent any damage cause by misused will void
the warranty.
SET THE CONTROLLER
16 32 .
Fan allow selection from three speeds or/and auto-fan
Sleep mode available in cooling and heating mode.
Swing control allow to select five different angle of fan outlet louver or swing.
apply to 5-wire/6-wire step motor)
Auto-on Auto-off timer 1 12 hrs.
Power button The power button is on the receiver panel which is used to turn
on/off the power directly in case of a failure of cordless remote Press
this button to turn on the controller, the operating function will remain
the last setting
4-Way control 4-way relay contact only closed in heating mode.
FUNCTION
Cooling When room temp. Set temp., Green LED on and compressor on.
Green LED flashes while compressor delay protection) When room temp.
Set temp. 2 , green LED flashes and compressor off.
Heating When room temp. Set temp., Red LED on and compressor on.
( Red LED flashes while compressor delay protection When room temp.
Set temp. 2 , red LED flashes and compressor off.
Fan If select continuous fan, green LED flashes.
Dehumidifying If select dehumidifying, compressor on 10 min. And off 10 min. In cycle
with low speed fan. When the room temperature is under 16 ,
compressor continuously off.
Sleep After one hour of setting sleep mode, the set temp. will rise 1 automatically in
cooling mode. Reduse 1 in heating mode . After two hours of setting
sleep mode, the set temp. will rise another 1 and remain the latest set temp.
Reduse another 1 in heating mode). The max. set temp. is 30 ; the min.
set temp. is 16
Auto-on/off timer The auto-on/off timer counts once the setting is finished.
Receiver
Command only by cordless remote
Operating mode allow selection from four modes of operation(COOL/HEAT/FAN/
DEHUM.)
Setting range Cooling mode 16 30 ; Heating mode
WHITE
