FlexiShield® Food Shields
Installation & Care Manual
Please read this manual completely before attempting to install or operate this equipment!
Notify carrier of damage! Inspect all components immediately.
June 2013
Important Information
Read Before Use
Please Save These Instructions!
CAUTION

FlexiShield® Food Shields Installation & Care Manual
For customer service, call [phone], [phone], Fax [phone], www.deleld.com
2
WARNING Read This Manual Thoroughly Before Operating, Installing, Or Performing Maintenance On The Equipment.
WARNING Failure To Follow Instructions In This Manual Can Cause Property Damage, Injury Or Death.
WARNING Do Not Store Or Use Gasoline Or Other Flammable Vapors Or Liquids In The Vicinity Of This Or Any Other
Appliance.
WARNING This Appliance Is Not Intended For Use By Persons Who Lack Experience Or Knowledge, Unless They Have
Been Given Supervision Or Instruction Concerning Use Of The Appliance By A Person Responsible For Their
Safety.
WARNING This Appliance Is Not To Be Played With.
WARNING Do Not Clean With Water Jet.
CAUTION Observe the following:
• Minimum clearances must be maintained from all walls and combustible materials.
• Keep the equipment area free and clear of combustible material.
• Allow adequate clearance for air openings.
• Operate equipment only on the type of electricity indicated on the specification plate.
• Unplug the unit before making any repairs.
• Retain this manual for future reference.
WARNING
WARNING
WARNING
WARNING
WARNING
Important Warning And Safety Information
WARNING
WARNING

FlexiShield® Food Shields Installation & Care Manual
3
For customer service, call [phone], [phone], Fax [phone], www.deleld.com
Contents
Receiving & Inspecting The Equipment ...........................3
Warranty Information........................................................4
Regulatory Certifications...................................................4
Specifications................................................................ 5-6
Installation.........................................................................7
Maintenance......................................................................8
Replacement Parts...................................................... 9-10
Standard Labor Guidelines .............................................11
Receiving And Inspecting The Equipment
Care should be taken during unloading so the equipment
is not damaged while being moved into the building.
1. Visually inspect the exterior of the package and
skid or container. Any damage should be noted and
reported to the delivering carrier immediately.
2. If damaged, open and inspect the contents with the
carrier.
3. In the event that the exterior is not damaged, yet
upon opening, there is concealed damage to the
equipment notify the carrier. Notification should be
made verbally as well as in written form.
4. Request an inspection by the shipping company of
the damaged equipment. This should be done within
10 days from receipt of the equipment.
5. Freight carriers can supply the necessary damage
forms upon request.
6. Retain all crating material until an inspection has
been made or waived.

FlexiShield® Food Shields Installation & Care Manual
For customer service, call [phone], [phone], Fax [phone], www.deleld.com
4
©2013 The Delfield Company. All rights reserved. Reproduction without
written permission is prohibited.
“Delfield” is a registered trademarks of The Delfield Company.
Warranty Information
Regulatory Certifications
All Models are certified by:
National Sanitation Foundation (NSF)
Electical models are also certified by:
Underwriters Laboratories (UL)
Underwriters Laboratories of Canada (ULC)
Visit http://www.delfield.com/minisite/service/warranty_info to:
• Register your product for warranty.
• Verify warranty information.
• View and download a copy of your warranty.

FlexiShield® Food Shields Installation & Care Manual
5
For customer service, call [phone], [phone], Fax [phone], www.deleld.com
Specifications
Radial Glass Front, Single Tier with Glass Shelf, Single Service,
Inside & Outside
Model L W H
DCFSRIG-2 38.47” 18.00” 18.00”
DCFSRIG-3 53.43” 18.00” 18.00”
DCFSRIG-4 68.17” 18.00” 18.00”
DCFSRIG-5 82.61” 18.00” 18.00”
DCFSROG-2 43.09” 18.00” 18.00”
DCFSROG-3 59.85” 18.00” 18.00”
DCFSROG-4 76.35” 18.00” 18.00”
DCFSROG-5 92.53” 18.00” 18.00”
Radial Single Tier, Fixed Sneeze Guard Front, Dual Service
Model L W H
DCFSRKD-2 40.78” 35.50” 14.75”
DCFSRKD-3 56.64” 35.50” 14.75”
DCFSRKD-4 72.26” 35.50” 14.75”
DCFSRKD-5 87.57” 35.50” 14.75”
Radial Single Tier, Fixed Sneeze Guard Front, Single Service, Inside
& Outside
Model L W H
DCFSRIKS-2 38.47” 18.00” 14.75”
DCFSRIKS-3 53.43” 18.00” 14.75”
DCFSRIKS-4 68.17” 18.00” 14.75”
DCFSRIKS-5 82.61” 18.00” 14.75”
DCFSROKS-2 43.09” 18.00” 14.75”
DCFSROKS-3 59.85” 18.00” 14.75”
DCFSROKS-4 76.35” 18.00” 14.75”
DCFSROKS-5 92.53” 18.00” 14.75”
Overshelf, Radial Front
Model L W H
DCFSCR 24.00” (61cm) 24.00” (61cm) 16.00” (41cm)
DCFSCRD 24.00” (61cm) 24.00” (61cm) 26.00” (66cm)
DCFSOS-XX XX” 18.00” (46cm) 16.00” (41cm)
DCFSOS2-XX XX” 18.00” (46cm) 26.00” (66cm)

FlexiShield® Food Shields Installation & Care Manual
For customer service, call [phone], [phone], Fax [phone], www.deleld.com
6
Specifications, continued
Glass Front, Single Tier with Glass Shelf, Single Service
Model L W H
DCFSG XX 18.00” (46cm) 16.00” (41cm)
Glass Front, Double Tier with Two Glass Shelves, Single Service
Model L W H
DCFSG2 XX 18.00” (46cm) 26.00” (66cm)
Glass Front, Slicer Shield Style
Model L W H
DCFSSS XX 18.00” (46cm) YY
Two Tier Display, Sneeze Guard, Single Service
Model L W H
DCFSH XX 18.00” (46cm) 26.00” (66cm)
Two Tier Display With Sneeze Guard, Dual Service
Model L W H
DCFSHD XX 33.50” (85cm) 26.00” (66cm)
Flexible Shield, Converts to Three Positions
Model L W H
DCFSFS XX 18.00” (46cm) 16.00” (41cm)
Flexible Shield, Converts to Three Positions, Two Tier
Model L W H
DCFSFS2 XX 18.00” (46cm) 26.00” (66cm)
Single Tier, Fixed Sneeze Guard Front, Dual Service
Model L W H
DCFSKD XX 33.50” (85cm) 16.00” (41cm)
Single Tier, Fixed Sneeze Guard Front, Single Service
Model L W H
DCFSKS XX 18.00” (46cm) 16.00” (41cm)
Double Tier, Bottom Tier Full Glass Front, Second Tier Sneeze
Guard
Model L W H
DCFSGH XX 18.00” (46cm) 26.00” (66cm)
Double Tier, Bottom Tier Sneeze Guard, Second Tier Full Glass
Front
Model L W H
DCFSHG XX 18.00” (46cm) 26.00” (66cm)

FlexiShield® Food Shields Installation & Care Manual
7
For customer service, call [phone], [phone], Fax [phone], www.deleld.com
FlexiShield®Food Shields Installation
1. Set food shield on base unit. See Figure 1.
2. Mark hole locations.
• For counter top mounting mark the flange holes. See Figure 2.
• For under counter mounting mark the leg locations.
3. Drill holes in base unit.
• For counter top mounting drill 5/32” holes.
• For under counter mounting drill 3/8” holes.
4. Install with screws provided.
• For counter top mounting install with screws through the flanges.
• For under counter mounting install with 1/4”-20 bolts and washers
from beneath the counter. See Figure 3.
5. Make any necessary electrical connections.
6. If applicable test lights, heat lamps etc.
7. Adjust glass for proper alignment and ensure that all hardware is
tightened securely.
8. Clean food shield and glass with mild soap and water.
FlexiShield® food shields are to be used as food and counter protection
only and should not be used in any other way.

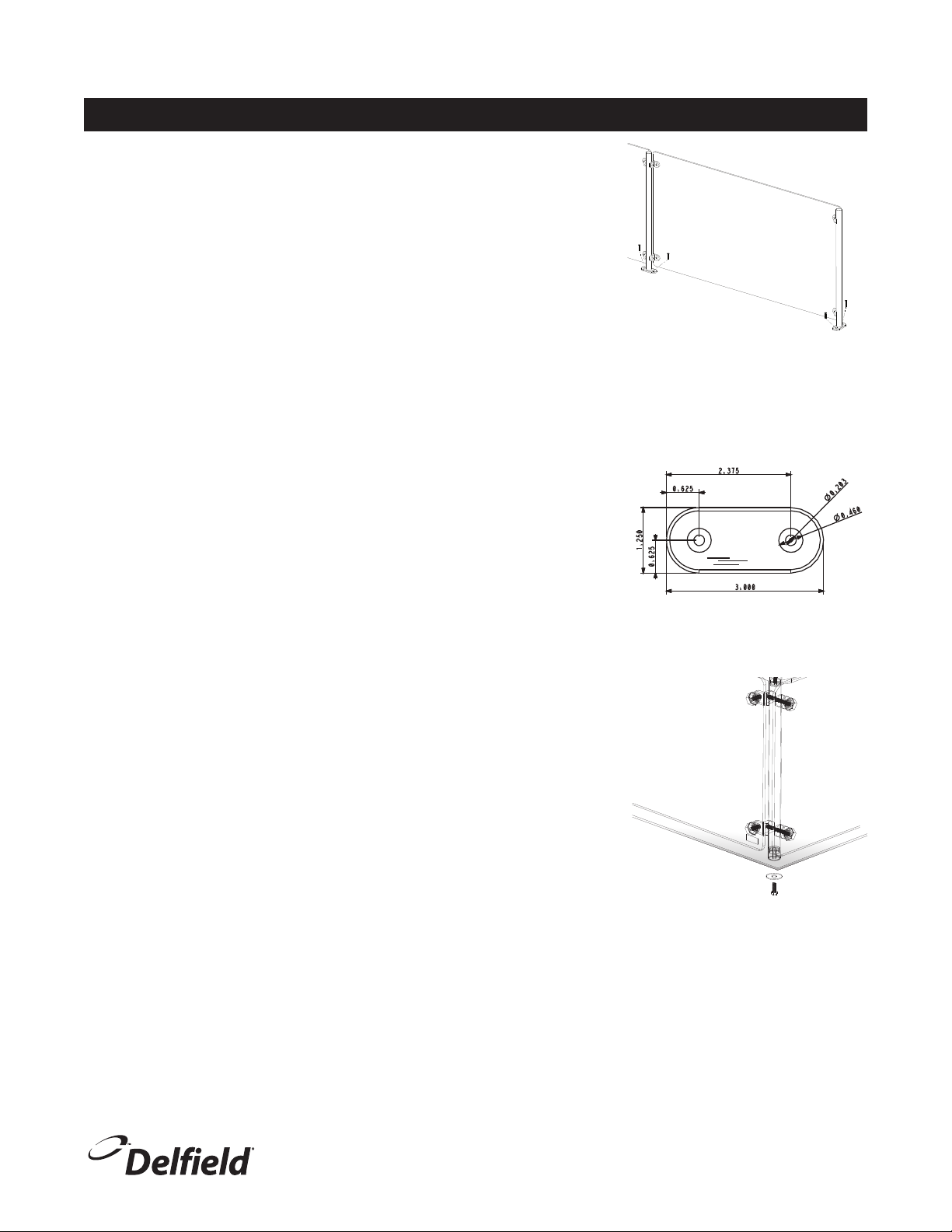

Figure 1. By placing the food
shield on the base unit, hole
locations can be marked.
Figure 2. Flange dimensions
PDF created with pdfFactory trial version www.pdffactory.com
Figure 3. Bolt and washer beneath
counter.

FlexiShield® Food Shields Installation & Care Manual
For customer service, call [phone], [phone], Fax [phone], www.deleld.com
8
Hardware And Glass Cleaning
Routine cleaning can be done with soap and water.
Extreme stains or grease should be cleaned with a non-
abrasive cleaner and plastic scrub pad.
Polish the chrome when necessary with a soft cotton
cloth.
Stainless Steel Care and Cleaning
To prevent discoloration or rust on stainless steel several
important steps need to be taken. First, we need to
understand the properties of stainless steel. Stainless
steel contains 70- 80% iron, which will rust. It also
contains 12-30% chromium, which forms an invisible
passive film over the steel’s surface, which acts as a
shield against corrosion. As long as the protective layer
is intact, the metal is still stainless. If the film is broken or
contaminated, outside elements can begin to breakdown
the steel and begin to form discoloration or rust. Proper
cleaning of stainless steel requires soft cloths or plastic
scouring pads.
NEVER USE STEEL PADS, WIRE BRUSHES OR
SCRAPERS!
Cleaning solutions need to be alkaline based or non-
chloride cleaners. Any cleaner containing chlorides
will damage the protective film of the stainless steel.
Chlorides are also commonly found in hard water,
salts, and household and industrial cleaners. If cleaners
containing chlorides are used be sure to rinse repeatedly
and dry thoroughly. Routine cleaning of stainless steel
can be done with soap and water. Extreme stains or
grease should be cleaned with a non-abrasive cleaner
and plastic scrub pad. Always rub with the grain of the
steel. There are stainless steel cleaners available which
can restore and preserve the finish of the steels protective
layer. Early signs of stainless steel breakdown are small
pits and cracks. If this has begun, clean thoroughly and
start to apply stainless steel cleaners in attempt to restore
the passivity of the steel.
Never use an acid based cleaning solution!
Many food products have an acidic content,
which can deteriorate the finish. Be sure to
clean the stainless steel surfaces of ALL food
products. Common items include, tomatoes,
peppers and other vegetables.
CAUTION
Maintenance

FlexiShield® Food Shields Installation & Care Manual
9
For customer service, call [phone], [phone], Fax [phone], www.deleld.com

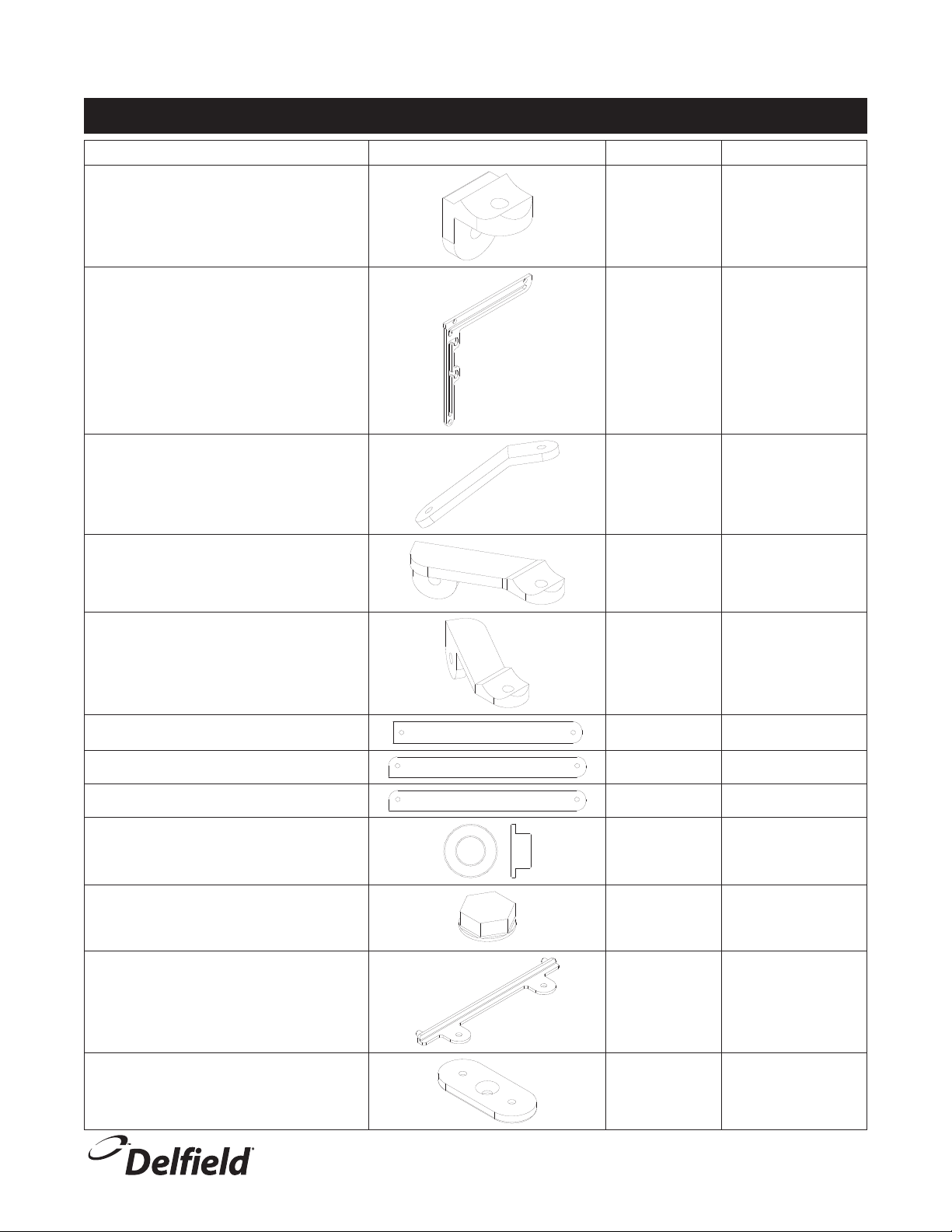

Replacement Parts
Part Description Part Drawing (Not to scale) Chrome Part # Black Part #
Bracket, glass, front 3235509 3235538
Bracket, glass, front, convertible 3235534 3235549
Bracket, sneeze, 30°angle 3235507 3235540
Bracket, sneeze, radial, front 3235536 3235552
Bracket, sneeze, radial, left 3235537 3235553
Bracket, top, convertible, center 3235511 3235545
Bracket, top, convertible, left 3235512 3235546
Bracket, top, convertible, right 3235510 3235544
Bushing, black 9321158 9321158
Cap, Threaded, 1.00” 3235500 3235539
Clip, glass, front, convertible 3235533 3235548
Flanged foot 3235506 3235550

FlexiShield® Food Shields Installation & Care Manual
For customer service, call [phone], [phone], Fax [phone], www.deleld.com
10
Replacement Parts, continued
Part Description Part Drawing (Not to scale) Chrome Part # Black Part #
Plate, leg, mounting, radial 3235535 3235551
Screw, 1/4-20x5/8”, attaching hardware
to glass
9321393 9321393
Screw, 1/4-20x3/4”, attaching hardware
to glass
9321395 9321395
Screw, 1/4-20x1”, to attach flanged foot
to the tubing leg
9321394 9321394
Screw, #10x1.25”, Phillips Oval Head, to
attach flanged foot to counter
9321523 9321523
Spacer, ¼” 3235503 3235541
Spacer, ½” 3235501 3235543
Spacer, 1 ¼” 3235502 3235543
Spacer, tubing, ¼” 3235508 3235547
Stud, threaded, 1/4”x1.50”long 9321132 9321132
Washer, Black, 1”x.075” 3235504 3235504

FlexiShield® Food Shields Installation & Care Manual
11
For customer service, call [phone], [phone], Fax [phone], www.deleld.com
Standard Labor Guidelines To Repair Or Replace Parts On Delfield Equipment
Advice and recommendations given by Delfield Service Technicians do not constitute or guarantee any special
coverage.
• A maximum of 1-hour is allowed to diagnose a defective component.
• A maximum of 1-hour is allowed for retrieval of parts not in stock.
• A maximum travel distance of 100 miles round trip and 2-hours will be reimbursed.
• Overtime, installation/start-up, normal control adjustments, general maintenance, glass breakage, freight
damage, and/or correcting an end-user installation error will not be reimbursed under warranty unless pre-
approved with a Service Work Authorization from Delfield. You must submit the number with the service claim.

Mt. Pleasant, MI Covington, TN
980 S. Isabella Rd., Mt. Pleasant, MI 48858, U.S.A. • [phone] or [phone] • Fax [phone] • www.deleld.com
Deleld reserves the right to make changes in design or specications without prior notice. ©2013 The Deleld Company. All rights reserved. Printed in the U.S.A.
DMFS 06/13
9291476
Thank you for choosing Delfield!
Help is a phone call away. Help our team of professional, courteous customer
service reps by having your model number and serial number available at the time
of your call [phone].
Model: _______________________ S/N: ______________________
Installation Date: _______________
For a list of Delfield’s authorized parts depots,
visit our website at www.delfield.com
Register your Deleld warranty
online. Go to www.deleld.com
under the service tab to complete.
