Dell EMC N3024ET-ON User manual

Dell EMC Networking
N3024EP-ON, N3024ET-ON,
N3024EF-ON, N3048EP-ON,
N3048ET-ON Switches
Getting Started Guide
Regulatory Model: E06W, E07W
Regulatory Type: E06W001, E06W002, E07W001,
E07W002, E07W003

Dell EMC Networking
N3024EP-ON, N3024ET-ON,
N3024EF-ON, N3048EP-ON,
N3048ET-ON Switches
Getting Started Guide
Regulatory Models: E06W, E07W

Notes, Cautions, and Warnings
NOTE: A NOTE indicates important information that helps you make better use of
your switch.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of
data and tells you how to avoid the problem.
WARNING: A WARNING indicates a potential for property damage, personal
injury, or death.
____________________
© 2018 Dell Inc. or its subsidiaries. All rights reserved. This product is protected by U.S. and
international copyright and intellectual property laws. Dell and the Dell logo are trademarks of Dell
Inc. in the United States and/or other jurisdictions. All other marks and names mentioned herein may
be trademarks of their respective companies.
Regulatory Models: E06W, E07W
March 2018 P/N YWH0P Rev. A00

Contents 3
Contents
1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . 5
N3000ET-ON/N3000EP-ON Hardware Overview . . . . . 5
Power Consumption and Power Budget for
the N3024EP-ON and N3048EP-ON PoE Switches . . 5
Ventilation System . . . . . . . . . . . . . . . . . . 6
2 N3000ET-ON/N3000EP-ON Installation . . . 8
Rack Mounting an N3000ET-ON/N3000EP-ON
Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Installing in a Rack . . . . . . . . . . . . . . . . . . 8
Stacking Multiple N3000ET-ON/N3000EP-ON
Switches . . . . . . . . . . . . . . . . . . . . . . . . . 10
3 Starting and Configuring the
N3000ET-ON/N3000EP-ON Switch . . . . . . 11
Connecting an N3000ET-ON/N3000EP-ON Switch
to a Terminal . . . . . . . . . . . . . . . . . . . . . . . 12
Connecting an N3000ET-ON/N3000EP-ON Switch
to a Power Source . . . . . . . . . . . . . . . . . . . . 13
AC and DC Power Connection . . . . . . . . . . . 13
Booting the N3000ET-ON/N3000EP-ON Switch . . . . . 14
Performing the N3000ET-ON/N3000EP-ON
Initial Configuration . . . . . . . . . . . . . . . . . . . 15

4Contents
Enabling Remote Management . . . . . . . . . . . 15
Initial Configuration Procedure . . . . . . . . . . . 16
Example Session . . . . . . . . . . . . . . . . . . 17
Dell EMC Easy Setup Wizard Console
Example . . . . . . . . . . . . . . . . . . . . . . . 18
Next Steps . . . . . . . . . . . . . . . . . . . . . 23
4 NOM Information (Mexico Only) . . . . . . 24
5 Operating Altitude–Information
Update . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Getting Started Guide 5
Introduction
This document provides basic information about the Dell EMC Networking
N3000ET-ON/N3000EP-ON switch, including how to install a switch and
perform the initial configuration. For information about how to configure and
monitor switch features, refer to the User Configuration Guide, which is
available on the Dell EMC Support website at dell.com/support. See the
Support website for the latest updates on documentation and firmware.
NOTE: Switch administrators are strongly advised to maintain Dell EMC
Networking switches on the latest version of the Dell EMC Networking Operating
System (DNOS). Dell EMC Networking continually improves the features and
functions of DNOS based on feedback from you, the customer. For critical
infrastructure, pre-staging of the new release into a non-critical portion of the
network is recommended to verify network configuration and operation with the
new DNOS version.
N3000ET-ON/N3000EP-ON Hardware Overview
This section contains information about device characteristics and modular
hardware configurations for the Dell EMC Networking N3000ET-ON/
N3000EP-ONswitch.
Power Consumption and Power Budget for the N3024EP-ON and
N3048EP-ON PoE Switches
Table 1-1 describes the power consumption for the N3024EP-ON and
N3048EP-ON PoE switches.
Table 1-1. Power Consumption for the N3024EP-ON/N3048EP-ON PoE Switch
Model Input Voltage Power Supply
Configuration
Maximum Steady
Current
Consumption (A)
Maximum
Steady
Power (W)
N3024EP-ON/
N3048EP-ON
100V/60Hz PSU1 + PSU2 21.8 2180.0
110V/60Hz PSU1 + PSU2 19.5 2145.0
120V/60Hz PSU1 + PSU2 17.8 2136.0
220V/50Hz PSU1 + PSU2 9.31 2048.2
240V/50Hz PSU1 + PSU2 8.6 2064.0

6Getting Started Guide
As Table 1-2 shows, the PoE power budget is 950W for a switch equipped
with a single 1100W power supply and 1900W for a switch equipped with
two 1100W power supplies.
Table 1-2. Dell EMC Networking N3024EP-ON PoE Power Budget Limit
Ventilation System
Two fans cool the N3000ET-ON/N3000EP-ON switch. The switch
additionally has a fan in each internal power supply.
The N3000ET-ON/N3000EP-ON fan is a field-replaceable unit (FRU).
One PSU Two PSUs
Model Name Max. PSU
Output Ability
PoE+ Power
Turn-on Limitation
Max. PSUs
Output Ability
PoE+ Power
Turn-on Limitation
Dell EMC
Networking
N3024EP-ON
1100W Power budget is 950W:
The total PoE supplied
power must not
exceed 950W.
2200W Power budget is
1900W:
All PoE+ ports can
supply maximum
power.
Dell EMC
Networking
N3048EP-ON
1100W Power budget is 950W:
The total PoE supplied
power must not
exceed 950W.
2200W Power budget is
1900W:
All PoE+ ports can
supply maximum
power.

Getting Started Guide 7
N3000ET-ON/N3000EP-ON Model Summary
Table 1-3. N3000ET-ON/N3000EP-ON Switch Regulatory Numbers
Marketing
Model Name
(MMN)
Description Power Supply
Unit (PSU)
Regulatory
Model Number
(RMN)
Regulatory
Type Number
(RTN)
N3024EP-ON 24x1G/2x1G Combo/
2x10G SFP+/2x Stacking/
1x Modular Bay/
N+1 Redundant Pluggable PSUs/
PoE+ 24 Ports/
PoE 60W-capable 12 Ports/
1x Removable Fan Module
715W/1100W E06W E06W001
N3024ET-ON 24x1G RJ-45/2x1G SFP Combo/
2x10G SFP+/ 2x Stacking/
1x Modular Bay/
N+1 Redundant Pluggable PSUs/
1x Removable Fan Module
200W E07W E07W001
N3024EF-ON 24x1G SFP/2x1G SFP Combo/
2x10G SFP+/2x Stacking/
1x Modular Bay/
N+1 Redundant Pluggable PSUs/
1x Removable Fan Module
200W E07W E07W003
N3048EP-ON 48x1G/2x1G Combo/
2x10G SFP+/2x Stacking
1x Modular Bay/
N+1 Redundant Pluggable
PSUs/PoE+ 48 Ports/PoE
60W-capable 12 Ports/
1x Removable Fan Module
715W/1100W E06W E06W002
N3048ET-ON 48x1G RJ-45/2x1G Combo/
2x10G SFP+/2x Stacking/
1x Modular Bay/
N+1 Redundant Pluggable PSUs/
1x Removable Fan Module
200W E07W E07W002

8Getting Started Guide
N3000ET-ON/N3000EP-ON
Installation
Rack Mounting an N3000ET-ON/N3000EP-ON
Switch
WARNING: Read the safety information in the Safety and Regulatory Information
as well as the safety information for other switches that connect to or support the
switch.
The AC power connector is on the rear panel of the switch.
Installing in a Rack
WARNING: Do not use rack mounting kits to suspend the switch from under a
table or desk, or attach it to a wall.
CAUTION: Disconnect all cables from the switch before continuing. Remove all
self-adhesive pads from the underside of the switch, if they have been attached.
CAUTION: When mounting multiple switches into a rack, mount the switches
from the bottom up.
NOTE: This installation procedure is for a two-post rack only.
1 Place the supplied rack-mounting bracket on one side of the switch,
ensuring that the three pear-shaped holes on the rack-mounting bracket
are aligned with the three standoffs on the chassis.
Figure 1-1 illustrates where to align the bracket with the standoffs.

Getting Started Guide 9
Figure 1-1. Aligning the Brackets
2 Push the rack-mounting bracket towards the back to secure the bracket in
a locked position.
3 Repeat the process for the rack-mounting bracket on the other side of the
switch.
4 Insert the switch into the 48.26 cm (19 inch) rack, ensuring that the rack-
mounting holes on the bracket line up with the mounting holes in the
rack.
Figure 1-2. Securing the Bracket to the Rack
5 Secure the bracket to the rack with either the rack bolts or cage nuts and
cage-nut bolts with washers (depending on the kind of rack you have).
Fasten the bolts on the bottom before fastening the bolts on the top.

10 Getting Started Guide
6 Repeat the process for securing the bracket to the rack on the other side of
the rack.
NOTE: Make sure that the ventilation holes are not obstructed.
Stacking Multiple N3000ET-ON/N3000EP-ON
Switches
You can stack N3000ET-ON/N3000EP-ON switches up to 12 switches high
using mini-SAS fixed stacking ports on the rear of the switch. When multiple
switches are connected together through the stack ports, they operate as a
single unit with up to 576 front-panel ports. The stack operates and is
managed as a single entity. Refer to the User Configuration Guide and the
CLI Reference Guide for more information.

Getting Started Guide 11
Starting and Configuring the
N3000ET-ON/N3000EP-ON Switch
The following flow chart provides an overview of the steps you use to perform
the initial configuration after the switch is unpacked and mounted.

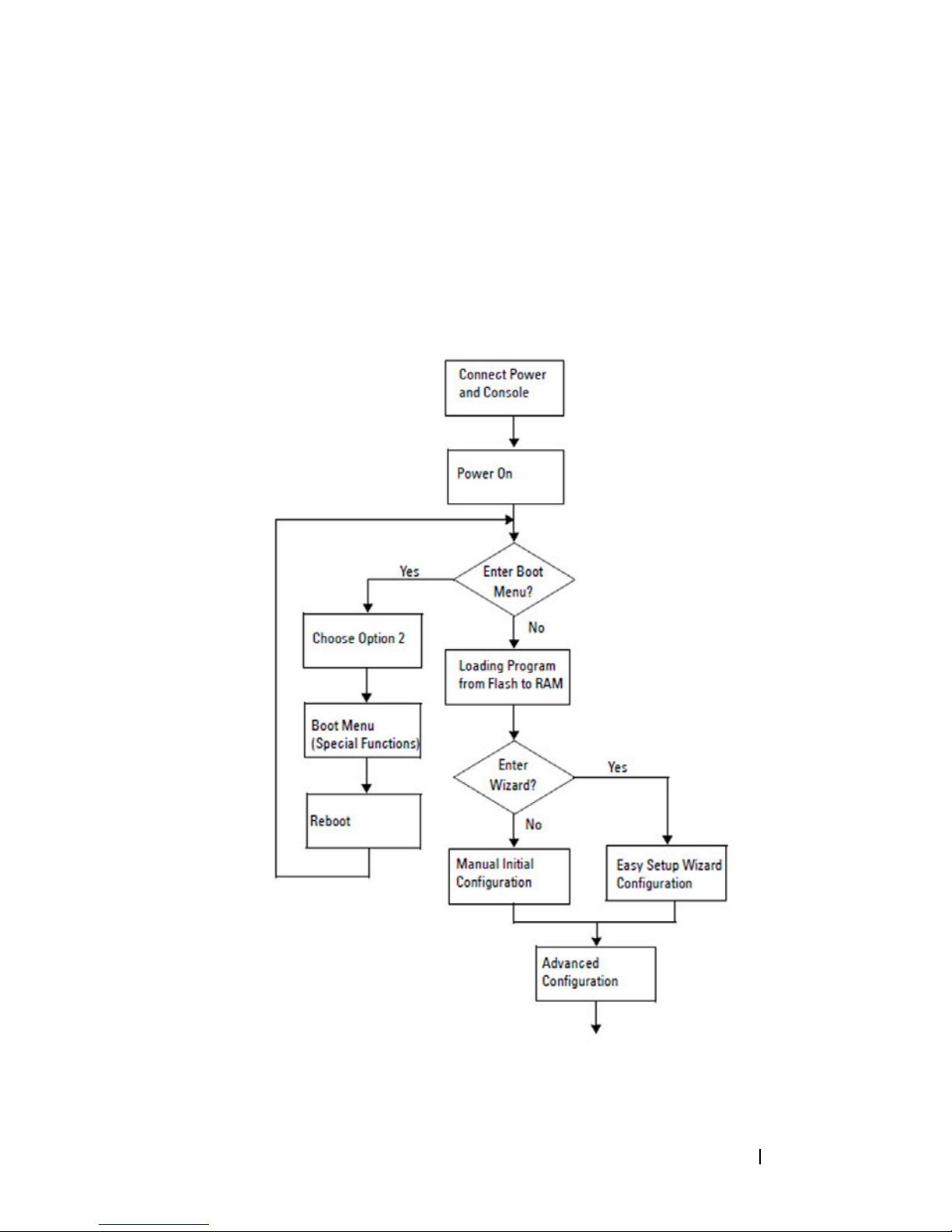

Figure 1-3. Installation and Configuration Flow Chart

12 Getting Started Guide
Connecting an N3000ET-ON/N3000EP-ON Switch
to a Terminal
After completing all external connections, configure the switch by connecting
it to a terminal.
NOTE: Read the Release Notes for this product before proceeding. You can
download the Release Notes from the Dell Support website at dell.com/support.
NOTE: Dell recommends that you obtain the most recent version of the user
documentation from the Dell Support website at dell.com/support.
To monitor and configure the switch via the USB console, use the console
port on the front panel of the switch to connect it to a computer running
VT100 terminal emulation software using the supplied USB cable. It may be
necessary to download and install a driver on first use of the USB cable.
The following equipment is required to use the console port:
• VT100-compatible computer with a USB port running VT100 terminal
emulation software,
such as HyperTerminal®and a USB driver.
• The supplied USB cable with a type B USB connector for the console port
and USB connector for the host PC.
Perform the following tasks to connect a terminal to the switch console port:
1
Connect the USB type B connector on the supplied switch and connect
the other end to a computer running VT100 terminal emulation software.
2 Configure the terminal emulation software as follows:
a Select the appropriate serial port (for example, COM 1) to connect to
the console.
b Set the data rate to 115,200 baud.
c Set the data format to 8 data bits, 1 stop bit, and no parity.
d Set the flow control to none.
e Set the terminal emulation mode to VT100 .
f Select Terminal keys for Function, Arrow, and Ctrl keys. Make sure
that the setting is for Terminal keys (not Microsoft Windows keys).
3 Connect the USB type B connector on the cable directly to the switch
console port. The Dell EMC Networking console port is located on the
right side of the front panel and is labeled with a
|O|O| symbol.

Getting Started Guide 13
NOTE: Console access to the stack manager is available from any console
port via the local CLI. Only one USB console session at a time is supported.
Connecting an N3000ET-ON/N3000EP-ON Switch
to a Power Source
CAUTION: Read the safety information in the Safety and Regulatory Information
manual as well as the safety information for other switches that connect to or
support the switch.
The N3000ET-ON/N3000EP-ON switches support one or two FRU power
supplies. The
power receptacle is on the rear panel.
AC and DC Power Connection
1 Make sure that the switch console port is connected to a PC running a
VT100 terminal emulator via the USB to USB Type B cable.
2 Using a 5-foot (1.5 m) heavy-duty power cable with a notched connector
(PoE models) or a standard power cable (non-PoE models) with safety
ground connected, connect the power cable to the AC main receptacle
located on the rear power supply.
3 Connect the power cable to a grounded AC outlet.

14 Getting Started Guide
Booting the N3000ET-ON/N3000EP-ON Switch
When the power is turned on with the local terminal already connected, the
switch goes through a power-on self-test (POST). POST runs every time the
switch is initialized and checks hardware components to determine if the
switch is fully operational before completely booting. If POST detects a
critical problem, the program flow stops. If POST passes successfully, valid
firmware is loaded into RAM. POST messages are displayed on the terminal
and indicate test success or failure. The boot process runs for approximately
60 seconds.
You can invoke the Boot menu after the first part of the POST is completed.
From the Boot menu, you can perform configuration tasks such as resetting
the system to factory defaults, activating the backup image, or recovering a
password. For more information about the Boot menu functions, refer to the
CLI Reference Guide.

Getting Started Guide 15
Performing the N3000ET-ON/N3000EP-ON Initial
Configuration
The initial configuration procedure is based on the following assumptions:
• The Dell EMC Networking switch was never configured before.
• The Dell EMC Networking switch booted successfully.
• The console connection was established, and the
Dell EMC Easy Setup
Wizard
prompt appears on the screen of a PC running terminal emulation
software.
The initial switch configuration is performed through the console port. After
the initial configuration, you can manage the switch from the already-
connected console port or remotely through an interface defined during the
initial configuration.
NOTE: The switch is not configured with a default user name, password, or IP
address.
Before setting up the initial configuration of the switch, obtain the following
information from your network administrator:
• The IP address to be assigned to the management interface.
• The IP subnet mask for the network.
• The IP address of the management interface default gateway.
These settings are necessary to allow the remote management of the switch
through Telnet (Telnet client) or HTTP (Web browser).
Enabling Remote Management
The front panel of the N3000ET-ON/N3000EP-ON switch contains a Gigabit
Ethernet port for out-of band (OOB) management. The OOB port is located
to the right of the console port. On the N3000ET-ON/N3000EP-ON switch,
you can additionally use any of the switch ports on the front panel for in-band
management. By default, all in-band ports are members of VLAN 1.
The Dell EMC Easy Setup Wizard includes prompts to configure network
information for the OOB management interface and the VLAN 1 interface on
the N3000ET-ON/N3000EP-ON switch. You can assign a static IP address and
subnet mask or enable DHCP and allow a network DHCP server to assign the
information.

16 Getting Started Guide
Refer to the CLI Reference Guide for commands to configure network
information.
Initial Configuration Procedure
Perform the initial configuration by using the Dell EMC Easy Setup Wizard
or by using the CLI. The wizard automatically starts when the switch
configuration file is empty. Exit the wizard at any point by entering [ctrl+z],
but all configuration settings specified will be discarded, and the switch will
use the default values.
NOTE: If you do not run the Dell EMC Easy Setup Wizard or do not respond to the
initial Easy Setup Wizard prompt within 60 seconds, the switch enters CLI mode.
You must reset the switch with an empty startup configuration in order to rerun the
Dell EMC Easy Setup Wizard.
For more information about performing the initial configuration by using the
CLI, refer to the CLI Reference Guide. This Getting Started Guide shows how
to use the Dell EMC Easy Setup Wizard for initial switch configuration. The
wizard sets up the following configuration on the switch:
• Establishes the initial privileged user account with a valid password. The
wizard configures one privileged user account during the setup.
• Enables CLI login and HTTP access to use the local authentication setting
only.
• Sets up the IP address for the OOB management interface.
• Sets up the IP address for the VLAN 1 routing interface, of which all
in-band ports are members.
• Sets up the SNMP community string to be used by the SNMP manager at
a given IP address. Skip this step if SNMP management is not used for this
switch.
• Allows you to specify the network management system IP address or
permit management access from all IP addresses.
• Configures the default gateway IP address for the VLAN 1 interface.

Getting Started Guide 17
Example Session
This section describes a Dell EMC Easy Setup Wizard session. The following
values are used by the example session:
• The SNMP community string to be used is public .
• The network management system (NMS) IP address is
10.1.2.100 .
• The user name is
admin , and the password is admin123 .
• The OOB management interface uses
DHCP for IP address assignment.
• The IP address for the VLAN 1 routing interface is
10.1.1.200 with a
subnet mask of
255.255.255.0 .
• The default gateway is
10.1.1.1.
The setup wizard configures the initial values as defined above. After
completing the wizard, the switch is configured as follows:
• SNMPv2 is enabled and the community string is set up as defined above.
SNMPv3 is disabled by default.
• The admin user account is set up as defined.
• A network management system is configured. From the management
station, you can access the SNMP, HTTP, and CLI interfaces. You may also
choose to allow all IP addresses to access these management interfaces by
choosing the (0.0.0.0) IP address.
• DHCP is enabled on the OOB management interface.
• An IP address is configured for the VLAN 1 routing interface.
• A default gateway address is configured.
NOTE: In the following example, the possible user options or default values are
enclosed in [ ]. If you press <Enter> with no options defined, the default value is
accepted. Help text is in parentheses.

18 Getting Started Guide
Dell EMC Easy Setup Wizard Console Example
The following example contains the sequence of prompts and responses
associated with running an example Dell EMC Easy Setup Wizard session,
using the input values listed earlier.
After the switch completes the POST and is booted, the following dialog
appears:
Unit 1 - Waiting to select management unit)>
___________Dell SupportAssist EULA__________________
I accept the terms of the license agreement. You can
reject the license agreement by configuring this
command 'eula-consent support-assist reject'.
By installing SupportAssist, you allow Dell to save
your contact information (e.g. name, phone number
and/or email address) which would be used to provide
technical support for your Dell products and services
Dell may use the information for providing
recommendations to improve your IT infrastructure.
Dell SupportAssist also collects and stores machine
diagnostic information, which may include but is not
limited to configuration information, user supplied
contact information, names of data volumes, IP
addresses, access control lists, diagnostics &
performance information, network configuration
information, host/server configuration & performance
information and related data (Collected Data) and
transmits this information to Dell. By downloading
SupportAssist and agreeing to be bound by these terms
and the Dell end user license agreement, available at:
http://www.dell.com/aeula, you agree to allow Dell to
provide remote monitoring services of your IT
environment and you give Dell the right to collect the
Collected Data in accordance with Dell's Privacy
Policy, available at:
http://www.dell.com/privacypolicycountryspecific, in
order to enable the performance of all of the various
functions of SupportAssist during your entitlement to
