Dell™Vostro™1720ServiceManual
Notes, Cautions, and Warnings
IfyoupurchasedaDell™nSeriescomputer,anyreferencesinthisdocumenttoMicrosoft®Windows®operating systems are not applicable.
Information in this document is subject to change without notice.
©2009DellInc.Allrightsreserved.
Reproduction of this material in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell, the DELL logo, Vostro, TravelLite, Wi-Fi Catcher, and ExpressCharge, are trademarks of Dell Inc.; Intel, Pentium, Celeron and Core are registered
trademarks of Intel Corporation; Bluetooth is a registered trademark owned by Bluetooth SIG, Inc. and is used by Dell under license; TouchStrip is a trademark of Zvetco Biometrics,
LLC; Blu-ray Disc is a trademark of the Blu-ray Disc Association; Microsoft, Windows,Windows Vista,and the Windows Vista start button are either trademarks or registered
trademarks of Microsoft Corporation in the United States and/or other countries.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any
proprietary interest in trademarks and trade names other than its own.
May2009Rev.A00
Working on Your Computer
Adding and Replacing Parts
Specifications
Diagnostics
System Setup




NOTE: A NOTE indicates important information that helps you make better use of your computer.
CAUTION: A CAUTION indicates potential damage to hardware or loss of data if instructions are not followed.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Back to Contents Page
System Setup
Dell™Vostro™1720ServiceManual
Entering System Setup
<F12> Menu

Entering System Setup
Press <F2> to enter System Setup and make changes to the user-definable settings. If you are having trouble entering Setup using this key, reboot and press
the <F2> key when the keyboard LEDs first flash.
<F12> Menu
Press <F12> when the Dell logo appears to initiate a one-time boot menu with a list of the valid boot devices for the computer. The devices listed on the boot
menu depend on the bootable devices installed in the computer.
lInternal HDD
lCD/DVD/CD-RW Drive
lOnboard NIC
lBIOS Setup
lDiagnostics (starts the Pre-boot System Assessment (PSA) diagnostics)
This menu is useful when attempting to boot to a particular device or to bring up the diagnostics for the computer. Using the boot menu does not make any
changes to the boot order stored in the BIOS.

Back to Contents Page
Diagnostics
Dell™Vostro™1720ServiceManual
Device Status Lights
LED Error Codes
Power Button Light Codes
Device Status Lights
If your computer is connected to an electrical outlet, the light operates as follows:
lSolid blue—The battery is charging.
lFlashing blue—The battery is almost fully charged.
If your computer is running on a battery, the light operates as follows:
lOff—The battery is adequately charged, or the computer is turned off.
lFlashing orange—The battery charge is low.
lSolid orange—The battery charge is critically low.
LED Error Codes
If your computer does not perform a Power-On Self-Test upon boot up, there are various things to look for:
1. Check that the computer power light is on.
2. If the power light is not on, ensure that your computer is plugged into AC power. Remove the battery.
3. If your computer is powered on but is not performing a POST, check to see whether or not the keyboard status lights flash to indicate a successful POST
but no video or if the keyboard status lights are lit in a sequence indicating a system problem.

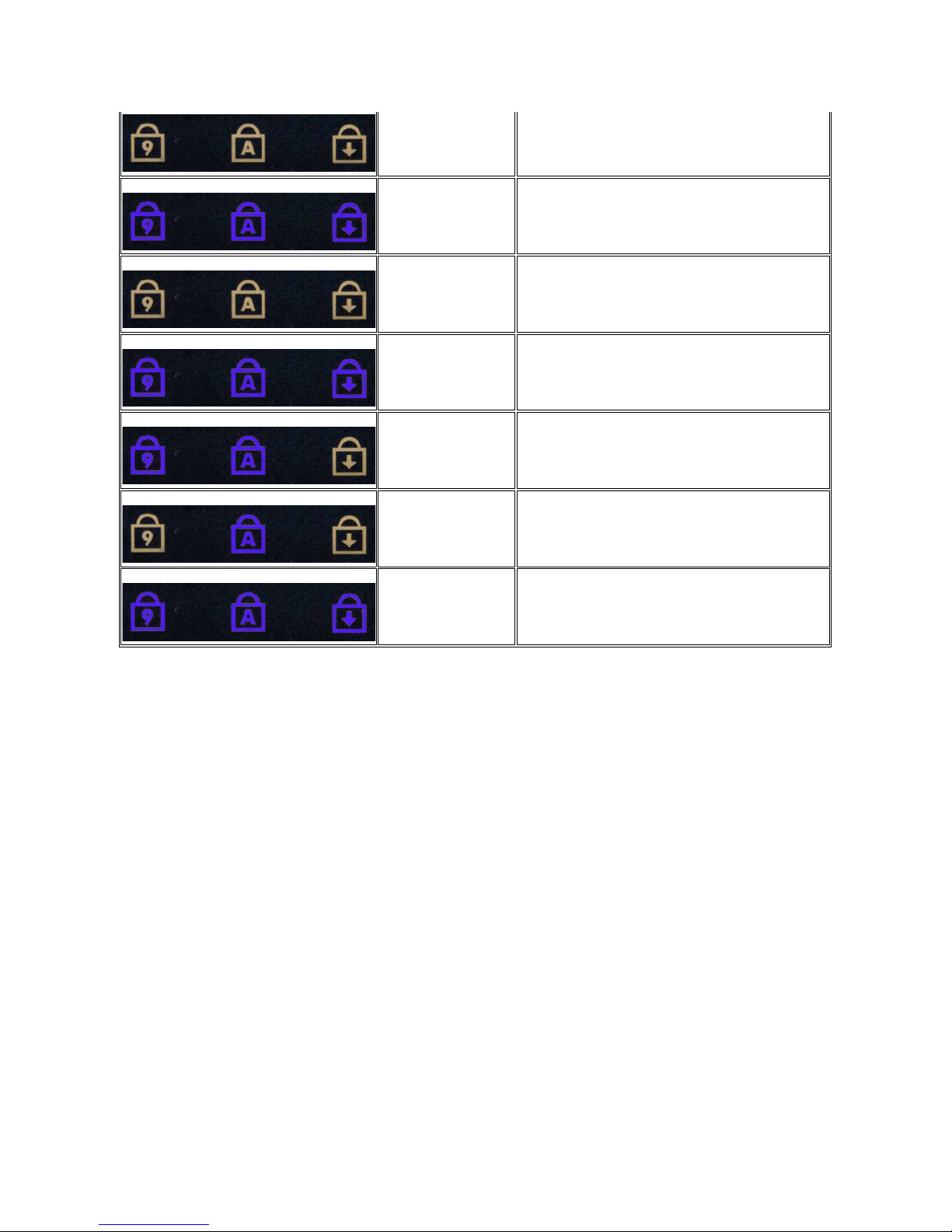

The following table shows the possible LED codes that may display in a no-POST situation.

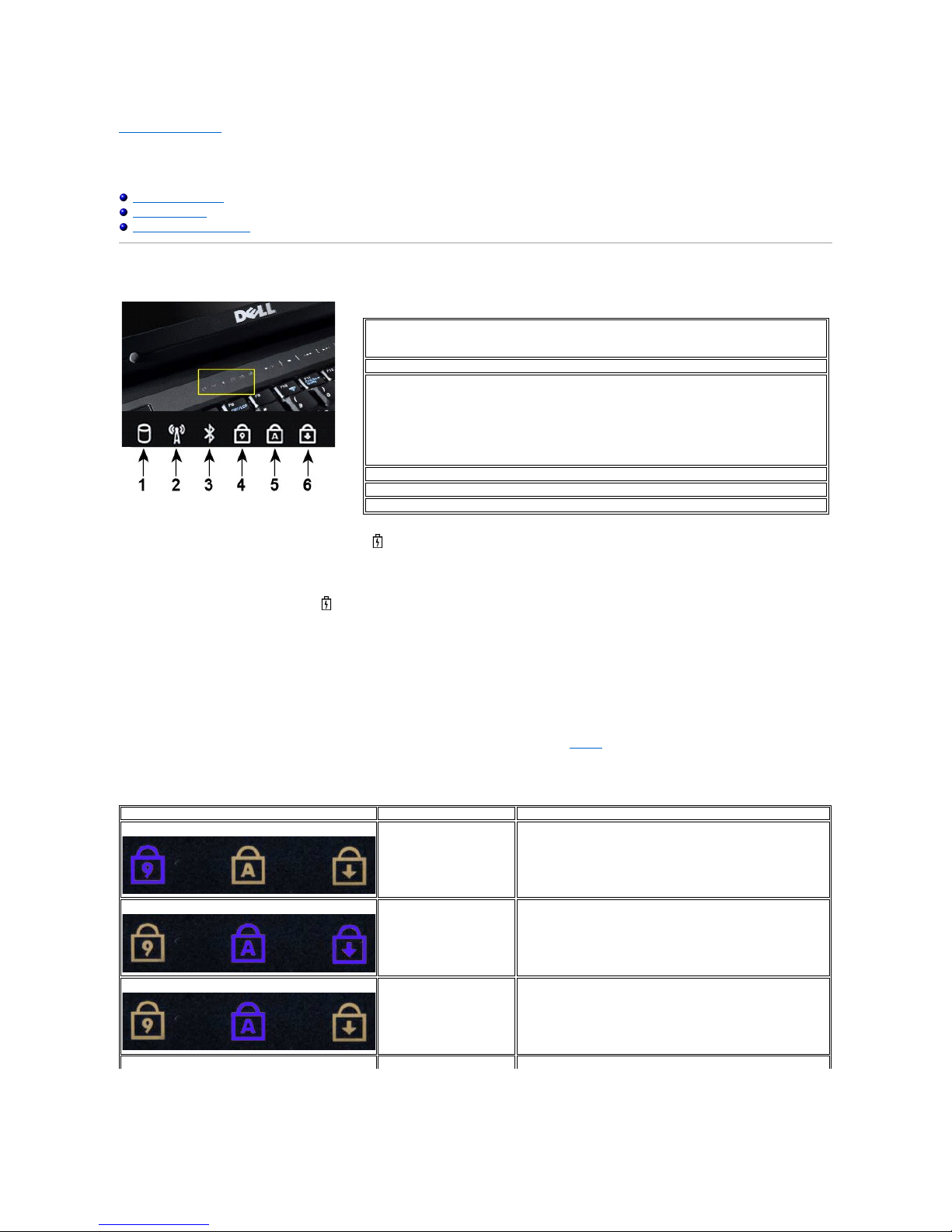

Device status lights located in the center of the
hinge cover.
1—Turns on when your computer reads or writes data to the hard drive.
NOTE: To avoid loss of data, never turn off your computer while the Hard Drive light is flashing.
2—Turns on when wireless networking is enabled.
3—Turns on when a card with Bluetooth®wireless technology is enabled.
NOTE: The card with Bluetooth wireless technology is an optional feature, so the light turns on only if
you ordered the card with your computer. For more information, see the documentation that came
with your card.
To turn off only the Bluetooth wireless technology functionality, right-click the icon in the system tray
and click Disable Bluetooth Radio.
4—Turns on when the numeric keypad is enabled.
5—Turns on when the uppercase letter function is enabled.
6—Turns on when the scroll lock function is enabled.
Appearance
Description
Next Step
ON-FLASH-FLASH
No SODIMMs are installed
1. Install supported memory modules.
2. If memory is already present, reseat the module(s) one at
time in each slot.
3.
Try known good memory from another computer or replace the
memory.
4. Replace the system board.
FLASH-ON-ON
System board error
1. Reseat the processor.
2. Replace the system board.
3. Replace the processor.
FLASH-ON-FLASH
LCD Panel Error
1. Reseat the LCD cable.
2. Replace the LCD panel.
3. Replace the video card / system board.
OFF-FLASH-OFF
1. Install compatible memory modules.

Power Button Light Codes
The power LED located in the power button on the front of the computer illuminates and blinks or remains solid to indicate five different states:
lNo light—System is in the off state (S5, or mechanical (AC power not applied) OFF).
lSolid Amber—System fault, but power supply is good—normal operating state (S0).
lBlinking Amber—System fault error condition including Power Supply (only +5VSB working), Vreg failure, missing or bad CPU.
lBlinking Green—System is in power saving states S1, S3 or S4. (Blink rate is 1Hz). No fault/error condition.
lSolid Green—System is fully functional and is in S0 (ON) state.

Memory compatability error
2. If two modules are installed remove one and test. Try the
other module in the same slot and test. Test the other slot
with both modules.
3. Replace the memory.
4. Replace the system board.
ON-FLASH-ON
Memory is detected but has
errors
1. Reseat the memory.
2. If two modules are installed remove one and test. Try the
other module in the same slot and test. Test the other slot
with both modules.
3. Replace the memory
4. Replace the system board.
OFF-FLASH-FLASH
Modem Error
1. Reseat the modem.
2. Replace the modem.
3. Replace the system board.
FLASH-FLASH-FLASH
System board error
1. Replace the system board.
FLASH-FLASH-OFF
Option ROM Error
1. Reseat the device.
2. Replace the device.
3. Replace the system board.
OFF-ON-OFF
Storage device error
1. Reseat the hard drive and optical drive.
2. Test the computer with just the hard drive and just the optical
drive.
3. Replace the device that is causing the failure.
4. Replace the system board.
FLASH-FLASH-ON
Video card error
1. Replace the system board.

Back to Contents Page
Adding and Replacing Parts
Dell™Vostro™1720ServiceManual

Battery
Access Panel
Hard Drive
Memory
Heat Sink and Processor
Hinge Cover
Palm Rest
System Board
Display Bezel
Camera
Display Assembly Hinges
Power Button and Multimedia Button Pads
Coin-Cell Battery
Optical Drive
Wireless Local Area Network (WLAN) Card
Fan
Internal Card With Bluetooth®Wireless Technology
Keyboard
USB/IEEE 1394 Board
Display Assembly
Display Inverter
LCD Display Panel
Speaker Assembly

Back to Contents Page
Specifications
Dell™Vostro™1720ServiceManual





Processor
System Information
ExpressCard™
8-in-1-Memory Card Reader
Memory
Ports and Connectors
Communications
Video
Audio
Display
Keyboard
Touch Pad
Fingerprint Reader
Camera
Battery
AC Adapter
Physical
Environmental
NOTE: Offerings may vary by region. For more information regarding the configuration
of your computer, click Start (or Start in Windows XP)®Help and Support, and
then select the option to view information about your computer.
Processor
Processor type
Intel®Core™2Duo(2.0-2.66 GHz)
Intel Celeron®(2.0 - 2.2 GHz)
Intel Celeron Dual Core (1.66 -1.86 GHz) processor
L1 cache
32 KB per instruction, 32 KB data cache per core
L2 cache
Shared 3 MB or 6 MB
External bus frequency
1067 MHz
SystemInformation
System chipset
Intel GM45 or Intel PM45 chipset
Data bus width
64 bits
DRAM bus width
Dual-channel 64-bitbus
Processor address bus width
36 bits
Flash EPROM
1 MB
PCI bus (discrete graphics only)
x16 PCI Express
ExpressCard™
NOTE:
The ExpressCard slot is designed only for ExpressCards. It does NOT support PC cards.
ExpressCard controller
Integrated
ExpressCard connector
54-mm ExpressCard slot (supports both USB-and
PCIe-based interfaces)
Cards supported
34-mm and 54-mm ExpressCards
8-in-1 Memory Card Reader
Media card controller
O2Micro OZ888
Media card connector
8-in-1 combo card connector
Cards supported
SecureDigital (SD), SDIO, MultiMediaCard (MMC),
Memory Stick, Memory Stick Pro, xD-Picture Card, Hi
Speed-SD, and Hi Density-SD
Memory
Memory module connector
Two DIMM sockets
Memory module capacities
1 GB (one DIMM)
2 GB (one DIMM or two DIMMs)
4 GB (2 DIMMs)
8 GB (two DIMMS, requires 64-bit Windows Vista
operating system)
Memory type
DDR2 800 MHz (if supported by chipset and/or
processor combinations); non-ECC memory only
Minimum memory
1 GB
Maximum memory
8 GB (requires 64-bit Windows Vista operating
system)





PortsandConnectors
Audio
Microphone connector and stereo
headphone/speakers connector
IEEE 1394
One 4-pin connector
Dock
Optional USB Port Replicator only
One dedicated half Mini-Card slot for WLAN
Mini-card support (internal expansion slots)
One dedicated half Mini-Card slot for WLAN
One USB-based daughter card with Bluetooth®
wireless technology (Dell Wireless 355)
Network adapter
RJ-45 connector
USB, USB PowerShare and eSATA
Six USB 2.0-compliant connectors
Video
15-pin VGA video connector
Communications
Modem
Supports external USB modem (optional) only
Network adapter
10/100/1000 Ethernet LAN on system board
Wireless
WLAN PCI-e Mini-Card, Bluetooth V2.0 card
Mobile Broadband
None
GPS
None
Video
Video type
Integrated on system board (hardware accelerated)
Discrete
Video controller
Integrated video: Intel Extreme
Discrete video: NVIDIA GeForce 9400M GS (NB9M-
GS), 128 bit
Data bus
Integrated video or PCI-Express video x16
Video memory
Integrated video: up to 256 MB shared memory
Discrete video: 512 MB dedicated memory
Video output
Video connector and multimode DisplayPort
LCD interface
LVDS
Audio
Audio type
High-definition audio (HDA)
Audio controller
IDT 92HD81
Stereo conversion
24-bit (analog-to-digital and digital-to-analog)
Interfaces:

Internal
Internal High Definition Audio
External
Microphone-in connector, stereo
headphones/speakers connector
Speaker
One 2-watt, 4-ohm speakers
Internal speaker amplifier
2W, stereo
Volume controls
Programmenus,mediacontrolbuttons
Display
Type (active-matrix TFT)
17inchWXGA+/WUXGA
Dimensions:
Height
245.00 mm (9.64 inches)
Width
383.00 mm (15.00 inches)
Diagonal
431.70 mm (17.00 inches)
Maximum Resolutions:

WXGA+w/anti-glare
1440x900 with 18-bit color (262 K)
WUXGAwithTrueLife
1920X1200 with 18-bit color (262 K)
Refresh rate
60 Hz
Operating angle
0°(closed)to160°
Viewing angles:
Horizontal
WXGA+:55/55°
Vertical
WXGA+:45/45°







Pixel pitch
WXGA 0.258 mm (.010 inch)
WUXGA with TrueLife 0.23 (.009 inch)
Controls
Brightness can be controlled through keyboard
shortcuts
Keyboard
Number of keys
105 (U.S. and Canada); 106 (Europe); 109 (Japan)
Layout
QWERTY/AZERTY/Kanji
Size:

Standard
Full size
Maximum
359.40 mm x 118.90mm x 5.20mm (14.15 x 4.681 x
0.205inches)
Touch Pad
X/Y position resolution (graphics table mode)
240 CPI
Size:
Width
73.70 mm (2.90 inches)
Height
43.10 mm (1.69 inches)
Fingerprint Reader (Optional)
Type
UPEKTCS3TouchStrip™stripsensorwithCMOS
active capacitive pixel-sensing technology
Camera (Optional)
Still Resolution
1.3 mega-pixel
Battery
Type:

6-cell lithium-ion battery
56 WHr
8-cell lithium-ion battery
74 WHr
Dimensions:
Depth
6-cell and 8-cell lithium-ion battery
49.97mm (1.97 inches)
Height
6-cell and 8-cell lithium-ion battery
20.20 mm (0.79 inches)
Width
6-cell and 8-cell lithium-ion battery
271.00 mm (10.67 inches)
Weight
6-cell lithium-ion battery
338.70 g
8-cell lithium-ion battery
429.60 g
Voltage:

6-cell lithium-ion battery
11.1 V
8-cell lithium-ion battery
14.8 V
Operating Time (approximate)
4-5 hours (6-cell)
6 hours or more (8-cell)
NOTE: Varies depending on operating conditions and
can be significantly reduced under certain power-
intensive conditions
Life span (approximate)
1 year
Temperature range:
Operating
0°to40°C(32°to104°F)
Storage
-10°to65°C(14°to149°F)
Coin-cell battery
CR2032
AC Adapter
Input voltage
100-240 VAC (90W)
Input current (maximum)
1.5 A (90W)
Input frequency
50-60 Hz (90W)
Temperature range:





Operating
0°to35°C(32°to95°F)
Storage
-40°to65°C(-40°to149°F)
Output voltage
19.5 VDC
Output current
5.62 A (maximum at 4-second pulse), 4.62 A
(continuous)
Dimensions:
Height
15.00 mm (0.60 inches)
Width
66.00 mm (2.60 inches)
Depth
127.00 mm (5.00 inches)
Weight
0.29 kg (0.64 lb)
PA-10 90 W D-Series AC adapter:

Outputvoltage
19.5 VDC
Outputcurrent
4.62 A
Height
33.80 mm (1.34 inches)
Width
60.90 mm (2.39 inches)
Depth
153.40 mm (6.04 inches)
Weight(withcables)
0.46 kg (1.01 lbs)
PA-3E 90 E-Series AC adapter:

Outputvoltage
19.5 VDC
Outputcurrent
4.62 A
Height
15.00 mm (0.60 inches)
Width
70.00 mm (2.80 inches)
Depth
147.00 mm (5.80 inches)
Weight
0.34 kg (0.76 lb)
Physical
Height
Front: 29.00 mm (1.14 inches)
Back: 40.50 mm (1.59 inches)
Width
393.00 mm (15.47 inches)
Depth
286.00 mm (11.26 inches)
Weight(with6-cell battery)
3.09 kg (6.85 lbs)
Weight(with8-cellbattery)
3.18 kg (7.05 lbs)
Environmental
Temperature range:
Operating
0°to35°C(32°to95°F)
Storage
-40°to65°C(-40°to149°F)
Relative humidity (maximum):
Operating
10% to 90% (noncondensing)
Storage
5% to 95% (noncondensing)
Maximum vibration (using a random-vibration spectrum that simulates user environment):
Operating
0.66 GRMS
Storage
1.30 GRMS
Maximum shock (measured with hard drive in head-parked position and a 2-ms half-sine pulse):
Operating
143 G
Storage
163 G
Altitude (maximum):
Operating
-15.2 to 3048 m ( -50 to 10,000 ft)
Storage
-15.2 to 3048 m ( -50 to 10,000 ft)
Airborne contaminant level
G2 or lower as defined by ANSI/ISA-S71.04-1985

Back to Contents Page
Access Panel
Dell™Vostro™1720ServiceManual

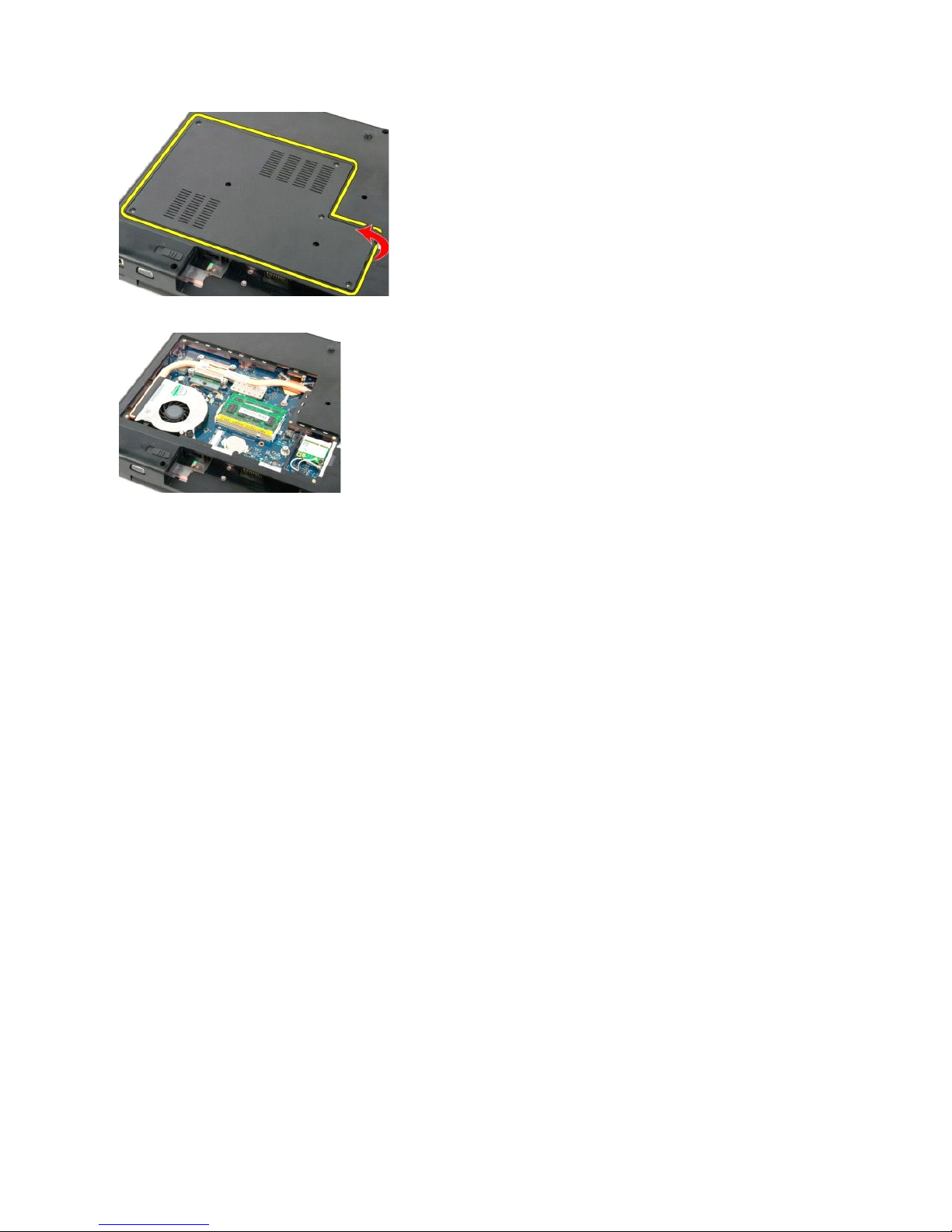

Removing the Access Panel
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the battery from the computer.
3. Remove the eight screws from the access panel.
4. Lift the edge of the access panel that is closest to the center of the computer.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

5. Remove the access panel.

Back to Contents Page
Battery
Dell™Vostro™1720ServiceManual
Removing the Battery
1. Follow the procedures in Before Working Inside Your Computer.
2. Slide the battery lock latches into the unlocked position.
3. Slide the battery toward the back of the computer to remove.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

Back to Contents Page
Power Button and Multimedia Button Pads
Dell™Vostro™1720ServiceManual
Removing the Power Button and Multimedia Button Pads
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the battery from the computer.
3. Remove the hinge cover from the computer.
4. Remove the screw that secures the power button pad to the computer.
5. Slide the power button pad to the right.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

6. Remove the screw that secures the multimedia button pad to the computer.
7. Slide the multimedia button pad to the left.
8. Turn the multimedia button pad onto the keyboard.
9. Disconnect the data cable from the multimedia button pad.
10. Remove the two button pads from the computer.



Back to Contents Page
Coin-Cell Battery
Dell™Vostro™1720ServiceManual
Removing the Coin-Cell Battery
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the battery from the computer.
3. Remove the access panel from the computer.
4. Insert scribe into slot and gently pry up the coin-cell battery.
5. Remove the coin-cell battery.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.



Back to Contents Page
Display Bezel
Dell™Vostro™1720ServiceManual
Removing the Display Bezel
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the display assembly from the computer.
3. Remove the eight rubber screw covers from the display bezel.
4. Remove the eight screws that secure the bezel to the display assembly.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

5. Remove the bezel from the display assembly.
