Dell Studio PP39L User manual

SETUP GUIDE

SETUP GUIDE
Model PP39L

Notes, Cautions, and Warnings
NOTE: A NOTE indicates important information that helps you make better use of your
computer.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells
you how to avoid the problem.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
If you purchased a Dell™ n Series computer, any references in this document to Microsoft®Windows®operating systems
are not applicable.
__________________
Information in this document is subject to change without notice.
© 2008 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks of these materials used in this text:
Dell , the DELL logo, Wi-Fi Catcher , YOURS IS HERE, and DellConnect
are trademarks of Dell Inc.;
Intel , and C ore are registered trademarks and Core is a trademark of Intel Corporation in
the United States and/or other countries;
Microsoft , Windows , and Windows Vista are either trademarks or registered
trademarks of Microsoft Corporation in the United States and/or other countries.;
Bluetooth is a registered trademark
owned by Bluetooth SIG, Inc. and is used by Dell under license.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and
names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.
October 2008 P/N H101K Rev. A00

3
Setting Up Your Studio Laptop . . . . . . . . . . .5
Before Setting Up Your Computer . . . . . . . . . 5
Connect the AC Adapter . . . . . . . . . . . . . . . . 6
Connect the Network Cable (optional) . . . . . 7
Press the Power Button . . . . . . . . . . . . . . . . .8
Set Up Windows Vista®. . . . . . . . . . . . . . . . .9
Connect to the Internet (Optional) . . . . . . . . . 9
Using Your Studio Laptop . . . . . . . . . . . . . .12
Right Side Features . . . . . . . . . . . . . . . . . . . . 12
Left Side Features . . . . . . . . . . . . . . . . . . . . . 16
Computer Base and Keyboard Features . . . 18
Media Controls. . . . . . . . . . . . . . . . . . . . . . . . 19
Display Features . . . . . . . . . . . . . . . . . . . . . . 21
Removing and Replacing the Battery . . . . . 22
Using the Optical Disc Drive. . . . . . . . . . . . . 23
Software Features . . . . . . . . . . . . . . . . . . . . . 24
Solving Problems . . . . . . . . . . . . . . . . . . . . .27
Beep Codes . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Network Problems . . . . . . . . . . . . . . . . . . . . . 29
Power Problems. . . . . . . . . . . . . . . . . . . . . . . 29
Memory Problems . . . . . . . . . . . . . . . . . . . . . 30
Lockups and Software Problems . . . . . . . . . 31
Dell Support Center . . . . . . . . . . . . . . . . . . . . 33
Using Support Tools. . . . . . . . . . . . . . . . . . .33
System Messages . . . . . . . . . . . . . . . . . . . . . 34
Hardware Troubleshooter. . . . . . . . . . . . . . . 35
Dell Diagnostics . . . . . . . . . . . . . . . . . . . . . . 36
Restoring Your Operating System . . . . . . .38
System Restore . . . . . . . . . . . . . . . . . . . . . . . 38
Dell Factory Image Restore . . . . . . . . . . . . . 40
Operating System Reinstallation . . . . . . . . . 41
Contents

4
Getting Help . . . . . . . . . . . . . . . . . . . . . . . . .43
Technical Support and Customer
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
DellConnect™. . . . . . . . . . . . . . . . . . . . . . . . . 44
Online Services . . . . . . . . . . . . . . . . . . . . . . . 44
AutoTech Service. . . . . . . . . . . . . . . . . . . . . . 45
Product Information. . . . . . . . . . . . . . . . . . . . 46
Returning Items for Repair Under
Warranty or for Credit . . . . . . . . . . . . . . . . . . 46
Before You Call. . . . . . . . . . . . . . . . . . . . . . . . 47
Contacting Dell. . . . . . . . . . . . . . . . . . . . . . . . 48
Finding More Information and
Resources . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Basic Specifications . . . . . . . . . . . . . . . . . .52
Appendix. . . . . . . . . . . . . . . . . . . . . . . . . . . .61
Macrovision Product Notice. . . . . . . . . . . . . 61
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

5
This section provides information about setting
up your Studio 1555 laptop and connecting
peripherals.
Before Setting Up Your Computer
When positioning your computer, ensure that
you allow easy access to a power source,
adequate ventilation, and a level surface to
place your computer.
Restricting airflow around your Studio
laptop may cause it to overheat. To prevent
overheating ensure that you leave at least
10.2 cm (4 in) at the back of the computer and
a minimum of 5.1 cm (2 in) on all other sides.
You should never put your computer in an
enclosed space, such as a cabinet or drawer
when it is powered on.
WARNING: Do not block, push objects into,
or allow dust to accumulate in the air vents.
Do not store your Dell™ computer in a
low-airflow environment, such as a closed
briefcase, while it is running. Restricting
the airflow can damage the computer or
cause a fire. The computer turns on the
fan when the computer gets hot. Fan noise
is normal and does not indicate a problem
with the fan or the computer.
CAUTION: Placing or stacking heavy or
sharp objects on the computer may result
in permanent damage to the computer.
Setting Up Your Studio Laptop

6
Setting Up Your Studio Laptop
Connect the AC Adapter

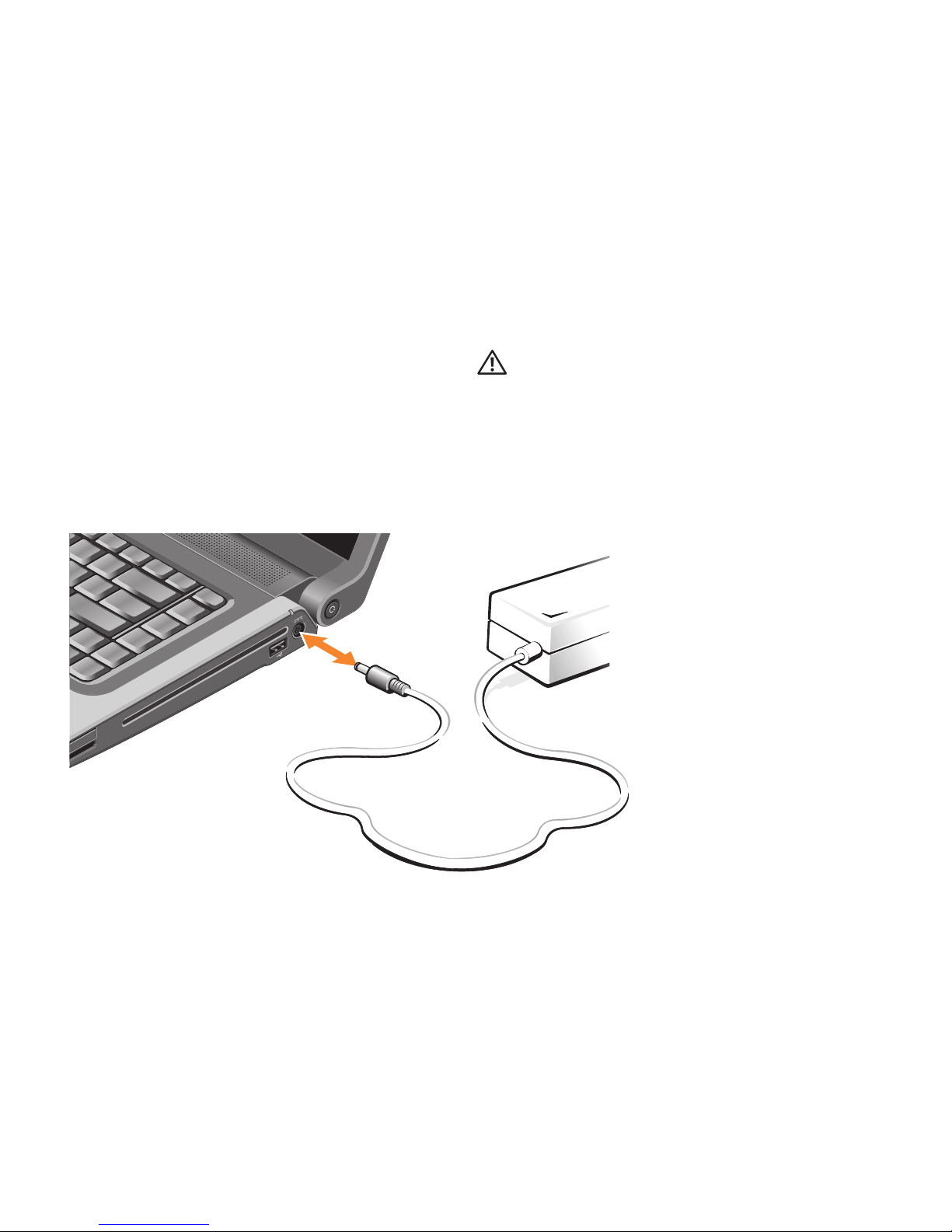

Connect the AC adapter to the computer and
then plug it into an electrical outlet or surge
protector.
WARNING: The AC adapter works with
electrical outlets worldwide. However,
power connectors and power strips vary
among countries. Using an incompatible
cable or improperly connecting the cable to
a power strip or electrical outlet may cause
fire or equipment damage.

7
Setting Up Your Studio Laptop
Connect the Network Cable
(optional)
If you plan to use a wired network connection,
plug in the network cable.

8
Setting Up Your Studio Laptop
Press the Power Button

9
Setting Up Your Studio Laptop
Set Up Windows Vista®
Your Dell computer is preconfigured with
Windows Vista. To set up Windows Vista for the
first time, follow the instructions on the screen.
These steps are mandatory. The screens
will take you through several procedures
including accepting license agreements,
setting preferences and setting up an Internet
connection.
CAUTION: Do not interrupt the operating
system’s setup process. Doing so may
render your computer unusable.
Connect to the Internet (Optional)
NOTE: ISPs (Internet Service Providers)
and ISP offerings vary by country.
To connect to the Internet, you need an external
modem or network connection and an Internet
service provider (ISP).
NOTE: If an external USB modem or
WLAN adapter is not a part of your original
order, you can purchase one from the
Dell website at www.dell.com.

10
Setting Up Your Studio Laptop
Setting Up a Wired Internet Connection
If you are using a dial-up connection, connect
the telephone line to the external USB modem
(optional) and to the telephone wall connector
before you set up your Internet connection.
If you are using a DSL or cable/satellite modem
connection, contact your ISP or cellular
telephone service for setup instructions and
see “Setting Up Your Internet Connection”
on page 11.
Setting Up a Wireless Connection
2
1
3
4
3
Internet service1.
cable or DSL modem2.
wireless router3.
portable computer with wireless4.
network card
See the documentation for your computer or
router for more information about how to set up
and use your wireless network.
Before you can use your wireless Internet
connection, you need to connect to your
wireless router.
To establish your connection to a wireless
router:
Save and close any open files, and exit any1.
open programs.
Click2. Start →Connect To.
Follow the instructions on the screen to3.
complete the setup.

11
Setting Up Your Studio Laptop
Setting Up Your Internet Connection
To set up an Internet connection with a provided
ISP desktop shortcut:
Save and close any open files, and exit any1.
open programs.
Double-click the ISP icon on the Microsoft2. ®
Windows®desktop.
Follow the instructions on the screen to3.
complete the setup.
If you do not have an ISP icon on your desktop
or if you want to set up an Internet connection
with a different ISP, perform the steps in the
following section.
NOTE: If you cannot connect to the Internet
but have successfully connected in the
past, the ISP might have a service outage.
Contact your ISP to check the service
status, or try connecting again later.
NOTE: Have your ISP information ready.
If you do not have an ISP, the Connect to
the Internet wizard can help you get one.
Save and close any open files, and exit any1.
open programs.
Click2. Start →Control Panel.
Under3. Network and Internet, click Connect
to the Internet.
The Connect to the Internet window appears.
Select either4. Broadband (PPPoE) or Dial-up,
depending on how you want to connect:
Choosea. Broadband if you will use a DSL,
satellite modem, cable TV modem,
or wireless technology connection.
Chooseb. Dial-up if you will use an optional
USB dial-up modem or ISDN.
NOTE: If you do not know which type of
connection to select, contact your ISP.
Follow the instructions on the screen and5.
use the setup information provided by your
ISP to complete the setup.

12
Your Studio 1555 has indicators, buttons, and
features that provide information at-a-glance
and time-saving shortcuts for common tasks.

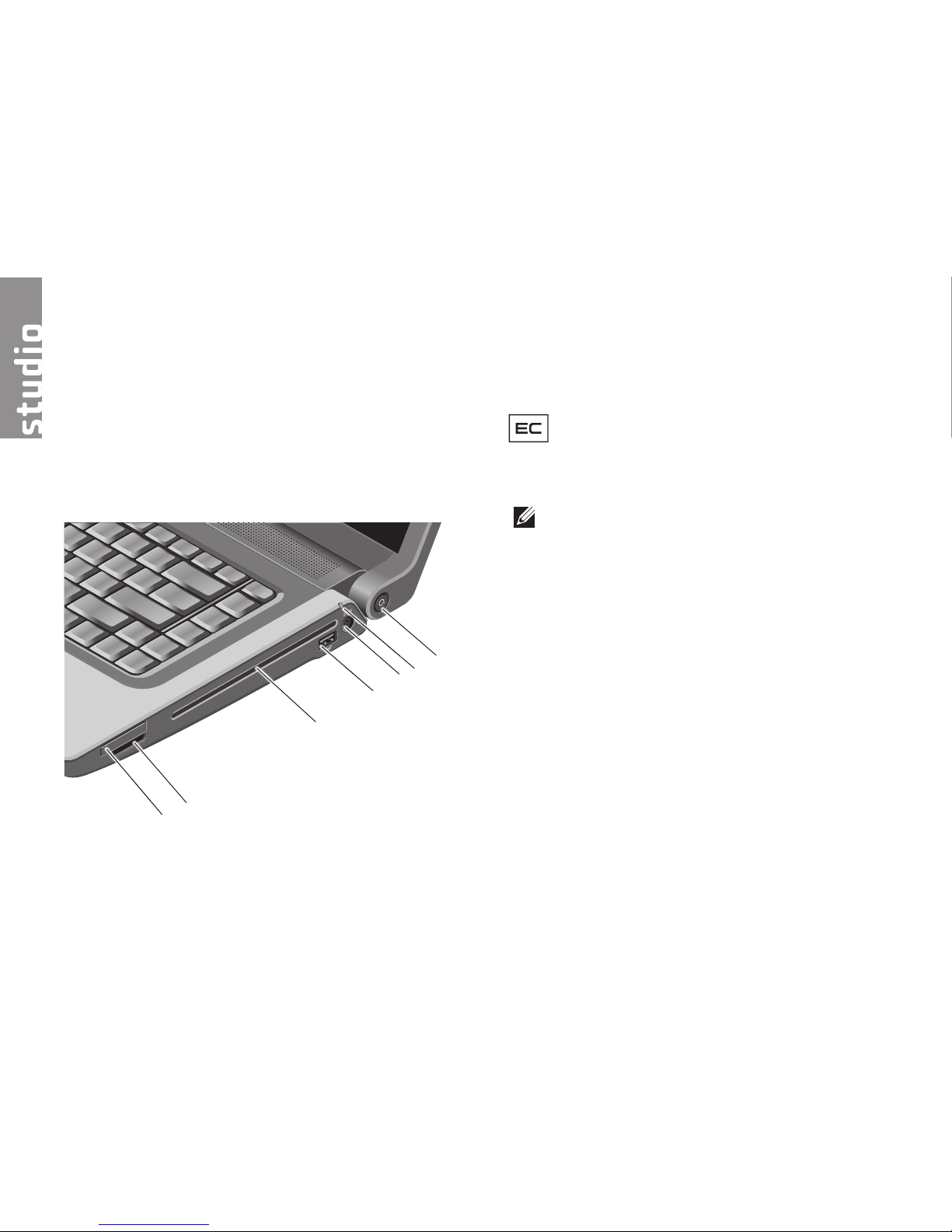

Right Side Features
12
3
4567
2
1ExpressCard slot – Supports one
ExpressCard. The Express card slot is of
34 mm.
NOTE: Your computer ships with
a plastic blank installed in the
ExpressCard slot. Blanks protect
unused slots from dust and other
particles. Save the blank for use when
no ExpressCard is installed in the slot;
blanks from other computers may not
fit your computer.
Using Your Studio Laptop

13
Using Your Studio Laptop
2
SD/MMC - MS/Pro - xD
8-in-1 Media card reader – Provides a
fast and convenient way to view and
share digital photos, music, videos, and
documents stored on the following digital
memory cards:
Secure digital (SD) memory card•
Secure Digital Input Output (SDIO) card•
Multi Media Card (MMC)•
Memory Stick•
Memory Stick PRO•
xD-Picture Card (type - M and type - H)•
Hi Speed-SD•
Hi Density-SD•
NOTE: Your computer ships with a
plastic blank installed in the media
card slot. Blanks protect unused slots
from dust and other particles. Save
the blank for use when no media card
is installed in the slot; blanks from
other computers may not fit your
computer.
3Optical Drive – Plays or burns only
standard-size and shape (12 cm) CDs, and
DVDs. Ensure that the side with print or
writing is facing upward when inserting
discs. For more information on using the
optical disc drive, see “Using the Optical
Disc Drive” on page 23.
4USB 2.0 connector – Connects to a
USB device, such as a mouse, keyboard,
printer, external drive, or MP3 player.
5AC adapter connector – Connects to
the AC adapter to power on the computer
and charge the battery when the computer
is not in use.

14
Using Your Studio Laptop
6Battery status light – Indicates the
battery charging state
Battery status (running on battery) :
Battery is adequately charged – no light•
indication (off)
Battery charge is low – flashing orange•
Battery charge is critically low – solid•
orange
Battery status (connected to electrical
outlet) :
Battery is charging – solid white•
Battery is almost fully charged –•
flashing white
Battery is fully charged – Off•
7Power button and light – Turns the
power on or off when pressed. The light in
the button indicates the power state:
Computer is switched on – solid white•
Standby mode – blinking white•
Computer off – Off•

15
Using Your Studio Laptop

16
Using Your Studio Laptop
Left Side Features
1
2
3
4567
8
9

17
Using Your Studio Laptop
1Security cable slot – Attaches a
commercially available antitheft device to
the computer.
NOTE: Before you buy an antitheft
device, ensure that it works with the
security cable slot on your computer.
2HDMI Connector – HDMI
(High-Definition Multimedia Interface)
connector carries an uncompressed all
digital signal to produce hi-definition
video and audio.
3VGA connector – Connects to
a monitor or projector.
4Network connector – If you are
using a cabled network, this port connects
your computer to a network or broadband
device.
5USB 2.0 connector – Connects to
USB devices, such as a mouse, keyboard,
printer, external drive, or MP3 player.
6eSATA Connector – Connects to
eSATA compatible storage devices, such
as external hard disk drives or optical
drives.
7IEEE 1394 connector – Connects to
high-speed serial multimedia devices,
such as digital video cameras.
8Audio In/ Microphone connector –
Connects to a microphone or inputs signal
for use with audio programs.
9Audio Out/ Headphone
connectors (2) – Connects one or two
pairs of headphones, or sends audio to
a powered speaker or sound system.
The audio signal is the same for both
connectors.

18
Using Your Studio Laptop
Computer Base and Keyboard
Features
1234
1Keyboard/ Backlit Keyboard (optional) –
If you have purchased the optional backlit
keyboard, the F6 key has
the backlit keyboard icon on it. The
optional backlit keyboard provides visibility
in dark environments by illuminating all
symbols on the keys. For more information
on using the keyboard, see the
Dell
Technology Guide
.
Backlit Keyboard Brightness
Settings – Press <Fn> + F6 key to toggle
the three lighting states (in the given
order).
The three lighting states are:
full keyboard/touch pad brightness.a.
no lightingb.
half keyboard/touch pad brightness.c.
