Dell™Latitude™D800ServiceManual
Before You Begin
System Components
Memory Module, Mini PCI Card, Modem, and Modules
Hard Drive
Bluetooth™Card
Fan
Docking Doors
Keyboard
Display Assembly
Video Card
Microprocessor Thermal-Cooling Assembly
Palm Rest
Microprocessor Module
Flashing the BIOS

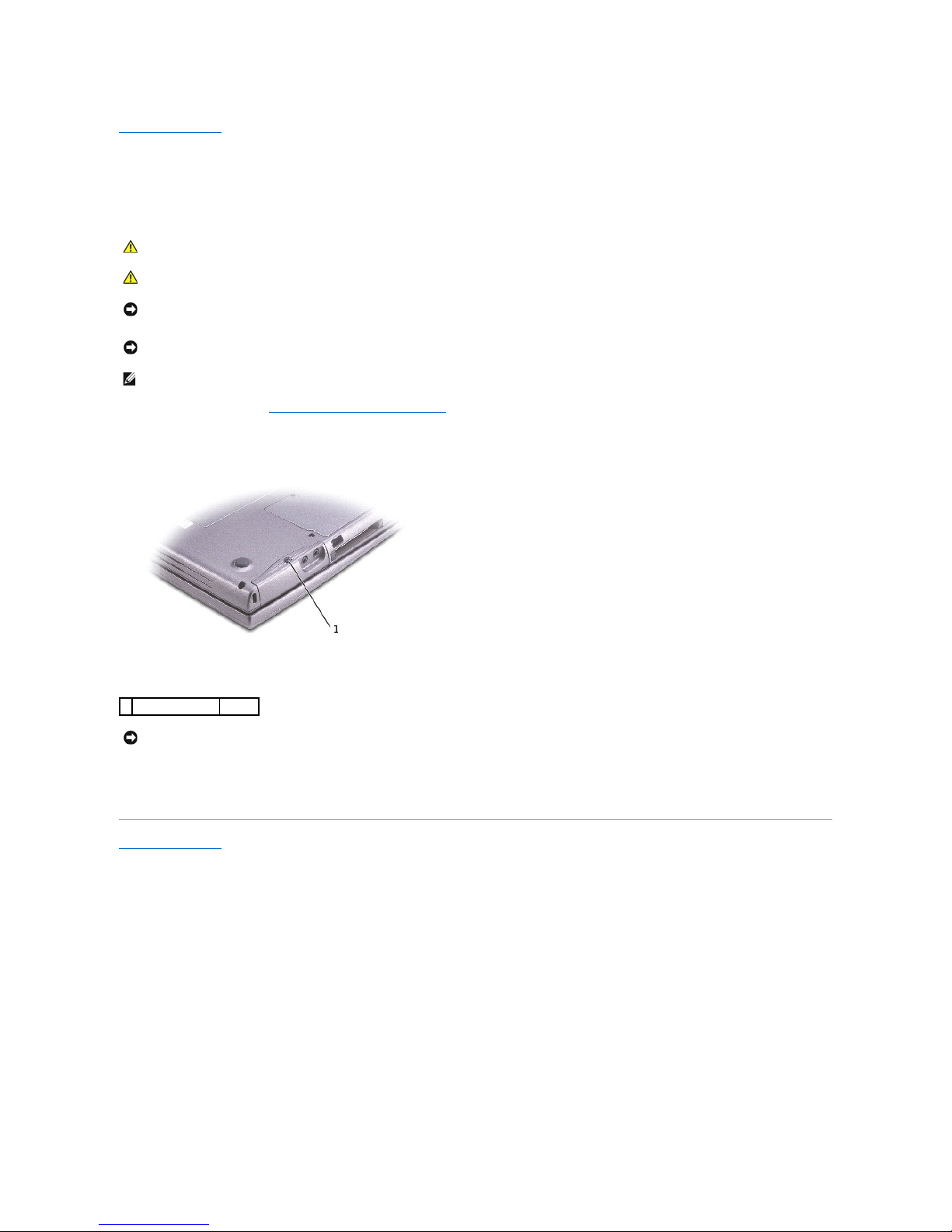

Reserve Battery
System Board
Speakers
Base Latch
Pin Assignments for I/O Connectors
Mini Recommended Spares List
Notes, Notices, and Cautions
Information in this document is subject to change without notice.
©2003–2004DellInc.Allrightsreserved.
Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell, the DELL logo, and Inspiron are trademarks of Dell Inc.; Intel is a registered trademark of Intel Corporation; Microsoft and Windows are
registered trademarks of Microsoft Corporation; Bluetooth is a trademark owned by Bluetooth SIG, Inc. and is used by Dell Inc. under license.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any
proprietary interest in trademarks and trade names other than its own.
Model PP02X
March 2004 Rev. A02
NOTE: A NOTE indicates important information that helps you make better use of your computer.
NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.
Back to Contents Page

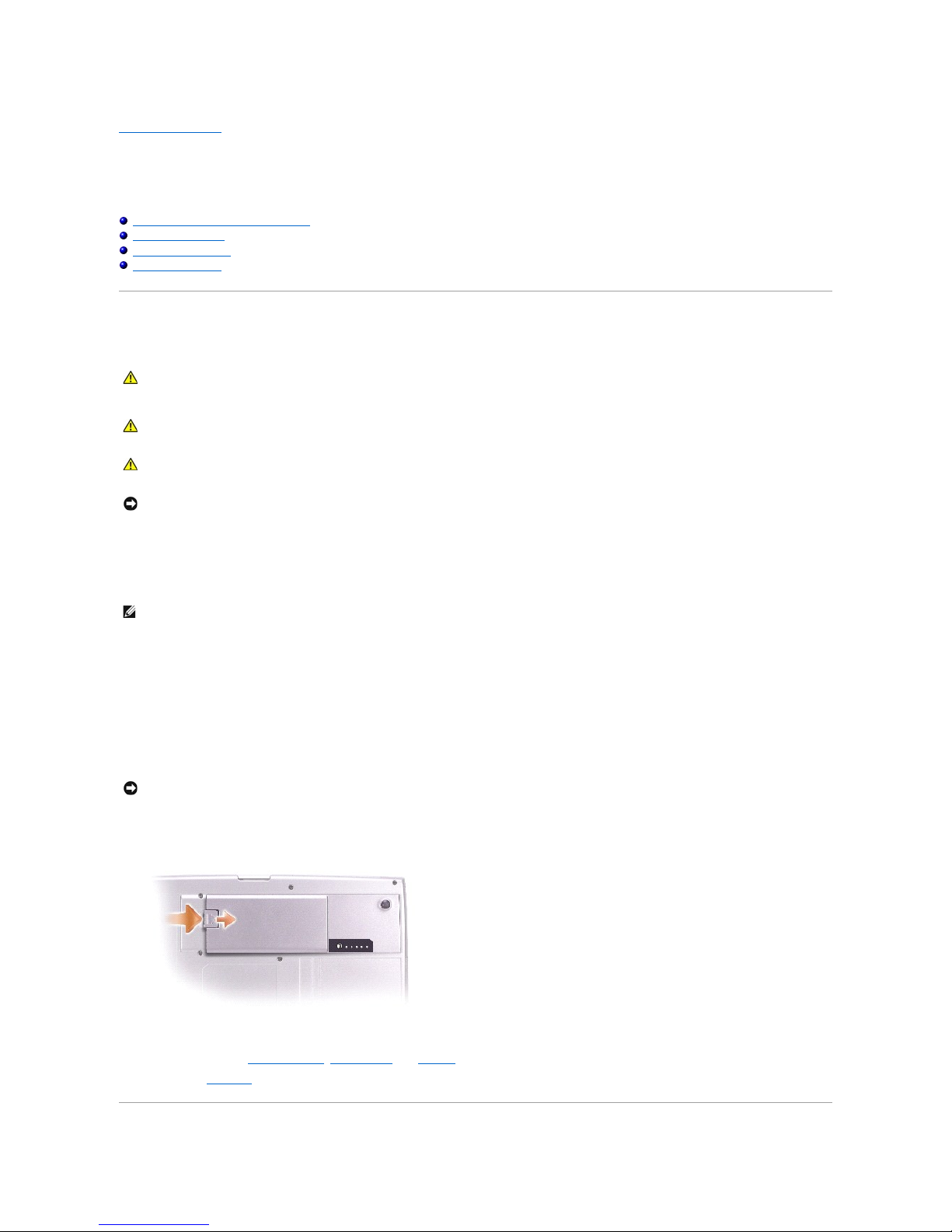

Before You Begin
Dell™Latitude™D800ServiceManual
Preparing to Work Inside the Computer
Recommended Tools
Computer Orientation
Screw Identification
Preparing to Work Inside the Computer
1. Ensure that the work surface is flat and clean to prevent scratching the computer cover.
2. Save any work in progress and exit all open programs.
3. Turn off the computer and all attached devices.
4. If the computer is connected to a docking station, undock it.
5. Disconnect the computer from the electrical outlet.
6. To avoid possible damage to the system board, wait 10 to 20 seconds and then disconnect any attached devices.
7. Disconnect all other external cables from the computer.
8. Remove any installed PC Cards from the PC Card slot.
9. Close the display and turn the computer upside down on a flat work surface.
10. Slide and hold the battery-bay latch release on the bottom of the computer, and then remove the battery from the bay.
11. Remove any installed memory modules, Mini PCI cards, and modules, including a second battery if one is installed.
12. Remove the hard drive.
CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell is
not covered by your warranty. Read and follow applicable instructions in the safety instructions in the System Information Guide that came with
the computer.
CAUTION: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of
your computer's electronic components. You can do so by touching an unpainted metal surface.
CAUTION: Handle components and cards with care. Do not touch the components or contacts on a card. Hold a card by its edges or by its metal
mounting bracket. Hold a component such as a microprocessor by its edges, not by its pins.
NOTICE: To avoid damaging the computer, perform the following steps before you begin working inside the computer.
NOTE: Ensure that the computer is off and not in a power management mode. If you cannot shut down the computer using the computer operating
system, press and hold the power button for 4 seconds.
NOTICE: To avoid damaging the system board, you must remove the main battery before you service the computer.
Recommended Tools
The procedures in this manual require the following tools:
l#1 Phillips screwdriver
l¼-inch flat-blade screwdriver
lSmall plastic scribe
lFlash BIOS update program floppy disk or CD
Computer Orientation

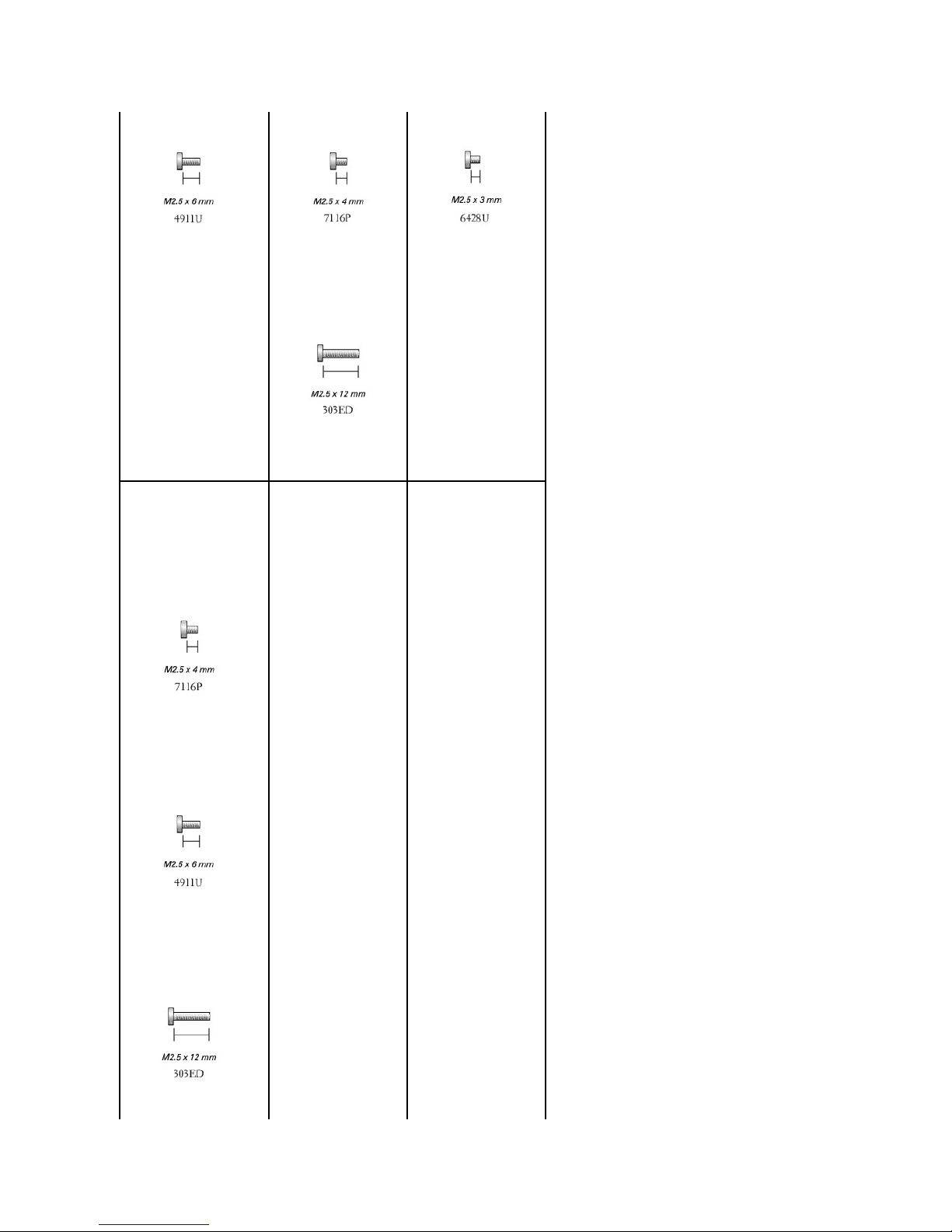

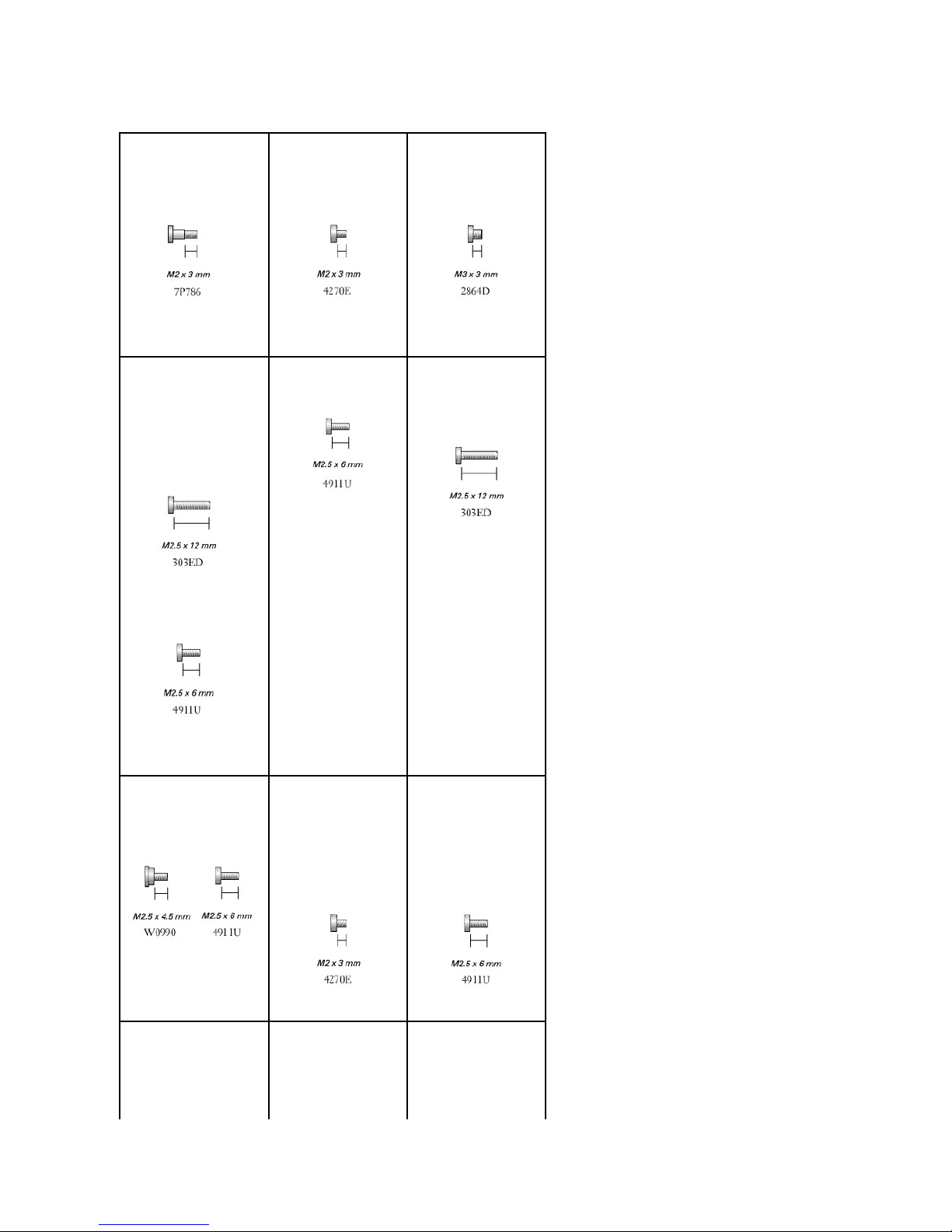

Screw Identification
When you are removing and replacing components, photocopy "Screw Identification" as a tool to lay out and keep track of the screws. The placemat provides
the number of screws and their sizes.
1
back
2
right
3
front
4
left
Optional Module:
(1 each)
Modem:
(1 each)
Hard Drive:
(1 each)
Fan:
(2 each)
Keyboard:
(2 each)
Display Assembly:
(2 each)
Display Bezel:
display bumpers (8 each)
Display Panel:
(9 each)
Display Latch:
(2 each)
Video Card
(4 each)
Palm Rest:
(2 each)
Speakers:
(1 each)
(13 each)
System Board:
(3 each)
(2 each)
(1 each)
Back to Contents Page
Back to Contents Page
Flashing the BIOS
Dell™Latitude™D800ServiceManual
1. Ensure that the AC adapter is plugged in and that the main battery is installed properly.
2. Insert the flash BIOS update program floppy disk or CD and turn on the computer.
Follow the instructions that appear on the screen. The computer continues to boot and updates the new BIOS. When the update is complete, the
computer automatically reboots.
3. Press <F2> during POST to enter the system setup program.
4. Press <Esc>, select Save changes and reboot, and then press <Enter> to save configuration changes.
5. Remove the flash BIOS update program floppy disk or CD from the drive and restart the computer.
Back to Contents Page
Back to Contents Page
Bluetooth™Card
Dell™Latitude™D800ServiceManual
If you ordered a Bluetooth card with your computer, the card is already installed.
1. Remove the hard drive.
2. Pull the Bluetooth card connector out of the system board connector.
3. Pull the cable to remove the Bluetooth card from the computer.
Back to Contents Page
CAUTION: Before performing the following procedures, read the safety instructions in your System Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as the back panel) on the computer.
1
Bluetooth card
2U381
2
system board connector
3
Bluetooth card connector
4
cable
5X617
Back to Contents Page

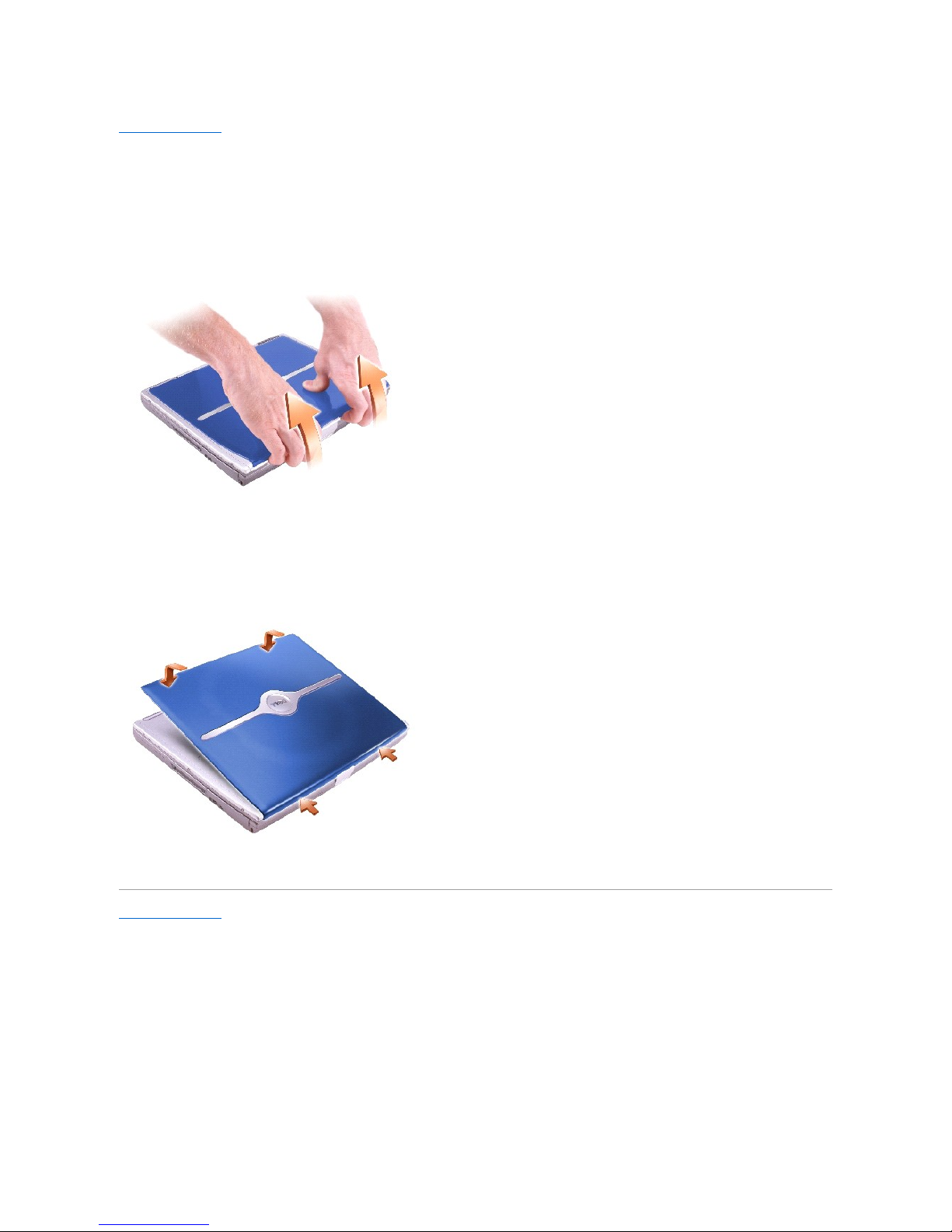

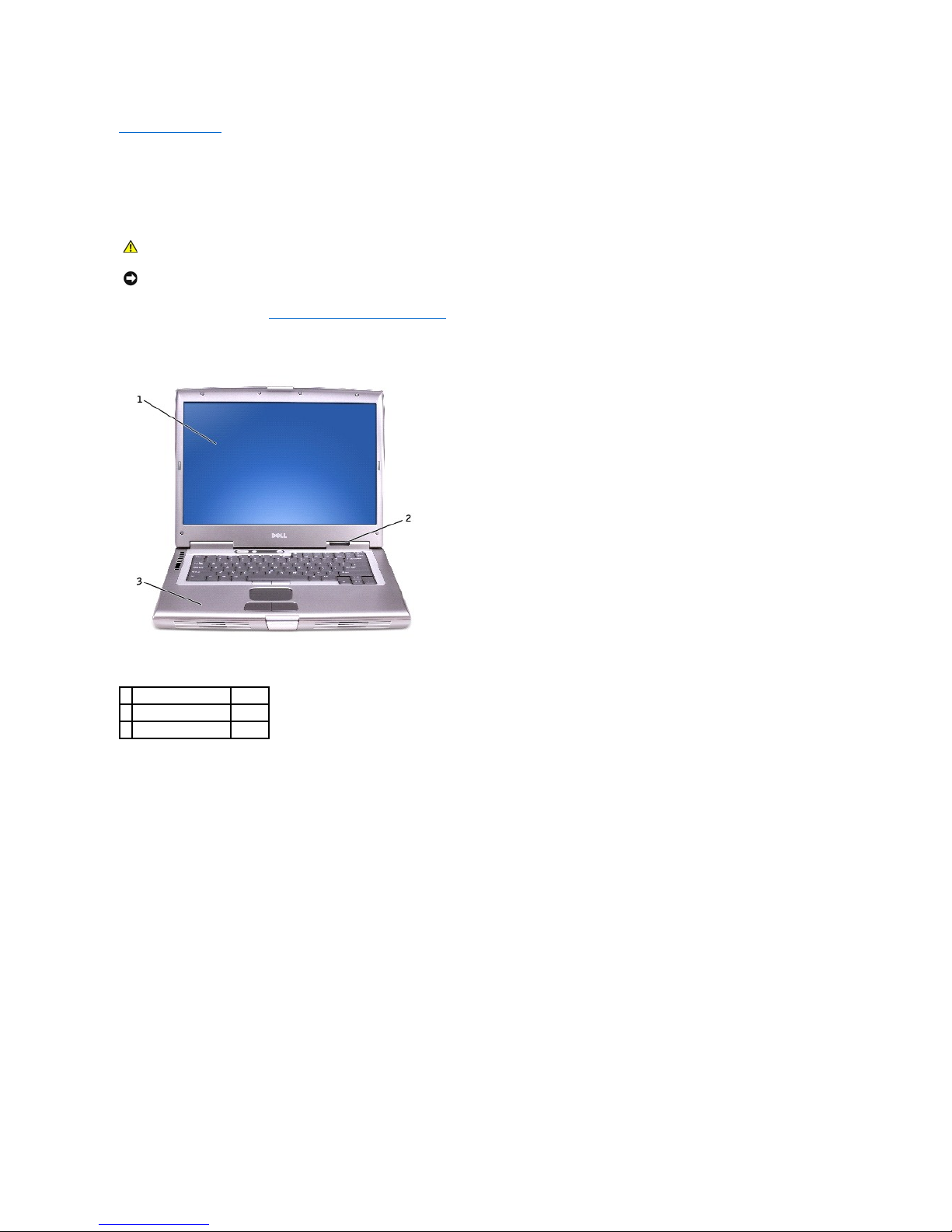

Color Insert Cover
Dell™Latitude™D800Dell™Precision™M60ServiceManual
Removing the Color Insert Cover
1. Press down along the front of the display as shown.
2. Firmly grasp the lip of the cover to detach it from the computer, and pull the cover up.
Replacing the Color Insert Cover
1. Place the tabs on the cover in the grooves above the display hinges, and lower the cover over the computer.
2. Press along the front until the cover snaps into place.
Back to Contents Page
Back to Contents Page
Microprocessor Module
Dell™Latitude™D800ServiceManual
Removing the Microprocessor Module
1. Follow the instructions in "Preparing to Work Inside the Computer."
2. Remove the keyboard.
3. Remove the fan.
4. Remove the microprocessor thermal-cooling assembly.
5. To loosen the ZIF socket, use a small, flat-blade screwdriver and rotate the ZIF-socket cam screw counterclockwise until it comes to the cam stop.
CAUTION: Before performing the following procedures, read the safety instructions in your System Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as the back panel) on the computer.
NOTICE: Do not touch the processor die. Press and hold the microprocessor down on the substrate on which the die is mounted while turning the cam
screw to prevent intermittent contact between the cam screw and microprocessor.
NOTICE: To avoid damage to the microprocessor, hold the screwdriver so that it is perpendicular to the microprocessor when turning the cam screw.
NOTICE: To ensure maximum cooling for the microprocessor, do not touch the heat transfer areas on the microprocessor thermal-cooling assembly. The
oils in your skin reduce the heat transfer capability of the thermal pads.
NOTICE: When removing the microprocessor module, pull the module straight up. Be careful not to bend the pins on the microprocessor module.
1
screwdriver
(perpendicular to
microprocessor)
2
ZIF-socket cam screw
3
ZIF socket
4
pin-1 corner
NOTE: The ZIF-socket cam screw secures the microprocessor to the system board. Take note of the arrow on the ZIF-socket cam screw, which indicates
the direction to turn the cam screw.
6. Lift out the microprocessor module.
Installing the Microprocessor Module
1. Align the pin-1 corner of the microprocessor module with the pin-1 corner of the ZIF socket, and insert the microprocessor module.
When the microprocessor module is correctly seated, all four corners are aligned at the same height. If one or more corners of the module are higher
than the others, the module is not seated correctly.
2. Tighten the ZIF socket by turning the cam screw clockwise to secure the microprocessor module to the system board.
3. Perform the steps in "Removing the Microprocessor Module" in reverse order, beginning with step4.
4. Update the BIOS using a flash BIOS update program floppy disk or CD. For instructions on how to flash the BIOS, see "Flashing the BIOS."
Back to Contents Page
NOTICE: Ensure that the cam lock is in the fully open position before seating the microprocessor module. Seating the microprocessor module properly in
the ZIF socket does not require force.
NOTICE: A microprocessor module that is not properly seated can result in an intermittent connection or permanent damage to the microprocessor and
ZIF socket.
NOTE: The pin-1 corner of the microprocessor module has a triangle that aligns with the triangle on the pin-1 corner of the ZIF socket.
NOTICE: You must position the microprocessor module correctly in the ZIF socket to avoid permanent damage to the module and the socket.
Back to Contents Page

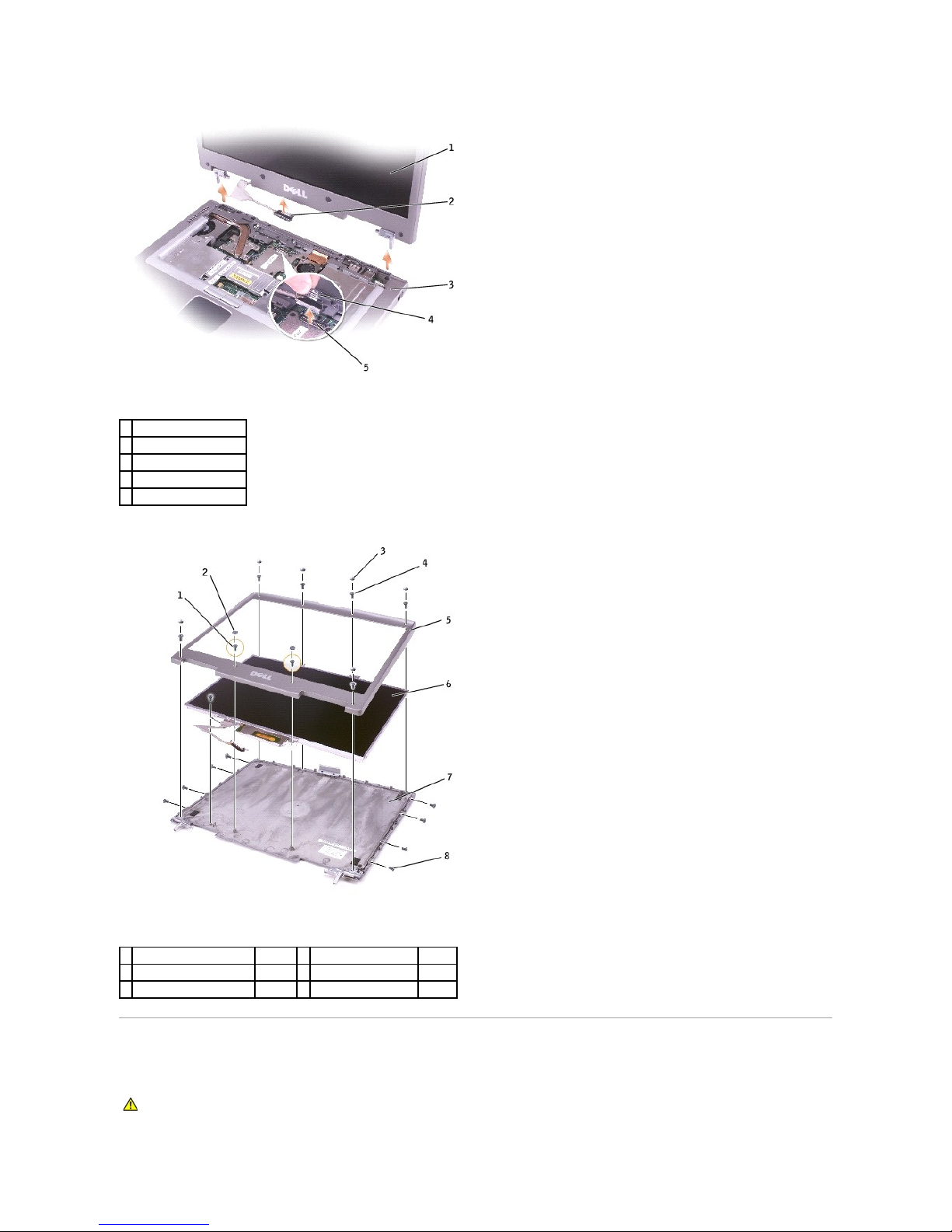

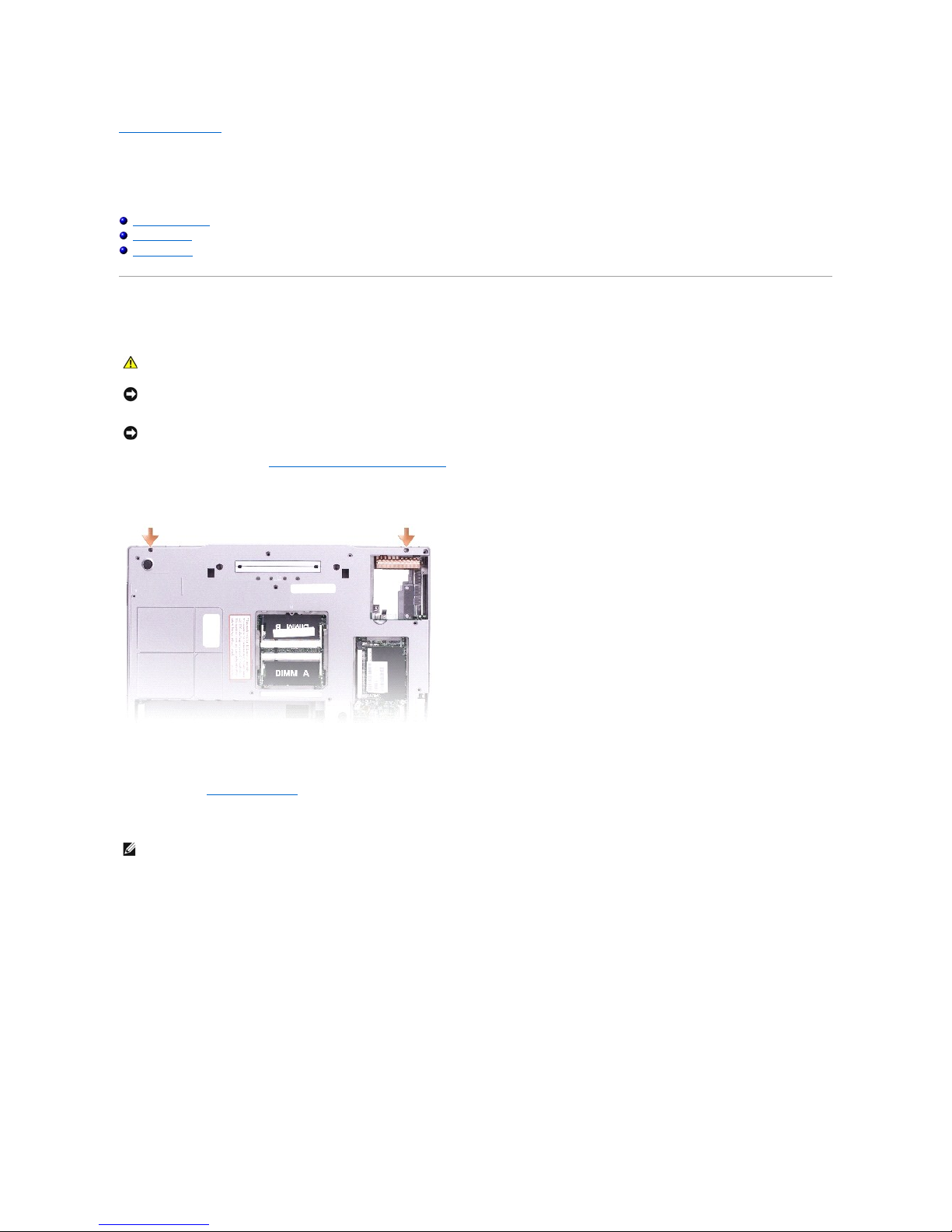

Display Assembly
Dell™Latitude™D800ServiceManual
Display Assembly
Display Bezel
Display Panel
Display Assembly
1. Follow the instructions in "Preparing to Work Inside the Computer."
2. Turn the computer over and remove the two M2.5 x 12-mm screws labeled "D" on the bottom of the computer.
3. Turn over the computer and open the display.
4. Remove the central control cover.
5. Disconnect the display cable using the pull-tab, and release the cable from the four cable-routing clips.
6. Lift the display out of the computer.
CAUTION: Before performing the following procedures, read the safety instructions in your System Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as the back panel) on the computer.
NOTICE: You must remove the display assembly before you remove the palm rest.
NOTE: When you replace the display assembly, ensure that you route the display cable under the EMI clip and cable-routing clips.
Display Bezel
1
display
2
display cable connector
3
computer base
4
pull-tab
5
connector
1
M2.5 shoulder screws (2)
4911U
4
M2 x 6-mm screws (6)
4911U
2
Screw covers (2)
4W401
5
display bezel
8T884
3
display bumpers (6)
6W052
6
M2 x 3-mm screws (9)
CAUTION: Before performing the following procedures, read the safety instructions in your System Information Guide.
1. Follow the instructions in "Preparing to Work Inside the Computer."
2. Remove the central control cover.
3. Remove the display assembly.
4. Use a plastic scribe to pry the eight display bumpers out of the screw holes located on the front of the bezel.
5. Remove the eight M2.5 x 6-mm screws located on the front of the bezel.
6. Startingatthebottomofthedisplaypanel(bytheDELL™logo),useyourfingerstoseparatethebezelfromthetopcoverbyliftingtheinsideedgeof
the bezel away from the top cover.
Display Panel
1. Follow the instructions in "Preparing to Work Inside the Computer."
2. Remove the central control cover.
3. Remove the display assembly.
4. Remove the display bezel.
5. Remove the nine M2 x 3-mm screws from the display panel.
6. Lift the display panel, and rotate the display panel out of the top cover.
7. Remove the yellow tape from the top display connector.
8. Press in the tabs on both sides of the top display-cable connector, and pull the display cable connector away from the top flex-cable connector.
9. Use the pull-tab to disconnect the bottom flex-cable connector from the inverter connector.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as the back panel) on the computer.
NOTICE: Carefully separate the bezel from the top cover to avoid damage to the bezel.
CAUTION: Before performing the following procedures, read the safety instructions in your System Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by touching an unpainted metal surface on the computer.
1
top flex-cable connector
2
top display-cable connector
3
tabs
10. Remove the yellow tape from above the bottom flex-cable connector.
Back to Contents Page
1
top flex-cable connector
2
top display-cable connector
3
pull-tab on bottom flex-cable connector
Back to Contents Page

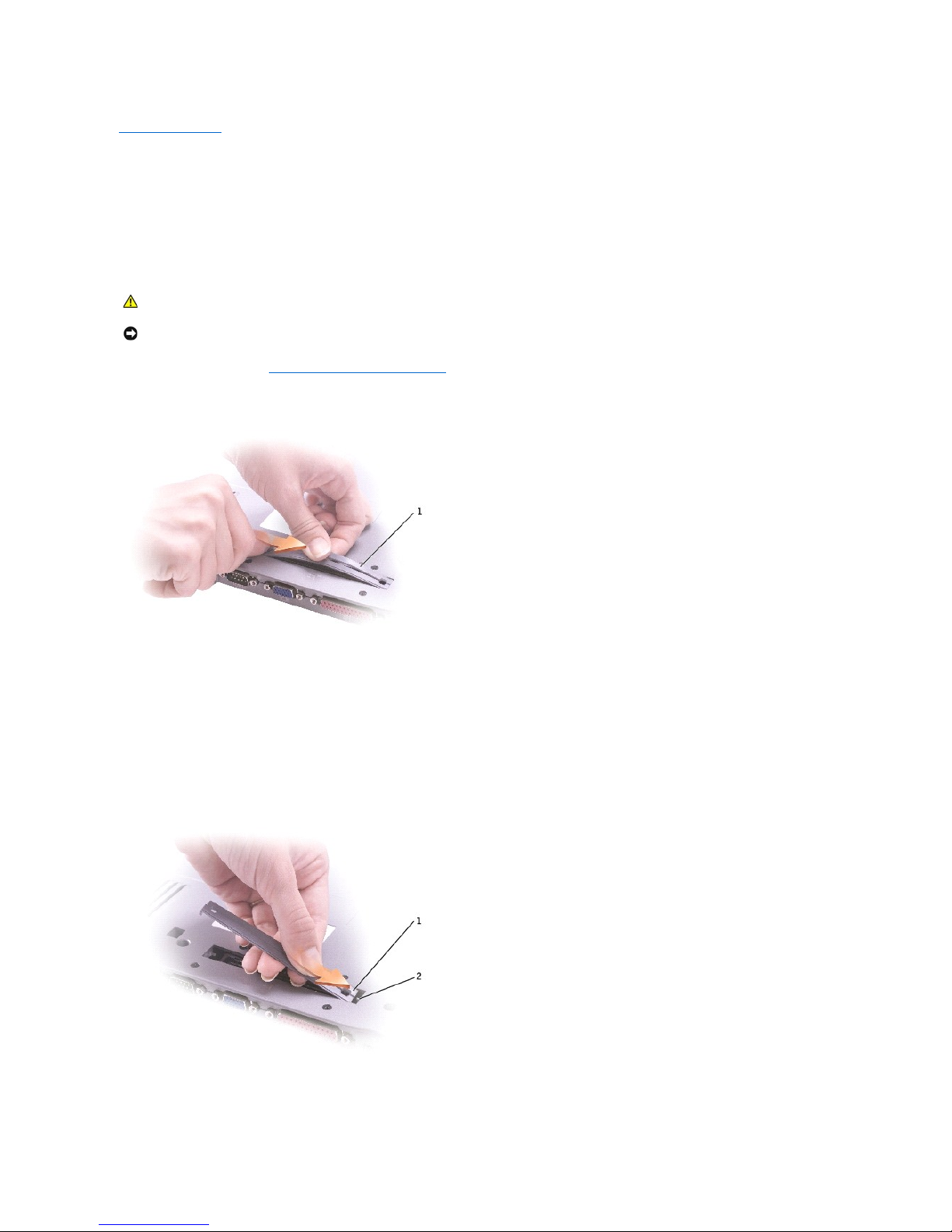

Docking Doors
Dell™Latitude™D800ServiceManual
Removing the Docking Doors
1. Follow the instructions in "Preparing to Work Inside the Computer."
2. Gently bend the docking covers and lift them away from the computer base.
Installing the Docking Doors
Slide the side of the docking covers with the spring over the longer posts.
CAUTION: Before working inside your computer, read the safety instructions in your System Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as the back panel) on the computer.
Back to Contents Page
1
docking doors with spring
7R316
2
longer post
Back to Contents Page
Fan
Dell™Latitude™D800ServiceManual
1. Follow the instructions in "Preparing to Work Inside the Computer."
2. Remove the two M2.5 x 12 screws from the fan cover.
3. Lift the fan out of the computer.
Back to Contents Page
CAUTION: Before performing the following procedures, read the safety instructions in your System Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as the back panel) on the computer.
1
M2.5 x 12-mm screws (2)
303ED
2
fan cover
6C342
Back to Contents Page
Hard Drive
Dell™Latitude™D800ServiceManual
1. Follow the instructions in "Preparing to Work Inside the Computer."
2. Turn the computer over. Use a standard #1 Phillips screwdriver to remove the M3 x 3-mm screw.
3. Slide the hard drive out of the computer.
Back to Contents Page
CAUTION: If you remove the hard drive from the computer when the drive is hot, do not touch the metal housing of the hard drive.
CAUTION: Before working inside your computer, read the safety instructions in your System Information Guide.
NOTICE: To prevent data loss, shut down your computer before removing the hard drive. Do not remove the hard drive while the computer is on, in
standby mode, or in hibernate mode.
NOTICE: Hard drives are extremely fragile; even a slight bump can damage the drive.
NOTE: Dell does not guarantee compatibility or provide support for hard drives from sources other than Dell.
1
M3 x 3-mm screw
2864D
NOTICE: When the hard drive is not in the computer, store it in protective antistatic packaging. See "Protecting Against Electrostatic Discharge" in your
System Information Guide.
Back to Contents Page
Keyboard
Dell™Latitude™D800ServiceManual
1. Follow the instructions in "Preparing to Work Inside the Computer."
2. Turn the computer right-side up and open it.
3. Remove the center control cover:
a. Open the display all the way (180 degrees) so that it lies flat against your work surface.
b. Starting on the left side of the computer, use a plastic scribe or flat-blade screw driver to pry up the center control cover.
c. Disconnect the center-control-cover flex cable from the system board connector using the pull-tab.
d. Lift the center control cover away from the computer, and lay it aside.
CAUTION: Before performing the following procedures, read the safety instructions in your System Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as the back panel) on the computer.
1
display
2
center control cover
7T982
3
computer base
Other manuals for D800 - Latitude 15.4" Notebook
5
This manual suits for next models
1
Table of contents
Other Dell Laptop manuals
Dell

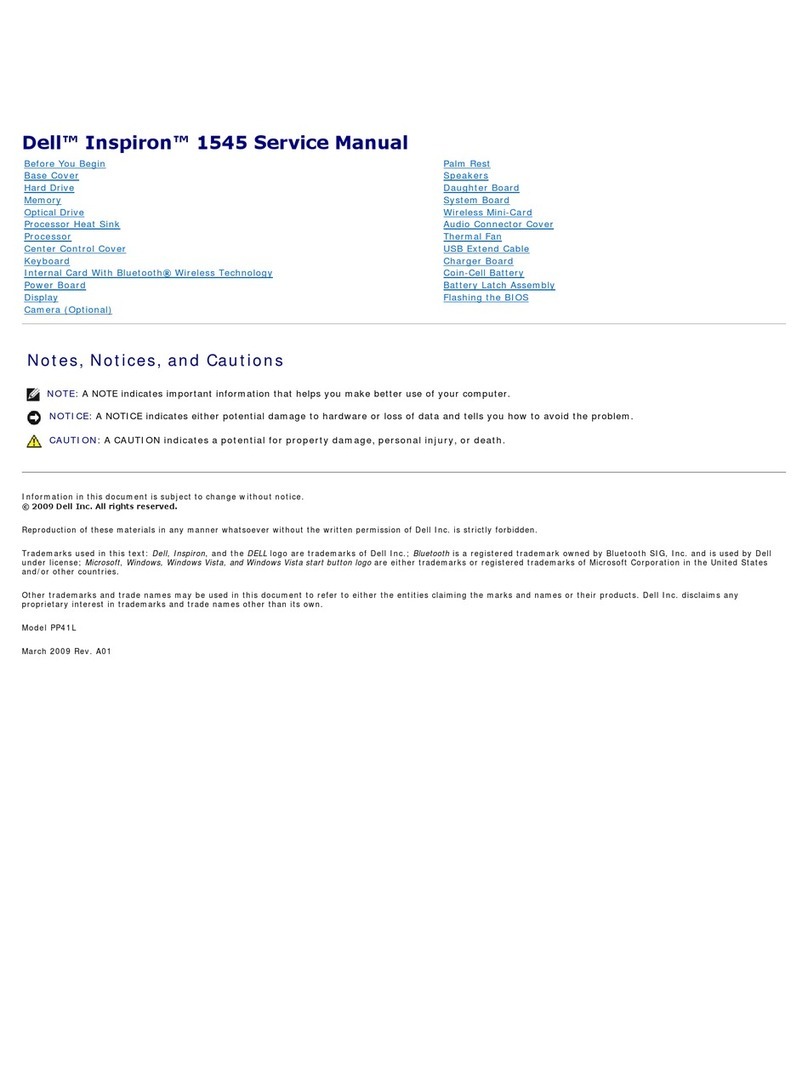

Dell Inspiron 1545 Service manual User manual
Dell
Dell Latitude D430 User manual
Dell
Dell Inspiron 3583 User manual
Dell
Dell Inspiron Mini 9 910 User manual
Dell
Dell Precision M2300 User manual
Dell
Dell Inspiron 13z User manual
Dell

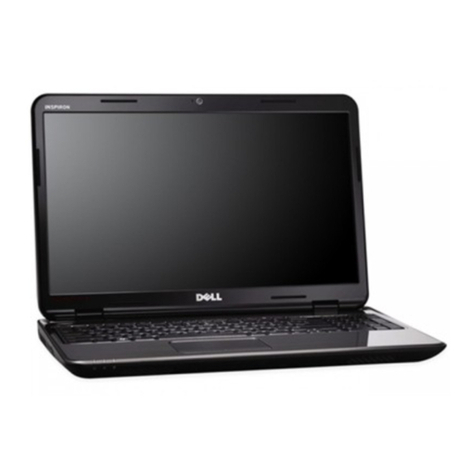

Dell Inspiron N5010 User manual
Dell
Dell M1330 - XPS - Core 2 Duo 1.83 GHz User manual
Dell
Dell Vostro 7500 User manual
Dell
Dell Precision M60 Series User guide
Dell
Dell INSPIRON P14E User manual
Dell
Dell 1700 - Personal Laser Printer B/W User manual
Dell
Dell Latitude XP065 User manual
Dell
Dell Inspiron J5MFN User manual
Dell
Dell Alienware M14x MOBILE User manual
Dell
Dell Latitude D531 User manual
Dell
Dell D630 - LATITUDE ATG NOTEBOOK User manual
Dell
Dell Latitude C540 Series User manual
Dell
Dell Precision M2300 User manual
Dell
Dell Precision 7740 User guide
