Dell™Inspiron™1010ServiceManual
Notes, Cautions, and Warnings
Information in this document is subject to change without notice.
©2009DellInc.Allrightsreserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell, the DELL logo, and Inspiron are trademarks of Dell Inc.; Bluetooth is a registered trademark owned by Bluetooth SIG, Inc. and is used by Dell
under license; Microsoft, Windows, Windows Vista, and Windows Vista start button logo are either trademarks or registered trademarks of Microsoft Corporation in the United States
and/or other countries.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any
proprietary interest in trademarks and trade names other than its own.
Model PP19S
February 2009 Rev. A00
Before You Begin
Battery
Keyboard
Palm Rest
Hard Drive
Communication Cards
Palm Rest Bracket
Battery Status Light Board
Speakers
Internal Card With Bluetooth®Wireless Technology
Power Button Board
Coin-Cell Battery
2-in-1 Memory and Processor Board
3-in-1 Media Card Reader (Daughter Board 1)
TV Tuner Card (Optional)
USB and SIM Card Board (Daughter Board 2)
AC Adapter Connector
Display
System Board
Flashing the BIOS
NOTE: A NOTE indicates important information that helps you make better use of your computer.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Back to Contents Page

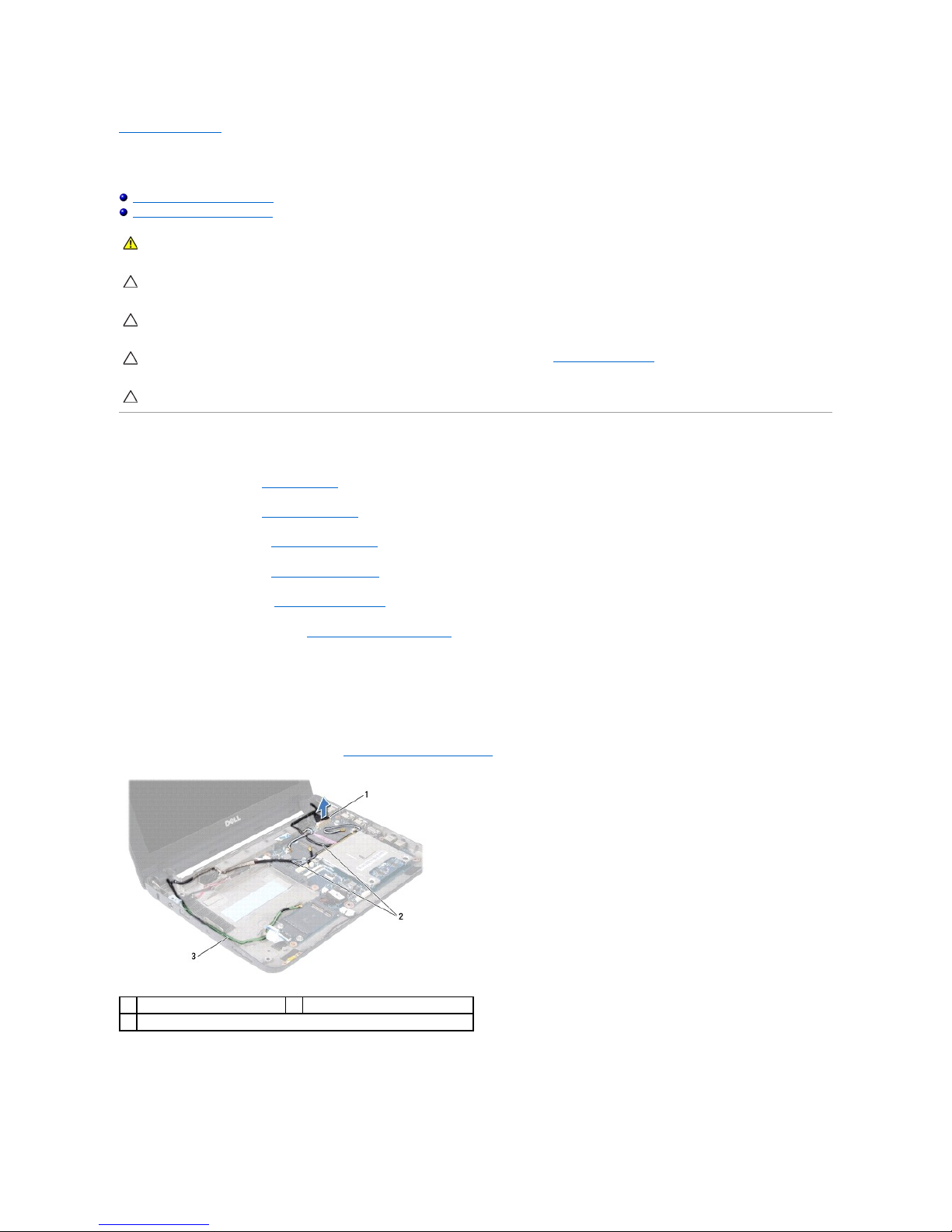

AC Adapter Connector
Dell™Inspiron™1010ServiceManual
Removing the AC Adapter Connector
Replacing the AC Adapter Connector



Removing the AC Adapter Connector

1. Follow the instructions in Before You Begin.

2. Remove the battery (see Removing the Battery).

3. Remove the keyboard (see Removing the Keyboard).

4. Remove the palm rest (see Removing the Palm Rest).

5. Remove the hard drive (see Removing the Hard Drive).

6. Remove the palm rest bracket (see Removing the Palm Rest Bracket).

7. Remove the USB and SIM card board (see Removing the USB and SIM Card Board).

8. Disconnect the AC adapter cable from the system board connector.

9. Remove the AC adapter connector bracket.

10. Slide the AC adapter cable connector out of the computer base.
Replacing the AC Adapter Connector

1. Place the AC adapter cable connector on the system board.

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface.
CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™
is not covered by your warranty.
CAUTION: To help prevent damage to the system board, remove the main battery (see Removing the Battery) before working inside the
computer.
1
AC adapter connector bracket
2
system board connector


2. Replace the AC adapter connector bracket.

3. Connect the AC adapter cable to the system board connector.

4. Replace the USB and SIM card board (see Replacing the USB and SIM Card Board).

5. Replace the palm rest bracket (see Replacing the Palm Rest Bracket).

6. Replace the hard drive (see Replacing the Hard Drive).

7. Replace the palm rest (see Replacing the Palm Rest).

8. Replace the keyboard (see Replacing the Keyboard).

9. Replace the battery (see Replacing the Battery).
Back to Contents Page


Back to Contents Page

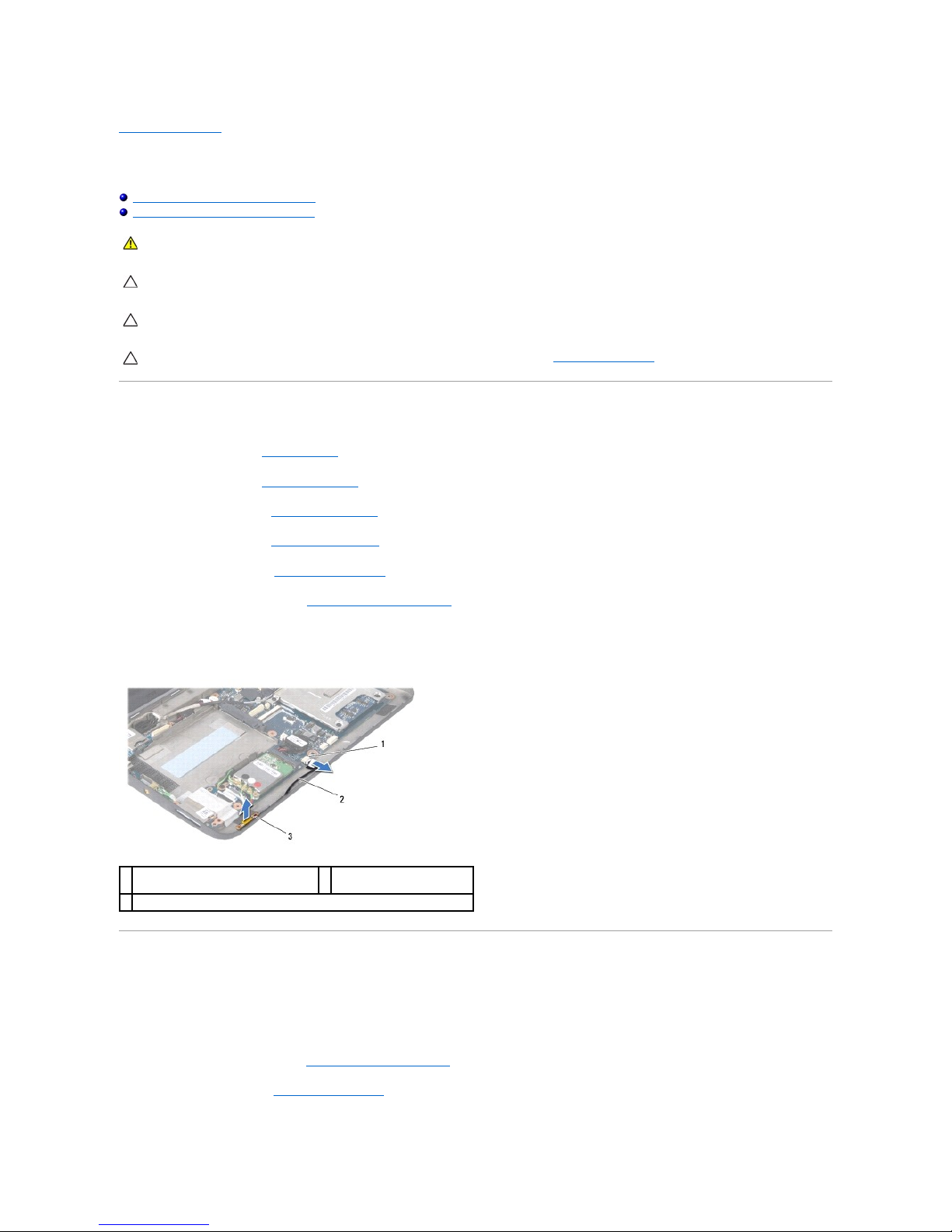

Battery Status Light Board
Dell™Inspiron™1010ServiceManual
Removing the Battery Status Light Board
Replacing the Battery Status Light Board



Removing the Battery Status Light Board

1. Follow the instructions in Before You Begin.

2. Remove the battery (see Removing the Battery).

3. Remove the keyboard (see Removing the Keyboard).

4. Remove the palm rest (see Removing the Palm Rest).

5. Remove the hard drive (see Removing the Hard Drive).

6. Remove the palm rest bracket (see Removing the Palm Rest Bracket).

7. Disconnect the battery status light board cable from the system board connector.

8. Lift the battery status light board off the computer base.
Replacing the Battery Status Light Board

1. Replace the battery status light board on the computer base.

2. Connect the battery status light board cable to the system board connector.

3. Replace the palm rest bracket (see Replacing the Palm Rest Bracket).

4. Replace the hard drive (see Replacing the Hard Drive).

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface.
CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™
is not covered by your warranty.
CAUTION: To help prevent damage to the system board, remove the main battery (see Removing the Battery) before working inside the
computer.
1
battery status light board cable
connector
2
battery status light board
cable
3
battery status light board

5. Replace the palm rest (see Replacing the Palm Rest).

6. Replace the keyboard (see Replacing the Keyboard).

7. Replace the battery (see Replacing the Battery).
Back to Contents Page


Back to Contents Page
Before You Begin
Dell™Inspiron™1010ServiceManual
Recommended Tools
Turning Off Your Computer
Before Working Inside Your Computer
This section provides procedures for removing and installing the components in your computer. Unless otherwise noted, each procedure assumes that the
following conditions exist:
lYou have performed the steps in Turning Off Your Computer and Before Working Inside Your Computer.
lYou have read the safety information that shipped with your computer.
lA component can be replaced or—if purchased separately—installed by performing the removal procedure in the reverse order.
Recommended Tools
The procedures in this document may require the following tools:
lSmall flat-blade screwdriver
lPhillips screwdriver
lPlastic scribe
lBIOS upgrade CD or the BIOS executable update program available on the Dell Support website at support.dell.com
Turning Off Your Computer


1. Save and close all open files and exit all open programs.

2. Shut down the operating system:
Microsoft®Windows®Vista:
Click Start , click the arrow , and then click Shut Down.
Ubuntu®Dell Desktop:
Click ®Quit ®Shut down.
Ubuntu Classic Desktop:
Click ®Shut down.

3. Ensure that the computer and all attached devices are turned off. If your computer and attached devices did not automatically turn off when you shut
down your operating system, press and hold the power button until the computer turns off.
Before Working Inside Your Computer
Use the following safety guidelines to help protect your computer from potential damage and to help to ensure your own personal safety.



CAUTION: To avoid losing data, save and close all open files and exit all open programs before you turn off your computer.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: Handle components and cards with care. Do not touch the components or contacts on a card. Hold a card by its edges or by its metal
mounting bracket. Hold a component such as a processor by its edges, not by its pins.
CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell is
not covered by your warranty.
CAUTION: When you disconnect a cable, pull on its connector or on its pull-tab, not on the cable itself. Some cables have connectors with locking
tabs; if you are disconnecting this type of cable, press in on the locking tabs before you disconnect the cable. As you pull connectors apart, keep



1. Ensure that the work surface is flat and clean to prevent the computer cover from being scratched.

2. Turn off your computer. See Turning Off Your Computer.


3. Disconnect all telephone or network cables from the computer.

4. Press and eject any installed cards from the Memory Card Reader.

5. Disconnect your computer and all attached devices from their electrical outlets.

6. Remove the battery (see Removing the Battery).

7. Turn the computer top-side up, open the display, and press the power button to ground the system board.
Back to Contents Page

them evenly aligned to avoid bending any connector pins. Also, before you connect a cable, ensure that both connectors are correctly oriented
and aligned.
CAUTION: To avoid damaging the computer, perform the following steps before you begin working inside the computer.
CAUTION: To disconnect a network cable, first unplug the cable from your computer and then unplug the cable from the network device.

Back to Contents Page
Flashing the BIOS
Dell™Inspiron™1010ServiceManual
Flashing the BIOS From a CD
Flashing the BIOS From the Hard Drive
Flashing the BIOS in Ubuntu
If a BIOS-update program CD is provided with the new system board, flash the BIOS from the CD. If you do not have a BIOS-update program CD, flash the
BIOS from the hard drive.
Flashing the BIOS From a CD

1. Ensure that the AC adapter is plugged in and that the main battery is installed properly.

2. Insert the BIOS-update program CD, and restart the computer.
Follow the instructions that appear on the screen. The computer continues to boot and updates the new BIOS. When the flash update is complete, the
computer will automatically restart.

3. Press <F2> during POST to enter the system setup program.

4. Press <F9> to reset the computer defaults.

5. Press <Esc>, select Save changes and reboot, and press <Enter> to save configuration changes.

6. Remove the BIOS-update program CD from the drive and restart the computer.
Flashing the BIOS From the Hard Drive

1. Ensure that the AC adapter is plugged in, the main battery is properly installed, and a network cable is attached.

2. Turn on the computer.

3. Locate the latest BIOS update file for your computer at support.dell.com.

4. Click Download Now to download the file.

5. If the Export Compliance Disclaimer window appears, click Yes, I Accept this Agreement.
The File Download window appears.

6. Click Save this program to disk and then click OK.
The Save In window appears.

7. Click the down arrow to view the Save In menu, select Desktop, and then click Save.
The file downloads to your desktop.

8. Click Close if the Download Complete window appears.
The file icon appears on your desktop and is titled the same as the downloaded BIOS update file.

9. Double-click the file icon on the desktop and follow the instructions on the screen.
Flashing the BIOS in Ubuntu
NOTE: Your computer does not have an internal optical drive. Use an external optical drive or any external storage device for the procedures that
involve discs.
NOTE: If you use a BIOS-update program CD to flash the BIOS, set up the computer to boot from a CD before inserting the CD.


1. Ensure that the AC adapter is plugged in, the main battery is properly installed, and a network cable is attached.

2. Turn on the computer.

3. Select ®Places®Documents.

4. Create a new folder and name it BIOS.

5. Locate the latest BIOS update file for your computer at support.dell.com.

6. Click Download Now to download the file.

7. If the Export Compliance Disclaimer window appears, click Yes, I Accept this Agreement.
The File Download window appears.

8. Click Save this program to disk and then click OK.
The Save In window appears.

9. Click the down arrow to view the Save In menu, select Documents®BIOS, and then click Save.

10. Click Close if the Download Complete window appears.
The file icon appears on your BIOS folder and is titled the same as the downloaded BIOS update file.

11. Open the terminal command line application and proceed as follows:
a. Type sudo -s
b. Type your password
c. Type cd Documents
d. Type cd BIOS
e. Type ./1210a00
flash start... string appears.
The computer will restart automatically once the BIOS flash is complete.
Back to Contents Page


Back to Contents Page
Internal Card With Bluetooth®Wireless Technology
Dell™Inspiron™1010ServiceManual
Removing the Bluetooth Card
Replacing the Bluetooth Card



If you ordered a card with Bluetooth wireless technology with your computer, it is already installed.
Removing the Bluetooth Card

1. Follow the instructions in Before You Begin.

2. Remove the battery (see Removing the Battery).

3. Remove the keyboard (see Removing the Keyboard).

4. Remove the palm rest (see Removing the Palm Rest).

5. Remove the hard drive (see Removing the Hard Drive).

6. Remove the palm rest bracket (see Removing the Palm Rest Bracket).

7. Turn the palm rest bracket over.

8. While pulling the edge of the bluetooth card compartment push the bluetooth card out of the compartment as show in the figure.
Replacing the Bluetooth Card

1. Place the card in the bluetooth card compartment and snap it into place

2. Replace the palm rest bracket (see Replacing the Palm Rest Bracket).
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface.
CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™
is not covered by your warranty.
CAUTION: To help prevent damage to the system board, remove the main battery (see Removing the Battery) before working inside the
computer.
1
bluetooth card compartment
2
bluetooth card


3. Replace the hard drive (see Replacing the Hard Drive).

4. Replace the palm rest (see Replacing the Palm Rest).

5. Replace the keyboard (see Replacing the Keyboard).

6. Replace the battery (see Replacing the Battery).
Back to Contents Page


Back to Contents Page
Coin-Cell Battery
Dell™Inspiron™1010ServiceManual
Removing the Coin-Cell Battery
Replacing the Coin-Cell Battery



Removing the Coin-Cell Battery

1. Follow the instructions in Before You Begin.

2. Remove the battery (see Removing the Battery).

3. Remove the keyboard (see Removing the Keyboard).

4. Remove the palm rest (see Removing the Palm Rest).

5. Remove the hard drive (see Removing the Hard Drive).

6. Remove the palm rest bracket (see Removing the Palm Rest Bracket).

7. Disconnect the coin-cell battery cable from the system board connector.

8. Lift the coin-cell battery off the computer base.
Replacing the Coin-Cell Battery

1. Replace the coin-cell battery.

2. Connect the coin-cell battery cable to the system board connector.

3. Replace the palm rest bracket (see Replacing the Palm Rest Bracket).

4. Replace the hard drive (see Replacing the Hard Drive).

5. Replace the palm rest (see Replacing the Palm Rest).

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface.
CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™
is not covered by your warranty.
CAUTION: To help prevent damage to the system board, remove the main battery (see Removing the Battery) before working inside the
computer.
1
coin-cell battery
2
coin-cell battery cable connector


6. Replace the keyboard (see Replacing the Keyboard).

7. Replace the battery (see Replacing the Battery).
Back to Contents Page


Back to Contents Page

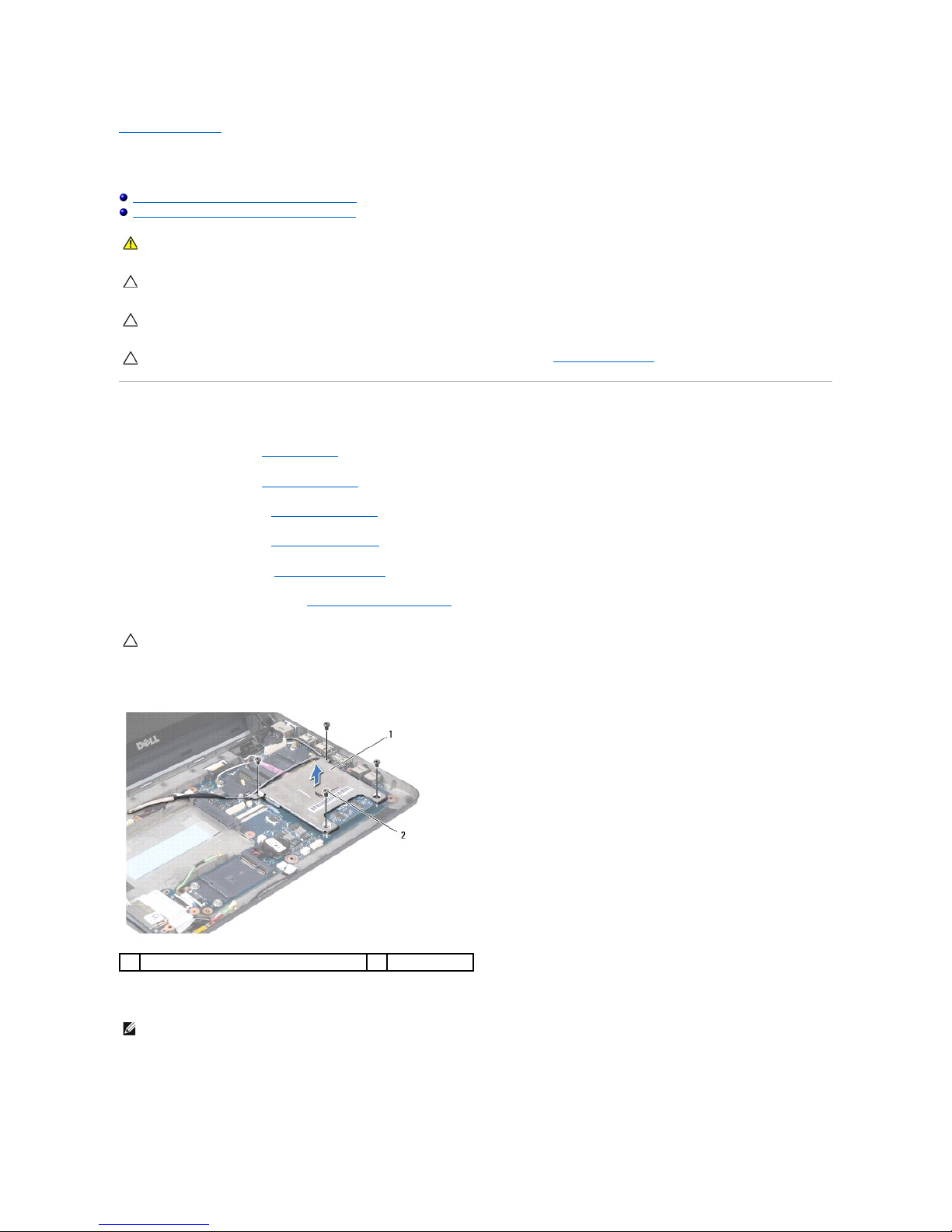

2-in-1 Memory and Processor Board
Dell™Inspiron™1010ServiceManual
Removing the 2-in-1 Memory and Processor Board
Replacing the 2-in-1 Memory and Processor Board



Removing the 2-in-1 Memory and Processor Board

1. Follow the instructions in Before You Begin.

2. Remove the battery (see Removing the Battery).

3. Remove the keyboard (see Removing the Keyboard).

4. Remove the palm rest (see Removing the Palm Rest).

5. Remove the hard drive (see Removing the Hard Drive).

6. Remove the palm rest bracket (see Removing the Palm Rest Bracket).


7. Remove the four screws that secure the processor system board cover and the 2-in-1 memory and processor board to the system board.

8. Remove the two thermal pads on the processor.

9. Use your fingertips to carefully spread apart the securing clips on either side of 2-in-1 memory and processor board connector until the board pops up.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface.
CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™
is not covered by your warranty.
CAUTION: To help prevent damage to the system board, remove the main battery (see Removing the Battery) before working inside the
computer.
CAUTION: When the 2-in-1 memory and processor board is removed from the computer, store it in protective antistatic packaging (see
"Protecting Against Electrostatic Discharge" in the safety instructions that shipped with your computer).
1
processor system board cover
2
screws (4)
NOTE: The thermal pads may stick to the bottom of the processor system board cover. Remove the thermal pads from the bottom of the processor
system board cover.


10. Lift the 2-in-1 memory and processor board out of its system board connector.
Replacing the 2-in-1 Memory and Processor Board

1. Align the notch in the 2-in-1 memory and processor edge connector with the tab in the connector slot.

2. Slide the 2-in-1 memory and processor board firmly into the slot at a 45-degree angle, and gently press the 2-in-1 memory and processor board down
until it clicks into place. If you do not hear the click, remove the board and reinstall it.

3. Replace the processor system board cover on the 2-in-1 memory and processor board.

4. Replace the four screws that secure the processor system board cover and the 2-in-1 memory and processor board to the system board.

5. Replace the palm rest bracket (see Replacing the Palm Rest Bracket).

6. Replace the hard drive (see Replacing the Hard Drive).

7. Replace the palm rest (see Replacing the Palm Rest).

8. Replace the keyboard (see Replacing the Keyboard).

9. Replace the battery (see Replacing the Battery).


10. Update the BIOS (see Flashing the BIOS).
Back to Contents Page

1
securing clips
CAUTION: Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may
result in damage to the computer.

Back to Contents Page
Display
Dell™Inspiron™1010ServiceManual
Removing the Display Assembly
Replacing the Display Assembly




Removing the Display Assembly

1. Follow the instructions in Before You Begin.

2. Remove the battery (see Removing the Battery).

3. Remove the keyboard (see Removing the Keyboard).

4. Remove the palm rest (see Removing the Palm Rest).

5. Remove the hard drive (see Removing the Hard Drive).

6. Remove the palm rest bracket (see Removing the Palm Rest Bracket).

7. Disconnect the display cable from the system board connector.

8. Disconnect the Mini-Card cables from its connectors.

9. Make note of the Mini-Card cable routing and pull the Mini-Card cables out through the system board so that they are clear of the computer base.

10. Remove the 3-in-1 Media Card Reader (see Removing the Media Card Reader).

11. Disconnect the TV tuner cables from its connectors.

12. Remove the two screws that secure the display assembly to the computer base.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface.
CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™
is not covered by your warranty.
CAUTION: To help prevent damage to the system board, remove the main battery (see Removing the Battery) before working inside the
computer.
CAUTION: To avoid damage to the display, you must not disassemble your Edge-to-Edge display assembly in the field.
1
display cable connector
2
Mini-Card connector cables
3
TV tuner connector cables


13. Lift and remove the display assembly from the computer base.
Replacing the Display Assembly

1. Place the display assembly in position and replace the two screws that secure the display assembly to the computer base.

2. Connect the display cable to the system board connector.

3. Route the Mini-Card cables and connect them to the Mini-Cards, if applicable (see Replacing the Mini-Card).

4. Connect the TV tuner card cables to its connectors.

5. Replace the 3-in-1 Media Card Reader (see Replacing the Media Card Reader).

6. Replace the palm rest bracket (see Replacing the Palm Rest Bracket).

7. Replace the hard drive (see Replacing the Hard Drive).

8. Replace the palm rest (see Replacing the Palm Rest).

9. Replace the keyboard (see Replacing the Keyboard).

10. Replace the battery (see Replacing the Battery).
Back to Contents Page

1
screws (2)
2
display assembly

Back to Contents Page

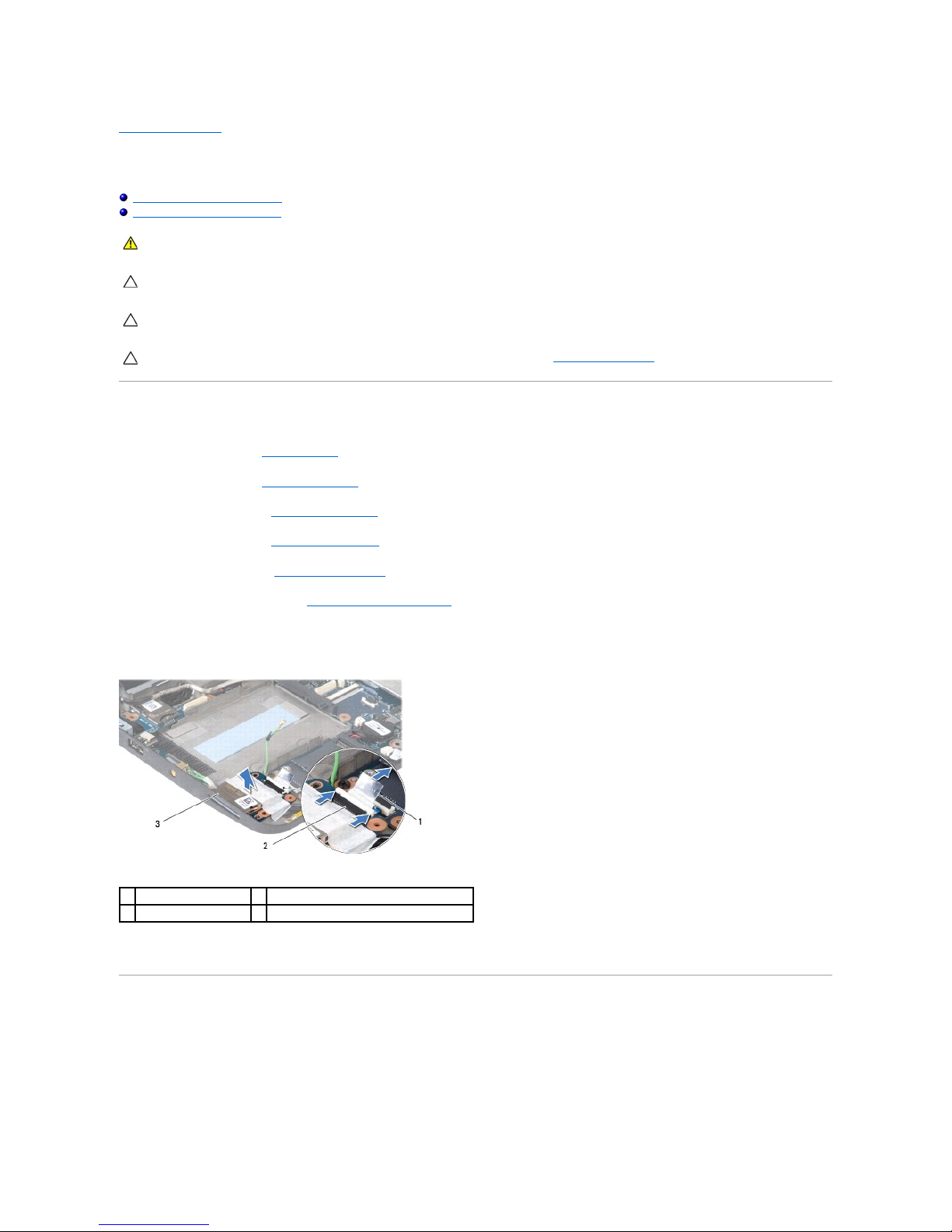

3-in-1 Media Card Reader (Daughter Board 1)
Dell™Inspiron™1010ServiceManual
Removing the Media Card Reader
Replacing the Media Card Reader



Removing the Media Card Reader

1. Follow the instructions in Before You Begin.

2. Remove the battery (see Removing the Battery).

3. Remove the keyboard (see Removing the Keyboard).

4. Remove the palm rest (see Removing the Palm Rest).

5. Remove the hard drive (see Removing the Hard Drive).

6. Remove the palm rest bracket (see Removing the Palm Rest Bracket).

7. Pull the pull-tab to disconnect the Media Card Reader cable from the connector on the Media Card Reader.

8. Peel off the mylar tape which secures the Media Card Reader to the computer base.

9. Lift the Media Card Reader out of the computer base.
Replacing the Media Card Reader

1. Place the Media Card Reader on the computer base.

2. Connect the Media Card Reader cable to the Media Card Reader connector.

3. Fix the mylar tape back on the Media Card Reader.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface.
CAUTION: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™
is not covered by your warranty.
CAUTION: To help prevent damage to the system board, remove the main battery (see Removing the Battery) before working inside the
computer.
1
pull-tab
2
Media Card Reader cable connector
3
Media Card Reader




4. Replace the palm rest bracket (see Replacing the Palm Rest Bracket).

5. Replace the hard drive (see Replacing the Hard Drive).

6. Replace the palm rest (see Replacing the Palm Rest).

7. Replace the keyboard (see Replacing the Keyboard).

8. Replace the battery (see Replacing the Battery).
Back to Contents Page


Back to Contents Page
Hard Drive
Dell™Inspiron™1010ServiceManual
Removing the Hard Drive
Replacing the Hard Drive




Removing the Hard Drive

1. Follow the procedures in Before You Begin.

2. Remove the battery (see Removing the Battery).

3. Remove the keyboard (see Removing the Keyboard).


4. Remove the screw that secures the hard drive assembly to the computer base.

5. Pull the pull-tab towards the left to detach the hard drive assembly from the interposer.

6. Lift the hard drive assembly out of the hard drive compartment.

7. Remove the four screws that secure the hard drive bracket to the hard drive and remove the bracket.
WARNING: If you remove the hard drive from the computer when the drive is hot, do not touch the metal housing of the hard drive.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION: To prevent data loss, turn off your computer (see Turning Off Your Computer) before removing the hard drive. Do not remove the hard
drive while the computer is On or in Sleep state.
CAUTION: Hard drives are extremely fragile. Exercise care when handling the hard drive.
CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell is
not covered by your warranty.
CAUTION: To help prevent damage to the system board, remove the main battery (see Removing the Battery) before working inside the
computer.
NOTE: Dell does not guarantee compatibility or provide support for hard drives from sources other than Dell.
NOTE: If you are installing a hard drive from a source other than Dell, you need to install an operating system, drivers, and utilities on the new hard
drive (see the Dell Technology Guide).
CAUTION: When the hard drive is not in the computer, store it in protective antistatic packaging (see "Protecting Against Electrostatic Discharge"
in the safety instructions that shipped with your computer).
1
hard drive assembly
2
pull-tab
3
screw
