Latitude 7320/Latitude 7320 2-in-1
Setup and Specifications
Regulatory Model: P133G/P134G
Regulatory Type: P133G001/P134G001
December 2022
Rev. A04

Notes, cautions, and warnings
NOTE: A NOTE indicates important information that helps you make better use of your product.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid
the problem.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
© 20212022 Dell Inc. or its subsidiaries. All rights reserved. Dell Technologies, Dell, and other trademarks are trademarks of Dell Inc. or its
subsidiaries. Other trademarks may be trademarks of their respective owners.

Chapter 1: Set up your Latitude 7320............................................................................................ 4
Chapter 2: Views of Latitude 7320.................................................................................................6
Right....................................................................................................................................................................................... 6
Left..........................................................................................................................................................................................6
Top.......................................................................................................................................................................................... 7
Display.................................................................................................................................................................................... 8
Bottom................................................................................................................................................................................... 9
Modes.....................................................................................................................................................................................9
Battery Charge and Status LED ....................................................................................................................................12
Chapter 3: Specifications of Latitude 7320.................................................................................. 13
Dimensions and weight..................................................................................................................................................... 13
Processor............................................................................................................................................................................. 13
Chipset..................................................................................................................................................................................14
Operating system............................................................................................................................................................... 14
Memory.................................................................................................................................................................................14
Internal slots........................................................................................................................................................................15
External ports..................................................................................................................................................................... 15
Wireless module..................................................................................................................................................................16
WWAN module....................................................................................................................................................................16
Audio......................................................................................................................................................................................17
Storage................................................................................................................................................................................. 17
Media-card reader............................................................................................................................................................. 18
Keyboard.............................................................................................................................................................................. 18
Camera................................................................................................................................................................................. 18
Touchpad............................................................................................................................................................................. 19
Power adapter................................................................................................................................................................... 20
Battery................................................................................................................................................................................. 20
Display...................................................................................................................................................................................21
Fingerprint reader..............................................................................................................................................................22
GPU—Integrated.............................................................................................................................................................. 23
Operating and storage environment.............................................................................................................................23
Chapter 4: Keyboard shortcuts.................................................................................................... 24
Chapter 5: Getting help and contacting Dell................................................................................ 26
Contents
Contents 3

Set up your Latitude 7320
The images in this document may differ from your computer depending on the configuration you ordered.

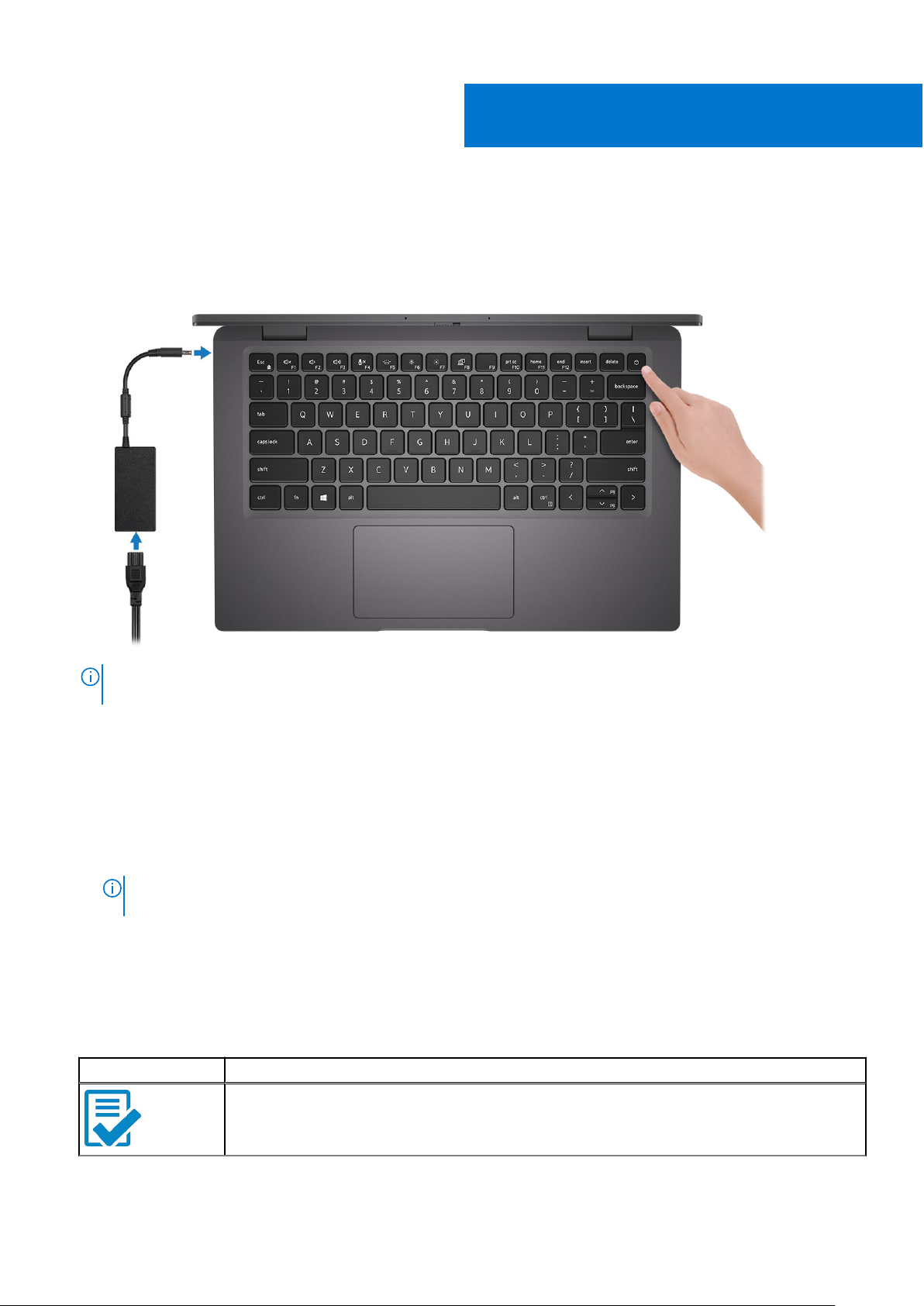

1. Connect the power adapter and press the power button.
NOTE: The battery may go into power-saving mode during shipment to conserve charge on the battery. Ensure that the
power adapter is connected to your computer when it is turned on for the first time.
2. Finish operating system setup.
For Ubuntu:
Follow the on-screen instructions to complete the setup. For more information about installing and configuring Ubuntu, see
the knowledge base articles SLN151664 and SLN151748 at www.dell.com/support.
For Windows:
Follow the on-screen instructions to complete the setup. When setting up, Dell recommends that you:
●Connect to a network for Windows updates.
NOTE: If connecting to a secured wireless network, enter the password for the wireless network access when
prompted.
●If connected to the internet, sign-in with or create a Microsoft account. If not connected to the internet, create an
offline account.
●On the Support and Protection screen, enter your contact details.
3. Locate and use Dell apps from the Windows Start menu—Recommended
Table 1. Locate Dell apps
Resources Description
Dell Product Registration
Register your computer with Dell.
1
4 Set up your Latitude 7320

Table 1. Locate Dell apps (continued)
Resources Description
Dell Help & Support
Access help and support for your computer.
SupportAssist
SupportAssist is the smart technology that keeps your computer running at its best by optimizing
settings, detecting issues, removing viruses and notifies when you need to make system
updates. SupportAssist proactively checks the health of your system's hardware and software.
When an issue is detected, the necessary system state information is sent to Dell to begin
troubleshooting. SupportAssist is preinstalled on most of the Dell devices running Windows
operating system. For more information, see SupportAssist for Home PCs User's Guide on
www.dell.com/serviceabilitytools.
NOTE: In SupportAssist, click the warranty expiry date to renew or upgrade your warranty.
Dell Update
Updates your computer with critical fixes and latest device drivers as they become available.
For more information about using Dell Update, see the knowledge base article 000149088 at
www.dell.com/support.
Dell Digital Delivery
Download software applications, which are purchased but not pre-installed on your computer. For
more information about using Dell Digital Delivery, see the knowledge base article 000129837 at
www.dell.com/support.
Set up your Latitude 7320 5

Views of Latitude 7320

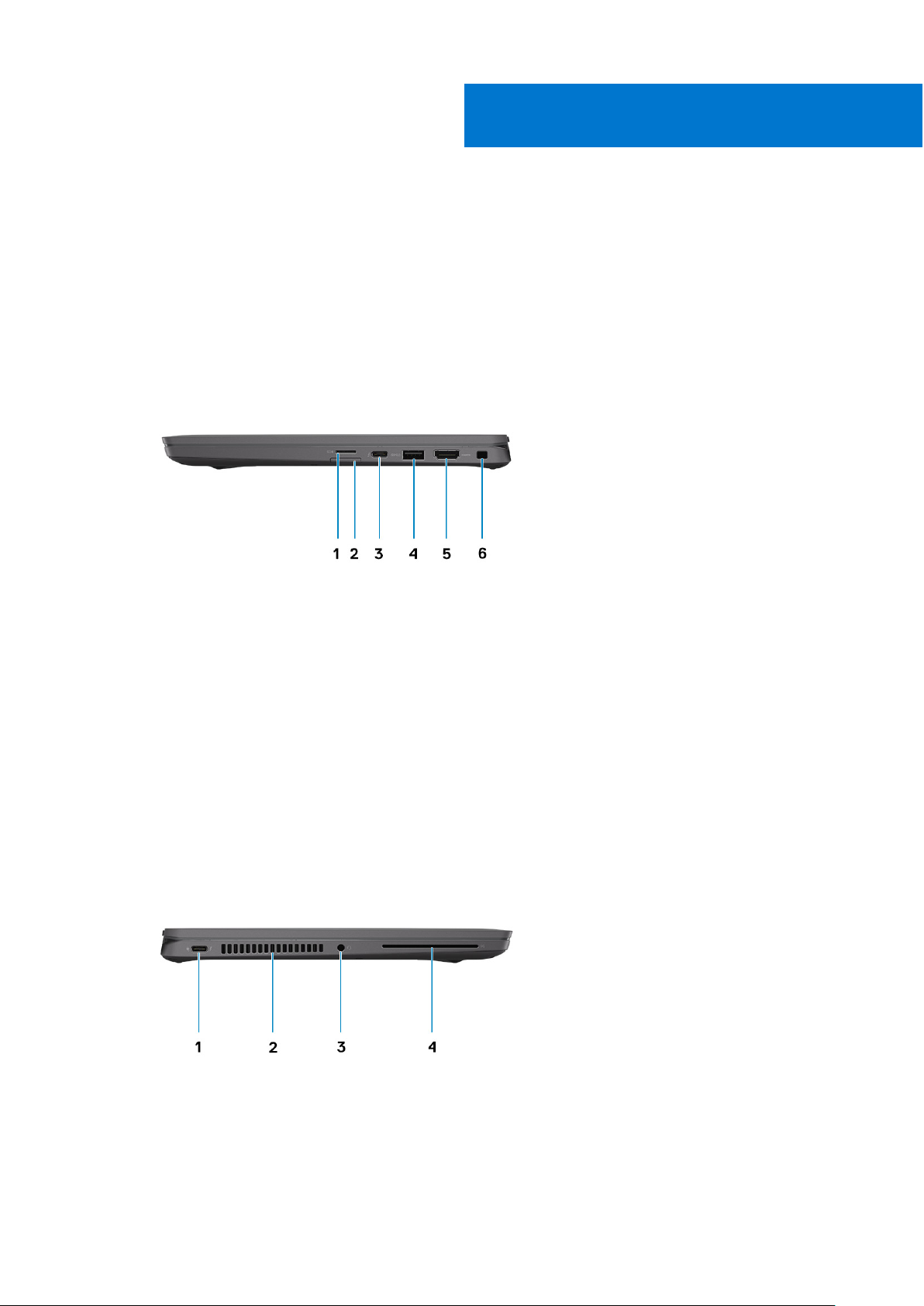

Right
1. microSD-card slot 2. micro-SIM card slot (optional with WWAN configuration
only)
3. Thunderbolt 4 port with DisplayPort Alt Mode/USB4/Power
Delivery
4. USB 3.2 Gen 1 port with PowerShare
5. HDMI 2.0 port 6. Wedge-shaped lock slot
Left
1. Thunderbolt 4 port with DisplayPort Alt Mode/USB4/Power
Delivery
2. Air vents
3. Headset (headphone and microphone combo) port 4. Smart card reader slot (optional)
2
6 Views of Latitude 7320

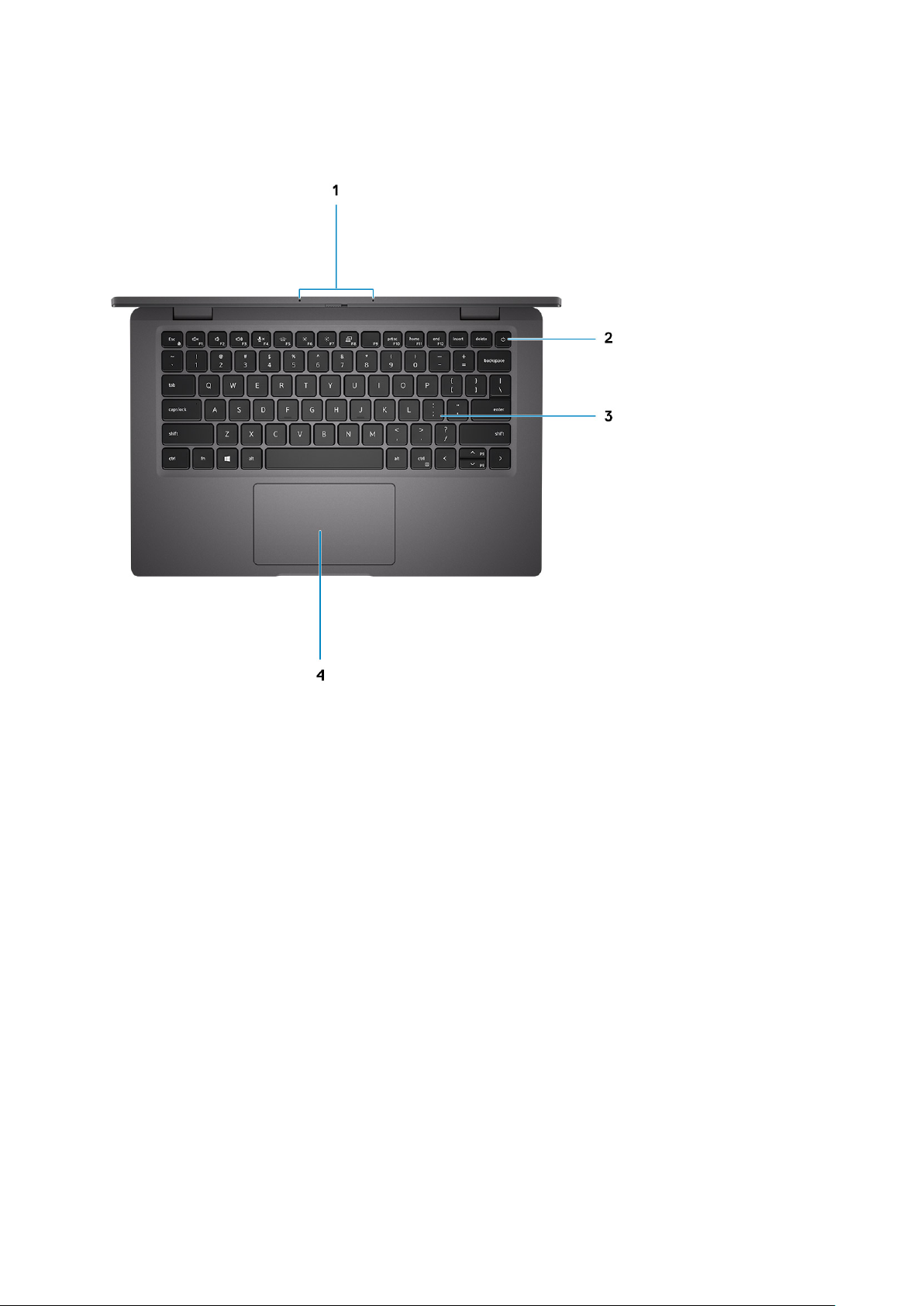

Top
1. Microphone array 2. Power button (with optional Fingerprint reader)
3. Keyboard 4. Touchpad
Views of Latitude 7320 7

Display
1. Proximity sensor (optional) 2. IR emitter (optional)
3. RGB or IR Camera (optional) 4. Camera shutter
5. Camera status LED 6. IR emitter (optional)
7. Ambient Light Sensor (ALS) (optional) 8. LCD panel
9. LED indicator
8 Views of Latitude 7320

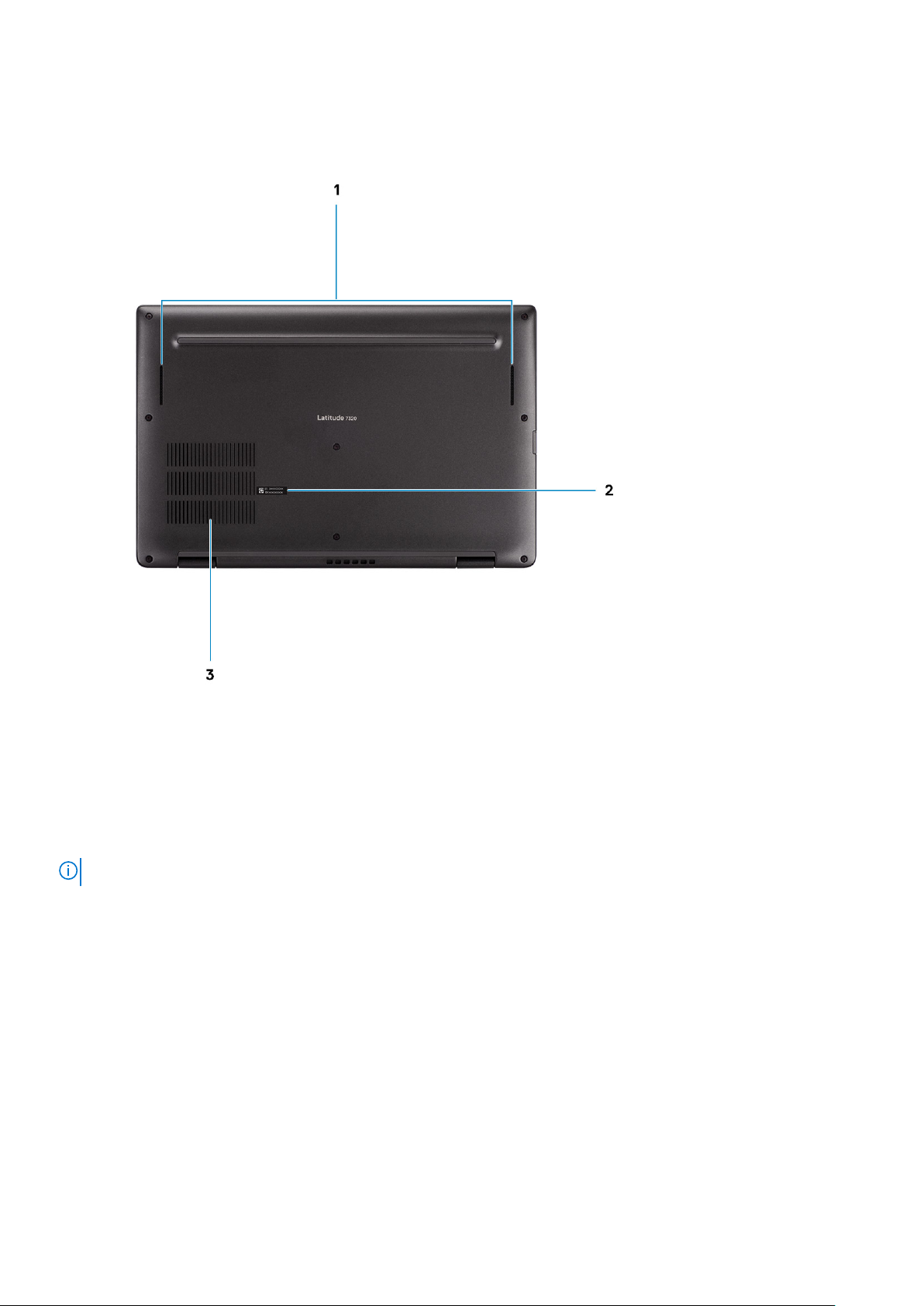

Bottom
1. Speakers
2. Service tag label
3. Air vents

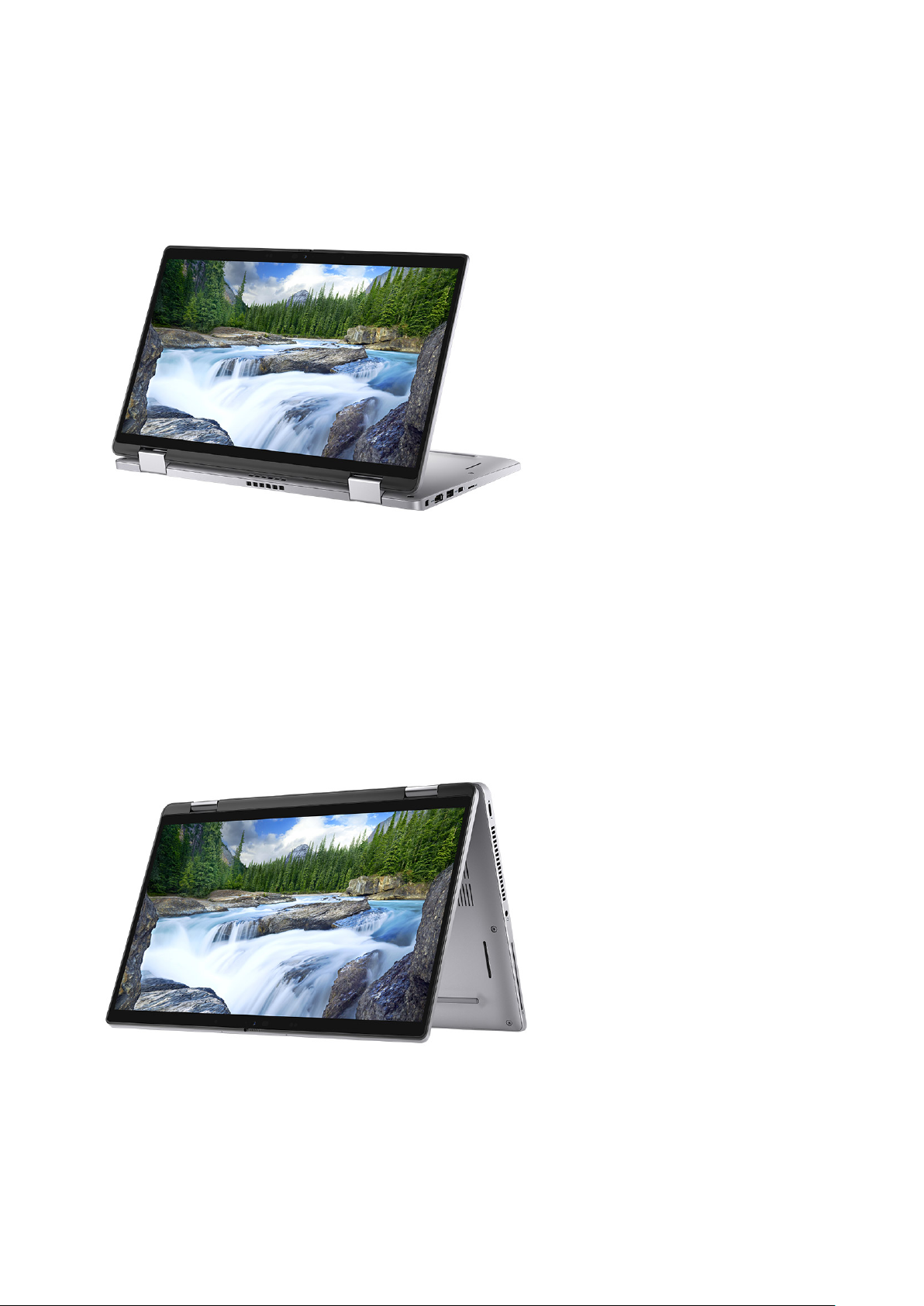

Modes
NOTE: The modes are applicable only to Latitude 7320 2-in-1 (an upsell option).
Views of Latitude 7320 9

Laptop mode
Tablet mode
10 Views of Latitude 7320

Stand mode
Tent mode
Views of Latitude 7320 11

Battery Charge and Status LED
Table 2. Battery Charge and Status LED Indicator
Power Source LED Behavior System Power State Battery Charge Level
AC Adapter Off S0 - S5 Fully Charged
AC Adapter Solid White S0 - S5 < Fully Charged
Battery Off S0 - S5 11-100%
Battery Solid Amber (590+/-3 nm) S0 - S5 < 10%
●S0 (ON) - System is turned on.
●S4 (Hibernate) - The system consumes the least power compared to all other sleep states. The system is almost at an OFF
state, expect for a trickle power. The context data is written to hard drive.
●S5 (OFF) - The system is in a shutdown state.
12 Views of Latitude 7320

Specifications of Latitude 7320
Dimensions and weight
The following table lists the height, width, depth, and weight of your Latitude 7320.
Table 3. Dimensions and weight
Description Values
Height:
Front height ●16.96 mm (0.67 in.) - Carbon Fiber
●16.71 mm (0.65 in.) - Aluminium
●16.40 mm (0.65 in.) - 2-in-1
Rear height ●18.36 mm (0.722 in.) - Carbon Fiber
●18.00 mm (0.708 in.) - Aluminium
●18.60 mm (0.732 in.) - 2-in-1
Width ●306.50 mm (12.07 in.) - Carbon Fiber
●306.50 mm (12.07 in.) - Aluminium
●306.50 mm (12.07 in.) - 2-in-1
Depth ●199.5 mm (7.85 in.) - Carbon Fiber
●199.5 mm (7.85 in.) - Aluminium
●199.5 mm (7.85 in.) - 2-in-1
Weight (maximum) ●1.12 kg (2.48 lb) - Carbon Fiber
●1.29 kg (2.84 lb) - Aluminium
●1.39 kg (3.06 lb) - 2-in-1
NOTE: The weight of your computer depends on the
configuration ordered and manufacturing variability.
Processor
The following table lists the details of the processors supported by your Latitude 7320.
Table 4. Processor
Description Option one Option two Option three Option four
Processor type 11th Generation Intel
Core i5-1135G7 Non-
vPro
11th Generation Intel
Core i5-1145G7 vPro
11th Generation Intel
Core i7-1165G7 Non-
vPro
11th Generation Intel Core
i7-1185G7 vPro
Processor wattage ●Maximum TDP: 28
W
●cTDP: 13 W - 15 W
●Maximum TDP: 28
W
●cTDP: 13 W - 15 W
●Maximum TDP: 28
W
●cTDP: 13 W - 15 W
●Maximum TDP: 28 W
●cTDP: 13 W - 15 W
Processor core count 4 4 4 4
3
Specifications of Latitude 7320 13

Table 4. Processor (continued)
Description Option one Option two Option three Option four
Processor thread
count
8 8 8 8
Processor speed 2.40 GHz to 4.20 GHz 2.60 GHz to 4.40 GHz 2.80 GHz to 4.70 GHz 3.00 GHz to 4.80 GHz
Processor cache 8 MB 8 MB 12 MB 12 MB
Integrated graphics Intel Iris XeGraphics Intel Iris XeGraphics Intel Iris XeGraphics Intel Iris XeGraphics
Chipset
The following table lists the details of the chipset supported by your Latitude 7320.
Table 5. Chipset
Description Values
Chipset Tiger Lake U PCH
Processor 11th Generation Intel Core i5/i7
DRAM bus width 64-bit
Flash EPROM 32 MB
PCIe bus Up to Gen4
Operating system
Your Latitude 7320 supports the following operating systems:
●Windows 11 Home, 64-bit
●Windows 11 Pro, 64-bit
●Windows 11 Pro National Academic, 64-bit
●Windows 10 Home, 64-bit
●Windows 10 Pro, 64-bit
●Ubuntu 20.04 LTS, 64-bit
Memory
The following table lists the memory specifications of your Latitude 7320.
Table 6. Memory specifications
Description Values
Memory slots Integrated on the system board.
NOTE: You cannot upgrade the memory on your Latitude
7320
Memory type Dual-channel LPDDR4x
Memory speed ●32 GB: 4267 MHz
●8 GB/16 GB: 3733 MHz
14 Specifications of Latitude 7320

Table 6. Memory specifications (continued)
Description Values
Maximum memory configuration 32 GB
Minimum memory configuration 8 GB
Memory size per slot 8 GB, 16 GB, 32 GB
Memory configurations supported ●8 GB
●16 GB
●32 GB
Internal slots
The following table lists the internal slots of your Latitude 7320.
Table 7. Internal slots
Description Values
M.2 One M.2 2230/2280 Keyed M slot for solid-state drive
NOTE: To learn more about the features of different
types of M.2 cards, search in the Knowledge Base
Resource at www.dell.com/support.
External ports
The following table lists the external ports on your Latitude 7320.
Table 8. External ports
Description Values
USB ports ●One USB 3.2 Gen 1 port with PowerShare
●Two Thunderbolt 4 ports with DisplayPort Alt Mode/
USB4/Power Delivery
Audio port Universal audio jack
Video port/ports ●One HDMI 2.0 port
●Two Thunderbolt 4 ports with DisplayPort Alt Mode/
USB4/Power Delivery
Media-card reader One microSD-card slot
Power-adapter port USB Type-C port with Power Delivery
Security-cable slot One wedge-shaped lock slot
Specifications of Latitude 7320 15

Wireless module
The following table lists the Wireless Local Area Network (WLAN) module supported on your Latitude 7320.
Table 9. Wireless module specifications
Description Values
Model number Intel AX201
Transfer rate ●2.4 GHz 40M: Up to 574 Mbps
●5 GHz 80M: Up to 1.2 Gbps
●5 GHz 160M: Up to 2.4 Gbps
Frequency bands supported 2.4 GHz/5 GHz
Wireless standards ●WiFi 802.11a/b/g
●Wi-Fi 4 (WiFi 802.11n)
●Wi-Fi 5 (WiFi 802.11ac)
●Wi-Fi 6 (802.11ax)
Encryption ●64-bit and 128-bit WEP
●TKIP
●128-bit AES-CCMP
●256-bit AES-GCMP
Bluetooth Bluetooth 5.1
WWAN module
The following table lists the Wireless Wide Area Network (WWAN) module supported on your Latitude 7320.
WWAN module specifications
Description Option one Option two
Model number ●Qualcomm Snapdragon X20 Gigabit
LTE CAT 16 (DW5821e; e-SIM
enabled), WW excluding China,
Turkey, US
●Qualcomm Snapdragon X20 Gigabit
LTE CAT 16 (DW5821e) WW
●Qualcomm Snapdragon X20 Gigabit
LTE CAT 16 (DW5821e) for AT&T,
Verizon, and Sprint, US only
●Qualcomm Snapdragon X20 LTE-A
CAT 9 (DW5829e; e-SIM enabled)
WW excluding China, Turkey, US
●Qualcomm Snapdragon X20 LTE-A
CAT 9 (DW5829e) WW
●Qualcomm Snapdragon X20 LTE-
A CAT 9 (DW5829e) for AT&T,
Verizon, and Sprint, US only
Transfer rate up to 1 Gbps DL/150 Mbps UL (Cat 16) up to 450 Mbps DL/75 Mbps UL (Cat 9)
Frequency bands supported ●1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19,
20, 25, 26, 28, 29, 30, 32, 38, 39, 40,
41, 42, 43, 46, 66
●HSPA+ (1, 2, 4, 5, 6, 8, 9, 19)
●1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19,
20, 25, 26, 28, 29, 30, 32, 38, 39, 40,
41, 66
●HSPA+ (1, 2, 4, 5, 6, 8)
Network standards ●LTE FDD/TDD
●WCDMA/HSPA+
●GPS/GLONASS/Beidou/Galileo
●LTE FDD/TDD
●WCDMA/HSPA+
●GPS/GLONASS/Beidou/Galileo
16 Specifications of Latitude 7320

Description Option one Option two
Antenna connector ●WWAN Main Antenna X 1
●WWAN Diversity Antenna X 1
●4 x 4 MIMO Antenna x 2
●WWAN Main Antenna X 1
●WWAN Diversity Antenna X 1
Temperature ●Normal operating temperature:
-30°C to + 70°C
●Extended Operating temperature:
-40°C to +85°C
●Normal operating temperature:
-30°C to + 70°C
●Extended Operating temperature:
-40°C to +85°C
Audio
The following table lists the audio specifications of your Latitude 7320.
Table 10. Audio specifications
Description Values
Audio controller Realtek ALC3281-CG
Stereo conversion Supported
Internal audio interface High-definition audio
External audio interface Universal audio jack
Number of speakers Two
Internal-speaker amplifier Supported (audio codec integrated)
External volume controls Keyboard shortcut controls
Speaker output:
Average speaker output 2 W
Peak speaker output 2.5 W
Subwoofer output Not supported
Microphone Dual-array microphones
Storage
Your computer supports the following configuration: The primary drive of your computer varies with the storage configuration.
●M.2 2230, PCIe x4 NVMe, Class 35 solid-state drive
●M.2 2280, PCIe x4 NVMe, Class 40 solid-state drive
●M.2 2280, PCIe x4 NVMe, Class 40 Self encrypting solid-state drive
Table 11. Storage specifications
Form factor Interface type Capacity
M.2 2230, Class 35 solid-state drive Gen 3 PCIe x4 NVMe Up to 512 GB
M.2 2280, Class 40 solid-state drive Gen 3 PCIe x4 NVMe Up to 1 TB
M.2 2280, Class 40 Self encrypting solid-state drive Gen 3 PCIe x4 NVMe Up to 512 GB
Specifications of Latitude 7320 17

Media-card reader
The following table lists the media cards supported by your Latitude 7320.
Table 12. Media-card reader specifications
Description Values
Media-card type One micro-SD card slot
Media-cards supported ●Micro Secure Digital (mSD)
●Micro Secure Digital High Capacity (mSDHC)
●Micro Secure Digital Extended Capacity (mSDXC)
NOTE: The maximum capacity supported by the media-card reader varies depending on the standard of the media card
installed in your computer.
Keyboard
The following table lists the keyboard specifications of your Latitude 7320.
Table 13. Keyboard specifications
Description Values
Keyboard type ●Standard non-backlit keyboard
●Standard backlit keyboard
Keyboard layout QWERTY/KANJI
Number of keys ●United States and Canada: 79 keys
●United Kingdom: 80 keys
●Japan: 83 keys
Keyboard size X=18.05 mm key pitch
Y=18.05 mm key pitch
Keyboard shortcuts Some keys on your keyboard have two symbols on them.
These keys can be used to type alternate characters or to
perform secondary functions. To type the alternate character,
press Shift and the desired key. To perform secondary
functions, press Fn and the desired key.
NOTE: You can define the primary behavior of the
function keys (F1–F12) changing Function Key Behavior
in BIOS setup program.
Camera
The following table lists the camera specifications of your Latitude 7320.
Table 14. Camera specifications
Description Option 1 Option 2 Option 3 Option 4 Option 5
Number of cameras One One One One One
18 Specifications of Latitude 7320

Table 14. Camera specifications (continued)
Description Option 1 Option 2 Option 3 Option 4 Option 5
Type Integrated 2.7 mm
HD RGB Webcam
Integrated 2.7
mm HD RGB/IR
Webcam with
Proximity Sensor
and optional ALS
Integrated 6 mm
HD RGB Webcam
Integrated 6
mm HD RGB/IR
Webcam with
Proximity Sensor
and optional ALS
Integrated 6 mm
FHD RGB/IR
Webcam with
Proximity Sensor
and optional ALS
Location Front Front Front Front Front
Sensor type CMOS sensor
technology
CMOS sensor
technology
CMOS sensor
technology
CMOS sensor
technology
CMOS sensor
technology
Resolution (RGB):
Still Image 0.92 0.92 0.92 0.92 2
Video 1280 x 720 at 30
fps
1280 x 720 at 30
fps
1280 x 720 at 30
fps
1280 x 720 at 30
fps
1920 x 1080 at 30
fps
Diagonal viewing
angle
74.9° 75.8° 78.6° 87° 87.6°
Resolution (IR):
Still Image NA 0.23 NA 0.23 0.23
Video NA 640 x 360 at 15 fps NA 640 x 360 at 15 fps 640 x 360 at 15 fps
Diagonal viewing
angle
NA 75.8° NA 87° 87.6°
Touchpad
The following table lists the touchpad specifications of your Latitude 7320.
Table 15. Touchpad specifications
Description Option 1 Option 2
Touchpad resolution:
Horizontal 3054 1223
Vertical 1790 683
Touchpad dimensions:
Horizontal 105 mm (4.13 in.) 105 mm (4.13 in.)
Vertical 60 mm (2.36 in.) 60 mm (2.36 in.)
Touchpad gestures For more information about touchpad
gestures available on Windows 10, see the
Microsoft knowledge base article 4027871 at
support.microsoft.com.
For more information about
touchpad gestures available on
Windows 10, see the Microsoft
knowledge base article 4027871
at support.microsoft.com.
Specifications of Latitude 7320 19

Power adapter
The following table lists the power adapter specifications of your Latitude 7320.
Table 16. Power adapter specifications
Description Option one Option two
Type 65 W AC adapter, USB-C 90 W AC adapter, USB-C
Input voltage 100 VAC–240 VAC 100 VAC–240 VAC
Input frequency 50 Hz–60 Hz 50 Hz–60 Hz
Input current (maximum) 1.70 A 1.50 A
Output current (continuous) ●5 V/3 A (Continuous)
●9 V/3 A (Continuous)
●15 V/3 A (Continuous)
●20 V/3.25 A (Continuous)
●5 V/3 A (Continuous)
●9 V/3 A (Continuous)
●15 V/3 A (Continuous)
●20 V/4.5 A (Continuous)
Rated output voltage ●5 VDC
●9 VDC
●15 VDC
●20 VDC
●5 VDC
●9 VDC
●15 VDC
●20 VDC
Temperature range:
Operating 0°C to 40°C (32°F to 104°F) 0°C to 40°C (32°F to 104°F)
Storage -40°C to 70°C (-40°F to 158°F) -40°C to 70°C (-40°F to 158°F)
Dimensions
Width (mm/inch) 112 mm (4.41 in.) 130 mm (5.1 in.)
Depth (mm/inch) 51 mm (2.01 in.) 66 mm (2.6 in.)
Height (mm/inch) 28 mm (1.1 in.) 22 mm (0.8 in.)
Weight (kg/lb) 201 g (0.44 lb) 291 g (0.64 lb)
Battery
The following table lists the battery specifications of your Latitude 7320.
Table 17. Battery specifications
Description Option one Option two
Battery type 3-cell, 42 WHr, optional with
ExpressCharge or Long Life Cycle
4-cell, 63 WHr, optional with
ExpressCharge or Long Life Cycle
Battery voltage 11.40 VDC 15.2 VDC
Battery weight (maximum) 0.21 kg (0.47 lb) 0.26 kg (0.58 lb)
Battery dimensions:
Height 5.7 mm (0.224 in.) 5.7 mm (0.224 in.)
Width 92.8 mm (3.654 in.) 92.8 mm (3.654 in.)
20 Specifications of Latitude 7320
