This section provides information about setting up your Dell™Inspiron™laptop.
Before Setting Up Your Computer
When positioning your computer, ensure that you allow easy access to a power source, adequate
ventilation, and a level surface to place your computer.
Restricting airflow around your Inspiron laptop may cause it to overheat. To prevent overheating
ensure that you leave at least 10.2 cm (4 inches) at the back of the computer and a minimum of
5.1 cm (2 inches) on all other sides. You should never place your computer in an enclosed space,
such as a cabinet or drawer when it is powered on.
WARNING: Do not block, push objects into, or allow dust to accumulate in the air vents.
Do not place your Dell computer in a low-airflow environment, such as a closed briefcase,
while it is powered on. Restricting the airflow can damage the computer or cause a fire.
The computer turns on the fan when the computer gets hot. Fan noise is normal and does not
indicate a problem with the fan or the computer.
CAUTION: Placing or stacking heavy or sharp objects on the computer may result in
permanent damage to the computer.
Setting Up Your Inspiron Laptop
INSPIRON

6
Setting Up Your Inspiron Laptop
Connect the AC Adapter

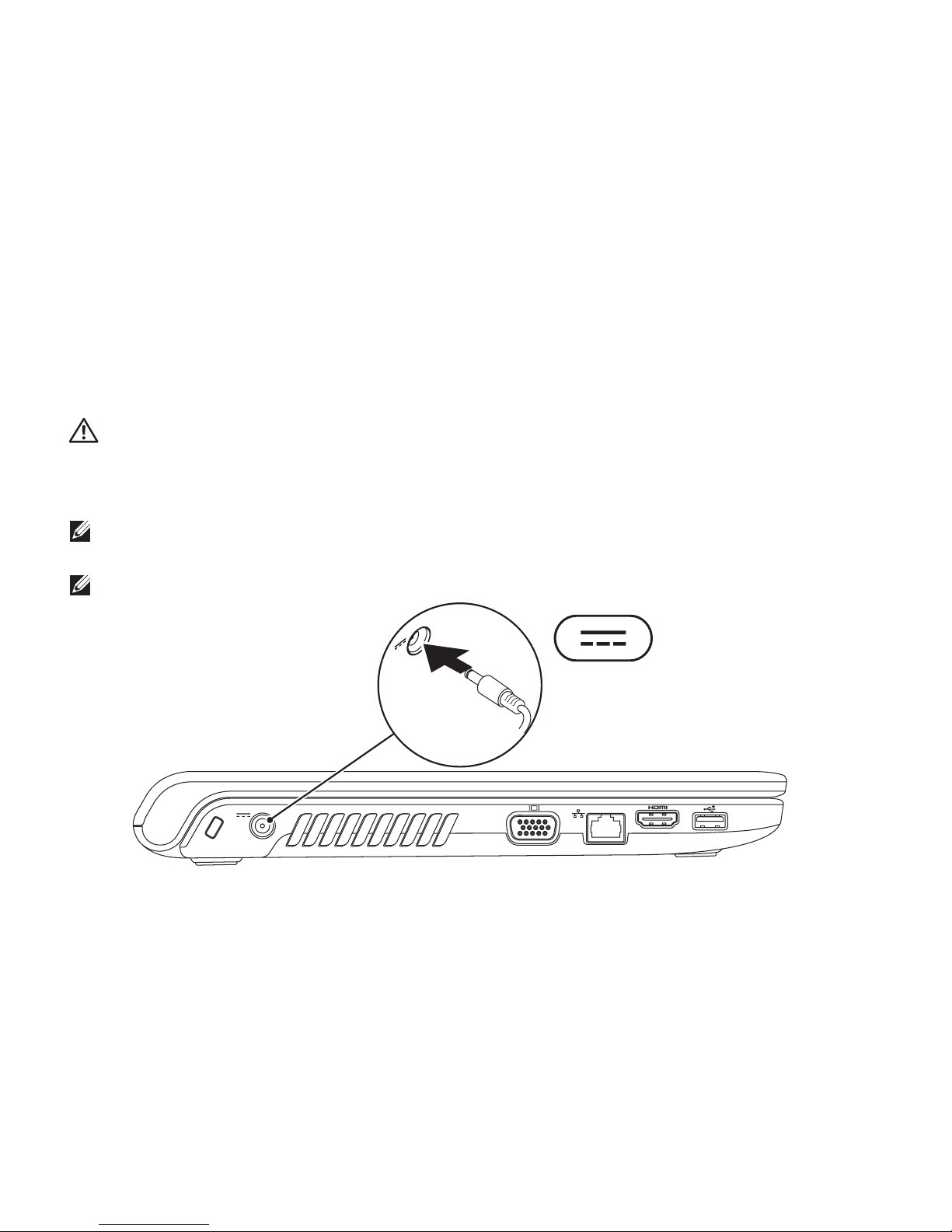

Connect the AC adapter to the computer and then plug it into a wall outlet or surge protector.
WARNING: The AC adapter works with electrical outlets worldwide. However, power
connectors and power strips vary among countries. Using an incompatible cable or
improperly connecting the cable to a power strip or electrical outlet may cause fire or
permanent damage to your computer.
NOTE: Connect the power cable to the adapter firmly and ensure that the light on the adapter is
on when you turn on power.
NOTE: Use only Dell AC adapter family PA-2E, PA-3E, and PA-12 with your computer.

7
Setting Up Your Inspiron Laptop
Connect the Network Cable (Optional)

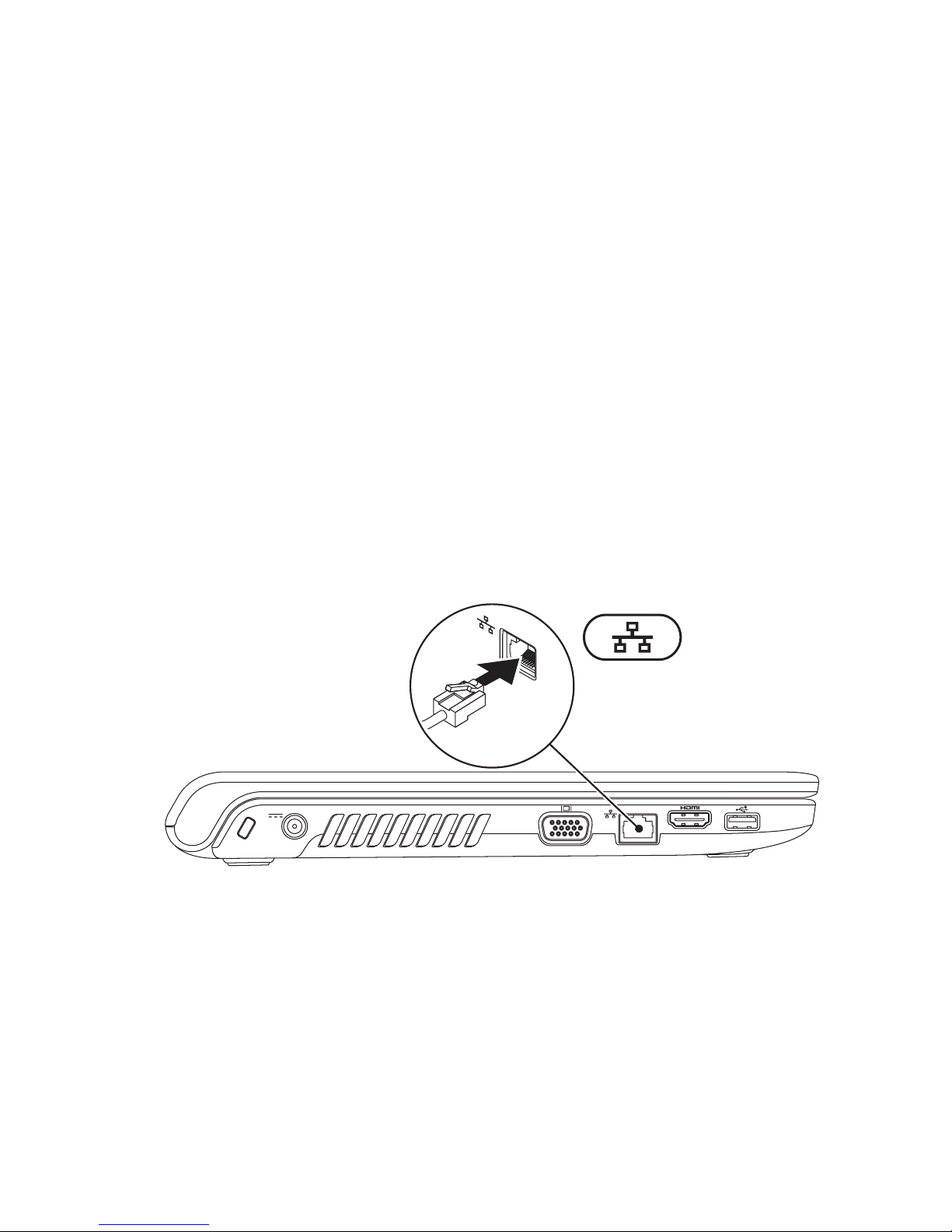

To use a wired network connection, connect the network cable.

8
Setting Up Your Inspiron Laptop

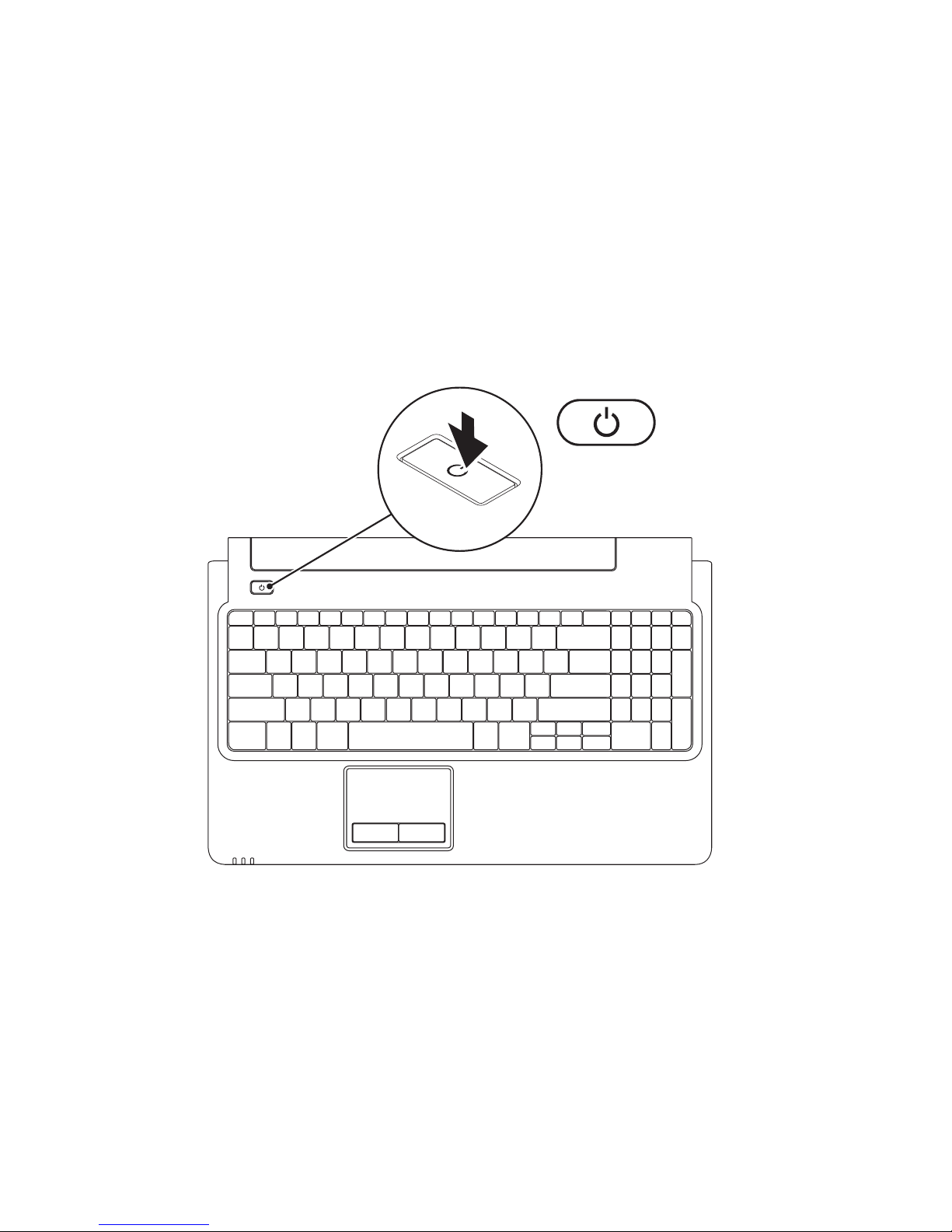

Press the Power Button

9
Setting Up Your Inspiron Laptop
Set Up Microsoft Windows
Your Dell computer is preconfigured with Microsoft®Windows®operating system. To set up
Windows for the first time, follow the instructions on the screen. These steps are mandatory
and may take some time to complete. The Windows setup screens will take you through several
procedures including accepting license agreements, setting preferences, and setting up an Internet
connection.
CAUTION: Do not interrupt the operating system’s setup process. Doing so may render your
computer unusable and you will need to reinstall the operating system.
NOTE: For optimal performance of your computer, it is recommended that you download and
install the latest BIOS and drivers for your computer available at support.dell.com.

10
Setting Up Your Inspiron Laptop
Install the SIM Card (Optional)
Installing a Subscriber Identity Module (SIM) card allows you to browse the Internet, check e-mail,
and connect to a Virtual Private Network. To access these features, you must be within the network
of your cellular service provider.
1SIM card
2SIM card slot
3battery bay
1
3
2

11
Setting Up Your Inspiron Laptop
To install the SIM card:
Turn off your computer.1.
Remove the battery (see “Removing and Replacing the Battery” on page2. 34).
In the battery bay, slide the SIM card into the SIM card slot.3.
Replace the battery (see “Removing and Replacing the Battery” on page4. 34).
Turn on your computer.5.
To remove the SIM card, press and eject the SIM card.

12
Setting Up Your Inspiron Laptop
Enable or Disable Wireless (Optional)

13
Setting Up Your Inspiron Laptop
To enable wireless:
Ensure that your computer is turned on.1.

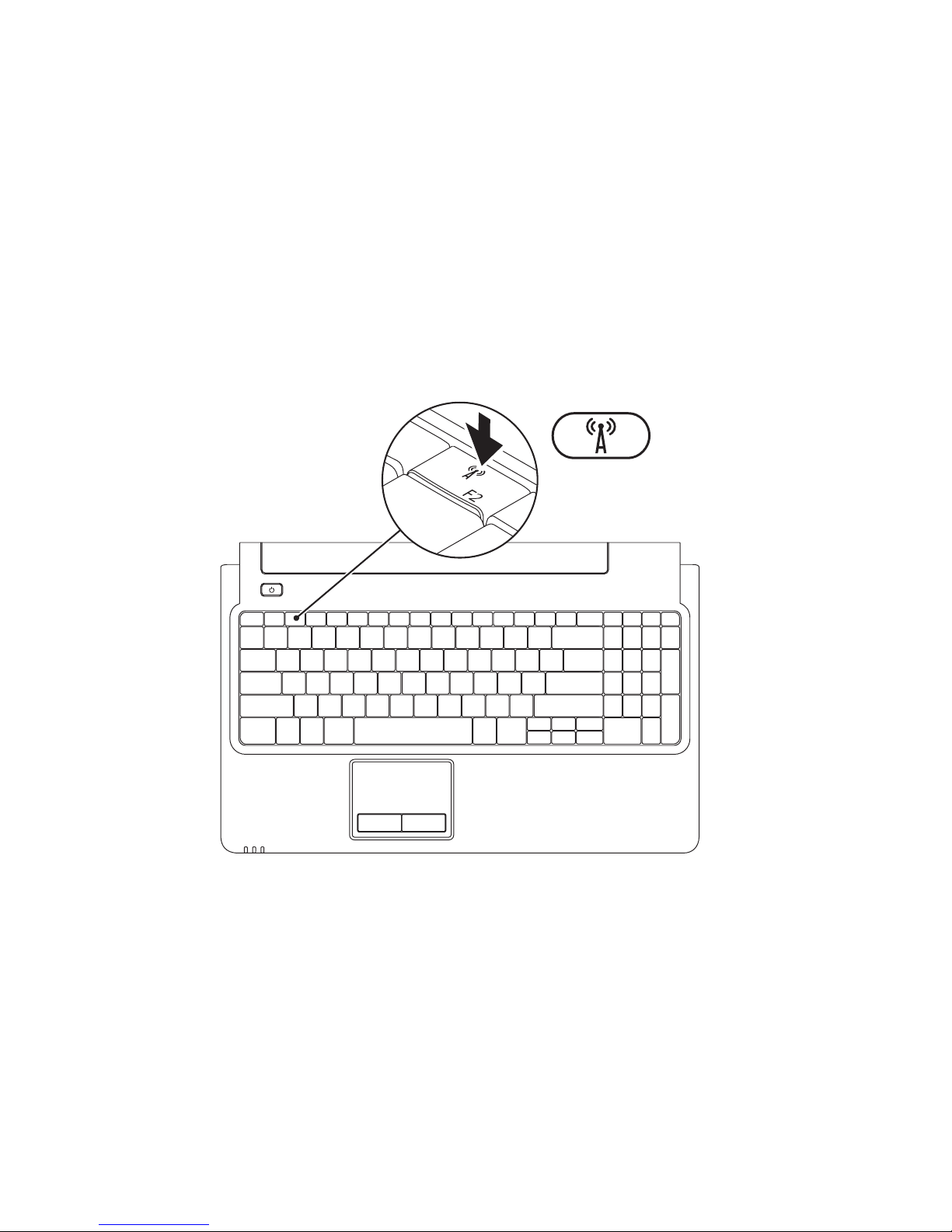

Press the wireless key2. on the keyboard.
A confirmation of your selection appears on the screen.

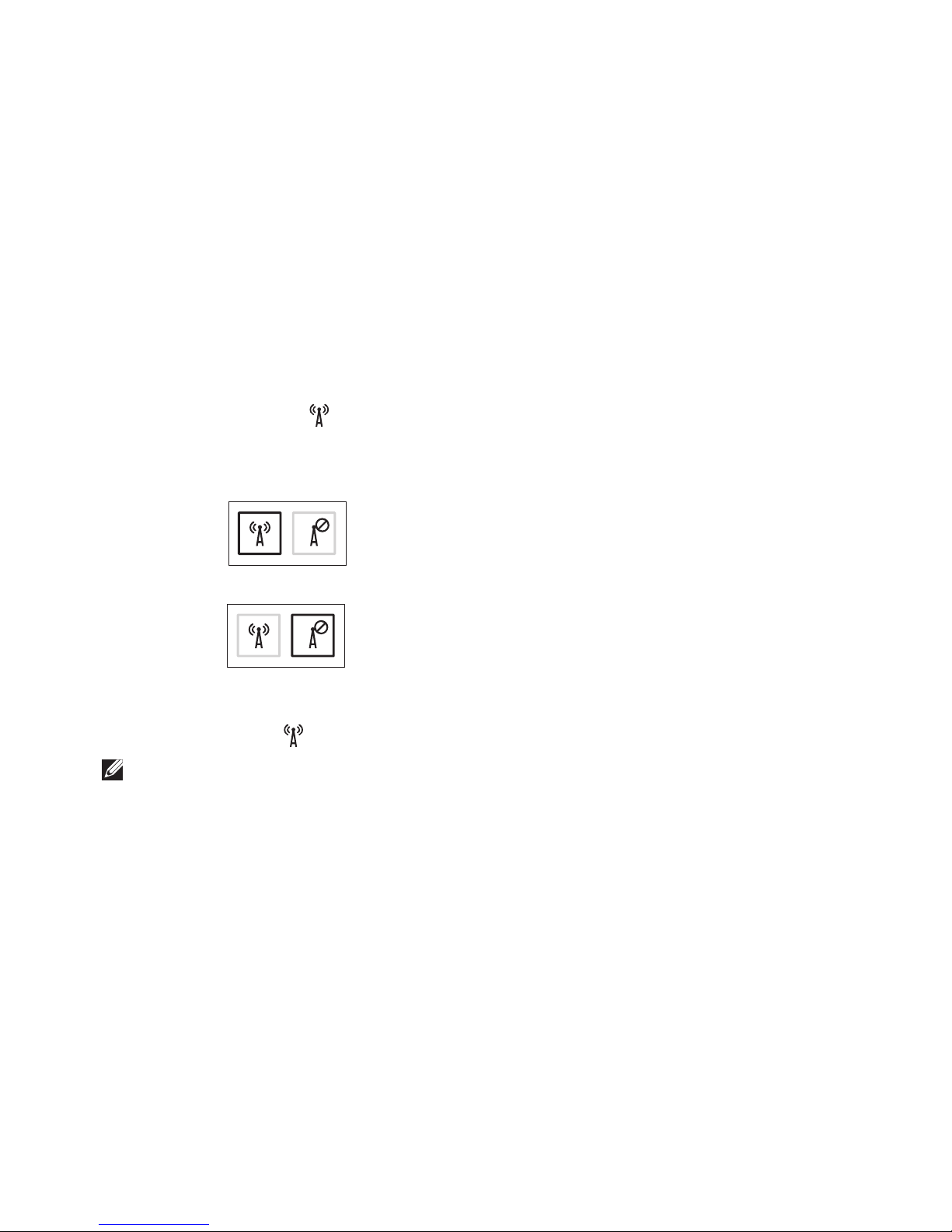

Wireless enabled
Wireless disabled
To disable wireless:
Press the wireless key on the keyboard again to turn off all radios.
NOTE: The wireless key allows you to quickly turn off all wireless radios (WiFi and Bluetooth®)
on your computer, such as when you are asked to disable all wireless radios on an airplane
flight.

14
Setting Up Your Inspiron Laptop
Connect to the Internet
(Optional)
To connect to the Internet, you need an external
modem or network connection and an Internet
Service Provider (ISP).
If an external USB modem or WLAN adapter
is not a part of your original order, you can
purchase one from www.dell.com.
Setting Up a Wired Connection
If you are using a DSL or cable/satellite•
modem connection, contact your ISP
or cellular telephone service for setup
instructions.
If you are using a dial-up connection,•
connect the telephone line to the optional
external USB modem and to the telephone
wall connector before you set up your
Internet connection.
To complete setting up your wired Internet
connection, follow the instructions in “Setting
Up Your Internet Connection” on page 16.

15
Setting Up Your Inspiron Laptop
Setting Up a Wireless Connection
NOTE: To set up your wireless router,
see the documentation that shipped with
your router.
Before you can use your wireless Internet
connection, you need to connect to your
wireless router.
To set up your connection to a wireless router:
Windows Vista
®
Ensure that wireless is enabled on your1.
computer (see “Enable or Disable Wireless”
on page 12).
Save and close any open files, and exit any2.
open programs.
Click3. Start →Connect To.
Follow the instructions on the screen to4.
complete the setup.
Windows
®
7
Ensure that wireless is enabled on your1.
computer (see “Enable or Disable Wireless”
on page 12).
Save and close any open files, and exit any2.
open programs.
Click3. Start →Control Panel→ Network
and Sharing Center→ Connect to a network.
Follow the instructions on the screen to4.
complete the setup.

16
Setting Up Your Inspiron Laptop
Setting Up Your Internet Connection
ISPs and ISP offerings vary by country. Contact
your ISP for offerings available in your country.
If you cannot connect to the Internet but have
successfully connected in the past, the ISP
might have a service outage. Contact your ISP
to check the service status, or try connecting
again later.
Have your ISP information ready. If you do not
have an ISP, the Connect to the Internet wizard
can help you get one.
To set up your Internet connection:
Windows Vista
NOTE: The following instructions are
applicable to the Windows default view,
so they may not apply if you set your Dell™
computer to the Windows Classic view.
Save and close any open files, and exit any1.
open programs.
Click2. Start →Control Panel →Network
and Internet→ Network and Sharing
Center→ Set up a connection or network→
Connect to the Internet.
The Connect to the Internet window appears.
NOTE: If you do not know which type of
connection to select, click Help me choose
or contact your ISP.
Follow the instructions on the screen and3.
use the setup information provided by your
ISP to complete the setup.

17
Setting Up Your Inspiron Laptop
Windows 7
Save and close any open files, and exit any1.
open programs.
Click2. Start →Control Panel→ Network
and Sharing Center→ Set up a new
connection or network→ Connect to the
Internet.
The Connect to the Internet window appears.
NOTE: If you do not know which type of
connection to select, click Help me choose
or contact your ISP.
Follow the instructions on the screen and3.
use the setup information provided by your
ISP to complete the setup.

18
Using Your Inspiron Laptop
This section provides information about the features available on your Inspiron laptop.
Right View Features
35 1246
INSPIRON
