Vostro 14 5410
Setup and Specifications
Regulatory Model: P143G
Regulatory Type: P143G001
November 2022
Rev. A05
2 / 271 / 252 / 27

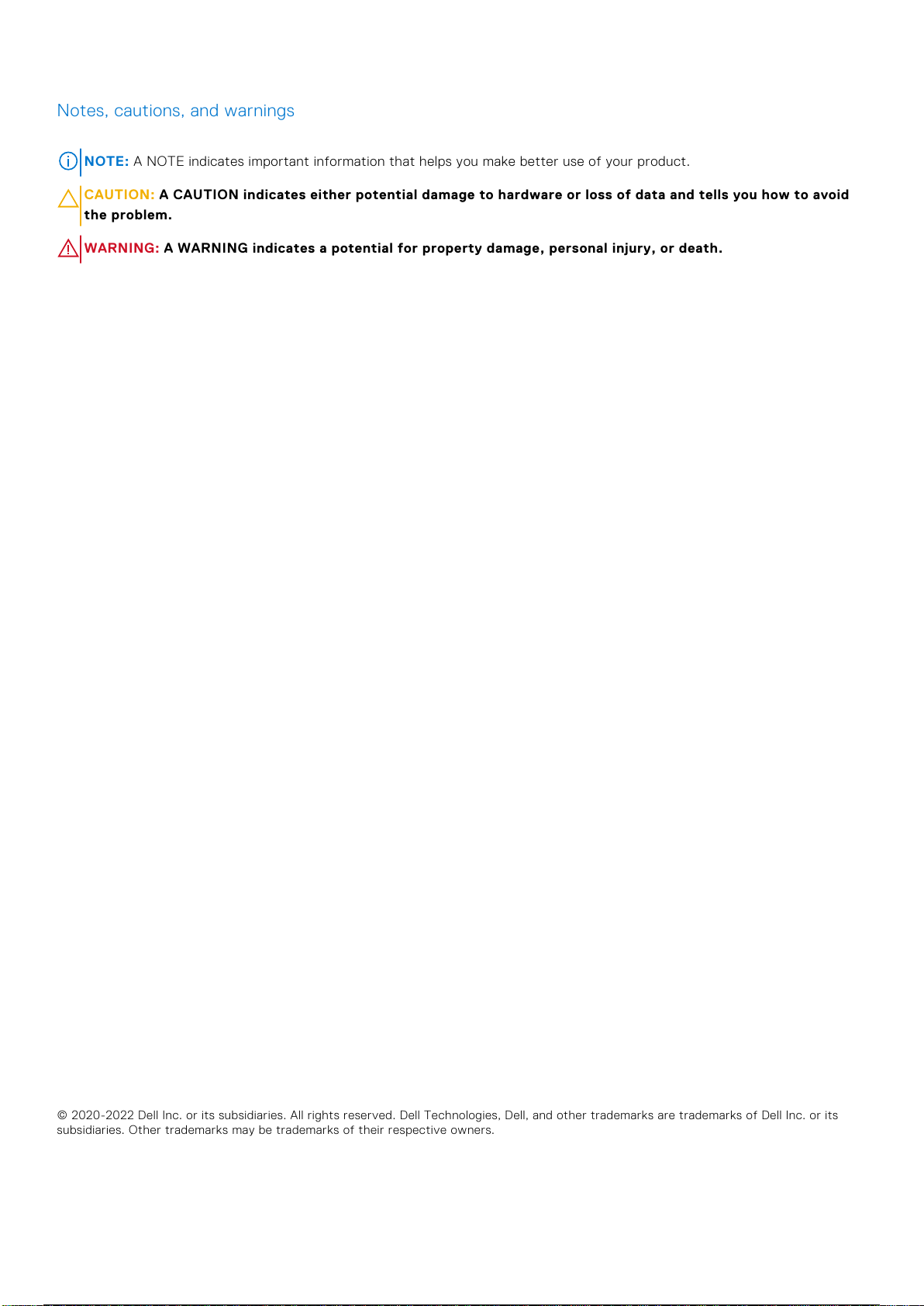

Notes, cautions, and warnings
NOTE: A NOTE indicates important information that helps you make better use of your product.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid
the problem.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
© 2020-2022 Dell Inc. or its subsidiaries. All rights reserved. Dell Technologies, Dell, and other trademarks are trademarks of Dell Inc. or its
subsidiaries. Other trademarks may be trademarks of their respective owners.
3 / 272 / 253 / 27

Chapter 1: Set up your Vostro 14 5410........................................................................................... 4
Chapter 2: Views of Vostro 14 5410............................................................................................... 6
Right....................................................................................................................................................................................... 6
Left..........................................................................................................................................................................................7
Top.......................................................................................................................................................................................... 8
Front....................................................................................................................................................................................... 9
Bottom..................................................................................................................................................................................10
Battery charge and status LED ..................................................................................................................................... 10
Chapter 3: Specifications of Vostro 14 5410................................................................................. 11
Dimensions and weight......................................................................................................................................................11
Processor............................................................................................................................................................................. 12
Chipset..................................................................................................................................................................................12
Operating system...............................................................................................................................................................12
Memory.................................................................................................................................................................................13
Intel Optane Memory H20 with Solid-State Storage (optional).............................................................................13
External ports......................................................................................................................................................................14
Internal slots........................................................................................................................................................................14
Communications................................................................................................................................................................. 14
Audio..................................................................................................................................................................................... 15
Storage................................................................................................................................................................................. 16
Media-card reader............................................................................................................................................................. 16
Keyboard.............................................................................................................................................................................. 16
Camera..................................................................................................................................................................................17
Touchpad..............................................................................................................................................................................17
Power adapter.................................................................................................................................................................... 18
Battery..................................................................................................................................................................................18
Display...................................................................................................................................................................................19
Fingerprint reader (optional).......................................................................................................................................... 20
GPU—Integrated.............................................................................................................................................................. 20
GPU—Discrete.................................................................................................................................................................. 20
Operating and storage environment.............................................................................................................................20
Chapter 4: Dell ComfortView....................................................................................................... 22
Chapter 5: Keyboard shortcuts....................................................................................................23
Chapter 6: Getting help and contacting Dell................................................................................ 25
Contents
Contents 3
4 / 273 / 254 / 27

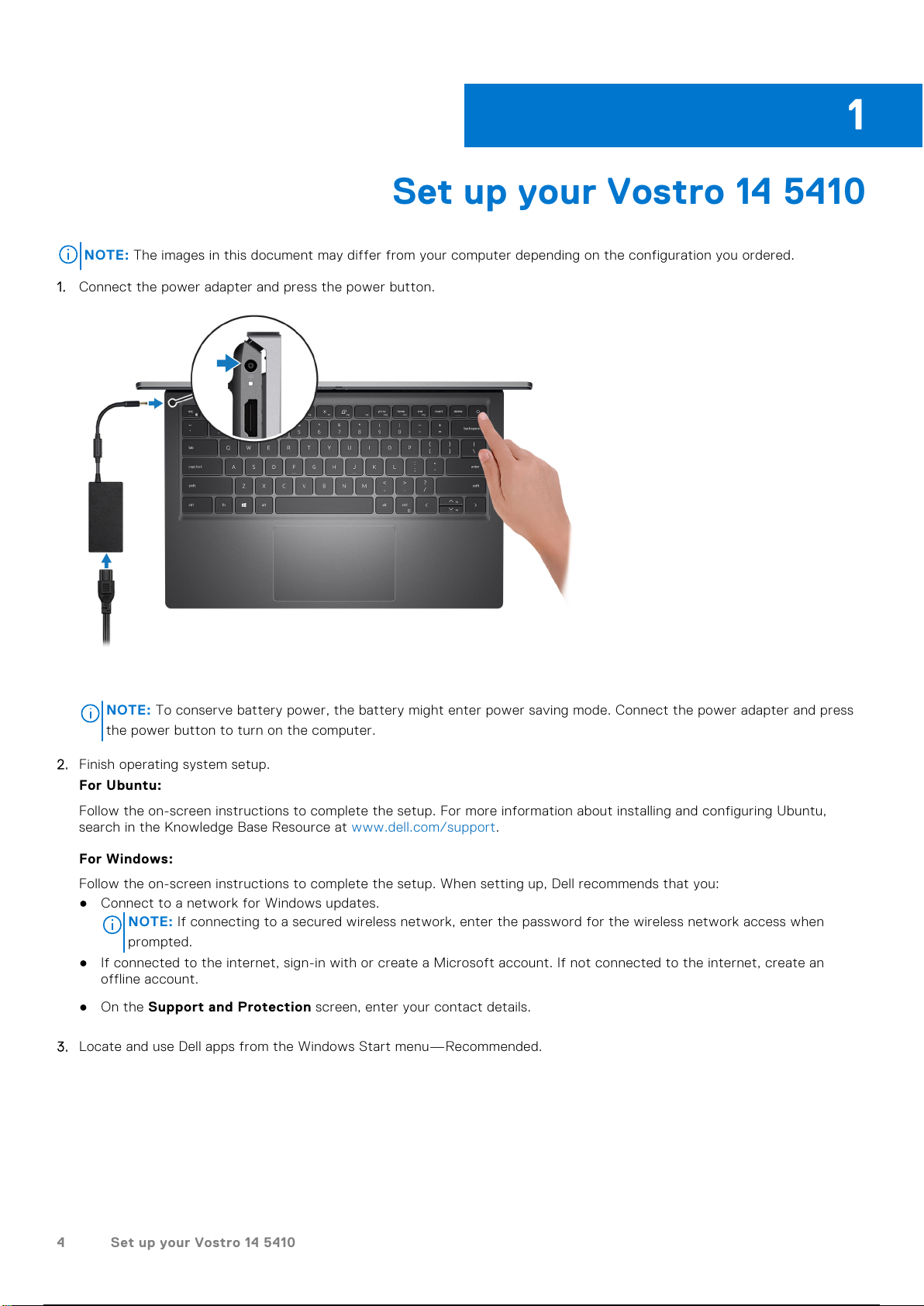

Set up your Vostro 14 5410
NOTE: The images in this document may differ from your computer depending on the configuration you ordered.
1. Connect the power adapter and press the power button.
NOTE: To conserve battery power, the battery might enter power saving mode. Connect the power adapter and press
the power button to turn on the computer.
2. Finish operating system setup.
For Ubuntu:
Follow the on-screen instructions to complete the setup. For more information about installing and configuring Ubuntu,
search in the Knowledge Base Resource at www.dell.com/support.
For Windows:
Follow the on-screen instructions to complete the setup. When setting up, Dell recommends that you:
●Connect to a network for Windows updates.
NOTE: If connecting to a secured wireless network, enter the password for the wireless network access when
prompted.
●If connected to the internet, sign-in with or create a Microsoft account. If not connected to the internet, create an
offline account.
●On the Support and Protection screen, enter your contact details.
3. Locate and use Dell apps from the Windows Start menu—Recommended.
1
4 Set up your Vostro 14 5410
5 / 274 / 255 / 27

Table 1. Locate Dell apps
Resources Description
Dell Product Registration
Register your computer with Dell.
Dell Help & Support
Access help and support for your computer.
SupportAssist
SupportAssist is the smart technology that keeps your computer running at its best by optimizing
settings, detecting issues, removing viruses and notifies when you need to make system
updates. SupportAssist proactively checks the health of your system's hardware and software.
When an issue is detected, the necessary system state information is sent to Dell to begin
troubleshooting. SupportAssist is preinstalled on most of the Dell devices running Windows
operating system. For more information, see SupportAssist for Home PCs User's Guide on
www.dell.com/serviceabilitytools.
NOTE: In SupportAssist, click the warranty expiry date to renew or upgrade your warranty.
Dell Update
Updates your computer with critical fixes and latest device drivers as they become available. For
more information on using Dell Update, search in the Knowledge Base Resource at www.dell.com/
support.
Dell Digital Delivery
Download software applications, which are purchased but not preinstalled on your computer.
For more information on using Dell Digital Delivery, search in the Knowledge Base Resource at
www.dell.com/support.
Set up your Vostro 14 5410 5
6 / 275 / 256 / 27

Views of Vostro 14 5410
Topics:
•Right
•Left
•Top
•Front
•Bottom
•Battery charge and status LED
Right
1. microSD-card slot
Reads from and writes to the microSD-card. The computer supports the following card types:
Secure Digital (SD)
2. USB 3.2 Gen 1 port
Connect devices such as external storage devices and printers. Provides data transfer speeds up to 5 Gbps.
3. RJ-45 Ethernet port
Connect an Ethernet (RJ45) cable from a router or a broadband modem for network or Internet access, with a transfer rate
of 10/100/1000 Mbps.
4. Global headset jack
Connect headphones or a headset (headphone and microphone combo).
5. Security-cable slot (wedge-shaped)
Connect a security cable to prevent unauthorized movement of your computer.
2
6 Views of Vostro 14 5410
7 / 276 / 257 / 27

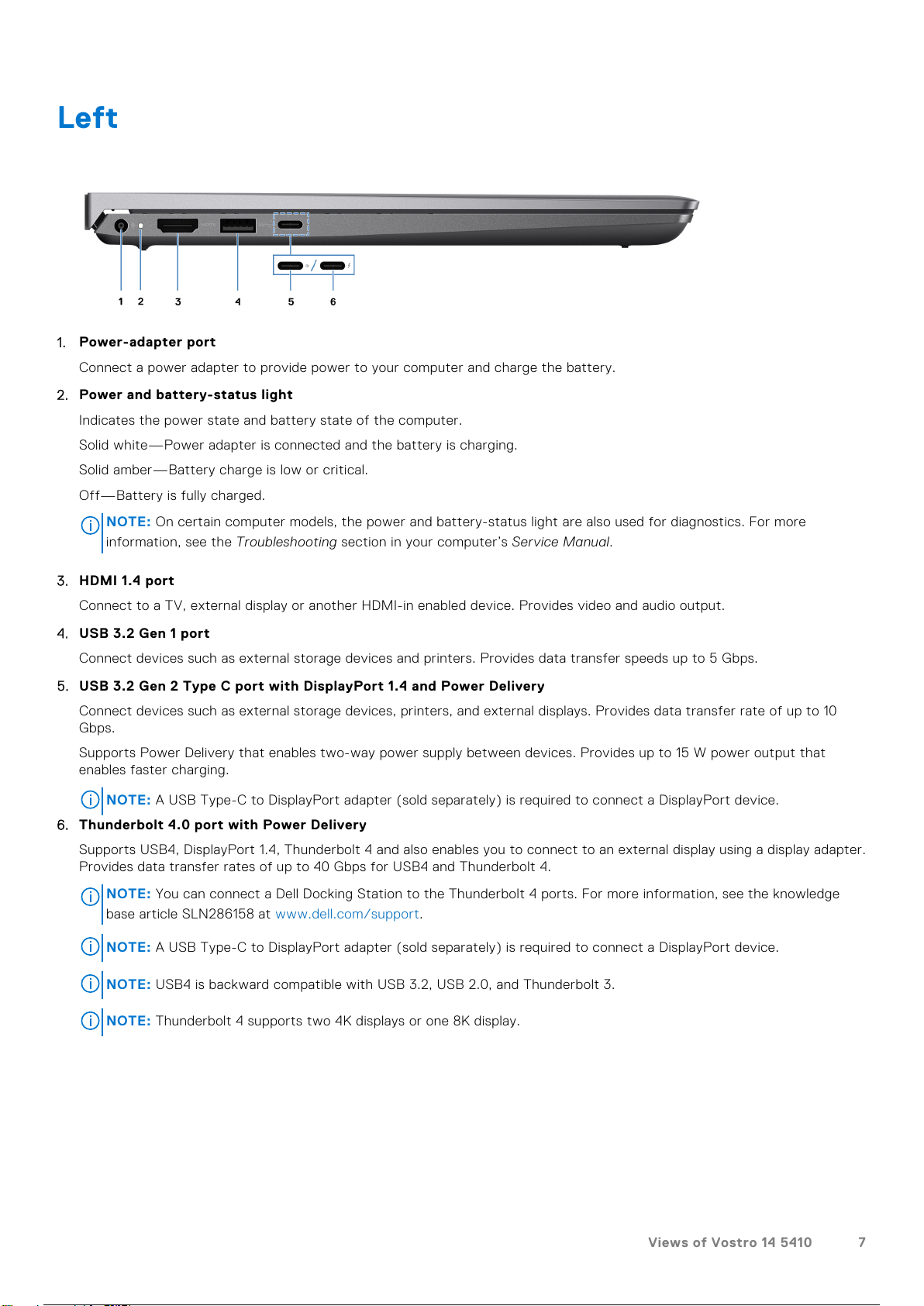

Left
1. Power-adapter port
Connect a power adapter to provide power to your computer and charge the battery.
2. Power and battery-status light
Indicates the power state and battery state of the computer.
Solid white—Power adapter is connected and the battery is charging.
Solid amber—Battery charge is low or critical.
Off—Battery is fully charged.
NOTE: On certain computer models, the power and battery-status light are also used for diagnostics. For more
information, see the Troubleshooting section in your computer’s Service Manual.
3. HDMI 1.4 port
Connect to a TV, external display or another HDMI-in enabled device. Provides video and audio output.
4. USB 3.2 Gen 1 port
Connect devices such as external storage devices and printers. Provides data transfer speeds up to 5 Gbps.
5. USB 3.2 Gen 2 Type C port with DisplayPort 1.4 and Power Delivery
Connect devices such as external storage devices, printers, and external displays. Provides data transfer rate of up to 10
Gbps.
Supports Power Delivery that enables two-way power supply between devices. Provides up to 15 W power output that
enables faster charging.
NOTE: A USB Type-C to DisplayPort adapter (sold separately) is required to connect a DisplayPort device.
6. Thunderbolt 4.0 port with Power Delivery
Supports USB4, DisplayPort 1.4, Thunderbolt 4 and also enables you to connect to an external display using a display adapter.
Provides data transfer rates of up to 40 Gbps for USB4 and Thunderbolt 4.
NOTE: You can connect a Dell Docking Station to the Thunderbolt 4 ports. For more information, see the knowledge
base article SLN286158 at www.dell.com/support.
NOTE: A USB Type-C to DisplayPort adapter (sold separately) is required to connect a DisplayPort device.
NOTE: USB4 is backward compatible with USB 3.2, USB 2.0, and Thunderbolt 3.
NOTE: Thunderbolt 4 supports two 4K displays or one 8K display.
Views of Vostro 14 5410 7
8 / 277 / 258 / 27

Top
1. Power button with optional fingerprint reader
Press to turn on the computer if it is turned off, in sleep state, or in hibernate state.
When the computer is turned on, press the power button to put the computer into sleep state; press and hold the power
button for 4 seconds to force shut-down the computer.
If the power button has a fingerprint reader, place your finger on the power button to log in.
NOTE: You can customize power-button behavior in Windows. For more information, see Me and My Dell at
www.dell.com/support/manuals.
2. Touchpad
Move your finger on the touchpad to move the mouse pointer. Tap to left-click and two fingers tap to right-click.
8Views of Vostro 14 5410
9 / 278 / 259 / 27

Front
1. Left microphone
Provides digital sound input for audio recording and voice calls.
2. Privacy shutter
Slide the privacy shutter to cover the camera lens and protect your privacy when the camera is not in use.
3. Camera
Enables you to video chat, capture photos, and record videos.
4. Camera-status light
Turns on when the camera is in use.
5. Right microphone
Provides digital sound input for audio recording and voice calls.
6. LCD panel
Views of Vostro 14 5410 9
10 / 279 / 2510 / 27

Bottom
1. Left and right speakers
Provides audio output.
2. Service Tag label
The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware
components in your computer and access warranty information.
Battery charge and status LED
Table 2. Battery charge and status LED Indicator
Power Source LED Behavior computer Power State Battery Charge Level
AC Adapter Off S0 - S5 Fully Charged
AC Adapter Solid White S0 - S5 < Fully Charged
Battery Off S0 - S5 11-100%
Battery Solid Amber (590+/-3 nm) S0 - S5 < 10%
●S0 (ON) - Computer is turned on.
●S4 (Hibernate) - The computer consumes the least power compared to all other sleep states. The computer is almost at an
OFF state, expect for a trickle power. The context data is written to hard drive.
●S5 (OFF) - The computer is in a shutdown state.
10 Views of Vostro 14 5410
11 / 2710 / 2511 / 27

Specifications of Vostro 14 5410
Topics:
•Dimensions and weight
•Processor
•Chipset
•Operating system
•Memory
•Intel Optane Memory H20 with Solid-State Storage (optional)
•External ports
•Internal slots
•Communications
•Audio
•Storage
•Media-card reader
•Keyboard
•Camera
•Touchpad
•Power adapter
•Battery
•Display
•Fingerprint reader (optional)
•GPU—Integrated
•GPU—Discrete
•Operating and storage environment
Dimensions and weight
The following table lists the height, width, depth, and weight of your Vostro 14 5410.
Table 3. Dimensions and weight
Description Values
Height:
Front height 17.02 mm (0.67 in.)
Rear height 17.99 mm (0.70 in.)
Width 321.27 mm (12.64 in.)
Depth 212.80 mm (8.37 in.)
Weight (minimum) 1.40 kg (3.08 lbs)
Weight (maximum) 1.44 kg (3.17 lbs)
NOTE: The weight of your computer depends on the
configuration ordered and manufacturing variability.
3
Specifications of Vostro 14 5410 11
12 / 2711 / 2512 / 27

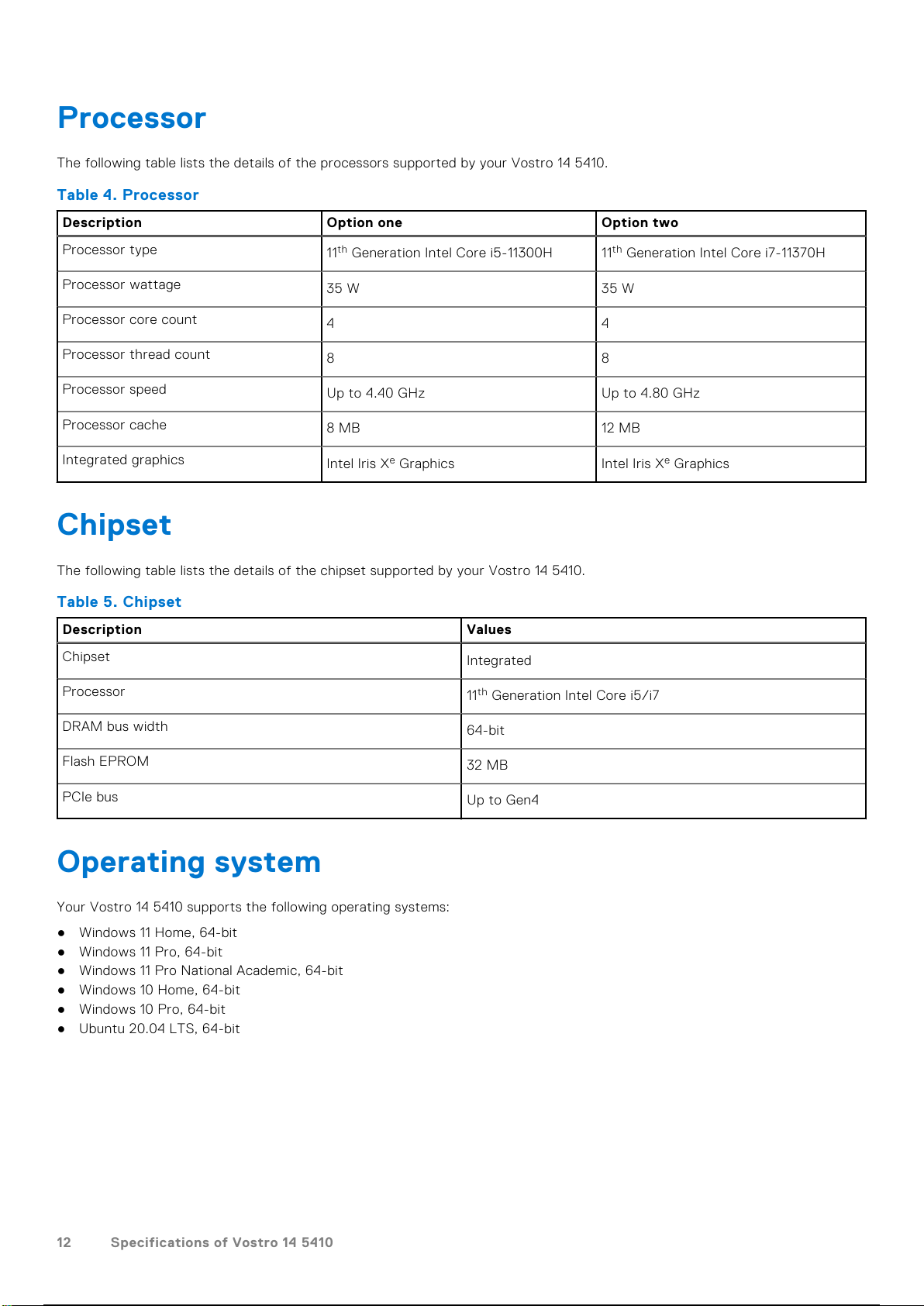

Processor
The following table lists the details of the processors supported by your Vostro 14 5410.
Table 4. Processor
Description Option one Option two
Processor type 11th Generation Intel Core i5-11300H 11th Generation Intel Core i7-11370H
Processor wattage 35 W 35 W
Processor core count 4 4
Processor thread count 8 8
Processor speed Up to 4.40 GHz Up to 4.80 GHz
Processor cache 8 MB 12 MB
Integrated graphics Intel Iris XeGraphics Intel Iris XeGraphics
Chipset
The following table lists the details of the chipset supported by your Vostro 14 5410.
Table 5. Chipset
Description Values
Chipset Integrated
Processor 11th Generation Intel Core i5/i7
DRAM bus width 64-bit
Flash EPROM 32 MB
PCIe bus Up to Gen4
Operating system
Your Vostro 14 5410 supports the following operating systems:
●Windows 11 Home, 64-bit
●Windows 11 Pro, 64-bit
●Windows 11 Pro National Academic, 64-bit
●Windows 10 Home, 64-bit
●Windows 10 Pro, 64-bit
●Ubuntu 20.04 LTS, 64-bit
12 Specifications of Vostro 14 5410
13 / 2712 / 2513 / 27

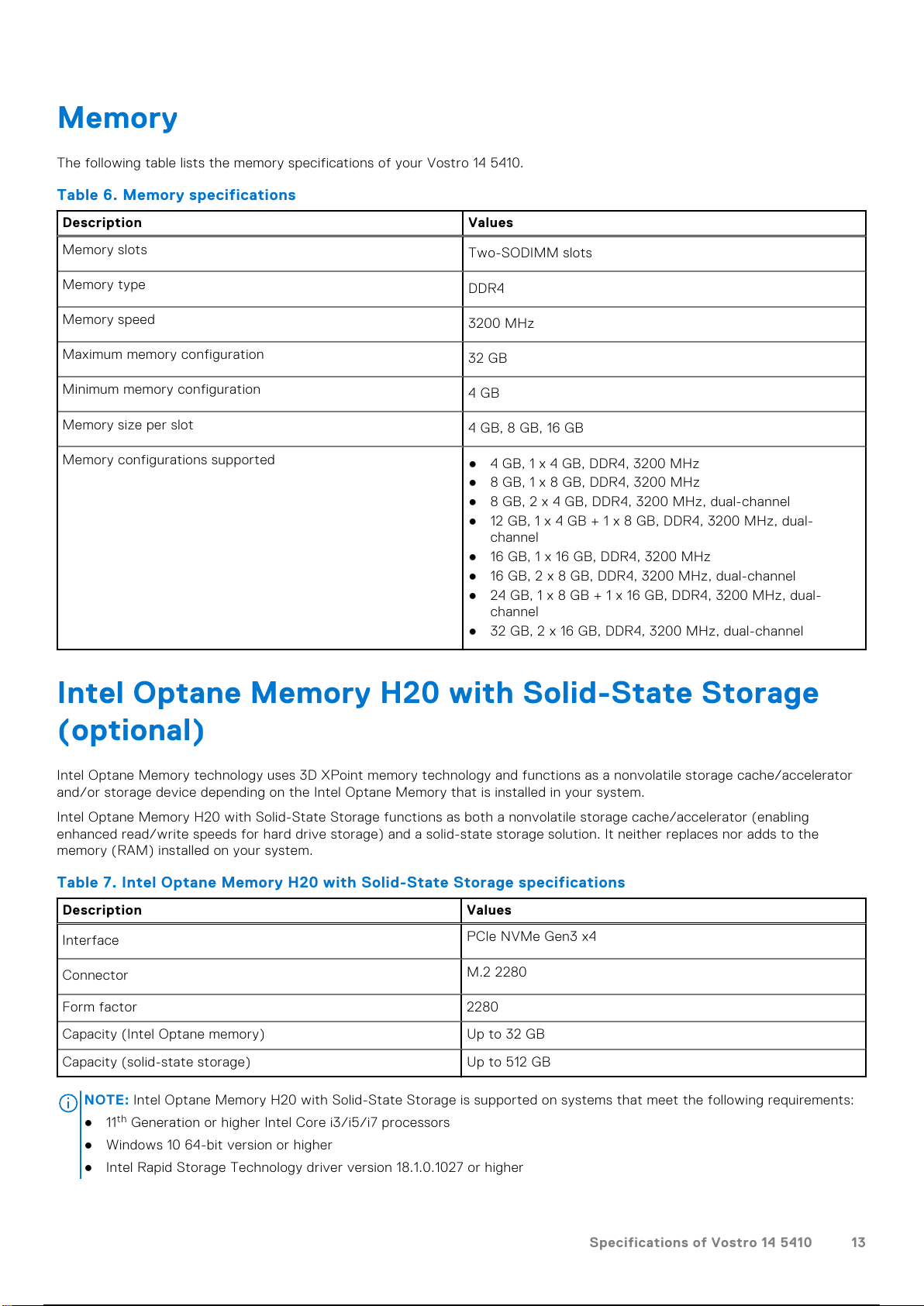

Memory
The following table lists the memory specifications of your Vostro 14 5410.
Table 6. Memory specifications
Description Values
Memory slots Two-SODIMM slots
Memory type DDR4
Memory speed 3200 MHz
Maximum memory configuration 32 GB
Minimum memory configuration 4 GB
Memory size per slot 4 GB, 8 GB, 16 GB
Memory configurations supported ●4 GB, 1 x 4 GB, DDR4, 3200 MHz
●8 GB, 1 x 8 GB, DDR4, 3200 MHz
●8 GB, 2 x 4 GB, DDR4, 3200 MHz, dual-channel
●12 GB, 1 x 4 GB + 1 x 8 GB, DDR4, 3200 MHz, dual-
channel
●16 GB, 1 x 16 GB, DDR4, 3200 MHz
●16 GB, 2 x 8 GB, DDR4, 3200 MHz, dual-channel
●24 GB, 1 x 8 GB + 1 x 16 GB, DDR4, 3200 MHz, dual-
channel
●32 GB, 2 x 16 GB, DDR4, 3200 MHz, dual-channel
Intel Optane Memory H20 with Solid-State Storage
(optional)
Intel Optane Memory technology uses 3D XPoint memory technology and functions as a nonvolatile storage cache/accelerator
and/or storage device depending on the Intel Optane Memory that is installed in your system.
Intel Optane Memory H20 with Solid-State Storage functions as both a nonvolatile storage cache/accelerator (enabling
enhanced read/write speeds for hard drive storage) and a solid-state storage solution. It neither replaces nor adds to the
memory (RAM) installed on your system.
Table 7. Intel Optane Memory H20 with Solid-State Storage specifications
Description Values
Interface PCIe NVMe Gen3 x4
Connector M.2 2280
Form factor 2280
Capacity (Intel Optane memory) Up to 32 GB
Capacity (solid-state storage) Up to 512 GB
NOTE: Intel Optane Memory H20 with Solid-State Storage is supported on systems that meet the following requirements:
●11th Generation or higher Intel Core i3/i5/i7 processors
●Windows 10 64-bit version or higher
●Intel Rapid Storage Technology driver version 18.1.0.1027 or higher
Specifications of Vostro 14 5410 13
14 / 2713 / 2514 / 27

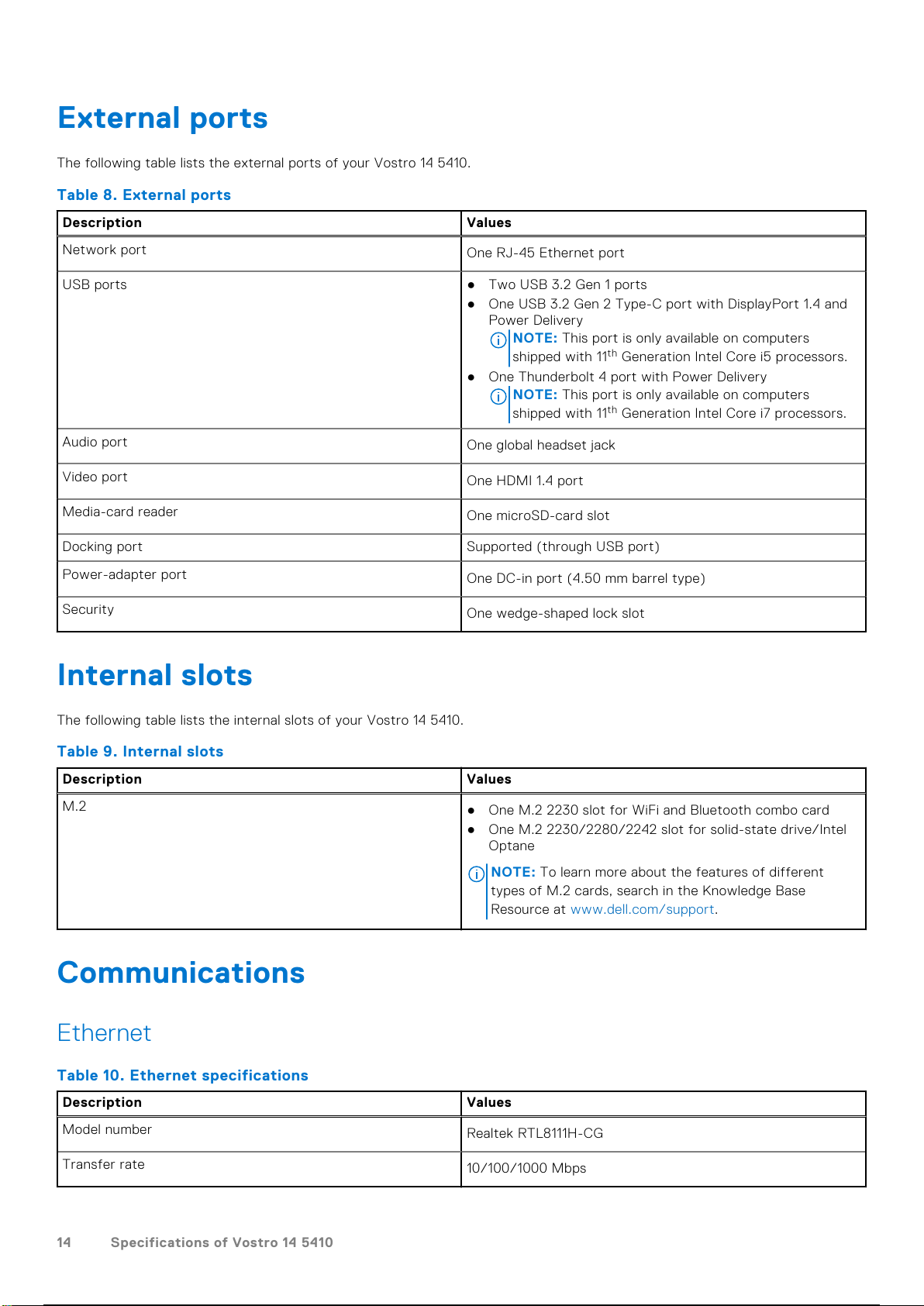

External ports
The following table lists the external ports of your Vostro 14 5410.
Table 8. External ports
Description Values
Network port One RJ-45 Ethernet port
USB ports ●Two USB 3.2 Gen 1 ports
●One USB 3.2 Gen 2 Type-C port with DisplayPort 1.4 and
Power Delivery
NOTE: This port is only available on computers
shipped with 11th Generation Intel Core i5 processors.
●One Thunderbolt 4 port with Power Delivery
NOTE: This port is only available on computers
shipped with 11th Generation Intel Core i7 processors.
Audio port One global headset jack
Video port One HDMI 1.4 port
Media-card reader One microSD-card slot
Docking port Supported (through USB port)
Power-adapter port One DC-in port (4.50 mm barrel type)
Security One wedge-shaped lock slot
Internal slots
The following table lists the internal slots of your Vostro 14 5410.
Table 9. Internal slots
Description Values
M.2 ●One M.2 2230 slot for WiFi and Bluetooth combo card
●One M.2 2230/2280/2242 slot for solid-state drive/Intel
Optane
NOTE: To learn more about the features of different
types of M.2 cards, search in the Knowledge Base
Resource at www.dell.com/support.
Communications
Ethernet
Table 10. Ethernet specifications
Description Values
Model number Realtek RTL8111H-CG
Transfer rate 10/100/1000 Mbps
14 Specifications of Vostro 14 5410
15 / 2714 / 2515 / 27

Wireless module
Table 11. Wireless module specifications
Description Values
Model number Intel 9462 Qualcomm QCA61x4A Intel AX201
Transfer rate Up to 433 Mbps Up to 867 Mbps Up to 2.40 Gbps
Frequency bands supported 2.4 GHz/5 GHz 2.4 GHz/5 GHz 2.4 GHz/5 GHz
Wireless standards ●Wi-Fi 802.11a/b/g
●Wi-Fi 4 (Wi-Fi 802.11n)
●Wi-Fi 5 (Wi-Fi 802.11ac)
●Wi-Fi 802.11a/b/g
●Wi-Fi 802.11n
●Wi-Fi 802.11ac
●Wi-Fi 802.11a/b/g
●Wi-Fi 4 (Wi-Fi 802.11n)
●Wi-Fi 5 (Wi-Fi 802.11ac)
●Wi-Fi 6 (Wi-Fi 802.11ax)
Encryption ●64-bit/128-bit WEP
●AES-CCMP
●TKIP
●64-bit/128-bit WEP
●AES-CCMP
●TKIP
●64-bit/128-bit WEP
●AES-CCMP
●TKIP
Bluetooth Bluetooth 5.0 Bluetooth 5.0 Bluetooth 5.1
Audio
The following table lists the audio specifications of your Vostro 14 5410.
Table 12. Audio specifications
Description Values
Audio controller Realtek
Stereo conversion Supported
Internal audio interface High definition audio
External audio interface Global headset jack
Number of speakers Two
Internal-speaker amplifier Supported (audio codec integrated)
External volume controls Keyboard shortcut controls
Speaker output:
Average speaker output 2 W
Peak speaker output 2.5 W
Subwoofer output Not supported
Microphone Dual-array microphones
Specifications of Vostro 14 5410 15
16 / 2715 / 2516 / 27

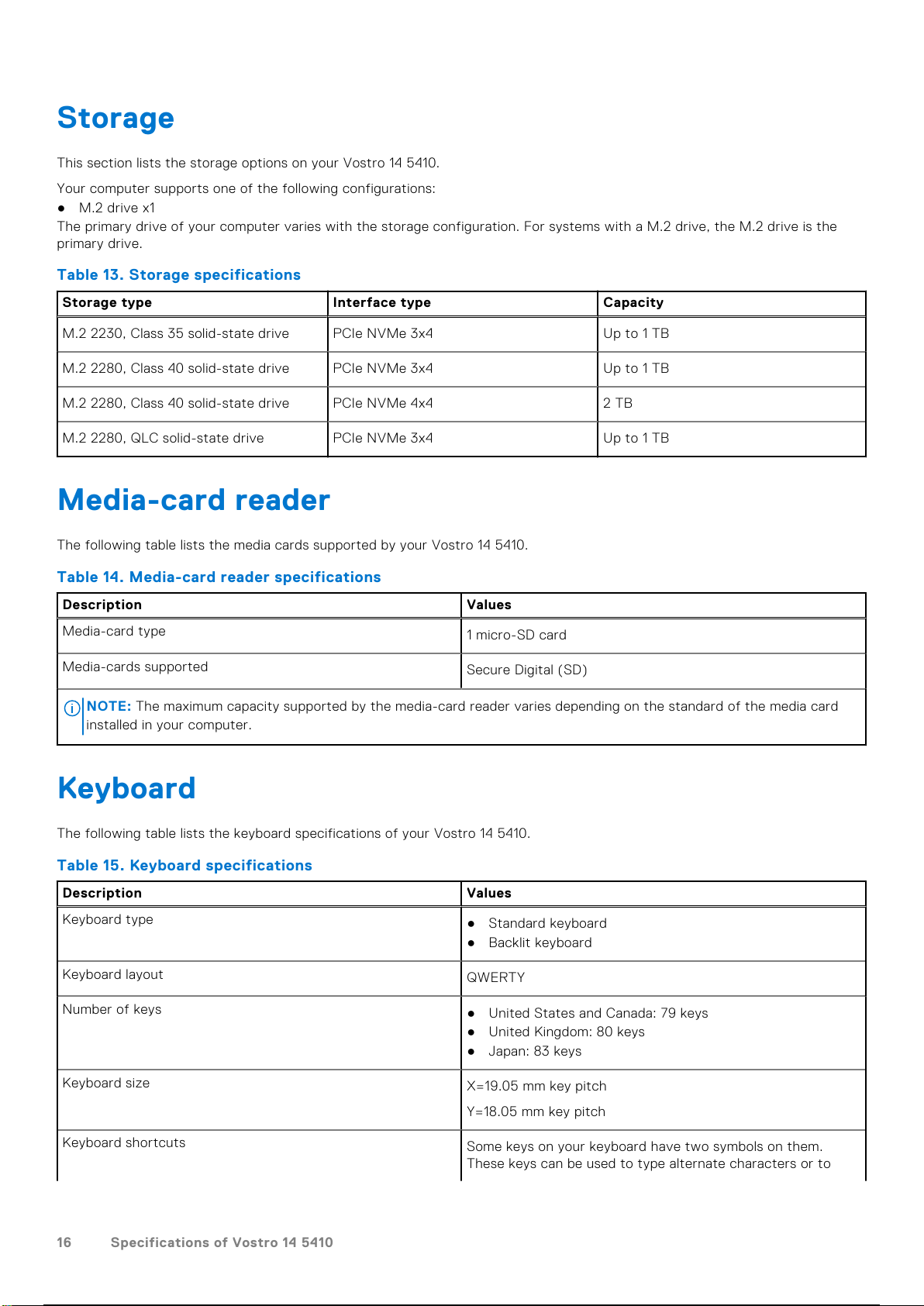

Storage
This section lists the storage options on your Vostro 14 5410.
Your computer supports one of the following configurations:
●M.2 drive x1
The primary drive of your computer varies with the storage configuration. For systems with a M.2 drive, the M.2 drive is the
primary drive.
Table 13. Storage specifications
Storage type Interface type Capacity
M.2 2230, Class 35 solid-state drive PCIe NVMe 3x4 Up to 1 TB
M.2 2280, Class 40 solid-state drive PCIe NVMe 3x4 Up to 1 TB
M.2 2280, Class 40 solid-state drive PCIe NVMe 4x4 2 TB
M.2 2280, QLC solid-state drive PCIe NVMe 3x4 Up to 1 TB
Media-card reader
The following table lists the media cards supported by your Vostro 14 5410.
Table 14. Media-card reader specifications
Description Values
Media-card type 1 micro-SD card
Media-cards supported Secure Digital (SD)
NOTE: The maximum capacity supported by the media-card reader varies depending on the standard of the media card
installed in your computer.
Keyboard
The following table lists the keyboard specifications of your Vostro 14 5410.
Table 15. Keyboard specifications
Description Values
Keyboard type ●Standard keyboard
●Backlit keyboard
Keyboard layout QWERTY
Number of keys ●United States and Canada: 79 keys
●United Kingdom: 80 keys
●Japan: 83 keys
Keyboard size X=19.05 mm key pitch
Y=18.05 mm key pitch
Keyboard shortcuts Some keys on your keyboard have two symbols on them.
These keys can be used to type alternate characters or to
16 Specifications of Vostro 14 5410
17 / 2716 / 2517 / 27

Table 15. Keyboard specifications (continued)
Description Values
perform secondary functions. To type the alternate character,
press Shift and the desired key. To perform secondary
functions, press Fn and the desired key.
NOTE: You can define the primary behavior of the
function keys (F1–F12) changing Function Key Behavior
in BIOS setup program.
Camera
The following table lists the camera specifications of your Vostro 14 5410.
Table 16. Camera specifications
Description Values
Number of cameras One
Camera type HD RGB camera
Camera location Front camera
Camera sensor type CMOS sensor technology
Camera resolution:
Still image 0.92 megapixel
Video 1280 x 720 (HD) at 30 fps
Diagonal viewing angle: 74.90 degrees
Touchpad
The following table lists the touchpad specifications of your Vostro 14 5410.
Table 17. Touchpad specifications
Description Touchpad (Synaptics) Touchpad (Goodix)
Touchpad
resolution:
Horizontal 1349 1920
Vertical 929 1080
Touchpad
dimensions:
Horizontal 115 mm (4.53 in.) 115 mm (4.53 in.)
Vertical 70 mm (2.76 in.) 70 mm (2.76 in.)
Touchpad gestures For more information about touchpad gestures available on Windows, see the Microsoft knowledge base
article 4027871 at support.microsoft.com.
Specifications of Vostro 14 5410 17
18 / 2717 / 2518 / 27

Power adapter
The following table lists the power adapter specifications of your Vostro 14 5410.
Table 18. Power adapter specifications
Description Values
Type 65 W, Barrel type
Connector dimensions:
External diameter 4.50 mm
Internal diameter 2.90 mm
Input voltage 100 VAC-240 VAC
Input frequency 50 Hz-60 Hz
Input current (maximum) 1.60 A/1.70 A
Output current (continuous) 3.34 A (continuous)
Rated output voltage 19.50 VDC
Temperature range:
Operating 0°C to 40°C (32°F to 104°F)
Storage -40°C to 70°C (-40°F to 158°F)
Battery
The following table lists the battery specifications of your Vostro 14 5410.
Table 19. Battery specifications
Description Option one Option two
Battery type 3-Cell, 41 Wh Polymer 4-cell, 54 Wh Polymer
NOTE: Battery is a Field Replaceable Unit (FRU).
Battery voltage 11.25 VDC 15 VDC
Battery weight (maximum) 0.176 kg (0.38 lb) 0.231 kg (0.50 lb)
Battery dimensions:
Height 206.40 mm (8.12 in.) 271.90 mm (10.70 in.)
Width 82.00 mm (3.22 in.) 82.00 mm (3.22 in.)
Depth 5.75 mm (0.22 in.) 5.75 mm (0.22 in.)
Temperature range:
Operating 0°C (32°F) to 35°C (95°F) 0°C (32°F) to 35°C (95°F)
Storage –20°C (–4°F) to 65°C (149°F) –20°C (–4°F) to 65°C (149°F)
18 Specifications of Vostro 14 5410
19 / 2718 / 2519 / 27

Table 19. Battery specifications (continued)
Description Option one Option two
Battery operating time Varies depending on operating conditions
and can significantly reduce under certain
power-intensive conditions.
Varies depending on operating
conditions and can significantly
reduce under certain power-intensive
conditions.
Battery charging time (approximate)
NOTE: Control the charging time,
duration, start and end time, and so
on using the Dell Power Manager
application. For more information on
the Dell Power Manager see, Me and
My Dell on www.dell.com.
4 hours hours (when the computer is off)
NOTE: Control the charging time,
duration, start and end time, and so
on using the Dell Power Manager
application. For more information on
the Dell Power Manager see, Me and
My Dell on www.dell.com/
4 hours hours (when the computer is
off)
NOTE: Control the charging time,
duration, start and end time, and so
on using the Dell Power Manager
application. For more information on
the Dell Power Manager see, Me and
My Dell on www.dell.com/
Approximate life span (discharge/charge
cycles)
300 cycles at room temperature 300 cycles at room temperature
ExpressCharge Supported Supported
Coin-cell battery CR2032 CR2032
Display
The following table lists the display specifications of your Vostro 14 5410.
Table 20. Display specifications
Description Option one Option two
Display type Full High Definition (FHD) Full High Definition (FHD)
Display-panel technology Wide-Viewing Angle (WVA),
ComfortView
Wide-Viewing Angle (WVA), ComfortView
Plus
Display-panel dimensions (active area):
Height 173.99 mm (6.85 in.) 173.99 mm (6.85 in.)
Width 309.35 mm (12.18 in.) 309.35 mm (12.18 in.)
Diagonal 355.60 mm (14.00 in.) 355.60 mm (14.00 in.)
Display-panel native resolution 1920 x 1080 1920x1080
Luminance (typical) 250 nits 300 nits
Megapixels 2.0736 2.0736
Color gamut NTSC 45% typical 100% sRGB typical
Pixels Per Inch (PPI) 157 ppi 157ppi
Contrast ratio (min.) 500:1 600:1
Response time (max.) 35 ms 35 ms
Refresh rate 60 Hz 60 Hz
Specifications of Vostro 14 5410 19
20 / 2719 / 2520 / 27
