Setting Up Your Studio XPS Laptop
This section provides information to help you set
up your Studio XPS™1640/1645/1647 laptop and
connect peripherals.
Before Setting Up Your Computer
When positioning your computer, ensure that
you have easy access to a power source,
adequate ventilation, and a level surface to
place your computer.
Restricting airflow around your computer may
cause it to overheat. To prevent overheating
ensure that you leave at least 10.2 cm (4 inches)
at the back of the computer and a minimum of
5.1 cm (2 inches) on all other sides. You should
never place your computer in an enclosed
space, such as a cabinet, carrying case, or
drawer when it is powered on.
WARNING: Do not block, push objects
into, or allow dust to accumulate in
the air vents. Do not place your Dell™
computer in a low-airflow environment,
such as a closed briefcase, or on fabric
surfaces, such as carpets or rugs, while
it is powered on. Restricting the airflow
can damage the computer, deteriorate the
computer performance, or cause a fire.
The computer turns on the fan when the
computer gets hot. Fan noise is normal and
does not indicate a problem with the fan or
the computer.
CAUTION: Placing or stacking heavy or
sharp objects on the computer may result
in permanent damage to the computer.

6
Setting Up Your Studio XPS Laptop
Connecting the AC Adapter

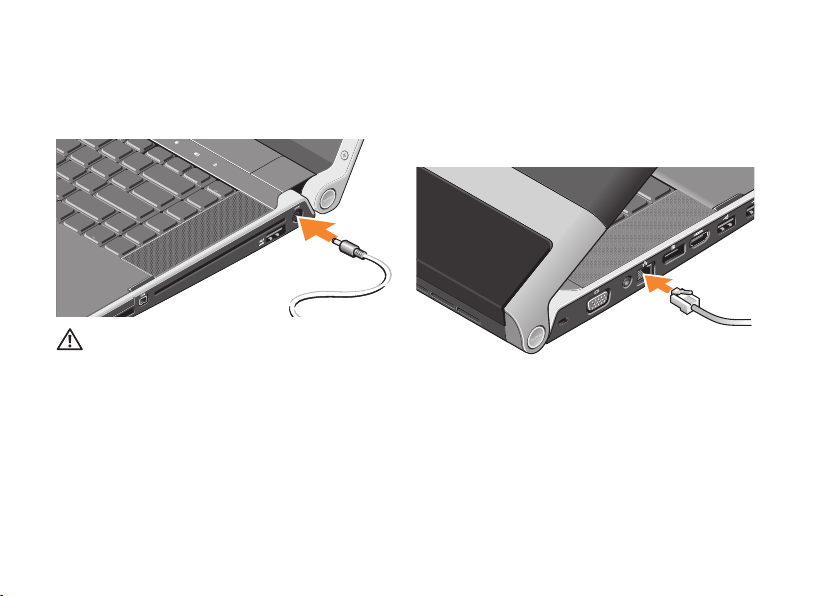

Connect the AC adapter to the computer and
then plug it into a wall outlet or surge protector.
WARNING: The AC adapter works with
worldwide electrical outlets. However,
power connectors and power strips vary
among countries. Using an incompatible
cable or incorrectly connecting the cable
to a power strip or electrical outlet may
cause fire or equipment damage.
Connecting the Network Cable
(Optional)
If you plan to use a wired network connection,
plug in the network cable.

7
Setting Up Your Studio XPS Laptop
Turning on Your Computer

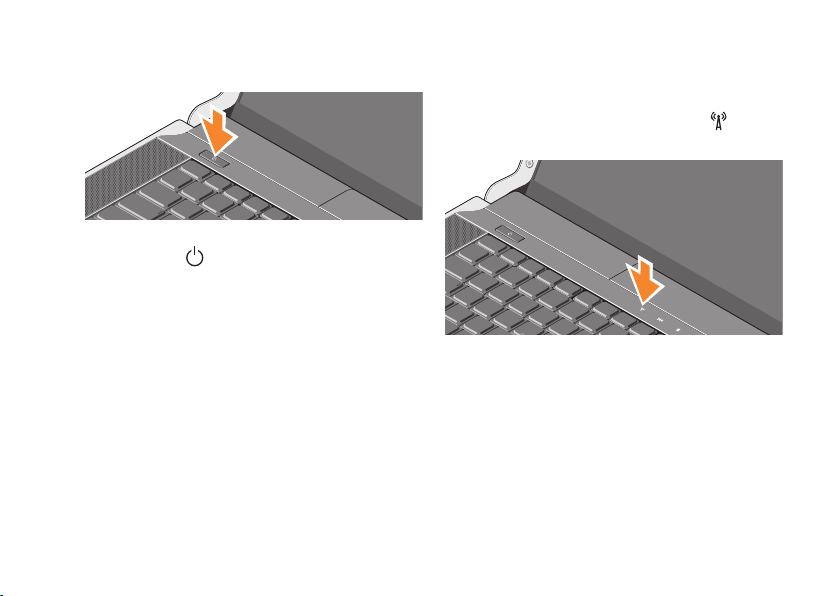

To turn on your computer, lightly press the
power button on the center control cover
and then release.
Using the Wireless Button
To turn on wireless, with the computer turned
on, lightly touch the wireless symbol on the
center control cover and then release.
This button allows you to quickly turn all of your
wireless radios (Bluetooth®, Wi‑Fi, and WWAN)
off, such as when you are asked to disable all
wireless radios on an airplane flight. Pressing
this button one time turns all of your radios off.
Pressing it again returns your wireless radios to
their respective states they were in before you
pressed the button the first time.

8
Setting Up Your Studio XPS Laptop
Set Up Microsoft Windows
Your computer is preconfigured with the
operating system you selected at the time of
purchase. To set up Microsoft®Windows®for the
first time, follow the instructions on the screen.
These steps are mandatory and may take some
time to complete. The screens will take you
through several procedures including accepting
license agreements, setting preferences and
setting up an Internet connection.
CAUTION: Do not interrupt the operating
system’s setup process. Doing so may
render your computer unusable and you
will need to reinstall the operating system.
NOTE: For optimal performance of your
computer, it is recommended that you
download and install the latest BIOS and
drivers for your computer available at
support.dell.com.
NOTE: For more information on the
operating system and features, see
support.dell.com/MyNewDell.
Create System Recovery Media
(Recommended)
NOTE: It is recommended that you create a
system recovery media as soon as you set
up Microsoft Windows.
The system recovery media can be used to
restore your computer to the operating state it
was in when you purchased the computer, while
preserving data files (without the need of the
Operating System disc). You can use the system
recovery media if changes to the hardware,
software, drivers, or other system settings have
left the computer in an undesirable operating
state.
You will require the following to create the
system recovery media:
Dell DataSafe Local Backup•
USB key with a minimum capacity of 8 GB or•
DVD‑R/DVD+R/Blu‑ray Disc™
NOTE: Dell DataSafe Local Backup does
not support rewritable discs.

9
Setting Up Your Studio XPS Laptop
To create a system recovery media:
Ensure that the AC adapter is connected (see1.
“Connecting the AC Adapter” on page 6).
Insert the disc or USB key in the computer.2.
Click3. Start → Programs→Dell DataSafe
Local Backup.
Click4. Create Recovery Media.
Follow the instructions on the screen.5.
NOTE: For information on using the system
recovery media, see “System Recovery
Media” on page 49.
Connecting to the Internet
(Optional)
To connect to the Internet, you need an external
modem or network connection and an Internet
Service Provider (ISP).
If an external USB modem or WLAN adapter
is not a part of your original order, you can
purchase one at www.dell.com.
Setting Up a Wired Connection
If you are using a dial‑up connection,•
connect the telephone line to the optional
external USB modem and to the telephone
wall connector before you set up your
Internet connection.
If you are using a DSL or cable/satellite•
modem connection, contact your ISP
or cellular telephone service for setup
instructions.
To complete setting up your wired Internet
connection, follow the instructions in “Setting
Up Your Internet Connection” on page 10.

10
Setting Up Your Studio XPS Laptop
Setting Up a Wireless Connection
NOTE: To set up your wireless router, see
the documentation that shipped with your
router.
Before you can use your wireless Internet
connection, you need to connect to your
wireless router.
To set up your connection to a wireless router:
Windows
®
7
Ensure that wireless is enabled on your1.
computer (see “Using the Wireless Button”
on page 7).
Save and close any open files, and exit any2.
open programs.
Click3. Start →Control Panel.
In the search box, type4. network, and
then click Network and Sharing Center→
Connect to a network.
Follow the instructions on the screen to5.
complete the setup.
Windows Vista
®
Ensure that wireless is enabled on your1.
computer (see “Using the Wireless Button”
on page 7).
Save and close any open files, and exit any2.
open programs.
Click3. Start →Connect To.
Follow the instructions on the screen to4.
complete the setup.
Setting Up Your Internet Connection
ISPs and ISP offerings vary by country. Contact
your ISP for offerings available in your country.
If you cannot connect to the Internet but have
successfully connected in the past, the ISP
might have a service outage. Contact your ISP
to check the service status, or try connecting
again later.
Have your ISP information ready. If you do not
have an ISP, the Connect to the Internet wizard
can help you get one.

11
Setting Up Your Studio XPS Laptop
To set up your Internet connection:
Windows 7
Save and close any open files, and exit any1.
open programs.
Click2. Start →Control Panel.
In the search box, type3. network, and then
click Network and Sharing Center→Set up
a new connection or network→Connect to
the Internet.
The Connect to the Internet window appears.
NOTE: If you do not know which type of
connection to select, click Help me choose
or contact your ISP.
Follow the instructions on the screen and4.
use the setup information provided by your
ISP to complete the setup.
Windows Vista
Save and close any open files, and exit any1.
open programs.
Click2. Start →Control Panel.
In the search box, type3. network, and then
click Network and Sharing Center→ Set up
a connection or network→Connect to the
Internet.
The Connect to the Internet window appears.
NOTE: If you do not know which type of
connection to select, click Help me choose
or contact your ISP.
Follow the instructions on the screen and4.
use the setup information provided by your
ISP to complete the setup.

12
Setting Up Your Studio XPS Laptop
Setting Up the TV Tuner (Optional)
NOTE: Availability of the TV tuner may vary
by region.
You can set up the TV Tuner through the
Media Center.
To set up the TV Tuner for the first time:
Follow this procedure if you are launching the
Media Center for the first time.
Double‑click the Media Center icon on the
desktop.
Select• Express setup,
Go to– Main Menu→Tasks→Settings→
TV→Set up TV Signal→Confirm Your
Region and follow the instructions given.
Go to– Main Menu→TV + Movies→Set up
TV→Confirm Your Region and follow the
instructions given.
Select• Custom setup,
Follow the instructions given.–
In the– Optional Setup screen, choose
Configure tuners, TV signal, and Guide.
Click– Next and confirm your region.
To re-setup the TV Tuner, if required:
Follow this procedure if you have launched
Media Center previously.
Double‑click the Media Center icon on the1.
desktop.
Go to2. Main Menu→Tasks→Settings→
TV→Set up TV Signal→Confirm Your
Region.

13
Setting Up Your Studio XPS Laptop
Setting Up the 5.1 Audio
Connections (Optional)
To set up the 5.1 audio connections:
Click Start →Control Panel→ Additional
Options. Run IDT Audio Control Panel. In the
Jacks tab, there are three connector icons.
Follow the instructions to finish the setup.
Click the microphone icon, select1. Device:
Rear Speakers, and plug your rear speaker
cable to the audio in/microphone connector.
Click the middle headphone icon, select2.
Device: Center/LFE Speaker, and plug your
center/woofer speaker cable to the middle
audio out/headphone connector.
Click the right headphone icon, select3.
Device: Front Speaker, and plug your
front speaker cable to the right audio out/
headphone connector.

14
Your computer has several indicators,
buttons, and features that provide information
at‑a‑glance and time‑saving shortcuts for
common tasks.
Device Status Lights
1234
1Hard drive activity light – Turns on
when the computer reads or writes data. A
flashing light indicates hard drive activity.
CAUTION: To avoid loss of data,
never turn off the computer while the
hard drive activity light is flashing.
2Bluetooth®status light
(optional) – Turns on when Bluetooth
wireless is enabled.
To turn on wireless, with the computer
turned on, lightly touch the wireless
symbol on the center control cover
and then release.
NOTE: Bluetooth wireless technology
is an optional feature.
Using Your Studio XPS Laptop

15
Using Your Studio XPS Laptop
To turn off Bluetooth wireless, either
press the wireless symbol or right‑click
the Bluetooth icon in the notification
area of your desktop, and click Disable
Bluetooth Radio.
3WiFi status light – Turns on when the
internal WLAN is enabled.
To turn on wireless, with the computer
turned on, lightly touch the wireless
symbol on the center control cover
and then release.
4WWAN status light – Turns on when
WWAN is enabled.
To turn on wireless, with the computer
turned on, lightly touch the wireless
symbol on the center control cover
and then release.

16
Using Your Studio XPS Laptop
Right Side Features
12
3
4
56
7
1ExpressCard slot – Supports one
ExpressCard.
NOTE: Your computer ships with
a plastic blank installed in the
ExpressCard slot. Blanks protect
unused slots from dust and other
particles. Save the blank for use
when no ExpressCard is installed in
the slot; blanks from other computers
may not fit your computer.
2
SD/MMC - MS/Pro - xD
8-in-1 Media Card Reader – Provides
a fast and convenient way to view and
share digital photos, music, videos, and
documents stored on the following digital
memory cards:

17
Using Your Studio XPS Laptop
Secure digital (SD) memory card•
Secure Digital High Capacity•
(SDHC) card
S• ecure Digital Input/Output (SDIO)
card
Multi Media Card (MMC)•
Memory Stick•
Memory Stick PRO•
xD‑Picture Card (type ‑ M and type ‑ H)•
Hi Densi• ty‑SD
NOTE: Your computer ships with a
plastic blank installed in the media
card slot. Blanks protect unused slots
from dust and other particles. Save
the blank for use when no media card
is installed in the slot. Blanks from
other computers may not fit your
computer.
3IEEE 1394 connector – Connects to
high‑speed serial multimedia devices,
such as digital video cameras.
4Optical Drive – Plays or burns only
standard‑size and shape (12 cm) CDs,
and DVDs. Ensure that the side with
print or writing is facing upward when
inserting discs.
NOTE: Do not use non‑standard‑size
or shape discs (including mini‑CDs
and mini‑DVDs) as you will damage
the drive.

18
Using Your Studio XPS Laptop
5eSATA/USB combo connector with
USB PowerShare – Connects to eSATA
compatible storage devices (such as
external hard drives or optical drives) or
USB devices (such as a mouse, keyboard,
printer, external drive, or MP3 player).
This connector can also be used
for charging USB devices when the
computer is powered on/off or in sleep
state. This function may not work with
certain external USB devices when the
computer is in powered off or sleep state,
even if they are compliant with the USB
specification. In such cases, turn the
computer on to charge the device.
NOTE: If the computer is turned off or
in sleep state while the USB device is
charging, unplug the USB device and
plug it in again to continue charging
the device.
NOTE: The USB PowerShare will be
automatically shut off when only 10%
of the total battery life remains.
6AC adapter connector – Connects
to the AC adapter which powers the
computer and charges the battery.
