Dell SE2219H User manual

Monitor Model: SE2219H/SE2219HX
Regulatory model: SE2219Hf
Dell SE2219H/SE2219HX
User’s Guide

Copyright © 2018 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks
are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective
owners.
2018 – 09
Rev. A01
Notes, Cautions and Warnings
NOTE: A NOTE indicates important information that helps you make
better use of your computer.
CAUTION: A CAUTION indicates potential damage to hardware or loss
of data if instructions are not followed.
WARNING: A WARNING indicates a potential for property damage,
personal injury, or death.

Contents
3
Contents
About your monitor 5
5
6
Identifying features and controls 7
10
LCD monitor quality and pixel policy
Setting up the monitor 17
Connecting the stand 17
19
Package contents
20
Removing the stand 20
Operating your monitor 22
Turning on the monitor 22
Using the front panel controls 22
Using the On-Screen Display (OSD) menu 24
42
│
.........................
......................
.....................
Product features
. . . . . . . . . . . . . . . . . . . . . .
Using tilt . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . .
. . . . . . . . . . .
16
. . . . . . . .
. . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . .
Organizing cables . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . .
Setting up your monitor . . . . . . . . . . . . . . . . . . 40
Connecting your monitor . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . .
Maintenance guidelines . . . . . . . . . . . . . . . . . .
16
Plug and play capability
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..
16
Monitor sepcifiactions
.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .

Troubleshooting 43
43
45
46
48
Appendix 49
49
Contacting Dell 49
4 │
.................................
...........................
. . . . . . . . . . . . . . . . . . . . . .
Self-test . . . . . . . . . . . . . . . . . . . . . . . . .
Built-in diagnostics
Common problems
. . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . .
. . .
FCC notices (U.S. Only) and
other regulatory information
. . . . . . . . . . . .
Contents
Pin assignments . . . . . . . . . . . . . . . . . . . . . .
Product-specific problems
50

About your m |rotino 5
About your monitor
Package contents
Your monitor ships with the components indicated in the table. Ensure that you
have received all the components and see Contacting Dell if anything is missing.
Monitor
Stand riser
Stand base
Power cable (varies by
country)
VGA cable
(SE2219H)
NOTE: Some items may be optional and may not ship with your
monitor. Some features may not be available in certain countries.
NOTE: To set up with any other stand, see the documentation that
shipped with the stand.

SE2219H/SE2219HX : 54.61 cm (21.5 inch) diagonal viewable area
display(measured diagonally). 1920 x 1080 resolution, with full-screen support for
lower resolutions.
Wide viewing angles of 178 degrees in vertical and horizontal directions.
High dynamic contrast ratio (8,000,000:1).
HDMI connectivity makes it simple and easy to connect with legacy and new
systems.
Plug and play capable if supported by your computer
On-Screen Display (OSD) adjustments is to easy setup and optimize screen.
0.5 W standby power when in the sleep mode.
Optimize eye comfort with a icker-free screen.
Possible long-term eects if blue light emission from the monitor may cause
damage to the eyes, including eye fatigue or digital eye strain. ComfortView feature
is designed to reduce the amount of blue light emitted from the monitor to help
optimize eye comfort.
Security-lock slot.
Arsenic-free glass and mercury-free panel.
BFR/PVC-Reduced (the circuit boards inside your monitor are made using BFR/
PVC-free laminates).
RoHS Compliant.
Energy Saver feature for Energy Star compliance.
| About your monitor
6
HDMI cable
(SE2219HX)
Quick Setup Guide
Safety and Regulatory
Information
Product features
The Dell SE2219H/SE2219HX at panel display has an active matrix,
Thin-Film Transistor (TFT), Liquid Crystal Display (LCD), anti-static,and LED backlight.
The monitor features include:

About your monito r | 7
Identifying features and controls
Front view
Label Description Use
1Function buttons To access the OSD menu and change
the settings if required. (For more
information, see Using the front panel
controls)
2Power On/Off button
(with LED indicator) To turn the monitor On or Off.
2
1

8 | About your monitor
Back view
Label Description Use
1Security-lock slot To secure the monitor using a security
lock (purchased separately).
2Regulatory label, barcode, serial
number, and Service Tag label
List the regulatory approvals. See this
label if you need to contact Dell for
technical support. The Service Tag is a
unique alphanumeric identifier that
enables Dell service technicians to
identify the hardware components in
your computer and access warranty
information.
3Regulatory information (engraved) List the regulatory approvals.
4
Stand release button Release stand from monitor.
5
To organize cables.
Side view
Cable-management slot
5
4
With monitor stand
Without monitor stand
321

About your monitor | 9
Bottom view, without monitor stand
Label Description Use
1Power port To connect the monitor power cable.
2
VGA port For connection to your computer using VGA cable.
3
HDMI port For connection to your computer using HDMI cable.
SE2219H/SE2219HX

1274.84 cm2(197.52 in. 2
10 | About your monitor
Model
Screen type Active matrix-TFT LCD
Panel type In-Plane Switching
Viewable area
Diagonal
Active area:
Horizontal
Vertical
Area
546.1 mm (21.5 in. )
)
Pixel pitch 0.24795 mm
Pixel per inch (PPI) 102
Viewing angle:
Vertical
Horizontal
178° (typical)
178° (typical)
Brightness 250 cd/m2
(typical)
Contrast ratio 1,000 to 1 (typical)
8,000,000 to 1 (Dynamic Contrast)
Faceplate coating Anti-glare with 3H hardness
Backlight LED edgelight system
8 ms
5 ms
Color depth 16.7 million colors
Color gamut CIE 1931 (72%)
Dell display manager
compatibility
Yes
Connectivity
Bezel width (edge of
monitor to active area)
6.4 mm (Top)
6.4 mm (Left/Right)
20.5 mm (Bottom)
Security Security-lock slot for cable lock (optional purchase)
Tilt angle -5° to 21°
One VGA port and one HDMI 1.4 (HDCP 1.4) port
with SE2219H/SE2219HX monitors.
267.79 mm (10.54in. )
476.06 mm (18.74 in. )
Response time (Gray to Gray):
Normal mode
Fast mode
SE2219H/SE2219HX
Monitor specications

About your monitor | 11
Model
Horizontal scan range 30 kHz to 83 kHz (automatic)
Vertical scan range 56 Hz to 76 Hz (automatic)
Maximum preset resolution 1920 x 1080 at 60 Hz
Preset display modes
SE2219H/SE2219HX
Display Mode Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(Horizontal /
Vertical)
VESA, 720 x 400 31.5 70.1 28.3 -/+
VESA, 640 x 480 31.5 60.0 25.2 -/-
VESA, 640 x 480 37.5 75.0 31.5 -/-
VESA, 800 x 600 37.9 60.3 40.0 +/+
VESA, 800 x 600 46.9 75.0 49.5 +/+
VESA, 1024 x 768 48.4 60.0 65.0 -/-
VESA, 1024 x 768 60.0 75.0 78.8 +/+
VESA, 1152 x 864 67.5 75.0 108.0 +/+
VESA, 1280 x 1024 64.0 60.0 108.0 +/+
VESA, 1280 x 1024 80.0 75.0 135.0 +/+
VESA, 1600 x 900 60.0 60.0 108.0 +/+
VESA, 1920 x 1080 67.5 60.0 148.5 +/+
SE2219H/SE2219HX
Resolution specications

12 | About your monitor
Model SE2219H/SE2219HX
Video input signals
Synchronization
input signals
Separate horizontal and vertical synchronizations,
polarity-free TTL level,
SOG (Composite SYNC on green)
100 VAC to 240 VAC/50 Hz or 60 Hz ± 3 Hz/1.5 A
30A (120V AC Input)
60A (240V AC Input)
Physical characteristics
SE2219H/SE2219HX
Signal cable type:
Analog
Digital
Dimensions (with stand):
Height 385.2 mm (15.17 in. )
Width 488.9 mm (19.25 in. )
Depth 152.8 mm (6.02 in. )
294.7 mm (11.60 in. )
488.9 mm (19.25 in. )
46.4 mm (1.83 in. )
Dimensions (without stand):
Height
Width
Depth
Model
AC input voltage/
frequency/current
Inrush current
SE2219H/SE2219HX
SE2219H/SE2219HX
Electrical specications
Analog RGB: 0.7 Volts ± 5 %,
75 ohm input impedance
HDMI 1.4 (HDCP 1.4), 600 mV
for each differential line, 100
ohm input impedance per
differential pair
D-Sub (VGA), 15 pins;
HDMI, 19 pins

About your monitor | 13
Model SE2219H/SE2219HX
Temperature:
Operating 0°C to 40°C (32°F to 104°F)
Non-operating:
Storage
Shipping
-20°C to 60°C (-4°F to 140°F)
-20°C to 60°C (-4°F to 140°F)
Humidity:
Operating 10% to 80% (non-condensing)
5% to 90% (non-condensing)
5% to 90% (non-condensing)
Non-operating:
Storage
Shipping
Altitude:
Operating (maximum) 5,000 m (16,400 ft)
Non-operating (maximum)
Thermal dissipation
Weight: SE2219H/SE2219HX
With packaging 4.80 kg (10.58 lb)
With stand assembly and
cables
3.45 kg (7.61 lb)
Without stand assembly and
cables
2.67 kg (5.89 lb)
Weight of stand assembly 0.52 kg (1.15 lb)
Environmental characteristics
12,192 m (40,000 ft)
SE2219H /SE2219HX
171.6 mm (6.76 in.)
249.0 mm (9.80 in.)
152.8 mm (6.02 in.)
Stand dimensions:
Height
Width
Depth
68.2 BTU/hour (maximum)
58.0 BTU/hour (typical)

14 | About your monitor
VESA
modes
Horizontal sync Vertical sync Video Power
indicator
Power
consumption
Power management modes
If you have VESA's DPM compliance graphic cards or software installed on your
computer, the monitor can automatically reduce its power consumption when not in
use. This is referred to as power save mode*. If the computer detects input from the
keyboard, mouse or other input devices, the monitor automatically resumes
functioning. The following table shows the power consumption and signaling of this
automatic power saving feature.
Normal
operation
Active Active Active White 20 W (maximum)
17 W (typical)
mode
Inactive Inactive Blanked White
(Glowing )
Less than 0.5 W
- - - O Less than 0.3 W
Energy star Power consumption
PON 15.95 W
ETEC 50.59 kWh
SE2219H/SE2219HX
NOTE:
PON: Power consumption of on mode as dened in Energy Star.
ETEC: Total energy consumption in kWh as dened in Energy Star.
This document is informational only and reects laboratory performance. Your product may
perform dierently, depending on the software, components and peripherals you ordered
and shall have no obligation to update such information. Accordingly, the customer should
not rely upon this information in making decisions about electrical tolerances or otherwise.
No warranty as to accuracy or completeness is expressed or implied.
*Zero power consumption in o mode can only be achieved by disconnecting the
power cable from the monitor.

Activate the computer and the monitor to gain access to the OSD.
NOTE: This monitor is ENERGY STAR-certified
The OSD functions only in the normal operation mode. When any button is pressed
in the Active-off mode, one of the following messages will be displayed:
15
|About your monitor
Dell 22 Monitor
SE2219H
?
No VGA Cable
The display will go into Power Save Mode in 4 minutes.
www.dell.com/SE2219H
Dell 22 Monitor
SE2219HX
?
No HDMI cable
The display will go into Power Save Mode in 4 minutes.
SE2219HX
www.dell.com/SE2219HX
SE2219H

Plug and play capability
You can install the monitor in any Plug and Play-compatible system. The monitor
automatically provides the computer system with its Extended Display Identification
Data (EDID) using Display Data Channel (DDC) protocols so the system can
configure itself and optimize the monitor settings. Most monitor installations are
automatic, you can select different settings if desired. For more information about
changing the monitor settings, see Operating your monitor.
LCD monitor quality and pixel policy
During the LCD Monitor manufacturing process, it is normal for one or more pixels
to become fixed in an unchanging state which are hard to see and do not affect the
display quality or usability. For more information on Dell Monitor Quality and Pixel
Policy, see Dell Support site at www.dell.com/support/monitors.
Maintenance guidelines
Cleaning your monitor
WARNING: Before cleaning the monitor, unplug the monitor
power cable from the electrical outlet.
CAUTION: Read and follow the Safety Instructions before cleaning
the monitor.
For best practices, follow the instructions in the list below while unpacking, cleaning
or handling your monitor:
About your monitor
16 |
To clean your screen, lightly dampen a soft, clean cloth with water. If possible, use a
special screen-cleaning tissue or solution suitable for the anti-static coating. Do not
use benzene, thinner, ammonia, abrasive cleaners or compressed air.
Use a lightly-dampened cloth to clean the monitor. Avoid using detergent of
any kind as some detergents leave a milky film on the monitor.
If you notice white powder when you unpack your monitor, wipe it off with a cloth.
Handle your monitor with care as the black-colored monitor may get scratched
To help maintain the best image quality on your monitor, use a dynamically
changing screen saver and turn off your monitor when not in use.

17|
Setting up the monitor
Setting up the monitor
Connecting the stand
NOTE: The stand is not attached when the monitor is shipped from
the factory.
NOTE: The following procedure is applicable for the stand that shipped
with your monitor.
To attach the monitor stand:
1.
2. Align the stand-riser bracket with the grooves at the back of the monitor.
Connect the stand riser to the stand base, and then tighten the screw on the stand
base.

3. Slide the stand assembly until it snaps into place.
18 | Setting up the monitor

Connecting your monitor
WARNING: Before you begin any of the procedures in this
section, follow the Safety Instructions.
NOTE: Do not connect all cables to the computer at the same
time. It is recommended to route the cables through the cable-
management slot before you connect them to the monitor.
To connect your monitor to the computer:
19
|
Setting up the monitor
Connecting HDMI cable
1. Turn o your computer and disconnect the power cable.
2. Connect VGA or HDMI cable from your monitor to the computer.
Connecting VGA cable

|

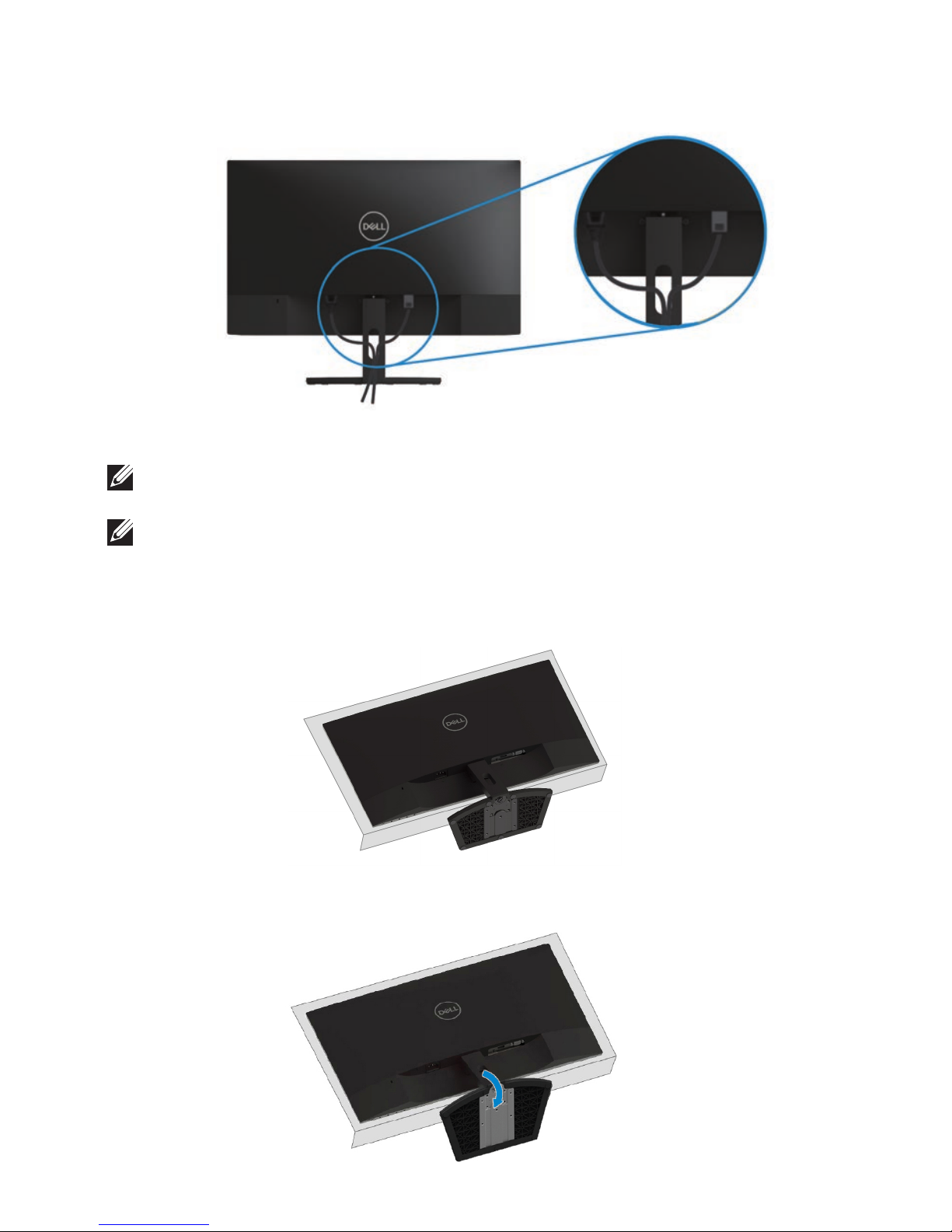

Organizing cables
Use the cable-management slot to route the cables connected to your monitor.
Removing the stand
To remove the stand:
1. Place the monitor on a soft cloth or cushion along the desk.
2. Tilt the stand downwards to access to the release button.
NOTE: To prevent scratches on the screen when removing the stand,
ensure that the monitor is placed on a soft and clean surface.
NOTE: The following procedure is applicable for the stand that shipped
with your monitor.
20 | Setting up the monitor
