Dell™U3011 Flat Panel Monitor User's Guide
Notes, Cautions, and Warnings

Information in this document is subject to change without notice.
©2010DellInc.Allrightsreserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell and the DELLlogoaretrademarksofDellInc;Microsoft and Windows are either trademarks or registered trademarks of Microsoft Corporation in
the United States and/or other countries, Intel is a registered trademark of Intel Corporation in the U.S. and other countries; and ATI is a trademark of Advanced Micro Devices,
Inc. ENERGY STAR is a registered trademark of the U.S. Environmental Protection Agency. As an ENERGY STAR partner, Dell Inc. has determined that this product meets the
ENERGY STAR guidelines for energy efficiency.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any
proprietary interest in trademarks and trade names other than its own.
Model U3011t
July 2010 Rev. A00
About Your Monitor
Setting Up the Monitor
Operating the Monitor
Troubleshooting
Appendix
NOTE:
A NOTE indicates important information that helps you make better use of your computer.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
WARNING: A WARNING indicates a potential for property damage, personal injury,or death.

Back to Contents Page

About Your Monitor
Dell™U3011FlatPanelMonitorUser'sGuide
Package Contents
Your monitor ships with the components shown below. Ensure that you have received all the components and contact Dell if something is missing.

Package Contents
Product Features
Identifying Parts and Controls
Monitor Specifications

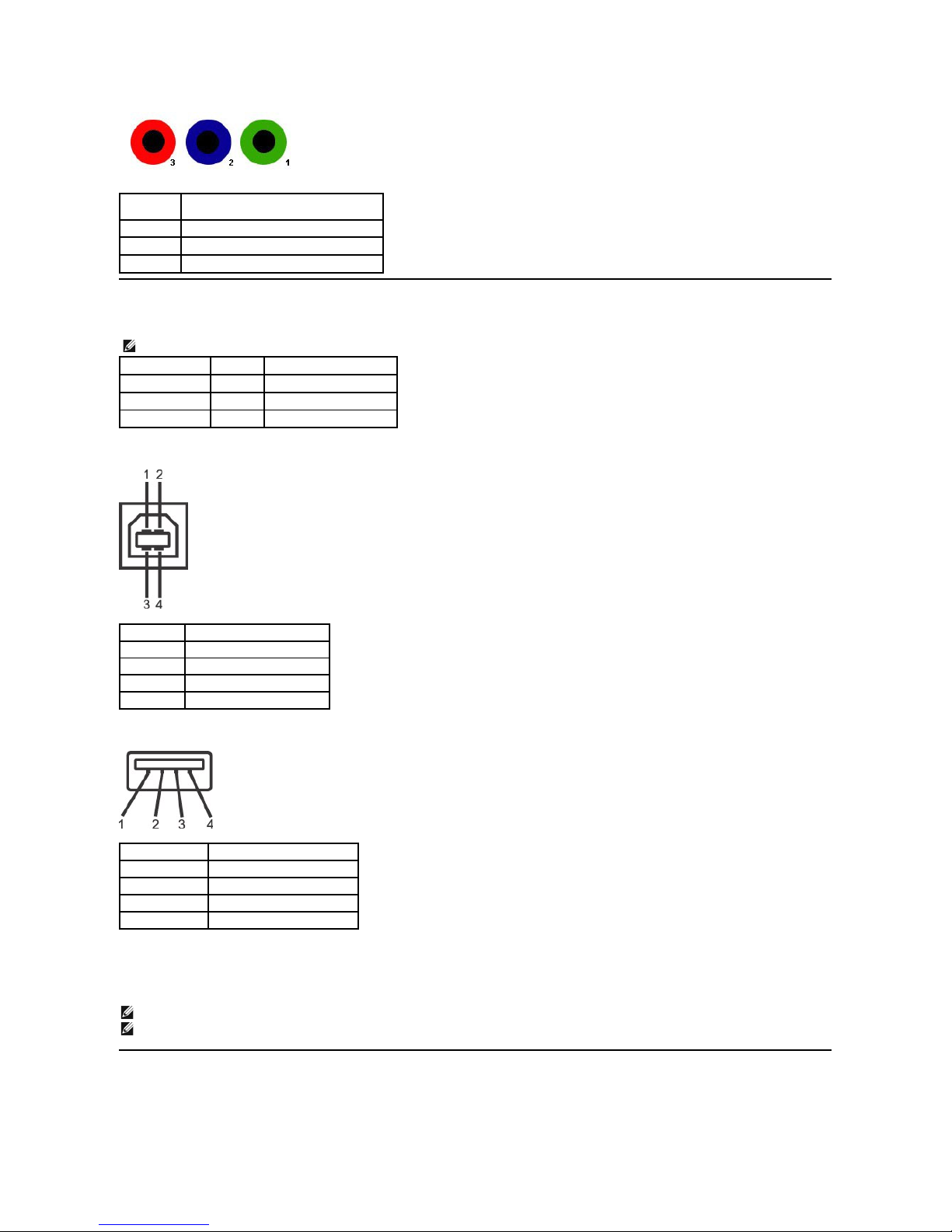

Universal Serial Bus (USB) Interface
Plug and Play Capability
Card Reader Specifications
LCD Monitor Quality and Pixel Policy
Maintenance Guidelines
NOTE: Some items may be optional and may not ship with your monitor. Some features or media may not be available in certain countries.
lMonitor with stand
lPower Cable
lVGA Cable
lDual-link DVI Cable (attached to the monitor)
lDisplayPort Cable
lUSB up stream cable (enables the USB ports and card reader on the monitor)

lDrivers and Documentation media
lQuick Setup Guide


Product Features
The U3011 flat panel display has an active matrix, thin-film transistor (TFT), liquid crystal display (LCD). The monitor features include:
■756.23 mm (30 inches) viewable area display (measured diagonally).
■2560 x 1600 resolution, plus full-screen support for lower resolutions.
■Wideviewingangle(178°/178°)andsuperbgrayscaletrackingminimizescolordeviationsatbiasedanglesofviewing(sitting,standing,ormovingside-to-
side) which ensures ultra-smooth color gradation.
■Tilt, swivel and vertical extension adjustment capabilities.
■Removable stand and Video Electronics Standards Association (VESA™) 100 mm mounting holes for flexible mounting solutions.
■Plug and play capability if supported by your system.
■On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.
■Software and documentation media includes an information file (INF), Image color Matching File (ICM), and product documentation.
■Security lock slot.
■Compatible with xvYCC, Adobe RGB and sRGB color standards.
■Factory calibrated to an average delta E of < 5 under sRGB and Adobe RGB input source for brand-new Dell monitor U3011. Dedicated Custom Color Mode (6-
axis Color-control) for Saturation, Hue, Gain (RGB) and offset (RGB).
■12-bit internal processing which tested HDMI1.3 with deep color (12-bit).
■7-in-1 USB 2.0 Card Reader (xD, SD/Mini SD, MS/HSMD/MSPRO, MMC).
■Supports VGA, DVI-D, DisplayPort, HDMI and Component video signals.
■SupportsPicturebyPicture(PBP)Selectmode.
Identifying Parts and Controls
Front View
lColor calibration datasheet
lProduct and Safety Information Guide
Front View
Front panel controls
Label
Description
1
Shortcut Key 1 -Preset Modes (Default)
2
Shortcut Key 2 -Brightness/Contrast (Default)

Back View
Side View
3
Shortcut Key 3 -Input Source (Default)
4
Menu
5
Exit
6
Power (with power light indicator)
NOTE: 1~5 are capacitive touch sensor keys, which are activated by placing your finger on the blue LED.
Back view
Back view with monitor stand
Label
Description
Use
1
VESA mounting holes (100 mm x 100
mm -behind attached VESA Plate)
Wall mount monitor using VESA-compatible wall mount
kit (100 mm x 100 mm).
2
Security lock slot
To help secure your monitor.
3
Barcode serial number label
To contact Dell for technical support.
4
Dell Soundbar mounting brackets (2)
To attach the optional Dell Soundbar.
5
Regulatory label
Lists the regulatory approvals.
6
Service tag label
Refer to this label if you need to contact Dell for
technical support.
7
Cable management hole
Helps organize cables by placing them through the hole.
Left view
Right view
Label
Description
1
Card reader: for details, see Card Reader Specifications.
2
USB downstream port.
3
USB downstream port (support up-to 1.5 A charging current).
NOTE: To use the USB connectors on your monitor, connect the USB cable to your computer and the USB upstream connector to your monitor.

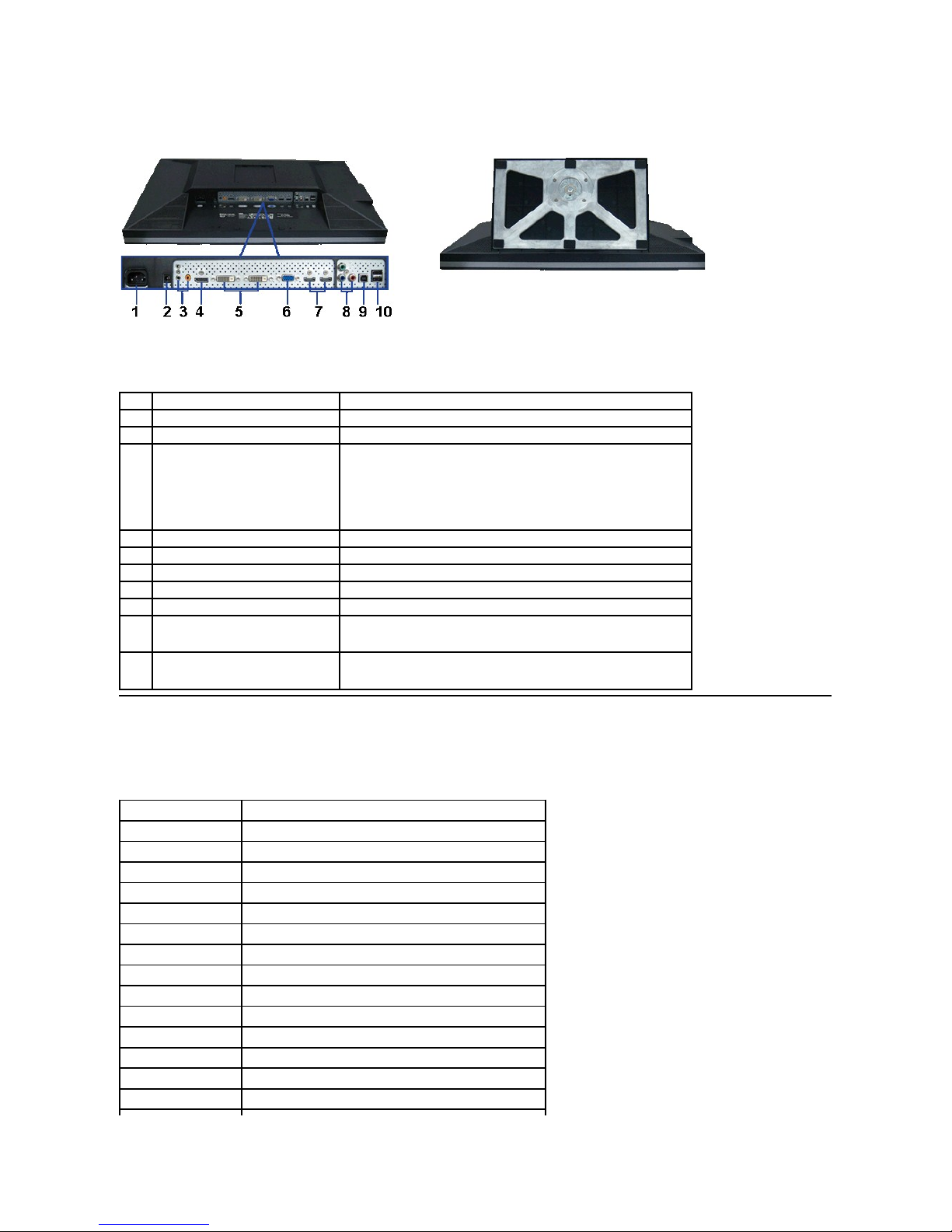

Bottom View
Monitor Specifications
Flat Panel Specifications


Bottom view
Bottom view with monitor stand
Label
Description
Use
1
AC power cord connector
Connect the power cable.
2
DC power connector for Dell Soundbar
Connect the power cord for the soundbar (optional).
3
Audio connectors
Connect the HDMI 2.0 channel or DisplayPort 2.0 channel or 5.1 channel
audio output devices.
Connectthefrontleft/rightchanneloutputtothegreenconnector.Usethis
connector for 2.0/2.1 channel audio connection.
Connect the rear left/right channel output to the black connector. Use this
connector for 5.1 channel audio connection.
Connectthecenter/subwooferchanneloutputtotheorangeconnector.Use
this connector for 5.1 channel audio connection.
4
DisplayPort connector
Connect your computer DisplayPort cable.
5
DVI connector
Connect your computer DVI (Dual link) cable.
6
VGA connector
Connect your computer VGA cable.
7
HDMI connector
Connect devices such as a DVD player or set-top box.
8
Component video connectors
Connect devices such as a DVD player, set-top box, or cable TV box.
9
USB upstream port
Connect the USB cable that came with your monitor to the monitor and the
computer. Once this cable is connected,you can use the USB connectors on
the side and bottom of the monitor.
10
USB downstream ports
Connect your USB devices. You can only use this connector after you have
connected the USB cable to the computer and USB upstream connector on
the monitor.
Model
U3011
Screen type
Active matrix - TFT LCD
Panel type
IPS
Screen dimensions
756.23 mm (30 inches)
Preset display area:
641.28 mm x 400.80 mm
Horizontal
641.28 mm (25.25 inches)
Vertical
400.80 mm (15.78 inches)
Pixel pitch
0.2505mm
Pixel per Inch
101
Viewing angle
178°(vertical)typical,178°(horizontal)typical
Luminance output
370 cd/m²(typical)
Contrast ratio
1000 to 1 (typical), 100,000 to 1 (max, Dynamic Contrast on)
Faceplate coating
Antiglare with hard-coating 3H
Backlight
Direct Light Type_18 CCFL
Response Time
GTG AVR 7 ms / GTG_MAX 17 ms

*U3011 color gamut (typical) is based on CIE1976 (117%) and CIE1931 (102%) test standards.
Resolution Specifications
Analog signal input
Digital signal Input (DVI dual link and DisplayPort and HDMI)
Supported Video Modes
Preset Display Modes
Electrical Specifications
Color depth
1.07 billion colors
Color Gamut
117%* NTSC typical / 100% sRGB, 99% Adobe RGB
Horizontal scan range
30 kHz to 99 kHz
Vertical scan range
56Hzto86Hz
Optimal preset resolution
2048 x 1280 at 60 Hz
Highest preset resolution
2048 x 1280 at 60 Hz
Horizontal scan range
30 kHz to 112.5 kHz
Vertical scan range
56Hzto86Hz
Optimal preset resolution
2560 x 1600 at 60 Hz
(DVI/DisplayPort input sources)
1920 x 1200 at 60 Hz (HDMI
input source)
Highest preset resolution
2560 x 1600 at 60 Hz
(DVI/DisplayPort input sources)
1920 x 1200 at 60 Hz (HDMI
input source)
Video display capabilities (HDMI
playback)
480i/480p/576i/576p/720p/1080i/1080p
Video display capabilities (Component
playback)
480i/480p/576i/576p/720p/1080i/1080P
Display Mode
Horizontal Frequency
(kHz)
Vertical Frequency (Hz)
Pixel Clock (MHz)
Sync Polarity
(Horizontal/Vertical)
VESA, 720 x 400
31.47
70.0
28.322
-/+
VESA, 640 x 480
31.47
60.0
25.175
-/-
VESA, 640 x 480
37.5
75.0
31.5
-/-
VESA, 800 x 600
37.88
60.0
40
+/+
VESA, 800 x 600
46.88
75.0
49.5
+/+
VESA, 1024 x 768
48.36
60.0
65.0
-/-
VESA, 1024 x 768
60.02
75.0
78.75
+/+
VESA, 1152 x 864
67.5
75.0
108
+/+
VESA, 1280 x 800
49.7
60.0
83.5
-/+
VESA, 1280 x 1024
64.0
60.0
108
+/+
VESA, 1280 x 1024
80.0
75.0
135
+/+
VESA, 1600 x 1200
75.0
60.0
162
+/+
VESA, 1920 x 1200
74.6
60.0
193.5
-/+
VESA, 2048 x 1280
78.82
60.0
174.25
+/-
VESA, 2560 x 1600
98.71
60.0
268.5
+/-
Video input signals
Analog RGB, 0.7 Volts +/-5%, positive polarity at 75
ohm input impedance
Digital DVI-D TMDS, 600mV for each differential line,
positive polarity at 50 ohm input impedance
HDMI TMDS, 600 mV for each differential line,
positive polarity at 50 ohm input impedance or 100
Ohm per differential pair
DisplayPort 1.1a signal input support
Component, Y 0.7 volt, Pb, Pr are all 0.7 volt(p-p),

Physical Characteristics
Environmental Characteristics
sync(H+V) 0.3 volt, 75 ohm input impedance
Synchronization input signals
Separate horizontal and vertical synchronizations,
polarity-free TTL level, SOG (Composite SYNC on
green)
AC input voltage/frequency/current
100 to 240 VAC / 50 Hz/60 Hz +/-3 Hz / 2.5 A
(Max.)
Inrush current
120 V: 42 A (Max.) at 0 oC
220 V: 80 A (Max.) at 0 oC
Connector type
15-pin D-subminiature, blue connector; DVI-D,
white connector; HDMI/DisplayPort, black
connector; Component
Signal cable type
DVI: Detachable, DVI-D, Solid pins, shipped
attached to the monitor
DisplayPort: Detachable, DisplayPort, Solid pins,
shipped detached from the monitor
Analog: Detachable, D-Sub, 15 pins, shipped
detached from the monitor
High Definition Multimedia Interface: Detachable,
HDMI, 19 pins
Component
NOTE: The component, and HDMI cables are not
included with the monitor.
Dimensions (with stand)
Height (Compressed)
481.3 mm (18.95 inches)
Height (Extended)
571.3 mm (22.50 inches)
Width
694.5 mm (27.34 inches)
Depth
211.3 mm (8.32 inches)
Dimensions (without stand)

Height
453.3 mm (17.85 inches)
Width
694.5 mm (27.34 inches)
Depth
94.4 mm (3.72 inches)
Stand dimensions

Height (Compressed)
323.2 mm (12.72 inches)
Height (Extended)
413.2 mm (16.27 inches)
Width
349.4 mm (13.76 inches)
Depth
211.3 mm (8.32 inches)
Weight

Weight with packaging
15.3 kg (33.76 lb)
Weight with stand assembly and cables
12.6 kg (27.72 lb)
Weight without stand assembly
(For wall mount or VESA mount considerations -
no cables)
9.3 kg (20.40 lb)
Weight of stand assembly
2.6 kg (5.69 lb)
Temperature

Operating
5°to35°C(41°to95°F)
Non-operating
Storage: -20°to60°C(-4°to140°F)
Shipping: -20°to60°C(-4°to140°F)
Humidity

Operating
10% to 80% (non-condensing)
Non-operating
Storage: 5% to 90% (non-condensing)
Shipping: 5% to 90%(non-condensing)
Altitude


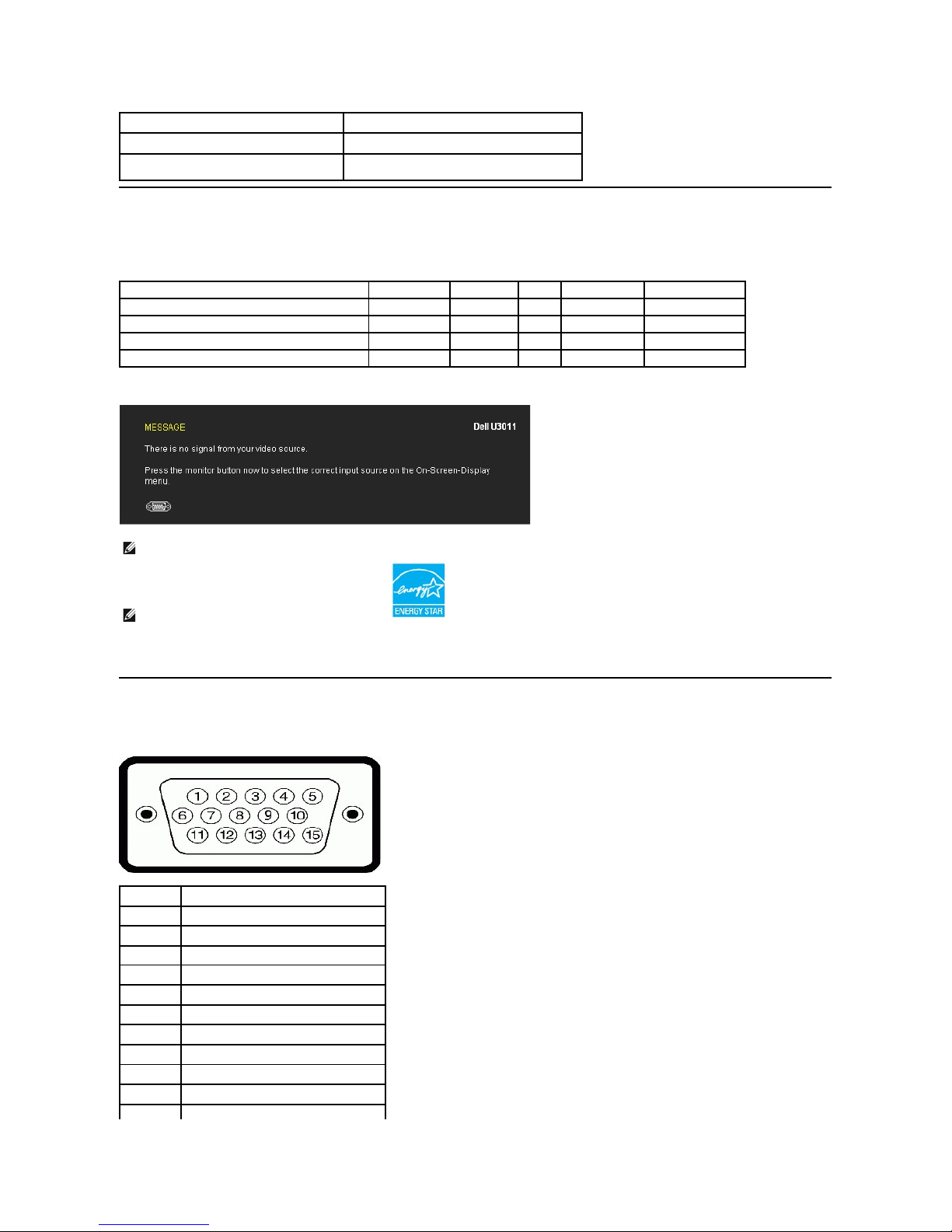

Power Management Modes
IfyouhaveVESA'sDPM™compliancedisplaycardorsoftwareinstalledinyourPC,themonitorcanautomaticallyreduceitspowerconsumptionwhennotin
use. This is referred to as Power Save Mode*. If the computer detects input from keyboard, mouse, or other input devices, the monitor automatically resumes
functioning. The following table shows the power consumption and signaling of this automatic power saving feature:
The OSD will only function in the normal operation mode. When any button is pressed in Active-off mode, one of the following messages will be displayed:
* Zero power consumption in OFF mode can only be achieved by disconnecting the main cable from the monitor.
** Maximum power consumption with max luminance, Dell Soundbar, and USB active.
Pin Assignments
VGA Connector
Operating
3,657.6 m (12,000 ft) max
Non-operating
12,192 m (40,000 ft) max
Thermal dissipation
853.6 BTU/hour (maximum)
375.59 BTU/hour (typical)
VESA Modes
Horizontal Sync
Vertical Sync
Video
Power Indicator
Power Consumption
Normal operation (with Dell Soundbar and USB active)
Active
Active
Active
Blue
250 W (maximum)**
Normal operation
Active
Active
Active
Blue
110 W (typical)
Active-off mode
Inactive
Inactive
Blanked
Amber
Less than 2 W
Switch off
-
-
-
Off
Less than 1 W
NOTE: While using the DisplayPort connector at 230V/50Hz, the DisplayPort consumes approximately 0.25 W more than the VGA or DVI-
D while in sleep mode.
NOTE: This monitor is ENERGY STAR®-compliant.
Pin Number
15-pin Side of the Connected Signal Cable
1
Video-Red
2
Video-Green
3
Video-Blue
4
GND
5
Self-test
6
GND-R
7
GND-G
8
GND-B
9
+5V
10
DDC-GND
11
GND

DVIConnector
20-pinDisplayPortConnector

12
DDC-SDA
13
H-sync
14
V-sync
15
DDC-SCL
NOTE: Pin 1 is at the top left.
Pin Number
24-pin Side of the Connected Signal Cable
1
T.M.D.S. Data 2-
2
T.M.D.S. Data 2+
3
T.M.D.S. Data 2/4 Shield
4
T.M.D.S. Data 4-
5
NT.M.D.S. Data 4+
6
DDC Clock
7
DDC Data
8
No Connect
9
T.M.D.S. Data 1-
10
T.M.D.S. Data 1+
11
T.M.D.S. Data 1/3 Shield
12
T.M.D.S. Data 3-
13
T.M.D.S. Data 3+
14
+5V Power
15
Self Test
16
Hot Plug Detect
17
T.M.D.S. Data 0-
18
T.M.D.S. Data 0+
19
T.M.D.S. Data 0/5 Shield
20
T.M.D.S. Data 5-
21
T.M.D.S. Data 5+
22
T.M.D.S. Clock Shield
23
T.M.D.S. Clock +
24
T.M.D.S. Clock -
Pin Number
20-pin Side of the Connected Signal Cable
1
ML0(p)
2
GND
3
ML0(n)
4
ML1(p)

19-pinHDMIConnector

Component Video Connector
5
GND
6
ML1(n)
7
ML2(p)
8
GND
9
ML2(n)
10
ML3(p)
11
GND
12
ML3(n)
13
GND
14
GND
15
AUX(p)
16
GND
17
AUX(n)
18
HPD
19
DP_PWR Return
20
+3.3V DP_PWR
Pin Number
19-pin Side of the Connected Signal Cable
(Cable not included)
1
TMDS DATA 2+
2
TMDS DATA 2 SHIELD
3
TMDS DATA 2-
4
TMDS DATA 1+
5
TMDS DATA 1 SHIELD
6
TMDS DATA 1-
7
TMDS DATA 0+
8
TMDS DATA 0 SHIELD
9
TMDS DATA 0-
10
TMDS CLOCK
11
TMDS CLOCK SHIELD
12
TMDS CLOCK-
13
Floating
14
Floating
15
DDC CLOCK (SDA)
16
DDC DATA (SDA)
17
GROUND
18
+5V POWER
19
HOT PLUG DETECT

Universal Serial Bus (USB) Interface
USB Upstream Connector
USB Downstream Connector
USB Ports
l1 upstream -back
l4 downstream -2 on back; 2 on left side
Plug and Play Capability
You can install the monitor in any Plug and Play-compatible system. The monitor automatically provides the computer system with its Extended Display
Pin Number
3-pin Side of the Connected Signal Cable
(Cable not included)
1
Y (Luminance signal)
2
Pb (Color differential signal)
3
Pr (Color differential signal)
NOTE: This monitor supports High-Speed Certified USB 2.0 interface.
Transfer speed
Data Rate
Power Consumption
High speed
480 Mbps
2.5W(Max.,eachport)
Full speed
12 Mbps
2.5W(Max.,eachport)
Low speed
1.5 Mbps
2.5W(Max.,eachport)
Pin Number
4-pin Side of the Connector
1
DMU
2
VCC
3
DPU
4
GND
Pin Number
4-Pin Side of the Signal Cable
1
VCC
2
DMD
3
DPD
4
GND
NOTE:USB2.0functionalityrequiresaUSB2.0-capablecomputer
NOTE:
The monitor's USB interface works only when the monitor is on or in power save mode. If you turn off the monitor and then turn it on, the attached peripherals may
take a few seconds to resume normal functionality.

Identification Data (EDID) using Display Data Channel (DDC) protocols so the system can configure itself and optimize the monitor settings. Most monitor
installations are automatic; you can select different settings if desired. For more information about changing the monitor settings, see Operating the Monitor.
Card Reader Specifications
Overview
lThe Flash Memory Card Reader is a USB storage device that allows users to read and write information from and into the memory card.

lThe Flash Memory Card Reader is automatically recognized by Microsoft®Windows®2000, Windows®XP, Windows Vista®and Windows®7.

lOnce installed and recognized, the memory card (slot) appears as a separate drive/drive letter.

lAll standard file operations (copy, delete, drag-and-drop, etc.) can be performed with this drive.
Features
The Flash Memory Card Reader has the following features:
lSupports Microsoft®Windows®2000, Windows®XP, Windows Vista®and Windows®7 operating systems.

lNo Microsoft®Windows®9X support from Dell.

lMass Storage Class device (No drivers are required under Microsoft®Windows®2000, Windows®XP, Windows Vista®and Windows®7).

lUSB-IF certification.

lSupports various memory card media.

The following table lists the slot to support what kind of memory card:

LCD Monitor Quality and Pixel Policy
During the LCD Monitor manufacturing process, it is not uncommon for one or more pixels to become fixed in an unchanging state which are hard to see and
do not affect the display quality or usability. For more information on Dell Monitor Quality and Pixel Policy, see Dell Support site at: support.dell.com.
Maintenance Guidelines
Cleaning Your Monitor
Flash memory cards type
xD memory card
Memory Stick Card (MS)/High Speed Memory Stick (HSMS)/Memory Stick Pro Card (MS PRO)/Memory Stick Duo (with Adapter)
Secure Digital Card (SD)/Mini Secure Digital (with Adapter)/ TransFlash Card (with Adapter)
MultiMedia Card (MMC)/Reduced Size MultiMedia Card (with Adapter)
Cards Type
Support Specification
Memory Card Spec
Version
Max. capacity
xD
MS
MS PRO
MS Duo
MS Duo -HG
SD
MMC
xD Picture Card Specification
Memory Stick Standard Format Specification
Memory Stick Pro Standard Format
Specifications
Memory Stick Duo Standard Format
Specifications
Memory Stick Duo Standard Format
Specifications
SD Memory Card Specifications
MultiMedia Card System Specification
1.2
1.43
1.02
1.10
1.01
2.0
4.2
2 GB
128 MB
32 GB
128 MB/32 GB
32 GB
32 GB
32 GB
NOTE: MSPRO : MSPRO includes MSPRO Duo and MS Micro.
NOTE: SD : SD includes HS-SD, MiniSD, and SD Micro. SD v2.0 spec includes SDHC.
NOTE: MMC : MMC includes MMCPlus, RS-MMC, MMC Mobile, and MMC micro.
NOTE: xD: xD includes TypeM and TypeH.

For best practices, follow the instructions in the list below while unpacking, cleaning, or handling your monitor:
lTo clean your antistatic screen, lightly dampen a soft, clean cloth with water. If possible, use a special screen-cleaning tissue or solution suitable for the
antistatic coating. Do not use benzene, thinner, ammonia, abrasive cleaners, or compressed air.
lUse a lightly-dampened,warmclothtocleanthemonitor.Avoidusingdetergentofanykindassomedetergentsleaveamilkyfilmonthemonitor.
lIf you notice white powder when you unpack your monitor, wipe it off with a cloth.
lHandleyourmonitorwithcareasadarker-colored monitor may scratch and show white scuff marks more than a lighter-coloredmonitor.
lTo help maintain the best image quality on your monitor, use a dynamically changing screen saver and turn off your monitor when not in use.


Back to Contents Page
WARNING: Read and follow the safety instructionsbeforecleaningthemonitor.
WARNING:Beforecleaningthemonitor,unplugthemonitorpowercablefromtheelectricaloutlet.

Back to Contents Page

Appendix
Dell™U3011FlatPanelMonitorUser'sGuide
Safety Instructions
FCC Notice (U.S. Only) and Other Regulatory Information
Contacting Dell

WARNING: Safety Instructions
For information on safety instructions, see the Product Information Guide.
FCC Notices (U.S. Only) and Other Regulatory Information
For FCC notices and other regulatory information, see the regulatory compliance website located at www.dell.com\regulatory_compliance.
Contacting Dell
For customers in the United States, call 800-WWW-DELL (800-999-3355).
Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be
available in your area. To contact Dell for sales, technical support, or customer service issues:

Back to Contents Page
WARNING: Use of controls, adjustments, or procedures other than those specified in this documentation may result in exposure to shock,
electrical hazards, and/or mechanical hazards.
NOTE:
If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog.
1.
Visit support.dell.com.
2.
Verify your country or region in the Choose A Country/Region drop-downmenuatthebottomofthepage.
3.
Click Contact Us on the left side of the page.
4.
Select the appropriate service or support link based on your need.
5.
Choose the method of contacting Dell that is convenient for you.

Back to Contents Page
Setting Up Your Monitor
Dell™U3011FlatPanelMonitor
IfyouhaveaDell™desktoporaDell™portablecomputerwithinternetaccess
1. Go to http://support.dell.com,enteryourservicetag,anddownloadthelatestdriverforyourgraphicscard.
2. After installing the drivers for your Graphics Adapter, attempt to set the resolution to 2048 x 1280 (VGA input source) / 2560 x 1600 (DVI/DisplayPort input
sources) / 1920 x 1200 (HDMI input source) again.
Back to Contents Page
NOTE: If you are unable to set the resolution to 2048 x 1280 (VGA input source) / 2560 x 1600 (DVI/DisplayPort input sources) / 1920 x 1200 (HDMI input
source),pleasecontactDell™toinquireaboutaGraphicsAdapterthatsupportstheseresolutions.
NOTE: In DVI, please use the dual-
link DVI cable shipped with your monitor for maximum preset resolution of 2560 x 1600.

Back to Contents Page
Setting Up Your Monitor
Dell™U3011FlatPanelMonitor
IfyouhaveanonDell™desktop,portablecomputer,orgraphicscard
In Windows XP:
1. Right-click on the desktop and click Properties.
2. Select the Settings tab.
3. Select Advanced.
4. Identify your graphics controller supplier from the description at the top of the window (e.g. NVIDIA, ATI, Intel etc.).
5. Refer to the graphic card provider website for updated driver (for example, http://www.ATI.com OR http://www.NVIDIA.com ).
6. After installing the drivers for your Graphics Adapter, attempt to set the resolution to 2048 x 1280 (VGA input source) / 2560 x 1600 (DVI/DisplayPort input
sources) / 1920 x 1200 (HDMI input source) again.
In Windows Vista®or Windows®7:
1. Right-click on the desktop and click Personalization.
2. Click Change Display Settings.
3. Click Advanced Settings.
4. Identify your graphics controller supplier from the description at the top of the window (e.g. NVIDIA, ATI, Intel etc.).
5. Refer to the graphic card provider website for updated driver (for example, http://www.ATI.com OR http://www.NVIDIA.com ).
6. After installing the drivers for your Graphics Adapter, attempt to set the resolution to 2048 x 1280 (VGA input source) / 2560 x 1600 (DVI/DisplayPort input
sources) / 1920 x 1200 (HDMI input source) again.
Back to Contents Page
NOTE: If you are unable to set the resolution to 2048 x 1280 (VGA input source) / 2560 x 1600 (DVI/DisplayPort input sources) / 1920 x 1200 (HDMI input
source), please contact the manufacturer of your computer or consider purchasing a graphics adapter that will support the video resolution of 2048 x 1280
(VGA input source) / 2560 x 1600 (DVI/DisplayPort input sources) / 1920 x 1200 (HDMI input source).
NOTE: In DVI, please use the dual-link DVI cable shipped with your monitor for maximum preset resolution of 2560 x 1600.


Back to Contents Page

Operating the Monitor

Dell™U3011FlatPanelMonitorUser'sGuide
Using the Front Panel Controls
Using the On-Screen Display (OSD) Menu
Setting the Maximum Resolution
Using the Dell Soundbar (Optional)
Using the Tilt, Swivel, and Vertical Extension
Using the Front Panel Controls
Use the control buttons on the front of the monitor to adjust the characteristics of the image being displayed. As you use these buttons to adjust the controls,
an OSD shows the numeric values of the characteristics as they change.
The following table describes the front panel buttons:
NOTE: 1~5 are capacitive touch sensor keys, which are activated by placing your finger on the blue LED.
Front panel Button
Description
1
Shortcut key 1 -Preset
Modes (Default)
Use this button to choose from a list of preset color modes.
2
Shortcut key 2 -
Brightness/Contrast
(Default)
Use this button to directly access the "Brightness/Contrast" menu.
3
Shortcut key 3 -Input
Source
(Default)
Use Input Source Select button to select between different video signals that may be connected to your
monitor.
lDVI-D 1
lDVI-D 2
lDisplayPort
lVGA
lHDMI 1
lHDMI 2
lComponent
4
Menu
Use the MENU button to launch the on-screen display (OSD) and select the OSD Menu. See Accessing the
Menu System.

Using the On-Screen Display (OSD) Menu

Accessing the Menu System
1. Touch the button to launch the OSD menu and display the main menu.
Main Menu for analog (VGA) Input
2.Touch the or button to move between the setting options. As you move from one icon to another, the option name is highlighted. See the
followingtableforacompletelistofalltheoptionsavailableforthemonitor.
3.Touch the buttononcetoactivatethehighlightedoption.
4.Touch the or button to select the desired parameter.
5. Touch the button to enter the slide bar and then use the and buttons, according to the indicators on the menu, to make your changes.
6.Touch the button to return to the main menu or to exit the OSD menu.
5
Exit
Exit the On-Screen Display menu.
6
Power
(withpowerlightindicator)
Use the Power button to turn the monitor on and off.
The blue LED indicates the monitor is on and fully functional. An amber LED indicates DPMS power save
mode.

NOTE: IfyouchangethesettingsandtheneitherproceedtoanothermenuorexittheOSDmenu,themonitorautomaticallysavesthosechanges.The
changes are also saved if you change the settings and then wait for the OSD menu to disappear.
NOTE: Auto Adjust is only available when you use the analog (VGA) connector.
Icon
Menu and
Submenus
Description



Brightness/Contrast
Use this menu to activate Brightness/Contrast adjustment.
Brightness
Brightness adjusts the luminance of the backlight.
Touch the button to increase brightness and touch the button to decrease brightness (min 0 ~ max 100).
Contrast
Adjust Brightness first, and then adjust Contrast only if further adjustment is necessary.
Touch the button to increase contrast and touch the button to decrease contrast (min 0 ~ max 100).
The Contrast function adjusts the degree of difference between darkness and lightness on the monitor screen.


Auto Adjust
Even though your computer recognizes your monitor on startup, the Auto Adjustment
function optimizes the display settings for use
with your particular setup.
Auto Adjustment allows the monitor to self-
adjust to the incoming video signal. After using Auto Adjustment, you can further tune
your monitor by using the Pixel Clock (Coarse) and Phase (Fine) controls under Image Settings.

NOTE: Inmostcases,AutoAdjustproducesthebestimageforyourconfiguration.Auto Adjust
option is only available when you are
using the analog (VGA) connector.
Input Source
Use the Input Source menu to select between different video signals that may be connected to your monitor.


Scan Sources
Touch the button to select the Scan Sources, the monitor will auto detect either VGA input or DVI-
D input or DislpayPort input
or HDMI input or Component video input.
DVI-D
Select DVI-D input when you are using the Digital (DVI) connector. Touch the button to select the DVI input source.
DisplayPort
Select DisplayPort input when you are using the DisplayPort (DP) connector. Touch the
button to select the DisplayPort input
source.
VGA
Select VGA input when you are using the analog (VGA) connector. Touch the button to select the VGA input source.

HDMI
Select HDMI input when you are using the HDMI connector. Touch the button to select the HDMI input source.
Component
Select Component input when you are using the Component connector. Touch the button to select the Component input
source.

Color Settings
Use the Color Settings to adjust the color setting mode and color temperature.
Color Settings submenu for Standard, Warm, Cool, Adobe RGB, sRGB, xv Mode and Custom Color modes:
Color Settings submenu for Multimedia, Game and Movie modes:

Input Color Format
Choose
the RGB option if monitor is connected to a PC or a DVD using a VGA or a DVI cable. Choose the YPbPr option if monitor is
connected to a DVD by a YPbPr cable.


Gamma
To achieve the different color mode for PC and Mac.
