Installing the Tool-Less Rail Solution
WARNING: Wheneveryou
needtoliftthe system, get others toassist you.
To avoid injury, do not attempt to liftthe system by yourself.
WARNING: The system is not fixedtothe rack ormounted onthe rails. To
avoid personal injury or damage to the system, you must adequately
support the system during installation and removal.
WARNING: Toavoida potentialelectrical shock hazard,a thirdwire safety
grounding conductor is necessary for the rack installation. The rack
equipment must provide sufficient airflow to the system to maintain proper
cooling.
CAUTION: When installing rails in a square-hole rack it is important to
ensure that the square peg slides through the square holes.

Getting Started With YourSystem | 4
1 Push on the latch release buttons on the midpoints of t he end piece t o
open the rail latches. See Figure 1.
2 Align the end pieces of the rails on the vertical rack flanges to seat
the pegs in the bottom hole of the first U and the top hole of the
second U.
NOTE: The rails can be used in both square-hole (item 1 in the following figure)
and round-hole racks (item 2 in the following figure).

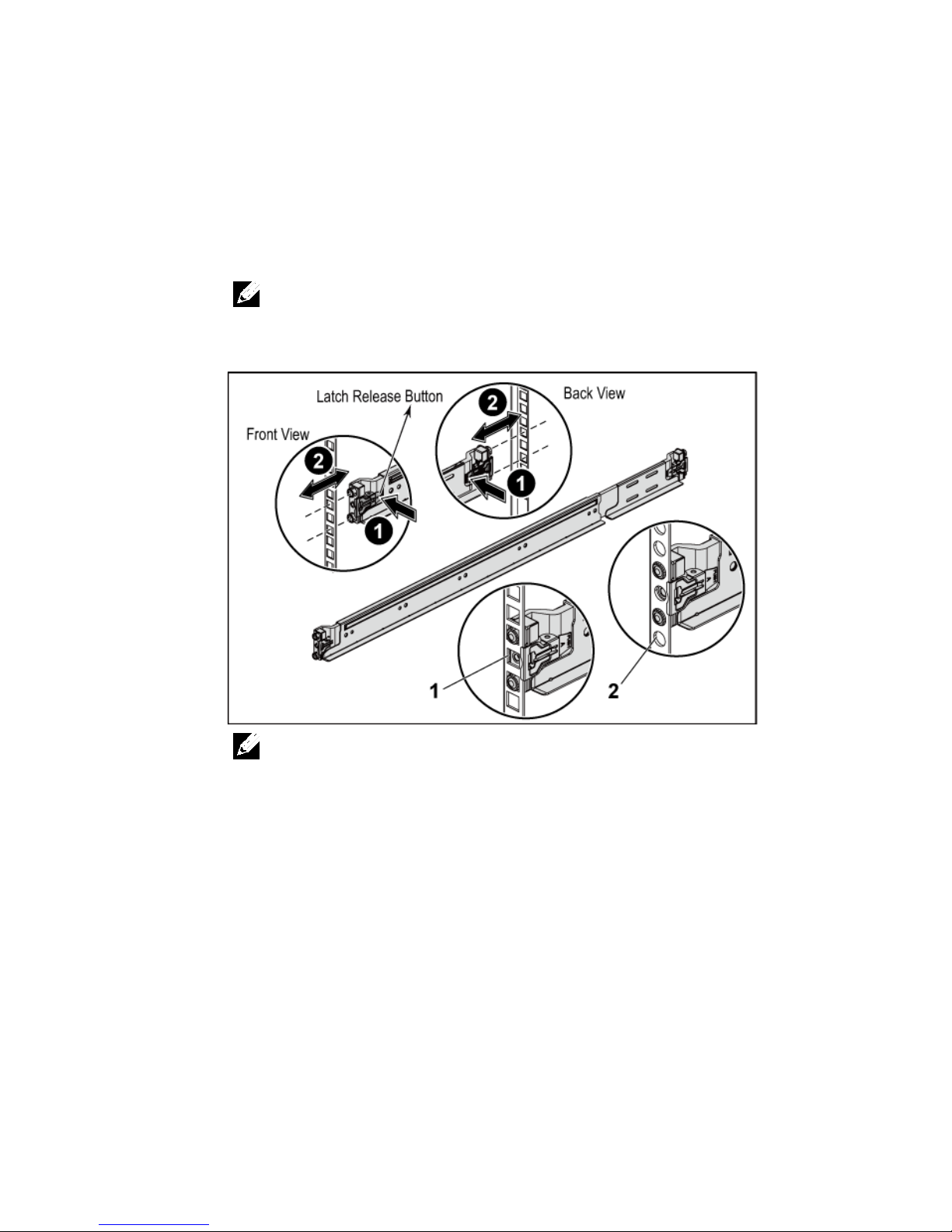

Figure 1. Pushing the Latch Release Buttons
NOTE: To remove the rails, push on the latch release button on the midpoints
of the end piece and unseat each rail.

Getting Started With YourSystem | 5
3 Engage the end of the rails and release the latch release button to
have the latches locked in place. See Figure 2.
Figure 2. Releasing the Latch Release Buttons

Getting Started With YourSystem | 6
4 On each vertical rack flange on the back, put two screw bases into
the two square holes right above the rail. See Figure 3.
5 Inst all the chassis stabilizer shipping brackets (optional) on the back
rack flanges.
6 Inst all and tight en the s crews.
NOTE: To transport systems already installed in the rack, ensure that the two
chassis stabilizer shipping brackets (optional) are in place.

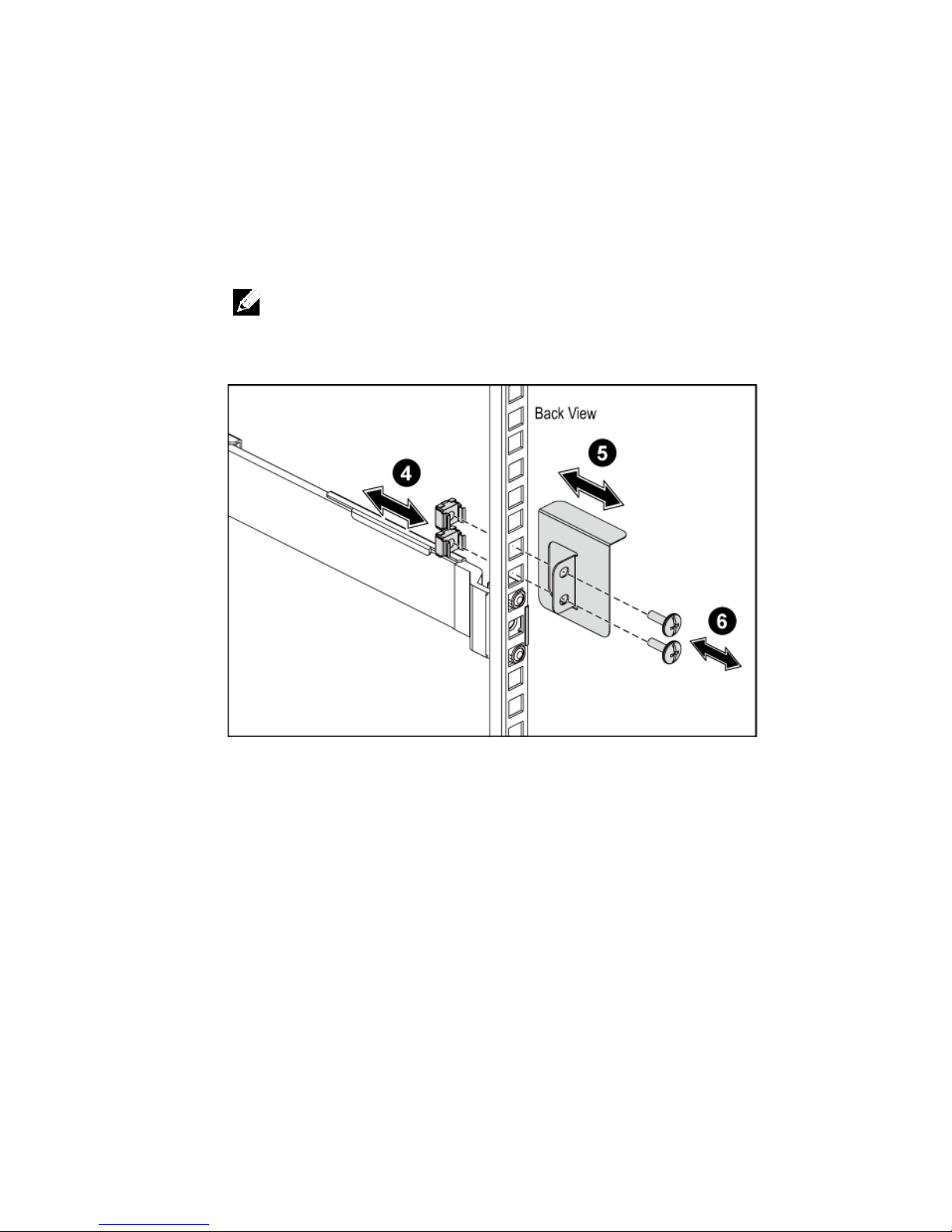

Figure 3. Installing the Chassis Stabilizer Shipping Brackets

Getting Started With YourSystem | 7
7 Slide the system into the rack. See Figure 4.
8 Tighten the thumbscrews to secure the ears of the system to the front
of t he rack flanges.
Figure 4. Installing the Chassis onto the Rack.

Getting Started With YourSystem | 8
Optional—Connecting theKeyboard,Mouse, and Monitor

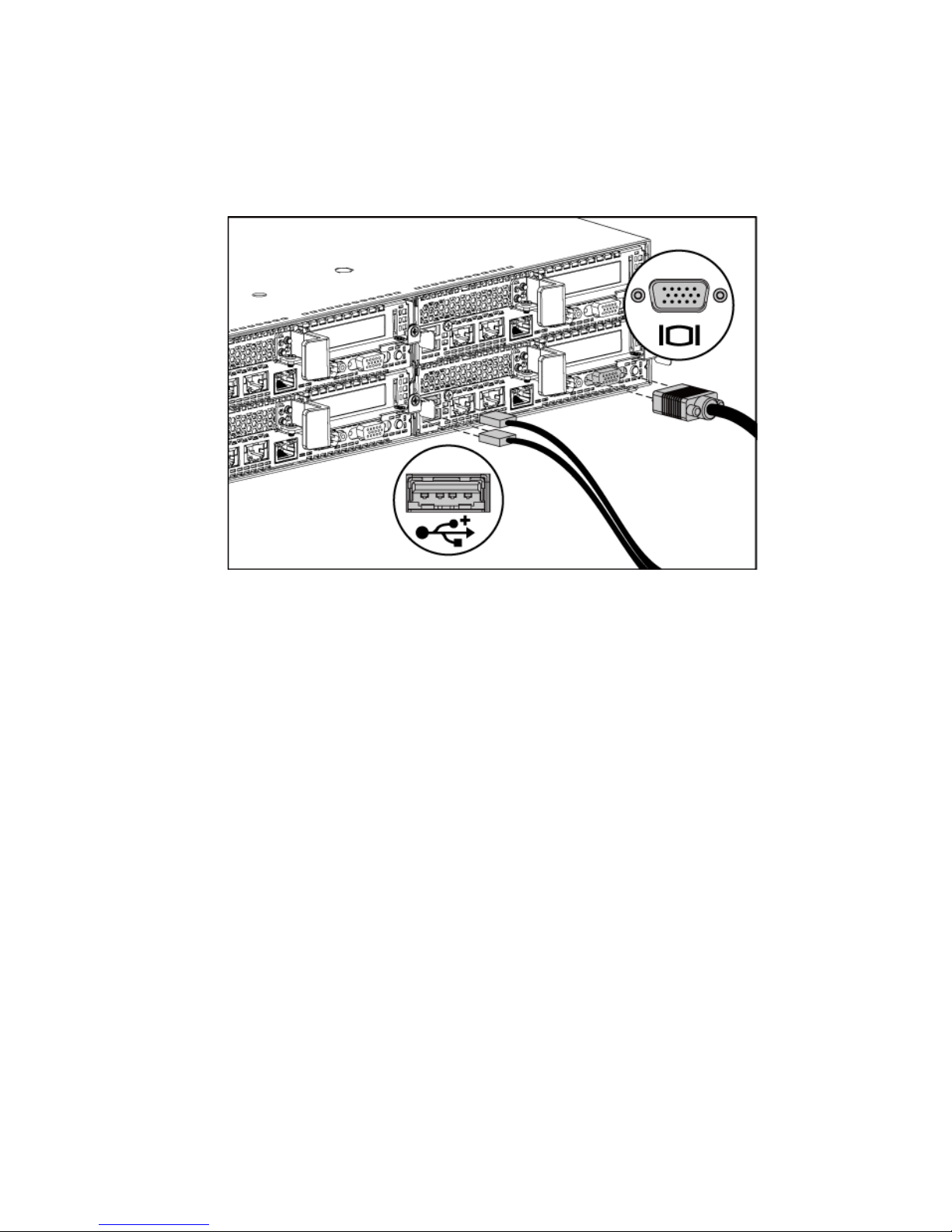

Figure 5. Optional—Connecting the Keyboard, Mouse and Monitor
Connect the keyboard, mouse, and monitor (optional).
The connectors on the back of your system have icons indicating which cable to
plug into each connector. Be sure to tight en the screws (if any) on the monitor’s
cable connector.

Getting Started With YourSystem | 9
Connecting thePower Cable(s)

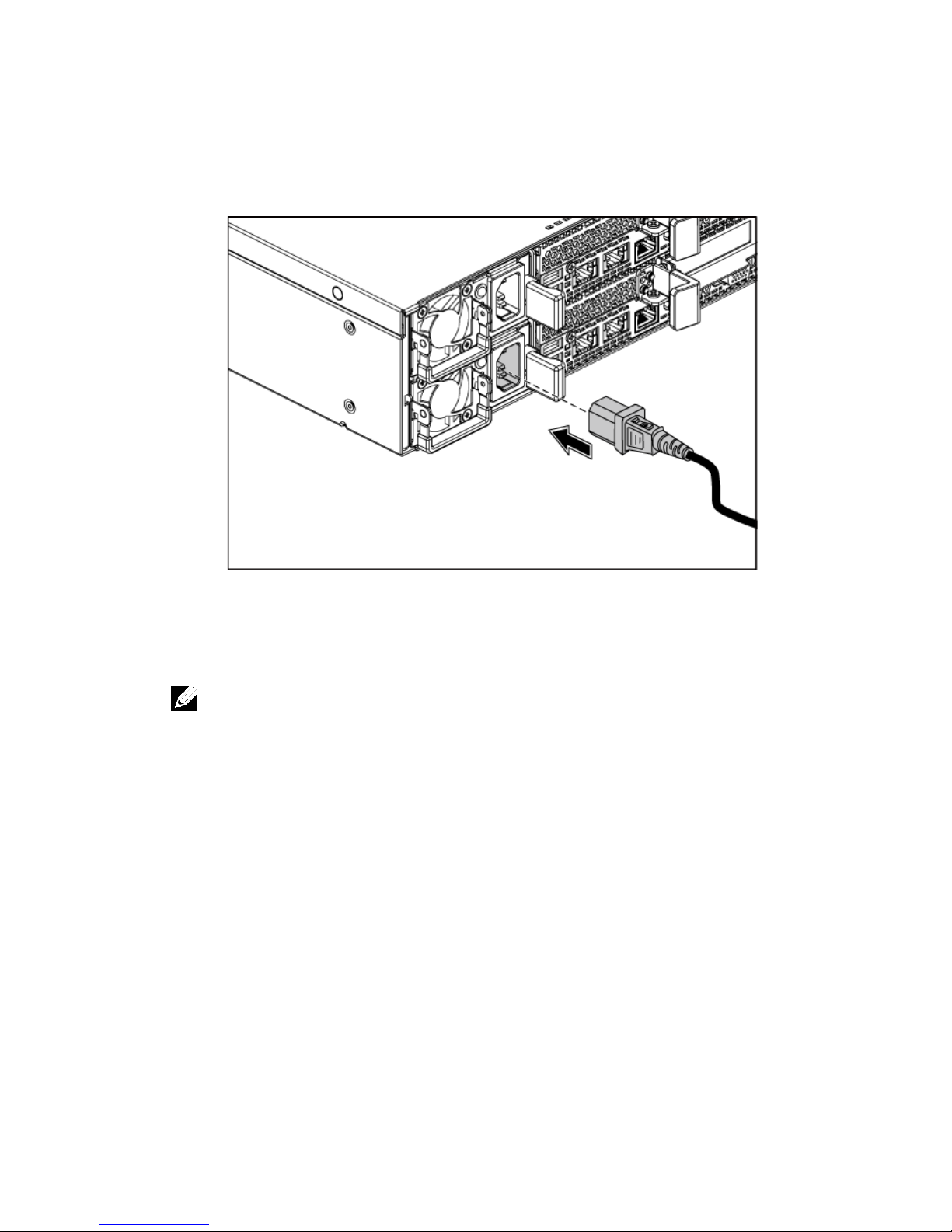

Figure 6. Connecting the Power Cable
Connect the system’s power cable(s) to the system and, if a monitor is used,
connect t he monitor’s p ower cable to t he monitor. Plug the other end of t he
power cables into a grounded electrical outlet or a separate power source such as
an uninterrupted power supply or a p ower distribution unit.
NOTE: Your system can support up to two 1200 W power supply units (100-240 VAC
nominal input voltage) or up to two 1400 W power supply units (200-240 VAC nominal
input voltage).

Getting Started With YourSystem | 10
Turning on the System

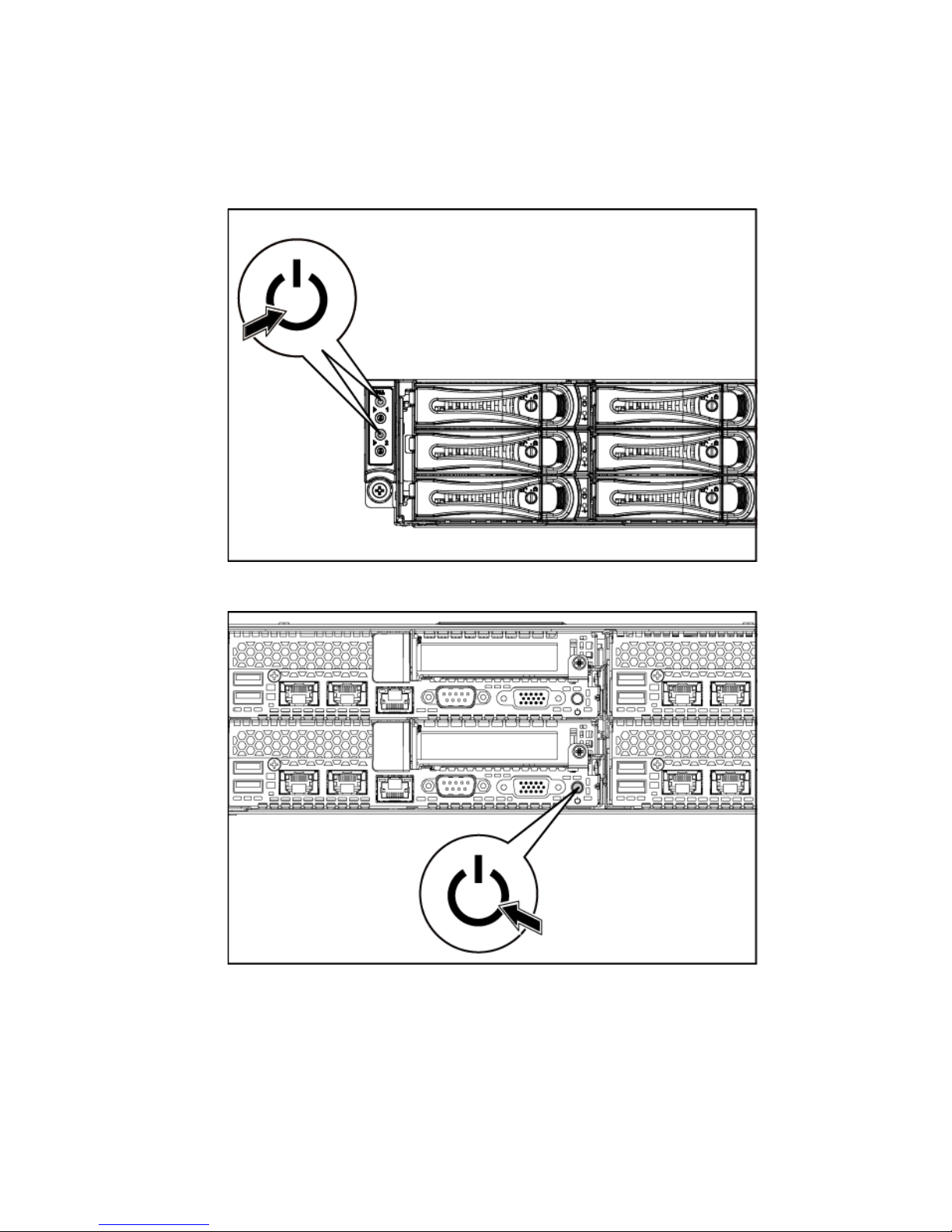

Figure 7. Pressing the Power Button on the Front of the System
Figure 8. Pressing the Power Button on the Back of the System
Press the power button(s) either on the front or b ack of the system. The power
indicat ors should light green.

Getting Started With YourSystem | 11
Complete the Operating System Setup
To install an operating system for the first time, see the installation and
configuration documentat ion for your operating system. Be sure the op erating
system is installed before installing hardware or software not purchased with the
system.
NOTE: See dell.com/ossupport for the latest information on supported
operating systems.
Other Information You May Need
WARNING: See the safety and regulatory information that shipped with your
system. Warranty information may be included withinthis document or as a
separate document.
The Hardware Owner’s Manual provides information about system features and
describes how to troubleshoot the system and install or replace system
components. This document is available at dell.com/support/manuals.
Dell systems management application documentation provides information
about installing and using the systems management software. This document is
available online at dell.com/support/manuals.
NOTE: Always check for updates on dell.com/support/manuals and read the
updates first because they often supersede information in other documents.
NOM Information (Mexico Only)
The following information is provided on the device described in this document
in compliance with the requirements of the official M exican st andards (NOM ):
Import er Dell Inc. de M éxico, S.A. de C.V.
Paseo de la Reforma 2620-11° Piso
Col. Lomas Atlas
11950 M éxico, D.F.
Model number B08S

Getting Started With YourSystem | 12
Supply voltage 100-240 V AC w ith 1200 W Power
Supply Unit
200-240 V AC w ith 1400 W Power
Supply Unit
Frequency 50/60 Hz
Current consumption 12-8 Amps w ith 1200 W Power Supply
Unit
9 Amps with 1400 W Power Supply
Unit
Technical Specifications
Power
NOTE: The system doesn’t support a mixed installation of 1200 W and 1400 W power supply
units.
NOTE: Both the 1200 W and 1400 W PSUs are hot swappable, and they can support hot swap in
any condition if the system has the power throttling feature.
AC power supply (per power supply)
Wattage
1200 W
Voltage 100-240 VAC, 50/60 Hz, maximum input
current: 12.0-8.0 A mp s
NOTE: For 1200 W power supply, output 1200 W isfor
high line (input 200-240 VAC), output 1023 W is for low
line (input 100-120 VAC).
Heat dissipation
4016.251 BTU/hr maximum
Maximum inrush current Initial In-rush Current cannot exceed 55
Amps (p eak). Secondary In-rush Current
cannot exceed 35 Amps (peak).
Wattage
1400 W
Voltage 200-240 VAC, 50-60 Hz, maximum input
current: 9.0 Amps
Heat dissipation
6024.376 BTU/hr maximum.
Maximum in-rush current Initial In-rush Current cannot exceed 55
Amps (p eak). Secondary In-rush Current
cannot exceed 25 Amps (peak).

Getting Started With YourSystem | 13
Battery (per system board)
System battery
CR 2032 3.0-V lithium ion coin cell
Physical
Height
8.68 cm (3.42 in)
Width
44.8 cm (17.6 in)
Depth
79.0 cm (31.1 in)
Weight (maximum
configuration)
41 kg (90.38 lb) (with 12*3.5” HDD)
39 kg (86.00 lb) (with 24*2.5” HDD)
Weight (empty) 15.7 kg (34.61 lb) (with 2.5” HDD bay)
15.1 kg (33.29 lb) (with 3.5” HDD bay)
Environmental
NOTE: For additional information about environmental measurements for specific system
configurations, see www.dell.com/environmental_datasheets.
Temperature
Operat ing 10° to 35°C (50° to 95°F) with a maximum
temperature gradation of 10°C p er hour
NOTE: For altitudes above 2950 feet, the maximum
operating temperature is derated 1°F/550 ft.
CAUTION: The maximum number of memory modules
and hard drives supported on 1U and 2U node
configurations, with 130W (4 and 8 core) and 135W
processors, depends on the power supply installed.
St orage –40° t o 65°C (–40° t o 149°F) wit h a
maximum temperature gradation of 20°C p er
hour
Relative humidity
Operat ing 20% t o 80% (noncondensing) with a maximum
humidity gradation of 10% per hour
St orage
5% to 95% (noncondensing)
Maximum vibration
Operat ing
0.26 Grms at 5–350 Hz
St orage 1.88 Grms at 10–500 Hz for 15 min

Getting Started With YourSystem | 14
Maximum shock
Operat ing One shock pulse in the positive z axis
(one pulse on each side of the system) of 31 G
for 2.6 ms in the operational orient ation
St orage Six consecutively executed shock pulses in the
positive and negative x, y, and z axes
(one pulse on each side of the syst em) of 71 G
for up to 2 ms;
Six consecutively executed shock pulses in the
positive and negative x, y, and z axes
(one pulse on each side of the syst em) of 27 G
faired square wave pulse with velocity change
at 235 inches/second (597 centimeters/second)
Altitude
Operat ing
-15.2 to 3,048 m (-50 t o 10,000 ft.)
St orage
-15.2 to 10,668 m (-50 to 35,000 ft.)
Airborne Contaminant Level
Clas s
G1 as defined by ISA-S71.04-1985

Dell PowerEdge
C6220 II
Mise en route
du système

Remarques, précautions et
avertissements
REMARQUE : une REMARQUE indique des informations importantes qui vous
aident à mieux utiliser votre ordinateur.
PRÉCAUTION : une PRÉCAUTION indique un risque d'endommagement du
matériel oude perte de données si les instructions ne sont pas respectées.
AVERTISSEMENT : un AVERTISSEMENT indique un risque
d'endommagement du matériel, de blessure corporelle ou de mort.
______________
Les informations que contient ce document sontsujettes à modification sans préavis.
© 2013 Dell Inc. Tous droits réservés.
La reproduction de ce document , sous quelque forme que ce soit, sans le consentement
écrit de Dell Inc. est strictement interdite.
Marques ut ilisées dans ce document : Dell™, le logo Dell et PowerEdge™ sont des
marques de Dell Inc. Int el® et Intel® Xeon® sont des marques déposées d'Intel
Corporation aux États-Unis et dans d'autres pay s. Red Hat Enterp rise Linux ® et Ent erp rise
Linux® sont des marques déposées de Red Hat, Inc. aux États-Unis et /ou dans d'aut res
pays. Novell® est une marque déposée et SUSE™ est une marque de Novell Inc. aux
États-Unis et dans d'autres pays. Citrix® et XenServer® sont des marques déposées ou
des marques de Citrix Syst ems, Inc. aux Ét at s-Unis et/ou dans d'autres pays. VMware®
est une marque déposée ou une marque de VMWare, Inc. aux États-Unis ou dans
d'autres pays.
D'autres marques et noms commerciaux peuvent être ut ilisés dans ce document pour faire
référence aux entités se réclamant de ces marques ou noms ou à leurs produits. Dell Inc.
rejette tout intérêt propriétaire dans les marques et les noms commerciaux autres que
les siens.
Modèle réglement aire B08S
Mai 2013 N/P 1PFTR Rév. A00

Mise enroutedusystème | 17
PRÉCAUTION : emplacement à accès restreint
Ce serveur est conçu pour être installé uniquement à des emplacement à accès
restreint tels que définis dans la norme Cl. 1.2.7.3 of IEC 60950-1: 2001 où les
deux conditions suivantes s'appliquent :
•Seuls peuvent accéder à ce serveur les utilisateurs ou le personnel
d'ent ret ien qui ont reçu des instructions quant aux raisons pour lesquelles
les restrictions concernant l'emplacement s'appliquent et pour lesquelles
toutes les précautions doivent être prises.
•L'accès se fait grâce à un outil ou un verrou et une clé ou d'autres moyens
de sécurité et est contrôlé par l'autorité en charge de l'emplacement.
Installation et configuration
AVERTISSEMENT: avant d'effectuerla procédure suivante,consultezet
respectezles consignes de sécurité quiaccompagnent le système.
Installation sans outils de la solution rails
AVERTISSEMENT : demandez toujours de l'aide pour soulever le système. Pour éviter de vous blesser, ne tentez pas de soulever le système
tout seul.
AVERTISSEMENT: le système n'est pas fixé au rack ni monté sur les rails.
Pouréviter de vous blesserou d'endommagerle système,assurez-vous
qu'il dispose de support au cours de son installation et de son retrait.
AVERTISSEMENT : pour réduire les risques de blessures corporelles
provoquées par d'éventuels chocs électriques,ajoutez untroisième
conducteur de mise à la masse de sécurité lors de l'installation du rack.
La ventilation fournie par l'équipement de rack doit être suffisante pour
assurerle refroidissement dusystème.
PRÉCAUTION : lors de l'installation de rails dans unrack à trous carrés,
il
importe de s'assurerque les ergots s'emboîtent dans les trous carrés
.

Mise enroutedusystème | 18
1 Poussez sur les boutons de dégagement du loquet au milieu de la
pièce d'ext rémité p our ouvrir les loquets du rail. Voir Figure 1.
2 Alignez les pièces d'extrémité des rails sur les collerettes vert icales
du rack pour inst aller les ergots dans le trou du bas du premier U
et le trou du haut du deuxième U.
REMARQUE : les rails peuvent s'utiliser tant dans les racks à trous carrés
(élément 1 dans la figure suivante) que dans les racks à trous ronds (élément 2
dans la figure suivante).
Figure 1. Appui surles boutons d'ouverture desloquets
REMARQUE : pour retirer les rails, poussez sur le bouton d'ouverture du
loquet au milieu de la pièce d'extrémité et dégagez chaque rail.
